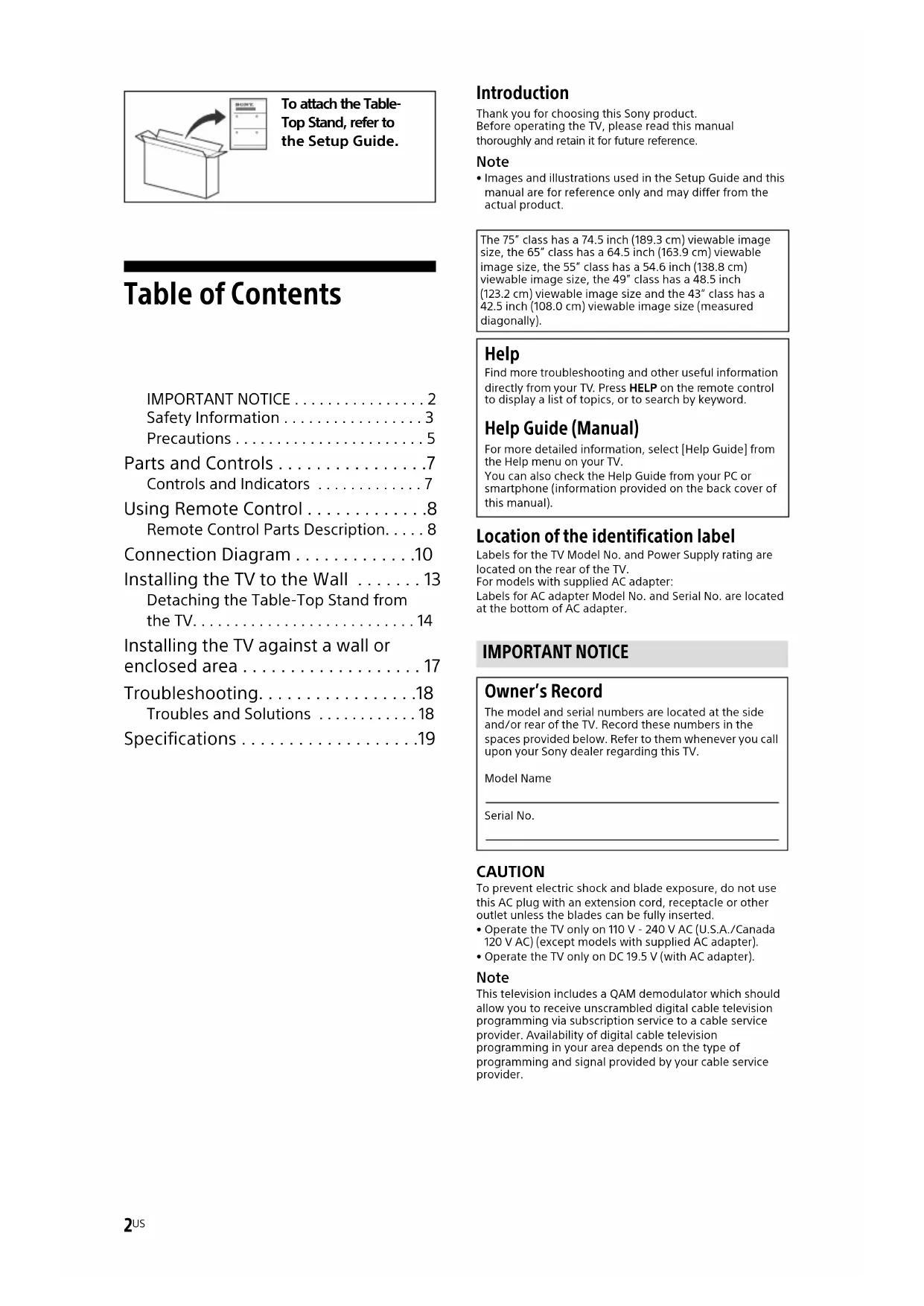

USER MANUAL Bravia XBR43X800G SONY

• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product. Location of the identification label Labels for the TV Model No. and Power Supply rating are located on the rear of the TV.For models with supplied AC adapter:Labels for AC adapter Model No. and Serial No. are located at the bottom of AC adapter. CAUTION To prevent electric shock and blade exposure, do not use this AC plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted. • Operate the TV only on 110 V - 240 V AC (U.S.A./Canada 120 V AC) (except models with supplied AC adapter).• Operate the TV only on DC 19.5 V (with AC adapter). Note This television includes a QAM demodulator which should allow you to receive unscrambled digital cable television programming via subscription service to a cable service provider. Availability of digital cable television programming in your area depends on the type of programming and signal provided by your cable service provider. To attach the Table- Top Stand, refer to the Setup Guide. The 75” class has a 74.5 inch (189.3 cm) viewable image size, the 65” class has a 64.5 inch (163.9 cm) viewable image size, the 55” class has a 54.6 inch (138.8 cm) viewable image size, the 49” class has a 48.5 inch (123.2 cm) viewable image size and the 43” class has a 42.5 inch (108.0 cm) viewable image size (measured diagonally). Help Find more troubleshooting and other useful information directly from your TV. Press HELP on the remote control to display a list of topics, or to search by keyword. Help Guide (Manual) For more detailed information, select [Help Guide] from the Help menu on your TV. You can also check the Help Guide from your PC or smartphone (information provided on the back cover of this manual). IMPORTANT NOTICE Owner’s Record The model and serial numbers are located at the side and/or rear of the TV. Record these numbers in the spaces provided below. Refer to them whenever you call upon your Sony dealer regarding this TV.Model NameSerial No.3

FCC Related Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help. Safety and Regulatory This device complies with Industry Canada’s licence- exempt RSSs. Operation is subject to the following two conditions: (1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device. To prevent radio interference to the licensed service, this device is intended to be operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed outdoors is subject to licensing. 5 GHz bands are restricted to indoor operations only. This equipment complies with FCC/IC radiation exposure limits set forth for an uncontrolled environment and meets the FCC radio frequency (RF) Exposure Guidelines and RSS-102 of the IC radio frequency (RF) Exposure rules. This equipment should be installed and operated keeping the radiator at least 20 cm or more away from person’s body (excluding extremities: hands, wrists, feet and ankles). This device and its antenna(s) must not be co-located or operating with any other antenna or transmitter except Grant condition. High-power radars are allocated as primary users (i.e. priority users) of the bands 5250-5350 MHz and 5650- 5850 MHz and that these radars could cause interference and/or damage to LE-LAN devices. WARNING Stability Hazard The television set may fall, causing serious personal injury or death. Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the television set.

• Only using furniture that can safely support the television set.

• Ensuring the television set is not overhanging the edge of the supporting furniture.

• Not placing the television set on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the television set to a suitable support.

• Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture.

• Educating children about the dangers of climbing on furniture to reach the television set or its controls. If your existing television set is being retained and relocated, the same considerations as above should be applied. NOTE ON AC ADAPTER (models with supplied AC adapter only) Warning To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. To prevent fire or shock hazard, do not place objects filled with liquids, such as vases, on the apparatus. Do not install this equipment in a confined space, such as a bookshelf or similar unit.

• Please ensure that the AC power outlet is installed near the equipment and shall be easily accessible.

• Be sure to use the supplied AC adapter and AC power cord. Otherwise it may cause a malfunction.

• Connect the AC adapter to an easily accessible AC power outlet.

• Do not coil the AC power cord around the AC adapter. The core wire may be cut and/or it may cause a malfunction of the TV.

• Do not touch the AC adapter with wet hands.

• If you notice an abnormality in the AC adapter, disconnect it from the AC power outlet immediately.

• The set is not disconnected from the AC source as long as it is connected to the AC power outlet, even if the set itself has been turned off.

• As the AC adapter will become warm when it is used for a long time, you may feel hot when touching it by hand. Before setting up your TV Some TV models are packaged with a detached Table-Top Stand so you can mount your TV to a wall right away. See page 13 (Installing the TV to the Wall) if you want to mount the TV to a wall. If you are not mounting the TV to a wall, you will need to attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and the supplied screws to complete the task, refer to the Setup Guide. Be sure to consider the following while setting up your TV:

• Disconnect all cables when carrying the TV.

• Carry the TV with the adequate number of people; larger size TVs require two or more people. Safety Information Supplier’s Declaration of Conformity Trade Name: SONY Model: XBR-75X800G / XBR-65X800G / XBR-55X800G /

XBR-49X800G / XBR-43X800G

Responsible Party: Sony Electronics Inc. Address: 16535 Via Esprillo, San Diego, CA 92127 U.S.A. Telephone Number: 858-942-2230 Pursuant to FCC regulations, you are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment.4

• Correct hand placement while carrying the TV is very important for safety and to avoid damage.

• Ens ure your TV has adequate ventilation, see page 17.

• For best picture quality, do not expose the screen to direct illumination or sunlight.

• Avoid installing the TV in a room with reflective wall and floor materials.

• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may cause moisture condensation. This may cause the TV to show poor picture and/or poor color. Should this occur, allow moisture to evaporate completely before powering the TV on. Securing the TV Sony strongly recommends taking measures to prevent the TV from toppling over. Unsecured TVs may topple and result in property damage, serious bodily injury or even death. Preventing the TV from Toppling

• Secure the TV to a wall and/or Stand.

• Do not allow children to play or climb on furniture and TV sets.

• Avoid placing or hanging items on the TV.

• Never install the TV on: slippery, unstable and/or uneven surfaces. furniture that can easily be used as steps, such as a chest of drawers.

• Install the TV where it cannot be pulled, pushed, or knocked over.

• Install the TV so that the TV’s Table-Top Stand does not protrude out from the Stand (not supplied). If the Table- Top Stand protrudes out from the Stand, it may cause TV set to topple over, fall down, and cause personal injury or damage to the TV.

• Route all AC power cords and connecting cables so that they are not accessible to curious children. Recommended Measures to Secure the

Consider the following measures when securing your TV to a Stand (not supplied). 1 Secure the Stand for the TV. Make sure the Stand can adequately support the weight of the TV. Use two angle braces (not supplied) to secure the Stand. For each angle brace use the appropriate hardware to:

• Attach one side of the angle brace to the wall stud.

• Attach the other side to the Stand. 2 Secure the TV to the Stand. Use the optional hardware listed as follows (not supplied):

• M6 machine screws (screwed into the TV’s rear cover).

• A screw or similar (attach it to the Stand).

• Rope or chain (strong enough to support the weight of the TV). Make sure that there is no excess slack in the rope or chain. The length of the M6 machine screw differs depending on the rope or chain diameter. Please refer to below illustration. Angle brace (not supplied) Stand

Screw hole on the rear cover M6 machine screw (not supplied) Rope or chain (not supplied) Screw (not supplied)

3 Anchor the TV to the wall by using bolts, wall anchor and chain (or rope). Please see below illustration for M6 eye bolt length. Note

• Your TV is shipped with screws attached to the rear of the TV depending on the TV model. (They are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior to anchoring the TV to a wall.

• Securing the TV to the Stand without securing the TV and the Stand to the wall provides minimum protection against the TV toppling over. For further protection, be sure to follow the three measures recommended. How to care for your BRAVIA TV Safety is very important. Please read and follow the safety documentation (Safety Booklet) separately provided. Unplug the TV and other connected equipment from the wall outlet before you begin cleaning your TV.

• Wipe the LCD screen gently with a soft cloth.

• Stubborn stains may be removed with a cloth slightly moistened with a solution of mild soap and warm water.

• If using a chemically pretreated cloth, please follow the instruction provided on the package.

• Never spray water or detergent directly on the TV set. It may drip to the bottom of the screen or exterior parts and enter the TV set, and may cause damage to the TV set.

• Never use strong solvents such as a thinner, alcohol or benzine for cleaning.

• Do not plug in the TV into the wall outlet until the moisture from cleaning has evaporated. The TV should also be placed on a stable surface to prevent it from toppling over (see page 4). If you have young children or pets at home, check regularly to ensure the TV is securely fastened. M6 eye bolts (not supplied) Wall-mount holes Rope or chain (not supplied) Wall-anchor (not supplied) 8 mm - 12 mm M6 eye bolt TV’s rear cover Precautions6

• For details of supported formats, refer to the “Specifications” in this manual.

• For supported PC formats refer to the Help Guide. The BRAVIA® 4K TV Experience Thank you for choosing Sony! Your new BRAVIA® TV opens the door to the “4K TV Experience”. This document will help you get the most out of your TV. Please take a moment to register your TV at: U.S.A.: http://productregistration.sony.com Canada: http://www.sony.ca/registration Four Steps to a 4K TV Experience Set, Source, Sound, and Setup. 1 Set Now that you have made the best selection in LED backlit LCD TV technology, be sure to remove all of the accessories from the packaging before setting up your TV. 2 Source To experience the stunning detail of your BRAVIA TV, you need access to HD programming.

• Upgrade your signal or content source to high-definition (4K) by contacting your HD service provider.

• Bring the astonishing resolution of your Sony 4K Ultra HD TV to life with Sony 4K Ultra HD Blu-ray Player. (The availability depends on region)

• Receive over-the-air HD broadcasts with an HD-quality antenna connected directly to the back of your TV. Visit http://www.antennaweb.org for more information on antenna selection and setup.

• Discover the wealth of entertainment now available on super-high resolution Blu-ray Disc™ player and other Sony HD equipment. 3 Sound Complete the high-definition experience with a BRAVIA Sync™ surround sound system or A/V receiver from Sony. 4 Setup Install your TV and connect your sources. See page 10 for sample connection diagrams. To help assure the highest quality for your HD experience, use Premium High Speed HDMI (High-Definition Multimedia Interface) cables. To learn more about 4K TV, visit: U.S.A.: http://www.sony.com/HDTV Canada: http://www.sony.ca/hdtv This TV displays all video input signals in a resolution of 3,840 dots × 2,160 lines.7

(Power) /+/- When the TV is off, Press to power on. When the TV is on, Press and hold to power off. Press repeatedly to change the function, then press + or – button to:

• Select the input source of TV. Remote Control sensor* / Light sensor* / Illumination LED The illumination LED lights up or blinks according to the status of the TV. For more information, refer to the Help Guide.
• Do not place anything near the sensor. Controls and Indicators

Using Remote Control INPUT Display and select the input source. (TV standby) Turn on or turn off the TV (standby mode). SYNC MENU Display the BRAVIA Sync Menu. Number buttons Use with the 0-9 buttons to select digital channels. DISPLAY Display information about the channel/ program/input you are viewing. Google Play Access the “Google Play” online service. NETFLIX (Only on limited region/ country/TV model) Access the “NETFLIX” online service. Color buttons Execute corresponding function at that time. Remote Control Parts Description The remote control shape, location, availability and function of remote control buttons may vary depending on your region/country/TV model.

MIC *1 Only on limited region/country/language*2 The Google Assistant or voice search requires an Internet connection. (The Google Assistant) / (Microphone) Use the Google Assistant*

. (e.g., Search various content by voice.) STB MENU Display the connected Set Top Box (cable/satellite box) menu after connecting and setting up the IR Blaster (page 12). //// (Navigation D-Pad) On screen menu navigation and selection.

ACTION MENU Display a list of contextual functions. GUIDE Display the digital program guide, or EPG of Set Top Box (cable/satellite box) after setting [IR Blaster setup]. APPS Access various services and applications. BACK Return to the previous screen. HOME Display the TV Home Menu. VOL +/– (Volume) Adjust the volume. JUMP Jump back and forth between two channels or inputs. The TV alternates between the current channel or input and the last channel or input that was selected. MUTING Mute the sound. Press again to restore the sound. CH +/– (Channel) Select the channel. AUDIO Select the sound of multilingual source or dual sound for the program currently being viewed (depend on program source).

Operate media contents on the TV and connected BRAVIA Sync-compatible device. SUBTITLE/CC Turn subtitles on or off (when the feature is available). HELP Display the Help menu. Help Guide can be accessed from here. WIDE Change the screen format. PIC OFF Turn the picture off, while sound remains on. Guidelines for IR Remote Control

• Point your remote control directly at the IR sensor located on your TV.

• Make sure that no objects are blocking the path between the remote control and the IR sensor on your TV.

• Fluorescent lamps can interfere with your remote control; try turning off the fluorescent lamps.

• If you are having problems with the remote control, reinsert or replace your batteries and make sure that they are correctly inserted.10

Connection Diagram For more information on connections, refer to the Help Guide by pressing HELP on the remote control. Note

• When connecting the cable to the Cable/Antenna input, finger tighten only, over tightening the connection can damage the TV.

Headphone/ Audio System/ Subwoofer Digital still camera/ Camcorder/USB storage media Audio System with ARC/HDMI Device Cable/Antenna Audio System with Optical Audio Input DVD player with component/ Video output HDMI Device Router HDMI Device VCR/Video game equipment/ DVD player/Camcorder IR BlasterHome Controller < 7 mm Home Controller < 1.5 mm11

Headphone/ Audio System/ Subwoofer Digital still camera/ Camcorder/USB storage media Audio System with ARC/HDMI Device Cable/Antenna Audio System with Optical Audio Input HDMI Device Router HDMI Device VCR/Video game equipment/ DVD player/Camcorder IR BlasterHome Controller < 7 mm (supplied with the TV) DVD player with component/ Video output Home Controller < 1.5 mm12

• To listen to the TV’s sound through the connected equipment, press HOME. Select [Settings] [Sound] [Headphone/Audio out] and then select the desired item. HDMI IN 1/2/3/4

• HDMI interface can transfer the digital video and audio on a single cable.

• HDMI IN 2/3 To enjoy high quality 4K 60p contents, connect a Premium High Speed HDMI cable to the HDMI IN 2/3 and set the [HDMI signal format] to [Enhanced format]. For details of supported formats, refer to the “Specifications” in this manual (page 19-21).

• HDMI IN 3 ARC (Audio Return Channel) Connect your audio system to the HDMI IN 3 to route TV audio to your audio system. An audio system that supports HDMI ARC can send video to the TV, and receive audio from the TV via the same HDMI cable. If your audio system does not support HDMI ARC, an additional connection with DIGITAL AUDIO OUT (OPTICAL) is necessary. USB 1/2, USB 3

• Connecting a large USB device may interfere with other connected devices beside it.

• When connecting a large USB device, connect to the USB 1 port.

• These jacks are for receiving the external control signal. Enables extended control of the TV using RS-232C via the RS-232C and IR IN jacks. RS-232C: connect to the RS-232C terminal of the home controller. IR IN: connect to the IR out terminal of the home controller.

• Take care to not connect to headphones or an external audio system. IR BLASTER

• Use your Sony remote control to control your Set Top Box (cable/ satellite box). Connect the IR Blaster Cable (supplied) to the IR Blaster port on your TV. Place one or both of the other two ends as shown below.

• To perform IR Blaster setup, press HOME and select [Settings] [External inputs] [IR Blaster setup]. *1 When connecting mono equipment, connect to the L (MONO) audio jack (socket). *2 Terminals and labels may vary depending on country/region/TV model. *3 For Composite connection, do not plug in Mini Plug Component Adapter. < 21 mm < 12 mm

Installing the TV to the Wall This TV’s instruction manual only provides the steps to prepare the TV for Wall-Mount installation before it is installed on the wall. Your TV can be mounted to a wall using a suitable Wall-Mount Bracket (not supplied). If the Table-Top Stand is attached to the TV, the TV may require detaching the Table-Top Stand; see page 14 (Detaching the Table-Top Stand from the TV). Prepare the TV for the Wall-Mount Bracket before making cable connections. For product protection and safety reasons, Sony strongly recommends that installation of your TV on the wall be performed by qualified professionals. Do not attempt to install it yourself.

• Follow the instruction guide provided with the Wall-Mount Bracket for your model. Sufficient expertise is required in installing this TV, especially to determine the strength of the wall for withstanding the TV’s weight.

• The screws for Wall-Mount Bracket are not supplied.

• The length of the screw for Wall-Mount Bracket differs depending on the Wall-Mount Bracket thickness. Please see below illustration.

• Refer to the following table for wall-mount hole pattern.

• Be sure to store the unused screws and Table-Top Stand in a safe place until you are ready to attach the Table-Top Stand. Keep the screws away from small children. Note

• Read the supplied Safety Booklet for additional safety information.

• For more detailed information, visit Sony Customer Support website. Model Name Wall-mount hole pattern

XBR-49/43X800G only 1 To detach the Table-Top Stand from the TV, remove the screws. Note

• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the TV.• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV with the LCD panel facing down.
• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV.
• Place the TV with its screen facing down on a level and stable surface covered with a thick and soft cloth when removing the Table-Top Stand from the TV to prevent damaging the surface of the LCD display. 2 Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied). Note
• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}. Detaching the Table-Top Stand from the TV Screw (not supplied) Wall-Mount Bracket (not supplied)15

XBR-55X800G only 1 Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied). Note

• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}. 2 Detaching the Table-Top Stand from the TV. To detach the Table-Top Stand from the TV, remove the screws. Note
• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the TV.• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV with the LCD panel facing down.
• When attaching the Table-Top Stand again, be sure to fasten the screws (previously removed) to the original holes on the rear of the TV. Screw (not supplied)Wall-Mount Bracket (not supplied)16

XBR-75/65X800G only 1 Attach the Wall-Mount Bracket (not supplied) using the screws (not supplied). 2 Remove one side of the Table-Top Stand at a time. Firmly hold the Table-Top Stand securely with both hands while the other people lift up the TV. 3 Repeat the previous step and remove the other side of the Table-Top Stand. Note

• Three or more people are required to detach the Table-Top Stand.
• Be careful not to use excessive force while detaching the Table-Top Stand from the TV as it may cause the TV set to fall resulting in personal injury or physical damage to the TV.• Take care when handling the Table-Top Stand to prevent damage to the TV.• Be careful when lifting the TV as the Table-Top Stand is detached, the Table-Top Stand may topple over and cause personal injury.
• Take care when removing the Table-Top Stand from the TV to prevent it from falling over and damaging the surface that the TV is sitting on.
• Do not remove the Table-Top Stand for any reason other than to install corresponding accessories on the TV.• Be sure the TV is vertical before turning on. To avoid uneven picture uniformity do not power on the TV with the LCD panel facing down. Screw (not supplied) Wall-Mount Bracket (not supplied)17

Installing the TV against a wall or enclosed area Ventilation

• Never cover the ventilation holes or insert anything into the cabinet.

• Leave space around the TV set as shown below. Note

• Inadequate ventilation can lead to overheating of the TV and may cause damage to your TV or cause a fire. Leave at least this much space around the set. Installed with stand 4 inches

inches(10 cm) (10 cm)(6 cm) Installed on the wall Leave at least this much space around the set. 4 inches4 inches (10 cm)4 inches

inches(30 cm)(10 cm) (10 cm) Never install the TV set as follows: Air circulation is blocked. Air circulation is blocked. Wall Wall18

Troubleshooting General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps. 1 Restart your TV by pressing the power button on the remote control until a message appears. The TV will restart. If the TV does not recover, try unplugging the AC power cord. Then press the power button on the TV and wait for two minutes, and plug in the AC power cord. 2 Refer to the Help menu by pressing HELP on the remote control. 3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements. 4 Visit Sony support website (information provided on the front cover of this manual). 5 Perform the factory data reset. Refer to “How to reset the TV to factory settings” (page 18). When [A new TV system software update is available...] message is displayed. Sony strongly recommends you to update the TV software by selecting [Update Now]. These software updates improve your TV performance or add new features. The following screen with [Updating…] will appear and the illumination LED flashes white while software is updating. Do not unplug the AC power cord during the software update. If you do, the software update may not finish completely, and it may cause a software malfunction. Software updates can take up to 15 minutes. When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV. It takes time to initialize the system. Wait for about one minute, then operate it again. How to reset the TV to factory settings

WARNING: The reset will clear all of your

customized settings including the parental lock setting. Turn on the TV. You can reset the TV to factory settings by pressing HOME, then select [Settings] [Storage & reset] [Factory data reset]. To force factory data reset, unplug the AC power cord. Press and hold both and – buttons on the TV, then plug in the AC power cord. Release both buttons when the illumination LED blinks in green. For security purposes, be sure to remove all personal and account information before discarding, selling or passing your TV to someone else by: unlinking/unregistering, signing out of and deactivating all network services as well as factory reset the TV. Troubles and Solutions When the illumination LED is flashing in red. Count how many times it flashes (interval time is three seconds). Reboot the TV by disconnecting the AC power cord from the TV until the illumination LED stopped flashing in red, then turn on the TV. If the problem persists, disconnect the AC power cord, and contact Sony Customer Support (information provided on the front cover of this manual) with the number of times the illumination LED flashes. There is no picture (screen is dark) and no sound. Check the cable/antenna connection. Connect the TV to the AC power, and press the power button on the TV or the remote control. No color or irregular color when viewing Video input from the VIDEO jack of

Ensure Mini Plug Component Adapter (EC) is not connected to the P BPR jack. Check the connection of the VIDEO jack of and check if the cable is firmly inserted in its respective jack. Updating...19

No color or irregular color when viewing Component input from the Y, PB, PR jacks of . Ensure Mini Plug Component Adapter (EC) is connected to P BPR jack. Check the connection of the Y, PB, PR jacks of and check if each cables are firmly inserted in their respective jacks. Some programs cannot be tuned. Check the cable/antenna connection. The remote control does not function. Replace the batteries. The STB MENU button on the remote control does not work. Check the connection and set up of the IR Blaster (page 12). The parental lock password has been forgotten. Enter 4357 for the PIN and enter the new PIN. The restricted profile password has been forgotten. Perform the force factory data reset. Refer to “How to reset the TV to factory settings” (page 18). The TV and its surroundings become warm. When the TV is used for an extended period of time, the TV and its surroundings may become warm to the touch. This is not a malfunction of the TV. Specifications System Television system NTSC: American TV Standard ATSC (8VSB Terrestrial): ATSC compliant 8VSB QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality) Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial:

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby Digital, Dolby Digital Plus and DTS ARC (Audio Return Channel) (HDMI IN 3 only) (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, Dolby Digital Plus, DTS) DIGITAL AUDIO OUT (OPTICAL) Digital optical jack (Two channel linear PCM: 48 kHz 16 bits, Dolby Digital, DTS)20

AUDIO OUT / (Stereo mini jack) Headphone, Audio output, Subwoofer 1, 2, 3 USB port 1 and 2 support High Speed USB (USB 2.0). USB port 3 supports Super Speed USB (USB 3.1 Gen 1). LAN 10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.) Refer to the Help Guide for the supported files and formats in Home Network. DC IN 19.5 V (XBR-49/43X800G only) AC adapter input REMOTE RS-232C mini jack, IR IN mini jack These jacks are for receiving the external control signal. IR BLASTER IR Blaster Cable input (mini jack) Others Operating temperature 32 ºF – 104 ºF (0 ºC – 40 ºC) Power and others Power requirement Except model with supplied AC adapter 110 V - 240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz) Models with supplied AC adapter only

Less than 0.5 W with 120 V AC and less than

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p. To display 4096 × 2160p, set [Wide mode] setting to [Full 1] or [Full 2]. *2 HDMI IN 2/3 only. To support 18 Gbps, set [HDMI signal format] to [Enhanced format]. *3 Refer to the Help Guide for details. *4 Specified standby power is reached after the TV finishes necessary internal processes. *5 Standby power consumption will increase when your TV is connected to the network. Note

• Optional accessories availability depends on countries/region/TV model/stock.

• Design and specifications are subject to change without notice.

• Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using the Google Assistant. Licensing Information

• The terms HDMI and HDMI High- Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

• Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories.

• “BRAVIA”, and BRAVIA Sync are trademarks or registered marks of Sony Corporation.

• Gracenote, the Gracenote logo and logotype, “Powered by Gracenote” logo are either registered trademarks or trademarks of Gracenote, Inc. in the United States and/or other countries.

• Vewd® Core. Copyright 1995-2019 Vewd Software AS. All rights reserved.

• Google, Google Play, Chromecast, YouTube, Android TV and other related marks and logos are trademarks of Google LLC.

• Wi-Fi®, Wi-Fi Alliance®, Wi-Fi Direct® and Miracast® are registered trademarks of Wi-Fi Alliance.

• The Wi-Fi CERTIFIED™ Logo is a certification mark of Wi-Fi Alliance.

• For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, & DTS and the Symbol together are registered trademarks, and DTS Digital Surround is a trademark of DTS, Inc. © DTS, Inc. All Rights Reserved.

• The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners.

• Netflix is a registered trademark of Netflix, Inc.

• TUXERA is a registered trademark of Tuxera Inc. in the US and other countries.

• USB-IF SuperSpeed USB Trident logo is a registered trademark of USB Implementers Forum, Inc.

• All other trademarks are the property of their respective owners.22 USBlank Page2
