USER MANUAL 10032221 Klarstein

Air Cleaner with Humidifier

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Technical Data 15

Declaration of Conformity 15

Safety Instructions 16

Product Description 17

Filter and Functions 18

Filter Installation 20

Use and Operation 21

Humidifier 23

Care and Cleaning 24

Troubleshooting 25

Hints on Disposal 26

TECHNICAL DATA

Item number 10032220, 10032221
Power supply 220-240 V ~ 50-60 Hz
Application Area 40 m	2
Watertank capacity	1200 ml

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)

SAFETY INSTRUCTIONS

• To avoid electric shock or fire, ensure that the product is dry at all times and keep the product away from water or any other liquid.
• Make sure the local power supply voltage is the same as indicated on the nameplate on the back of machine.
• If the power cord is damaged, please discontinue the use of the product and contact the authorized agent to fix it.
• Do not block the air inlet or outlet with any objects.
• For safety precaution, please do not allow children or people who have insufficient knowledge to handle the equipment unsupervised.
• This product is not supposed to be used as daily ventilator. dust cleaner or cooker hood.
• Ensure that the power socket is in good condition. Otherwise the plug may become overheat and cause fire.
  • This product must be placed on a dry, stable and flat surface.
• There should be a gap of at least 20 cm at both sides and back of the product, while 30 cm from the top surface.
• When the water level is low, if humidify button is pressed, the indicator will light up, followed by three "beeps"
• Do not sit and /or place anything on the product.
• Do not place the product directly below the air conditioner to prevent condensation in the product.
• Do not knock the product with hard objects (especially the air inlet and the front plate)
  • The odor sensor area should be cleaned frequently to prevent clogging.
• Do not use this product when you use insect repellent spray indoors or in a place filled with flammable gas.
• Do not use this product near gas appliances, heating devices or near stove.
• Please unplug the socket after use and before cleaning.
• Do not use this product in a fluctuated temperature room as this may cause condensation inside the product.
• This product is intended for household use under normal operating conditions.
• If the water tank leaks, turn off the power and put the product in an upright position for 30 minutes before use.
• Do not use this product in a humid or high-temperature environment (e.g. bathroom, toilet or kitchen).
• Do not allow children to have access to the remote control.

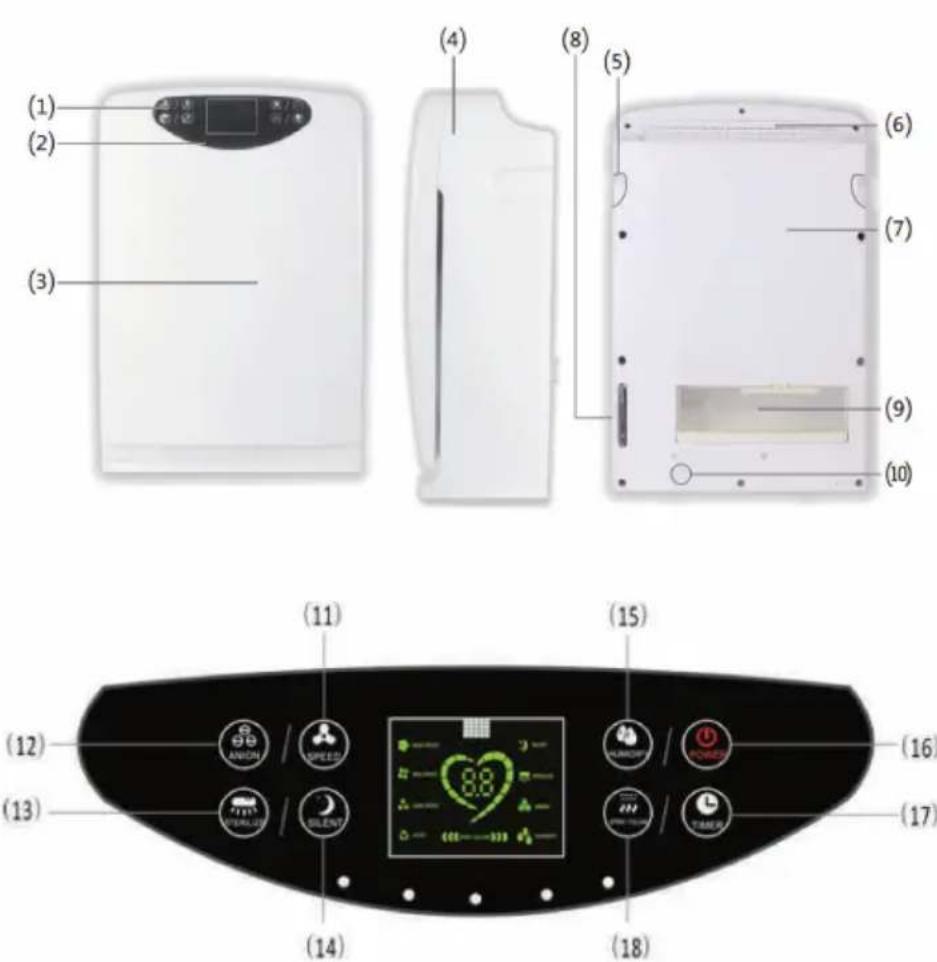

PRODUCT DESCRIPTION

1 Control panel 10 Outfalls
2 Quality Display Window 11 Wind Speed
3 Front plate 12 Anion Function
4 Middle case 13 Sterilize
5 Handle 14 Sleeping Mode
6 Air Outlet 15 Humidification
7 Rear Case 16 On/Off
8 Remote controller 17 Timer
9 Water Tank 18 Spray Volume

FILTER AND FUNCTIONS

Pre-Filter

Adopting non-woven cotton material, stop big particulate and hair.

High efficiency HEPA Filter

The precision of the HEPA filter is 0.01 micron and it is able to eliminate particles which are larger than 0.01 micron with the filtration rate of 99% or more. Dust, bacteria, fungi, viruses, allergens and other small and tiny particles are not able to get through the HEPA filter. It can also remove smoke smell.

Cold Catalyst Filter

1. The cold catalyst will play a catalyst effect in normal living environment without any external assistance like UV light, sunlight, high temperature or pressure
2. It catalyzes the formaldehyde, ammonia, benzene, TVOC, hydrogen sulfide and other harmful gases to work with oxygen, and then decompose them into water and carbon dioxide.
3. The cold catalyst itself does not change during the decomposition action, thus the cold catalyst is long lasting and can be valid up to 5 years.
4. The main ingredients of the catalyst are food and medicine additives. Therefore, the product is of non-toxic, non-corrosive and non-inflammable. It works under normal condition and produces only water and carbon dioxide.
5. The cold catalyst can be used to deal with formaldehyde, ammonia, benzene, TVOC, hydrogen sulfide and other harmful gases released by plywood, furniture, wallpapers, carpets, curtains and bedspreads.

Cellular-Activated Carbon Filter

The cellular-activated carbon carries high efficient additives. It has good absorption and dust collection characteristics with more than 98% absorption rate of Benzene, toluene, xylene, formaldehyde, ammonia etc harmful gas.

Anion Release

The Ionizer releases large amount of anions and makes the oxygen negatively charged, thus gathering the positively-charged particles like floating dust, bacteria, viruses and smoke. The particles become denser and sink to the ground. The smaller the particles size, the higher the capture rate.

Ultraviolet Sterilize Light

A variety of bacteria can be killed by the 365nm ultraviolet light. The UV germicidal lamp is used to purify the air and it is able to eliminate odor caused by smoke and mold.

Humidifier

The unit comes with humidification function (optional). User may turn on the humidification function in a dry weather to:

1. Increase air humidity and improve the quality of respiration. Effectively remove the musty odor caused by smoke and mold.
2. Moisturize the Skin.
3. Improve human body's metabolism, relieve tension and fatigue.

Intelligent Odor Sensor System

This unit comes with an intelligent odor sensor system. It can automatically adjust the fan speed according to the air quality display: Red (air quality is poor), Orange (air quality is ordinary), Green (air quality is excellent).

FILTER INSTALLATION

1 2 3
Pull the front panel and extract upward.	Turn the buckles and take out both pieces of filter.	Remove all packaging bags. Put Filter 1 (Activated Carbon Filters) back into the inside of the product.
45 6
Put Filter 2 (HEPA Filter) back into the inner side of the product. Please ensure the tab side facing you.	Make sure the filters are installed in position. Turn the buckles to fix the filters.	To install the front panel, put the bottom into the host buckle and close the front panel. The front panel will be held with in-built magnets.

Practice on Cleaning of Filter

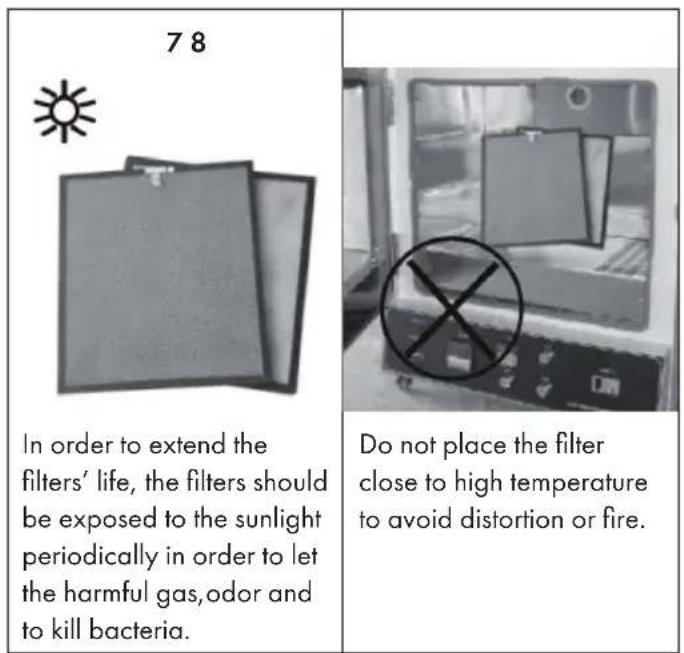

78 In order to extend the filters' life, the filters should be exposed to the sunlight periodically in order to let the harmful gas, odor and to kill bacteria. Do not place the filter close to high temperature to avoid distortion or fire.

USE AND OPERATION

Note: The product is equipped with remote control. It is powered with 2AAA batteries. Batteries are not included in the package.

1		Plug in the power, the digital screen display [- -], and the machine is in stand-by mode.
2		When pressing the POWER button, the heart design will flash in the digital screen.
3	Timer	When pressing the TIMER button, the machine is turned on and the intelligent odor sensor control is started too. The machine will adjust the speed automatically according to the air quality. The timer starts from 1-12 hours, the power will be turned off when time expires.
4	Wind Speed	The SPEED control button circulates from low, medium and high. The speed is shown on the digital screen. The speed control button also control fan starting and off.
5	- SILENT	When pressing the SILENT button, the machine will be at low speed and the intelligent odor sensor control is turned off. The SPEED and SILENT buttons are mutually-controlled.. When one is turned on, the other is turned off.
6	Anion	Press the ANION button to turn on the anion generator and the Anion Icon will be shown on the display screen. The intelligent odor sensor control is turned on automatically at the same time.
7	Sterilize	Press the STERILIZE button to turn on the UV germicidal light and the Sterilize icon will be shown on the display screen. The intelligent odor sensor control is turned on automatically at the same time.
8		Press the HUMIDIFY button to start the function of humidifier, Press the SPRAY VOLUME button to adjust the SPRAY VOLUME from low, medium and high.

Note: the humidifier and the air purifier can start separately.

The machine has a power-off memory fuction. Current fuctions will be saved after power off. when power is on next time, the functions will be recovered automatically.

HUMIDIFIER

1 2 3
Press and hold the water tank clasp at 45° and remove the water tanks.	Rotate the valve in an anti-clockwise manner. Remove the valve and fill the tank with water. Once finished, shut the valve clockwise (please ensure that the rubber seal does not fall off).		Keep water tank inclined at 45° when installing it back into the machine.

45
After the installation of the water tank, please ensure that no bubbles are generated before pressing the humidify button. You can adjust the SPRAY VOLUME by pressing the SPRAY VOLUME.	When the humidifier is not in use, discharge the water from the water outlet and keep the water tank empty.

CARE AND CLEANING

Filter Replacement

The machine can remind you to replace the filters, after working for 1899 hours, when pressing the power button, the quality indicator light will shine to remind you of replacing the filters. after replacing, pressing the power button until the fan runs, after 10 seconds, the total working time will be cleared into zero. Then turn on it again, it can work normally.

Odor Sensing System Memory Reset

If the air quality indicator displays red color and the machine power is cut off suddenly, you might have to reset the intelligent memory. Otherwise, the red color display will remain.

1 Unplug the machine and wait for 15-20 seconds. Plug again and start the machine and press timer or Sterilize.
2 Keep the machine working for 15 seconds. Repeat the first step above twice.
3 Please perform the steps above extra in a clean environment without air pollution. Otherwise the air quality display lights will be disrupted.

TROUBLESHOOTING

Problem Lösung
No air comes out from the outlet. Please check whether the product is turned on and connected to the power supply.
Outlet airflow is significantly weakened than before.	The filters are dirty and they need to be cleaned or replaced. You can slightly shake the filters to remove the dust and other objects on it.
	The filters packaging bag is not removed. Please remove the filter packaging bag.
The air quality is not significantly improved after long run of the machine.	Check the filter layers installation sequence.
	Filters are worn out, you need to replace all the filters.
When should I replace the filters? Activated	Carbon Filter: the surface is dirty and fades in color. The tiny hole of the cold catalyst is blocked by dust or the color of the active carbon has obviously changed. Life time: 8-14 months.
	HEPA filter: The white HEPA changes to yellow, black, or mildew. Life time: 8-14 months.
	Remarks: The filter life span is determined by the environment air quality and duration used.
Alarm is Generated. Check if the water tank is empty.
Quality indicator light shine. Remind to replace the filters, operate according to the instruction.

HINTS ON DISPOSAL

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.

Your product contains batteries covered by the European Directive. 2006/66/EC, which cannot be disposed of with normal household waste. Please check local rules on separate collection of batteries. The correct disposal of batteries helps prevent potentially negative consequences on the environment and human health.
