BrandKlarstein
Model10013269 / 10013270
Product TypeAir Purifier
Power Supply220-240 V ~ 50/60 Hz
Power35 W
Air Flow108 m³/h
UV Lamp Wavelength254 nm
Filter Type3-in-1 Filter (HEPA + Activated Carbon + PCO)
Number of Speeds3 (low, medium, high)
Timer2, 4 or 8 hours
IonizerYes, switchable
UV Lamp2 lamps, switchable
Cleaning of 3-in-1 FilterNot washable, replace every 6 to 12 months
Cleaning of Cover FilterCleanable with vacuum or cold water
Safety Distance1.5 m from other electrical devices
Recommended LocationDry indoor, out of reach of children
StandardsCE (EMC, LVD, RoHS, ErP)
RecyclingDo not dispose with household waste (WEEE directive)

Frequently Asked Questions - 10013269 Klarstein

How to turn on the device?
Press the on/off button (key 1) to turn on the device. To turn it off, press this button again.
How to set the timer?
Press the timer button (key 2) to select 2, 4 or 8 hours. The corresponding indicator lights up. To deactivate, press until the indicator goes out.
What to do if the air flow is low?
Check the condition of the 3-in-1 filter. If it is dirty, replace it (lifespan 6-12 months). Make sure the air inlet and outlet are not obstructed.
Can I wash the 3-in-1 filter?
No, the 3-in-1 filter is not reusable. If it is dirty, it must be replaced with a new one. Do not attempt to wash it.
How often to change the filter?
In principle, the 3-in-1 filter should be replaced every 6 to 12 months, depending on ambient pollution. Use the visual guide in the manual to check its condition.
What to do if the device is noisy?
Check that no foreign object is in contact with the fan. If the noise persists, the 3-in-1 filter may be very dirty and needs to be replaced. Make sure the device is on a flat surface.
Can I use the device in a kitchen?
No, use in a kitchen is not recommended. The device should be placed in a dry indoor location, away from heat sources and fumes.
Is the UV lamp dangerous?
Yes, do not look directly at the UV lamp. It emits ultraviolet rays that can be harmful to eyes and skin.
How to clean the cover filter?
The cover filter can be cleaned with a vacuum cleaner or, if necessary, rinsed with cold water. Make sure it is completely dry before putting it back.
What to do if the device does not turn on?
Check the power supply and fuses. Make sure the plug is properly connected. If the problem persists, contact an authorized specialist.

User questions about 10013269 Klarstein

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Air purifier in PDF format for free! Find your manual 10013269 - Klarstein and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 10013269 by Klarstein.

USER MANUAL 10013269 Klarstein

bar | Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) = [sum of two separate bars] * [sum of the bars] * [values from the 'bar' in the 'box' table] * [values from the 'box' table] * [values from the 'box' table] * [values from the 'box' table] * [values from the 'box' table] * [values from the 'box' table]. The sum of the bars is calculated by subtracting the sum of the bars from the 'box' table. Note: The total bar length is based on the sum of the bars. The sum of the bars is calculated as the sum of the bars. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar length. The sum of the bars is derived from adding the sum of the bars to the total bar lengths.
natural_image Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the mentioned items and cautions mentioned in the instruction manual are not covered by our warranty and any liability.

CONTENT

Safety Instructions 10

Product Description 10

Control Panel 11

Use and Operation 12

Troubleshooting 13

Hints on Disposal 13

TECHNICAL DATA

Item number 10013269, 10013270
Power supply 220-240 V ~ 50/60 Hz
Power consumption 35 W
Air flow 108 m ^3/h
Wavelength UV light 254 nm

DECLARATION OF CONFORMITY

Producer:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany.

Klarstein 10013269 - DECLARATION OF CONFORMITY - 1

This product is conform to the following European Directives:

2014/30/EU (EMC)

2014/35/EU (LVD)

2011/65/EU (RoHS)

206/2012/EU (ErP)

SAFETY INSTRUCTIONS

• Pull out the plug when not using the machine for a long time.
- Please take off the packing polybag of filter before using the machine.
• Do not use the air purifier in kitchen.
- Do not put sundries in airflow inlet and airflow outlet.
- Do not look directly to the UV light.
- Place the machine in above 1.5 meters distance from electrical appliance, such as television and computer.
- Do not place the machine beside curtain.
- Do not place the machine to where the children can touch.
- The machine can be only used in the indoor dry place, do not use it under the moist environment, like the bathroom or outdoors.
• Unplug the plug when clean or change the filter.
- Do not pour water on the machine, nor soak the machine in water.
- When using the machine with gas appliance, please allow the indoor air to circulate. Because this machine have no function of eliminating the carbon monoxide.
- Do not place the machine in a heating objects, such as stoves, heaters etc.
- If the machine is broken, it must be repaired by the manufacturer or its service provider or similarly qualified persons.
- The machine must be regularly checked, regularly clear the grime and replace the filter elements, so that the purifying effect won't be affected.

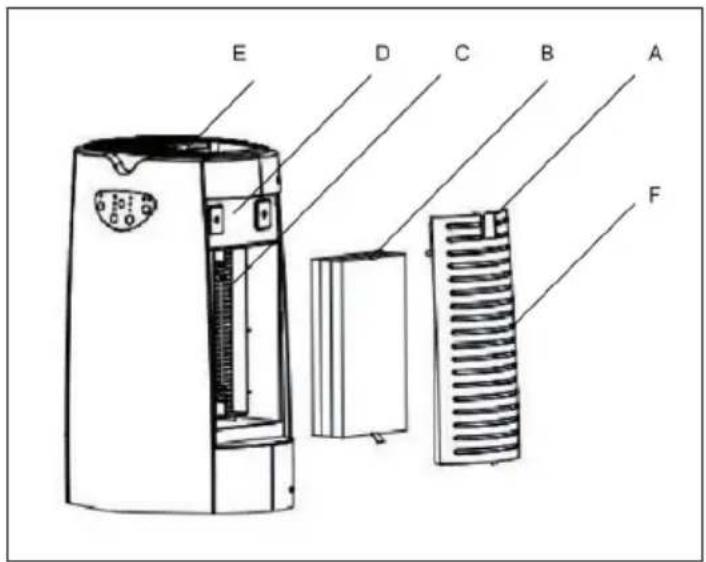

PRODUCT DESCRIPTION

A Handle to open the filter
B 3 in 1 filter pads (HEPA filter, Activated carbon filter, PCO filter)
C UV Lamp (254 nm)
D Magnetism pads
E Air outlet and lonizer
F Air inlet grill and filter cover

Technical diagram of an air conditioner unit with labeled components A through F

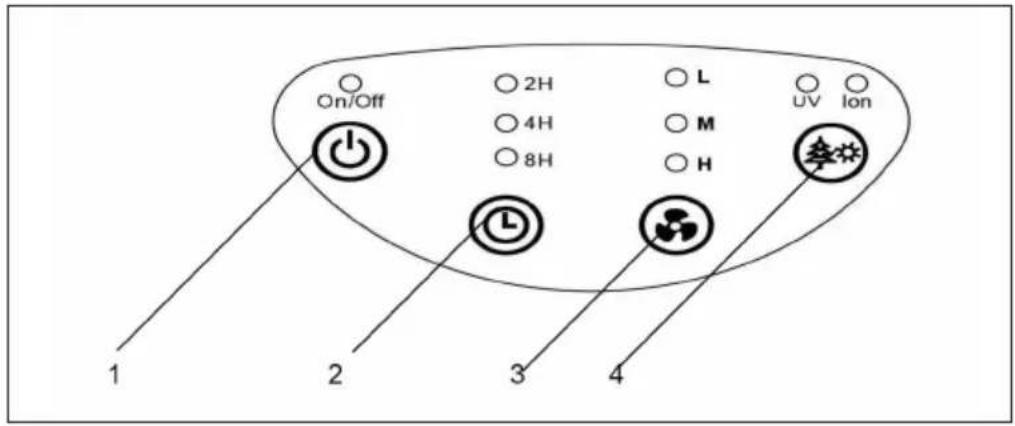

CONTROL PANEL

On/Off 2H 4H 8H L M H UV Ion 1 2 3 4

1 On/Off button
2 Timer buttonBy pressing this button, the purifier can be timed to operate for intervals of 2 hours, 4 hours and 8 hours, stopping automatically when the selected operating time has elapsed.Press this button (Timer) to select the required operating time. A warning light automatically indicates the remaining operating time.To select the continuous operating mode, press the button repeatedly until there are no more amber indicator lights lit up.
3 Speed buttonLow speedMid speedHigh speedTo change this speed, press on the SPEED/On button again. The red warning light indicates the selected speed. Note: We suggest to use high speed in 30 minutes for first time usage.
4 Ionizer and UV button1st press: Ionizer and UV lamp on.2nd press: Ionizer off and UV lamp on.3rd press: Ionizer off and UV lamp offThe default setting is Ionizer on and UV lamp is off. The purifier will be come back to default setting after the above 3 pressImportant note: When the unit is not in use, switch it off and unplug it.

USE AND OPERATION

Remove the plastic protective wrapping for 3-in-1 filter pads (HEPA, active carbon and PCO filters). After removing any plastic bags, reinstall the filters in accordance with the instructions:

1 2 3
Klarstein 10013269 - USE AND OPERATION - 1Klarstein 10013269 - USE AND OPERATION - 2Klarstein 10013269 - USE AND OPERATION - 3
Open the filter cover. Carefully insert the filter. Reinstall the filter cover.Place the unit in a suitable place and connect it to the mains.

Following the same method you can also replace the dirty filters.

Note: Do not try to wash the 3 in 1 filter, it is not a reusable product. Filter located in the cover can be cleaned with the vacuum cleaner and - if necessary - rinsed with cold water.

To keep your unit operating at strong efficiency, the set of filter pads should be replaced regularly. As usual, the filter can last from 6 months to 12 months under normal conditions of use.

Replacement level Accepted level Better level

TROUBLESHOOTING

Problem Possible cause and suggested solution
Insufficient air flow.Check that the filters are clean.
Check for any obstructions in the air inlet and outlet.
Unit will not start. Check the power supply and electric fuses.
Excessive noise.Check for any foreign objects in contact with the fan.
The filter may be clogged and ready for replacement.
The foam sealing gaskets have been installed incorrectly.
Uneven positioning.

HINTS ON DISPOSAL

Klarstein 10013269 - HINTS ON DISPOSAL - 1

natural_image Symbol of a trash bin crossed with a diagonal line, no text or numbers present

According to the European waste regulation 2012/19/EU this symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council or your household waste disposal service.
