VCC 5850 A - Vacuum Cleaner GRUNDIG - Free user manual and instructions

Product type	Compact canister vacuum cleaner
Brand	Grundig
Model	VCC 5850 A
Power supply	220-240 V, 50-60 Hz
Power	800 W
Operating radius	9 m
Tank capacity	4 L
Filter type	HEPA 12 (particulate filter)
Included accessories	Main brush, flat nozzle, upholstery brush, integrated dusting brush, telescopic tube
Suction control	Mechanical on the handle
Fill indicator	Yes (dust container)
Cable rewind	Automatic (rewind button)
Recommended bags	Swirl® Y 05® MicroPor® Plus AntiBac
Maintenance and cleaning	Unplug before cleaning; change the bag when the indicator is red; change the filter if necessary
Safety	Do not use on wet surfaces, avoid large objects, unplug after use
Warranty	5 years availability of spare parts

Frequently Asked Questions - VCC 5850 A GRUNDIG

How to change the dust bag of the Grundig VCC 5850 A vacuum cleaner?

Turn off the appliance and unplug it. Open the dust container using the lock (D). Remove the full bag and dispose of it. Insert a new recommended bag (Swirl Y 05 MicroPor Plus AntiBac). Replace the container and lock it. The indicator (B) turns red when the bag needs to be changed.

How to clean the HEPA filter of the vacuum cleaner?

Unplug the appliance. Remove the dust container. Locate the HEPA filter (often behind the container). Tap gently to remove dust. Do not wash the HEPA 12 filter; replace it every 6 months or as needed.

What to do if suction is weak?

First check if the dust container is full or the bag is clogged. Check the HEPA filter and accessories (hose, brush) for any blockage. Make sure the carpet is not too thick. Clean or replace filters if necessary.

Can this Grundig vacuum cleaner pick up liquids?

No, this vacuum cleaner is designed only for dry dust. Never vacuum liquids, hot ashes or damp objects, as this could damage the appliance and cause a fire.

How to use the telescopic tube?

The telescopic tube (N) is adjusted using the adjustment lock (M). Slide the lock to lengthen or shorten the tube to the desired length. It adjusts automatically.

Where is the HEPA filter located and how to access it?

The HEPA 12 filter is located behind the dust container. Remove the container to access it. It can be cleaned by tapping, but should not be washed. Replace it regularly to maintain performance.

What is a HEPA 12 filter and why is it important?

A HEPA 12 filter retains over 99.9% of dust particles from 0.1 to 0.3 microns, including viruses, allergens, bacteria and pollen. It improves air quality by trapping fine particles.

How to properly store the vacuum cleaner?

Unplug the appliance. Wind the power cord using the button (G). Lock the telescopic tube in the folded position. Store the floor/rug brush in the groove (H). Place the appliance in a dry place, out of reach of children.

Can children use this vacuum cleaner?

Yes, from 8 years old under the supervision of an adult who has instructed them on safety instructions. Children must not play with the appliance nor perform cleaning without supervision.

How to dispose of the vacuum cleaner at the end of its life?

Do not dispose of the appliance with household waste. In accordance with the WEEE directive (2012/19/EU), take it to an official collection point for recycling electrical and electronic waste. Contact your local council for collection points.

USER MANUAL VCC 5850 A GRUNDIG

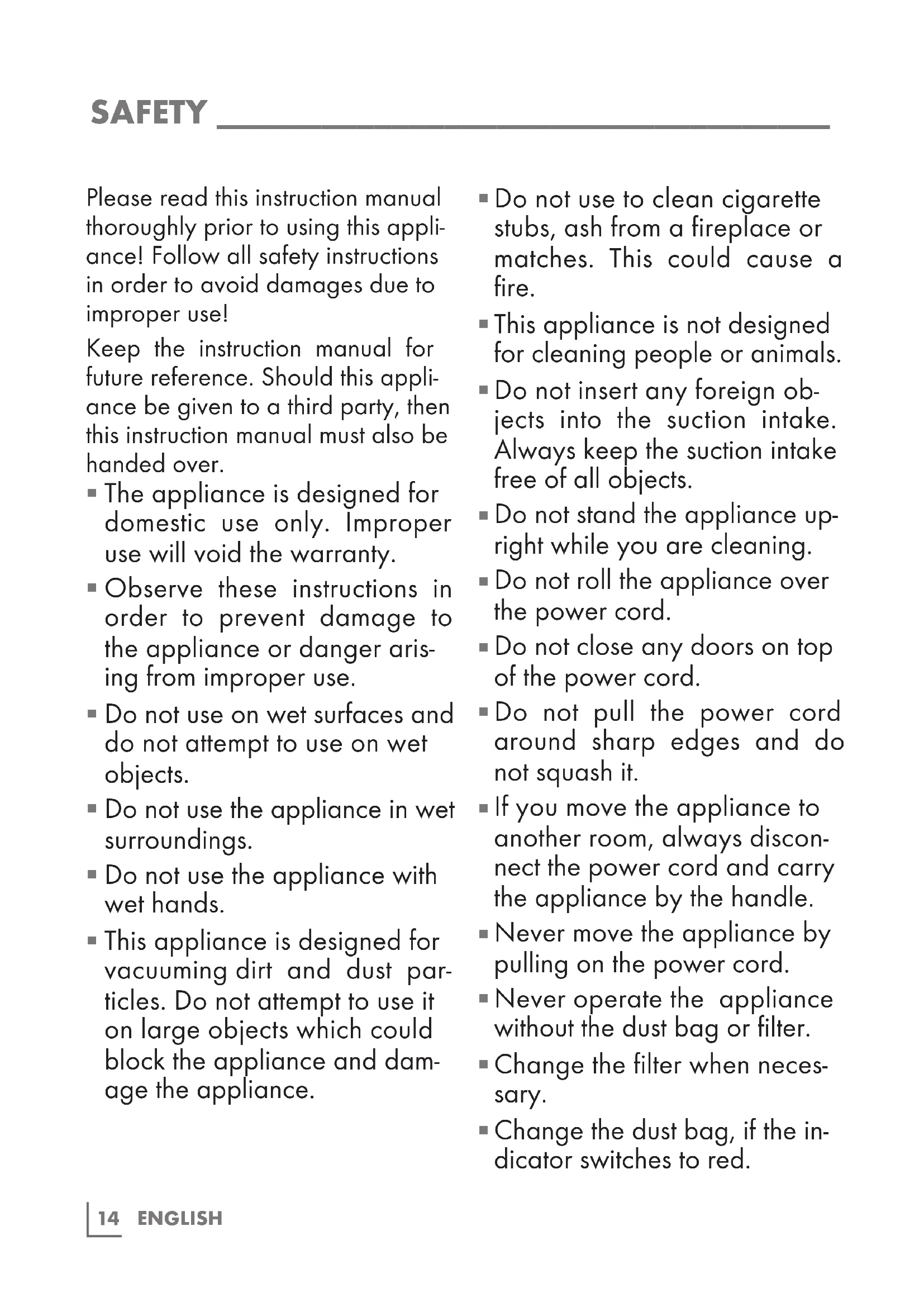

Please read this instruction manual thoroughly prior to using this appliance! Follow all safety instructions in order to avoid damages due to improper use!

Keep the instruction manual for future reference. Should this appliance be given to a third party, then this instruction manual must also be handed over.

The appliance is designed for domestic use only. Improper use will void the warranty.
- Observe these instructions in order to prevent damage to the appliance or danger arising from improper use.
- Do not use on wet surfaces and do not attempt to use on wet objects.
- Do not use the appliance in wet surroundings.
- Do not use the appliance with wet hands.
This appliance is designed for vacuuming dirt and dust particles. Do not attempt to use it on large objects which could block the appliance and damage the appliance.

• Do not use to clean cigarette stubs, ash from a fireplace or matches. This could cause a fire.
  This appliance is not designed for cleaning people or animals.
• Do not insert any foreign objects into the suction intake. Always keep the suction intake free of all objects.
• Do not stand the appliance upright while you are cleaning.
• Do not roll the appliance over the power cord.
• Do not close any doors on top of the power cord.
• Do not pull the power cord around sharp edges and do not squash it.
  If you move the appliance to another room, always disconnect the power cord and carry the appliance by the handle.
• Never move the appliance by pulling on the power cord.
• Never operate the appliance without the dust bag or filter.
• Change the filter when necessary.

• Change the dust bag, if the indicator switches to red.

• Only use original GRUNDIG accessories or Swirl® dust bags for replacement.
  Always pull out the power cord before cleaning or carrying out any maintenance on the appliance.

• Whenever possible, insert the power cord plug directly into the socket. Avoid using extension cables or multipoint connectors.
  Pull out the power plug after use. Do not disconnect the plug by pulling on the cable.
• Never use if the appliance or the power cord is visibly damaged. This also applies if the appliance has accidentally become wet. Please contact a service centre in this case.
  If the power cord is damaged, it must be replaced by the manufacturer, its service centre or a similarly qualified person to prevent danger arising.
• Keep the appliance away from children.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- Do not open the appliance under any circumstances. No warranty claims are accepted for damage resulting from improper handling.

Dear Customer,

Congratulations on the purchase of your new GRUNDIG Compact Vacuum Cleaner VCC 5850 A.

Please read the following user guide carefully to ensure that you have many years of enjoyment from your quality Grundig product at home.

A responsible approach!

GRUNDIG focuses on contractually agreed social working conditions with fair wages for both internal employees and suppliers, as well as on the efficient use of raw materials with continual waste reduction of

several tonnes of plastic each year - and availability of at least 5 years for all accessories.

For a future worth living.

Grundig.

HEPA-Filter

HEPA stands for High Efficiency Particulate Air. HEPA filters are particulate air filters, which filter more than 99.9% of all dust particles larger than 0.1 to 0.3 micrometres out of the air. Viruses, respirable dusts, mite eggs and mite excrement, pollen, smoke particles, asbestos, bacteria, diverse toxic dusts and aerosols are removed from the air.

Controls and parts

See the figure on page 3.

A ON/OFF button
B Dust bin indicator
C Hose inlet
D Dust container opening latch
E Carriage handle
F Power cord
G Power cable winding button
Parquet/carpet brush parking groove
Hose
J On handle integrated dust brush
Mechanical suction control on handle
L Handle
M Telescopic tube adjustment latch
N Telescopic tube
Crevice tool
P Upholstery brush
Main brush

Usage areas of accessories

Upholstery tool: Curtains, cushions, sofas and upholstery fabrics.

Crevice tool: Hard-to-reach areas and narrow gaps.

Recommended vacuum cleaner bag

We recommend: Swirl® Y 05® MicroPor® Plus AntiBac vacuum cleaner bags.

Swirl®, MicroPor® and Y 05® are registered trade marks of a company of the Melitta group and used with their permission.

Cleaning and care

Switch off and unplug the appliance, before cleaning it.

Warning

• Never use gasoline, solvent, abrasive cleaning agents, metal objects or hard brushes to clean the appliance.

Storage

If you do not intend to use the appliance for a long time, store it carefully.
Unplug the appliance.
- Keep the appliance out of the reach of children.

Handling and transportation

During handling and transportation, carry the appliance in its original packaging. The packaging of the appliance protects it against physical damages.
Do not place heavy loads on the appliance or on the packaging. The appliance may get damaged.
- Dropping the appliance may render it non-operational or cause permanent damage.

Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electri

cal and electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispo

se of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Technical data

Supply voltage : 220-240 V ~, 50-60 Hz

Power:800W

Operating radius : 9 m

Dust capacity : 4 L

Filter : HEPA12

Rights to make technical and design changes are reserved.
