TLSG105 - Switch TP-LINK - Free user manual and instructions

Product type	Unmanaged network switch
Brand	TP-Link
Model	TL-SG105
Number of ports	5 RJ45 ports 10/100/1000 Mbps
Enclosure	Metal
Dimensions (W x D x H)	100 x 98 x 25 mm
Weight	200 g
Power supply	External power adapter 5 V DC, 0.6 A
Power consumption	3.5 W max
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 90% RH non-condensing
Key features	Auto-MDI/MDIX, 802.3x flow control, 802.1p QoS, broadcast isolation, cable detection
LED indicators	Power, link/activity per port
Installation	Desktop or rack mount (mounting kit included)
Maintenance and cleaning	Disconnect device, clean with a soft dry cloth
Safety	Do not expose to water, do not open the enclosure
Spare parts and repairability	Power adapter available; device not user-serviceable
Warranty	TP-Link limited warranty (see packaging)
General information	Compliant with IEEE 802.3, 802.3u, 802.3ab, 802.3x standards

Frequently Asked Questions - TLSG105 TP-LINK

How to install the TL-SG105 switch?

Place the switch on a flat surface or attach the mounting brackets for rack installation. Connect Ethernet cables to the RJ45 ports, then plug in the power adapter.

Does the switch require configuration?

No, the TL-SG105 is an unmanaged switch: it works immediately after powering on, no configuration needed.

What do the LED indicators mean?

The green power LED indicates the switch is powered on. Each port has a green LED that lights up when a device is connected and blinks during network traffic.

Can I use the switch with Cat5, Cat5e, or Cat6 cables?

Yes, the switch supports Cat5, Cat5e, and Cat6 cables for speeds up to 1000 Mbps.

How to factory reset the switch?

The TL-SG105 has no reset button as it is unmanaged. It is always at default.

What is the maximum power consumption?

The maximum consumption is about 3.5 watts.

Can the switch be rack-mounted?

Yes, the switch comes with mounting brackets for installation in a standard 19-inch rack.

What are the warranties on this product?

TP-Link offers a limited warranty against hardware and manufacturing defects. The exact duration is indicated on the product packaging.

Can I connect devices at different speeds?

Yes, each port automatically negotiates the best speed (10, 100, or 1000 Mbps) using Auto-Negotiation.

Does the switch support flow control?

Yes, it supports IEEE 802.3x flow control for full-duplex connections.

USER MANUAL TLSG105 TP-LINK

Unmanaged Rackmount Switch

CONTENTS

Deutsch. 01
English. 04
Espanol. 07
Elambdaviká. 10
Francais. 13
Italiano 16
Portugues. 19
Suomi 22
Nederlands. 25
Svenska. 28
Norsk. 31
Dansk 34
Türkge. 37

Installation

- Tischmontage

- Desktop Installation

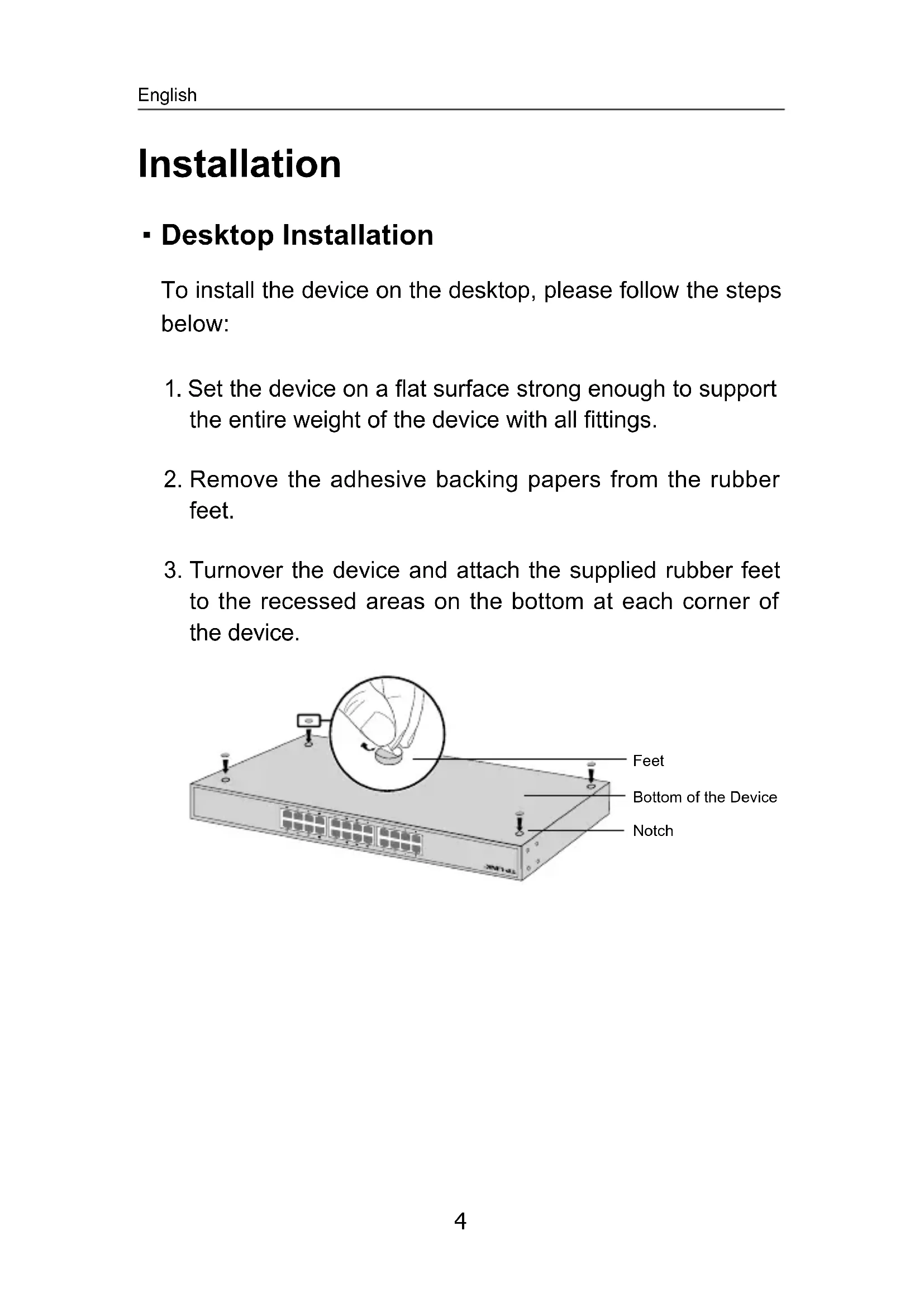

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.

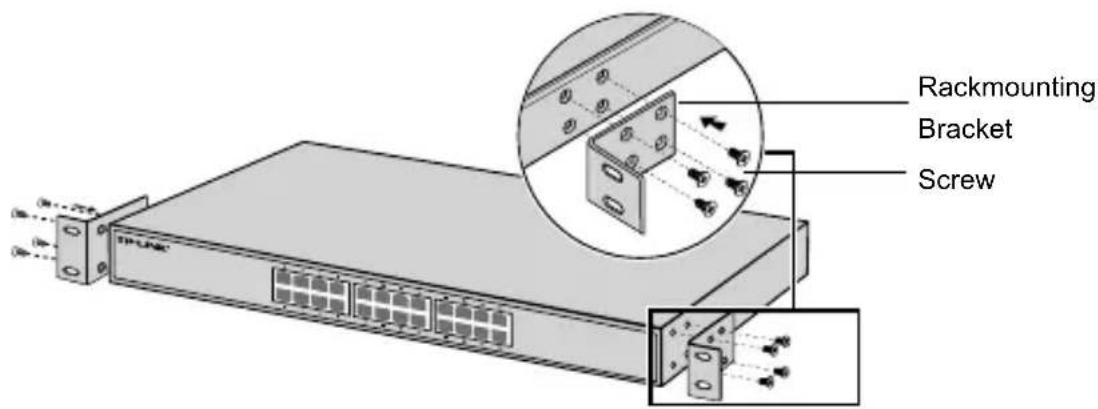

2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

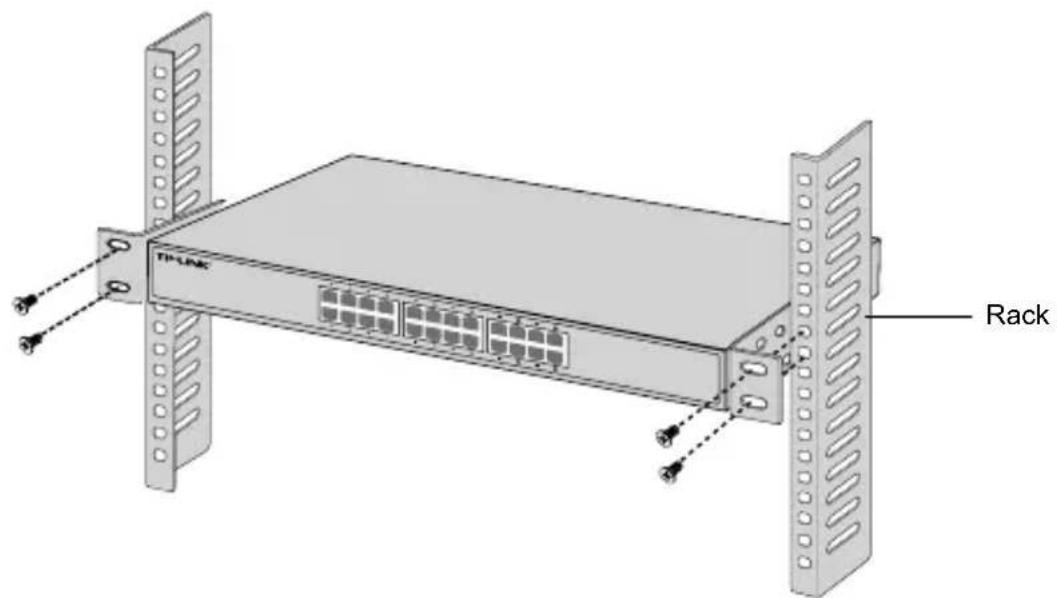

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

- Ethernet Port

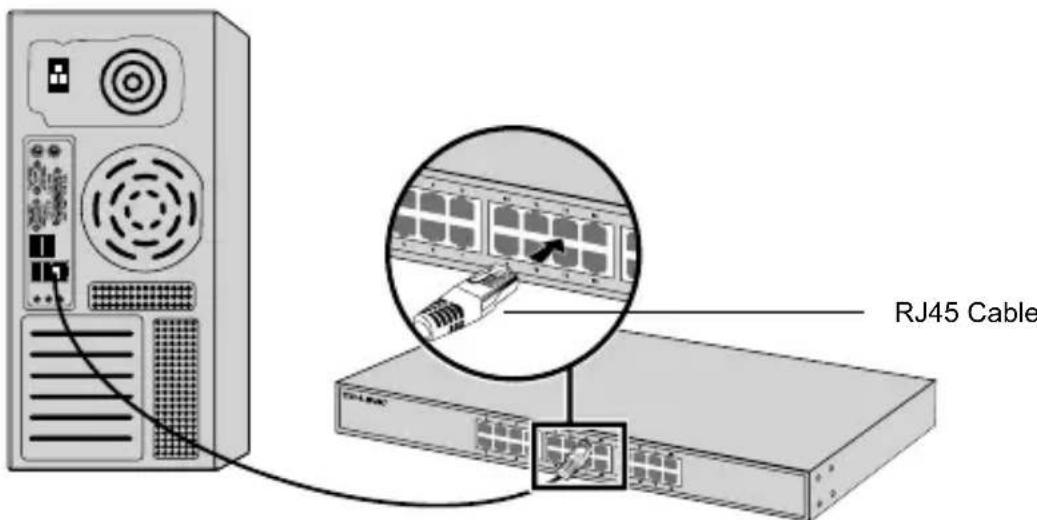

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

- Power On

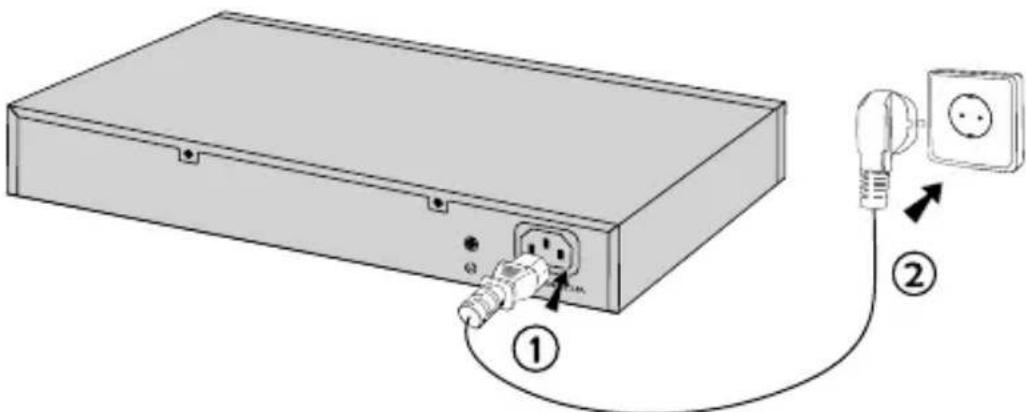

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Instalación

- Desktop-installation

Foratt installeraenhetenpàdatorn,folj stegen nedan:

• When a product has a power on/off button, the power on/off button is one way to turn-off the product. For products without the on/off button, the only way to completely turn-off the product is to disconnect the product or the power adapter from the power source. The disconnected device shall remain readily operable.
• Do not open this product or attempt to service it; it may expose you to dangerous high voltage or other risks. Opening a sealed component or sealed product/s will void the warranty. For product servicing, please contact us.
• Do not operate this product near water.

TP-LINK Limited Product Warranty

For TP-LINK Branded Products Only.

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND CONDITIONS.

TP-LINK warrants the TP-LINK branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-LINK's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Espanol

South Building(floors 1,3,4,5) and 28(floors 1-4), Central Science & Technology Park, Shennan Rd, Nanshan, Shenzhen, China

Robert-Bosch-Straße 9, 65719 Hofheim am Taunus, Germany

Unit 2 & 3 Riverview (142-144), Cardiff Road, Reading, RG1 8EW

Marathonodromou 77, Marousi 151 24, Greece

Specifications are subject to change without notice. TP-LINK is a registered trademark of TP-LINK TECHNOLOGIES CO., LTD. Other brands and product names are trademarks or registered trademarks of their respective holders. No part of the specifications may be reproduced in any form or by any means or used to make any derivative such as translation, transformation, or adaptation without permission from TP-LINK TECHNOLOGIES CO., LTD. Copyright © 2016 TP-LINK TECHNOLOGIES CO., LTD. All rights reserved.
