TLSG1024D - Switch TP-LINK - Free user manual and instructions

Brand	TP-Link
Model	TLSG1024D
Product type	Unmanaged switch
Number of ports	24 RJ45 10/100/1000 Mbps ports
Additional connectivity	2 SFP slots
Power supply	External power adapter (included)
Installation	Desktop (rubber feet included) or rack mount (brackets included)
Functions	Unmanaged switching, Plug and Play, IEEE 802.3x flow control
Supported protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3z
Port speed	10/100/1000 Mbps auto-negotiation
LED indicators	Power, link/activity per port
Cooling	Passive (fanless)
Housing material	Sturdy metal
Dimensions	Approximately 440 x 180 x 44 mm (estimate)
Weight	Approximately 2 kg (estimate)
Operating temperature	0°C to 40°C
Operating humidity	10% to 90% RH non-condensing
Safety	Keep away from water, fire, humidity; do not disassemble; easily accessible power outlet
Maintenance and cleaning	Disconnect before cleaning; use a dry, lint-free cloth
Spare parts and repairability	Not user-serviceable; contact TP-Link support
Warranty	TP-Link limited warranty (see website)

Frequently Asked Questions - TLSG1024D TP-LINK

How to install the TLSG1024D switch on a desktop?

Place the switch on a flat, sturdy surface. Remove the protective covers from the included rubber feet, turn the device over, and attach the feet to the four corners.

How to install the switch in a rack?

Check the rack grounding and stability. Attach the mounting brackets to each side of the switch using the provided screws, then use bolts (not provided) to secure the switch to the rack.

What types of cables are used to connect devices?

Use standard RJ45 Ethernet cables (category 5e or higher) for copper ports. For SFP slots, use compatible SFP modules (fiber or copper).

How to power on the switch?

Connect the female connector of the included power cable to the switch's power port, then connect the male plug to a power outlet. The power LED will light up.

Does the switch require configuration?

No, the TLSG1024D is an unmanaged switch. It operates in Plug and Play: simply connect the cables and power, and it will work immediately.

Can I use SFP modules in this switch?

Yes, the TLSG1024D has 2 SFP slots. Insert a compatible SFP module (e.g., TP-Link TL-SM321LS) into the slot. The switch will automatically recognize it.

What safety precautions should be observed?

Keep the device away from water, fire, humidity, and hot environments. Do not attempt to disassemble or repair it yourself. The power outlet must be easily accessible for quick disconnection. Place the device with its bottom side down.

What to do in case of malfunction?

If the switch does not work properly, first check connections and power. If the problem persists, do not attempt repair; contact TP-Link support via the official website.

How to clean the switch?

Disconnect the power before cleaning. Use a soft, dry, lint-free cloth. Do not use liquids or cleaning products.

Where to find the CE declaration of conformity?

The original CE declaration of conformity is available at https://www.tp-link.com/en/support/ce/ (page in English).

USER MANUAL TLSG1024D TP-LINK

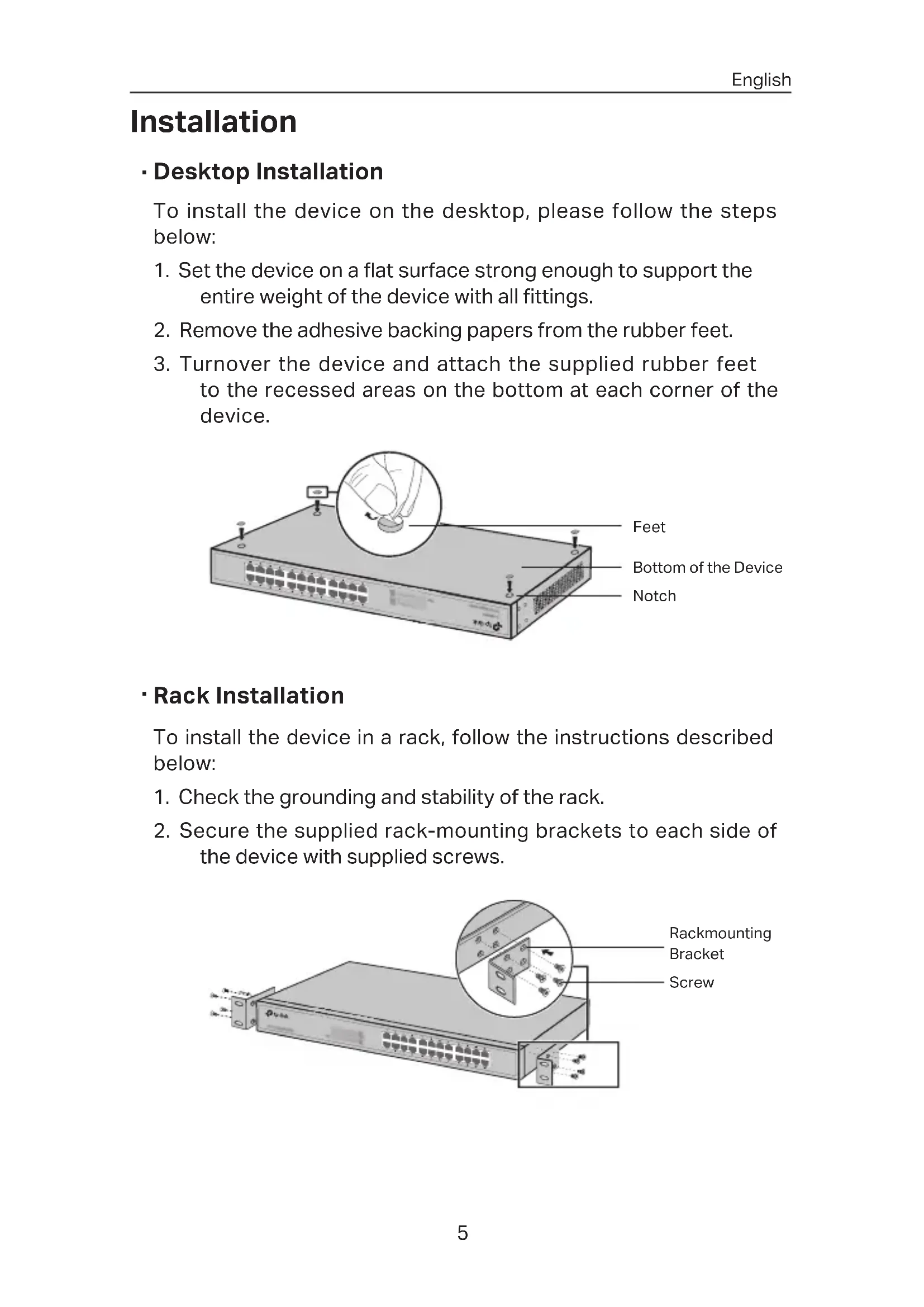

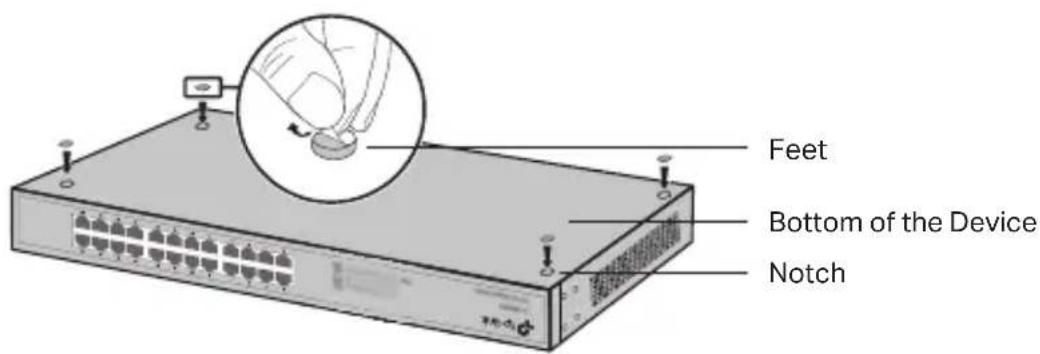

Desktop Installation

To install the device on the desktop, please follow the steps below:

1. Set the device on a flat surface strong enough to support the entire weight of the device with all fittings.
2. Remove the adhesive backing papers from the rubber feet.
3. Turnover the device and attach the supplied rubber feet to the recessed areas on the bottom at each corner of the device.

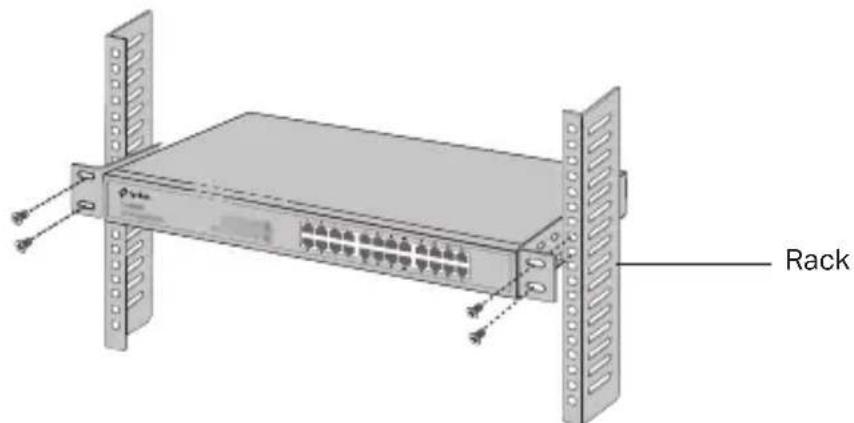

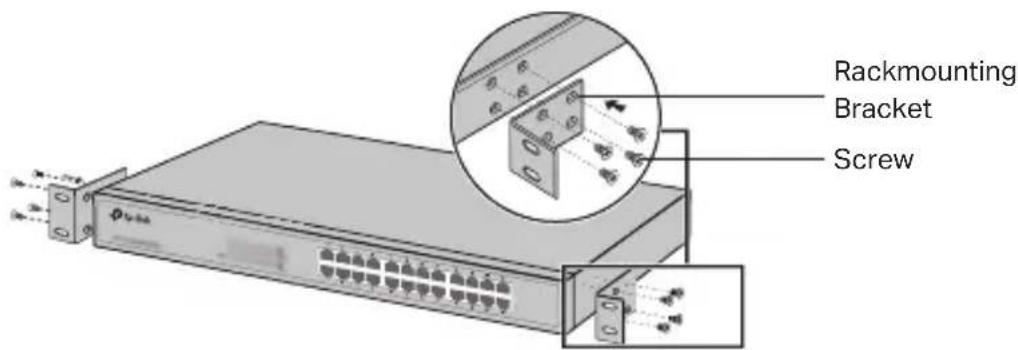

- Rack Installation

To install the device in a rack, follow the instructions described below:

1. Check the grounding and stability of the rack.
2. Secure the supplied rack-mounting brackets to each side of the device with supplied screws.

1. After the brackets are attached to the device, use suitable screws (not provided) to secure the brackets to the rack.

Connection

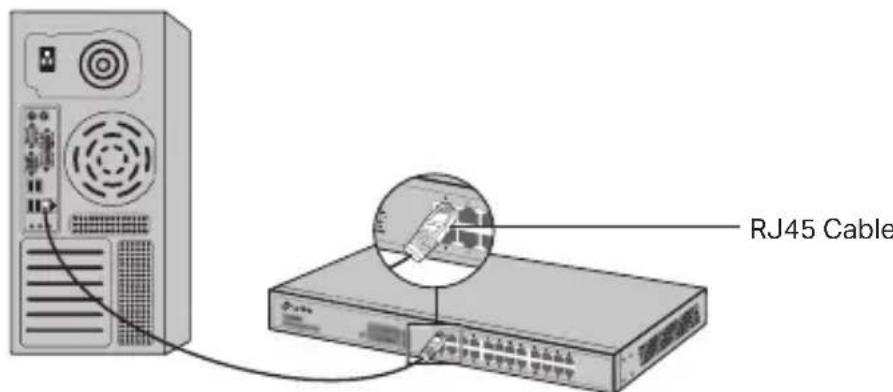

- Ethernet Port

Connect an Ethernet port of the switch to the computer by RJ45 cable as the following figure shown.

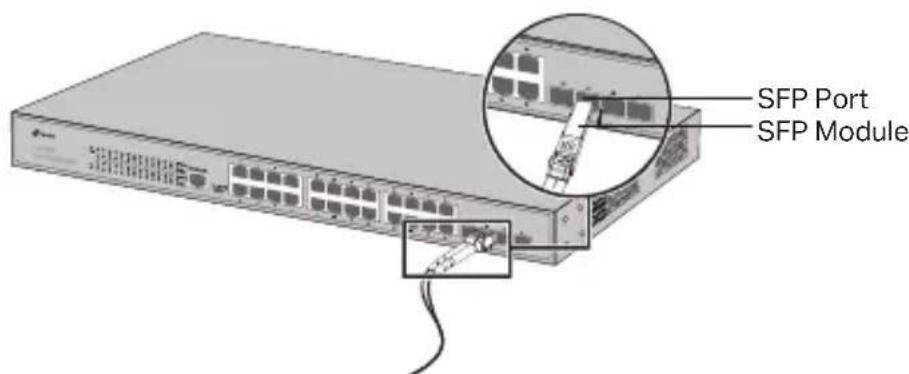

SFP Port

For switches with SFP ports, you can connect a SFP port to a SFP module. If an SFP transceiver is installed in a slot and has a valid link on the port, the associated RJ45 port will be disabled and cannot be used.

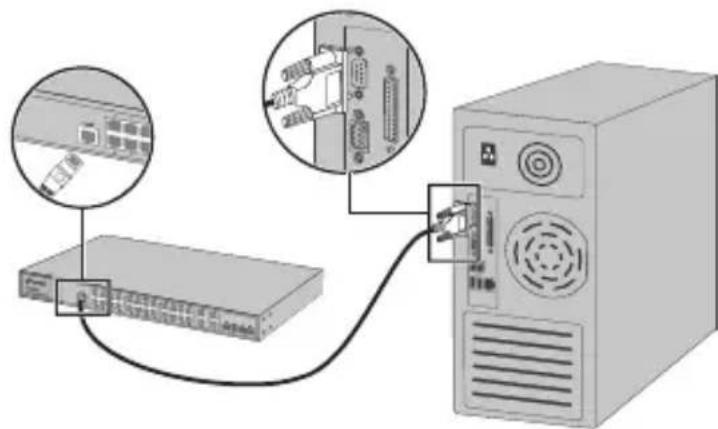

- Console Port

For switches with the console port, you can connect the console port with your computer by the console cable. Then you can load the CLI to manage the switch.

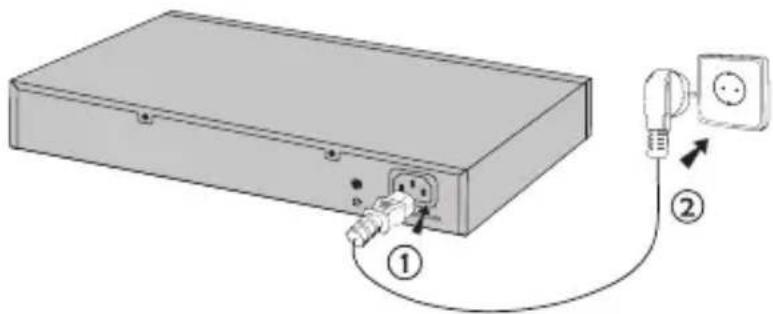

- Power On

Plug the female connector of the provided power cord into the power socket of the device, and the male connector into a power outlet.

Configuration

(Unavailable for Unmanaged Switches)

- Configure the Switch Using the GUI

1. Set the IP address of your PC in the same subnet of the switch. The IP address is 192.168.0.x ("x" is any number from 2 to 254); the Subnet Mask is 255.255.255.0.

2. Open a web browser and type the default management address http://192.168.0.1 in the address field of the browser, then press the Enter key.

3. Enter admin for the default User Name and Password, both in lower case letters. Then click the Login button or press the Enter key.

4. After a successful login, you can configure the switch on the management page.

- Configure the Switch Using the Controller

(Only for Smart Switches, Easy Managed Switches and Managed Switches)

You can use the Controller to centrally manage the entire network of the switches. For the detailed information as to how to do this, please refer to the product specifications and the Controller User Guide.

- Configure the Switch Using the CLI

(Only for Smart Switches and Managed Switches)

You can log on to the switch and access the CLI to manage the switch. For the detailed instructions as to how to do this, please refer to the CLI Guide.

- Configure the Switch Using the Utility

(Only for Easy Smart Switches)

You can use the Easy Smart Configuration Utility to centrally manage the entire network of the Easy Smart Switches. For the detailed instructions as to how to do this, please refer to the Utility User Guide.

Instalación

(Móvo yα Smart Switches, Easy Managed Switches και Managed Switches)

(Móvo yα Smart Switches και Managed Switches)

(Solo per Switch Smart, Switch Easy Managed e Switch Managed)

(Solo per Switch Smart e Managed)

(Apenas para Smart Switches, Easy Managed Switches e Managed Switches)

Desktop installation

(Endast for Easy Smart Switches)

(Kun for Smart Switches, Easy Managed Switches og Managed Switches)

(Kun for Easy Smart-switches)

• Keep the device away from water, fire, humidity or hot environments.
• Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us.
• The socket-outlet shall be installed near the equipment and shall be easily accessible.
• The plug on the power supply cord is used as the disconnect device, the socket-outlet shall be easily accessible.
• Place the device with its bottom surface downward.

Please read and follow the above safety information when operating the device. We cannot guarantee that no accidents or damage will occur due to improper use of the device. Please use this product with care and operate at your own risk.

TP-Link Limited Product Warranty

For TP-Link Branded Products Only. For the information about warranty period, policy and procedures, please visit https://www.tp-link.com/en/support

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE (OR BY COUNTRY OR PROVINCE).

TO THE EXTENT ALLOWED BY LOCAL LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTYES, REMEDIES AND

CONDITIONS.

TP-Link warrants the TP-Link branded hardware product contained in the original packaging against defects in materials and workmanship when used normally in according with TP-Link's guidelines for some period which depends on the local service from the date of original retail purchase by the end-user purchaser.

Espanol

TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/30/EU, 2014/35/EU, 2011/65/EU and (EU)2015/863.

The original EU declaration of conformity may be found at https://www.tp-link.com/en/support/ce/
