Brand	Whirlpool
Model	SPIW309L
Product type	Split wall air conditioner
Cooling power (BTU/h)	9000 (estimate)
Heating power (BTU/h)	9000 (estimate)
Refrigerant	R32, GWP 675
Maximum refrigerant charge	2.5 kg
Power supply	220-240 V ~ 50 Hz
Required circuit breaker	16 A (for 9K/12K)
Minimum room area	10 m²
Operating modes	Cooling, heating, ventilation, dehumidification, 6th Sense, Sleep, Jet, Around U
Fan speeds	Auto, high, medium, low
Wi-Fi function	Yes, via Whirlpool app
Air filter	Washable, clean every 200 hours
Filter cleaning indicator	Flashing light after 720 hours
Auto restart	Yes, programmable
Remote control	Included, range up to 7 m
Remote control power	2 AAA 1.5 V batteries
Indoor unit dimensions (WxHxD)	Approx. 790 x 270 x 200 mm (estimate)
Outdoor unit dimensions (WxHxD)	Approx. 700 x 550 x 250 mm (estimate)
Indoor unit weight	Approx. 8 kg (estimate)
Outdoor unit weight	Approx. 25 kg (estimate)
Sound level (indoor)	Approx. 25-45 dB(A) (estimate)
Energy class	Not specified (estimate A+ or A++)
Safety	Anti-freeze protection, automatic defrost, safety shutdown, grounding, RCD 30mA
Maintenance	Clean panel and filter, do not use steam
Warranty	Refer to warranty booklet
After-sales service	Contact Whirlpool, provide serial number and model

Frequently Asked Questions - SPIW309L WHIRLPOOL

How to clean the air filter?

Turn off and unplug the unit. Open the front panel, remove the filter, wash it with warm water and a mild detergent, dry it, reinstall it, and press the filter reset button.

What does the flashing filter indicator mean?

The filter monitoring light flashes after 720 hours of use to remind you to clean the air filter. After cleaning, press the reset button.

The remote control does not work, what to do?

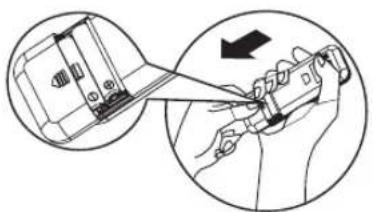

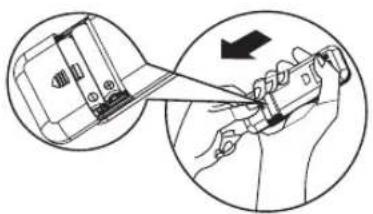

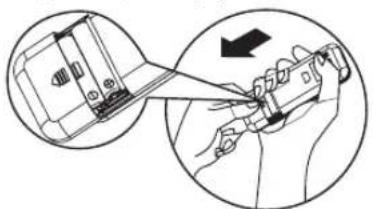

Check the batteries (2 AAA) and their polarity. Ensure there is no obstacle between the remote control and the receiver on the indoor unit. If the problem persists, replace the batteries or contact after-sales service.

The air conditioner is not cooling properly, possible causes?

Check that the filter is not dirty, that the air inlets/outlets are not obstructed, that the temperature is set correctly, and that doors/windows are closed. Wait 3 minutes after shutdown before restarting.

How to use the 6th Sense function?

Press the 6th SENSE button on the remote control. This function automatically adjusts temperature, humidity, and fan speed for optimal comfort.

The operation indicator flashes and the fan stops, is this normal?

Yes, this occurs during automatic defrosting in heating mode. Defrosting lasts 6 to 10 minutes, then the unit returns to normal heating.

Can I use an extension cord?

No, never use an extension cord, multi-socket, or adapter. Plug the unit directly into a dedicated grounded wall outlet.

How to set the timer?

Use the TIMER ON and TIMER OFF buttons on the remote control to program the on and off times. Press the temperature buttons to adjust the time.

What refrigerant does this unit use?

The refrigerant is R32 (GWP 675). It is flammable. Installation and maintenance must be performed by a certified professional.

How to contact after-sales service?

Before contacting after-sales service, refer to the troubleshooting guide. Have the exact model, serial number (under 'Service' on the label), address, and phone number ready. Use the website docs.whirlpool.eu or the number indicated in the warranty booklet.

USER MANUAL SPIW309L WHIRLPOOL

Instructions for use

Gebrauchsanaeisung

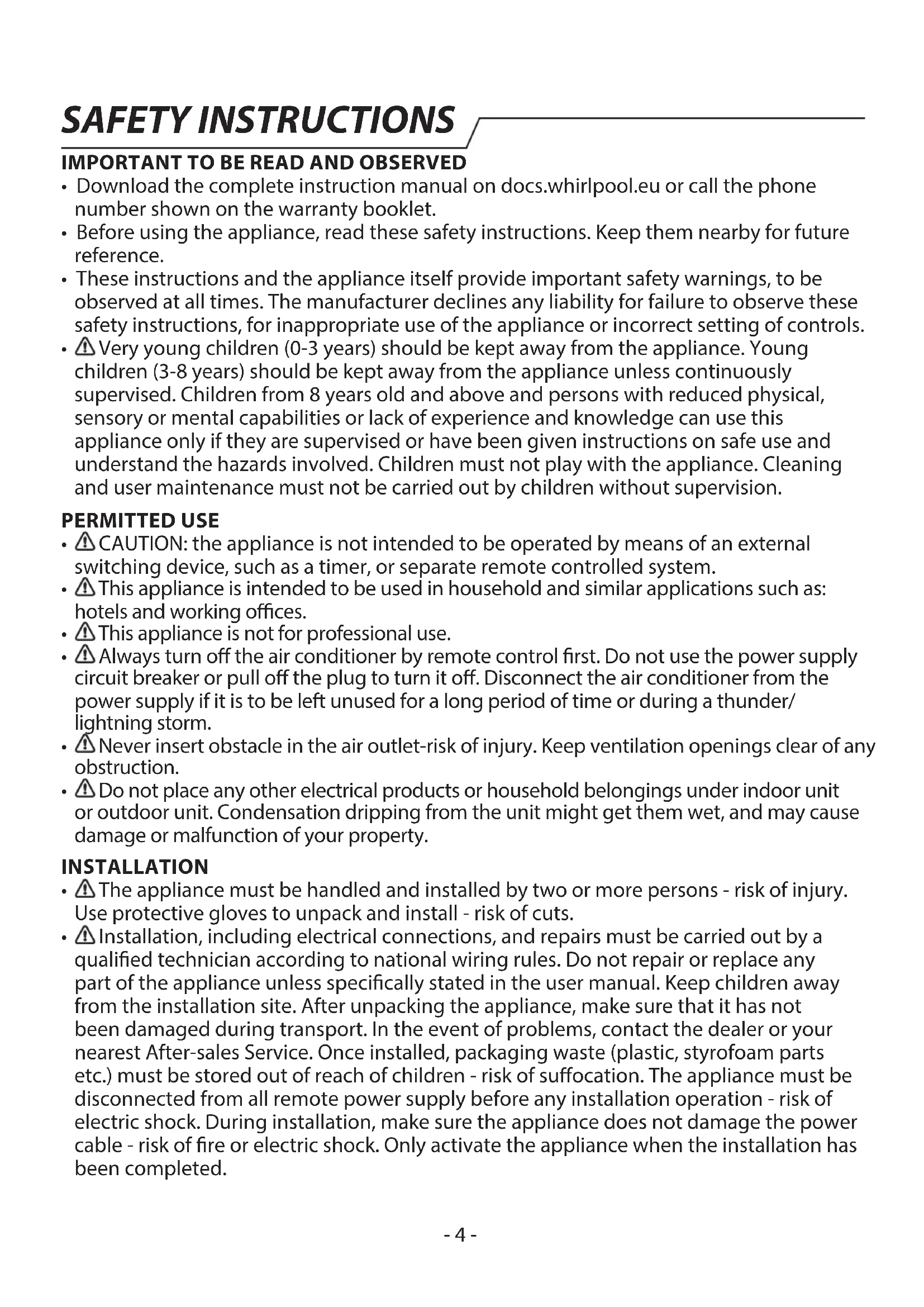

• Download the complete instruction manual on docs.whirlpool.eu or call the phone number shown on the warranty booklet.
• Before using the appliance, read these safety instructions. Keep them nearby for future reference.
• These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.
• Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

PERMITTED USE

• CAUTION: the appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.
• This appliance is intended to be used in household and similar applications such as: hotels and working offices.
  This appliance is not for professional use.
• Always turn off the air conditioner by remote control first. Do not use the power supply circuit breaker or pull off the plug to turn it off. Disconnect the air conditioner from the power supply if it is to be left unused for a long period of time or during a thunder/lightning storm.
• Never insert obstacle in the air outlet-risk of injury. Keep ventilation openings clear of any obstruction.
• Do not place any other electrical products or household belongings under indoor unit or outdoor unit. Condensation dripping from the unit might get them wet, and may cause damage or malfunction of your property.

INSTALLATION

• The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.
• Installation, including electrical connections, and repairs must be carried out by a qualified technician according to national wiring rules. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from all remote power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.

SAFETYINSTRUCTIONS

• When moving or relocating the air conditioner, consult experienced service technicians for disconnection and reinstallation of the unit.
• The appliance shall not be installed in the laundry.

ELECTRICALWARNINGS

• The power supply must be of rated voltage with special circuitry for the appliance. The diameter of the power cord must comply with requirements.
• A multi-pole switch shall be installed in the fixed wiring in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.
• An all-pole disconnection switch having a contact separation of at least 3mm in all poles should be connected in fixed wiring.
• Do not use extension leads, multiple sockets or adapters. The electrical components must not be accessible to the user after installation. Do not use the appliance when you are wet or barefoot. Do not operate this appliance if it has a damaged power cable or plug, if it is not working properly, or if it has been damaged or dropped.
• If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electrical shock.
• A residual current device (RCD) having rated residual operation current not exceeding 30mA shall be incorporated in fixed wiring according to national law.
• The temperature of refrigerant circuit will be high, please keep the interconnection cable away from the copper tube.
• Ensure safe grounding and a grounding wire connected with the special grounding system of the building, installed by professionals. The appliance must be fitted with electrical leakage protection switch and an auxiliary circuit breaker with sufficient capacity. The circuit breaker must also have a magnetic and a thermal tripping function to ensure protection in case of short-circuit and overload.

Model 9K & 12K 18K 24K
Required capacity of circuit breaker 16A	20A 25A

• For the connection of power cord and cable connection between indoor and outdoor units, please see the wiring diagram on the appliance.

CLEANING AND MAINTENANCE

• WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.
• Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants.
• Servicing shall only be performed with equipment as recommended by the manufacturer.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle symbol ( ). The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispose of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The ( ) symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

DECLARATIONS OF CONFORMITY

• The complete text of the declaration of conformity is present at the following website: docs.whirlpool.eu.
• The radio equipment operates in the 2.4 GHz ISM frequency band, the maximum radio-frequency power transmitted does not exceed 20 dBm (e.i.r.p.).
• This product includes certain open source software developed by third parties. The open source license usage statement is available at the following website: docs.whirlpool.eu.
• This product contains Fluorinated Greenhouse Gases covered by the Kyoto Protocol, the refrigerant gas being in a hermetically sealed system (R32, GWP 675). The maximum refrigerant charge amount is 2.5kg . Please refer to the rating label for detailed information.

SAFETY INSTRUCTIONS FOR SERVICING APPLIANCE WITH SPESIFIC REFRIGERANT

• Download the complete manual for detailed installation, servicing, maintenance and repairing methods on docs.whirlpool.eu.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation; without continuously operating ignition sources (such as; open flames, an operating gas appliance or an operating electric heater).

• Do not pierce or burn. Be aware that the refrigerants may not contain an odor.

• Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorizes their competence to handle refrigerants safely in accordance with an industry recognized assessment specification. Servicing shall only be performed as recommended by the equipment manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of flammable refrigerants. Appliance shall be installed, operated and stored in a room with a floor area larger than 10m^2 . The installation of pipe-work shall be kept to a room with a floor area larger than 10m^2 . The pipe-work shall be compliance with national gas regulations. The maximum refrigerant charge amount is 2.5kg . Mechanical connectors used indoors shall comply with ISO 14903. When mechanical connectors are reused indoors, sealing parts shall be renewed. When flared joints are reused indoors, the flare part shall be re fabricated. The installation of pipe-work shall be kept to a minimum. Mechanical connections shall be accessible for maintenance purposes.

• Transport of equipment containing flammable refrigerants shall be compliant with the

transport regulations.

1. Marking of equipment using signs shall be compliant with local regulations.
2. Disposal of equipment using flammable refrigerants shall be compliant with national regulations.
3. The storage of equipment / appliances should be in accordance with the manufacturer's instructions.
4. Storage of packed (unsold) equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be by local regulations.
5. Information on servicing.

6-1 Checks to the area

Prior to beginning work on system containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimized. For repair to the refrigerating system the following precautions shall be complied with prior to conducting work on the system.

6-2 Work procedure

Work shall be undertaken under a controlled procedure so as to minimize the risk of flammable gas or vapour being present while the work is being performed.

6-3 General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

6-4 Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of prtentially flammable atmospheres. Ensure thathte leak detection equipment being used is suitable for use with flammable refrigerants, i.e. non-sparking adequately sealed or intrinsically safe.

6-5 Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated partsappropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO_2 fire extinguisher adjacent to the charging area.

6-6 No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs shall be displayed.

6-7 Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any

released refrigerant and preferably expel it externally into the atmosphere.

6-8 Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants:

• The charge size is in accordance with the room size within which the refrigerant containing parts are installed;
• The ventilation machinery and outlets are operating adequately and are not obstructed;
• If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant;
• Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected;
• Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.

6-9 Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactory dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parts are advised. Initial safety checks shall include:

• That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking;
• That there no live electrical components and wiring are exposed while charging, recovering or purging the system;

• That there is continuity of earth bonding.

• Repairs to sealed components

During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation. Particular attention shall be paid to the following to ensure that by working on coelectrical components. The casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE:

The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

1. Repair to intrinsically safe components

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on whilelive in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant atmosphere from a leak.

1. Cabling

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

10.Detection of flammable refrigerants

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

11.Leak detection methods

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants:

• Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need re-calibration (Detection equipment shall be calibrated in a refrigerant-free area.)
• Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used.
• Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed.
• Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work.
• If a leak is suspected, all naked flames shall be removed/ extinguished.
• If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak.

• Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

• Removal and evacuation

• When breaking into the refrigerant circuit to make repairs - or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration.

The following procedure shall be adhered to:

• Remove refrigerant;

• Purge the circuit with inert gas;
  Evacuate;

• Purge again with inert gas;

• Open the circuit by cutting or brazing.

The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be "flushed" with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final charge is used, the system shall be vented down to atmospheric pressure to enable work. This operation is absolutely vital if brazing operations, on the pipe-work are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is the vacuum in the system with OFN and continuing ventilation available.

13. Charging procedures

In addition to conventional charging procedures, the following requirements shall be followed:

• Ensure that contamination of different refrigerants does not occur when using charging equipment.
• Hoses or lines shall be as short as possible to minimize the amount of refrigerant contained in them.
• Cylinders shall be kept upright.
• Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
• Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN.

The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

14.Decommissioning

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a. Become familiar with the equipment and its operation.
b. Isolate system electrically.
c. Before attempting the procedure ensure that:

• Mechanical handling equipment is available, if required, for handling refrigerant cylinders;
• All personal protective equipment is available and being used correctly;
• The recovery process is supervised at all times by a competent person;
• Recovery equipment and cylinders conform to the appropriate standards.

d. Pump down refrigerant system, if possible.

e. If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f. Make sure that cylinder is situated on the scales before recovery takes place.
g. Start the recovery machine and operate in accordance with manufacturer's instructions.

h. Do not overfill cylinders. (No more than 80% volume liquid charge).

i. Do not exceed the maximum working pressure of the cylinder, even temporarily.

j. When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.

k. Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

15.Labelling

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant.

16.Recovery

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant).

Cylinders shall be complete with pressure relief valve and associated shutoff valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely. When moving or relocating the air conditioner, consult experienced service technicians for disconnection and reinstallation of the unit. Do not place any other electrical products or household belongings under indoor unit or outdoor unit. Condensation dripping from the unit might get them wet, and may cause damage or malfunction of your property. To keep ventilation openings clear of obstruction. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. The appliance shall be stored in a room without continuously operating open flames (for example an operating gas appliance) and ignition sources (for example an operating electric heater). Reusable mechanical connectors and flared joints are not allowed.

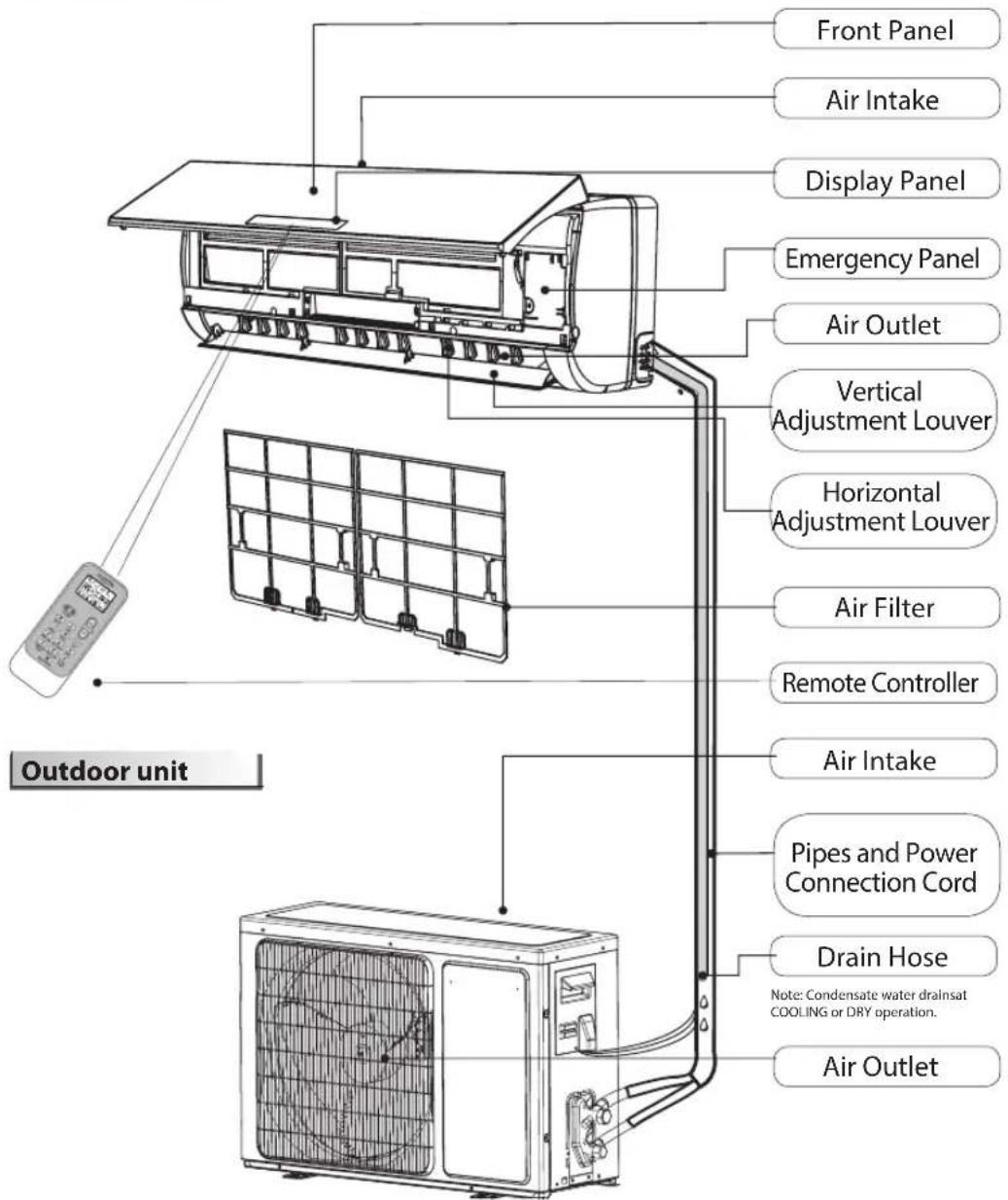

Product description

Indoor unit

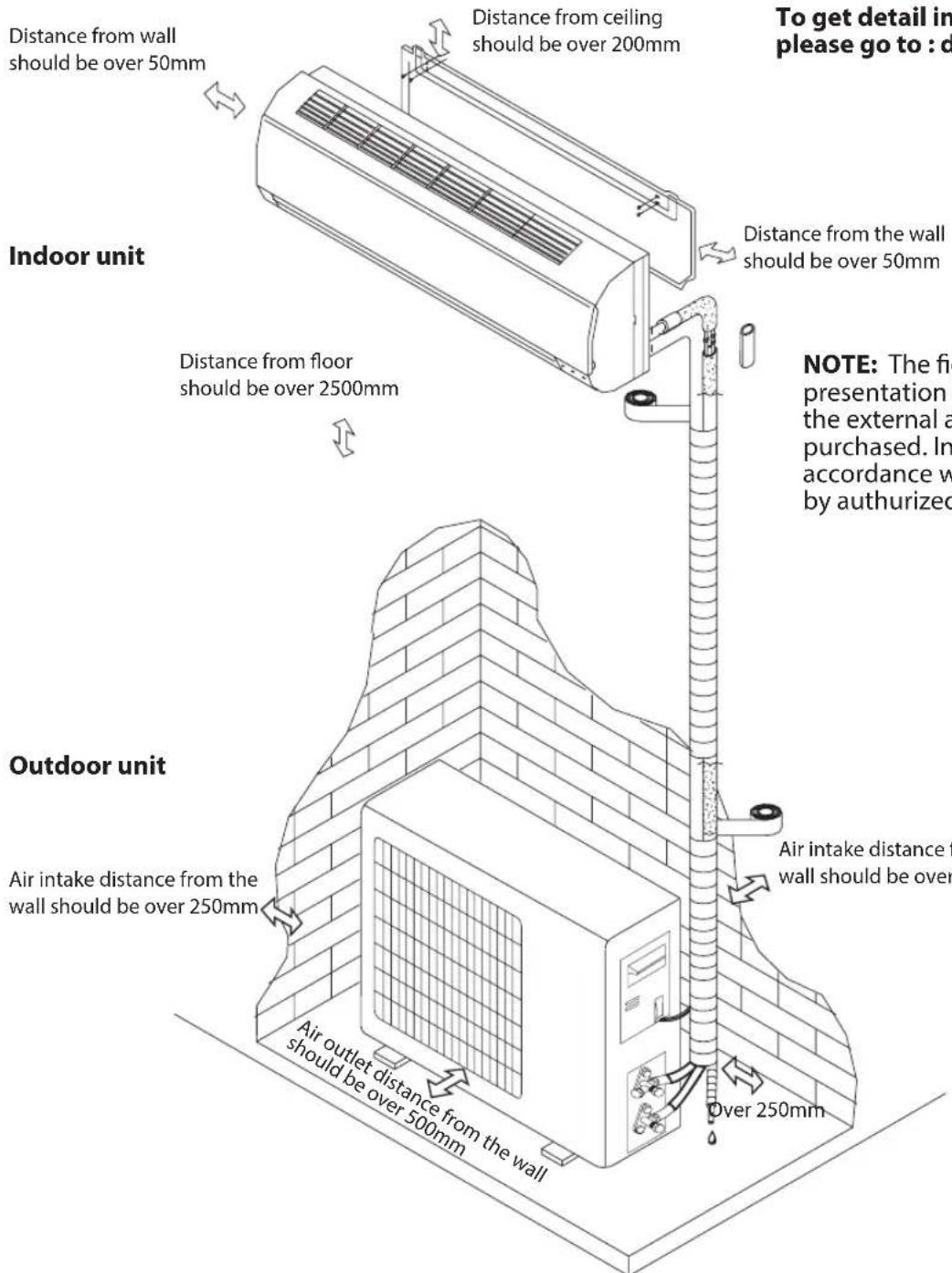

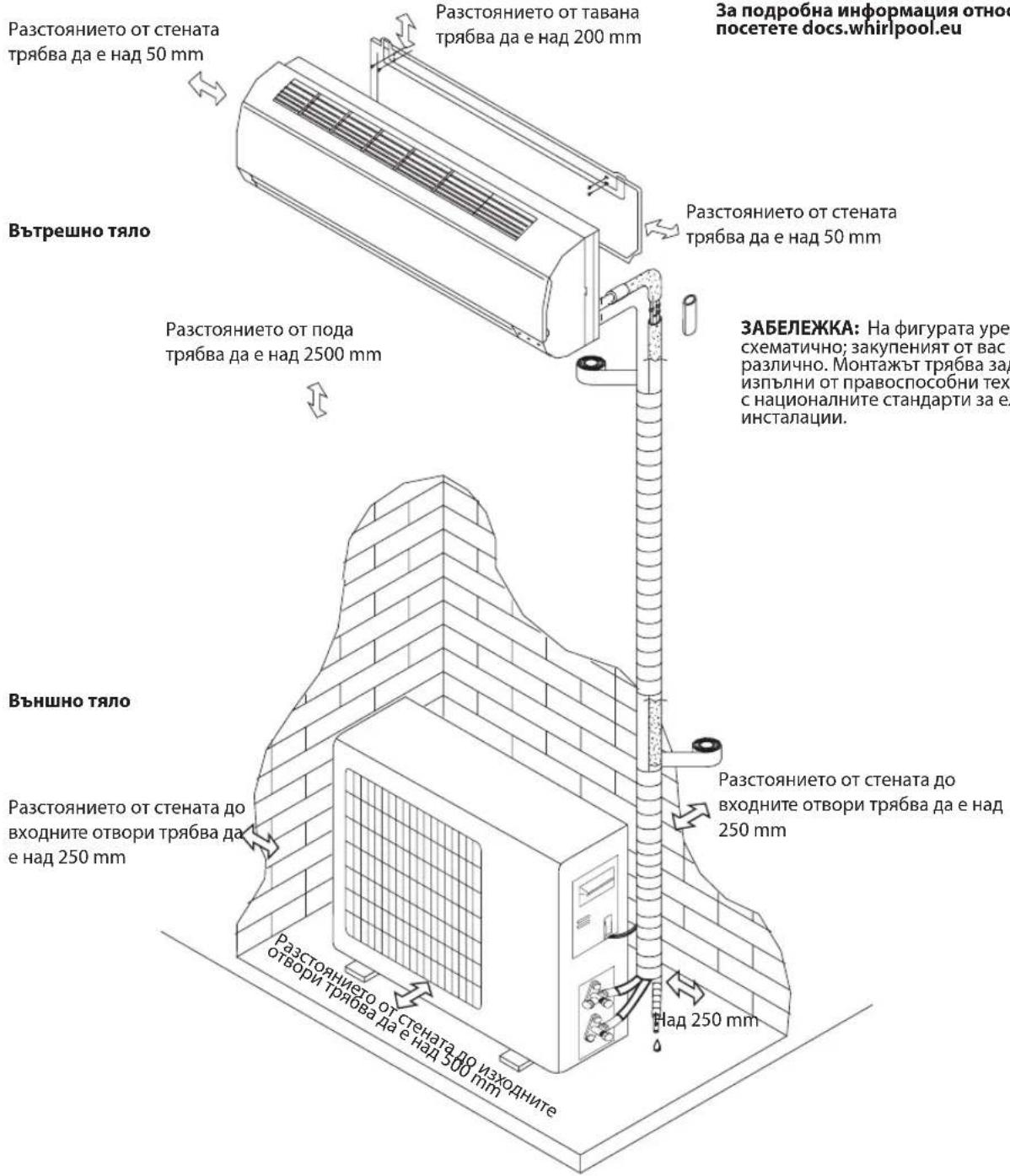

The figures in this manual are based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner you have selected.

Explanation of symbols displayed on the indoor unit or outdoor unit.

	WARNING	This symbol shows that this appliance uses a flammable refrigerant is leaked and exposer to an external ignition source, there is a risk of fire.
	CAUTION	Ythis symbol shows that the operation manual should be read carefully.
	CAUTION	This symbol shows that a service personnel should be handling this equipment with reference to the installation manual.
	CAUTION	This symbol shows that information is available such as the operating manual or installation manual.

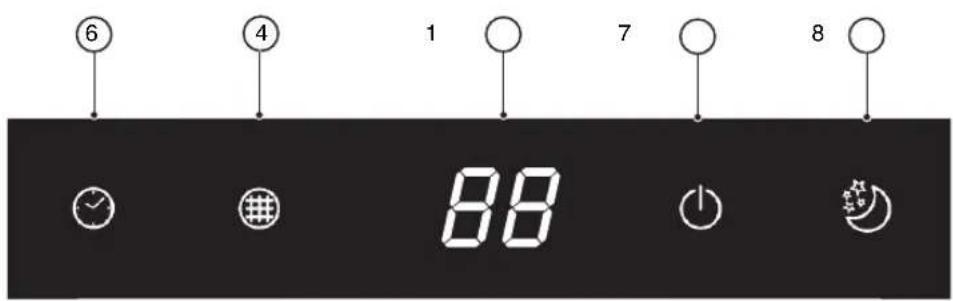

Temperature indicator (1)

Displays set temperature. It shows "FC" as a reminder to clean the filter.

Wi-Fi indicator (2)

It blinks fast (3 Hz) when it's connecting to router or lose connection to router. It blinks slowly (1.5 Hz) when it's connected to router but not connected to cloud. It turns to be solid when the Wi-Fi is fully connected. It goes off when the Wi-Fi is deprovisioned or turn off.

6th Sence indicator (3)

It lights up when 6th sense is on. It goes off when 6th sense ends.

Filter monitor indicator (4)

Iit flashes when the filter needs to be cleaned. Filter monitor indicator flashes after 720 hours of usage as reminder to clean the filter. After filter cleaning, press the filter reset button located on the indoor unit behind the front panel in order to interrupt the flashing of the filter monitor indicator.

Humidity indicator (5)

It lights up when showing the humidity level. It goes off when showing the temperature.

Timer indicator (6)

It lights up during the set time. It goes off when timer operation ends.

Running indicator (6)

It lights up during operation. It flashes during outside unit defrosting.

Sleep indicator (8)

It lights up once sleep mode is set, "Running" indicator will flash for 10 times then the whole display will light off.

For air conditioners without Wi-Fi control, we recommend the Wpro SmartClim: a smart device to control via Wi-Fi the main settings of your appliance from your smartphone. This accessory is not included inside the product packaging. Please contact our After-Sales Service for more details and purchase.

Insert the batteries into RC

1. Insert a pin and gently press down on the battery cover and push in the direction of the arrow to remove, as shown.
2. Insert 2 AAA batteries (1.5V) into the compartment. Ensure that "+" and -" polarity is correctly positioned.
3. Close the battery cover on the remote control.

- Remote Control presetting

Each time the batteries are replaced in the remote controller, the remote controller pre-set at Heat Pump mode. The heat pump AC remote controller can be used to control the cool only AC models.

Use RC to control the appliance

• To operate the appliance by remote control, point the remote control at the receiving device on the indoor unit, to ensure receiving sensibility.
• To send a message from remote control, the symbol will flash for 1 second. On receipt of the message, the appliance will emit a beep.

The remote control will operate the air conditioner at a distance of up to 7m.
Each time the batteries are replaced in the remote control, the remote control is pre-set at Heat Pump mode.

Note: please follow the instruction which matches to the remote controller you receive for Air Conditioner operation

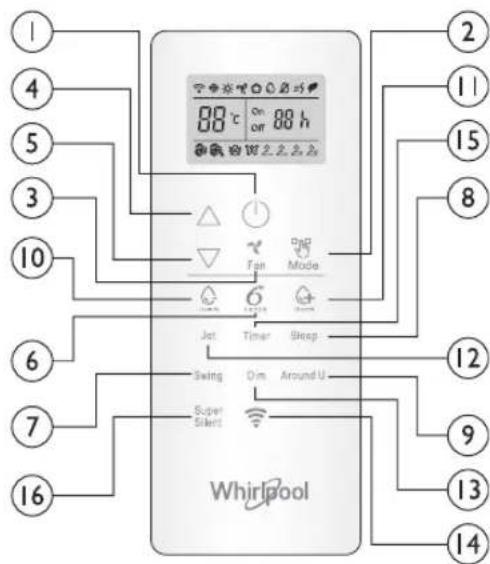

Function description of buttons (P1-03)

1. ON/OFF BUTTON

Starts or Stops the appliance by pressing this button.

3.FAN BUTTON

Used to select fan speed in sequence auto, high, medium or low.

Used to select the room temperature.

Used to set the time in timer mode.

6.6th SENSE BUTTON

Sets or cancels 6th sense operation.

7. SWING BUTTON

Stops or starts horizontal adjustment louver swinging and sets the desired up/down airflow direction.

10-11. HUMIDITY BUTTON

Used to set desired humidity level, they are only available under 6th SENSE mode.

16. SUPER SILENT BUTTON

Used to start or stop the super silent operation to have a low noise environment.

2. MODE BUTTON

Used to select the operation mode. In sequence Cooling, hearing or fan..

8.SLEEP BUTTON

Used to select the sleep mode in sequence of sleep 1, sleep 2, sleep 3 sleep 4 and sleep off.

9.AROUNDUBBUTTON

Used to set or cancel Around U function.

12.JET BUTTON

Used to start or stop the fast cooling or heating.

13.DIM BUTTON

Used to turn on or turn off display light on indoor unit.

14.WI-FIBUTTON

Used to trun on or turn off the Wi-Fi.

15TIMER BUTTON

Used to set the time for turn on or turn off the appliance.

Symbols on RC display Active RC by pressing UNLOCK button

Cooling indicator Auto fan speed Sleep indicator 1

Humidity plus indicator High fan speed Sleep indicator

Humidity minus indicator Medium fan speed Sleep indicator 3

Fan only indicator Low fan speed Sleep indicator 4

Heating indicator Super silent indicator

Around U indicator 6

Jet indicator Power save indicator

BB Display set temperature

88h Display set timer

Signal transmission

Press the button, the backlight will lighted up and function buttons will be activated for use. Press again to lock remote controller. If no operation on remote controller for 10s, the remote controller will be locked automatically.

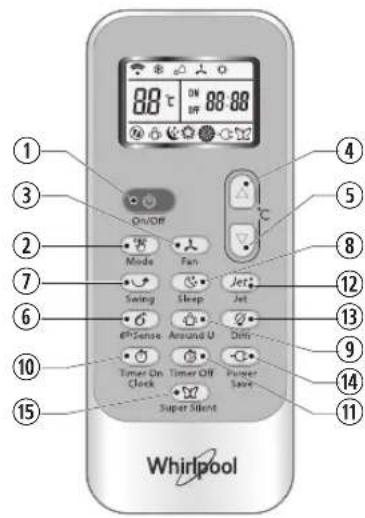

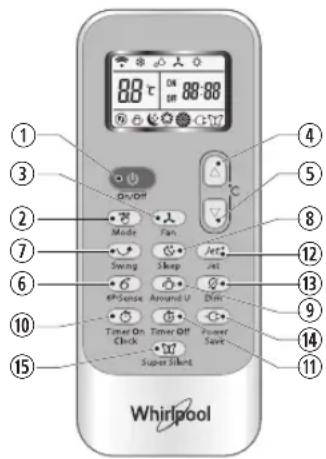

Function description of buttons (J1-3A)

1. ON/OFF BUTTON

Starts or Stops the appliance by pressing this button.

2. MODE BUTTON

Used to select the operation mode in sequence of Cooling, dry, fan only or heating.

3. FAN BUTTON

Used to select fan speed in sequence auto, high, medium or low.

Used to select the room temperature. Used to set time in timer mode and real time clock.

6.6 ^TH SENSE BUTTON

Sets or cancels 6^th sense operation.

7.SWING BUTTON

Stops or starts horizontal adjustment louver swinging and sets the desired up/down airflow direction.

8.SLEEP BUTTON

Sets or cancels Sleep Mode operation in sequence of

9. AROUND U BUTTON

Used to set or cancel Around U function.

10. TIMER ON/CLOCK BUTTON

Used to set the current time.

Used to set or cancel the timer on operation.

11 TIMER OFF BUTTON

Used to set or cancel the timer off operation.

12.JET BUTTON

Used to start or stop the fast cooling or heating mode.

13. DIM BUTTON

Used to turn on or turn off display light on indoor unit. 14. POWER SAVE BUTTON

Used to start or stop the power save operation.

15. SUPER SILENT BUTTON

Used to start or stop the super silent operation to have a low noise environment.

Symbols on RC display

Cooling indicator Sleep 1 indicator Auto fan speed
Dry indicator Sleep 2 indicator High fan speed
Fan only indicator Sleep 3 indicator Medium fan speed
Heating indicator Sleep 4 indicator Low fan speed
6 ^th Sense indicator Around indicator Super silent indicator

② Jet indicator

Signal transmission

Display set timer

Display current time

BB Display set temperature

Power save indicator

PROTECTION

Operating condition

The protective device maybe trip and stop the appliance in the cases listed below.

Heating Outdoor	air temperature is over 24°C
	Outdoor air temperature is below -7°C
	Room temperature is over 27°C
Cooling Outdoor	air temperature is over 43°C
	Room temperature is below 21°C
Dehumidifying	Room temperature is below 18°C

If the air conditioner runs in COOLING or DRY mode with door or window opened for a long time when relative humidity is above 80% dew may drip down from the outlet.

Features of protection device

Wait at least 3 minutes before restarting the unit after operation stops or changing mode during operation. After connecting to power supply and turning on the appliance immediately, a delay of 20 seconds may occur before it starts to operate. If all operation has stopped, press ON/OFF button again to restart. Timer should be set again if it has been cancelled.

Features of COOLING mode Anti-freezing

When the temperature of the indoor

heat exchanger drops to 0^ or below, compressor will stop working to protect the appliance.

Features of HEATING mode Preheating

In order to prevent cool air blowing, 2-5 minutes are necessary to preheat the indoor unit at HEATING operation start. The indoor fan will not work during preheating.

Defrosting

In HEATING operation the appliance will defrost (de-ice) automatically to raise efficiency. This procedure usually lasts 6-10 minutes. During defrosting, fan stops running and running indicator flashes.

After defrosting is completed, it returns to HEATING mode automatically.

Clean front panel of Indoor Unit

1. Disconnect from the power supply

Turn off the appliance first before disconnecting from power supply.

1. Remove the front panel

Open the front panel as shown by the arrow (Fig. A).

Pull the slots at the side of the front panel with force to take out the front panel (Fig. B).

1. Clean the front panel

Wipe it with a soft and dry cloth. Use lukewarm water (below 40^ ) to clean if the appliance is very dirty. After cleaning let it dry.

1. Refit and close the front panel

Refit and close the front panel by pushing it downward.

Note:

• Do not use substances such as gasoline or polishing powder to clean the appliance.
• Do not sprinkle water onto the indoor unit Dangerous! Electric shock!

Clean Air filter

It is necessary to clean the air filter after using it for about 200 hours. Clean the air filter every two weeks if the air conditioner operates in an extremely dusty environment.

1. Disconnect from the power supply

Turn off the appliance first before disconnecting from power supply.

1. Take out air filter (Fig. C).

2. Open the front panel. 2. Press the handle of the filter gently. 3. Slide out the filter.

3. Cleaning the air filter (Fig. D)

If the filter is very dirty, clean it with a solution of lukewarm water and neutral detergent.

After cleaning let it dry.

1. Refit the filter, press the filter reset button (Fig.E) at right side by using a cylinder pin and close the front panel.

Note:

• To avoid injury, do not touch the fins of indoor unit with your fingers after removing the filter.
• Do not attempt to clean the inside of the air conditioner by yourself.
• Do not clean the filter in washing machine.

Fig.A

Fig.B

Fig.C

Fig.D

Fig.E

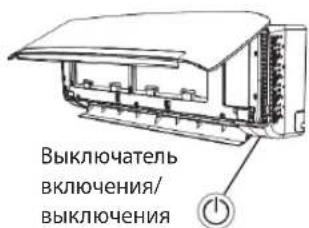

EMERGENCY OPERATION

Under emergency situation or when remote control is missing, you can control the unit by pressing the on/off switch located on the indoor unit.

• Turn on the appliance: when the unit is off, press this button, it will start up and operate in 6th SENSE mode.
• Turn off the appliance: when the unit is on, press this button, the unit will stop working.

Note: Do not press this button for a long time as it will cause malfunction.

Auto-Restart Function

If you want to set auto_restart, switch on the power supply, press the ON/OFF button on the indoor unit and hold for over 5 seconds, auto_restart is set with buzz sound.

If the auto_restart has been set, press the ON/OFF button on the indoor unit and hold for over 5 seconds, auto_restart function will be cancelled with a buzz sound and air conditioner is on standby mode.

Disposal of the batteries

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Installation instruction

Installation diagram

To get detail installation information, please go to : docs.whirlpool.eu

NOTE: The figure is only a simple presentation of the unit, it may not mutch the external appearance of the product you purchased. Installation must be performed in accordance with th national wiring standard by authorized service people only.

When install interconnection cord, make sure that the color of wires and the terminal No. of outdoor unit shall be same as those in indoor unit.

Cable Specifications

Capacity (Btu/h)	Power cord Power connecting cord
	Type	Normal cross - sectional area	Type	Normal cross - sectional area
7K, 9K, 12K H07	RN-F 1.0mm	2X3 H07	RN-F 1.0mm	2X5
18K H07RN	F 1.5mm	2X3 H07	RN-F 1.5mm	2X5
24 K H07RN	F 2.5mm	2X3 H07	RN-F 2.5mm	2X5

Operation problems are often due to minor causes, please check and refer to the following chart before contacting the service. This may save time and unnecessary expenses.

Trouble Analysis
Does not run	·Is the protection device or fuse blown? ·Please wait for 3 minutes and start again, protection device may be preventing unit to work. ·Are the remote control batteries low? ·Is the plug not properly plugged?
No cooling or heating air	·Is the air filter dirty? ·Are the intakes and outlets of the air conditioner blocked? ·Is the temperature set properly? ·Are doors or windows open?
Ineffective control	·Has there been a strong interference (from excessive static electricity discharge, power supply voltage abnormality)? Note that operation will be abnormal, in this case unplug from the power supply and re Plug after 2-3 seconds.
Does not operate immediately	·3 minute delay will occur when changing mode during operation.
Peculiar smell	·This smell may come from another source such as furniture, cigarette etc, which is sucked in the unit and blown out with the air.
A sound of running water	·Normal behaviour caused by the flow of refrigerant in the air conditioner. ·Defrosting sound in heating mode.
Cracking sound	·The sound may be generated by the expansion or contraction of the front panel due to temperature changes.
Mist sprays from the outlet	·Mist is present in the room with low temperature? Normal behaviour due to cool air discharged from indoor unit during COOLING or DRY operation mode.
Running indicator flashes but indoor fan stops.	·The unit is shifting from heating mode to defrost. The indicator will light off and return to heating mode.

Note: If the problems still have, turn off the appliance and disconnect from power supply, then contact the nearest Whirlpool Authorized Service Center. Do not attempt to move, repair, disassemble, or modify the appliance by yourself.

AFTER SALES SERVICE

Before contacting the Customer Care Centre:

1. Try to solve the problem yourself based on the descriptions given in the "Troubleshooting".
2. Turn the appliance off and restart it to see if the fault persists.

If after carrying out the above checks, the fault persists, contact the Customer Care Centre.

Please give:

• a short description of the fault;
• the exact model of the air conditioner;
• the service number (this is the number found below the word Service on service sticker which is located on the side or on the bottom of the indoor unit).
• The service number can also be found in the warranty booklet;
• your full address;
• your telephone number.

If repair work has to be carried out, contact the Customer Care Centre (Use of original spare parts and a proper repair is guaranteed).

You will need to present the original invoice. Failure to comply with these instructions could compromise the safety and quality of your product.

SERVICE

0000 000 0000

Note: if you want the full manual for your appliance, please help to download it from websit through below link: docs.whirlpool.eu using QR code.

DIESE MÜSSEN DURCHGELESEN UND BEAuchtET WERDEN

B88 Display Interconnecting

Voyant 6th Sense (3)

FONCTIONNEMENT D'URGENCE

6. "6^th SENSE"TOETS (TOETS ZESDE ZINTUIG)

7."SWING"-TOETS (ZWENKTOETS)

14. "WI-Fl"TOETS (WIFITOETS)

1. "6^TH SENSE"-TOETS (TOETS ZESDE ZINTUIG)

7."SWING"-TOETS (ZWENKTOETS)

1. "AROUND U"-TOETS (OMGEVINGSTOETS)

3. BOTAO FAN (DE VENTOINHA)

3. BOTAO FAN (DE VENTOINHA)

2. TASTO MODE (MODALITA)

2. TASTO MODE (MODALITA)

6. KNAPPEN 6th SENSE

Aktiverar aller avaktiverar 6th sensefunktionen.

7. KNAPPEN SWING (VINKLING)

RENHOLD OG VEDLIKEHOLD

6th Sence indicator (3)

Den tennes nár 6th sense er pa.

Den slukker nár 6th sense slutter.

8.SLEEP (HVILE) KNAPP

8.SLEEP (HVILE) KNAPP

6th SENSE indicator (3)

6. KNAPPEN 6th SENSE

6.6^th SENSE -PAINIKE

Wskaznik 6th sense (3)

6. PRZYCISK 6th SENSE

4-5. TLACITKO TEMPERATURE (TEPLOTA)

Toto tlacitko slouziknastaveni teploty v mistnosti. Pouziva se k nastavenicasu v rezimu casovace.

6. TLACITKO 6th SENSE

4-5.TLACITKO TEMPERATURE (TEPLOTA)

Indikator fungcie 6th Sense (3)

Rozsvieti sa, ked'je zapnutá funkcia 6th Sense.

Zhasne po skončeni funkcie 6th Sense.

Indikator sledovania filtra (4)

4-5. TLACIDLO TEPLOTY

Používa sa na volbu teploty v miestnosti.

4-5. TLACIDLO TEPOLOGY

8.SLEEP (ALVAS) GOMB

6-6 OTCyTCTBNE NCTOCHNKOB BO3ROPaHnA

B npoecce BbINHHeH na60T, C83aHHbIX C OTKpbBaHNem CNCTEmbl Tpy6OpiBOIOB, B KOTOpO coepkntc Ceuac nIIN COepeXaIcpaHee IerKO BOCnIaMeHIOUncxHaIaIeHT, CLeyET n36eRaTb IIO6Oro NcNoIb3OBaHnI NCTOCHNKOB BO3ROPaHnI, KOtOpoe MOKeT BbI3BaTb PnCK BO3ROPaHnI nII B3PbIBa. BCE BO3MOXhIe NCTOCHNK BO3ROPaHnI, BKIOua 3aXKeHHbIe CNrapeTbI, DOnXHbI HaxODITbcra Ha IOCTaTOOHOM pacCTOAHNl OT MeCTa MOHTaJka, peMOHTa, DeMOHTaKa I yTuIN3aCUn, TaK KaK B IpOueCE BbINOJIHeHnI 3TNx pa60T BO3MOXeH N bIXoN XnaIadareHtA B OKpyKaIOUyIO aTMocfepy. Ipeed NaHApom pa60T Heo6xOIMO OCMOTpeTB pa6OuyIO 3OHy BOKpyr O6OpYIOBAHnI yBeiITbcR B OTCytCBnN INCTOCHNKOB n PnCKOB BO3ROPaHnI. TaKke Heo6xOIMO pa3MeCTNTB B pa6OueN 3OHe Ta6InuKn "He Kypntb".

XOIOINbHbIe Tpy6Kn I npyTne KOMNOHEtbl DoJxHbI 6bITb yCTaHOBHeHbIB TaKIM NOLOKeHN, KOToPOe IpaKTnueCKN NCKJIouHT BO3JeCTBNe Ha HIX JIO6bIX BeUeCTB, MOrYuNX Bbl3BaTb IN Kopp03NU, ECNI TOIbKO 3TN KOMNOHEtbl He BblONHeHbI IN3 MaTePnaIOB, NO CBOe I npuPoDe CToIKNX K Kopp03Nu INI 3aUnIeHHbIX OT Kopp03Nu NaJIeKaUIM O6pa3OM.

I P E D U N P E X K D E H I E	3TOT C N M B O L N P O K A 3 b I B a E T, Y T O D a H H b l y p r i n b o p i n c n o l b 3 y e T I e L E K O B O C N P L A M E H N Y O U S I C R X I A D A R E T N, B C L N U Y A E Y T E U K N I K O T A T K T A X I A D A R E H T A C B H E U H I M I N C T O U H N K O B O Z T R O P A H N I, M O J E T C T A T B I P R U N H O N I N O X A P A.
OCTOPOXH O!	3TOT C N M B O L Y K A 3 b I B a E T H A H E O B X O D I M O C T B B H I M A T E N T H O R O I P O U T E H I N P U K O B O D C T B A I N O E K C P I N Y A T A C U N.
OCTOPOXH O!	3TOT C N M B O L Y K A 3 b I B a E T H A H E O B X O D I M O C T B O B P A S I E H N I C O B O P U D O B A H I E M B I P O U C E C E C E B V I C H O R O O B C N U Y K I B A H I N B C T P O T O M C O O T B E T C B N I C P U K O B O D C T B O M I N O M O T A X K Y.
OCTOPOXH O!	3TOT C N M B O L Y K A 3 b I B a E T H A H A I N I Y H E N I C T O U H N K O B I N H F O P M A C U N, T A K I X K A K P U K O B O D C T B O N O E K C P I N Y A T A C U N I N I P U K O B O D C T B O I N O M O T A X K Y.

Полбзовамелбckuuhmepfeuc

88

HnDnKaTOp TEMnepaTpyb1(1)

Poka3bIbaeT3aHaHHyTo TempepaTypy.

Toka3bBaetFCB KaueCTBe HAnOMHaHnO Heo6xOIMOCn OounCTKn FInbTpa.

HdkaTop Wi-Fi (2)

BbIcTPO MIRaET (C qactoToi 3 T) npn coeINHeHm C mapwpyTN3ATOpOM nII NOtepe coeINHeHm C mapwpyTN3aTOpOM. MeJIeHNO MIRaET (C qactoToi 1,5 T) npn HAIHNu COeINHeHm C mapwpyTN3aTOpOM nOTCYCTBm COeINHeHm C o6IaNkOM. Foprt HeNpEpbBHO npn yctAHOBHeHOM Wi-Fi CoeINHeHm. He ropnt,ecnn FyHKuaWi-Fe HNIuHaUN3nPoBaHa NII BbIKIOUeHa.

HdkaTop 6th Sence3

TopHT HenpepbIBHO npB KJIIOeHHOM peKmE 6th sense

He roput npn BbiknueHHom pexnme «6th sense>.

HdNKaTOp KOHTpOJa OINbTpA (4)

Miraet,ecnHno6xOJMO OUHCTNTb HJIbTp.

HINIKATOP KOHTPONIbTaHaunHaeT MrraTb Ype3 720 YacOB NcNOJIb3OBAHnB KaueCTBe HAnOMHaHnO O Heo6XoDMOCtN OHCTKu FInlTpA.

Pocne ouhctkn fnnbtpa Haxkmtke hONky c6poca fnnbtpa, pacnoonoxeHHyHO Ha BHTpeHHem 6noke 3a nepeHne nHaHeBIO, dI npepbBAHm MIRAHn INHnKATopa KOHTpOJI FNNbTpA.

HdikKaTOp BnaXHoCTn (5)

Topn npoTo6paKeHn ypoBb BnaXHOCTN.

He roput npn oTo6paXeHn TempepaTpybl.

Hdukatop Taumepa (6)

TopHT HenpepbIBHO BO BpeMa NaCTpOKn.

BbIKIOaETcnoOKOHuaHn BpeMeHH paobTb TaMepa.

Hndkatop pa6oery pexima (6)

TOpHT HenpepbBHO BO BpEmr 3KcnnyatauIN.

Miraet BO BpemBbINHeHnO TAnBaHnB HApyXHom 6Noke.

HdikatoppeKIMa"Houho"(8)

BkIouaTc npn HacTpoKe HocHoro pexIma. INHdkaTOp pa6oeryo pexIma mHaet 10 pa3, nocne yero Becb dncn BbIKIOUaTcra.

BbICOKa cKOpocTbeHTmTaTopa

CpeHnAckoPoCTb BENTNtTopa

Hn3kay cKOpocb BeHTnlaTopa

Индikatop ржима"Суретхи"

HndkaTop HacrpoKu TaMepa

IpepaCnHaNoB

HaKMITE KHONKY, BKNHOHTC NOCDBETKa NfYHKNUOHAJIbHbIe KHONK 6yDyT

aKNTBIVPOBAHbI JnA nCIOJIb3OBAHN.Ⅱn6KnOPOBKNyNtBa

HnTACHaUMHO
ynpabHeHHaXmTe
KhONkEepeP3.Ecn
B TeueHne 10 cekHyc
NytbTa DnCTAHNOHHO
YnpabHeHHe He bytet
BblOnHeHa Hn ODA
Oepaun, NytBt
6bytet aBOMaTHueckn
3aONKPOBaH.

BeHTnIaTOp"nn "OtOnJIeHHe"

3. KHONKA FAN (BEHTUNIATOPA)

NcnoB3yeTcA DnBbOpa CkOPOCTu BEHTNJrTOPA B3aDaHHo

nocneobatebHOCTn:"ABTO,"BbICOKa,"CpeHna"nn"H3KaJ.

4-5. KHONKA TEMPERATURE (TEMNEPATyPbI)

IcnoJb3yeTcA DnA Bb16opa TeMnpaTypbB NOMEeHnn. IcnoJb3yeTcA

HACTPOKIN BpeMeHN B peXIME TaMepa Ha Yacax peaJIbHoro

BpemeHn.

6. KHONKA «6TH SENSE»

YctaHabnBaet nJN OTMeHReT peKm «6th sense»

7.KHONKA SWING (PERYJINPOBKNXAJIIO3N)

IcnoJIb3yeTcA IIN BKNIOUeHn INN BbIKIOUeHn FyHKuIN

perynilpoBKN noloxkHn Jkan03n N BbIbopa Tpe6yemoro

HaPpaBHeHnI NOToKa BO3DyXa (BBepx/BHN3).

8. KHONKA SLEEP (PEXKIMA "HOHOU")

IcnoB3yeTcAINBkIOueHnNINBbIKIOueHnpeKmAsHOH

NOCNEIOBATeHbHOCTN

9.KHONKA AROUND U (ФУHKUIM "LIPPKYJIACU BO3dYXA")

IcnoB3yeTcA DnB BKIOUeHn Nn BbIKIOUeHn FyHKuN

Unpkylaun BO3dyxa.

10.KHONKA TIMER ON/CLOCK (BKLIOUeyHn/ BbIKIIOUeyHn

TANMEPA)

IcnoJb3yeTc4 nA NaHAcTpOuKn TeKyUeero BpeMeHN.

Icnojb3yeTcraAaKTnBaunnn DeakTBaUN BKJIOueHna TaMepa.

11. KHOIIKA TIMER OFF (BbIKJIIOUOYEHN TAIIMEPA)

IcnoJb3yeTcIy aKTnBaCm IIN DeaKTNBaCm BbIKIOueHn TaMepa.

12.KHONKAJET(ФУнкун"Турбо")

IcnoJb3yeTcraIyBkIIOUeHnIyN BbIKIOUeHnIyHKUN6bICTPOrO

OTONJIENI OXNAKDEHNA.

13.KHONKA DIM (PEYUNPOBKN RPKOCTN)

IcnoB3yetyraDn BkLIOyeHn nn BBKIOyeHn NOCBETKN DcNner

BHYTpHHeRo 6JIOKa

14.KHONKA POWER SAVE (ФУHKLIMN 3HEPROCBEPEXEHNA)

IcnoJb3yETcA DnB BKIOUeHn NIN BbIKIOUeHn OYHKUN

Hepepcpehen

15.KHONKA SUPER SILENT (PEXNMA "CYNEPTNXM")

IcnoJb3yETcIJI BKNIOUeHNI BbIKIOUeHNI CyNEPTNXOTO DEKIMa

HnDnKaTOppeKMa "ToNbKOBeHTnIaTOp

IINdkaToppezimMa"OTOnneHne

INHdNkaTop 区 ^ 6 山 SENSE

HnDnKaTOppeKIma"HouHo1"

MnDkaTOp pexkma "Houhoi 2"

HnDnKaTOp pexKmA "HoHoi 3"

HdkaToppeXIMa"HouHo4"

HnKaTOp FyHKuN "UnpkynaB03dyxa

AROMATUNeCKnBbOpe KcOPOCTNBeHTINrTOpa
BbICOKaCKOPOCTb BEHTINJITOPa

CpeHnAckopoCTbBEHTINrToppa

Hn3ka cokopctb BeHTnIaTopa

HdNkaTOppeKnMa Cyneptuxn

HnDnKaTOp yHKcnn "Typ6o"

IpeepaCunHaoB

HnDnKaTOp HAcTpoK TaMepa

88 88

HnDnKaTOp 3aDaHHoN TeMnepaTpybl

Hndkatoppekima 3heproc6epekeHHa

3ALIUTA

YcIOBnaФyHKUHOHPOBaHn

CnCTema 3aunTbMOKETOTKIOUaTbN

OCTaHbAINBaTb PnBOp B Yka3aHHbIX HNKe CNYaX.

BnaXHOCTN BbIe 80% B TeueHne DoJrOro

BpeMeHn, n3 BbInyCKHOrO OTBepCTnMoXeT

Haatab Kaatab KOHDeHCAT

Oco6eHHoCTn CnCTEmbl 3aunNTbl

IpnOCTaHOBKe FyHKUHnPOBaHnA

mCmeHepKIMaBnpoecce

fYHKUOHOPOBaHnBbIXnTe He MeHee

3 MnHyT, npexKe cheM 3aanyctntb npnbop

NOBTOPOHO.1Pn BKNIOUeHn npN6Opa

HeNOCpeDCTBeHHo Nocne NOKJIoueHnK

IcToHnKy nTaHn BO3MOxHa 3aDepKKa

PnIM. 20 cekyH, npexde yem npnbop HaHET

fynkunohpoBaTb.IpnnoHOnocTaHOBKe

ФУHKUHINPOBaHnHaXMMTe KHOKNy BKJ/

BbIKI DnI NOBTOpHOrO 3anycka npn6opa.

B Cnyae c6poca BpeMeHN Ha TaImepe erO

HeoXOIMO 3aTaTb 3aHOBO.

Oco6eHHocnpeXmAmoXnaXdHne"

AHTno6neDeHHeHne

EcnTEmnepaTypaTeNIOO6MeHHnka

BHyTpEHHero 6Ioka nadaeT do 0^ nHnHexe,

KOMPpeccop OctaHaBnBaETC BcIeJX

3aunTb npubopa.

Oco6eHHoCTn peXmAm "OTOnJIeHne"

PpeBapnteIbHbI nporpeB

Длгпретврашениьыхдахолдного

BO3uXa Tpe6yertc2-5MnHyTdIpyorpeBa

BHTpeHHero 6noka nocne aKTHBaUH

peXmAm "OTonneHne".Bo Bpem nporpeBa

BENTNILJTOP BHYTpHHeRo 6noka He paBoTaet.

OTTANBAHNE

B pexnme OtonneHnn np6op

abTOMaTnueckN OTTaBaeT (yCTpaHReT

6neHeHnE)BcIeXyBeHHn

3000EETNBHOCTN. KaK npabnlo, 3Ta a3a

3aHMaet 6-10 MHyr.Bo Bpem O'TaBHaHn

BEHTNJIATOPpepcTaetpa6oTaTbN

INHIDKATOP paoboyepekimamMraet.

No okohuaHn OTTaBHaHn np6op

abTOMaTnueeCKN BO3BpaaaeTcR BpeKIM

OToPnJIeHne.

Ouictka nepedne Hnene BHytpenHero 6loka

1.OTcoeHHeHneOTNCTOCHKaNTaHn

IpeedOTcoeINHeHnem np6opaa OHTouHnKa nTaHnBbIKIOUHTe erO.

2.CHATne nepedne naHen

OTkpOte nepeDHIIO NaHeNb, KaK nOKa3aHO cTpEKNAMn (pnc.A).

3axBaTnepeepnIO naHeIb CHN3y 3a npope3n,OTTAnHTe C nOHa ce6n OTOeHNHTe (pnc.B).

3. OuHCTnTe nepeDnIO nHaHeNb

IpoTpTe nepeHIO nAHeB cyXoN mARKO TkaHbIO. Ecnn npu6Op cINbHO 3aRpa3HeH, CMOHTe TkaHb TeNoB Odo (He Bbiue 40^ ). DaIte BicoxHyTB.

4.YctahOBka 3aKpbBaHne nepeDne naHei

YcTaHOBnTe nepeHIOI NaHeJIb Ha MeCTO N 3aKpOITe,OTXAB ee BHN3.

PpmeaHne:

He nCnoJIb3yIe arpeccuBhbie BeuecTba, TaKne KaK 6eH3nH, a TaKx e a6pa3uBhbie BeuecTba dna ouHCTKN npu6opa.
He donyckaTe nonadHnB OdbHa BHyTpEHn 6Iok - onaCHOCTb nopaxhena 3neKtpueckm TOKOM!

OuicKa BO3dyuHoro qnIbTp

OuNTKa BO3yHOro 0nIbTa DOLJHa npOn3BOUInbCra pnpMeHpo yepe KaKdIbe 200 acobkCnnyaTauu. Ecn KOHNHOep 3KcNpyATpyETcB CUNbHO 3aBHeHHo Cpe, peKOMeHnyETc OUYaTb BO3dyHb FINbTp KaKdIbe DBe HeJeN.

1. OToCoeUHeHne OT NCTOCHNka NHTaHn

PepdOTcoeINHeHnem np6opa ot nCTouHnKa nTaHnBbIKIOHTe erO.

2. ChATne BO3dyuHoro funbtpa (pnc.C).

1. OtkpoTe nepeHIO naHeIb. 2. Mrgko HaxMITE Ha pyUky fNtbpTa. 3. N3BneKIne Te nIbTp.

3. OuNTka Bo3DyUHoro qunbtra (pnc.D)

PnCnBHom 3aqrpaHeHnn HnBtpa OunchTe erO C nOMoU To TnIoro MbInbHoro paCTbopa nn HeITpAIBHOrO uCTaero CpeDCTBa.

JaIe BBICOXHYtB.

1. YctahOBHTe HnBtp Ha MeTo, HaxMnte KOnKy c6pOca HnBtpa (Pnc.E) C npaBoi CTOpOHbI C NOMOsbTOHKOrO cHnHdpueckoro npeMeTa, a 3aTe M 3akpoTne nepeHIO IO naHeB.

PpimeyaHnA:

• Pocne ChTnB O3dyuHoro fNbTpA He dOtpaunBaItec pyKaMn Do nactnH KaH03n BHytpenHero 6noka BO u36eKaHne nOyuHn TpaBm.
  He nbitaTecb ouuataB bHytpHHIO NOIOCTb KOHNIOHepa camocToTeIbHO.
  He MoTe BOzduhblnBnBbTp B nocydomoeHou MaunHe.

YIPABJIHEHNE B ABAPINHOI CNTYALINI

Bcnyae BO3HKnHOBeHnA bApuHou CUYaun nn OTCyTCTBnnybTa NCTaHcHOnHO r ynpabHeHr MOxHO ynpabNtbo KOHNIOHePOM C NOMOsbU BbIKIOaTeIe BKIOueH/ BbIKIOyeHn, paCNOLOKeHHOrHa BHyTpehem 6Noke.

Bknouhe np6opa: Ecn np6op BbIKoueh, To npn Haxatm 3ToH KhoKOn OH BKnOuaetcN aKTINBupyET peKIM 6th SENSE.
BbIKNoeHne np6opa: Ecn np6op BKnOueH,To npn Haxatnn 30T KhoNk OH nepectaet pa6oTaB.

PnmuMeaHne: He haxmMaTe Ha KhoNky cnsKoM dOnIro Bo n36eKaHne HapuSeHn yHKnOHOpOBaHn.

Функца abTomatnueckoro nepezanycka

Pn Heo6xOaMocTn AKTNBaCmN FyHKmN ABOMaTneCKOro nepe3anyCa BKnOHTe NOaHy NITaHnHa HAKMTe KONky BKJI/BblKJI Ha BNYTpHeHem 6IIOke n UyeepKInTe ee B TeueHne 60onee 5 cekyHd - FyHKmN ABOMaTneCKOro nepe3anyCa AKTNBnpyETc, B noTBePckJeHne Yero BbIdaETcK OPOtKm 3ByKOBo CnHaJ.

IydeakTbauu yHKun aBtOMaTuueckoro nepe3anycka hAnMnte KhoNkY BKN/BblKn Ha BHyTpHem 6JIOke u ydepKnBaTe ee B TeueHne 6oJe 5cekynd - fYHKun aBtOMaTuueckoro nepe3anycka deakTbpyetc c KopoTkn 3ByKObblm CnHaJOM, N KOHNIOHep nepexOHT B peKIM OxndaHn.

Ytunnaa6atapeek

B cenx coxpanen npnpoDnblx pecypcoB n codeyCTBn BtopnuHn nepepa6OTke MaepnaIbOB co6npaTe Otpa6OtaHHbIe 6atapeKn OTdEbnHOrO O Tpyoro Mycopa N 6ecpNaTHo CdaBaTe IN X B MeCTHbIe NyHKtI pnpema 6atapeek.

Yka3aHua no Mohmaxy

Cxema moHTaxa

PnMOHTaKe CoeHNHeBHO Ra6eNaO6paTne Oco6oe BHMaHne Ha COBnaEHe NcBeTOB KInI IN KOJIueCTBa KOHTaKToB y HApXHOro n BHyTppeHrero 6noka.

Texnueckx xapaKepntukk ka6eien

Емкость (БTE/ч)	ШнYP петашия		Соедиителовский кабель
	Тип	Овьчhoe сеvelпe	Тип	Овьчhoe сеvelпe
7K, 9K, 12K H07RN	-1,0 MM	2X3 H07RN	-1,0 MM	2X5
18K H07RN-F	1,5 MM	2X3 H07RN	-1,5 MM	2X5
24 K H07RN-F	2,5 MM	2X3 H07RN	-2,5 MM	2X5

Pouck u ycmpaHeue HeucnpaBHocmeu

PpO6IbMb, Bo3HnKaIoUe B pOuece 3KcNpyaTauM, qAto 6BbAOT Bb3BaHb He3HaHTeJbHbIM nPpHnHaMn. IOnrOmy, npexJe Yem
IpaTaBcBepCHy O cyjx6y, PpOBepBe BO3MOXHy IO pnuHny no cLeyuOe Tabnue. TaK bbl CMOKeTe c3KOHOMHTb BpEmn I
136ExaTb HEnyXhBix paXoDB.

Ipn TbpcHe nn npOBepka 3a Teu Ha XnaHnE h areHT B HnKaKbB CnyaH He Tp6Ba Da ce n3NoJ3BaT n3ToUHnCn Ha 3aNaJBaHe. He ce dOnycka n3NoJ3BaHe Ha xaIoreHeh BaKyMMeTbp nn dpyrn DeTekTopn C OTKpNT PnAmbK.

11. MeToDi 3a OTKpNBaHe Ha TeOBe

IocoueHnte NO-dOly MeToi 3a OTKpNBaHe Ha TeUObe Ce CHTaT 3a DOnyCTMn Ipn N3NOL3BaHe CbC CNCTeMn, KOINTo CbIbPjXaTJeCHO3aNaIIM XlaIINHe Ra3.

• EneKtpoHHn DeTeKTOpN 3a TeOBe MoarTa Da Ce N3NoJ3BaT 3a OTKpNBaHe Ha JeCHO3aJIaIMN XlaIINHn aReHTN, HO MOKe YyBCTBNTeHOCCTTa NM Da e HeIOCTaTBuHa NN da Ce HxJdaT OT CneuaJIH No KaJIb6PnpaHe (DeTeKTOpNTe Tpr6Ba Da ce KaJIb6PnpaT Ha MAcTo 6e3 HaJIuYne Ha XlaIINHn Ra3OBe).

• PpOBepeTe dAnI DeTeKTopbT He MoKe Ja CtaHe N3ToUHk Ha 3aJaLBaHe I daJIe e NOxOJaI 3a N3NoJ3BaHn XlaAnIneH aReHT.

-ДeTeKTopiTe 3a Teu Tp86Ba Da ce HAcTpoBbAT Ha npOceHT OT DoJHaTa rpaHnca Ha Bb3PnAmEhRaBe (LFL) Ha xJaIInHnA areHT, KaKTo n Da ce KaJn6pnpat 3a n3NoJ3BaHnXlaIIneH aReHT n 3a CbOTBeTHaT KoHcEHTpaCnHa ra3a (He nobee ot 25%).

• TeuhoCTn 3a OTKpNBaHe Ha TeOBe MoKe Da Ce I3NOJ3BaT C NOBueTe O XlaIINH aReHTN, HO Tp86Ba Da Ce I36yRbAT DeTePReHTN, CbDbpXaUxXLOp, Tb' KaTO XlOpBT MoKe da pearnpa C XlaIINHnA areHT N Da npEdu3BnKa Kopo3nHa MeDHnTe Tpb6OpBODoN.

-При подзрени 3a Teu Тразьда ce OTсразнТ/3aRaСТ BCИЧКИ N3TOUHиЦ Ha OTKpNT ПламьК.

-Пи OTКрИВаHe Ha Teu,ЧиTo OTCTpaHЯBa He N3NCKBa 3aNoRABaHe c 6poH3OBn eIeKTPoДи, BCnUKNrT XlaIINeH aReHT TpA6Ba Da ce N3BLeue OTe CnCTeMaTa NIn Da ce N3OJnPa (Upe3 CnIPAteJIH NBeHTUN) B OTdAneYeHa OT MЯCTOTO Ha Teua qaCt OT CnCTeMaTa.

• Cnéi TOBa cnCTeMaTa Ce npOdyXba C a3OT 6e3 npimeCn Ha KncIopoJ (npEi N haayanoTo I NO BpeMe Ha 3aONyBaHeto).

He cBeTu, KOrato MoDyblT IInCBA uIe n3KJIuOyeH.

Hdukatop 6th Sense (Uecto yBCTBO) (3)

CBeTn, KOraTo peXmbl 6th Sense e BkIIOueH.

Yracba, Korato 6th Sense npuknou.

HdNKaTOp 3a cbCToHHeTo Ha fHnTbpa (4)

Mura, KoraTo fntbpbT Tp6Ba da ce noHCTn.

HINIKAToPb3a CbCToHnEto Ha oHTbpa 3anOyBa da Mira cne7 720 pa6OTn Yaca, 3a da HAnOMHN, ye e Heo6xOdmo fNITbpT da ce. nONUcHt.

Korato nouHCTnfe nntbpa,HaTNCHepe pa3noJoxeHna Ha BbTpewHOTo Tano 6yTOH 3a HnuaNn3npaHe Ha Hndkatopa,3a da N3KnOHTe Muraun CnHAn.

Hdikatop3aBnaXnocT(5)

CBeTn, KOraTo DNcNneT NOKa3Ba CToHOCCTTa Ha BJaXHOCTTa.

He cBETn, Korato dncnnert noka3Ba TemnepaTypata.

HdkaTop Ha TaMepa (6)

CBeTn ppe3aJaDeHn npnoD.

YracBa npn n3TuHa He npnoHa Ha TaMepa.

Hdukatop 3a BkNoeHo cboTnHne (6)

CBeTN, KOraTo ypeBt pa6OTN.

Mura no Bpeme Ha npoueDypata 3a o6e3ckpekxaBaHe Ha BbHnHOTo TJIIO.

HnKAtopHapeKIma3acbH(8)

CBETBA npn BkIOUbaHe Ha pexIMa 3a CbH. HndKATOpbT 3a BKIOUeHO CbCTOARHe npmIRBa Decet NtN, CneI KOeTO cENrT DnCnIeYraCBA.

YcmpoUcM8O 3a duCmaHcuOHNo ynpabJeHue

NoctabrayeHa6aTeepuB yctpoiCTBOTO3a

dntaHnOHNo ynpabHeHne

1. BkapaTe TneB O TbOpa, Neko HauChHe TaHbTpke KaNauKaTa Ha OTdeneHnTo 3a 6aTePIne Iu N36yTaTne NO nOcOKa Ha CTpeNKaTa (Bk.ΦnYPaTa), 3a Ja N3BaJNTe.
2. IocTabe 2 6pO 6aTeepn fOpMaT AAA (1,5V) B OTenEnHneTo. BHIMabaTe 3a Cna3BaHe Ha O3HaHeHATA NOJPHoCT ^+ "N
3. 3aTbOpTe KaNaKhKaTa Ha OTdeneHneTo 3a 6aTePnnte Ha yCTpOINCTBOTO 3a INCTaHcUOnHO ynpabNeHne.

Hauanho c6cmohue Ha ycmpoucmbom 3a ducmahuoHno ynpaenue
PnBcRAcMHa Hb6atepnteHINPipeKcbBaHe Nb3ctaHOBBaBe Ha 3axpaHBaHTo Ha yCTpoiCTBOTo 3aDuctaHIOHOynpaBHeN To ce yCTaHOBAHBe PexkIm 3a OTOnJIHe; aKO 3aKyNeHrT KNIMATIK MOKe Da paOToI Camo B pexkIm Ha OXJaDaHe, To3n PEXkIM He paOToI MoKe Da ce n3IOB3Ba CbIoTO yCTPOICTBO 3a DnCTAHIOHOYnpaBHeNt.

M3noJ3BaHe Ha yCTpoIcTBOTa

DnCTaHUNHO ynpabHeHa KImMaTka

3a KOHTpOInpuHa He KaINMaTHKa Upe3 yCTPOINCTBOTo 3a DnCTaHnIOHNOYnpAIBeHne TpABGa Da HAcOuTte YCTPOINCTBOTo KbM npMeMHNka BbB BbTpEshOTo TAn, 3a Da OcUpyPte npMeHa He CNIHHa.
- Pn n3npaHe Ha CunHan OT yCtpoiCTB0To CNMBONbT Mmra B npOdbJxKeHne Ha 1 cekyHa. Pn nOnyuabaHe Ha CunHana YpeDbT n3daba 3ByKO B CUnHan.

• UcTpoICTBOTO MOXe Da ynpaBnBa KInMaTnKa OT pa3ToHHe Do 7 MeTpA.
• PnBcKa CmHa Ha BaTePnIe YcTPOINCTBOTo 3a DnCTaHcNHOynpaBHeHne Ce yCTaHOBBa B pexIm 3a OTONJIeHne.

3a6eJkKa:OT npBedeHnTe NO-dony yka3aHnCna3BaTte Te3N, KOtO ca npEHa3HaueHn 3a MoEJa Ha yCTpOInCTBTO, C KoETo e DOCTaBeH 3aKynHeHnT OT BAC KINMaTNK.
fYHKmHOJHo ONcAHne Ha 6yToHnTE (P1-03)

1. BYTOH 3A ON/OFF (BKJIIOUBAHE IN N3KJIIOUBAHE)

Upe3 HaTtCKaHe Ha 6yToHa ypeBt Ce BkIIOuBaN M3KIOUBA.

3.5yTOH 3A FAN (BEHTMATOPA)

3NtO3Ba ce 3a nPOMHa Ha cKOpOCTHa HBeHTnAToPa B CKeIeHnPeD:ABTomATuHO, BWCoka, CPeDHa, HMCKa.

4-5. BYTOH 3A TEMPERATURE (3A TEMIPBATYPATA)

H3non3BaTe 3a3aabaHe Ha TemnepaTypaTbA CTaTa.

B pexim C taMep ce n3nON3BaT 3a 3daBaHa He BVPEMTO

6. BYTOH 6^th SENSE

BkIIOyBa N I3KIOUBypeXIM 6th Sense.

7. ByTOH 3A SWING (ДВИХЕНЕ HA CTPYA)

CINIPA WNI BKJIOUBA BpTeHETO H XOPIOHTAJIHNTHE HACOBAUNKJAY3N 3aDaBA NOcOKATA Na Bb3DyUHHN IOTOK (Harope-HAOJNY).

10-11. BYTOHN 3A HUMIDITY (BIAXHOCTTA)

3nON3BaT Ce 3a 3aDaBaHe Ha BnaXHOCTTa.

Pa60TcMoBpeKIM 6th Sense.

16. ByTOH 3A SUPER SILENT (CBPbXTNX

PEKM

3nON3Ba ce 3a BkIOUOBAHe NIKKIOUOBAHe Ha CBpbxTNXnpeXIM C MHOrO HNCKO HNBO Ha WjMa.

2.BYTOH 3A MODE (PEXUMHA PABOTA)

H3non3Ba ce 3a 3daBaHe Ha peXIMHa pa60ta. IpeBknIOyBa peXIMa B CneHNpaed

oxnaxhahe, otonnele, BeHrtuna. 8.BY0703 A SLEEP (PEXNIMA 3A CbF

HnOJ3Ba ce 3a n6bIe H na peXIMa 3a cbH B cIeHNBpe1:1,2,3,4,nKJIIOUeH.

9. BYTOH AROUND U

I3HJIOBbCe 3a BKJIIOUBaHe NIKJIIOUBaHe Ha fyHKmraTa Around U. 12.BYTOH 3A JET (5bp3O OXIAJDAHE NIM 3ATOPIJHE)

N3NON3Ba Ce 3a BKNIOUBAHe N 3KNIOUBAHe Na yHKnIraTa 3a 6bp3O OxnaJaHe ININ

3aToPnIaHe.

13.6YTOH 3A DIM (BKJIIOUOBAHE N3KJIIOUOBAHE HA DUNCIJIER)

H3N013Ba Ce 3a BJIKNOBHe IN 3KJIIOUBAHa HE NDCINHERbA BbTDEPHOTOTJIO.

14. BYTOH 3A WI-FI

N3NOI3Ba Ce 3a BKNIOUyBaHe N N3KNIIOUyBaHe Ha

Bp3KaTa ype3 Wi-Fi.

15.BYTOH 3A TIMER (TAMMEPA)

V3non3Ba ce 3a 3aDaBaHe Ha Yaca Ha BKNIOUBAHe H yaca Ha N3KIOUBAHe Ha ypeda.

CmBOnHa eKpaHa Ha yCTpoNCTBOTO 3a dNCTaHcNOHOpynpaBneHne

AKTUBPAnHe Ha yCTpOcTBTo 3a nCTaHcNoH0 UnpabBHe He HATnCKaHe Ha 6yToHa 3a OTKnIOuBaHe

UHINKATOP 3a pekim Ha oxnaKaDe

ABTomaTnHOp perynipane HaCKOPoCTTa Ha BeHTnTaTopa

INHdkaTop 3a peKIM 3a cbn1

HaTnCHe6VToHa—

ekDahBCTCBETBaN e

TOTOB 3a IN3NON3BaHe.

HaTnCHETe OTHOBO,

INHdkaTop 3a noBnWeHa BnaXHOCT

Bucoka ckopoct Ha BENTINaTopa

INHnKaTOp 3a peKIM 3a cbN 2

3a Da 3aKnIOuHTe

yCTPOINCTBOTO3

INHnKaTOp 3aNoHnKeHa BnaXHOCT

CpeHaCKOpOCT HaBeHTnlaTopa

INHdkaTOp 3a pexim 3a cbn 3

DnCTaHNoHHo

ynpaBneHnA. Ako B 10

npoBnEHeHa10

CekyHn He HaTNCHeTe

cytoh,yctponctBoto

3aДИСТаHДиоHHO

ynpabBneHnece

3aKJIIOUBa aBTOMaTNUHO.

HaTnchTe byToHa

INdkaTop3apeKIM3oTOpHeHne

HdkaTop3aCBpbxTnxpeXIM

INHdkatop 3a 3aadaeHata TemnepaTpa

3A

yipablenie ce

UHdkaTop Around U HdkaTop 6

In Sense

HnDnkaTOp 3a BpEmTo Ha TaIMepa

HaTnchTe byToHa

ekpaHbT CBeTba

NΦyHKUHOHaHHTe

bytoHnue bbdat

aKTNBHN 3a

m3nON3BaHe.

HInDkaTOp 3a jeKmHa 3a 6b3oO oxJaKaHe IJI 3aTatOnJaHe

INHdkatop3aIKKOHMOUeHpeKMM

HdkaTop 3a n3MbBaHe Ha CnHan

Ycmpoicm80 3a ducmaHcuOHn ynpabJeHue

Функионанно описнане на 6утонITE(J1-3A)

1. BYTOH 3A ON/OFF (BKJIIOYBAHE N U3KJIIOYBAHE)

Upe3HaTnCKaHe Ha 6yToHa ypeBt Ce BKNIOuBa Nn3KNIQUBa.

1. BYTOH 3A MODE (PEXKIMHA PA6OTA)

U3non3BaCe 3a 3aDaBaHe Ha pexkmaHa paOToB CneHnpei OxnaJaHe, HamaIbAHe Ha BnJxHocTt, BeHTnlau, OTOnnHe.

1. BYTOH 3A FAN (BEHTNIATOPA)

H3nONaBa ce 3a nPOMHa Na CKOpOCTHa Na BeHTnlaTopa B CneDnpeD ABOTMaTHUO, BWCOKA, CPeHNa, HNCKa.

4-5. BYTOHN 3A TEMPERATURE (TEMNEPATYPATA)

I3nON3BaT ce 3a 3daBaHe Ha TemNepaTypaB cTaTa. B pexM C TaIMePc E I3nON3BaT 3a 3daBaHe Ha BpeMeTo. I3nON3BaT ce n npC CBpeBaHa He YaacOBHnKa.

1. BYTOH 6^th SENSE

BkIIOUyBa nN3KIIIOUyBa peXIM 6^th Sense.

1. BYTOH 3A SWING (ДВИЖЕНЕ HA CTPYЯТА)

Cnpa nnBkUOBA BpTeHToHa NOp3oHTAHnJIHeNACoBaunz KaynyIu 3aDaba NocOKaTa Ha Bb3DuYHUNI NOTOK (HaRope-HaOnJy).

1. BYTOH 3A SLEEP (PEXNIMA 3A CbH)

PpeBKnIOUba MeKdy peXmMTe 3a cbH nIN N3KnIOUba To3n peXm.

1. BYTOH AROUND U

I3noJ3Ba ce 3a BkIIOUbaHe n I3KIIIOUbaHe Ha cyHKuTAr Around U.

1. BTOH 3A TIMER ON/CLOCK (YACA HA BKJIOUBAHE UIN 3A CBEPRABAHE HA YACOBHUKA)

N3nON3Ba Ce 3a CBepeBaHe Ha YacOBHnKa.

N3noJ3Ba Ce 3a 3adBaHe NIN OTMaHa Ha Yaca Ha BKNIOUbaHe Ha ypeJa.

1. BYTOH 3ATIMER OFF (YACA HA N3KJIIOUBAHE)

N3nON3Ba Ce 3a 3aDaBaHe nIi OTmHa Ha YaCa Ha N3KJIIOUBaHa He yDeda.

1. BYTOH 3A JET (bP3O OXIAKDAHE NIN 3ATONJIARE)

H3nOJ3Ba ce 3a KJIIOUbaHe n3KIOUbaHe Na yHKUNTAR3a 6b3oO OXJAADe HnI 3aTOPIJIHe.

13. BYTOH 3A DIM (BKJIIOUBAHE N N3KJIIOUBAHE HA DNCNIE)

H3nOJ3Ba Ce 3a BKIOUcBAHe N3KIOUcBAHe Ha DcCPIe Ha BbTpeHOT TO.

14. BYTOH 3A POWER SAVE (IKOOHOMUHEH PEXKIM)

I3nOJI3Ba Ce 3a BkIIOUBaHe I N3KIIIOUBaHe Ha IKOHOMUHINRApeKMHa aD60Ta.

15. BYTOH 3A SUPER SILENT (CBPbXTNX PEXKIM)

IV3N0N3Ba Ce 3a BKIOUBAHe N3KIOUBAHe Ha CBpBXTNXnpeXIM C MHORO HNCO HNOHa IyMa.

CmBOnHa ekpaHa Ha yCTpoiCTBOTo 3a ductanHNOynpaBleHne

HINIKATOP3aPeknHaOxNaxKaDaHe

INnIaKApToP 3a peKIM 3a cbH1

ABMTaMnHOb perynlpahe NcOKOPaHb HAeBHTINAtopata

HInIkaTOp 3a peKIma 3a 6b3o0 oxJaXaHeA NIe 3atOpJnAe

INHINKASTOP 3paEzhmka 3a HAmJaBaHE NaBxAKHOCTA

INHnKatop3a peKIM 3a cbh2

BvCoka ckopost Ha BHeTnunatopa

VHdkaTOp 3a H3NbUbaHe Ha CnHa

CpeHa cKOpOCT Ha BHTnIaTopa

HnDnKaTOp Ha YacOBnka

INHdkatop 3a pexim 3a otponenHe

HdkaTop3apeKMM3aCbH4

Hncka ckopocHa BeHTnataTopa

Hndkatop 3a nkoHmueH pexim

INHnKaTOp 6th Sense

ИндikaTop Around U

INHdkaTOp 3a CBpbxtnxpekm

HdkaTop 3a IKoHOMuHeH peKIM

3AUHTA

YcnoBnaHa pa6oTa

3auiTHOTO yCTPOIcTBo MOKeJa cpaobTIN Ja cnpe paobTaHa hypea B nocoueHnTe no-DoNY CnyuAn.

Ötançınleme	TemnepaTypaşa Ha BbHUNH YA Bb3dYX e HaD 24°C
	TemnepaTypaşa Ha BbHUNH YA Bb3dYX e NoD -7°C
	TemnepaTypaşa B ΠΟMEŞENHeTo e HaD 27°C
Öxnaçndahe	TemnepaTypaşa Ha BbHUNH YA Bb3dYX e HaD 43°C
	TemnepaTypaşa B ΠΟMEŞENHeTo e NoD 21°C
Hamalçbahe Ha BlaJXHocTTa	TemnepaTypaşa B ΠΟMEŞENHeTo e NoD 18°C

Ako KIMMaTnKbT pa60Tu B pexkim 3a OxnaJaHe NmHaMaJIraBaHe Ha BlaXHoCTTa npn npOdbJIKTeHNO TBOpEHa BpTa Nm PPO3OHe HA NOMeUHeNTo N OHOCHTHaBlaXHOCT e Hd 80% ,OT n3XoDa MoKe da 3aOnue He da KaNe KOHNepaNa BOda. Oc6eHOct Ha 3aUnTHoYcTPOIcTB Ov3aKaaiTe Nohe 3 MInHyTn PpeDn NOBtPho DA BKNIOHTe KIMMaTnKaCne CnPiPae Ha pa6Ota Nm npn CpMHa Ha peXmuNo BpMe Ha pa6Ota.AKO KIMMaTnKbT Ce BKNIOu HBeHara CneN pOdaBaHe Ha 3axPaHbAio HAnpeXeHMe,MOKe Da NIma 3aKbCHeHne OTOceyHnnppeDn 3aNoVbaHe Ha pa6Ota.AKO KIMMaTnKbT e cPnJ da Pa6Otn,HaTNCHete OTHOB6yToHa 3a BKN./M3Kl.,3a da ro BKnIOHTe Ako TaImePbTe ce n3KIOuHn, Tp6Ba Da ce HAcTPON OTHOB.

Oco6eHocTnHapeKIma3aOxnaKdHe

PpeDn3BaHeOT3aMpb3BaHe

Korato TemnepaTpaTa Ha TOnNoO6MeHHNka BbB BbTpewHOTo TaIIO CTaHE 0^ NIN NO-HNCKA, KOMnPecopbCTnpa Da pa6Otn, 3a Da npednau ypea.

Oco6eHocTn Ha peXmua 3a OToPnneHne

PpeBapuTeHNo 3aRpaBaHe

3a PnepoTbpaTaBaHe Ha NpOaBaHTo Ha CTyEN B3Dxue Heo6xoJIMo BvTpEHIHO TAno PnpBapTeHNo Da ce 3aRpaBA B npOdbNxHeHa Na 2do 5MnHytn CneI

BkIIOUBaHe Ha pexnMa 3a OtonneHme. Ipe3 TOBA BpeMe BEHTNIATOpbT BbB BbTePshOTo TAno He pa6Otn.

06e3ckpeXkaBaHe

B pexm 3a OTONNE ypebl
abTomatnuHo ce obezckpekxa, 3a da Nobu
eNkaHcOCTHa na pa6oTa. ObNKHOBeHo
npoudypata Tpae ot 6 do 10 MNHyTn. Po
BpeMe Ha oE6CKpekabaHeTo BEHTnlatopbt
He pa6oTn, a INndKaTopbT 3a BKJIOUeHo
3aXpaHbAne MTRA.
CneI npKIOVAhe Ha oE6CKpekxaHaTeO
ypebl ABtomatnuHo ce Bpbua B pexm 3a OTONNE.

Поддьржанe

NouchBaHe Ha npednnaHbBtpewHOTraI

PnMOHTnpaHe Ha CBp3BaunKa6eBn BnMaBaTe UBeTbHa PNOBOHnUte N HmepaTa Ha KJIeMTe Ha BbHJHOTO TAn Oa Ca CbUNTe, KaKTO Ha BtpeHOTo TNo.

aannn 3a ka6eena

Мошист (Btu/h)	Зхранвац кабел		Свьрзвац кабел
	Тип	Нашируно сейменe	Тип	Нашируно сейменe
7К, 9К, 12К H07RN	-3 x 1,0 mm	2	H07RN-F 5 x 1,0	mm 2
18К H07RN-F	3 x 1,5 mm	2	H07RN-F 5 x 1,5	mm 2
24К H07RN-F	3 x 2,5 mm	2	H07RN-F 5 x 2,5	mm 2

OmcmpaHЯBaHe Ha Heu3npa8Hocmu

Ipo6nmeI npu n3non3BaHe Ha KInMaTnKa YecTo Ce DbNxKa H a IeChn 3a OCTpaHbAbe npuHH; npoBepraBaTe 3a cnPaBA Ka npuBeHeHaTa No-dony Ta6nua, PpeDn Da NobKaTe cepBu3HnTe texHnU. Toba MoKe Da Bu cneCTu BpeMe N HeHyKn Pa3xoJn.

ПюбLEM	Възможн р comprунa
He pa6otn	•СравOTиLO nI e 3auntHOTo yCTpoiCTBO nII nIpeДпa3nteIЯT?•ИЗчakAJte 3 MInHTN I BKVЛIOUeTe OTHOBO; 3auntHOTo yCTpoiCTBO мОже дe I nIpeДNTCTBaIIO BKJIQUHBAHETO Ha KINMaTиK. •РареденI nI ca 6aTePmIte Ha yCTpoiCTBO T3 aДиCTaHцHOnHу npaBValeHne?•ПравINHO nI e BKVЛIOUeH nIeCSeIbT B KONTaKТa?
He n3Iи3a Вь3dYx nPII oxIaxJaIe nII nOTOpIeHne	•ЗамьрсEN li e ФиNTbpyt 3a Вь3dYxa?•БлOKИранI li ca BxODHITe nII nI3XODHITe OTbOPn Ha KINMaTиK?•ПравINHO li e 3aIaIaIeHa TempepAtpaTpa?•ИмAI nI OTbOpEH nIbATn Ili nI prOZOpu?
He ce урав liaBa	•Имало li e cunHo cMUpSeHne (OT cunen eIeKTPocSTaTcUeH pe3PraI, hapuSeHne Ha 3aXpaHbAaTO HappeJHne)? Ako урдьT He ФунHKUOnHpa HopmaJIHO, nI3KЛIOUeTe 3aXpaHbAaTO HappeJHne I rO BKVЛIOUeTe OTHOBO cIeI 2-3 cekyIaI.
HePearIPA BeDnIa	•Акno ITO bpeMe Na p6oTa cMehITE pexIMa, peakzuaTae c 3 MInHTn 3aKbScheHne.
Oco6eHa MnpIzMa	•МирИЗмATA mozeJa e OT dpyr nI3TOUHk, nApPIMep Me6eIi, zuIgapi N Idr. I caMo da CE 3aCmYKBa I pa3IprbckBa C Bv3dYxa, nI3Iin3aIOT KINMaTиK.
3Byk Na TeuAsa BoDa	•HopMaIHO YBLeHne; 3BykT se DblJnx Ha DbIXeHNeTo Ha XlaIaIIHnTa TeuHOC T KINMaTиK. •ПовЯBa ce pri nObE3CKpejabaHe B pexim 3a OTOpIeHne.
ПуКанЯ	•3BykT MoKeJa Da CE dIbIzx Ha pazHIrpAbaHeTo nII CBVbAHeTo Ha npeDnIy nAnel npi IprOmaHa Ha TempepaTypaTa.
OT n3XODHITe OTbOPn nI3IIN3a MbIgla	•ПовЯ BaMbIgla pri nHcKa TeMpepaTya B cTЯT? HopMaIHO YBLeHne, KoEtce DeblJnx Ha nI3dYbXBaHeto Ha CTyIeH Bv3dYx OT BvTpEShOTO TIAO B pexIM 3a OXlaJxdaHe nII IaHaMaJIaBaHe Ha BLnJXHOCTTa.
ИнДиКATopbT 3a BKVIOUeHc OStOryHne MIGra, a BeHTIaLapbT He pa6otn.	•Ур徳T ce e nIpeBknIOUchIoi OT pexIM 3a OTOpIeHne B pexIM 3a obe3ckpejabaHe. СпeДВрeme ИнДиКATopbT ue 3aIOUChIa CBETN NOCTOaHIO H KINMaTиKbT Ise Ce BbPhe B pexIM 3a OTOpIeHne.

3a6eJkKa:Ako Bce ome NMa np6bNMeu, n3KnIOyTe UpeDa cYCTPOBcTBOTa 3nDCTaHcUHOH OynpaBHeHne mCnE ToBaOT eKETpUeCKaMa Pexka.06bPHTe Ce 3a CbdeIcTBNe KbM Hau-6JI3KnO aOnuIaJeH cepBua3e HcENTbP Ha Whirlpool. He OnntBaTe camocToTEnHa Da pIpeMeCTBaTe, peMOHTnpate, pa3rIO6BaBe NT uIm 3mEHeTe ypeDa.

CJIeIПОДАЖБЕHO OБСЛУЖBAHE

Ipei Da ce o6bpHeTe KbM ueHbpa 3a 06cIyKbaHe Ha KInHeHTn:

1. ONnTaIte camoCTOReTHe Ia OTCpaHITe np6NeMa, KaTo IN3IOJIbATE IHOPMauJrTa OT pa3JeI,OTCTpaHRABaHe Ha HEM3NPaBHOCTN.
   2.ИЗкlioуeteуретаигВКIOUteOTHOBO,3aДaВДNTeДANI npo6JIembT He n3Ye3HaN.

Ako npo6bEmt cblsectbBya nCnei nocoueHnTe no-rope npoBepK, o6bpHeTe ce KbM ueHTbpa 3a o6cnykBahe Ha KJInEHTn.

Mona, npedoctabete:
KpaTKO ONICAHne Ha HeN3npaBHOCTTa;
TOUHOTO O3HaueHHe Ha MOeJa Ha KJIIMaTNka;
CepBn3HnHOmep (HOMepbT, N3NcHnNoD yMaTa,Service"Ha etNKeTa, pa3noJoxKeH OTCTpaHn nn HaNbHOTo Ha BbTpseHOTO TJO);
- cepBn3HnT HOMep e nocoyeH N B rapaHnOHHaTa KHNKKa;
BaWnIpbJeH aDpeC;
BaWnTeNefoH HOpE.

Pn Heo6xOIMOCT OT peMOHT ce o6pbuaiTe KbM cEHbpa 3a
ocnykBaHe Ha KIneHTn (rapaHTnpaHO n3No13BaHe Ha oprHnHaHN
pe3epBn Yactn n npabunen peMOHT).
Heo6xOIMO e da npedctabnTe n oprrHaHaTa AkTypa 3a
3aKynBaHe Ha ypeDa.
Hecna3BaHeTo Ha Te3n NCHCTpykUn MoKe Da BNOuN
6e3onachocTt Na KauecTBOTo Ha ypeDa.

SERVICE

0000 000 0000

3a6eJekka: Ako Jenaete da pa3nonarate c nbHOTo pbKOBOCTBO 3a Baunr ype, n3TnerneTe ro ot ye6caTc nocouhen no-dony aDpec: docs.whirlpool.eu, KaTo n3nonBaTe Koga 3a 6bP3 DocTbn.

IMPORTANT: TREBUIE CITITE SI RESPECTATE

Indicator 6th Sense (3)

Se aprinde cand este activata functia 6th Sense. Se stinge cand este deactivata functia 6th Sense.

6. BUTONUL FUNCTIEI 6th SENSE

2. BUTONUL MODE (DE MOD)

Se utilizeazea pentru a selecta modul de fonctionare.Modurile de fonctionaresunt, in ordine, Racire, Incalzire sau Ventilare.

8. BUTONUL SLEEP (MODULUI DE VEGHE)

Seutilizeazapentruaselectamoduldeveghein ordineaMod de veghe1,Mod de veghe2,Mod de veghe3,Mod deveghe4si Mod de veghe oprit.

9. BUTONUL FUNCTHEI AROUND U

2. BUTONUL MODE (DE MOD)

Seutilizeaza pentru a selecta modul de fonctionare in ordinea Racire. Uscare. Numai ventilare sau Incalzire.

3. BUTONUL FAN (VENTILATORULUI)

Se utilizeazapentru a selecta viteza ventilatorului in ordinea automat, ridicata, medie sau redusä.

4-5. BUTONUL TEMPERATURE (DE TEMPERATUREA)

6. BUTONUL FUNCTIEI 6th SENSE

Hactyni MeToOn BnBJeHHB BTOKIB BBaKaOTbcr npNnHTHMn dIra CnCTeM,IO MICTaTb JeKo3aIMCTI XOJNOaReHTN:

-Дя ВяВлЕння ЛergКОЗаIMNCTnx XOJOOaReHtIB CnID 3aCTOCOBaTn eJEkTPoHHi DeTeKTopn BInTOkIB, ane iXHЯЧУТПИbICTb MoKE 6yTN HeIOCTaTHbOIO aBO MoKE 3HaIo6bNTcNЯ NOBTOPHe KaJIbpyBaHnR (OБlaadHaHHЯ Дя ВяВЛeHHЯ Ma€ 6yTN BiДkaJIbIbPOBaHe B 3OHi, BiIbHiN BiD xOJOOaReHTy).

-ПepeKoHaITeScb,ио DeTeKTop He e NOTeHcɪnHm IxKepeIOM 3aɪMaHnɪ i nIXoIntb dIy BnKOpNCTOByBaHOrO XOJIOnOaReHTy.

• 06naHaHHaIy BnAByHHeHH BnTOKiB cIiHaCTpoIOBaTu y BiDCOTkax BiL FFL xOonoareHTy i KaIi6pyBaTu Iy BnKOpNCTOBaYBaHO XoNoOaReHTa, a TaKoX NiITBepJxYBaTu BiNObiHni BiDCOTOK ra3y (MaKcImMym 25%).

• PidHn DnBnBHeHH BnTOKiB npHaTHI nBnKOpNCaHH 3 6iNbSiCTIO XoNoOaReHTIB, OHaK CnId yHnKaTn BnKOpNCaHH MIOUChN 3acO6iB, IIO MICTaTB XLOp, OCKInbKN XLOp MoKe B3aEMODiTn 3 XoNoOaREHTOM i BnKInKaTn KOp03IO Tpy6ONPOBOuN 3 MiDi.

• Y pa3i nio3pn Ha BntikKaHnra3y Heo6xidno npn6paTn/3aracntn BiDkPnte noJyM'

• Y pa3i BnBnEHHa Micu BnTOky XoIooareHTa, aKe NOTpe6yec naHHa, Becb XoIooaereHCTiD BnUyUnT 3 CnCTeMn a60 i3OJIIOBaTu (3a DOnOMoroIO 3anO6IXHX KnaHaHB) B uactHi CNCTeMn, B aKi I He BiIDbYBaETbcra BNTiKaHHa.

• Перд поатkom i в пюсci ВИКОнань пайки Heo6xIDHо п Pokату a3OT 6e3 Domiшки Кисю (OFN) черз сису.

12.BuDaeHHiBnOpOxHeHH

IIndkaTop 6th Sence (3)

Bmkaetbcra,akuo 6th sense yBIMKHeHO. Bmkaetbcra,akuo 6th sense BMkHeHO.

IHHKATOP KOHTponIO fInbTpa (4)

Bnmae, KOI nOtpi6HO OoNCTHn fInbTp. IHdkaTOp KHTpOIO fInbTa 720 roIN BnKOpNCtAHn Ra HaraYBaHH npo Heo6xHicTB ouHneHH aInbTa. PcnaoueHH hInbTaRa HnCHtB KHONKY cKnJaHH fInbTa, po3aWobAH Ha BHTpiHbomy 6noCi 3a nepeHbOIO naHeIIIO, o6 npnnHHTn 6nMaHH iHNkAToPA KOHTPOIO fInbTa.

IHNkaTop Bonoorcti (5)

BIn cBintbCn, KOIN BIDobpaKaetbcn pBeH BonorocTi. Bin 3rae, KOIN BIDobpaKaetbcn Tempepatypa.

IHHKATOP TaHMepa (6)

Bin cbinbca Ha npotra BCTAHOBnEHorO yacy. Bin 3racae, KOIN dIra TaMepa 3aKiHyETbcra.

IHNkaTOp fYHKUioHyBaHHa (6)

Bin cbiitbcra nia cac po6oTn npuIaNy. Bin 6IImaepnpo3MopoxBaHHi 3OBHbHorO 6noky.

IInduKaTOppeKmUoyiKyBaHHa8

Bih cbiTbcra nicna BCTaHObneHHpeXmMy oukiBaHH, iHnKaTop fHyKIOhyBaHH 6nMHe 10 pa3, nCn yoro Bec nCnn ne 3rache.

BctaHOBHeHH 6aTapeNOK B nyIbT dncTaHciHoro

KepyBaHHa

1. BCTABTE UININbky I o6peJxHO HATNcKaIte Ha KpNIuKy batapeKn Ta UTOBxaIe T B HAIpRmKy CTPIkN, 0o6 3HAtN II, JIK NOKa3aHo Ha MJIOnHKy.
   2.BCTabe 26atapeuAAA(1,5B)yBicik. PepekoHaTeC8 npabunbHomy po3auyBaHHI nonIOcIB 一 + 一 Ta 一 - 一 6atapeyoK.
   3.BCTaBTe HaMiCue KpUkky 6aTapeuKn Ha nIbTi IncTaHcuiHoro ynpabInHH.

Nonepeh HanaumybaHH ducmahuHoo KepyaHH

Iop3y npn 3amhi 6atape B nylti dntaHunHO KepybaHHBIN nonepeHbO BCTaHOBIOETbcra B pexkIM TENNOBOrO HACoCA.TennoBm HAcoc KOHNIOHQBAHH NytBa dNCTaHUNHOKepyBaHHMOKH BIKOPNCOTBOBAtn DKeYBaHHOXIOJKeHHM Nlue Dn moJeN KOHNIOHYBaHH.

BukopncTaHnnybTy dNctaHcHnHoro KepyBaHH

dnyynpaBnHH npJlaOM

KepyBaTn npctpoem 3 npbTy dactauHoro KepyBaHH, HabeIb TnybT DnCTaHuiHORo KepyBaHH Ha npuMaIbHNI pncptri Ha BHTpihBomy 6noi, uO6 3a6e3neHTn HadiHe npuMaHH CnHJY.
- Pn BIDnpablenHi NOBIDOMHeHHa 3 NybTy dNCTaHcHIO KepyBaHHa CUMBOI 6JIMMa e npotraM 1 cekHyd. Pn OTpMaHHI NOBIDOMHeHH, LyHae 3ByKOBu CNrHaI.

IynbTnCTaHuiHoro ynpabHnHa3dTHn KepyBaTN KOHNIOHEPOM 3 BiDCTahi Do 7 M.
Upa3y npn 3amhi 6aapeB nynbTi dntaHuiHoro KepyBaHH BIN NOpeHbO BCTaHOBIOETBCB Pexm TEPNOBO HO HAcoca.

PpIMtKa:doTpyKuiIhCTpyKuiI dIyNtBta IucTaHciHoro KepyBaHHra, kMn npu3HaueHo Ira ynpabInHRA KOHmioHepOM. Onnc FyHKui KhoNOK (P1-03)

1.KHONKA ON/OFFY (YBIMK./BUMK.)

O3B0JRE 3anyctTu i BmKHytn npnla.

3. KHONKA «FAN» (BEHTUNJATOP)

BukopncToBytcbn Bn6puy uBnKoCTBeHTnIaTopa B nocniobHOcTI aBTOMaTHHO, BnCOKA, cepedna abO Hn3bKa.

4-5.KHONIKN BCTAHOBJIEHHA

TEMNEPATYPN

BukopncObycBcA DnB Bn6Opy Tempeatypn B npmiiueHni.

BnKOpNCTOByETbCnI BcTaHOBHeHnY aCy B peKmTi TaMepa.

6.KHONKA 6th SENSE

BctaHOBneHHa6o ckyBaHHpo60tn 6th sense.

BnKOpNCTOByIObCnIa BCTaHOBHeHH

6axaHoro pIBNa BOIrorocti, ZI KHOKNIOCTyNHI IIMe BpeXmI «6th SENSE

16. KHONKA PEXKUMY «SUPER SILENT» (BE3WYMHA POBOTA)

BukopncobyeTbcra3nycky a60 3ynHKn peKmmy 63uymHOi p6OTo 3 Hn3bKIM pIBEM WMYMB.

2.KHONKA MODEPEXIM

BukopncTOBycI DnBbOpypeKmmy pOoTbN. B HactynHIOcNIIOBHOCTOxONODXHHARpIHABAHNOA bOeBHNTOp

8. KHOJIKA «SLEEP» (PEXIM OIKYBAHH)

BukopncTObyEbCnIg Bn6Opny peKmMy oikyBaHHBnHaCTynHnIOnciIOBHOCTi: «Pekm OikyBaHHa 1», «Pekm OikyBaHHa 2», «Pekm OikyBaHHa 3», «Pekm OikyBaHHa 4» i «Pekm OikyBaHHa BmKHeHO.

9.KHONKA PEXKIMY «AROUNDU»

BnKOpNCTOByETbCnI BcTaHOBNeHHa6O cKaCyBaHHaYHKuII «Around U».

12. KHONKA PEXKIMY «JET»

BukopriCTOByETbCJIaI3aNyCKy a60 npINHeHHI WBIuKOro OxOIOXKeHHa60 HarpiBaHHa.

13. KHONKA «DIM»

BUKOPICTOBYETcIyAByIMKHeHHa 60BIMKHeHHNIIcBcYbVaHHNDCnJIeHa BHYtpiHbomy6Noi.

14. KHONKA WI-FI

BnKOpNCtOByeTbCnIyYBMKHeHHa YN BmKHeHHaWi-Fi.

15. KHONKA «TIMER» (TAIMMEP)

BnKOpNCTOByeTbCnI BCTaHOBHeHHaCy yBIMKHeHHa 60 BmKHeHH npJaNy.

CnmbonHa dncnnie nynbty dnctaHIOKepyBaHHa

HINKaTOPOXIOJKeHHA

ABTomaTHHnpeKIMBCTAHOBHeHH HwNkOCTI BEHTnTJTOpa

IIndkaTop 36inbweHnBONorocti

Bucoka wbndkictb BcHTnIaTopa

IHINKAtOP3MeHWeHHBONorOCTI

CepdHbWbNkictBBeHTnIaTopa

IHINKATOPYBIMKHeHHNIIeBEHTNIATOPA

Hn3bka WbNdkicb BENTINrTOpa

Hdikatop HarpibaHH

IHdkatop6e3wymhoi p60tN

IIndkaTop Ykuii Around U I

6 sense

IINKATOP fynkiiJET

Aknbyte npbT dncTaHoiHoro KepybaHHaHTnchyBnKhONkY UNLOCK

IHdkaTOp pekmU oyikBaHHr 1

IhdkaTOppeKmMy ouikyBaHH2

IIndikaTop pexmy ouikybaHHa 3

IIndkaTOp pekn My OChyBaHn4

Bio6paXeHHBCTaHOBneHoi TEMpePaTyPi

DcnnneBCTaHOBNEHOrTo TaIMepe

Pepeda cunHany

HaTNCHTb KONKY,
nCBIyBAHNN 3aCBITNtBcR,
iFHyKIOHAnBI HONKNI
aKNYBOUYcBnI
BVKOPACHTAH. LIO6
3aBNOyBATn Iybl
INCTAHINIHO KEpyBAHH,
NOBTOPO HAHCITb
KHONY.KAHO HaNybl
INCTAHINIHO KEpyBAHH,
HE BIKOHYBn6ydb-RAHX
II pnoTAROM 10 ckyND,
HORo 6Oye aBTOMATNUHO
3aBNOKOBAOHO.

BctaHOJIeHHa6o cKacyBaHHpo60tn 6th sense.

7.KHONKA «SWING» (KOLINBAHHA)

3ynHae 603anyckae rupn3oHTaIbHe peryIIOBaHHKoINBaHHKaJIIO3iHOI peWITK Ta BCTAHOBIOE 6axaHn HAnpMOK NOBITPraHOrO NOTOKY BROP/BHN3.

8.KHONKA «SLEEP» (PEXIM OYIKYBAHH)

Pexm oukybaHH MoxHa BCTaHOBtN a6o cKacyBaTN B HAcTyHnI nocidOBHocti

9.KHONKA PEXKIMMY «AROUND U»

BukopncToByeTbCnIaBCTaHOBHeHHa6oCKacyBaHHaYHKcII «Around U».

1. KHOPIKA TIMER ON/CLOCK (YBIMK. TAIIMEP/TOIDHHNK)

BukopncTObyETbCnI BCTaHOBnEHN NOTOHORO acy.
BukopncTObyETbCnI BCTaHOBnEHN a6o cKacyBaHHN OepaJI yBIMKHeHH TaMepa.

11 KHONKA TIMER OFF (BUMKHEHHA TAYMEPA)

BukopncToBycTcA nBCTaHOBHeHH a6o cKacyBaHH onepaJI BUMKHeHH TaMepa.

1. KHONKA PEXKMY «JET»

BukopncTObyEbCnIa3nycky a6o npnnHeHHpeKmMy Wbnkoro oxonOKeHHa6o HarpibaHn.

1. KHONKA «DIM»

BukopncTObyEbCraIyBIMKHeHHa6o BUMKHeHHn iDCbiUyBaHHn DcNlner Ha BHTpiHbOMy 6noqi.

1. KHONKA «POWERSAVE» (EHEPTO36EPEXEHH)

BukopncToByeTbcnI3aNcykny a6o 3ynHKn peKmMy ehepro36epexehn.

1. KHONKA PEXKMY «SUPER SILENT» (BE3UYMHA POBOTA)

BukopncTObYeTBcA Jn3aNycky a6o 3ynHKnpeKmMy 6e3WmHOi pO60Tu 3 Hn3bKmPihem Wymib.

CmBOnHa dncnnei npbTy ducTaHcuiHoro KepyBaHHa

INDKaTOP oxoJIOxHn

IHNKATOPfHKU BNCuSyBaHn

IInkatoptpekmmyoickyBaHn2

BncoKa WbUdkicTb BENTNIAITopa

Ipeepa cunHany

IHINKATOpYbIMKHeHHNJIuWe BHTNIATOPa

IHNikatop pekmmy ouikybaHn3

CepeHn WbNkictb BHTnIaTopa

Aniewhich beflumoblich er fumimpe

IДИКaTOp HarpIBaHnHa

IInkatopt pekmy oukyBaHn4

Hn3bka uBnKicTb BeHTnIaToppa

Biodo6paqkenno notouhoroacy

IINKaTop 6h Sense

IINKAtop yHkui AroundU

INDKaTOp 6e3wymHoIpo60Tu

BiodopaKENHBACTaHOBneHOI Temnepatypn

IIndukatop ehepro36epexhenn

3AXNCT

yMOBN3actocyBaHHA

3axnchni npictpi MoKe 6ytn 3ynHnnti BmKHyTn pNla y BnAdkx, HabeJeHnx HnKHe.

Texhivhe 06cny2oBybHaHn

OuueHHnpeedhboi naHeni BHytpihboro 6noky

1. BiD'eHaHHB BiD dKepePa KnBHeHH

Cnoatky BmKhtb npnla, a notIM bIKIOuHT bID Jkepea KINBHeH.

2.3Himannnnepehboi nahei

BikpnTe nepeHIO naHemb, kN oka3aHO cTpinKIO (MaI.A).

13 3yCnllm notarHt b 3 na3 36kIB nepenHboi naHeni, uoB BntaRHyTN nepedno naHeb (MaI. B).

3.OuHHeHH nepeDhboi naHeni

Ipopttb II Hacyo M'koio raHupkoio. Raio npuaad yxze 3a6pydneHn, BIKOPcTobyTe dna OunueHHa Tnny Body (3 Temnepatypoio Hnxye 40^ ).Piicna Ounuehn Cnipnpocuynt naHeB.

1. YctaHOBEnHH i 3aKpNBaHnnepeHbOi naHeJI

BcTaHOBIb Ha Micce i 3aKpnTe nepeDnO naHeNb, HATCKAQUO II DOHN3y.

Ppimrka:

He BnKOpuctobyTe dIra OunuHn npuaTyaki peuOBnH, k6eH3nH a6o wIiΦyBaIbHn nopoWok.
- He po36pns3kyTe Body Ha BnyTp1nHm 6nok. Lc He6e3neuHO! Lc MoKe npn3BecTn Do ypaXeHHa enektpnUHM cTpyMOM!

OuHnna NobitpHoro foIbtpy

NobipraHHn fHbTp nOtpno HCTn niCn noR BHKOpuctaHn npTcRm np6n3Ho 200 rOHN. Akuo KOHNIOHep npauoe B Haad3BnuayHO 3aannneHomy cepedOBu, ouuuyte nobipraHHn fHbTp kOxHi DBA TnxHi.

1. BiD'cHahHH BID dKepeJa KnBneHH

Cnoatky BmKhit npnla, a notIM bIKIOHTb iD Jxepena XnBnHeH.

1. BuTaryBaHHNoBITpHOro fInbTp(a Man.C).

2. Bɪdʌpɪnɪte nepeɪdɪŋ næhɪb. 2. OɒbɛpɛɡHo Ḥaɪnchɪtɪb Ha φɪkcaTOp φɪnbTpa. 3. BɪcʊhʌTe φɪnbTp.

3. OuHHeHH NoBipraHoro fInbTp a (MaI.D)

Akyo fIbTp nyke 6pydHn, ouHCTiB yoro po3uHOM HeITpaHbHOrO MIOUOro 3acOby B TeNlI BOJI. Iicra ouHsEHHa cnid npoc cyuHTn naHeB.

4.ДЯВCTAHOBHeHnHФINbTpHaTNCiHbHa KONkyIЯ NOBtOHO BCTaHOJIeHHaINbTppa (MaI.E) 3 npaboI cTOpOHn 3a DonomoroHu cnInHpUHOro wTNΦaI 3akpnTe nepeHIO naHb.

Пуримитka:

• Ⅲo6 yHnKHyTn TpaBm, nicra BuaIaIeHHa fInbtpy He TopkaTeCnnaCTNHByTpuihboro 6nOky naIbquMn.
  Hehamaratecamaocitnoohouoynybatn BHytpiHIOaCTnHy KOHNIOhepa.
  He ouuynTe fInbTp B npalbni MaunHi.

ABAPIHIM PEXKIM

yBnnaKy aBapinyaui 60 y pa3i BiccyTHOCTI NybTy INCTaHcHIO KepyBaHHo MOKHa KepyBaTN pncTPOEM, HATNCKaOHN nepemKau yBIMKHeHH/BNMKeHHa,po3TaWOBAHn Ha BHyTpihbOMy 6nozi.

• YbIMKHeHHn npnilaNy: kkuo npncptpi BmKHeHn,HaTCHiTB zu KhoNky, npncptpi 3anyctntbcra i 6ynde npauHOBaTN B pexnmi «6th SENSE».
  BumKHeHH npnay: kIoo npncptpi ybIMKHeHn,HaTNCHTb 10 KhoNky, npncptpi npnnnHntb po6Oty.

PpIMtKa: He ytpmYte 10 KhONky HATncHeHOIO npTAROM TpuBaIoro Yacy, ockJIbKn ue npu3Bede do HecnpabHocti.
