Genius X - Toothbrush ORAL-B - Free user manual and instructions

USER MANUAL Genius X ORAL-B

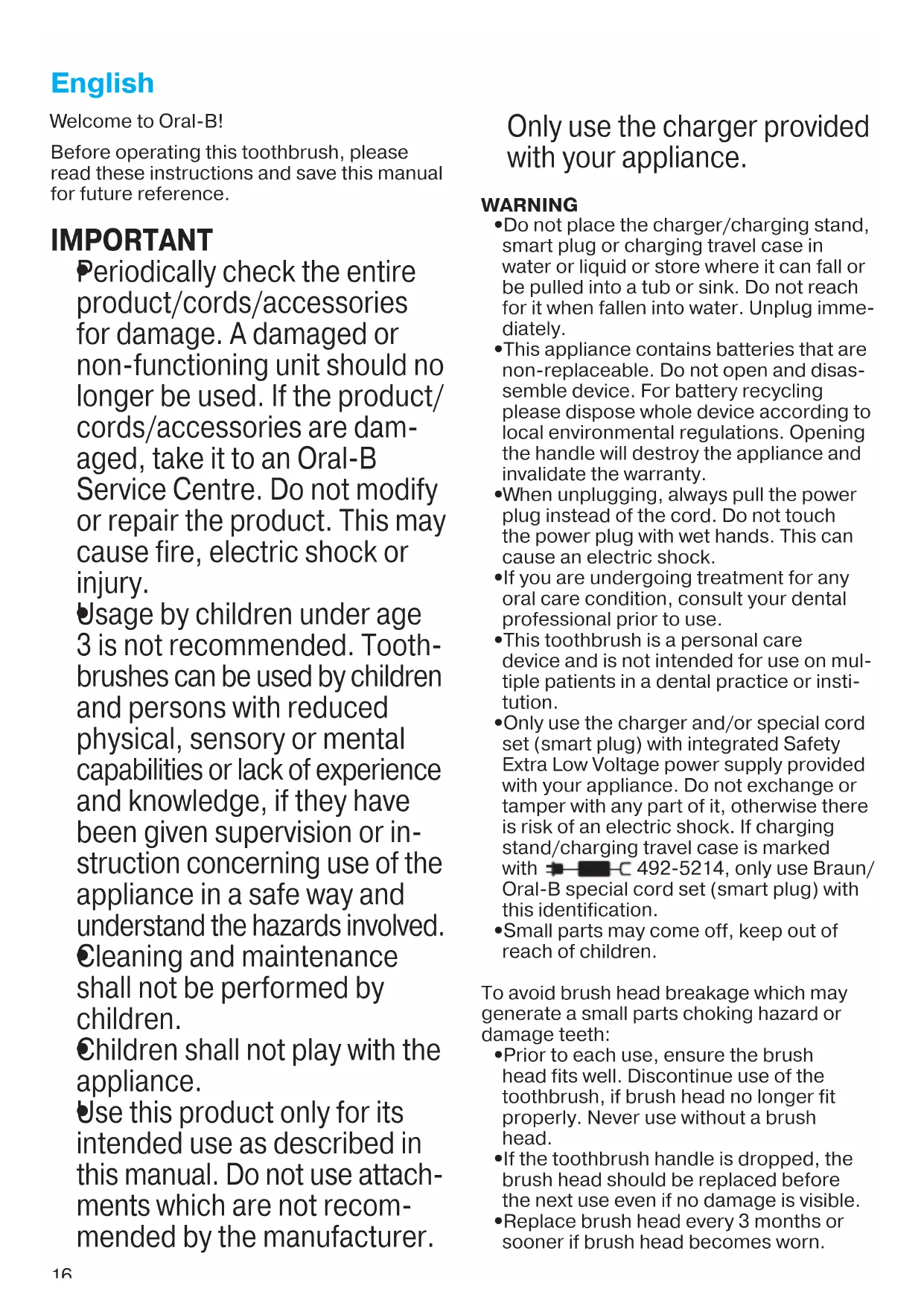

Periodically check the entire product/cords/accessories for damage. A damaged or non-functioning unit should no longer be used. If the product/ cords/accessories are dam- aged, take it to an Oral-B Service Centre. Do not modify or repair the product. This may cause fire, electric shock or injury.

Usage by children under age 3 is not recommended. Tooth- brushes can be used by children and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge, if they have been given supervision or in- struction concerning use of the appliance in a safe way and understand the hazards involved.

Cleaning and maintenance shall not be performed by children.

Children shall not play with the appliance.

Use this product only for its intended use as described in this manual. Do not use attach- ments which are not recom- mended by the manufacturer. Only use the charger provided with your appliance. WARNING

• Do not place the charger/charging stand, smart plug or charging travel case in water or liquid or store where it can fall or be pulled into a tub or sink. Do not reach for it when fallen into water. Unplug imme- diately.

• This appliance contains batteries that are non-replaceable. Do not open and disas- semble device. For battery recycling please dispose whole device according to local environmental regulations. Opening the handle will destroy the appliance and invalidate the warranty.

• When unplugging, always pull the power plug instead of the cord. Do not touch the power plug with wet hands. This can cause an electric shock.

• If you are undergoing treatment for any oral care condition, consult your dental professional prior to use.

• This toothbrush is a personal care device and is not intended for use on mul- tiple patients in a dental practice or insti- tution.

• Only use the charger and/or special cord set (smart plug) with integrated Safety Extra Low Voltage power supply provided with your appliance. Do not exchange or tamper with any part of it, otherwise there is risk of an electric shock. If charging stand/charging travel case is marked with 492-5214, only use Braun/ Oral-B special cord set (smart plug) with this identification.

• Small parts may come off, keep out of reach of children. To avoid brush head breakage which may generate a small parts choking hazard or damage teeth:

• Prior to each use, ensure the brush head fits well. Discontinue use of the toothbrush, if brush head no longer fit properly. Never use without a brush head.

• If the toothbrush handle is dropped, the brush head should be replaced before the next use even if no damage is visible.

• Replace brush head every 3 months or sooner if brush head becomes worn. 90610967_D706_WE_UK_UI.indd 1690610967_D706_WE_UK_UI.indd 16 06.03.19 09:1006.03.19 09:10 Business Use - P&G AUTHORIZED POA-00113126 Rev 001 Effective Date 2019-03-11 Printed 2019-04-24 Page 16 of 10417

• Clean brush head properly after each use (see «Cleaning recommendations» para- graph). Proper cleaning ensures the safe use and functional life of the toothbrush. Important Information

• Your Oral-B toothbrush can be used with your smartphone (find details under «Connecting your toothbrush to your Smartphone»).

• To avoid electromagnetic interference and/or compatibility conflicts, deactivate Bluetooth on your toothbrush handle (5) before using it in restricted surround- ings, such as aircrafts or specially marked areas in hospitals.

• Deactivate Bluetooth by simultaneously pressing the on/off (3) and mode but- ton (4) for 2 seconds until the Bluetooth indicator (7) goes off. Follow the same procedure to reactivate Bluetooth again.

• Persons with pacemakers should always keep the toothbrush more than six inches (15 centimeters) from the pacemaker while turned on. Anytime you suspect interference is taking place, deactivate Bluetooth. Description 1 Brush head 2 Smart Ring 3 On/off button 4 Brushing mode button 5 Handle 6 Brushing mode display 7 Bluetooth

indicator 8 Charge level display Accessories (depending on model): 9 Basic charger (with fixed cord) 10 Brush head holder 11 Brush head compartment with protec- tive cover 12 Charging travel case 12a Charge indicator light 12b USB port 12c Smart plug port 12d Inner lid (with smartphone holder) 12e Removable inlay 13 Smart plug (power supply) 14 Charging stand (with detachable cable) 15 Beauty bag 16 Basic travel case 17 Charger pouch Note: Content may vary based on the model purchased. Specifications For voltage specifications refer to the type plates/bottom of devices. Noise level: 68 dB (A) Charging and Operating Your toothbrush has a waterproof handle, is electrically safe and designed for use in the bathroom.

• You may use your toothbrush right away or charge it briefly by placing it on the plugged-in basic charger (9) or charging stand (14). When using the charging stand (14) use the extra smart plug (13) pro- vided (picture B). Only the smart plug may be used for all global mains voltage ranges (100 -240V). Note: In case the battery is empty (no lights illuminated on charge level display (8) while charging or no reaction when pressing the on/off button (3)), charge at least for 30 minutes.

• The charge level is indicated on the charge level display (8). Flashing lights indicate that the battery is charging (picture

); once it is fully charged, the lights turn off. A full charge typically takes 12 hours and enables at least 2 weeks of regular brushing (twice a day, 2 minutes). Note: At a very low charge level, the lights might not flash immediately; it can take up to 30 minutes.

• If the battery is running low, a red light is flashing on the charge level display and the motor is reducing its speed. Once the battery is empty, the motor will stop; it will need at least a 30-minute charge for one usage.

• You can always store the handle on the plugged-in charging unit to maintain it at full power; a battery overcharge is pre- vented by device. Note: Store handle at room temperature for optimal battery maintenance. Caution: Do not expose handle to tem- peratures higher than 50 °C. Using your toothbrush Brushing technique Wet brush head and apply any kind of tooth- paste. To avoid splashing, guide the brush 90610967_D706_WE_UK_UI.indd 1790610967_D706_WE_UK_UI.indd 17 06.03.19 09:1006.03.19 09:10 Business Use - P&G AUTHORIZED POA-00113126 Rev 001 Effective Date 2019-03-11 Printed 2019-04-24 Page 17 of 10418 head to your teeth before switching on the handle (picture

). When brushing your teeth with one of the Oral-B oscillating- rotating brush heads guide the brush head slowly from tooth to tooth, spending a few seconds on each tooth surface. With any brush head start brushing the outsides, then the insides and finally the chewing surfaces. Brush all four quadrants of your mouth equally (picture

). You may also consult your dentist or dental hygienist about the right technique for you. In the first days of using any electric tooth- brush, your gums may bleed slightly. In general, bleeding should stop after a few days. Should it persist after 2 weeks, please consult your dentist or dental hygienist. If you have sensitive teeth and/or gums, Oral-B recommends using the «Sensitive» mode (optional in combination with an Oral-B «Sensitive» brush head). Smart Ring features Your toothbrush is equipped with a Smart Ring (2) that has various functionalities indicated via different colors of light: White (default) = Operating and visual timer light (choose individual color via Oral-B™ App settings) Red = Pressure sensor light Blue = Bluetooth

pairing indicator Timer The timer signals with a short stuttering sound and a flashing light of the Smart Ring at 30-seconds intervals to move to the next quadrant of your mouth (picture

). A long stuttering sound and a flashing light indicate the end of the professionally recommended 2-minute brushing time. The timer memorizes the elapsed brushing time, even when the handle is briefly switched off during brushing. The timer resets if pausing longer than 30 seconds, briefly pressing the mode button (4) during pause or placing the handle on the plugged-in charger. Note: During the use of the Oral-B™ App, the timer may be deactivated for some features. Note: You can also customize the timer set- tings via Oral-B™ App. Pressure sensor If too much pressure is applied, the Smart Ring (2) will light up in red, reminding you to reduce pressure. Constant high pressure for more than 5 seconds is indicated with a fast flashing Smart Ring (2). In addition the pul- sation of the brush head will stop and the oscillation movement of the brush head will be reduced (during «Daily Clean», «Pro Clean» and «Sensitive» mode) (picture

Periodically check the operation of the pres- sure sensor by pressing moderately on the brush head during use. Note: During the use of the Oral-B™ App, the pressure sensor may be deactivated for some features. Brushing modes Your toothbrush offers different brushing modes indicated on the brushing mode display (6) on your handle («Daily Clean» mode does not illuminate on the brushing mode display): «Daily Clean» – Standard mode for daily cleaning «Pro Clean» – For an extraordinary clean feeling (operated with a higher frequency) «Sensitive» – Gentle, yet thorough cleaning for sensitive areas «3D White» – Polishing for occasional or everyday use «Gum Care» – Gentle massage of gums «Tongue Clean» – Tongue cleaning for occasional or everyday use When operating the «Tongue Clean» mode, we recommend using the «Sensitive» brush head. You can brush your tongue either with or without toothpaste. Brush the whole area of your tongue systematically in gentle movements. The recommended brushing time is 20 seconds; indicated with a flashing light of the Smart Ring. Your toothbrush automatically starts in the mode selected last. To switch to other modes, successively press the mode button during use (picture

). To return from any mode 90610967_D706_WE_UK_UI.indd 1890610967_D706_WE_UK_UI.indd 18 06.03.19 09:1006.03.19 09:10 Business Use - P&G AUTHORIZED POA-00113126 Rev 001 Effective Date 2019-03-11 Printed 2019-04-24 Page 18 of 10419 back to «Daily Clean» mode, press and hold the mode button (4). Note: You can also customize the mode set- tings via Oral-B™ App. Brush heads Oral-B offers you a variety of different Oral-B brush heads that fit your Oral-B toothbrush handle. Our oscillating-rotating brush heads can be used for tooth-by-tooth precision cleaning. Oral-B CrossAction brush head Our most advanced brush head. Angled bristles for a precise clean. Lifts and powers away plaque. Oral-B FlossAction brush head features micropulse bristles that allow for an outstanding plaque removal in the interden- tal areas. Oral-B 3D White brush head features a special polishing cup to naturally whiten your teeth. Please note that children under 12 years old should not use the Oral-B «3D White» brush head. Oral-B Sensi Ultrathin brush head features a combination of regular bristles to clean teeth surfaces and ultrathin bristles for a gentle brushing experi- ence on the gumline. Most Oral-B brush heads feature light blue INDICATOR

bristles to help you monitor brush head replacement need. With thor- ough brushing, twice a day for two minutes, the blue color will fade halfway approxi- mately within 3 months, indicating the need to exchange your brush head. If the bristles splay before the color recedes, you may exert too much pressure on teeth and gums. We do not recommend using the Oral-B «FlossAction» or Oral-B «3D White» brush head with braces. You may use the Oral-B «Ortho» brush head, specifically designed to clean around braces and wires. Connecting your toothbrush to your Smartphone The Oral-B™ App is available for smart- phones running iOS or Android operating systems. It can be downloaded for free from App Store (SM) or Google Play™. Your handle has sensors installed that, together with a «brushing recognition» feature in the App, help you to detect what areas to brush and for how long. Furthermore, the Oral-B™ App gives you the opportunity to chart your brushing activities, give you coaching and customize your toothbrush settings.

• Launch the Oral-B™ App. It will guide you through the entire Bluetooth pairing pro- cedure. You may also find it under the App´s settings (Settings -> Toothbrush). Note: Oral-B™ App functionality is limited if Bluetooth is deactivated on your smart- phone (for directions please refer to your smartphone’s user manual).

• Any app instructions will be displayed on your smartphone.

• If Bluetooth is activated on your handle, the Bluetooth indicator (7) illuminates. Once the handle is paired with the App, the Smart Ring (2) flashes briefly.

• Keep your smartphone in close proximity (within 5m distance) when using it with the handle. Make sure the smartphone is safely positioned in a dry place. Note: Your smartphone must support Bluetooth 4.0 (or higher)/Bluetooth Smart in order to pair your handle. Compatible smart- phones are listed in App Store (SM) or Google Play™. Caution: Follow your smartphone’s user manual to ensure your phone/charger is designed for use in a bathroom environment. Cleaning recommen- dations After brushing, rinse your brush head under running water with the handle switched on. 90610967_D706_WE_UK_UI.indd 1990610967_D706_WE_UK_UI.indd 19 06.03.19 09:1006.03.19 09:10 Business Use - P&G AUTHORIZED POA-00113126 Rev 001 Effective Date 2019-03-11 Printed 2019-04-24 Page 19 of 10420 Switch off and remove the brush head. Clean handle and brush head separately; wipe them dry before reassembling. Unplug the basic charger/charging stand before cleaning (picture

To be cleaned with a damp cloth only: basic charger (9), charging stand (14), charger pouch (17), charging travel case (12), basic travel case (16) and smart plug (13). Dishwasher-safe: brush head holder (10), brush head compartment and protective cover (11), removable inlay (12e) of the charging travel case (picture B3). Hand wash: beauty bag (15) only with luke- warm water (30°C – 40°C). Accessories (depending on model) Charging Travel Case

• To charge your handle (5) place it on the pin in the charging travel case (12) and connect it to an electric outlet, using the extra smart plug (13) provided. The smart plug may be used for all global mains voltage ranges (100 – 240V).

• The flashing light (12a) of the charging travel case indicates that the handle is charging. Once the handle is fully charged the light turns off. A full charge typically takes 12 hours (picture B1). Note: You may use the USB port (12b) to charge an electric device while the charg- ing travel case is plugged in. The handle can only be charged with the smart plug (13) (12c) not via USB port.

• The inner lid of the travel case has a built-in smartphone holder (12d), which can hold your smartphone while using (picture B2). Before use, make sure your phone fits the stand and keeps stable.

• Cleaning: The removable inlay (picture B3) (12e) of the travel case is dishwash- er-safe (picture

). The outer case should be cleaned with a damp cloth only. Make sure that travel case parts are com- pletely dry before reassembling and toothbrush/brush heads are dry before storing in the travel case. Note: Clean stains on travel case surface imme- diately. Store travel case in a clean and dry place. Follow your smartphone’s user manual to ensure your phone/charger is designed for use in a bathroom environment. Beauty Bag / Charger Pouch / Basic Travel Case Store the clean and dry toothbrush/brush heads in the basic travel case (16) and place it inside the beauty bag (15) (picture C). Store the charger/charging stand in the charger pouch (17) (picture D). Cleaning: Clean stains on surfaces immedi- ately. The beauty bag should be hand washed only with lukewarm water (30°C – 40°C). Basic travel case and charger pouch should be cleaned with a damp cloth only (picture

). Store in clean and dry place. Subject to change without notice. Environmental Notice Product contains batteries and/or recyclable electric waste. For environment protection do not dispose in household waste, but for recycling take to electric waste collection points provided in your country. Guarantee We grant 2 years guarantee on the product commencing on the date of purchase. Within the guarantee period we will elimi- nate, free of charge, any defects in the appliance resulting from faults in materials or workmanship, either by repairing or replacing the complete appliance as we may choose. Depending on availability replace- ment of a unit might result in a different color or an equivalent model. This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor. This guarantee does not cover: damage due to improper use, normal wear or use, especially regard- ing the brush heads, as well as defects that have a negligible effect on the value or oper- ation of the appliance. The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used. This appliance is equipped with a Bluetooth Smart approved radio module. Failure to establish a Bluetooth Smart connection to specific smart phones is not covered under the device guarantee, unless the Bluetooth 90610967_D706_WE_UK_UI.indd 2090610967_D706_WE_UK_UI.indd 20 06.03.19 09:1006.03.19 09:10 Business Use - P&G AUTHORIZED POA-00113126 Rev 001 Effective Date 2019-03-11 Printed 2019-04-24 Page 20 of 10421 radio module of this appliance is damaged. The Bluetooth devices are warranted by their own manufacturers and not by Oral-B. Oral-B does not influence or make any recommendations to device manufacturers, and therefore Oral-B does not assume any responsibility for the number of compatible devices with our Bluetooth systems. Oral-B reserves the right, without any prior notice, to make any technical modifications or changes to system implementation of device features, interface, and menu struc- ture changes that are deemed necessary to ensure that Oral-B systems function reliably. To obtain service within the guarantee period, hand in or send the complete appli- ance with your sales receipt to an authorised Oral-B Braun Customer Service Centre. Information Bluetooth

radio module Although all indicated functions on the Bluetooth device are supported, Oral-B does not ensure 100% reliability in connec- tion, and feature operation consistency. Operation performance and connection reliability are direct consequences of each individual Bluetooth device, software version, as well as the operating system of those Bluetooth devices and company security regulations implemented on the device. Oral-B adheres to and strictly implements the Bluetooth standard by which Bluetooth devices can communicate and function in Oral-B toothbrushes. However, if device manufacturers fail to implement this standard, Bluetooth compat- ibility and features will be further compro- mised and the user may experience func- tional and feature-related issues. Please note that the software on the Bluetooth device can significantly affect compatibility and operation.

1) Warranty – Exclusions and Limitations

This limited warranty applies only to the new products manufactured by or for The Procter & Gamble Company, its Affiliates or Subsidi- aries («P&G») that can be identified by the Braun / Oral-B trademark, trade name, or logo affixed thereto. This limited warranty does not apply to any non-P&G product including hardware and software. P&G is not liable for any damage to or loss of any pro- grams, data, or other information stored on any media contained within the product, or any non-P&G product or part not covered by this limited warranty. Recovery or reinstalla- tion of programs, data or other information is not covered under this limited warranty. This limited warranty does not apply to (i) damage caused by accident, abuse, misuse, neglect, misapplication, or non-P&G product; (ii) damage caused by service performed by anyone other than Braun or authorized Braun service location; (iii) a product or part that has been modified without the written per- mission of P&G, and (iv) damage arising out of the use of or inability to use the Oral-B Smartphone stand/puck, Smartphone mirror holder, or charging travel case («Acces- sories»).

2) Using your smartphone holder

The Oral-B Accessories included in the package has been designed to provide you with a convenient way to position your smart- phone while you are using the Oral-B app. Try multiple orientations of your smartphone in the Oral-B smartphone holder prior to use to determine the best positioning of your smartphone in the holder. Be sure to try this in a manner which will not harm your smart- phone if it falls out of the stand. Do not use in automobiles.

ACCESSORIES, INCLUDING, WITHOUT

LIMITATION, INJURY TO PERSONS,

PROPERTY DAMAGE, LOSS OF VALUE

OF ANY THIRD PARTY PRODUCTS THAT

ARE USED IN OR WITH THE ORAL-B ACCESSORIES, OR LOSS OF USE OF THE

ORAL-B ACCESSORIES OR ANY THIRD

PARTY PRODUCTS THAT ARE USED IN

ORAL-B ACCESSORIES, OR ANY LOSS OF

OF THE PRODUCT. Warranty replacement brush heads Oral-B warranty will be voided if electric rechargeable handle damage is found to be attributed to the use of non-Oral-B replace- ment brush heads. Oral-B does not recommend the use of non-Oral-B replacement brush heads.

• Oral-B has no control over the quality of non-Oral-B replacement brush heads. Therefore, we cannot ensure the cleaning performance of non-Oral-B replacement brush heads, as communicated with the electric rechargeable handle at time of initial purchase.

• Oral-B cannot ensure a good fit of non- Oral-B replacement brush heads.

• Oral-B cannot predict the long-term effect of non-Oral-B replacement brush heads on handle wear. All Oral-B replacement brush heads carry the Oral-B logo and meet Oral-B’s high quality standards. Oral-B does not sell replacement brush heads or handle parts under any other brand name. 90610967_D706_WE_UK_UI.indd 2290610967_D706_WE_UK_UI.indd 22 06.03.19 09:1006.03.19 09:10 Business Use - P&G AUTHORIZED POA-00113126 Rev 001 Effective Date 2019-03-11 Printed 2019-04-24 Page 22 of 10423 Trouble Shooting Problem Possible reason Remedy APP Handle does not operate (properly) with Oral-B™ App.

1. Oral-B™ App is closed.

2. Bluetooth is not activated on

3. Bluetooth is deactivated on han-

dle; Bluetooth indicator (7) is off.

4. Bluetooth connection to smart-

phone has been lost.

5. Your smartphone does not sup-

port Bluetooth 4.0 (or higher)/ Bluetooth Smart.

6. Handle on plugged-in charger.

7. Outdated Oral-B™ App.

phone (described in its user manual).

3. Activate Bluetooth by simultane-

ously pressing on/off (3) and mode button (4) for 2 seconds until Bluetooth indicator (7) turns on.

4. Pair handle and smartphone

again via app settings. Keep your smartphone in close prox- imity when using it with handle.

5. Your smartphone must support

Bluetooth 4.0 (or higher)/ Blue- tooth Smart in order to pair han- dle. Check App Store (SM)

6. Bluetooth is deactivated while

handle is placed on plugged-in charger.

7. Download latest Oral-B™ App.

Reset to factory settings. Original app functionality wanted. Press and hold on/off button (3) for 10 seconds until all indicator lights double blink simultaneously. TOOTHBRUSH Handle is not operating (during first use). Battery has a very low charge level; no lights illuminate. Charge at least for 30 min. Short stuttering sounds/flash- ing light after 2 minutes or han- dle does not operate any timer. Timer has been modified/deacti- vated via App. Use App to change timer settings or perform factory reset (see App Trouble Shootings). Handle does not charge.

1. Battery is at a very low charger

2. Ambient temperature for

charging is out of valid range (≤ 0°C and ≥ 60°C).

1. Charging lights might not flash

immediately; it can take up to 30 minutes.

2. Recommended ambient tempe-

rature for charging is 5°C to 35°C. 90610967_D706_WE_UK_UI.indd 2390610967_D706_WE_UK_UI.indd 23 06.03.19 09:1006.03.19 09:10 Business Use - P&G AUTHORIZED POA-00113126 Rev 001 Effective Date 2019-03-11 Printed 2019-04-24 Page 23 of 10424 ACCESSORIES Charging per- formance of USB-con- nected devices via charging travel case are not as expected. Your USB-connected device may require your manufacturer’s power source to fullfill its charging perfor- mance. Use original manufacturer power source of USB-connected device to achieve desired charging per- formance. The rechargeable toothbrush contains a radio module which operates in the 2.4 to 2.48 GHz band with a maximum power of 1mW. Hereby, Braun GmbH declares that the radio equipment types 3771, 3765, 3754, 3764, 3762 and 3767 are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.oralb.com/ce. In some limited situations, your toothbrush may turn off due to nearby electromagnetic fields in the range of 621 to 714 MHz. This is not damaging to your toothbrush; you may turn it back on to continue brushing. 90610967_D706_WE_UK_UI.indd 2490610967_D706_WE_UK_UI.indd 24 06.03.19 09:1006.03.19 09:10 Business Use - P&G AUTHORIZED POA-00113126 Rev 001 Effective Date 2019-03-11 Printed 2019-04-24 Page 24 of 10425 Français Bienvenue chez Oral-B ! Veuillez lire le mode d’emploi attentivement avant d’utiliser l’appareil pour la première fois et conservez-le pour vous y référer ulté- rieurement. IMPORTANT
