USER MANUAL SCD5750 Soundmaster

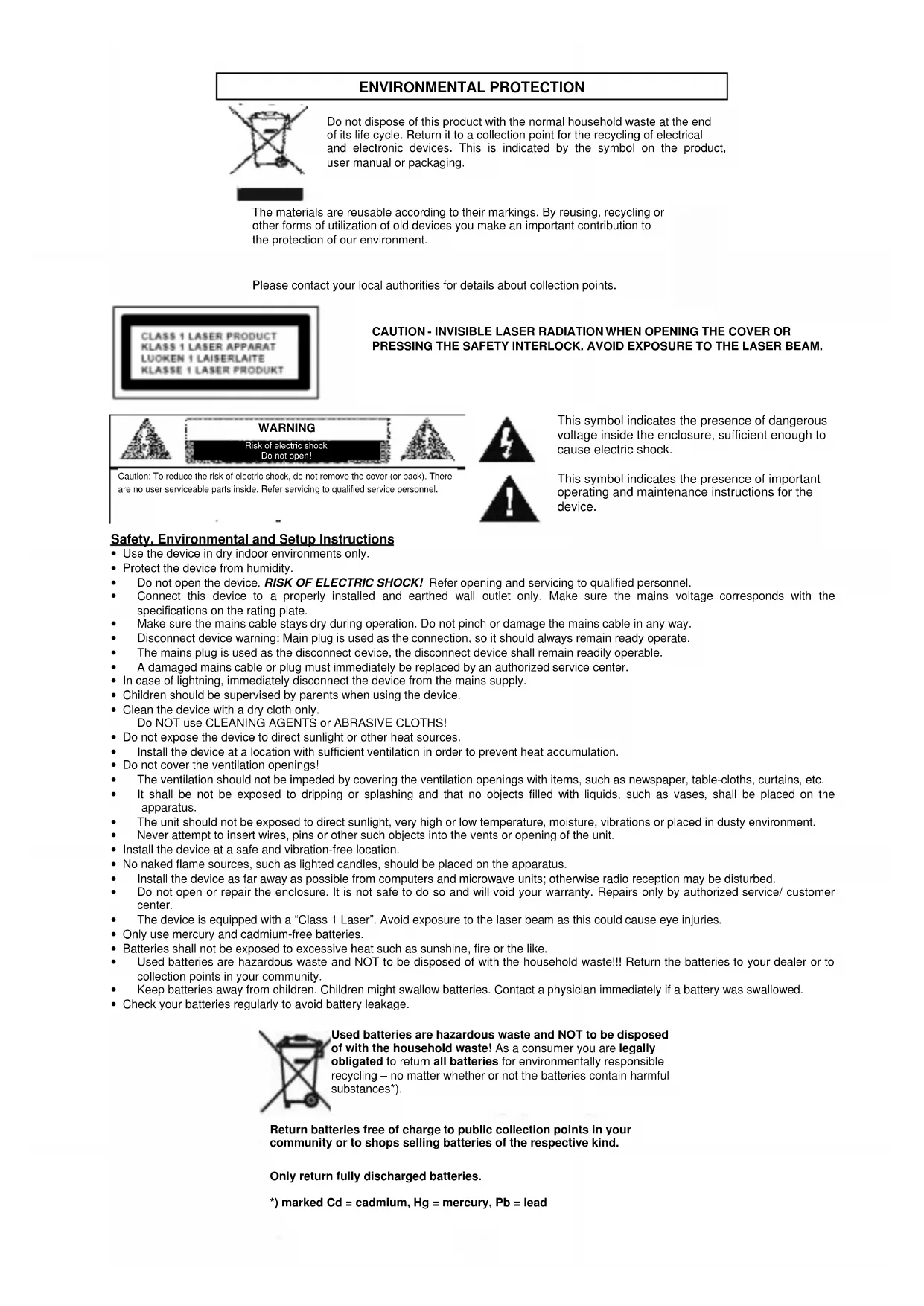

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging.

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device.

Safety, Environmental and Setup Instructions

• Use the device in dry indoor environments only.
• Protect the device from humidity.
  Do not open the device. RISK OF ELECTRIC SHOCK! Refer opening and servicing to qualified personnel.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
  Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• Disconnect device warning: Main plug is used as the connection, so it should always remain ready operate.
  The mains plug is used as the disconnect device, the disconnect device shall remain readily operable.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
  Clean the device with a dry cloth only. Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
  Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
  The ventilation should not be impeded by covering the ventilation openings with items, such as newspaper, table-cloths, curtains, etc.
  It shall be not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.
  The unit should not be exposed to direct sunlight, very high or low temperature, moisture, vibrations or placed in dusty environment.
• Never attempt to insert wires, pins or other such objects into the vents or opening of the unit.
• Install the device at a safe and vibration-free location.
• No naked flame sources, such as lighted candles, should be placed on the apparatus.
  Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
  Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
  The device is equipped with a "Class 1 Laser". Avoid exposure to the laser beam as this could cause eye injuries.
• Only use mercury and cadmium-free batteries.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
  Used batteries are hazardous waste and NOT to be disposed of with the household waste!! Return the batteries to your dealer or to collection points in your community.
• Keep batteries away from children. Children might swallow batteries. Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*).

Return batteries free of charge to public collection points in your community or to shops selling batteries of the respective kind.

Only return fully discharged batteries.

^* marked Cd = cadmium, Hg = mercury, Pb = lead

LOCATIONS OF CONTROLS

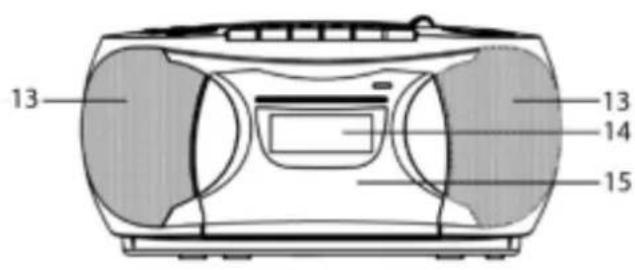

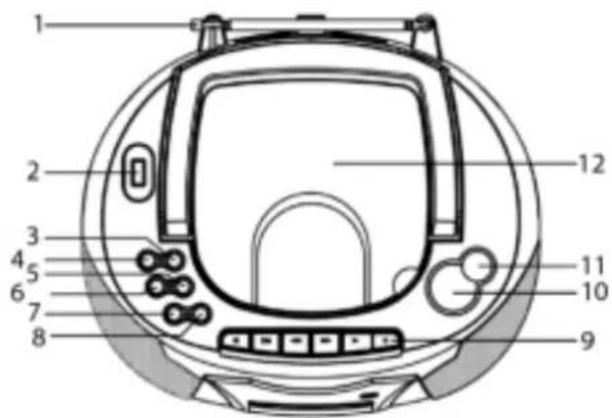

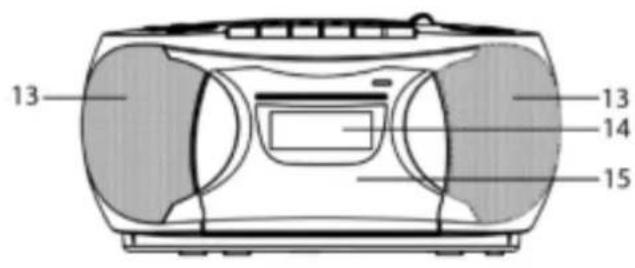

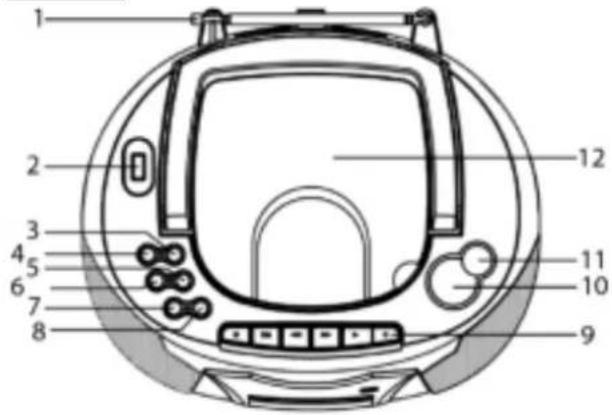

Top View Front View

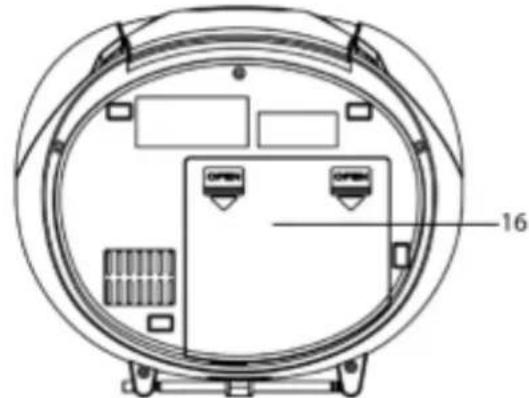

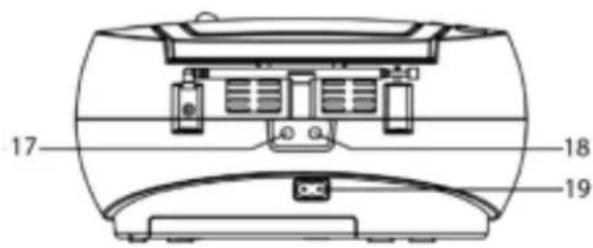

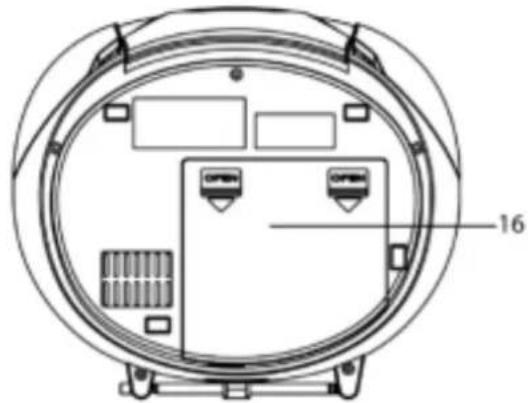

Bottom View Backside View

1. FM ANTENNA
2. USB PORT
3. SKIP+ ▶ ▶ 10. VOLUME + / -
4. SKIP-
5. M + / EQ / ALBUM+
6. M-/MODE

7. PLAY PAUSE / SCAN

8. STOP / MEMO/SLEEP

9. CASSETTE KEEYS

10. MICROPHONE

11. STANDBY / FUNCTION

12. CD DOOR
13. SPEAKER

14. LCD DISPLAY

15. CASSETTE DOOR

16. BATTERY DOOR
17. HEADPHONE JACK
18. AC SOCKET

INSTALLATION

• Select a suitable location for the device, such as a dry, flat, non-slip surface on which it is easy to operate the machine.
• Ensure that the device is sufficiently ventilated.
• Remove the protective film from the display if it is still present.

Power Supply

• Ensure that the voltage is the same as that indicated on the model identification plate.
• Connect the power cable supplied (see battery compartment if necessary) to a properly installed safety power socket and the mains connector AC on the back of the machine.

Inserting the Batteries (not supplied)

1. Open the lid of the battery compartment.
2. Insert 6 batteries of type UM-2 ("C" size) 1.5V . Please ensure that the polarity is correct (see the floor of the battery compartment)
3. Then close the battery lid.

NOTE:

When a mains cable is connected the batteries are automatically switched off.

CAUTION:

• Batteries can leak and lose battery acid. When not using the system for a long period of time, remove the batteries.
• Different battery types or new and used batteries must not be used together.
• Do not dispose of batteries with household waste. Return old batteries to the respective collection facilities or your dealer.

WARNING:

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Danger of explosion!

NOTE:

After about 10 minute without a signal, the device will automatically switch to "OFF" mode.

BASIC FUNKTION

GENERAL OPERATION

• At standby mode, press the "STANDBY/FUNCTION" button to switch on the unit.
• Press the "STANDBY/FUNCTION" button once to switch other mode. (CD/ MP3/ USB/ FM/TAPE)
• Press the "VOL+” or "VOL-" button to adjust volume level.
• Press and hold the "STANDBY/FUNCTION" button for 2 seconds to switch off the unit in all modes.

RADIO OPERATION

AUTOMATIC TUNING

1. Press the "FUNCTION" button to select "FM" mode.
2. Press and hold the "SKIP+▶" or "SKIP-▶" button over 2 seconds to start automatic tuning process.
3. When a station is tuned in the tuning process, it will stop automatically and you can listen to your desired station.

MANUAL TUNING

It is for selecting stations, which cannot be tuned automatically. (manual selection)

1. Press the "FUNCTION" button to select FM mode.
2. Press the "SKIP+▶" or "SKIP-▶" button to select station.
3. Each time the "SKIP+▶" or "SKIP-▶" button is pressed momentarily the frequency changes by a fixed step: 0.05MHz.

AUTO SCAN

This product equipped auto station scan & saving function. Up to 30 stations can be saved.

1. Press the "FUNCTION" button to select FM mode.
2. Press and hold the "SCAN" button 2 seconds, unit will auto search and save all available radio station.
3. Press the "M+ or "M- to select your preset station.

PRESET STATION

Up to 30 stations can be presented (replace the AUTO SCAN saving station)

1. Select desired radio station by "SKIP+ ▷" or "SKIP- ▷".
2. Press the "MEMO" button, the display will show "P01" and flashing.
3. Press the "M+?" or "M-" button to select the preset station position.
4. Press the "MEMO" button again to confirm desired radio station in memory.
5. Once all the stations were preset, press the "M+?" or "M-" button to listen to your desired station.

FOR BETTER RECEPTION

This appliance has a FM antenna located at the rear cabinet. This wire is completely unraveled and extended for better reception.

Note: Microphone cannot operate in radio mode.

CD / MP3 OPERATION

Whenever connected to microphone are available for playback and record to cassette.

GENERAL OPERATION

PLAY/PAUSE Press to start playing CD / MP3 disc.

Press again to stop playing CD / MP3 operation temporarily.

Press again to resume playback.

SKIP + ▶ ▶ & SKIP - △ △ Press to go to the next track or back to the previous track.

Press and hold while playing until you find the point of the sound.

STOP Press to stop all CD / MP3 operation.

ALBUM+ Press to go to next folder (only available for MP3-disc with folder)

PLAYBACK

1. Press the "FUNCTION" button to select "CD" mode.
2. Open the CD door and place a CD / MP3 disc with the label up in the CD compartment.
3. Close the CD door.
4. Focus search is performed and total number will show on display.
5. Playback will start automatically from the first track.
6. Press the "VOL +" or "VOL -" button to adjust the volume to desired level.
7. Press the "PLAY / PAUSE" button when you want to stop playback temporarily.
8. Press the "STOP" button when finished.

PROGRAM

Up to 20 tracks of CD disc, 99 tracks of MP3 disc can be programmed for disc play in any order. Be sure to press the "STOP" button before use.

1. Press the "MODE" button, the display will show "P01".
2. Select desired track by using the "SKIP+ " or "SKIP- " button.
3. Press the "MODE" button again to confirm desired track into the program memory.
4. Repeat step 2 and 3 to enter additional tracks into the program memory.
5. When all the desired tracks have been programmed, press the "PLAY / PAUSE" button to play the disc in the order you have programmed.
6. Press the "STOP" button twice to terminate programmed playback.

MODE

Press the "MODE" button during playing CD / MP3 disc, each press switches the mode function as follows:

1. REPEAT 1
2. REPEAT ALL
3. RANDOM
4. NORMAL PLAYBACK

1. Connect microphone cable to microphone jack
2. Switch "ON" microphone
3. Select CD,MP3 or USB mode
4. Press cassette "REC" button to start recording to cassette.

Note: Microphone operation isn't available in Radio and Tape playback mode.

USB OPERATION

Whenever connected to microphone are available for playback and record to cassette.

GENERAL OPERATION

PLAY/PAUSE Press to start playing tracks from the USB.

Press again to stop playing USB operation temporarily.

Press again to resume playback.

SKIP + ▶▶ & SKIP - △▲ Press to go to the next track or back to the previous track.

Press and hold while playing until you find the point of the sound.

STOP Press to stop all USB operation.

ALBUM+ Press to go to next folder (only available for MP3 file with folder)

PLAYBACK

1. Plug or slot in USB device to the port.
2. Press the "FUNCTION" button to select "USB" mode.
3. Reading is performed and total number will show on display.
4. Playback will start automatically from the first track.
5. Press the "PLAY / PAUSE" button when you want to stop playback temporarily.
6. Press the "STOP" button when finished.

PROGRAM/MODE

The operation of "PROGRAM", "MODE" are as the same as that of "CD / MP3". Please refer to "CD / MP3 OPERATION".

TAPE OPERATION

GENERAL OPERATION

PAUSE Press to stop playing tape operation temporarily.

Press again to resume tape operation.

STOP Press to stop tape operations

Press again to open the cassette door after the tape spools stop turning.

FAST FORWARD & Press to start rapid tape winding either forward or reverse direction.

REWIND

PLAY

Press to start playing tape.

RECORD

Press it together with "PLAY" button to start recording.

PLAYBACK

1. Press the "FUNCTION" button to select "TAPE" mode.
2. Press the "STOP / EJECT" button to open the cassette door and insert your tape.
3. Close the cassette door.
4. Press the "PLAY" button to start playing tape.
5. Press the "VOL+" or "VOL-" button to the desired volume level.
6. Press the "PAUSE" button when you want to stop playing tape operation temporarily.
7. Press the "STOP / EJECT" button when finished.

Note: Microphone cannot operate in tape playback mode.

RECORDING

1. Press the "STOP / EJECT" button to open the cassette door and insert a blank tape.
2. Select the source you want to record.
3. To record from radio - Press the "FUNCTION" button to select "RADIO" mode and adjust the desired station.
4. To record from CD - Place a disc on the CD compartment. Press the "FUNCTION" button to select "CD" mode and select the desired track.
5. Press the "RECORD" button together with the "PLAY" button to start recording.
6. Press the "STOP / EJECT" button when finished.

Playing Cassettes

1. Turn the function selector switch to the "TAPE" position.
2. Press the "STOP/EJECT" button to open the cassette compartment.
3. Insert a recorded audiocassette into the compartment with the tape opening facing upwards and the side you wish to listen to facing the front (full spool to the right). Then close the cassette compartment again.
4. Press the "PLAY" key to listen to the tape.
5. With the "STOP/EJECT" key you can stop play-back.
6. Wind the tape forwards or backwards if necessary in the direction of the arrow keys.
7. Always press the "STOP/EJECT" key when changing the direction or stopping the tape. This prevents damage to the machine and the tape.
8. If the "STOP/EJECT" button is pressed again the flap of the cassette compartment opens.
9. In order to interrupt playback briefly, press the PAUSE button. Pressing again continues playback.

OTHER FEATURES

PHONES:

To listen to music privately, use headphones with a 3.5 stereo jack plug and connect to the headphones socket on the back of the system. The speakers will then be muted.

NOTE: Adjust the volume of the external device to a comfortable level.

EQ

EQ type:“ROCK”-“POP”-“CLASSIC”-“JAZZ”-“FLAT”

Press and hold the "EQ" button 2 seconds to choose the correct setting

SLEEP

Sleep type: 120, 90, 60, 45, 30, 15, "OFF"

Press and hold the "SLEEP" button 2 seconds to enter "SLEEP" setting. Press the "SLEEP" button again to choose the correct setting.

Automatic Standby Switching

This product is equipped with an auto power save function in the CD/ MP3/ USB/TAPE mode, if the unit remains in STOP, PAUSE or NO DISC mode for more than 10 minutes it will automatically switch off. Please press "POWER/FUNCTION" button again to re-active the unit.

SPECIFICATIONS

FM: 87.5-108MHz

OUTPUT POWER: 2 × 1W

AC:100-240V\~60/50Hz

POWER CONSUMPTION: 8W

THE SPECIFICATION AND EXTERNAL APPEARANCE OF THE SET ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.

Importer

Wörlein GmbH

Gewerbestrasse 12

D 90556 Cadolzburg

Germany

Tel.: [phone]

Fax.: [phone]

Email: [e-mail]

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

ATTENTION - RADIATION LASER INVISIBLE LORSQUE VOUS OUVREZ LE COUVERCLE OU APPUYEZ SUR L'ENCLENCHEMENT DE SECURITE. EVITEZ Toute EXPOSITION AU RAYON LASER

ATTENTION

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

WAARSCHUWING - ONZICHTBARE LASERSTRALING WANNEER DE BEHUIZING GEOPEND WORDT OF DE INTERNE BEVEILIGING UITGESCHAKELD. VERMIJD BLOOTSTELLING AAN DE LASERSTRAAL.

Slaatype: 120, 90, 60, 45, 30, 15, "OFF"

*) markerade Cd = kadmium, Hg = kvicksilver, Pb = bly

PLACERING AV REGLAGE

Ovansida

Framsida

Undersida

Baksida

1. FM-ANTENN
2. USB-PORT
3. HOPPA OVER+
4. HOPPA OVER-
5. M+/EQ/ALBUM+
6. M-/LAGE

7. SPELA UPP PAUSA K

8. STOPP
   /MINNE/INSOMNING

9. KASSETTKNAPPAR
10. VOLYM+/-
11. VIOLAGE/FUNKTION
12. CD-LUCKA
13. HÖGTALARE

14. LCD-DISPLAY

15. KASSETTELUCKA

16. BATTERILUCKA
17. MIKROFON
18. HÖRLURSUTGÄNG
19. AC-UTTAG

INSTALLATION

Insomningstyp: 120, 90, 60, 45, 30, 15, "OFF"
