USER MANUAL SCD5100GR Soundmaster

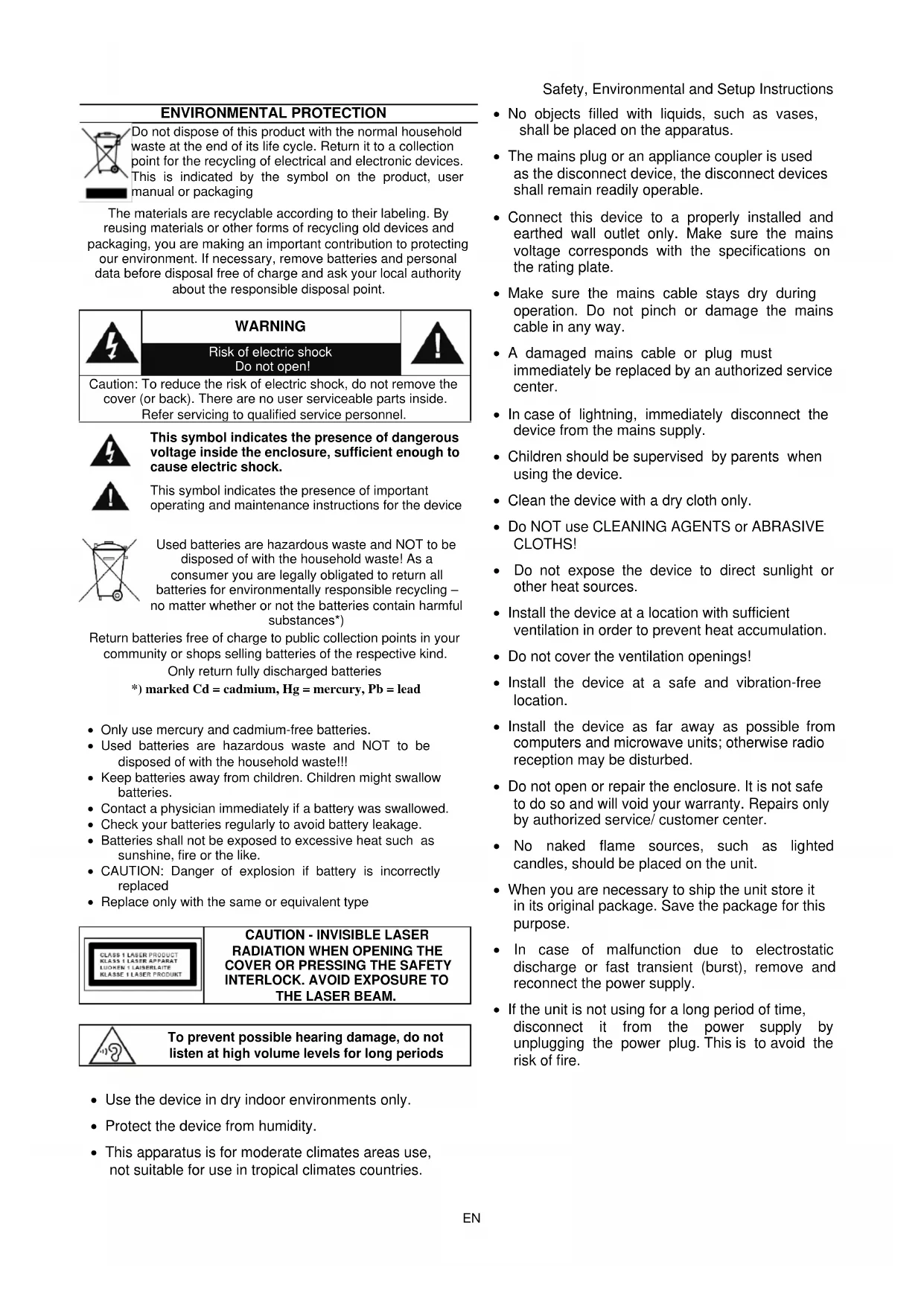

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging The materials are recyclable according to their labeling. By reusing materials or other forms of recycling old devices and packaging, you are making an important contribution to protecting our environment. If necessary, remove batteries and personal data before disposal free of charge and ask your local authority about the responsible disposal point.

Risk of electric shock Do not open! Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.

• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!

• Keep batteries away from children. Children might swallow batteries.

• Contact a physician immediately if a battery was swallowed.

• Check your batteries regularly to avoid battery leakage.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

• CAUTION: Danger of explosion if battery is incorrectly replaced

• Replace only with the same or equivalent type

RADIATION WHEN OPENING THE

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.

• Protect the device from humidity.

• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

• No objects filled with liquids, such as vases, shall be placed on the apparatus.

• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.

• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.

• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.

• A damaged mains cable or plug must immediately be replaced by an authorized service center.

• In case of lightning, immediately disconnect the device from the mains supply.

• Children should be supervised by parents when using the device.

• Clean the device with a dry cloth only.

• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!

• Do not expose the device to direct sunlight or other heat sources.

• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.

• Do not cover the ventilation openings!

• Install the device at a safe and vibration-free location.

• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.

• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.

• No naked flame sources, such as lighted candles, should be placed on the unit.

• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.

• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.

• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.SCD5100 / English Instruction Manual

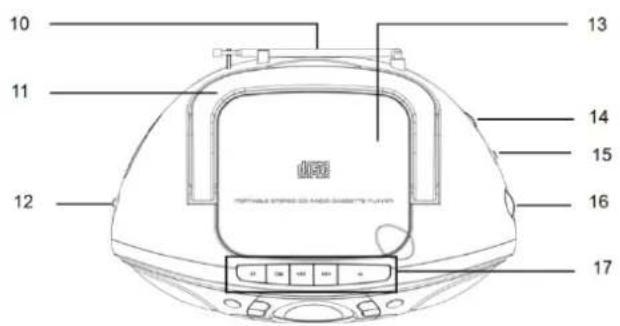

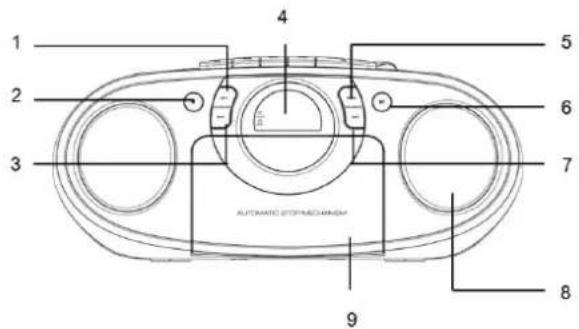

Location of Controls Main Unit Top View

• Select a suitable location for the device, such as a dry, flat, non-slip surface on which it is easy to operate the machine.

• Ensure that the device is sufficiently ventilated.

• Remove the protective film from the display if it is still present. Power Supply

• Ensure that the voltage is the same as that indicated on the model identification plate.

• Connect the power cable supplied (see battery compartment if necessary) to a properly installed safety power socket and the mains connector AC on the back of the machine. Inserting the Batteries (not supplied)

1. Open the lid of the battery compartment.

2. Insert 6 batteries of type UM-2 (“C” size) 1.5 V. Please ensure that the polarity is correct (see the floor of

the battery compartment)

NOTE: When a mains cable is connected the batteries are automatically switched off. CAUTION:

• Batteries can leak and lose battery acid. When not using the system for a long period of time, remove the batteries.

• Different battery types or new and used batteries must not be used together.

• Do not dispose of batteries with household waste. Return old batteries to the respective collection facilities or your dealer.

The batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Danger of explosion! NOTE: After about 10 minute without a signal, the device will automatically switch to OFF mode. Radio Tuner Operation Listening to the FM Radio

1. Set the “FUNCTION” selector to “RADIO” mode.

2. Adjust radio frequency to your desired station by using the “TUNING” control.

3. Adjust the “VOLUME” control to the desired level.

FM / FM-Stereo reception Set the “FM RADIO STEREO SELECTOR” to select the MONO or STEREO mode for FM reception. The Stereo indicator light up to show FM ST. mode when FM-Stereo reception is available. Cassette Operation Playing Cassettes

1. Turn the function selector switch to the OFF/TAPE position.

2. Press the STOP/EJECT button to open the cassette compartment.

3. Insert a recorded audiocassette into the compartment with the tape opening facing upwards and the side

you wish to listen to facing the front (full spool to the right). Then close the cassette compartment again.

4. Press the PLAY key to listen to the tape.

5. With the STOP/EJECT key you can stop play-back.

6. Wind the tape forwards or backwards if necessary in the direction of the arrow keys.

7. Always press the STOP/EJECT key when changing the direction or stopping the tape. This prevents

damage to the machine and the tape.

8. If the STOP/EJECT button is pressed again the flap of the cassette compartment opens.

9. In order to interrupt playback briefly, press the PAUSE button. Pressing again continues playback.

1. Set the “FUNCTION” selector to “CD” mode.

2. Open the CD door and place a CD disc with the label up on the CD compartment.

3. Close the CD door.

4. Focus search is performed if disc is inside. Total number of tracks is read and appears on the display.

5. Press the “PLAY / PAUSE” button to start playing the CD.

6. Adjust the “VOLUME” control to the desired level.

7. Press the “PLAY / PAUSE” button again when you want to stop playback temporarily.

8. In order to remove a CD, please press the “STOP” button, open the CD compartment and lift the CD out

carefully. Always keep the CD door closed. NOTE:

• If a disc is inserted the wrong way around, respectively if no disc is inserted, then “No “ appears on the display.SCD5100 / English Instruction Manual

Programmed Play This can be used to program any desired sequence of tracks. Up to 20 tracks can be programmed for disc play in any order. Be sure to press the “STOP” button before use.

1. Press the “PROGRAM” button, the display will show “01” and flash.

2. Select desired track by using the “SKIP +” or “SKIP -” button.

3. Press the “PROGRAM” button again to confirm desired track into the program memory.

4. Repeat step 2 and 3 to enter additional tracks into the program memory.

5. When all the desired tracks have been programmed, press the “PLAY / PAUSE” button to play the disc in

the order you have programmed.

6. Press the “STOP” button twice to terminate programmed playback.

MODE Press the “REPEAT” button before or during playing CD disc, each press switches the mode function as follows:

1 - REPEAT 1 (The repeat indicator is flashing.)

2 - REPEAT ALL (The repeat indicator is steadily on.)

Listening to an External Audio Source Under “CD” or “RADIO” mode, if you want to play from AUX-IN jack, please connect the external device via 3.5 mm plug jack to the AUX-IN jack. You can hear the sound from the external device through the loudspeakers and you may adjust the volume on the external audio device. For further functions please refer to the user manual of the external audio device. NOTE: Adjust the volume of the external device to a comfortable level. Listening from the Headphone Jack To listen to music privately, use headphones with a 3.5 stereo jack plug and connect to the headphones socket on the back of the system. The speakers will then be muted. NOTE: Adjust the volume of the external device to a comfortable level. Cleaning and Maintenance

Do not immerse the device in water.

• Always remove the mains plug before cleaning the machine.

• Any marks on the surface can be wiped off with a slightly damp cloth without any additives.

AUTOMATIC STANDBY SWITCHING

If the unit is idle for 10 minutes, it will automatically switch to power saving mode. Please resetting the FUNCTION” selector again.SCD5100 / English Instruction Manual

Specifications Radio frequency range FM 87.5 – 108MHz Power supply to the unit AC 230V~50Hz DC UM-2 (“C” size) 1.5 V battery x 6pcs (Batteries not supplied) Dimension of the unit 290(L) x 215(W) x 132(H)mm Output power 2 x 1 Watt Unit weight approx. 1.7Kg

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

CLASS 1 LASER PRODUCT

KLASSE 1 LASER PRODUKT

BEHUIZING GEOPEND WORDT OF
