USER MANUAL Dolceclima 12 HP P OLIMPIA SPLENDID

INSTRUCTIONS FOR INSTALLATION, USE AND MAINTENANCE

3. Thisappliancecanbeusedbychildrenagedfrom8yearsandaboveandpersonwithreducedphysical,sensory

ormentalcapabilitiesorlackofexperienceandknowledgeiftheyhavebeengivensupervisionorinstruction concerninguseoftheapplianceinasafewayandunderstandthehazardsinvolved.Childrenshallnotplay withtheappliance.Cleaningandusermaintenanceshallnotbemadebychildrenwithoutsupervision.(be applicablefortheEuropeanCountries).

4. Thisapplianceisnotintendedforusebypersons(includingchildern)withreducedphysical,sensoryormental

anymaintenanceoperationontheappliance.

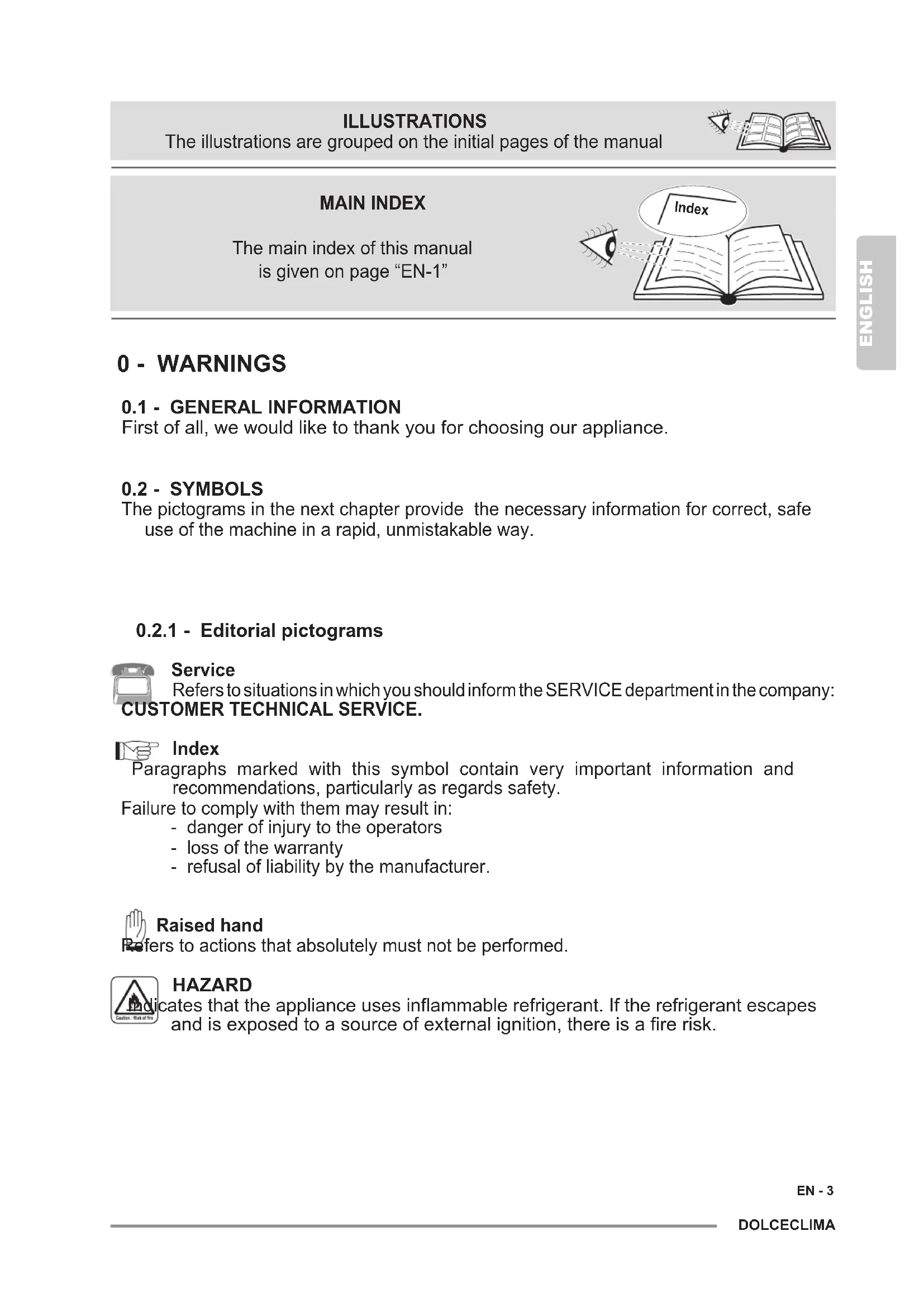

First of all, we would like to thank you for choosing our appliance.

The pictograms in the next chapter provide the necessary information for correct, safe use of the machine in a rapid, unmistakable way.

0.2.1 - Editorial pictograms

Service Refers to situations in which you should inform the SERVICE department in the company: CUSTOMER TECHNICAL SERVICE. Index Paragraphs marked with this symbol contain very important information and recommendations, particularly as regards safety. Failure to comply with them may result in: - danger of injury to the operators - loss of the warranty - refusal of liability by the manufacturer. Raised hand Refers to actions that absolutely must not be performed. HAZARD Indicatesthattheapplianceusesinammablerefrigerant.Iftherefrigerantescapes andisexposedtoasourceofexternalignition,thereisarerisk. Index MAIN INDEX The main index of this manual is given on page “EN-1” ILLUSTRATIONS The illustrations are grouped on the initial pages of the manualENGLISH EN - 4

DANGER OF HIGH VOLTAGE

Signals to the personnel that the operation described could cause electrocution if not performed according to the safety rules.

GENERIC DANGER It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of suffering physical damage.

It informs the personnel concerned that if the operation is not carried out in compliance with the safety regulations, it presents the risk of burns due to contact with components at very high temperatures.

Indicates to the personnel concerned, that it is prohibited to cover the appliance, to prevent over-heating. ATTENTION

• Indicatesthatthisdocumentmustbereadcarefullybeforeinstallingand/or using the appliance.

• Indicatesthattheassistancepersonnelmusthandletheappliancefollowing the installation manual. ATTENTION

• Indicatesthattheremaybeadditionalinformationinattachedmanuals.

ATTENTION Indicates that the assistance personnel must handle the appliance following the installation manual.DOLCECLIMA ENGLISH EN - 5

0.3 - GENERAL WARNINGS

WHEN USING ELECTRICAL EQUIPMENT, BASIC SAFETY PRECAUTIONS MUST ALWAYS BE FOLLOWED IN ORDER TO REDUCE RISKS OF FIRE, ELECTRIC SHOCKS AND INJURY, INCLUDING THE FOLLOWING: To prevent possible damages to the compressor, each start is delayed by 3 minutes with respect to the last switching off.

1. This document is restricted in use to the terms of the law and may not be

copied or transferred to third parties without the express authorization of the manufacturer, OLIMPIA SPLENDID. Our machines are subject to change and some parts may appear different from the ones shown here, without this affecting the text of the manual in any way.

2. Read this manual carefully before performing any operation (installation,

maintenance, use) and follow the instructions contained in each chapter.

3. Keep the manual carefully for future reference.

4. After removing the packaging, check that the appliance is in perfect

condition. The packaging materials must not be left within reach of children as they can be dangerous.

5. THE MANUFACTURER IS NOT RESPONSIBLE FOR DAMAGES TO PERSONS

OR PROPERTY CAUSED BY FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL.

6. The manufacturer reserves the right to make any changes it deems

advisable to its models, although the essential features described in this manual remain the same.

7. The maintenance of equipment for conditioning such as this one may result

dangerous since inside this appliance a refrigerant gas under pressure and live electrical components are present. For this reason, possible maintenance interventions (with the exception of lters cleaning) must be performed exclusively by authorized and qualied personnel.

8. Failing to comply with the instructions contained in this manual, and using

the unit with temperatures exceeding the permissible temperature range will invalidate the warranty.

9. Routine maintenance of the lters and general external cleaning can be

done by the user as these operations are not difcult or dangerous.ENGLISH EN - 6

10. During assembly and at each maintenance operation, it is necessary to

respect the precautions indicated in this manual and on the labels located inside or on the appliance, as well as to take all the precautions suggested by common sense and by the Safety Regulations in force in the country of installation.

11. In case of replacement of parts, use only original OLIMPIA SPLENDID parts.

12. If the unit is unused for a long period, or no-one uses the climate-controlled

room, it is recommended to disconnect the electric power supply in order to prevent accidents.

13. Do not use liquid or corrosive detergents to clean the unit, do not spray

water or other liquids onto the unit, since they could damage the plastic components or even cause electric shocks.

14. Do not wet the indoor unit and the remote control.

15. In case of functioning anomalies (for example: abnormal noise, bad smell,

smoke, abnormal increase in temperature, electrical dispersions, etc.), immediately switch off the appliance and disconnect the plug from the power socket. For repair work contact solely the technical service centres authorised by the manufacturer and ask for original spare parts to be used. Failure to do this can affect the safety of the appliance.

16. Do not let the air conditioner run for a long time when the humidity is very

high and a door or a windows is left open. Moisture may condense and wet or damage furniture.

17. Do not disconnect the power plug during functioning.

Fire or electrical shocks hazard.

18. Do not place heavy or hot objects on top of the appliance.

19. Before electrically connecting the appliance, make sure the plate data

correspond to those of the distribution network. The power socket must be equipped with a Ground System. The plate (20) is located on the sides of the appliance (Fig.2).

20. Install the appliance according to the manufacturer’s instructions. An

incorrect installation can cause damage to people, animals or property for which the manufacturer accepts no responsibility.

21. If the appliance’s plug is incompatible with the socket, have the socket

replaced with a suitable one by a qualied technician, who must ascertain that the section of the socket cables is compatible with the power absorbed by the appliance. We do not recommend using adaptors and/or extension cables. If they cannot be avoided, however, they must comply with current safety regulations and their ampacity (A) must not be below the maximum ampacity of the appliance.DOLCECLIMA ENGLISH EN - 7

22. This appliance is not intended to be run via an external timer or with a

separate remote control system.

23. Always and only use the appliance in a vertical position.

24. Do not obstruct the air inlet and outlet grids in any manner.

25. Do not insert extraneous items in the air inlet and outlet grids as this will

create the risk of electrical shocks, re or damages to the appliance.

26. Do not use the appliance:

- with wet or damp hands; - barefoot.

27. Do not pull the power cable or the appliance itself to remove the plug from

28. Do not use this product under direct sunlight or near a heat source such as

a stove, heater or radiator (Fig.3).

29. Do not use the appliance near gas equipment (Fig.3).

30. Always place the appliance on a stable, plane and levelled surface.

31. Leave at least 30cm of free space on both sides and 20cm behind the

appliance and leave at least 30cm of free space above it (Fig.1).

32. Do not place the appliance near a power socket (Fig.4).

33. The socket must be easily accessible so that the plug can be removed

easily in an emergency.

34. Do not handle the plug with wet hands.

35. Do not excessively bend, twist, pull or damage the power cord.

36. Do not run the cord under carpeting, throw rugs or runners etc. Arrange

cord away from trafc areas so that it will not be tripped over.

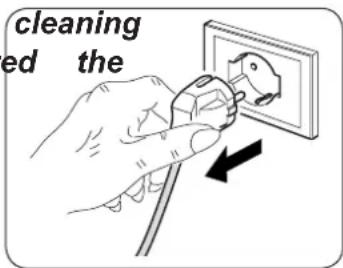

37. Unplug the cord when unit is not in use for an extended period of time and/

or when no one is home.

38. Do not use the appliance in particularly moist environments (bathroom,

39. Do not use the appliance outdoors or on wet surfaces. Avoid dropping

liquids on the appliance. Do not use the appliance near sinks and taps.

40. Do not immerse the appliance in water or in other liquids.ENGLISH

41. Clean the appliance with a damp cloth; do not use abrasive products or

materials. See the appropriate paragraph for the lters cleaning.

42. The most common cause of overheating is dust or lint deposit in the

appliance. Regularly remove these accumulations by disconnecting the appliance from the power socket and vacuuming the grids.

43. Do not use the appliance in environments subject to signicant temperature

changes as condensation could form inside the appliance itself.

44. Install the appliance at at least 2 meters from other electronic devices (TV,

radio, computer, dvd player, etc.) in order to avoid disturbances (Fig.6).

45. Do not use the appliance if insecticide gas has just been sprayed in the

room or in the presence of burning incenses, chemical vapours or oily residues.

46. Do not use the appliance if the lters are not positioned correctly.

47. Disassembly, repair or reconversion performed by an unauthorized person

could cause heavy damages and will cancel the manufacturer warranty.

48. Do not use the appliance in case of malfunctioning or faults, if the cord or

plug are damaged, or if it has been dropped or damaged in any manner. Turn the appliance off, disconnect the plug from the socket and let it be checked by professionally qualied personnel.

49. Neither disassemble nor modify the appliance.

50. Repairing the appliance by yourself is extremely dangerous.

51. If you no longer wish to use this appliance, it must be made inoperative

by cutting the power supply cable after removing the plug from the power socket. Hazardous parts of the appliance must be rendered harmless, especially as there is a risk of children playing with it.

52. Do not use tools different from those recommended by the manufacturer

for the defrosting process and for the appliance cleaning.

53. The appliance is equipped with a thermal protector which preserves the

circuit board in case of over-temperature. If this safety device intervenes, disconnect the plug from the power socket and wait for the appliance to completely cool down (at least 20÷30 minutes) and then reconnect the plug to the power socket and restart the appliance. If the appliance doesn’t restart, disconnect the plug from the power socket and contact an Assistance Centre. Details of type and rating of fuses: T; 3,15A; 250VACDOLCECLIMA ENGLISH EN - 9

• The air conditioner must be used exclusively to produce warm* or cold air or to dehumidify air (upon choice) with the only purpose to make the environment temperature comfortable.

• This appliance is only intended for a domestic use or similar.

• An improper use of the appliance with possible damages caused to people, things or animals releases OLIMPIA SPLENDID from any responsibility.

0.5 - HAZARDOUS ZONES

• The climate controllers must not be installed in environments with the presence of inammable gases, explosive gases, in very humid environments (laundries, greenhouses, etc.), or in places with other machines that generate a strong heat source, in proximity of a sources of salt water or sulphurous water.

• DO NOT use gas, gasoline or other inammable liquids near to the climate controller.

• Only use supplied components (see paragraph 1.1). The use of non-standard parts may cause water leaks, electric shocks, res and injuries or damages to things.

This product must be used exclusively according to the specications indicated in this manual. Use different to that specied, could cause serious injuries. THE MANUFACTURER IS NOT LIABLE FOR INJURY/DAMAGE TO PERSONS/OBJECTS DERIVING FROM FAILURE TO COMPLY WITH THE REGULATIONS CONTAINED IN THIS MANUAL.

• Only for version with heat pumpENGLISH EN - 10

THE APPLIANCE MUST BE INSTALLED, USED AND STORED IN A ROOM WITH A FLOOR SURFACE HIGHER THAN THE ONE INDICATED IN THE CHART. Quantity of R290 gas in Kg

see data label on the appliance

Minimum size of the site for use and storage

7. Be aware that the refrigerants may not contain an odour.

8. R290 is a refrigerant gas in compliance with the European directives on

environment. Do not pierce any part of the refrigerant circuit.

9. Do not use means to accelerate the defrosting process or to clean, other

than those recommended by the manufacturer.

10. Do not use tools different from those recommended by the manufacturer

when defrosting and cleaning the appliance.

11. If the appliance is installed, used or stored in a non-ventilated area, the room

must be designed to prevent the accumulation of refrigerant leaks with the consequent re or explosion hazard due to the refrigerant combustion caused by electrical heaters, stoves or others sources of ignition.DOLCECLIMA ENGLISH EN - 11

12. Compliance with national gas regulations shall be observed.

13. Keep ventilation openings clear of obstruction.

14. The appliance shall be stored so as to prevent mechanical damage from

15. Any person who is involved with working on or breaking into a refrigerant

circuit should hold a current valid certicate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specication.

16. Servicing shall only be performed as recommended by the equipment

manufacturer. Maintenance and repair requiring the assistance of other skilled personnel shall be carried out under the supervision of the person competent in the use of ammable refrigerants.

17. TRANSPORT OF EQUIPMENT CONTAINING FLAMMABLE REFRIGERANTS

See transport regulations.

18. MARKING OF EQUIPMENT USING SIGNS

See local regulations.

19. DISPOSAL OF EQUIPMENT USING FLAMMABLE REFRIGERANTS

See national regulations.

20. STORAGE OF EQUIPMENT/APPLIANCES

The storage of equipment should be in accordance with the manufacturer’s instructions.

21. STORAGE OF PACKED (UNSOLD) EQUIPMENT

Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

22. INFORMATION ON SERVICING

a) Checks to the area Priortobeginningworkonsystemscontainingammablerefrigerants,safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system. b) Work procedure Work shall be undertaken under a controlled procedure so as to minimise theriskofaammablegasorvapourbeingpresentwhiletheworkisbeing performed. c) General work area All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Workinconnedspacesshallbeavoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of ammablematerial.ENGLISH EN - 12 d) Checking for presence of refrigerant The area shall be checked with an appropriate refrigerant detector prior to andduringwork,toensurethetechnicianisawareofpotentiallyammable atmospheres. Ensure that the leak detection equipment being used is suitable for use with ammablerefrigerants,i.e.non-sparking,adequatelysealedorintrinsically safe. e) Presenceofreextinguisher If any hot work is to be conducted on the refrigeration equipment or any associatedparts,appropriatereextinguishingequipmentshallbeavailable at hand. HaveadrypowderorCO2reextinguisheradjacenttothechargingarea. f) No ignition sources No person carrying out work in relation to a refrigeration system which involves exposinganypipeworkthatcontainsorhascontainedammablerefrigerant shall use any sources of ignition in such a manner that it may lead to the risk ofreorexplosion. All possible ignition sources, including cigarette smoking, should be kept sufciently far away from the site of installation, repairing, removing and disposal,duringwhichammablerefrigerantcanpossiblybereleasedtothe surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to makesurethattherearenoammablehazardsorignitionrisks.NoSmoking signs shall be displayed. g) Ventilated area Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere. h) Checks to the refrigeration equipment Where electrical components are being changed, they shall be t for the purposeandtothecorrectspecication. At all times the manufacturer’s maintenance and service guidelines shall be followed. If in doubt consult the manufacturer’s technical department for assistance. The following checks shall be applied to installations using ammable refrigerants: Thechargesizeisinaccordancewiththeroomsizewithinwhichtherefrigerant containing parts are installed; The ventilation machinery and outlets are operating adequately and are not obstructed; If an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; Marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; Refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant to being corroded or are suitably protected against being so corroded.DOLCECLIMA ENGLISH EN - 13

i) Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: That capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; That there no live electrical components and wiring are exposed while charging, recovering or purging the system; That there is continuity of earth bonding.

23. REPAIRS TO SEALED COMPONENTS

a) During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardoussituation. b) Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminalsnotmadetooriginalspecication,damagetoseals,incorrecttting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longerservethepurposeofpreventingtheingressofammableatmospheres. Replacement parts shall be in accordance with the manufacturer’s specications. The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

24. REPAIR TO INTRINSICALLY SAFE COMPONENTS

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the onlytypesthatcanbeworkedonwhileliveinthepresenceofaammable atmosphere. The test apparatus shall be at the correct rating. Replacecomponentsonlywithpartsspeciedbythemanufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.ENGLISH EN - 14

26. DETECTION OF FLAMMABLE REFRIGERANTS

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. Ahalidetorch(oranyotherdetectorusinganakedame)shallnotbeused.

27. LEAK DETECTION METHODS

The following leak detection methods are deemed acceptable for systems containingammablerefrigerants. Electronicleakdetectorsshallbeusedtodetectammablerefrigerants,but the sensitivity may not be adequate, or may need re-calibration. (Detection equipment shall be calibrated in a refrigerant-free area). Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriatepercentageofgas(25%maximum)isconrmed. Leakdetectionuidsaresuitableforusewithmostrefrigerantsbuttheuseof detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. Ifaleakissuspected,allnakedamesshallberemoved/extinguished. Ifaleakageofrefrigerantisfoundwhichrequiresbrazing,alloftherefrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both beforeandduringthebrazingprocess.

28. REMOVAL AND EVACUATION

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However,itisimportantthatbestpracticeisfollowedsinceammabilityisa consideration. The following procedure shall be adhered to:

• Purgeagainwithinertgas;

• Openthecircuitbycuttingorbrazing. The refrigerant charge shall be recovered into the correct recovery cylinders. ThesystemshallbeushedwithOFNtorendertheunitsafe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN andcontinuingtolluntiltheworkingpressureisachieved,thenventingto atmosphere,andnallypullingdowntoavacuum. This process shall be repeated until no refrigerant is within the system. When thenalOFNchargeisused,thesystemshallbeventeddowntoatmospheric pressure to enable work to take place. Thisoperationisabsolutelyvitalifbrazingoperationsonthepipe-workareto take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is ventilation available.DOLCECLIMA ENGLISH EN - 15

29. CHARGING PROCEDURES

In addition to conventional charging procedures, the following requirements shall be followed. Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them. Cylinders shall be kept upright. Ensure that the refrigeration system is earthed prior to charging the system with refrigerant. Label the system when charging is complete (if not already). Extremecareshallbetakennottooverlltherefrigerationsystem.Priorto recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to re-use of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced. a) Become familiar with the equipment and its operation. b) Isolate system electrically. c) Before attempting the procedure ensure that:

• Mechanical handling equipment is available, if required, for handling refrigerant cylinders;

• All personal protective equipment is available and being used correctly;

• Therecoveryprocessissupervisedatalltimesbyacompetentperson;

• Recoveryequipmentandcylindersconformtotheappropriatestandards. d) Pump down refrigerant system, if possible. e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system. f) Make sure that cylinder is situated on the scales before recovery takes place. g) Start the recovery machine and operate in accordance with manufacturer’s instructions. h)Donotoverllcylinders.(Nomorethan80%volumeliquidcharge).

i) Do not exceed the maximum working pressure of the cylinder, even

temporarily. j) Whenthecylindershavebeenlledcorrectlyandtheprocesscompleted, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off. k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.ENGLISH EN - 16

Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains ammablerefrigerant.

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge is available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery ofammablerefrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that ammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.DOLCECLIMA

The appliance is packaged singularly in a cardboard packaging. The packaging can be transported by hand by two operators or loaded on a forklift. Store the packaging singularly; do not stack it.

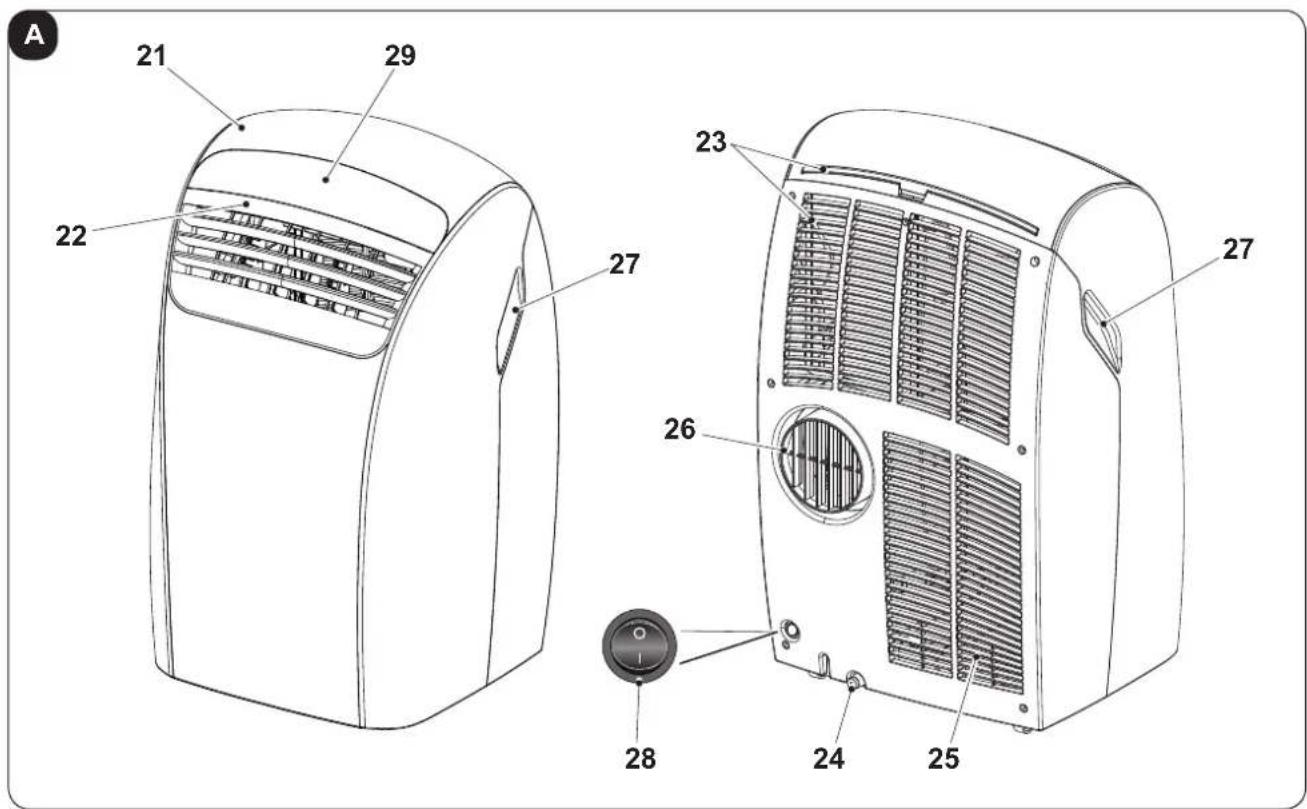

3. Window or wall installation ange (only for

versions where envisaged)

4. Flange cap (only for versions where envisaged)

24. Plug for draining condensation water (connect

to a drain for heat pump operation, model HP only)

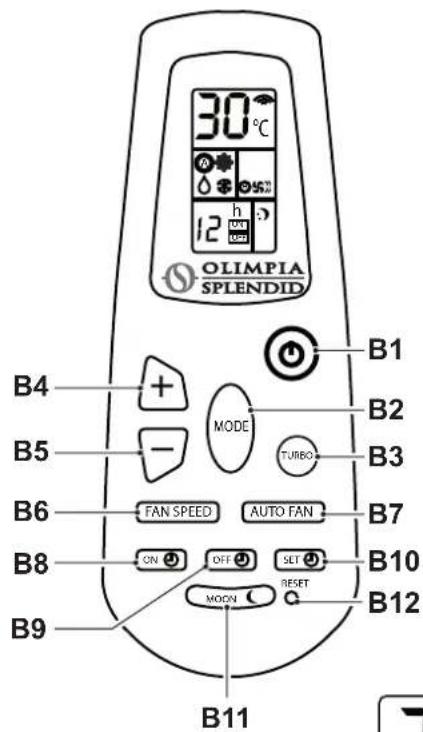

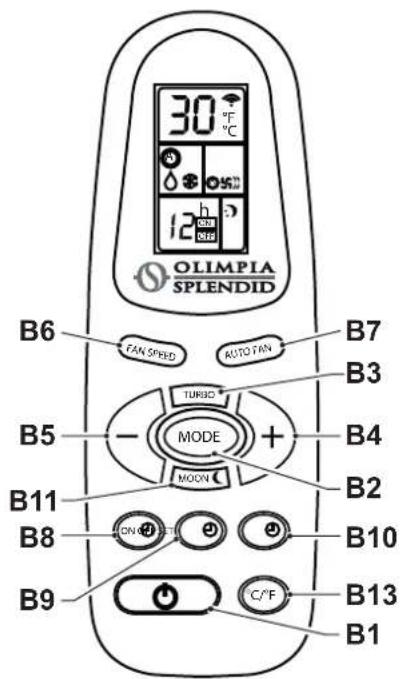

29. IR remote control receiverENGLISH

• Transport and handling of the appliance must be carried out in vertical position. If it is transported in a horizontal position, wait at least one hour before starting it.

• Before moving or transporting the appliance, completely drain condensation by working as described in paragraph 4.2.a CAUTION Movingtheairconditionerondelicateooring(e.g.woodenooring):

• Completelydraincondensation.

• Takegreatcarewhenmovingtheconditionerasthewheelscouldmarkthe ooring.Althoughthewheelsaremadefromarigidmaterialandareswivelling, theycouldgetdamagedbyuseorexcessivedirt. Itisrecommendedtocheckthatthewheelsarecleanandthattheycanmove freely.

Installtheairconditioneronatandstablesurfacesandontheoor. b. Only connect the air conditioner to power sockets equipped with a ground system. c. Make sure that curtains or other objects do not obstruct the airsuctionlters(Fig.7). d. Make sure to keep a minimum distance of 20/30 cm (Fig.1) betweentheairconditionerandtheadjacentgures. e. The appliance must always be activated paying attention that there are no obstacles for air suction and output. f. The air conditioner must not be used in laundries. g. The air conditioner must be installed in a dry place only. h. The air conditioner must not be started in presence of dangerous materials, steams or liquids.

i. Cleantheairltersatleastonceaweek.DOLCECLIMA

The air conditioner must be installed in a suitable environment. It is recommended to reduce solar radiation through curtains, Venetian blinds and to keep doors and windows closed. a. Position the air conditioner in front of a window or French window. b. Inserttheexiblehose(1)terminalontheairoutletgridoftheappliance(26)asshowningure8. c. Foldtheconveyor(2)endbackonitselfandinsertitintotheexiblehose(1)(g.9). d. Position the terminal (2) in such a way as to make air exit to the exterior (Fig.10) Extend the pipe only to the necessary extent, so that the air conveyor remains closed between the xture shutters. (Fig.10)

Theapplianceisttedwithapowercablewithplug. Before connecting the air conditioner ensure that:

• The appliance’s power network must be equipped with a suitable omnipolar disconnection device compliant with national installation regulations.

Depending on the modality of use of the appliance, it is necessary to connect the condensation discharge pipe.

2.6.a - Use as dehumidier

For the correct use of the appliance, work as follows ( g21

a. Remove the cap (24). b. Insert a pipe (12) in the connector. Make sure the end of the discharge pipe (12) is positioned on a drain well or in a container. Make sure the pipe (12) is not clogged.

3 - USE OF THE APPLIANCE

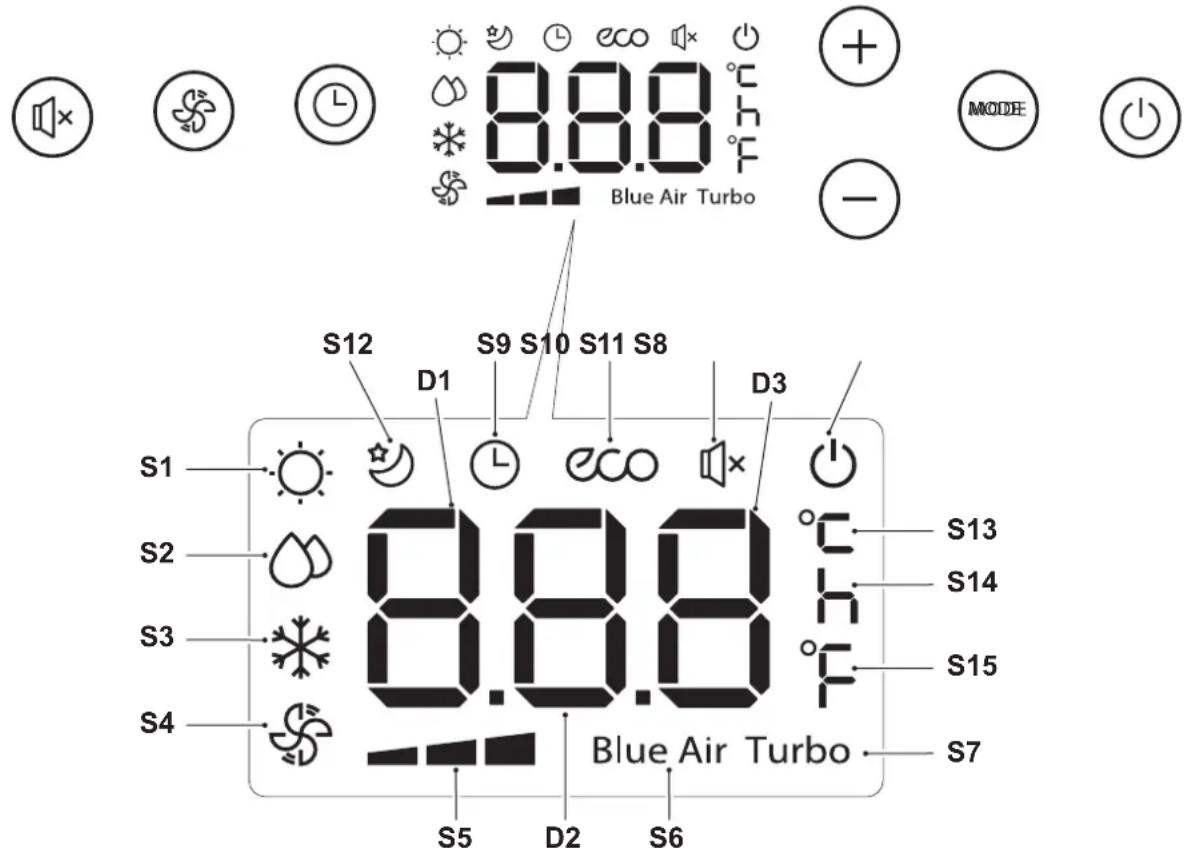

The functioning modes if the air conditioner can be selected both through the remote control and through the control panel located on board of the air conditioner. Thereceptionoftheselectedfunctionisconrmedbytheemissionofa“beep”bythebuzzer.DOLCECLIMA MO DE

• SW2: Select ventilation speed maximum speed => => medium speed => => minimum speed => => BLUE AIR => => maximum speed

• SW3: Enable/disable appliance on/off delay TIMER

• SW6: Select operating mode => Heating (model HP only) => => TURBO cooling => => ECO => => Ventilation => =>Dehumidication=> => Heating (model HP only) =>..

• SW7: On/off (Stand-by) appliance

• S1: Heating operating mode (model HP only)

• S2: Dehumidicationoperatingmode

• S3: Cooling operating mode

• S10: ECO operating mode

• S13: Unit of measurement Celsius

• S14: Unit of measurement Hour

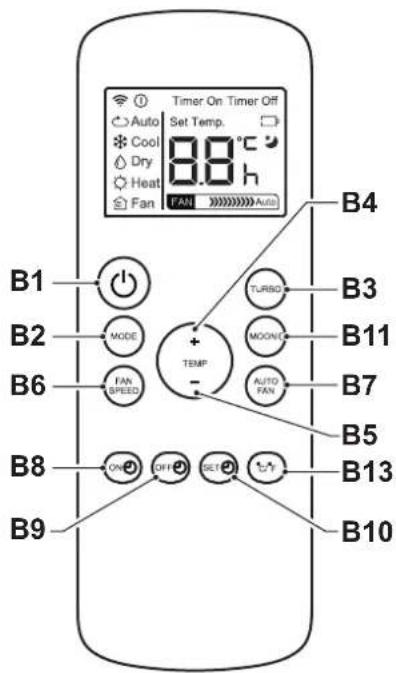

• b1: On/off (Stand-by) appliance

• b2: Select operating mode Heating (model HP only) => => Cooling => => ECO => => Ventilation => =>Dehumidication=> => Heating (model HP only) =>..

• b3: TURBO Cooling operating mode

• b4: Increase desired temperature or TIMER delay time

• b5: Decrease desired temperature or TIMER delay time

• b6: Select ventilation speed maximum speed => => medium speed => => minimum speed => => maximum speed

• b9: Set appliance switch-off (Stand-by) delay TIMER

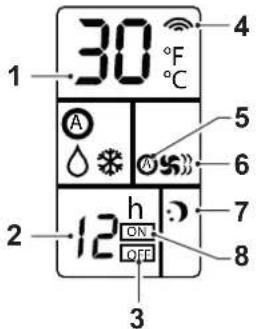

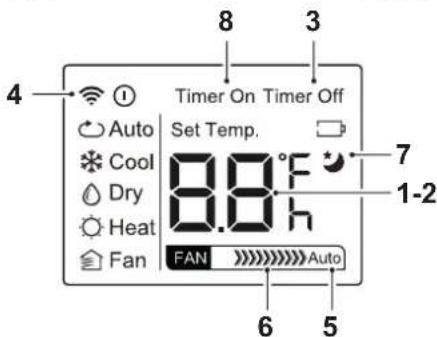

• 3: Delayed switch OFF

• 6: Fan speed/fan mode

• 8: Delayed switch ON The type of remote control supplied depends on the unit modelDOLCECLIMA ENGLISH EN - 23

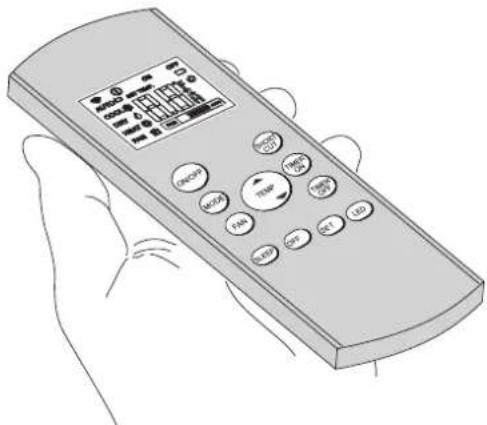

3.3 - USE OF THE REMOTE CONTROL

The remote control supplied with the air conditioner is the tool which allows You to use the appliance in the most comfortable manner. It should be handled with care and in particular:

• Keep it dry (do not clean it with water or leave it outdoors in bad weather).

• Avoid dropping or bumping it.

• Keep it out of direct sunlight.

• Theremotecontroloperatesbymeansofaninfraredbeam.

• Duringuse,theremustnotbeanyobstaclebetweentheremotecontrolandtheair-conditioner.

• Ifotherappliancesintheroomhaveremotecontrols(TV,stereo,etc...),theremaybeinterference.

• Electronicanduorescentlightsmayalsointerferewithtransmissionsbetweenremotecontrol and air-conditioner.

The batteries must be replaced when the icon appears on the display. Alwaysusenewbatteries. Theuseofoldordifferentbatteriescouldgeneratemalfunctioningoftheremote control. The remote control uses two dry alkaline 1.5V batteries (AAA.) (Fig.16).

When replacing batteries, replace both and dispose of the dead batteries in the appropriatecollectioncentresandasrequiredbylaw.ENGLISH EN - 24

• If the remote control is not used for several weeks or longer, remove the batteries. Any leaks from the batteries could damage the remote control.

Ifthebatteryliquidfallsontotheskinorclothes,washwellwithcleanwater.Do notusetheremotecontrolwithbatteriesthathaveleaked. Thechemicalproductscontainedinthebatteriescancauseburnsorotherrisks to health.

3.3.c - Location of the remote control

• Keep the remote control in a position from which the signal can reach the receiver (29) of the appliance (maximumdistanceisapprox.8metres-withchargedbatteries)(gure18). The presence of obstacles (furniture, curtains, walls, etc.) between the remote control and the appliance reduces the remote control range.

3.4 - USE OF THE APPLIANCE

Work as follows in order to use the appliance.

Topreventpossibledamagestothecompressor,eachstartisdelayedby3minutes with respect to the last switching off.

a. The appliance can be switched ON or OFF for short periods by pressing B1 on the remote control or SW7 on the control panel (if the appliance is switched off for a long period then it should be deactivated by removing the plug from the mains supply. b. The symbol S8 switches on to indicate the appliance is off. c. In this condition, press B1 again on the remote control (or SW7 on the control panel) to restore all the formerly selected functions. When the appliance is OFF all the working timers are ‘reset’.

3.5 - VENTILATION MODE (FAN)

a. When this operating mode is used the appliance has no effect on the temperature or humidity of the environment, it merely circulates the air. b. This mode can be selected by pressing B2 or SW6 until the fan only symbol ( ) is activated on the remote control and on the control panel display. c. In this operating mode, the internal fan is always on and the desired fan speed can be selected (from remote control only) at any time by pressing the relevant B6 or SW6 key (6 symbol on the remote control). Here are the details about the available fan speeds. Symbols displayed: High FAN Med FAN Min FAN

3.6 - COOLING MODE (COOL)

a. Inthismodetheappliancecoolsanddehumidiestheenvironment. This mode can be selected by pressing B2 or SW6 until the cooling only symbol S3 ( ) is activated on the remote control and on the control panel display. b. The internal fan always switches on at the selected speed (by pressing B6 or SW2) or in BLUE AIR auto- matic speed (by pressing B7 on the remote control or SW2 on the control panel until symbol S6 appears on the control panel display). c. The temperature set-point (Tset) can be adjusted from 16°C to 30°C (from 60 F to 86 F if present) in 1°C steps by means of B4/B5 or SW4/SW5, and its value is shown both on remote and local interfaces (D1). d. Three minutes (maximum) after the activation of this operating mode the compressor starts and the ap- pliance starts to distribute cold air. FOR SILENT MODEL ONLY: On selecting minimum ventilation speed, the external fan speed is also reduced resulting in a considerably quieter running appliance.

a. ThismodecanbeselectedbypressingB2orSW6untilthedehumidicationonlysymbol( ) is activated on the remote control and on the control panel display. b. This mode is similar to cooling mode, except that: - the internal fan speed cannot be set and is forced to minimum (B6/B7 and SW2 are disabled); - the desired ambient temperature (“set temperature”) cannot be selected (B4/B5 and SW4/SW5 are disabled). The air conditioner will operate to keep the initial ambient temperature all but unchanged.

3.8 - ECO FUNCTIONING

a. This mode can be selected by pressing B2 on the remote control until symbol A appears on the remote control display or by pressing SW6 until symbol ECO appears on the control panel display. b. In this mode, the COOLING and FAN functions are selected automatically depending on the continuously monitored room temperature value to ensure that there is a perfect comfort-level in the conditioned room. FOR SILENT MODEL ONLY: On selecting minimum ventilation speed, the external fan speed is also reduced resulting in a considerably quieter running appliance.

a. This mode can only be selected from the remote control (by pressing B11) and can only be used in con- junction with cooling or heating modes (HP only). b. When this function is enabled in cooling mode, the internal fan is forced to minimum speed and the set ambienttemperatureincreasesautomaticallybyonedegreeafterthersthourandbyafurtherdegree after the second hour of operation (from activation of the function or from the subsequent change in set temperature). c. If, on the other hand, this function is activated in heating mode ( HP only), the internal fan is forced to minimumspeedandthesetambienttemperaturedecreasesautomaticallybyonedegreeaftertherst hour and by a further degree after the second hour of operation (from activation of the function or from the subsequent change in set temperature). d. To deactivate the function, press key B11 again.

a. When used in this mode, the appliance heats the room. The air conditioner must be installed in the same way as when the appliance runs in cooling mode, with an added water drain pipe at the rear of the air conditioner,inplaceofthecap(24)(seegure21-22-23). b. If you have no way of continuously draining the water produced by the air conditioner, you can leave the rear cap on. In this case, after a certain number of hours of operation (depending on the set temperature, humiditylevel,sizeoftheroometc.)thetanksllsandmustbeemptied. c. Thisconditionissignalledontheairconditioner’scontrolpanelbythenumber“3”ashing. d. To restart the air conditioner, proceed as follows: - remove the plug from the socket - empty the water tray by removing the rear cap (24) - replace the rear cap - plug the air conditioner into the socket - press the stand-by key (SW7 or B1) to restart the air conditioner e. Heating mode can be selected by pressing key B2 on the remote control or SW6 on the control panel until the heating only symbol ( S1S2S3S4S5 S6 S7S8S13S14S15 S12 S9 S10 S11 D1 D2 D3 Blue Air Turbo ) appears on the remote control and on the control panel display. f. The internal fan always switches on at minimum speed and after a few seconds goes to the selected speed (by pressing B6 or SW2) or to BLUE AIR automatic speed. g. The set temperature can be adjusted between 16 °C and 27 °C (60 F and 81 F where applicable) with 1 °C variations by pressing keys B4/B5 or SW4/SW5. The relative temperature appears on the remote control and on the control panel display (D1, D2, D3.). h. When this operating mode is activated, if the ambient temperature is below that set, the air conditioner will switch on and supply heat after a few minutes.

i. On reaching the set temperature, the air conditioner will switch off until the ambient temperature has once

again dropped below that selected.

Bothoftheseconditionsareentirelynormalandmustnotbeconsideredasmal- functions.

• Iftheambienttemperatureisparticularlylow,theapplianceisperiodicallyde- activatedforafewminutes.

• Intheeventofparticularenvironmentalconditions,theexternalfanmaybe cyclicallydeactivated.

3.11 - TURBO FUNCTIONING

a. This mode can be selected by pressing B2 on the remote control or SW6 on the control panel until symbol TURBO appears on the control panel display. b. It sets the unit in cooling mode with Set temperature =16°C and maximum fan speed to reach the set temperature as quickly as possible.ENGLISH EN - 28

3.11.a - Silent function (except hp version)

a. This mode can be selected in Cooling mode only (if TURBO is not enabled) by pressing SW1 on the control panel until symbol SPEAKER appears on the control panel display. b. It sets the internal fan speed and the external fan speed (except HP version) to minimum speed.

3.12 - FUNCTIONING WITH TIMER

This mode enables a delayed switch ON or switch OFF operation to the overall unit. The time delay can be set, enabled and cancelled from both the remote control and the control panel

3.12.a - Setting switch-on timer from remote control

a. After switching on the unit, select the operating mode, the desired temperature and the ventilation speed with which the unit will activate automatically as programmed. Then set the machine into Stand-by. b By pressing B8, set the desired time delay (from 1 to 12 hours) after which the unit will switch ON (starting fromtimerconrmation). c. If no button is pressed within 5 seconds the timer setting function will terminate automatically. ConrmthedesireddelaytimebypressingB10.Theremotecontrollerdisplayshowsthedelaycountdown to the switch ON operation. d. When the delay time set has elapsed, the unit switches ON with latest selected settings. e. To cancel the delayed switching on, press B10 again.

3.12.b - Setting switch-off timer from remote control

a. With the unit in any working mode, press B9 to set the desired time delay (from 1 to 12 hours) after which theunitwillswitchOFF(startingfromtimerconrmation).EachfollowingB9keyoperationincreasesthe delay time value by 1 hour. b. If no button is pressed within 5 seconds the timer setting function will terminate automatically. ConrmthedesireddelaytimebypressingB10.Thentheremotecontrollerdisplayshowsthedelay countdown to the switch OFF operation. When the delay time set has elapsed, the overall unit switches OFF. c. To cancel the delayed switching on, press B10 again.

3.12.c - Setting switch-on timer from control panel

a. After switching on the unit, select the operating mode, the desired temperature and the ventilation speed with which the unit will activate automatically as programmed. Then set the machine into Stand-by. b. Press SW3 to enable the desired time delay setting.DOLCECLIMA ENGLISH EN - 29 c. Press SW4 or SW5 to increase/decrease the delay time value shown by control panel display (from 1 to 12hours)afterwhichtheunitwillswitchON(startingfromtimerconrmation) d. If no button is pressed within 5 seconds the timer setting function will terminate automatically. ConrmthedesireddelaytimebypressingSW6.Thecontrolpaneldisplayshowsthedelaycountdown to the switch ON operation; e. When the delay time set has elapsed, the unit switches ON with previously selected settings. f. To cancel the programmed switching-on, press SW3 again.

3.12.d - Setting switch-off timer from control panel

a. With the unit in any working mode, press SW3 to enable the desired time delay setting. b. Press SW4 or SW5 to increase/decrease the delay time value shown by control panel display (from 1 to 12hours)afterwhichtheunitwillswitchOFF(startingfromtimerconrmation). c. Ifnobuttonispressedwithin5secondsthetimersettingfunctionwillterminateautomatically.Conrm the desired delay time by pressing SW3. d. To cancel the programmed switching-off, press SW3 again.

3.13 - RESETTING ALL THE REMOTE CONTROL FUNCTIONS

(IF PRESENT) Press the B12 button to reset all remote control settings. By doing this, all the timer settings are cancelled and the remote control returns to its default settings. To check the integrity of the display, press the B12 button and all possible symbols are displayed.

3.14 - TEMPERATURE MEASUREMENT UNIT SELECTION

(IF PRESENT) Press button B13 on the remote control to change the temperature measurement unit indicated on the display from FAHRENHEIT (the symbol F lights up on the remote control display) to CELSIUS (the symbol °C lights up on the remote control display) or vice-versa.

• Theconditionermustbekeptuprightduringtransport. If it is transported in a horizontal position, wait at least one hour before starting it.

In case a black-out occurs, the appliance stores the former function mode and start up again when re-pow- ered by recovering all previous settings.

MAINTENANCE AND CLEANING

Before proceeding with any maintenance and cleaning intervention, always make sure you disconnected the powerplugfromthepowersocket.

Do not use water to clean the internal parts of the air conditioner. Exposuretowatercanruintheisolation,withtheriskofelectricshocks.DOLCECLIMA ENGLISH EN - 31

4.1.a - Cleaning the appliance and the remote control

a. Use a dry cloth to clean the appliance and the remote control. b. It is possible to use a cloth moistened with cold water to clean the appliance in case it’s very dirty.

• Alwaysandconstantlykeeptheltersclean(seemaintenanceandcleaningchapter).

• Keep the doors and windows of the rooms to be climate controlled closed.

• Do not let sun rays penetrate freely into the room (we recommend using curtains or lowering blinds or closing the shutters).

Donotobstructtheairowpath(inputandoutput)oftheappliance;this,inadditiontoobtaininganon-op- timal yield, also affects the correct operation of the appliance and the possibility of irreparable damages to the appliance itself.ENGLISH EN - 32

If you do not intend to use the appliance for a long period of time, work as follows:

Activate the fan only mode for a few hours (approximately 8÷10 hours) to dry the interior of the appliance. b. Stop the air conditioner and disconnect the power supply. c. Cleantheairlter. d. Completely discharge condensation. e. Remove the batteries from the remote control. Checks before resuming use of the air conditioner: a. Cleantheltersafteralongperiodofinactivityoftheairconditioner. b. Check that the air outlet or inlet are not obstructed (especially after a long period of inactivity of the air conditioner).

4.2.a - Discharging condensation

When condensation in the lower tray reaches the predetermined level, the appliance emits beeps. In this case: a. Disconnect the plug from the power socket. b. Carefully move the appliance in position suitable to unload water. c. Remove the drain cap (24) (Fig.21). d. If necessary, insert a pipe (12) in the connector.

During the appliance functioning, a few anomalies which stop its functioning could appear. In these cases, some error codes appear on the control panel.

• 3 (ashes + Red led on) Excessive accumulation of water inside air conditioner

• F1 Filters cleaning.

• 8 (ashes) In these cases: a. electrically disconnect the appliance b. wait a few minutes c. connect the plug to the power socket d. restart the appliance. If the inconvenience persists and the error code doesn’t turn off, electrically disconnect the appliance and refer to an Assistance Centre.

For the technical data, please consult the data plate applied to the product (Fig.2).

• Dimensions (W x H x D) 460 x 767 x 395 mm

• Weight (without packing) 29 Kg

• Maximum operating temperature in cooling mode (Maximum operating temperature in heating mode) DB 35°C - WB 24°C * / DB 43°C - WB 32°C ** DB 27°C - WB 19°C * / DB 27°C - WB 19°C **

• Minimum operating temperature in cooling mode (Minimum operating temperature in heating mode) 16°C * / 16°C ** DB 7°C * / DB 7°C **

Do not try to repair the appliance by yourself. Iftheproblemhasnotbeensolved,pleasecontactyourlocalretailerortheclosestassistanceservice. Supplydetailedinformationaboutthemalfunctionandtheequipmentversion. CAUSE

3.5 - MODE VENTILATION (FAN)

3.10 - WERKING MET VERWARMING (ALLEEN VERSIE HP)
