USER MANUAL MUM58C10 BOSCH

Universal kitchen machine

MUM58...

[en] Instruction manual Universal kitchen machine 17

- 1 Päckchen Backpulver

- 250 ml Milch

This appliance is intended for domestic use only. Use the appliance only for processing normal amounts of food and for normal amounts of time for domestic use. Do not exceed permitted maximum quantities ( “Application examples” see page 26).

The appliance is suitable for mixing, kneading and beating food. The appliance must not be used for processing other substances or objects. Additional applications are possible if the accessories approved by the manufacturer are used. Only use the appliance with approved genuine parts and accessories. Never use the accessory parts for other appliances.

Only use the appliance indoors at room temperature and up to 2000 m above sea level.

Important safety information

Read and follow the instruction manual carefully and keep for later reference! Enclose these instructions when you give this appliance to someone else. If the instructions for correct use of the appliance are not observed, the manufacturer's liability for any resulting damage will be excluded.

This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and/or knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Keep children away from the appliance and connecting cable and do not allow them to use the appliance. Do not let children play with the appliance. Cleaning and user maintenance must not be performed by children.

⚠️ Risk of electric shock and fire!

■ Connect and operate the appliance only in accordance with the specifications on the rating plate. Do not use the appliance if the power cord and/or appliance are damaged. Only our customer service may repair the appliance, e.g. by replacing a damaged power cord, in order to avoid hazards.
■ Use only the rotary switch to switch the appliance on or off. Never connect the appliance to timer switches or remote-controllable sockets. Never leave the appliance unattended while it is switched on!
■ Do not place the appliance on or near hot surfaces, e.g. hobs. The power cord must not come into contact with hot parts or be pulled across sharp edges.

■ Never immerse the base unit in water or place it in the dishwasher. Do not steam-clean the appliance. Do not use the appliance with damp hands.
■ After each use, whenever the appliance is unsupervised, prior to assembly, prior to disassembly, prior to cleaning and in the event of an error, the appliance must always be disconnected from the mains.

Risk of injury!

■ Before replacing accessories or additional parts which move during operation, the appliance must be switched off and disconnected from the power supply. After switching off, the drive continues for a short time. Wait until the drive has come to a standstill.
■ Do not adjust the swivel arm while the appliance is switched on.
■ Only use tools when the bowl is inserted, the lid is fitted and the protective drive covers are in place! When using accessories, fit the bowl, lid and drive covers according to the instructions!
■ While operating the appliance, never reach into the bowl or filling shaft with your hands. Do not insert any objects (e.g. wooden spoon) into the bowl or filling shaft. Keep hands, hair, clothing and other utensils away from rotating parts.
■ Never use tools and accessories or 2 accessories at the same time. When using the accessories, follow the individual operating instructions enclosed.
■ The accessory must be completely assembled before use. Never assemble the accessory on the base unit. The accessory should only be used in the intended operating position.
■ Do not grip the sharp blades or edges of the cutting discs. Take hold of cutting discs by the edge only.
■ Do not touch blender blades with bare hands.
■ Never reach into the attached blender! Never use the blender without the lid in place.
■ Care shall be taken when handling the sharp cutting blades, emptying the container and during cleaning.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0.5 litres of hot or frothing liquid.

Risk of suffocation!

Do not allow children to play with packaging material.

Caution!

We recommend that the appliance is never switched on for longer than is necessary to process the ingredients. Do not operate at no-load.

Important!

It is essential to clean the appliance thoroughly after each use or after it has not been used for an extended period ( “Cleaning and servicing” see page 24).

Explanation of the symbols on the appliance or accessory

Follow the instructions in the operating instructions.

Caution! Rotating blades.

Caution! Rotating tools. Do not place fingers in the feed tube.

Congratulations on the purchase of your new Bosch appliance.

You can find further information about our products on our web page.

Contents

Intended use....17

Important safety information....17

Safety systems....19

Overview....20

Operating positions....20

Operation....21

Cleaning and servicing 24

Storage 25

Troubleshooting....25

Application examples....26

Disposal....27

Guarantee....27

Optional accessories....28

Safety systems

Start lock-out

See "Operating positions" table.

The appliance can be switched on in pos. 1 and 3 only:

■ when the bowl (11) has been inserted and turned until it locks into place.

Restart lock-out

If the power is interrupted, the appliance remains switched on but the motor does not start running again when the power is restored. To switch the appliance on again, turn the rotary switch to 0/off, then switch on.

Overload protection

If the motor switches itself off while the appliance is being used, the overload protection feature has been activated. A possible cause may be that too much food was processed at one time.

If a safety system is activated, see "Troubleshooting".

The appliance requires no maintenance.

Overview

Please fold out the illustrated pages.

Fig. A:

Base unit

1 Release button

2 Swivel arm

"Easy Armlift" function to support the upward movement of the arm (see "Work positions").

3 Rotary switch

When the appliance has been switched off (position 0/off), the appliance runs automatically to the optimum position for changing the tools.

$$ 0 / \text { o f f } = \text { S t o p } $$

M = Instantaneous switching at maximum speed, hold switch for required blending duration.

Settings 1-7, Operating speed:

$$ 1 = \text { low speed } - \text { slow }, $$

$$ 7 = \text { high speed } - \text { fast. } $$

4 On/Off display

Is lit while the appliance is operating (rotary switch on M or 1-7). Flashes if the appliance has been operated incorrectly, the electronic fuse has tripped or the appliance is defective – see section “Troubleshooting”.

5 Drive cover

To remove the drive cover, press on the rear area and remove cover.

6 Drive for

- Continuous-feed shredder

(optional accessory*) and

– Citrus press (optional accessory*)

When not in use, attach the drive cover.

7 Drive for tools (stirrer, whisk, kneading hook) and mincer (optional accessory*)

8 Blender drive cover

9 Drive for blender (optional accessory*)

When not in use, attach the blender drive cover.

10 Cord store

Stow the cord in the cord store

Bowl with accessories

11 Stainless steel stirring bowl

12 Lid

Tools

13 Professional flexi stirring whisk

14 Professional beating whisk

15 Kneading hook with dough deflector

16 Accessories bag

For storage of the tools and cutting discs.

Continuous-feed shredder\*

17 Pusher

18 Cover with filling shaft

19 Cutting discs\*

a Potato fritter disc
b Reversible shredding disc – coarse / fine
c Grating disc – medium-fine
d Grating disc – coarse
e Asian vegetable disc

20 Disc holder

21 Housing with outlet opening

Blender\*

22 Blender jug

23 Lid

24 Funnel

25 Cookie cutters\*

* If an accessory is not included in the product package, it can be purchased via the trade or customer service.

Operating positions

Fig. B:

Attention!

Before operating the appliance, attach the tool / accessory to the correct drive and in the correct position and place in the operating position according to this table.

The swivel arm must be engaged in every operating position.

Note

The swivel arm features an “Easy Armlift” function which supports the upwards movement of the swivel arm.

Selecting the operating position:

■ Press the Release button and move the swivel arm. Support movement with your hand.

■ Move the swivel arm until it engages in the required position.

Position Drive Tool /			Accessory	Operating speed
1		7		1-5
				1-7
				1-3
2		7*
3		6		3-7
				3-5
4		9
		7		5-7

* Insert / remove whisk, stirrer or kneading hook. Add large quantities of ingredients.

Operation

Risk of injury!

Do not insert mains plug until all preparations for working with the appliance are complete.

Attention!

Do not operate the appliance without an accessory/tool in the operating position. Do not operate the appliance empty. Do not expose appliance or accessories to heat sources. Parts are not microwave-safe.

■ Before operating the appliance and accessories for the first time, clean thoroughly; see "Cleaning and servicing".

Important information

These operating instructions contain a sticker with reference values for the operating speed of the appliance when using the tools or accessories. We recommend attaching this sticker to the appliance (Fig. C).

Preparation

■ Place the base unit on a smooth, clean surface.

■ Pull out the power cord (Fig. D).

Pull out cable to the required length.

Warning!

Do not twist the cord when inserting it.

■ Insert the mains plug.

Bowl and tools

Risk of injury from the rotating tools

While the appliance is operating, never place fingers in the mixing bowl. Attach the cover (12) before operating the appliance! Do not change tools until the drive has come to a standstill – when the appliance is switched off, the drive continues running briefly and stops in the tool change position. Do not move the swivel arm until the tool has come to a standstill.

Always secure unused drives with protective drive covers.

Attention!

Use bowl with this appliance only.

Professional flexi stirring whisk (13)

for stirring dough, e.g. cake mixture

Professional beating whisk (14)

for whisking egg whites, cream and light dough, e.g. sponge mixture

Kneading hook (15)

for kneading heavy dough and mixingin ingredients that ought not be cut (e.g. raisins and chocolate chips)

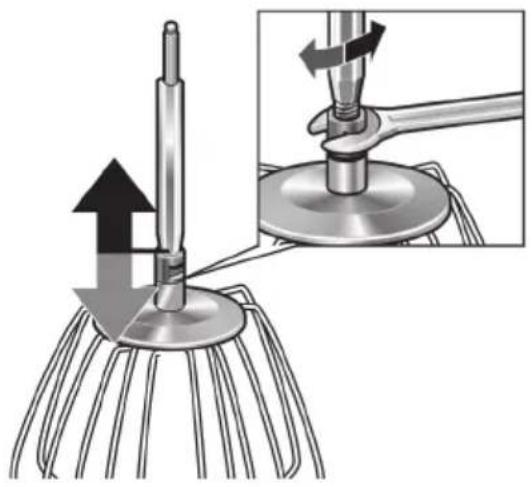

Important information concerning the use of the whisk (Figure 1):

The whisk should almost touch the bottom of the bowl to ensure that the ingredients are optimally mixed. If not, adjust the height of the whisk as follows:

■ Remove mains plug.
■ Press the Release button and move the swivel arm to position 2.
■ Insert the whisk into the drive until the whisk locks into position.
■ Hold whisk in place and loosen nut clockwise using open-ended wrench (size 8).
■ Set the whisk to the optimum height by rotating the whisk:

- Turn clockwise: Raise

– Turn anti-clockwise: Lower

■ Press the Release button and move the swivel arm to position 1.

■ Check the height of the whisk and, if required, correct.

■ When the height has been set correctly, press Release button and move the swivel arm to position 2.

■ Hold whisk in place and tighten nut anticlockwise using open-ended wrench (size 8).

Working with the bowl and the tools

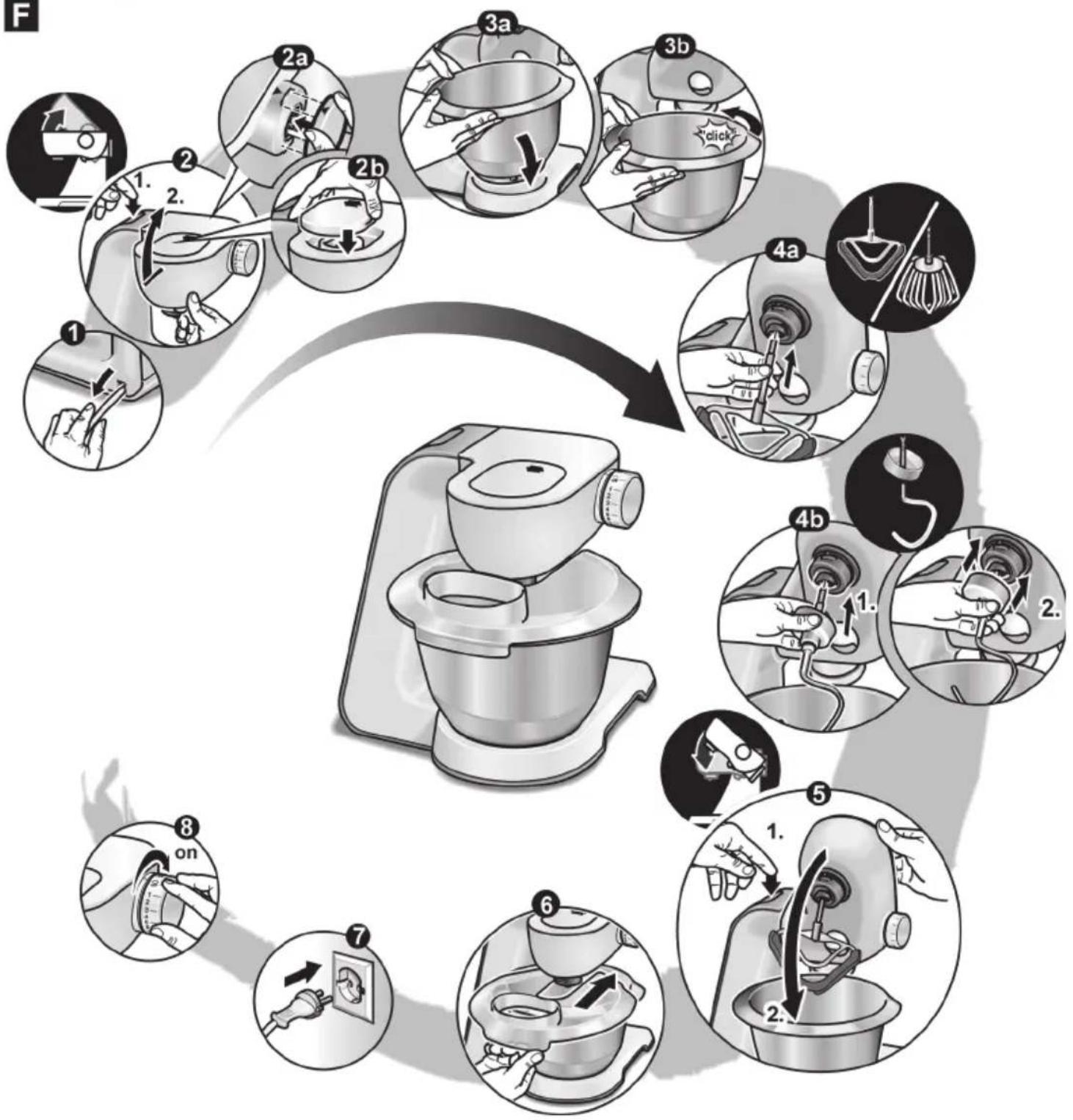

Fig. F:

■ Press the Release button and move the swivel arm to position 2.
■ Insert the bowl:

Tilt the bowl forwards and then set it down. Turn anti-clockwise until it locks into place.

■ Depending on the processing task, insert the stirrer, whisk or kneading hook until it locks into position.

Note:

If using the kneading hook, rotate the dough deflector until the kneading hook can lock into position (Fig. F-4b).

- Put the ingredients to be processed into the bowl.

■ Press the Release button and move the swivel arm to position 1.
■ Attach the cover.
■ Set the rotary switch to the desired setting.

Our recommendation:

– Professional flexi stirring whisk: First mix at setting 1-2, then setting 3-5 as required

– Professional beating whisk: setting 7, mix in at setting 1

- Kneading hook: first stir in at setting 1, knead at setting 3

Adding more ingredients

■ Switch off the appliance with the rotary switch.
■ Add more ingredients through the feed tube in the cover.

or

■ Remove lid.
■ Press the Release button and move the swivel arm to position 2.

■ Add ingredients.

After using the appliance

■ Switch off the appliance with the rotary switch.
■ Remove mains plug.
■ Remove lid.
■ Press the Release button and move the swivel arm to position 2.

■ Take the tool out of the drive.

■ Remove the bowl.

■ Clean all parts, see “Cleaning and servicing”.

Continuous-feed shredder

Risk of injury

Do not grip the sharp blades or edges of the cutting discs. Take hold of cutting discs by the edge only. Before attaching / removing the continuous feed shredder, wait until the drive has come to a standstill and pull out the mains plug. Do not reach into the feed tube.

Warning!

The continuous-feed shredder must be completely assembled before use. Never assemble the continuous-feed shredder on the base unit. Operate the continuous-feed shredder in the indicated operating position only.

Predetermined breaking point

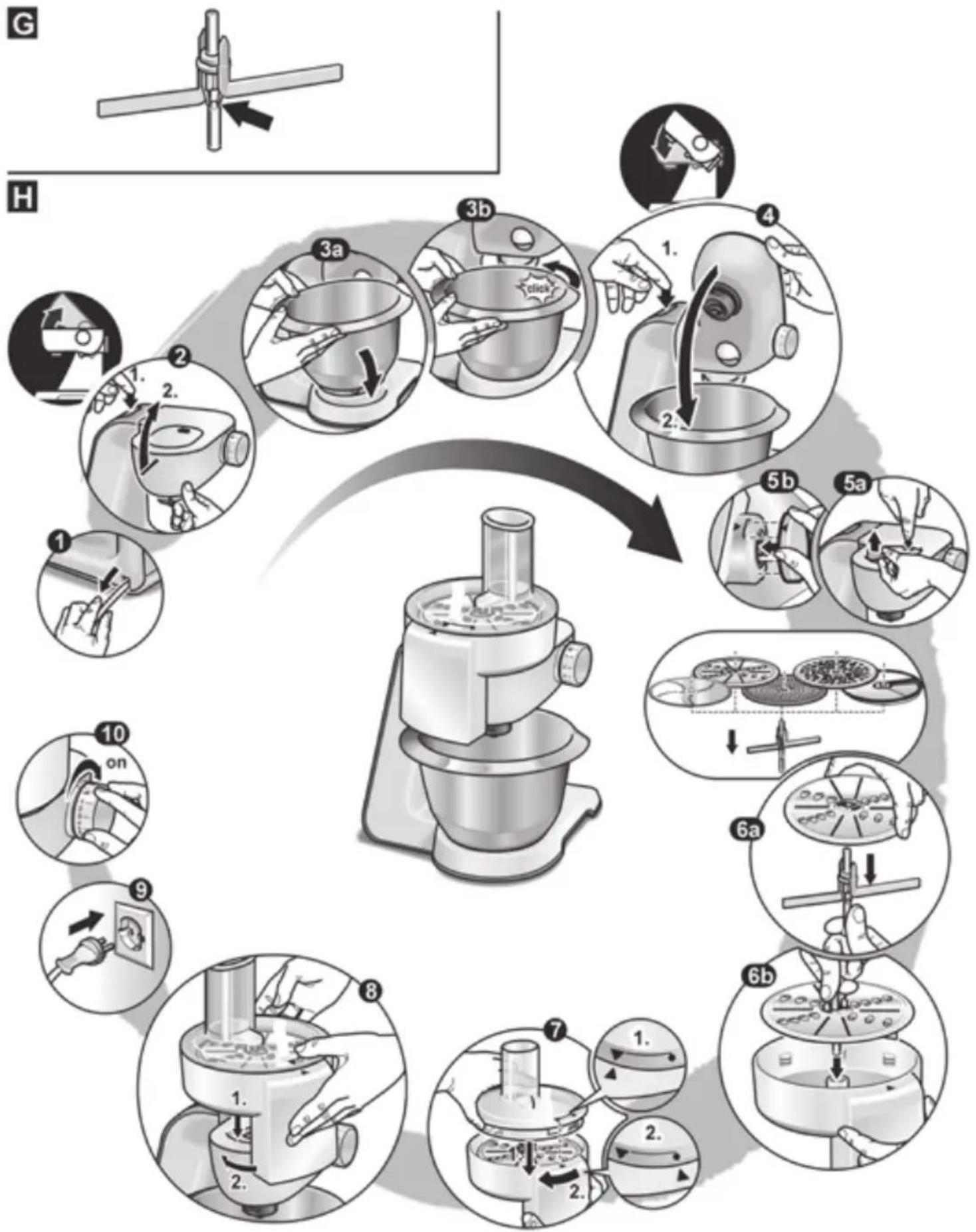

Fig. G:

The built-in predetermined breaking point protects the drive of the appliance. If an overload occurs, the drive shaft of the continuous-feed shredder breaks. However, the drive shaft can easily be replaced. A new disc holder with drive shaft is available from customer service.

Potato fritter disc

For grating raw potatoes for rostis and potato fritters, for cutting fruit and vegetables into thick slices.

Grating: Process at setting 7.

Cutting: Process at setting 5.

Reversible shredding disc – coarse / fine

for shredding vegetables, fruit and cheese, except for hard cheese (e.g. Parmesan).

Processing at setting 3 or 4.

Designation on the reversible shredding disc:

"2" for the coarse shredding side

"4" for the fine shredding side

Warning!

The reversible shredding disc is not suitable for shredding nuts. Shred soft cheese with the coarse side only at setting 7.

Grating disc – medium-fine

for grating raw potatoes, hard cheese (e.g. Parmesan), cooled chocolate and nuts.

Process at setting 7.

Warning!

The grating disc is not suitable for grating soft cheese and cheese slices.

Grating disc coarse

for grating raw potatoes, e.g. for potato pancakes or dumplings.

Process at setting 7.

Asian vegetable disc

slices fruit and vegetables into fine strips for Asian vegetable dishes.

Process at setting 7.

Working with the continuous-feed shredder

Fig. H:

■ Press the Release button and move the swivel arm to position 2.

■ Insert the bowl:

Tilt the bowl forwards and then set it down. Turn anti-clockwise until it locks into place.

■ Press the Release button and move the swivel arm to position 3.

■ Remove drive cover from the drive of the continuous-feed shredder (Fig. H-5a).

■ Hold disc holder at the lower end, ensuring that the two tips are face up.

■ Carefully place the required slicing or shredding disc onto the tips of the disc holder (Fig. H-6a).

In the case of reversible discs, ensure that the required side is face up.

■ Grip disc holder at the upper end and insert into the housing (Fig. H-6b).

■ Attach the cover (note mark) and turn all the way in a clockwise direction.

■ Place continuous-feed shredder on the drive and rotate all the way in a clockwise direction, as illustrated in Fig. H-8.

■ Turn rotary switch to recommended setting.

- Put food to be processed in the feed tube and push down with the pusher.

Warning!

Prevent the cut ingredients from building up in the outlet opening.

Tip: To ensure even cutting results, process thin ingredients in bunches.

Note: If the food to be processed sticks in the continuous-feed shredder, switch food processor off, pull out mains plug, wait until the drive comes to a standstill, remove cover from the continuous-feed shredder and empty feed tube.

After using the appliance

■ Switch off the appliance with the rotary switch.
■ Rotate the continuous-feed shredder in an anti-clockwise direction and remove.
■ Rotate the lid in an anti-clockwise direction and remove.

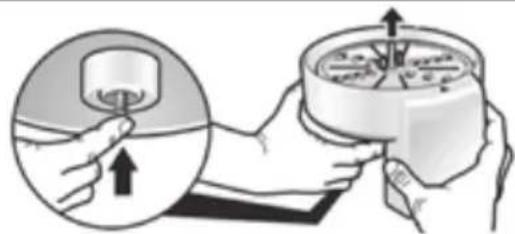

■ Remove disc holder with disc. To do this, press finger from below against the drive shaft (Fig. J).
■ Clean parts.

Blender

⚠️ Risk of injury from sharp blades / rotating drive!

Never place fingers in the attached blender! Do not remove / attach the blender until the drive is at a standstill! Operate the assembled blender only and with the lid attached.

Risk of scalding!

If processing hot liquids, steam escapes through the funnel in the lid. Add a max. 0,5 litres of hot or frothing liquid.

Warning!

Blender may be damaged. Do not process deep-frozen ingredients (except ice cubes). Do not operate blender when empty.

Working with the blender

Fig. K:

■ Press the release button and move the swivel arm to position 4.
■ Remove the blender drive cover.
■ Attach blender jug (mark on the handle on mark on the base unit) and turn all the way in an anti-clockwise direction.

■ Add ingredients.
Maximum amount of liquid = 1.25 litres; maximum amount of frothing or hot liquids = 0.5 litres;
Optimal processing capacity – solids = 50-100 g;
■ Attach the cover and turn anti-clockwise all the way into the blender handle. The cover must be locked in position.
■ Set the rotary switch to the desired setting.

Adding more ingredients

Fig. K-8:

■ Switch off the appliance with the rotary switch.
■ Remove the lid and add ingredients
■ remove the funnel and gradually add solid ingredients through the refill opening or
■ pour liquid ingredients through the funnel.

After using the appliance

■ Switch off the appliance with the rotary switch.
■ Rotate the blender in a clockwise direction and remove.

Tip: It is recommended to clean the blender immediately after use.

Cleaning and servicing

The attachments and accessories used must be thoroughly cleaned after each use.

Attention!

Do not use abrasive cleaning agents. Surfaces may be damaged.

Cleaning the base unit

Danger of electric shock!

Never immerse the base unit in water or place under running water. Do not use a steam cleaner.

■ Remove mains plug.
■ Wipe the base unit and drive cover with a damp cloth. If required, use a little detergent.
■ Then dry the base unit.

Cleaning the bowl and tools

The bowl and tools are dishwasher-proof. Do not wedge plastic parts in the dishwasher, as they could be permanently deformed during the washing process!

Cleaning the continuous-feed shredder

⚠️ Risk of injury from sharp blades!

Do not grip the sharp blades or edges of the cutting discs. Clean them with a brush.

All parts of the continuous-feed shredder are dishwasher-proof.

Tip: To remove the red film after processing e.g. carrots, pour a little cooking oil on a cloth and rub the film off the continuous-feed shredder (not the cutting discs). Then rinse the continuous-feed shredder.

Cleaning the blender

⚠️ Risk of injury from sharp blades!

Do not touch blender blades with bare hands. The blender jug, lid and funnel are dishwasher-proof.

Tip: After processing liquids, it is often sufficient to clean the blender without removing it from the appliance. Pour a little water and washing-up liquid into the attached blender. Switch on the blender for several seconds (setting M). Pour out the water and rinse out the blender with clear water.

Important information

If required, clean accessories bag. Follow care instructions in the bag.

Storage

Risk of injury!

When the appliance is not in use, pull out the mains plug.

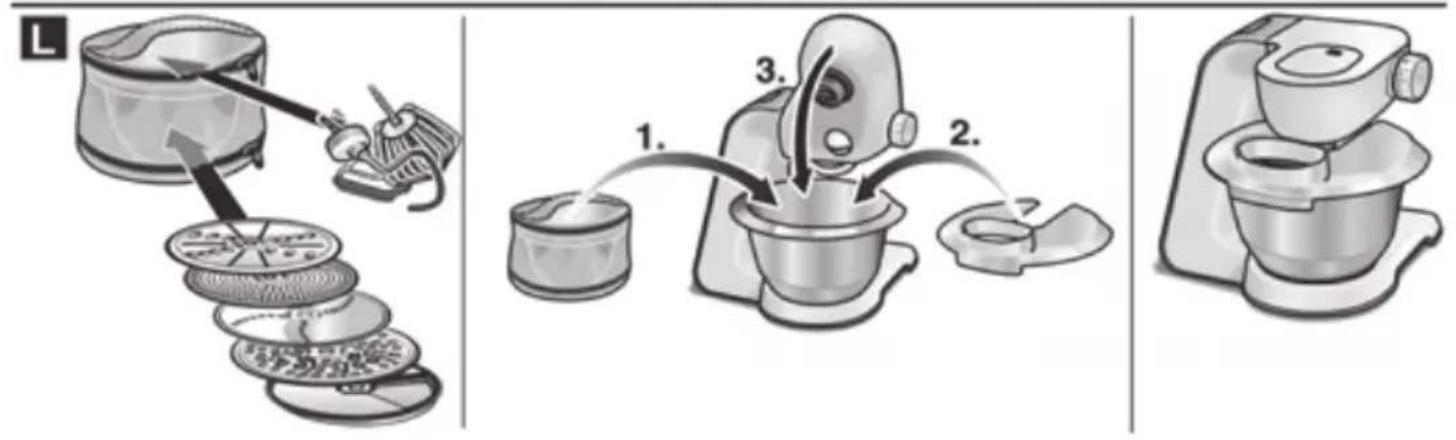

Fig. L:

■ Store tools and cutting discs in the accessories bag.
- Keep accessories bag in the bowl.

Troubleshooting

Risk of injury!

Before eliminating a fault, pull out the mains plug.

Important information

The Operating indicator flashes if the appliance has been operated incorrectly or the electronic fuse has tripped or the appliance is defective.

The swivel arm must be engaged in every operating position.

Initially try to eliminate the problem which has occurred with the help of the following information.

Fault

Appliance does not start.

Remedial action

■ Check the power supply.
■ Check the mains plug.
■ Check swivel arm. Correct position?
Engaged?
■ Screw on blender or bowl as far as possible.
■ Attach the blender cover and screw on as far as possible.
■ Attach drive cover to unused drives.
■ The safety lock is active. Switch appliance to 0/off and then back to the required setting.

Fault

Appliance switches off during use. The overload protection feature has been activated. Too much food was processed at one time.

Remedial action

■ Switch off the appliance.
■ Reduce processing quantity.
- Do not exceed permitted maximum quantities (see “Application examples”).

Fault

While the drive was running, the release button was inadvertently pressed. The swivel arm moves up. The drive switches off, but does not stop in the tool change position.

Remedial action

■ Set the rotary switch to 0/off.
■ Move swivel arm to position 1.
■ Switch on appliance (setting 1).
■ Switch off appliance again.

Tool stops in tool change position.

Fault

Blender does not start working or stops during use, the drive is "humming". Blade is blocked.

Remedial action

■ Switch off the appliance and pull out the mains plug.
■ Detach the blender and remove the obstruction.
■ Re-attach the blender.
■ Switch on the appliance.

Important information

If the fault cannot be eliminated, please contact customer service.

Application examples

Whipped cream

- 100 g-600 g

- Whip cream with the whisk for 1 12 to 4 minutes at setting 7 depending on the quantity and properties of the cream.

Egg white

- 1 to 8 egg whites

■ Beat egg white with the whisk for 4 to 6 minutes at setting 7.

Sponge mixture

Basic recipe

- 2 eggs

- 2-3 tbs. hot water

- 100 g sugar

- 1 packet of vanilla sugar

- 70 g flour

- 70 g cornflour

– Baking powder if required

■ Beat the ingredients (except flour and cornflour) with the whisk for approx. 4-6 minutes at setting 7 until frothy.

■ Rotate switch to setting 1 and spoon in the sifted flour and cornflour within approx. 12 to 1 minute.

Maximum quantity: 2 x basic recipe

Cake mixture

Basic recipe

• 6 eggs
• 500 g sugar
• 1 pinch of salt
• 2 packets of vanilla sugar or peel from 12 lemon
• 500 g butter or margarine
• (room temperature)
• 1000 g flour
• 1 packet of baking powder
• 250 ml milk
  ■ Mix the eggs, sugar, salt and vanilla sugar or lemon peel with the stirrer for approx. 10 seconds at setting 1.
  ■ Set to setting 5 and process for approx. 120 seconds.
  ■ Add butter and process for approx. 60 seconds at setting 3.
  ■ Add flour and baking powder and process for approx. 2 minutes at setting 1.
  ■ Set to setting 3 and gradually add the milk within 2 minutes.

Maximum quantity: 1 x basic recipe

Short pastry

Basic recipe

• 125 g butter (room temperature)
• 100-125 g sugar
• 1 egg
• 1 pinch of salt
  – A little lemon peel or vanilla sugar
• 250 g flour
  – Baking powder if required

■ Using the stirrer, process all ingredients for approx. 12 minute at setting 1, then for approx. 2-3 minutes at setting 5.

From 500 g flour:

■ Knead the ingredients with the kneading hook for approx. 12 minute at setting 1, then for approx. 3-4 minutes at setting 3.

Maximum quantity: 2 x basic recipe

Yeast dough

Basic recipe

- 500 g flour

-1 egg

- 80 g fat (room temperature)

- 80 g sugar

- 200-250 ml lukewarm milk

- 25 g fresh yeast or 1 packet of dried yeast

- Peel of 12 lemon

- 1 pinch of salt

■ Process all ingredients for approx.

12 minute at setting 1, then for approx.

3-6 minutes at setting 3 using the kneading hook.

Maximum quantity: 2 x basic recipe

Pasta dough

Basic recipe

- 300 g flour

- 3 eggs

- 1-2 tbs. (10-20 g) cold water as required

■ Process all ingredients for approx.

3-5 minutes at setting 3 until a dough forms.

Maximum quantity: 1,5 x basic recipe

Bread dough

Basic recipe

- 1000 g flour

- 3 packets of dry yeast

-2 tsp. salt

- 660 ml warm water

■ Process all ingredients for approx.

12 minute at setting 1, then for approx.

4-5 minutes at setting 3 using the kneading hook.

Mayonnaise

- 2 eggs

- 2 tsp. mustard

- 14 | oil

- 2 tbs. lemon juice or vinegar

- 1 pinch of salt

- 1 pinch of sugar

Ingredients must be at the same temperature.

■ Process the ingredients (except the oil) in the blender for several seconds at setting 3 or 4.

■ Switch the blender to setting 7 and slowly pour the oil through the funnel and mix until the mayonnaise emulsifies.

Eat the mayonnaise immediately, do not store.

Disposal

Dispose of packaging in an environmentally-friendly manner. This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU. Please ask your specialist retailer about current disposal facilities.

Guarantee

The guarantee conditions for this appliance are as defined by our representative in the country in which it is sold. Details regarding these conditions can be obtained from the dealer from whom the appliance was purchased. The bill of sale or receipt must be produced when making any claim under the terms of this guarantee.

Changes reserved.

Optional accessories

	MUZ5ZP1Citrus press	For squeezing oranges, lemons and grapefruits.
	MUZ5CC2Dicer	For cutting fruit and vegetables into equally sized cubes.
	MUZ5FW1Mincer	For cutting fresh meat for steak tartare or meat loaf.
	MUZ45LS1Perforated disc set fine (3 mm), coarse (6 mm)	For the mincer MUZ5FW1.Fine disc for pasties and spreads, coarse disc for sausages and bacon.
	MUZ45SV1Viennese whirl attachment	For the mincer MUZ5FW1.With metal template for 4 different pastry moulds.
	MUZ45RV1Grater attachment	For the mincer MUZ5FW1.For grating nuts, almonds, chocolate and dried bread rolls.
	MUZ45FV1Juicer attachment	For the mincer MUZ5FW1.For pressing soft fruit, except raspberries, tomatoes and rose hips, to a pulp. At the same time e.g. currants are automatically stemmed and pitted.
	MUZ45PS1Chipper disc	For the continuous-feed shredder MUZ5DS1.For slicing raw potatoes for chips.
	MUZ45AG1Asian vegetabledisc	For the continuous-feed shredder MUZ5DS1.Slices fruit and vegetables into fine strips for Asian vegetabledishes.
	MUZ45RS1Grating disc coarse	For the continuous-feed shredder MUZ5DS1.For grating raw potatoes, e.g. for potato pancakes or dumplings.
	MUZ45KP1Potato fritter disc	For the continuous-feed shredder MUZ5DS1.For grating raw potatoes for rostis and potato fritters, for cutting fruit and vegetables into thick slices.
	MUZ5ER2Stainless steel stirring bowl	Up to 750 g of flour plus ingredients can be processed in the bowl.
	MUZ5KR1Plastic mixing bowl	Up to 750 g of flour plus ingredients can be processed in the bowl.
	MUZ5MX1Plastic blender attachment	For blending drinks, for pureeing fruit and vegetables, for preparing mayonnaise, for cutting fruit, nuts, for crushing ice cubes.
	MUZ5MM1Multi-mixer	For chopping herbs, vegetables, apples and meat, for shredding carrots, radishes and cheese, for grating nuts and cooled chocolate.

If an accessory is not included in the product package, it can be purchased via the trade or from customer service.

Sécurité anti-surcharge

⚠️ Fare for skoldning!

⚠️ Fare for skoldning!

⚠️ Fare for skolding!

Ved bearbeiding av varme mikseprodukter, kommer det damp ut av trakten i lokket. Det må maksimalt fylles 0,5 liter varm eller skummende væske.

⚠️ Fare for kvelning!

⚠️ Fare for skolding!

Ved bearbeiding av varme mikseprodukter, kommer det damp ut av trakten i lokket. Det må maksimalt fylles 0,5 liter varm eller skummende væske.

Obs!

Trabalhar com a tigela e as ferramentas Fig. F:

$$ 0 / \text { off } = \Sigma \text { to } \Pi $$

www.bosch-home.com/tr

www.bosch-yetkiliservisi.com

Jebel Ali Free Zone – Dubai

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.com/ae

AL Republika e Shqiperise, Albania

ELEKTRO-SERVIS sh.p.k

Rr. Shkelqim Fusha, Selite, Pallati "Matrix Konstruksion",

Kati 0 dhe +1

1023 Tirane

Tel.: [phone], -131

Fax: [phone]

mailto:[e-mail]

EXPERT SERVIS

Rruga e Kavajes,

Kulla B Nr 223/1 Kati I

1023 Tirane

Tel.: [phone]

Tel.: [phone]

Fax: [phone]

Cel: [phone]

mailto:[e-mail]

Gate 1, 1555 Centre Road

Clayton, Victoria 3168

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.au

* Mo-Fr: 24 hours

BA Bosna i Hercegovina, Bosnia-Herzegovina

"HIGH" d.o.o.

Gradačačka 29b

71000 Sarajevo

Tel./Fax: [phone]

mailto:[e-mail]

Business center FPI, floor 5,

Cherni vrah Blvd. 51B

1407 Sofia

Tel.: [phone]

mailto:[e-mail]

www.bosch-home.bg

BH Bahrain

Khalafat Est.

P.O. Box 5111

Manama

Tel.: [phone]

mailto:[e-mail]

To arrange an engineer visit, to order spare parts and accessories or for product advice please visit

www.bosch-home.co.uk

or call Tel.: [phone]*

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges.

GR Greece, Ελλάς

BSH Ikiakes Siskeves A.B.E.

Central Branch Service

17 km E.O. Athinon-Lamias & Potamou 20

14564 Kifisia

Τηλέφωνο: 181 82

Unit 1 & 2, 3rd Floor,

North Block, Skyway House,

3 Sham Mong Road

Tai Kok Tsui, Kowloon

Hong Kong

Tel.: [phone] (HK)

Toll free 0800 863 (Macao)

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/hr

www.bosch-home.com/hu

IE Republic of Ireland

BSH Home Appliances Ltd.

M50 Business Park

Ballymount Road Upper

Walkinstown

Dublin 12

To arrange an engineer visit, to order spare parts and accessories or for product advice please call

Tel.: [phone]*

www.bosch-home.ie

* Calls are charged at the basic rate, please check with your telephone service provider for exact charges

IL Israel

C/S/B/ Home Appliance Ltd.

1, Hamasger St.

North Industrial Park

Lod, 7129801

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.il

IN India, Bhārat, भारत

BSH Household Appliances Mfg. Pvt. Ltd.

Arena House, Main Bldg, 2nd Floor,

Plot No. 103, Road No. 12,

MIDC, Andheri East

Mumbai 400 093

Toll Free 1800 266 1880*

www.bosch-home.com/in

* Mo-Sa: 8.00am to 8.00pm

(exclude public holidays)

IS Iceland

Smith & Norland hf.

Noatuni 4

105 Reykjavik

Tel.: [phone]

Fax: [phone]

www.sminor.is

IT Italia, Italy

www.bosch-home.com/it

LT Lietuva, Lithuania

Senuku prekybos centras UAB

Jonavos g. 62

44192 Kaunas

Tel.: [phone]

Fax: [phone]

www.senukai.lt

UAB "AG Service"

R. Kalantos g. 32

52494 Kaunas

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.agservice.lt

Baltic Continent Ltd.

Lukšio g. 23

09132 Vilnius

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.balticcontinent.lt

UAB Emtoservis

S.R.L. "Rialto-Studio"

ул. Щусева 98

2012 Кишинев

Unit F 2, 4 Orbit Drive

Mairangi Bay

Auckland 0632

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.co.nz

* Mo-Fr: 8.30 am to 5.00 pm

(exclude public holidays)

PL Polska, Poland

SA Kingdom Saudi Arabia,

Abdul Latif Jameel Electronics

and Airconditioning Co. Ltd.

BOSCH Service centre,

Kilo 5 Old Makkah Road

(Next to Toyota), Jamiah Dist.

P.O.Box 7997

Jeddah 21472

Tel.: [phone]

mailto:[e-mail]

www.aljelectronics.com.sa

SE Sverige, Sweden

BSH Home Appliances AB

Landsvägen 32

169 29 Solna

Tel.: [phone] local rate

Tel.: [phone] local rate

mailto:[e-mail]

www.bosch-home.se

SG Singapore新加坡

BSH Home Appliances Pte. Ltd.

Block 4012, Ang Mo Kio Avenue 10

01-01 Techplace 1

Singapore 569628

Tel.: [phone]*

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com.sg

* Mo-Fr: 8.30am to 7.00pm, Sa: 8.30am to 5.30pm

(exclude public holidays)

SI Slovenija, Slovenia

BSH Hišni aparati d.o.o.

Litostrojska 48

1000 Ljubljana

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/si

SK Slovensko, Slovakia

Ital Thai Tower, 2034/31-39, 1st floor,

New Petchburi Road

Bangkapi, Huay Kwang

Bangkok, 10310

Tel.: [phone]*

www.bosch-home.com/th

* Mo-Sa: 8.00am to 6.00pm

(exclude public holidays)

TR Türkiye, Turkey

BSH Ev Aletleri Sanayi

ve Ticaret A.S

Fatih Sultan Mehmet Mahallesi

Balkan Caddesi No: 51

34771 Ümraniye, Istanbul

Tel.: [phone]*

Fax: [phone]*

mailto:[e-mail]

www.bosch-home.com/tr

BSH Home Appliances Private Limited

台北市內湖區洲子街80號11樓

11F., No.80, Zhouzi St., Neihu Dist.

Taipei City 11493

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

Service-General SH.P.K.

rr.Magjistralja Ferizaj Prishtine

70000 Ferizaj

Tel:00381(0)290330723

Tel.: [phone]

mailto:[e-mail]

XS Srbija, Serbia

BSH Kućni aparati d.o.o.

15th Road Randjespark

Private Bag X36, Randjespark

1685 Midrand – Johannesburg

Tel.: [phone]

Fax: [phone]

mailto:[e-mail]

www.bosch-home.com/za

[e-mail]

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, need help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Diagram of a device's front panel with a black arrow pointing to a white square on the side panel (no text or symbols present)

D

Diagram of a mechanical component with directional arrows indicating flow or movement (no text or symbols)

E

Mechanical diagram showing a tool interacting with a rack-mounted component, with an inset close-up of the handle (no text or symbols)

F

J

Illustration showing a hand holding a cup and a magnified view of the cup's interior (no text or symbols)

