Product Type	Rechargeable Lantern
Brand	Panasonic
Model	EY3741
Dimensions (L x W x H)	99 x 124 x 298 mm (without battery)
Weight	Approx. 450 g (without battery)
Power Source	Lithium-ion battery 14.4 V DC (compatible models: EY9L40, EY9L41, EY9L42)
Main Lighting	Fluorescent lamp: approx. 330 lux at 40 cm (with reflector)
LED Lighting	LED: approx. 25 lux at 40 cm (with reflector)
LED Operation Time	Approx. 60 minutes after automatic switch to LED mode (depending on battery)
Handle	Adjustable to 8 positions at 45° intervals
Special Functions	Voltage drop prevention (automatic switch from fluorescent to LED), hanging hook
Switch	ON/OFF and LAMP/LED selector
Heat Protection	Automatic shutoff if battery is low; do not cover during use
Safety Instructions	Only use genuine Panasonic batteries; do not expose to water or humidity
Maintenance	Clean with a dry cloth; replace fluorescent lamp with a specified model (see page 18)
Lamp Replacement	Remove battery, disassemble cover, remove protector, lamp and reflector; reassemble in reverse order
Included Accessories	Battery and charger not included (sold separately)
Operating Temperature	Avoid temperatures near 0°C or lower for the fluorescent lamp

Frequently Asked Questions - EY3741 PANASONIC

What type of battery should I use with the Panasonic EY3741 lantern?

Use only Panasonic batteries designed for this rechargeable tool, models EY9L40, EY9L41 or EY9L42.

How do I turn on the lantern and choose between fluorescent and LED?

Set the ON/OFF switch to ON, then set the LAMP/LED selector to the desired position: LAMP for fluorescent lamp, LED for LED lamp.

What should I do if the lantern automatically turns off in fluorescent mode?

This is the voltage drop prevention function: the battery is low. The lantern automatically switches to LED mode. Recharge the battery as soon as possible.

Can I use the lantern in the rain or in a humid environment?

No, this lantern is not waterproof. Do not use it in damp or wet locations, do not expose it to rain or snow.

How do I adjust the handle of the lantern?

The handle can be adjusted to 8 positions at about 45° intervals. Turn it to the desired angle.

How do I replace the fluorescent lamp?

First remove the battery. Fold down the handle, unscrew the cover, remove the protector, then pull the lamp out of its socket. Reassemble in reverse order. Only use the specified lamp type (see page 18).

The fluorescent lamp takes time to turn on in cold weather, is that normal?

Yes, in cold weather, the lamp may take longer to reach full brightness and may flicker. This is normal. However, avoid temperatures near 0°C.

How do I clean the lantern?

Clean it with a dry cloth. Do not immerse in water and avoid abrasive products.

What should I do if the battery does not hold a charge?

Check that you are using a genuine Panasonic battery and a suitable charger. If the problem persists, contact your dealer. Do not attempt to modify the battery.

Can I use the lantern with other battery brands?

No, Panasonic disclaims any responsibility for the use of recycled or counterfeit batteries. Use only the specified Panasonic batteries.

USER MANUAL EY3741 PANASONIC

Operating Instructions

Bedienungsanleitung

Before operating this unit, please read these instructions completely and save this manual for future use.

English: Page 4 Dansk: Side 34

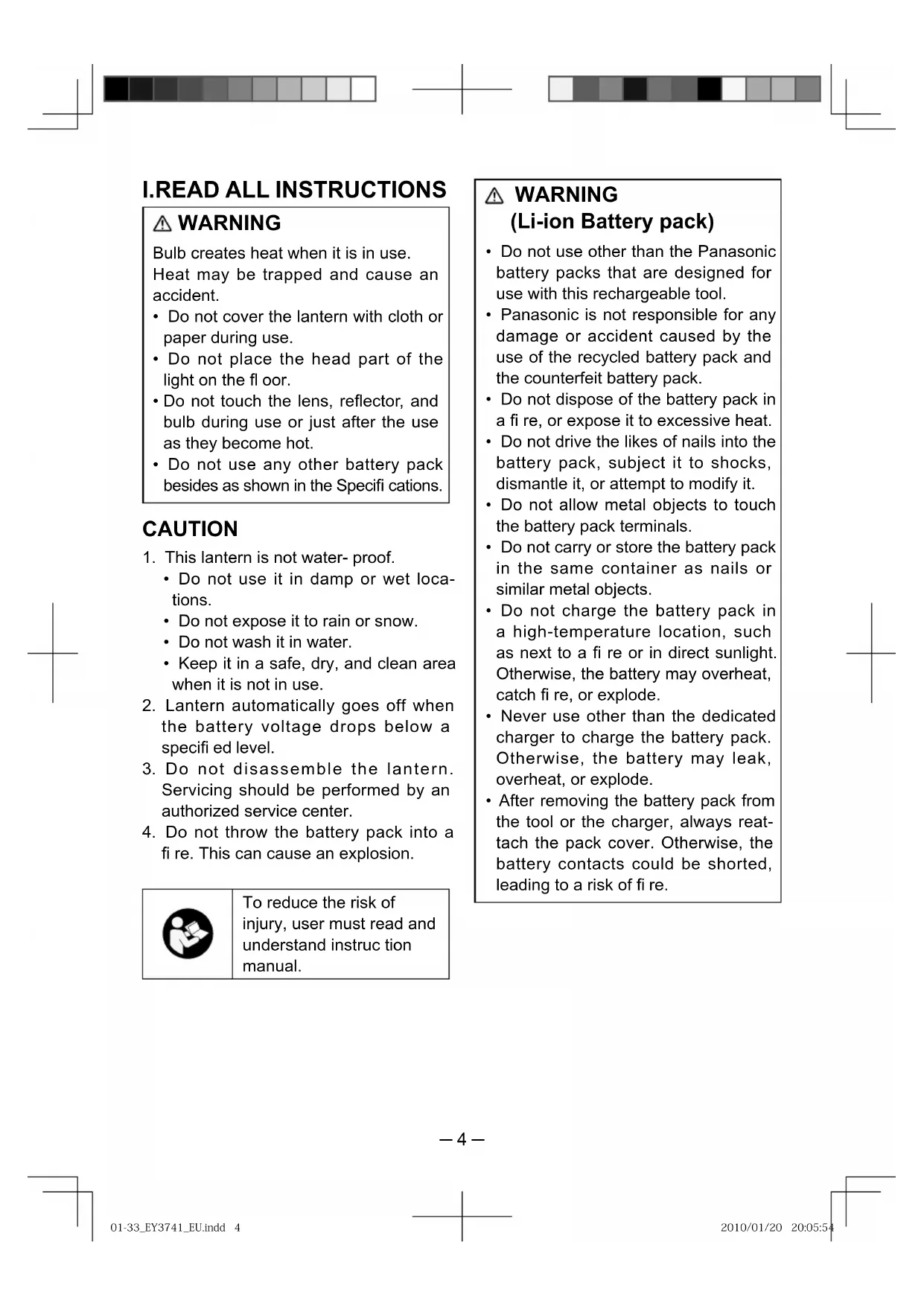

Bulb creates heat when it is in use. Heat may be trapped and cause an accident.

• Do not cover the lantern with cloth or paper during use.
• Do not place the head part of the light on the floor.
• Do not touch the lens, reflector, and bulb during use or just after the use as they become hot.
• Do not use any other battery pack besides as shown in the Specifications.

CAUTION

1. This lantern is not water-proof.

2. Do not use it in damp or wet locations.

3. Do not expose it to rain or snow.
4. Do not wash it in water.

5. Keep it in a safe, dry, and clean area when it is not in use.

6. Lantern automatically goes off when the battery voltage drops below a specified level.

7. Do not disassemble the lantern. Servicing should be performed by an authorized service center.
8. Do not throw the battery pack into a fire. This can cause an explosion.

To reduce the risk of injury, user must read and understand instruc tion manual.

WARNING (Li-ion Battery pack)

• Do not use other than the Panasonic battery packs that are designed for use with this rechargeable tool.
• Panasonic is not responsible for any damage or accident caused by the use of the recycled battery pack and the counterfeit battery pack.
• Do not dispose of the battery pack in a fire, or expose it to excessive heat.
• Do not drive the likes of nails into the battery pack, subject it to shocks, dismantle it, or attempt to modify it.
• Do not allow metal objects to touch the battery pack terminals.
• Do not carry or store the battery pack in the same container as nails or similar metal objects.
• Do not charge the battery pack in a high-temperature location, such as next to a fire or in direct sunlight. Otherwise, the battery may overheat, catch fire, or explode.
• Never use other than the dedicated charger to charge the battery pack. Otherwise, the battery may leak, overheat, or explode.
• After removing the battery pack from the tool or the charger, always reattach the pack cover. Otherwise, the battery contacts could be shorted, leading to a risk of fire.

II.ASSEMBLY

• Be sure to charge the battery pack.
  For more information about how to recharge the battery pack, see the Operating Instructions for your Panasonic rechargeable tool or battery charger.
• Verify that the power ON/OFF switch is in the "OFF" position.
• Verify that the electrical contacts on the lantern and battery pack are free of dirt.

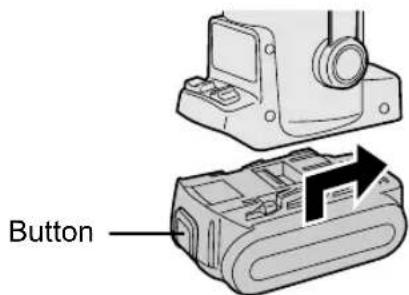

1) Attach the battery pack to the lantern.

• Slide the battery pack into position until you hear it click securely into place.
  To remove the battery pack, depress the latch and slide it off of the lantern.

When using the fluorescent lamp

• Avoid turning the fluorescent lamp on and off repeatedly in a short period of time. Doing so may damage the lamp or short en its service life.
• When using the fluorescent lamp for the first time, the area near the electrodes may turn black, and slight spots may form at the top of the lit lamp. This is normal and does not constitute a malfunction.
• When using the fluorescent lamp in cold weather, the lamp may take longer to reach its full brightness, and there may be some fl icker. This is normal and does not constitute a malfunction.
• Avoid use in temperatures of 0^ or below, which may cause the fluorescent lamp to dim or not to come on at all.

2) Set the LAMP/LED selector to "LAMP".

III.OPERATION

1) Set the power ON/OFF switch to "ON".

Over-discharge prevention function

• When using the lantern with the LAMP/LED selector in the "LAMP" position (i.e., when using as a fluorescent lamp), the lantern will automatically turn the fluorescent lamp off and switch to the LED light if the battery voltage falls below a certain level. (The LAMP/LED selector will remain in the "LAMP" position.) This behavior is a sign that the battery pack needs to be recharged. (LN and R type battery packs provide enough power for about 60 minutes of LED operation before the lantern turns off automatically.)

• The LED operating time varies with the amount of charge remaining in the battery pack and other conditions.

When using the LED light

2) Set the LAMP/LED selector to "LED".

Getting the most out of your lantern

Using the handle and hook

In locations where there is nowhere to sit the lantern...

When working on a power distribution panel

• Be careful to secure the lantern so that it won't fall.

Using the lantern in a hanging position

Adjusting the handle angle

The angle of the handle can be adjusted to any of 8 positions at an interval of about 45^

IV.MAINTENANCE

Replacing the Fluore scent Lamp

WARNING

• Do not touch the fluorescent lamp or LED during or immediately after use.

Doing so may cause burns.

CAUTION

• Dispose of used fluorescent lamps intact, without breaking them.

Breaking fluorescent lamps may result in injury caused by flying shards of glass.

• Be sure to remove the battery pack before replacing the lamp.
• Use only the specified type of fluorescent lamp. See page 8.
• When attaching the fluorescent lamp, reflector, protector, and lamp cover, fully insert each part until it is seated securely. Failure to fully insert all parts may cause the fluorescent lamp to break when the lamp cover is attached.

When attaching the reflector

Fully insert the reflector until it is seated securely.

Reflector is not fully inserted.

Reflector is fully inserted.

Disassembling the lantern

1) Remove the battery pack. See page 5.
2) Fold down the handle toward the back of the lantern.
3) Rotate the lamp cover counterclockwise and remove.
4) Remove the protector.
5) Pull the fluorescent lamp up and out of its socket.
6) Pull the reflector up and out of its slot.

- To reassemble the lantern, repeat the above procedure in reverse.

V.AccessORIES

Battery Pack

See the specific cation.

Battery Charger

• For inquiries please contact an authorized dealer.

VI.SPECIFICATIONS

Model EY3741
Brightness	Fluorescent lamp	Approx.330lux(with refl ector);measured from front at approx. 40 cm from light source
	LED	Approx.25lux(with refl ector);measured from front at approx.40cm from light source
Size		Approx. 99(W) X 124(D) X 298(H) mm (Excluding battery pack; with handle in upright position)
Weight Approx. 450		g (excluding battery pack)
Battery Packs EY9L40		EY9L41 EY9L42
Battery Voltage 14.4V DC
