Product Type	Interchangeable lens for digital camera
Brand	Panasonic
Model	HXA025E (LEICA DG SUMMILUX 25 mm/F1.4 II ASPH.)
Mount	Micro Four Thirds (Micro Quatre Tiers)
Focal Length	f=25 mm (35 mm equivalent: 50 mm)
Maximum Aperture	F1.4
Minimum Aperture	F16
Optical Construction	9 elements in 7 groups (2 aspherical lenses, 1 UHR lens)
Angle of View	47°
Minimum Focusing Distance	0.3 m (0.98 ft)
Maximum Magnification	0.11× (35 mm equivalent: 0.22×)
Filter Diameter	46 mm
Maximum Diameter	∅63 mm (2.5 in)
Total Length	Approx. 54.5 mm (2.1 in)
Weight	Approx. 205 g (0.452 lb)
Power Supply	Passive (no battery required)
Dust and Splash Resistance	Yes (with rubber seal on mount)
Nano Coating	Yes
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Allowable Humidity	10 % to 80 %
Supplied Accessories	Case, lens hood, front and rear caps
Maintenance and Cleaning	Blow off dust, wipe with a soft dry cloth. Avoid solvents, alcohol, chemical cloths.
Safety	Do not expose to direct sunlight, volatile substances. Keep away from children. Do not disassemble.
Spare Parts and Repairability	Limited 1-year warranty (Canada). Replace rubber seal via Panasonic.
General Information	Made for Micro Four Thirds cameras. Firmware update via Panasonic website.

Frequently Asked Questions - HXA025E PANASONIC

Which cameras are compatible with the Panasonic HXA025E lens?

This lens is compatible with all digital cameras with Micro Four Thirds mount. It cannot be mounted on older Four Thirds bodies.

What is the minimum focusing distance?

The minimum focusing distance is 0.3 m (0.98 ft) from the focusing distance reference line.

How to clean the lens?

Use a blower to remove dust, then gently wipe with a soft dry cloth. Do not use solvents, alcohol, or chemical wipes.

Is the lens dust and splash resistant?

Yes, it has a rubber seal on the mount. It is dust and splash resistant, but not fully submersible.

What filter can I use?

The filter diameter is 46 mm. You can install a filter and the cap or lens hood over it. Avoid stacking multiple filters to prevent vignetting.

How to install the lens hood?

Align the marks on the lens hood and the lens, then turn in the direction of the arrow until it clicks. To remove, turn the opposite direction.

What to do if the lens makes noise during autofocus?

The noise is normal, caused by moving elements and the aperture mechanism. For videos, it is recommended to switch to manual focus (MF) to reduce noise.

How to store the lens if not used for a long time?

Remove the battery from the camera, put on the front and rear caps, and store the lens in a dry place with silica gel (desiccant). Avoid humid or dusty environments.

Can I use this lens with an adapter on other mounts?

The lens is designed exclusively for the Micro Four Thirds mount. Using adapters is not recommended and could damage the lens or camera.

Where to find the latest firmware update?

You can download updates from the Panasonic support website: https://panasonic.jp/support/global/cs/dsc/ (English only).

USER MANUAL HXA025E PANASONIC

Operating Instructions

If you have any questions, visit:

USA: http://shop.panasonic.com/support

Canada: www.panasonic.ca/english/support

Register online at http://shop.panasonic.com/support

Technical diagram of a cylindrical mechanical component with numbered parts labeled 1 to 5

1 レンズ面
2 フォーカスリング

Diagram of a cylindrical mechanical component with numbered parts and directional arrows indicating rotation or movement.

■ レンズフードを取り付ける

Diagram of a mechanical component with labeled point A, showing internal layered structure (no text or symbols beyond label)

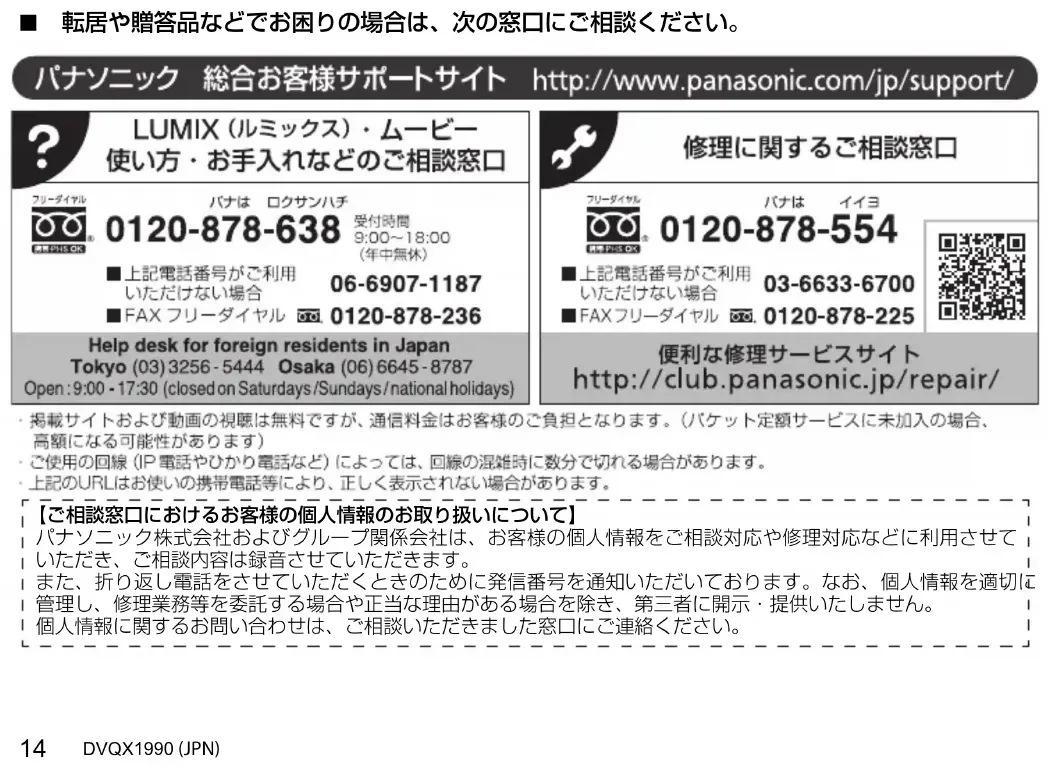

The warranty is valid only in Japan.

Help desk for foreign residents in Japan

Tokyo [phone] Osaka [phone]

Open:9:00-17:30 (closed on Saturdays/Sundays/national holidays)

修理に関するご相談窓口

バナは イイヨ

0120-878-554

Thank you for purchasing Panasonic product. Please read these instructions carefully before using this product, and save this manual for future use.

The lens can be used with a digital camera compatible with the lens mount standard for the Micro Four Thirds ^TM System.

• It cannot be mounted on the Four Thirds ^TM mount specification camera.
• For smoother recording, we recommend updating the firmware of the digital camera/lens to the latest version.

• For the latest information on the firmware or to download/update the firmware, visit the following support website: https://panasonic.jp/support/global/cs/dsc/ (English only)

• Micro Four Third ^51 and Micro Four Thirds Logo marks are trademarks or registered trademarks of Olympus Corporation, in Japan, the United States, the European Union and other countries.

• Four Thirds and Four Thirds Logo marks are trademarks or registered trademarks of Olympus Corporation, in Japan, the United States, the European Union and other countries.

• LEICA is a registered trademark of Leica Microsystems IR GmbH. SUMMILUX is a registered trademark of Leica Camera AG. The LEICA DG lenses are manufactured using measurement instruments and quality assurance systems that have been certified by Leica Camera AG based on the company's quality standards.

• Other names, company names, product names mentioned in this document are trademarks or registered trademarks of the companies concerned.

Contents

Information for Your Safety 16

Precautions 17

Supplied Accessories.... 18

Names and Functions of Components.... 19

Attaching the Lens 20

Cautions for Use 21

Troubleshooting 21

Specifications 22

Limited Warranty (ONLY FOR U.S.A.).... 23

Limited Warranty (ONLY FOR CANADA) 25

Information for Your Safety

Keep the unit as far away as possible from electromagnetic equipment (such as microwave ovens, TVs, video games, radio transmitters, high-voltage lines etc.).

• Do not use the camera near cell phones because doing so may result in noise adversely affecting the pictures and sound.
• If the camera is adversely affected by electromagnetic equipment and stops functioning properly, turn the camera off and remove the battery and/or the connected AC adaptor. Then reinsert the battery and/or reconnect the AC adaptor and turn the camera on.

THE FOLLOWING APPLIES ONLY IN THE U.S.A. FCC Note:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

- Any unauthorized changes or modifications to this equipment would void the user's authority to operate this device.

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Supplier's Declaration of Conformity

Trade Name: Panasonic

Model No.: H-XA025

Responsible Party: Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490

Support Contact: http://shop.panasonic.com/support

THE FOLLOWING APPLIES ONLY IN CANADA.

CAN ICES-3(B)/NMB-3(B)

-If you see this symbol-

Disposal of Old Equipment Only for European Union and countries with recycling systems

This symbol on the products, packaging, and/or accompanying documents means that used electrical and electronic products must not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to

applicable collection points in accordance with your national legislation.

By disposing of them correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment.

For more information about collection and recycling, please contact your local authority.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

Precautions

■ Handling of the lens

- When using this lens, take care not to drop, bump, or apply undue force to it. Doing so may cause malfunction or damage to this lens and the digital camera.

• Images may be affected by dust, dirt, and soiling (water, oil, fingerprints, etc.) on the lens surface. Before and after recording, use a blower to blow off dust and dirt from the surface of the lens, then lightly wipe with a soft dry cloth to remove soiling.
• When the lens is not in use, be sure to attach the lens cap and lens rear cap to prevent dust and other particles from accumulating on or entering the lens.

• To protect the lens contact points (A), do not do the following. These may cause malfunction.

• Touch the lens contact points.

• Allow the lens contact points to become dirty.
• Place the lens with its mount surface facing down.

■ Dust and splash resistant

• The dust and splash resistant of the lens will not prevent the entry of dust or water droplets completely. Take the following precautions to provide satisfactory dust and splash resistant performance. If the lens is not working properly, consult the dealer or Panasonic.
• Attach to a digital camera that is dust and splash resistant.

(ENG) DVQX1990

Diagram showing a device with a prohibition symbol and a magnified circular component labeled A

• When attaching or removing the lens, be careful so that foreign objects such as sand, dust, and water droplets do not adhere to or enter the lens mount rubber, contact points, digital camera and lens.
• If the lens is exposed to water droplets or other liquids, wipe them off with a soft, dry cloth.
• To improve the dust and splash resistant performance of the lens, a lens mount rubber is used in the mount.
• The lens mount rubber will leave scuff marks on the digital camera mount, but this does not impact performance.
• For information on changing the lens mount rubber, contact Panasonic.

■ Condensation (when the lens is fogged up)

• Condensation occurs when the ambient temperature or humidity changes. Please be careful, as it may cause lens stains, mold and malfunction.
• If condensation occurs, turn off the digital camera and leave it for approx. 2 hours. The fog will disappear naturally when the temperature of the digital camera becomes close to the ambient temperature.

- The appearance and specifications of products described in this document may differ from the actual products you have purchased due to later enhancements.

Supplied Accessories

Check that all the accessories are supplied before using the product.

Product numbers correct as of August 2019. These may be subject to change.

VFC4456

21

DZE2HXA025Z

VYF3510

3

VFC4605

1 Lens pouch
2 Lens hood
3 Lens cap *
4 Lens rear cap *

* Fitted to the lens at the time of purchase.

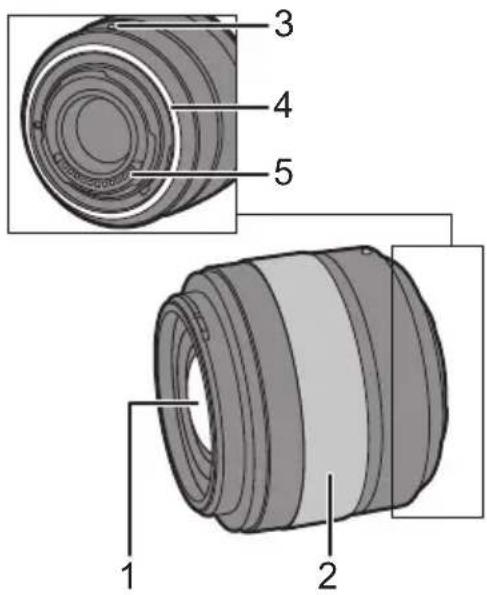

Names and Functions of Components

Technical diagram of a mechanical component with numbered parts labeled 1 to 5

1 Lens surface
2 Focus ring Rotates the focus ring to focus when set to MF.
3 Lens fitting mark
4 Lens mount rubber
5 Contact points

Note

• If the sound of AF operation bothers you during video recording, it is recommended to set to MF.
• If screen changes that occur due to AF operation bother you during video recording, it is recommended to set to MF for recording.

Attaching the Lens

For information on how to attach the lens, refer to the operating instructions for your digital camera.

- Attach the lens after turning off the digital camera.

- Attach the lens after removing the lens rear cap.

• After removing the lens from the digital camera, be sure to attach the lens cap and lens rear cap to prevent dust and other particles from accumulating on or entering the lens.

Diagram of a cylindrical mechanical component with two opposing arrows indicating rotational motion (no text or symbols)

■ Attaching the lens hood

1 Insert the lens hood into the lens with the short sides at the top and bottom.

2Rotate the lens hood in the direction of the arrow to align mark on the lens hood with the mark on the tip of the lens Ⓐ.

Mechanical component diagram showing a pipe with internal channels and a labeled section (A), no text or symbols present.

- Attach the lens hood by rotating it until it clicks.

■ Removing the lens hood

- Rotate the lens hood in the opposite direction to when you attached it to remove it.

Note

• When attaching or removing the lens hood, hold it by the short sides.
• It is recommended to remove the lens hood during flash photography as the lens hood can block the light from the flash.
  • To prevent dropping of the lens, you should never carry the lens by just holding the lens hood.

■ Notes on filter use

• It is possible to attach the lens cap or the lens hood with the filter already attached.
• There may be some vignetting in recorded images if multiple filters are attached simultaneously.
• It is not possible to attach any items other than filters such as a conversion lens or adaptor to the front of the lens and use it in combination with this lens. Lens damage may result if such items are attached.

Cautions for Use

- Do not spray the lens with insecticides or volatile chemicals.

- If such substances get onto the lens they can damage the exterior case or cause the paint to peel.

- Do not point the lens at the sun or other strong light sources.

- This may cause the lens to collect an excessive amount of light, resulting in fire and malfunction.

- When cleaning, wipe lightly using a soft dry cloth that does not produce dust.

- Do not use solvents such as benzine, thinners, alcohol, kitchen cleansers, etc., as this can cause problems such as deformation of the casing or peeling of the coating.

- Do not use wipes with chemicals.

- Do not keep products made of rubber, PVC or similar materials in contact with the lens for a long period of time.

- Do not disassemble or alter this product.

- When the lens is not going to be used for a prolonged period, we recommend storing with a desiccant (silica gel).

- Check all the parts before recording when you have not used the lens for a long period of time.

- Avoid using or storing the lens in any of the following locations as this may cause problems in operation or malfunctioning:

– In direct sunlight or on a beach in summer

– In locations with high temperatures and humidity levels or severe changes in temperature and humidity

– In sandy or dusty locations

- Where there is fire

– Near heaters, air conditioners or humidifiers

– Where water may make the lens wet

- Where there is vibration

- Inside a vehicle

- Refer also to the operating instructions for the digital camera.

Troubleshooting

A rattling sound, etc. is heard when the digital camera is turned on or off or the lens is shaken.

There is a sound from the lens when taking pictures.

- This is the sound of the lens moving and aperture operation. It is not a malfunction.

Specifications

The specifications are subject to change for performance enhancement.

INTERCHANGEABLE LENS FOR DIGITAL CAMERA "LEICA DG SUMMILUX 25 mm/F1.4 II ASPH."

Mount Micro Four Thirds Mount
Focal length	f=25 mm (35 mm film camera equivalent: 50 mm)
Lens construction	9 elements in 7 groups (2 aspherical lenses, 1 UHR lens)
Aperture type 7 diaphragm blades/Circular aperture diaphragm
Maximum aperture F1.4
Minimum aperture value F16
Angle of view 47°
In focus distance	0.3 m (0.98 feet) to ∞ (from the focus distance reference line)
Maximum image magnification	0.11× (35 mm film camera equivalent: 0.22×)
Optical Image Stabilizer No
Filter diameter 46 mm
Maximum diameter	∅63 mm (2.5")
Overall length	Approx. 54.5 mm (2.1") (from the tip of the lens to the base side of the lens mount)
Mass (Weight)	Approx. 205 g (0.452 lb)
Nano surface coating	Yes
Dust and splash resistant	Yes
Recommended operating temperature	0 °C to 40 °C (32 °F to 104 °F)
Permissible relative humidity	10%RH to 80%RH

Limited Warranty (ONLY FOR U.S.A.)

Panasonic Products Limited Warranty

Limited Warranty Coverage (For USA Only)

If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by the warrantor.

Product or part name Parts Labor
Interchangeable Lens for Digital Camera	1 Year 1 Year
All included Accessories (Except Non-Rechargeable Batteries)	90 Days	Not Applicable
Only Non-Rechargeable Batteries	10 Days	Not Applicable

During the “Labor” warranty period there will be no charge for labor. During the “Parts” warranty period, there will be no charge for parts. This Limited Warranty excludes both parts and labor for non-rechargeable

batteries, antennas, and cosmetic parts (cabinet). This warranty only applies to products purchased and serviced in the United States. This warranty is extended only to the original purchaser of a new product which was not sold “as is”.

Mail-In Service --Online Repair Request

Online Repair Request

To submit a new repair request and for quick repair status visit our Web Site at http://shop.panasonic.com/support.

When shipping the unit, carefully pack, include all supplied accessories listed in the Owner's Manual, and send it prepaid, adequately insured and packed well in a carton box. When shipping Lithium Ion batteries please visit our Web Site at http://shop.panasonic.com/support as Panasonic is committed to providing the most up to date information. Include a letter detailing the complaint, a return address and provide a daytime phone number where you can be reached. A valid registered receipt is required under the Limited Warranty.

IF REPAIR IS NEEDED DURING THE WARRANTY PERIOD, THE PURCHASER WILL BE REQUIRED TO FURNISH A SALES RECEIPT/PROOF OF PURCHASE INDICATING DATE OF PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE. CUSTOMER WILL BE CHARGED FOR THE REPAIR OF ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.

(ENG) DVQX1990

Limited Warranty Limits and Exclusions

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by the warrantor, or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Factory Service Center or other Authorized Servicer, or damage that is attributable to acts of God.

THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY COVERAGE". THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRANTY.

(As examples, this excludes damages for lost time, travel to and from the servicer, loss of or damage to media or images, data or other memory or recorded content. The items listed are not exclusive, but for illustration only.) ALL EXPRESS AND IMPLIED WARRANTIES, INCLUDING THE WARRANTY OF MERCHANTABILITY, ARE LIMITED TO THE PERIOD OF THE LIMITED WARRANTY.

Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on how long an implied warranty lasts, so the exclusions may not apply to you.

This warranty gives you specific legal rights and you may also have other rights which vary from state to state. If a problem with this product develops during or after the warranty period, you may contact your dealer or Service Center. If the problem is not handled to your satisfaction, then write to:

Consumer Affairs Department

Panasonic Corporation of North America

661 Independence Pkwy

Chesapeake, VA 23320

PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.

Shop Accessories!

for all your Panasonic gear

Go to

http://shop.panasonic.com/support

Get everything you need to get the most out of your Panasonic products Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Batteries, Backup Chargers & more...

Customer Services Directory

For Product Information, Operating Assistance, Parts, Owner's Manuals, Dealer and Service info go to http://shop.panasonic.com/support

For the hearing or speech impaired TTY: 1-877-833-8855

As of July 2015

Limited Warranty (ONLY FOR CANADA)

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

PANASONIC PRODUCT – LIMITED WARRANTY

Panasonic Canada Inc. warrants this product to be free from defects in material and workmanship under normal use and for a period as stated below from the date of original purchase agrees to, at its option either (a) repair your product with new or refurbished parts, (b) replace it with a new or a refurbished equivalent value product, or (c) refund your purchase price. The decision to repair, replace or refund will be made by Panasonic Canada Inc.

Interchangeable Lens for Digital Camera

One (1) year, parts and labour

This warranty is given only to the original purchaser, or the person for whom it was purchased as a gift, of a Panasonic brand product mentioned above sold by an authorized Panasonic dealer in Canada and purchased and used in Canada, which product was not sold "as is", and which product was delivered to you in new condition in the original packaging.

IN ORDER TO BE ELIGIBLE TO RECEIVE WARRANTY SERVICE HEREUNDER, A PURCHASE RECEIPT OR OTHER PROOF OF DATE OF ORIGINAL PURCHASE, SHOWING AMOUNT PAID AND PLACE OF PURCHASE IS REQUIRED

(ENG) DVQX1990

LIMITATIONS AND EXCLUSIONS

This warranty ONLY COVERS failures due to defects in materials or workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage. The warranty ALSO DOES NOT COVER damages which occurred in shipment, or failures which are caused by products not supplied by Panasonic Canada Inc., or failures which result from accidents, misuse, abuse, neglect, mishandling, misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls, improper maintenance, improper batteries, power line surge, lightning damage, modification, introduction of sand, humidity or liquids, commercial use such as hotel, office, restaurant, or other business or rental use of the product, or service by anyone other than a Authorized Servicer, or damage that is attributable to acts of God. Dry cell batteries, printer ink cartridge and paper are also excluded from coverage under this warranty. Rechargeable batteries are warranted for ninety (90) days from date of original purchase.

THIS EXPRESS, LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL PANASONIC CANADA INC. BE LIABLE FOR ANY SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT OR ARISING OUT OF ANY BREACH OF

ANY EXPRESS OR IMPLIED WARRANTY.

(As examples, this warranty excludes damages for lost time, travel to and from the Authorized Servicer, loss of or damage to media or images, data or other memory or recorded content. This list of items is not exhaustive, but for illustration only.)

In certain instances, some jurisdictions do not allow the exclusion or limitation of incidental or consequential damages, or the exclusion of implied warranties, so the above limitations and exclusions may not be applicable.

This warranty gives you specific legal rights and you may have other rights which vary depending on your province or territory.

WARRANTY SERVICE

For product operation, repairs and information

assistance, please visit our Support page:

www.panasonic.ca/english/support

For the U.S.A.

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://shop.panasonic.com

For CANADA

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

Printed in Japan

Panasonic Warranty

1. Subject to the conditions of this warranty Panasonic or its Authorised Service Centre will perform necessary service on the product, without charge for parts or labour, if in the opinion of Panasonic the product is found to have a manufacturing defect within one (1) year or (12 months) (the "warranty period") from the date of purchase appearing on your purchase receipt.

2. This warranty only applies to Panasonic products purchased in Australia and sold by Panasonic Australia, it's Authorised Distributors, or Dealers, and only where the products are used and serviced within Australia or its territories. Warranty cover only applies to the services that are carried out by a Panasonic Authorised Service Centre and only if valid proof of purchase is presented when the warranty service is requested.

3. This warranty only applies if the product has been installed and/or used in accordance with the manufacturer's recommendations (as noted in the operating instructions) under normal use and reasonable care (in the opinion of Panasonic). The warranty does not cover damage, malfunction or failure resulting from use of incorrect voltages, Incorrect installation, accident, misuse, neglect, build-up of dirt or dust, abuse, maladjustment of customer controls, mains supply problems, thunderstorm activity, infestation by insects or vermin, tampering or repair by unauthorised persons (including unauthorised alterations), exposure to abnormally corrosive conditions, or any foreign object or matter having entered the product.

4. This warranty does not cover the following items unless the fault or defect existed at the time of purchase:

(a) Consumable parts (b) Cosmetic parts (c) Worn or damaged parts

(d) Information stored on Hard Disk Drives, Optical Discs, USB Devices, SD Cards, Tapes (e) DTV reception issues caused by TV Aerial / Cabling / Wall socket(s)

1. Some products may be supplied with Ethernet connection hardware. The warranty is limited on such products and will not cover:

(a) Internet and or DLNA connection / setup related problems

(b) Access fees and or charges incurred for internet connection (c) Incompatible software or software not specifically stipulated

Any indirect or consequential costs associated with the incorrect use or misuse of the hardware, its connection to the internet or any other device.

1. To claim warranty service, when required, you should:

Contact Panasonic's Customer Care Centre on 132 600 for Service Centre information. Confirm the opening and acceptance times with the Authorised Service centre that you choose

- Then send or take the product to a Panasonic Authorised Service Centre together with your proof of purchase receipt. - Any freight and insurance costs associated with the transport of the product to and/or from your nearest Authorised Service Centre must be arranged and paid for by you.

1. The warranties hereby conferred do not extend to, and exclude, any costs associated with the Installation, de-installation or re-installation of a product, including costs related to the mounting, de-mounting or remounting of any screen, (and any other ancillary activities), delivery, handling, freighting, transportation or insurance of the product or any part thereof or replacement of and do not extend to, and exclude, any damage or loss occurring by reason of, during, associated with, or related to such installation, de-installation, re-installation or transit.

Panasonic Authorised Service Centres are located in major metropolitan areas and most regional centres of Australia, however, coverage will vary dependant on product. For advice on exact Authorised Service Centre locations for your product, please telephone our Customer Care Centre on 132600 or visit our website and use the Service Centre Locator.

In addition to your rights under this warranty, Panasonic products come with consumer guarantees that cannot be excluded under the Australian Consumer Law. If there is a major failure with the product, you can reject the product and elect to have a refund or to have the product replaced or if you wish you may elect to keep the goods and be compensated for the drop in value of the goods. You are also entitled to have the product repaired or replaced if the product fails to be of acceptable quality and the failure does not amount to a major failure.

If there is a major failure in regard to the product which cannot be remedied then you must notify us within a reasonable period by contacting the Panasonic Customer Care Centre. If the failure in the product is not a major failure then Panasonic may choose to repair or replace the product and will do so in a reasonable period of time from receiving notice from you.

THIS WARRANTY CARD AND THE PURCHASE DOCKET (OR SIMILAR PROOF OF PURCHASE) SHOULD BE RETAINED BY THE CUSTOMER AT ALL TIMES

If you require assistance regarding warranty conditions or any other enquiries, please visit the Panasonic

Australia website www.panasonic.com.au or contact by phone on 132 600 If phoning in, please ensure you have your operating instructions available.

Panasonic Australia Pty. Limited

ACN 001 592 187 ABN 83 001 592 187

In Road, Macquarie Park www.panasonic.com.au

PRO-031-F11 Issue: 5.0

Diagram showing a device with a prohibition symbol and a magnified circular component labeled A

Technical diagram of a mechanical component with numbered parts labeled 1 to 5

Diagram of a cylindrical mechanical component with two opposing arrows indicating rotational motion (no text or symbols)

Mechanical component diagram showing a threaded pipe with a circular feature labeled A (no text or symbols present)

Panasonic Canada Inc.

5770, Ambler Drive, Mississauga (Ontario) L4W 2T3

PRODUIT PANASONIC – GARANTIE LIMITÉE

Panasonic Canada Inc.

5770 Ambler Drive, Mississauga, Ontario L4W 2T3

www.panasonic.com

Imprimé au Japon

(FRE) DVQX1990

Bedienungsanleitung

Diagram showing a device with a prohibition symbol and a magnified circular component labeled A

(GER) DVQX1990

Technical diagram of a mechanical component with numbered parts labeled 1 to 5

Diagram of a cylindrical mechanical component with two opposing arrows indicating rotational direction (no text or symbols)

Mechanical component diagram showing a pipe fitting with a circular arrow and labeled point A (no text or symbols beyond label)

Parte responsible: Panasonic Corporation of North America Two Riverfront Plaza, Newark, NJ 07102-5490

Diagram showing a device with a prohibition symbol and a magnified circular component labeled A

Technical diagram of a mechanical component with numbered parts labeled 1 to 5

Diagram of a mechanical component with numbered parts and directional arrows indicating motion or flow.

Mechanical component diagram showing a pipe with a circular feature labeled A, no text or symbols present

A.

Panasonic Corporation of North America

Two Riverfront Plaza, Newark, NJ 07102-5490

http://shop.panasonic.com

Impreso en Japón

Diagram showing a device with a prohibition symbol and a magnified circular component labeled A

Technical diagram of a mechanical component with numbered parts labeled 1 to 5

Diagram of a cylindrical mechanical component with numbered arrows indicating rotational direction and two opposing arrows.

Diagram of a mechanical component with labeled point A and rotational arrow (no text or symbols)

Diagram showing a device with a prohibition symbol and a magnified circular component labeled A

■ 防塵防濺

Technical diagram of a mechanical component with numbered parts labeled 1 to 5

1 鏡頭表面
2 對焦環

設為MF時，轉動聚焦環可進行對焦。

Diagram of a cylindrical mechanical component with two opposing arrows indicating rotational direction (no text or symbols)

Mechanical component diagram showing a pipe joint with a circular arrow and labeled point A (no text or symbols beyond label)

■ 取下鏡頭遮光罩

Diagram showing a device with a prohibition symbol and a magnified circular component labeled A

防尘防溅

Technical diagram of a mechanical component with numbered parts labeled 1 to 5

1 镜头表面
2 聚焦环

设置为MF时，转动对焦环进行对焦。

Diagram of a cylindrical object with two opposing arrows indicating rotational motion (no text or symbols)

■ 安装镜头遮光罩

Mechanical component diagram showing a threaded pipe with a circular arrow and labeled point A (no text or symbols beyond label)

Diagram showing a device with a prohibition symbol and a magnified circular component labeled A

Technical diagram of a cylindrical mechanical component with numbered parts labeled 1 to 5

Diagram of a cylindrical object with two opposing arrows indicating rotational or flow direction (no text or symbols)

Mechanical component diagram showing a threaded pipe with a circular annotation labeled 'A' (no text or symbols beyond label)

Manufactured by: Panasonic Corporation

Kadoma, Osaka, Japan

Importer for Europe: Panasonic Marketing Europe GmbH

Panasonic Testing Centre

Winsbergring 15, 22525 Hamburg, Germany

Panasonic Corporation

Web Site/Site Web: http://www.panasonic.com

パナソニック株式会社 アプライアンス社

© Panasonic Corporation 2019
