L2645WDH - Monitor DGM - Free user manual and instructions

Brand	DGM
Model	L2645WDH
Product Type	26" TFT LCD Monitor
Screen Size	26 inches (diagonal)
Native Resolution	1920 x 1200 pixels
Vertical Frequency	Up to 60 Hz
Input Connectors	VGA (D-Sub 15-pin), DVI-D*, HDMI*
Audio	Audio input 3.5 mm jack, built-in speakers (optional)
Power Supply	100-240 VAC, 50/60 Hz (built-in)
Power Consumption	Active < 100 W, Standby < 2 W
Dimensions (W x H x D)	606 mm x 492 mm x 270 mm
Net Weight	8.9 kg
Operating Temperature	5 °C to 40 °C
Operating Humidity	20% to 80% (non-condensing)
OSD Functions	Brightness, contrast, phase, clock, position, color temperature, volume, source, reset, etc.
Maintenance and Cleaning	Use a dry, soft cloth. Do not use solvents.
Safety	Do not open the monitor, avoid liquids, do not expose to heat.
Repairability	Contact a dealer or authorized service center.
Certifications	UL/CUL, FCC, CE
PC Compatibility	Up to 1920x1200@60Hz

Frequently Asked Questions - L2645WDH DGM

How to adjust brightness and contrast?

Press the Menu button to open the OSD, then use the + and - buttons to navigate to the BRIGHTNESS and CONTRAST options. Adjust with the + and - buttons.

How to clean the monitor screen?

Use a dry, soft cloth. Never use solvents such as alcohol, thinner, or benzene. Avoid touching the screen with your fingers.

What to do if the screen remains black?

Check that the monitor is on (blue LED). Make sure the power cable and video cable are properly connected. If the LED blinks, the monitor is in power-saving mode: move the mouse or press a key.

What cables are included in the package?

The package includes: power cable, VGA cable, audio cable (optional), DVI cable (optional), HDMI cable (optional) and user manual.

How to change the input source (VGA, DVI, HDMI)?

In the OSD menu, navigate to SOURCE and select the desired input (VGA, DVI or HDMI). Note that DVI and HDMI are optional.

How to adjust the image position?

In the OSD, use H-POSITION for horizontal shift and V-POSITION for vertical shift. Adjust with the + and - buttons.

Sound does not work, what to do?

Check that the audio cable is connected between the PC and the monitor. In the OSD, adjust the VOLUME. Note that the speakers are optional.

How to reset to factory settings?

In the OSD menu, select RESET and confirm. All settings will return to default values.

How to change the OSD menu language?

Press the Menu button, go to LANGUAGE and choose the desired language from the available options.

Does the monitor heat up normally?

Some heat is normal. Make sure the ventilation openings are not blocked. Do not place objects on the monitor.

USER MANUAL L2645WDH DGM

Front view of a modern flat-screen computer monitor (no visible text or symbols)

L-2645WDH 26" Wide Screen LCD Monitor

English 4

◇ Notice....4
◇ Safety Information....4
◇ Precaution....4
◇ Package Contents....4
◇ Hardware Installation ....5
Input 5
◇ Control Buttons....5
◇ OSD (On-Screen Display) Menu Mode....6
◇ Troubleshooting....7
◇ Supported Timing....7
◇ Specification....8

繁體中文....9

• All Information in this manual may change from time to time without prior notice.
• To ensure safety operation of this product, please read the following menu carefully before using this product.

◇ Safety Information

• Do not place anything wet on the monitor or the power cord.
• Be sure to turn the monitor off before plugging the power cord into the socket.
• Be sure to check the power cord and the other cords are securely and rightly connected.
• Do not attempt to open the monitor. You may be hurt by electric shock. For service, call your place of purchase.

◇ Precaution

• Do not expose the monitor to direct sunlight or heat.
• Do not spill liquid on the monitor.
• Do not use your monitor when magnets or electronic products are operating nearby.
• Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen. Wipe it with clean, soft clothes applied with mild solution.
• Do not place anything on your monitor. Bad ventilation may elevate temperature in the monitor.
• Do not use your fingers to touch the LCD Screen directly. Fingerprint that contains oil and may be difficult to clean.

◇ Package Contents

Our LCD monitor contains these following items. Make sure you get items listed below, otherwise contact to your dealer or store.

1. 26" LCD Monitor
2. Power Cord
3. VGA Cable
4. Audio Cable * Audio function is optional.
5. DVI Cable * DVI cable is optional.
6. User's Manual
7. HDMI Cable * HDMI cable is optional.

◇ Hardware Installation

Be carefully to your LCD monitor, it's very exquisite but easy to broken. Turn off LCD's and PC's power before you set it up. Follow our installation step by step.

Input

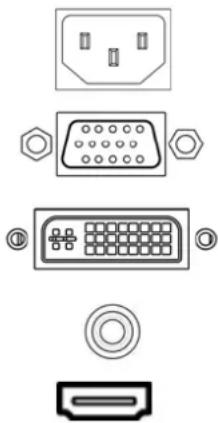

Diagram showing various electronic component symbols including a socket, connector, and ports (no text or labels present)

AC input: This is for connecting the power cable.

VGA port:

This can be connected with the D-Sub 15 pin signal Cable.

DVI port: This can be connected with the DVI signal Cable.

Audio In: This can be connected to the PC audio-out connector of sound resource.

HDMI Port : High-Definition Multimedia Interface

*NOTICE: DVI, HDMI and Audio functions are optional features.

◇ Control Buttons

There are 5 keys for user to set up the monitor, including "Auto Adjust", "OSD menu", "Power", "Adjust <->", "Adjust <+)". The following descriptions are the introduction of these Keys.

Auto Adjust (Function)

A Function Select Button: This button allows you to select the control functions up in the OSD.

Hotkey: Press this button to apply the monitor setting automatically.

Menu (Function)

M Function Select Button: This button allows you to select the control functions down in the OSD.

Hotkey: Press this button to get a pop-up OSD menu.

Power: Turn the LCD power on and off. When the power is on, the light is showing blue, Stand by will be flash.

- Adjust <->: Decrease the option value in the OSD menu.

+ Adjust < + >: Increase the option value in the OSD menu. Switches DVI and the RGB signal

◇ OSD (On-Screen Display) Menu Mode

Press the OSD button to access menu, and press Increase / Decrease button for adjustment.

BRIGHTNESS	Adjust the brightness of the display.
CONTRAST	Adjust the difference between light and dark area.
PHASE	The phase of the dot clock is adjusted.
CLOCK	The ratio of dividing frequency of the dot clock is adjusted.
H-POSITION	Adjust the horizontal position of the display.
V-POSITION	Adjust the vertical position of display.
RESET	Recall the default setting.
COLOR TEMPERATURE	Adjust the color temperature.
RED	Adjust the Red color temperature.
GREEN	Adjust the Green color temperature.
BLUE	Adjust the Blue color temperature.
LANGUAGE	Select the display language of the OSD Menu.
MISCELLANEOUS	“No” will take you to the exit menu. “Yes” will bring you to the sub menus of the Miscellaneous menu.
EXIT OSD	Saving and Leave.

MISCELLANEOUS

RETURN	Return to main menu.
OSD H-POSITION	Adjust the horizontal position of the OSD.
OSD V-POSITION	Adjust the vertical position of the OSD.
OSD DURATION	Adjust the timing of the OSD menu.
AUTO COLOR	Adjust the color automatically.
VOLUME	Increase or decrease the sound volume.
SOURCE	Select input Video source: VGA , DVI or HDMI

Notice: * Source is optional feature.

Troubleshooting

Make sure that your monitor is properly installed if you have encountered any trouble using this product.

There is no picture on the screen.

Check: 1. Power saving mode. Press any key and move the mouse to deactivate the mode.
2. Signal cable connector pins. If there are bent or missing pins, consult your place of purchase.

· Characters look too dark or too light

Check: Using OSD Menu to adjust the Brightness.

When your monitor shall be adjusted?

Check: If the resolution of frequency is being changed.

. The text appears on the screen are unclear.

Check: Make sure the resolution or refresh rate match with the Display Mode.

Notice: * DVI, Speaker and HDMI are optional.
◇ Supported Timing

Display Mode
Resolution Vertical Frequency (Hz) Horizontal Frequency (KHz)
640x350	70.08
640x480	59.94
720x400	70.08
800x600	56.25
800x600	60.32
1024x768	60
1280x1024	60
1280x800	60
1440x900	59.88
1680x1050	59.95
1600x1200	60
1920x1200	59.95
Input Signals	VGA	VGA compatible analog RGBComposite sync supportedDDWG compliant Single Link TMDS Digital VisualInterface (DVI)High-Definition Multimedia Interface*
	DVI*
	HDMI*
Compatibility	PC Up to 1920X1200@60Hz(Non-interlaced)
Connector	VGA	D-sub 15-pins
	DVI*	DVI-D*
	Audio*	Stereo Phone Jack
	Power	A/C Input
	HDMI*	HDMI*
Power	Voltage	Built-in universal power supply:100-240 VAC, 50/60 Hz
	Consumption	Active < 100 Watt Max.
	Power saving mode	Standby < 2 Watt
Internal Speaker	Speaker x2 *
User Interface	LED Indicator Active	BlueStandby - Flash
Operating Condition	TemperatureHumidity	Operating: 5 to 40°C °C20% ~ 80% R.H.
Dimensions	Physical 606mm(W) x 492mm(H) x 270mm(D)
Net Weight		8.9 Kg
DDC		DDC2B
Power Management		VESA DPMS
Regulation (Certifications)	UL/CUL, FCC, CE
