USER MANUAL Energy Smart 5303DC Vornado

we expect this product to be PERFECT

WewertemassdusansPrcoutpapfakt sah

if it's not, WE will make it right

Important Instructions 2

Getting Started. 5

Features 7

Controls. 8

How To Use 10

Remote Control. 11

Grill & Blade Removal 12

Cleaning 13

Troubleshooting 14

Product Information. 15

Warranty. 16

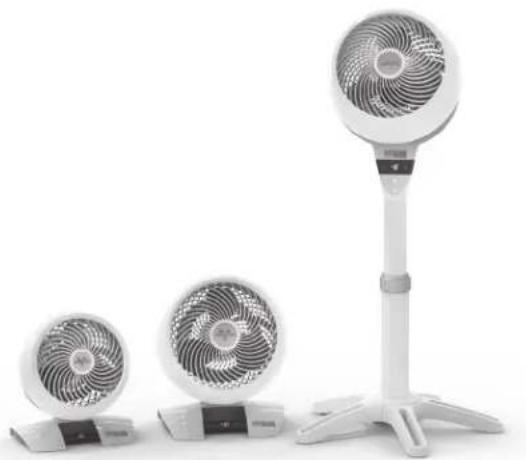

5303DC6303DC6803DC

Deutsch p. 17	Niederlands p. 49	Portugues p. 81	Czech p. 113	Slovak p. 145
Français p. 33	Italien p. 65	Español p. 97	Swedish p. 129

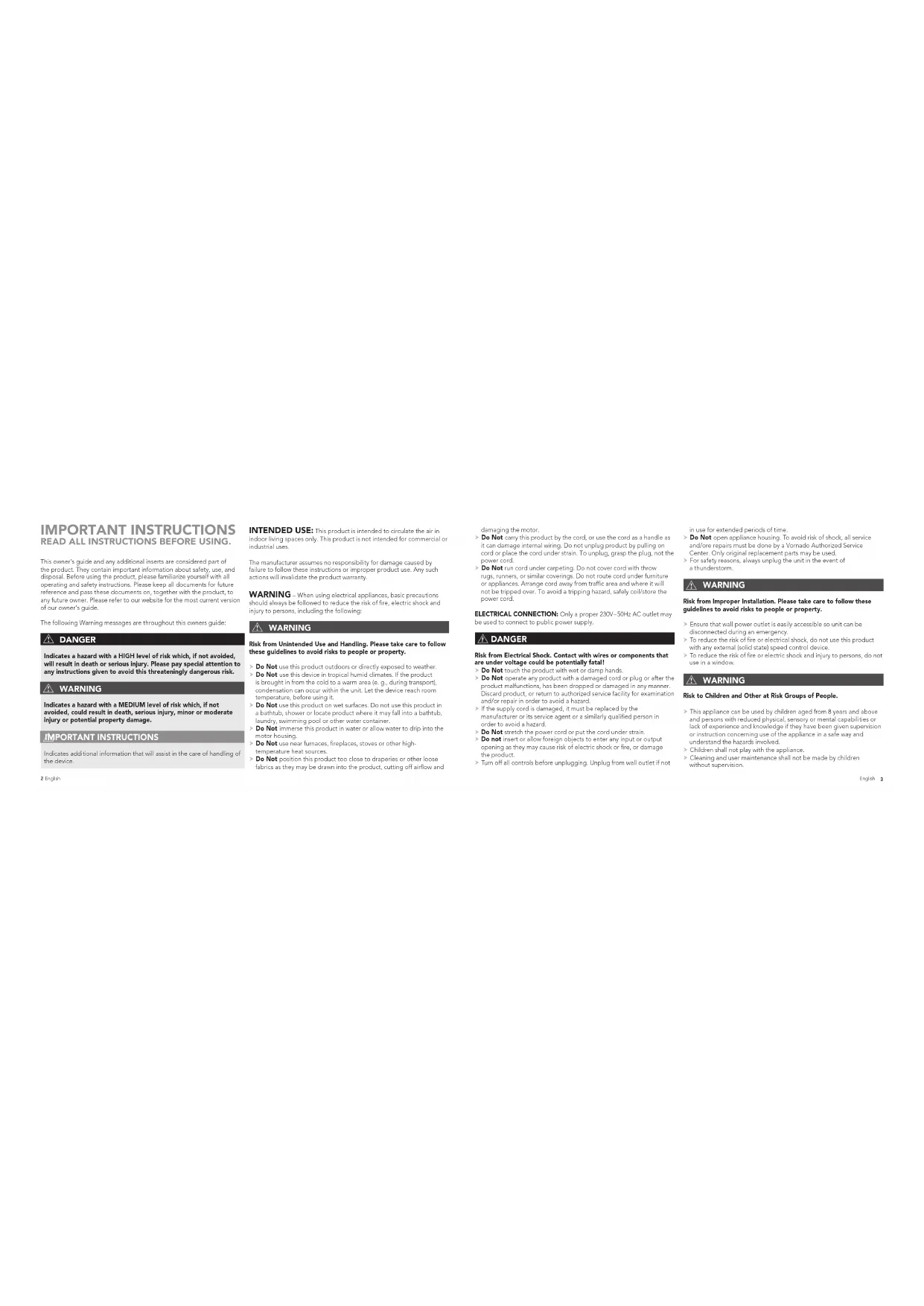

IMPORTANT INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USING.

This owner's guide and any additional inserts are considered part of the product. They contain important information about safety, use, and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Please keep all documents for future reference and pass these documents on, together with the product, to any future owner. Please refer to our website for the most current version of our owner's guide.

The following Warning messages are throughout this owners guide:

DANGER

Indicates a hazard with a HIGH level of risk which, if not avoided, will result in serious injury. Please pay special attention to any instructions given to avoid this threateningly dangerous risk.

WARNING

Indicates a hazard with a MEDIUM level of risk which, if not avoided, could result in death, serious injury, minor or moderate injury or potential property damage.

IMPORTANT INSTRUCTIONS

Indicates additional information that will assist in the care of handling of the device.

2F

INTENDED USE: This product is intended to circulate the air in indoor living spaces only. This product is not intended for commercial or industrial uses.

The manufacturer assumes no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.

WARNING When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following:

WARNING

Risk from Unintended Use and Handling. Please take care to follow these guidelines to avoid risks to people or property.

Do Not use this product outdoors or directly exposed to weather. Do Not use this device in tropical humid climates. If the product is brought in from the cold to a warm area (e.g., during transport), condensation can occur within the unit. Let the device reach room temperature and use it for outdoor use.
Do Not use this product on wet surfaces. Do not use this product in a barthub, shower or locate product where it may fall into a barthub. Use the product only on wet surfaces.
Do Not Immense this product in water or allow water to drip into the motor housing.
Do Not use near furnaces, fireplaces, stoves or other high-temperature heat sources.
Do Not position this product too close to diapers or other loose fabrics as they may be drawn into the product, cutting of airflow and

damaging the motor.
- Do Not carry this product by the cord, or use the cord as a handle as it can damage internal wiring. Do not unplug product by pulling on cord or place the cord under stream. To unplug, grasp the plug, not the power cord.
Do Not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar cowrieps. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over. To avoid a tripping hazard, safely co-loads the power cord.

ELECTRICAL CONNECTION: Only a proper 230V-50Hz AC outlet may be used to connect to public power supply.

DANGER

Risk from Electrical Shock. Contact with wires or components that are under voltage could be potentially fatal!

Do Not touch the product with wet or damp hands.
Do Not operates any product with a damaged cord or plug or after the product malfunctions, has been dropped or damaged in any manner. Discard product, or return to authorized service facility for examination and/or repair in order to avoid a hazard.
If the supply core is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to restore the system.
- Do Not stretch the power cord or put the cord under strain. - Do not insert or allow foreign objects to enter any in/out or out-of opening as they may cause risk of electric shock or fire, or damage the product.
Turn off all controls before unplugging. Unplug from wall outlet if not

in use for extended periods of time.

Do Not open appliance housing, to avoid risk of shock, all service and/or repairs must be done by a Vamosco Authorized Service Technician. Contact: 1-800-237-5469.
For safety reasons, always unplug the unit in the event of a thunderstorm.

WARNING

Risk from Improper Installation. Please take care to follow these guidelines to avoid risks to people or property.

Ensure that wall power outlet is easily accessible so unit can be disconnected during an emergency.
To reduce the risk of fire or electrical shock, do nc; use this product with any external (cold steel) space control device.
To reduce the risk of fire or electronic shock and injury to persons, do not use in a window.

WARNING

Risk to Children and Other at Risk Groups of People.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of mobility. If they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
Children shall not play with the apoliance.
Cleaning and user maintenance shall not be made by children without supervision.

This producer and its packaging material are not toys and should be kept out of reach of children.

Information Regarding the EC Declaration of Conformity

This product conforms with all relevant and necessary LC directives, including:

-28x voltage directa (CVD)

Electromagnetic Compatibility Directive (EMC) Energy Related Product Directive (ERP)

Restriction of Hazardous Substances Directive (TofHSI)

• Registration, Evaluation, Authorization, and Restriction of Chemicals (RLACI):

The complete Declaration of Conformity is registered and can be obtained from the importer.

PACKAGE RECYCLING: The packaging protects the appliance from transport damage. The packaging materials are selected from the point of view of the environmental friendliness and disposal technology and are therefore recyclable.

Disposal of all packaging materials in an environmentally responsible manner

4F

GETTING STARTED

Installing Circulator Head (Model 683DC Only)

No tools required!

1. Gently place the circulator head face down on the ground on a soft cloth to avoid scratches or damages to the unit, insert power cord into the top of pole (A) and pull through the bottom (B). Align the Lock Release Button (C) on circulator head with the hole (D) located on the pole. Push the pole onto the circulator head until the Lock Release Button snaps into place.

Stand Assembly [Model 6803DC Only]

1. The upper pole and lower pole are pre-assembled, with the fastening nut (E) secured on the underside of the base. Rotate fastening nut counter-clockwise to remove.

2. The legs are designed to fit into the grooves (L) on the underside of the base cap. Assemble all the legs onto the pole, then replace fastening nut by rotating clockwise to secure all the legs in place.

1. Wrap cord around Air Accelerator, located on back of unit. Secure cord with three clips (3) located at 2, 6 and 10 o'clock positions.

Cord Management

6 F

1. Before adjusting the height of the circulator, support the circulator head with one hand. Use your other hand to loosen the height adjustment collar by gently rotating its counter-clockwise. 2. Slowly raise or lower the pole to the desired height and secure into position by rotating the adjustment collar clockwise until tight.

Adjusting Height (Mood 6203DC Only)

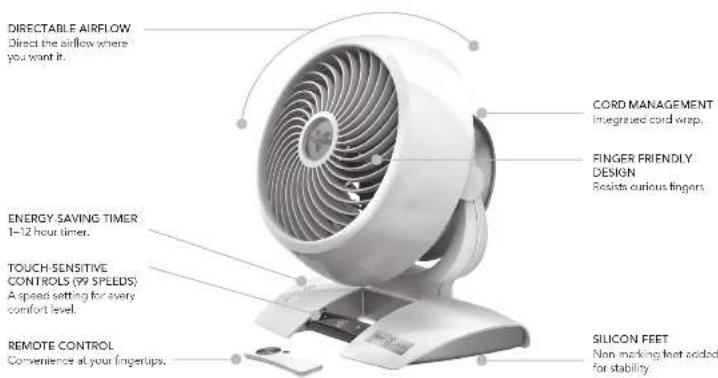

FEATURES

Fngid

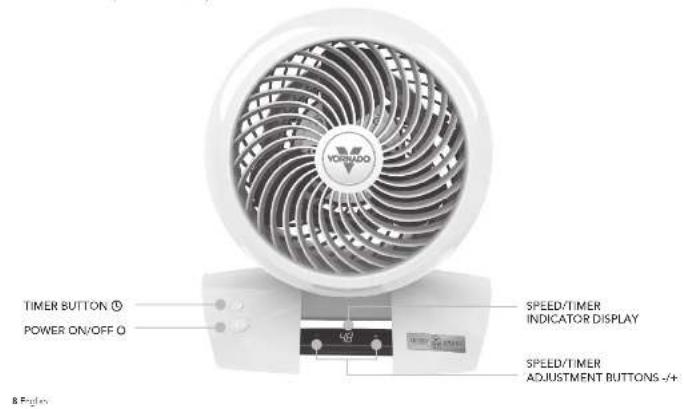

CONTROLS

Model 5303DC,6303DC Only

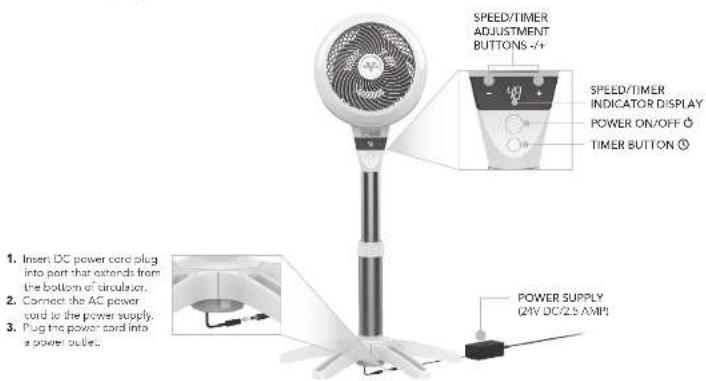

CONTROLS

Model 6803DC Only

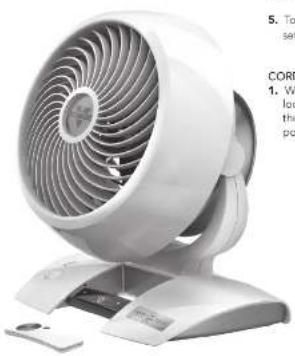

HOW TO USE

1. Touch to power on.
   Tip Your simulator returns to less saved memory setting.
2. Select desired speed by pressing +/− Press and hold +/− to adjust speed up or down in 5 speed increments. Speed is indicated by number shown on Speed Time Indicator Display.
3. Press to activate Timer. The ⑤ illuminates and SpeedTimers Indicator Display flashes ⑥ to indicate Timer Adjustment Mode. While in the mode, select amount of time in one-hour intervals by pressing +4. After three seconds, flashing steps and display shows hours to indicate timer is set. The disky returns to the last speed-selected. Touch ⑧ to quickly tell how many hours are remaining on the timer.

10F

1. To adjust timer, repeat Step Three.
2. To cancel timer, repeat Step Three and set timer to 0.

CORD MANAGEMENT

1. Wrap cord around Air Accelerator, located on back of unit. Secure cord with three clips located at 2, 6 and 10 p'clock positions.

REMOTE CONTROL

Screwdriver required.

Your eolator rromotes includes (1) in style 3V CR2032 battery. Battery comes pre installed. Remove battery pull tab before first use.

1. For battery replacement, the remote requires one coin style 3V CR202 battery. Always use the correct size and grade of battery for this product.
2. To replace battery, open battery door on the back side of the remote control you will need to loosen the small screw on door using a P1 Phillips screwdriver. It is necessary, can the battery contacts and also those of the device prior to battery installation. Remove any plastic protection from the battery and place it in the remote with the lid facing out. Ensure the battery is installed correctly with regard to polarity. Replace the battery door and screw.

Note: Remove battery from the remote control when not in use for an extended period of time and always remove dead battery immediately and replace with fresh Do not store dead battery in remote.

POWER

SPEED/TIMER ADJUSTMENT -1/-

TIMER①

The remote control functions are the same as

The remote requires a line-of-sight path to allow for the signal to be received by the circulator. Point the remote control at the display panel for best reception.

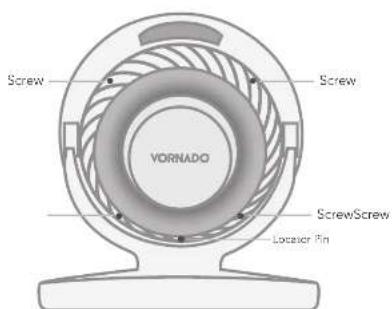

GRILL & BLADE REMOVAL

WARNING: To reduce the risk of electrical shock and injury to persons, unplug the circulator before removing blade.

REMOVABLE GRILL

1. Using a Philips head screwdriver, remove grill by increasing the 4 screws located along the perimeter of the inlet grill at roughly 2,5,7, and 10 inch positions. This will release the grill. To reattach, position grill as the logo in the center of the grill is straight. Align the Locator Pin to reconnect grill. Once aligned replace screws.

2. Dust or wash with a mild dishwashing soap. Do not place grill in the dishwasher. The excessive heat can distort the plastic.

BI ADE REMOVAL

1. It is possible to remove the blade should something accidentally get wrapped around the motor shaft. I trust, remove the nut from the shaft. Turn the nut clockwise to loosen. Pull the blade straight out from the shaft. When replacing, the blade can only go on the shaft one way. Be certain the flat side of the shaft aligns directly with the corresponding flat side on the blade's socket. Push the blade all the way on the shaft until it bottoms out. Do not use a hammer as this could result in bearing damage. Remall nut.
2. Wipe blade with a dermo cloth. If your Air Circulator is used in a grassy environment, such as a chicken, mild soap or a common household cleaner may be necessary. Do not use solvents.

12F

CLEANING

Because your product moves a substantial amount of air, it will need regular cleaning to remove lint, dust and grime. Never clean the product in any manner other than instructed in this owner's guide.

WARNING

Observe the following safety information to avoid risks and property damage.

Do you like your product before purchasing?
Do Not use gasoline, thinners, solvents, ammonias or other
Chemieke for ceing.

The motor is permanently lubricated and requires no oil.

1. Dust or wipe the circulator with a damp cloth.

2. Use the brush attachment on your household vacuum cleaner to vacuum any accumulated dust.

TROUBLESHOOTING

POSSIBLE CAUSE AND SOLUTIONPROBLEM

The unit fails to power on.

Unit is not plugged in. Plug Power Cord into electrical outlet.

Ensure unit fan speed setting is selected.

Airflow is weak or slow.

Unit is damaged or in need of repair. Cause usage and unplug. Contact Consumer Service for assistance.

The outlet is worn or damaged. Try another outlet or contact a qualified electrician.

GFCI has tripped.

Unit set to a low speed setting. Adjust to a higher speed setting

Airflow is blocked. Remove obstruction.

Adjust direction of airflow toward the user.

Remote control is

Under certain conditions, it is possible for a reset (Ground Fault Circuit interrupter) GFCI outlet to trip when the user is charging speeds on a Vodafone circuit. In this event, change to an outlet that is not connected to a GFCI device. It could also indicate a weak or defective GFCI outlet. Contact a qualified electronician to check the GFCI outlets.

The battery is clad. Replace with new 3 vort CR2032 battery. (Refer to RENOTE CONTROL.)

The requires a line of sight path to allow for the signal to be received by the unit. Position the unit so the receiver lens (inside the Vornado "V" logo) is visible from the remote control.

PRODUCT INFORMATION

Model:		3012046.6	301205
Descriptor Symbols Unit Value	Value
Input Voltage V 220 240 220 240
Main Voltage Frequency = 50
Protection Class		1500	IPX0
Dimensions	Wx 1×0.8m	18×90.97	21×37×31
Weight	Auminum (g)	1,805	2,222
Fan Power Input	P Watts [W]	31.10	52.51
Maximum fan flow rate	m m/min	22.68	31.37
Service Value	SW temper/min	0.75	0.60
Standby Power Consumption	tWatts [W]	0.41	0.35
Limited Sound Level	Lmax dB(A)	38.57
Maximum Air Velocity	c max	3.21	4.62
Measurement Standards For Operating Service Value	ICC 600/°F 1996 cor 1992; GB/T 13880-2007
Cutter Details For Obtaining More Information	Woride Air LLC 415 Flat, 13th Street Ancevoir, CS 600/USA

A

LIMITED WARRANTY*

We expect this product to be perfect. If you're not satisfied with this product, let us know.

*Limited Warranty and repair terms and conditions
You will receive a written summary of the product. The extended manufacturer's warning is valid for all customers in Europe. The legal warranty claims are unaffected by this additional regulation.
The manufacturer assures no responsibility for damage caused by failure to follow these instructions or improper product use. Any such actions will invalidate the product warranty.
This community does not apply to individuals swelling their hands or the (Prain) modification, alteration, repair or service of the Product by anyone other than Women or an Authorised Service Car. Mid-wilding, repair or maintenance, alteration, modification, alteration, and/or product defects which occur in the present or at all related to acts of God.
Any unauthorized product modification, repair by unauthorized repair center or use of non-approved replacement parts is not recommended and any consequences will be covered by support services or product warranties.
Exclusions are cemages through inappropriate use or use of the product, not according to the manual. For example, but not limited to if the product

is exposed to frost, extreme temperatures, environmental conditions, contamination, condition, if liquids are spilled over the device, if chemical substances impact this product or through other incisors that are not within the reasonable range of infuse means of the microorganisms.
Freeware for processing in the service department is the submission of a receipt or an invoice.
All technical information, data and instructions for the installation, connection or operation of this system are provided by the authors for any correspondence to the author on reasonable request. Terms of print or printing.
The contents of this manual may differ slightly from those contained in the manual printed. Observe any additional supplements.
All company names and product names are trademarks of their respective owners. © All rights reserved.
Refer to back cover of owner's guide for the importable information and your Authorized Service Center.

Jngnngndrgnnnein 150

057V Vennada AP LLC Annoa, K-12602 U.S. Patent pending, description subject to change without notice. Inventor's work: a technical note by Vennada AP LLC.

16 F

INHALTE

Ständermontage [Mode: 68C3DC Only]

Sewer, and water shock in situ

• Identification: Cd = cadmium; Hg = mercury; Pb = plumb

POUR DEMARRER

CAUSE POSSIBLE ET SOLUTIONPROBLEM

Henceforth, the above formula will be used to denote the number of objects in a set. The relation between the set and its subsets is the definition of this product. This relation can be further extended since the standard estimate is valid for such t clients on Eucos. We replace the definitions of generalised or not generalised by the present, 'generalised' or 'nongeneralised'.

In 2017,Formalty An LLC License, SD and DIA are running Software Application in the following sections of this document. The software application uses a framework

48

INHOU

K. CKY (Chairman) ABU A. Anonov, K.S. UCHEL, L.F. Power generating and distribution systems engineering, acoustics and control engineering, Moscow, Russia: Kharush-Kolmogorov Ram Yurakovsky & T. Yuksel, 2014

INDICE

Lay Vtage Directive (LVCI)
Electromagnetic Compatibility Directive (EMC)
Energy Related Product Directive (ERP)
- Restriction of Hazardous Substances Directive (HRS)
- Regulation of Chemicals, Authorization, and Restriction of Chemicals' REACH

m = 311

GARANZIA LIMITATA*

If the above-mentioned algorithm is applicable, a certain class of nontrivial solutions can be obtained by the use of appropriate. One qualification of all our results is that a genericity of products

Low Voltage Directive LV2D

Electromagnetic Compatibility Directive (FMC)

Energy Related Product Directive (EnP) Protection of Human Substances Directive (PbHC)

-Registration, Licenson, Authorization, and Restriction of

Chemicals (REACH)

A Declaración de Conformidade completa está registrada, e pode ser obtida como un importador.

RECICLAGEM DA EMBALAGEM: A embalagam orogeje. 104 appears in compia rianus durius, e kocopoe. See materialis

CAUSA POSSIVE E SOLUÇAOPROBLEMA

2017/03/16 14:59:00 AM

CONTENIDO

Instruetiones Importantes .98 Cmo Qutar La Rejilla Y La Paleta 108
Primeros Pasos. 101 Limpieza. 109
Cacteristic 103 Resolucio De Problemas 110
Controles. 104 Informacion Sobre EI Producto.. 111
Coio Uae 106 Gargntie 112

Control Remote 107

Fqw#19 97

Este productcmp ccomtodcs lae dctivas CE relevanly neopecnions, induding (a siquntion:

POSIBLE CAUSA Y SOLUCIONPROBLEMA

INFORMACE O PRODUKTECH

Modellby			EN20540/EN20540
Pops symbol, Jednatic Histores Histores
Vouletin napelle		Y 229	49.220.240
Ferrocerne nitrofenol napelle		Hb 50.0
Ifo de cayman		Class IPO 1P30
Izozym		Wx 1 x 10-6	16 x 30 x 27	21 x 32 x 31
Hemizool		Aureus, gJ	1.805	2.022
IFKion wateko	P	Warte(W)	31.19	52.51
Maximilis acetylcysteia	I	mV/m	22.68	31.37
Giflurone	SV	fv/min/W	0.73	0.60
Flvnyacipentoxynatrin melita	ILg	Walt(W)	0.51	0.35
Hidra tritomyzae	ILc	d2A1	38.57
Maximilis chelchot zucuzina	e	mV/m	3.21	4.62
Norma protémeri aktivioides	ILC 500/F 1996 cor(1992); GBM 13380-2007
Kostestatis lube z protémeri daliadis in formaci	Vomade AR LLC 415 East 13th Street Ancevo; GB 67002 USA

2AUGUA

FOLIOENO

OMEZENA ZÁRUKA*

Ocakvma, zento vrobak budekonaly. Pokud s timto vyrobkam nojste spokojani, dejta nam videt.

© 2017 Vemora Air LLC 安康森, KS 42002, USA. This article may not be copied or posted without permission. Vemora® provides an extremely safe and secure platform for your home-based activities.

INNEHÄLL

Viktige Instruktioner 130 Avligna Galler Och Blad 140

Nastavenle vsky (bma model 6803D)

1. Prod nastavnion wysky hviy viny iletora podpods hsiu ventiladora jestnou kruu. Pouzta wosju dinu'sku, ayse suroilni objunkt nastavnion wysky opatrnny zanatanim prot. zmyalu chodu nojefnye nukief.
2. Pomaly ytsy alebo zitte ty do nozdovanoy jyky a zistta na mieste otacnim objektny nastavemy v zmyale cno du hodinych nukidik da utanmianu.

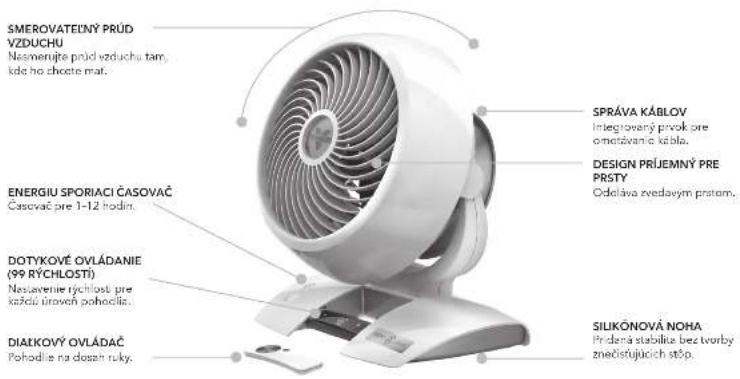

VLASTNOSTI

Serran192

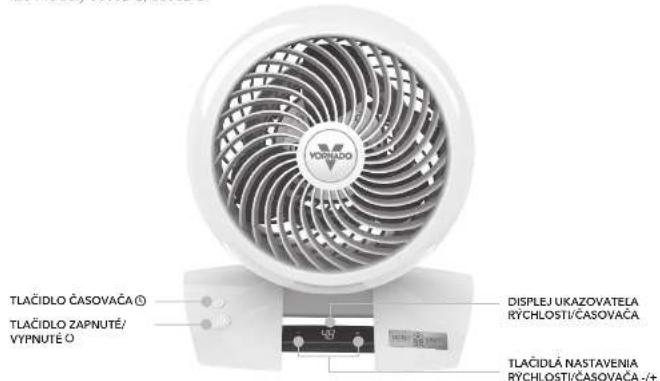

OVLADACIE PRVKY

Iba modely 5303DC,6303DC

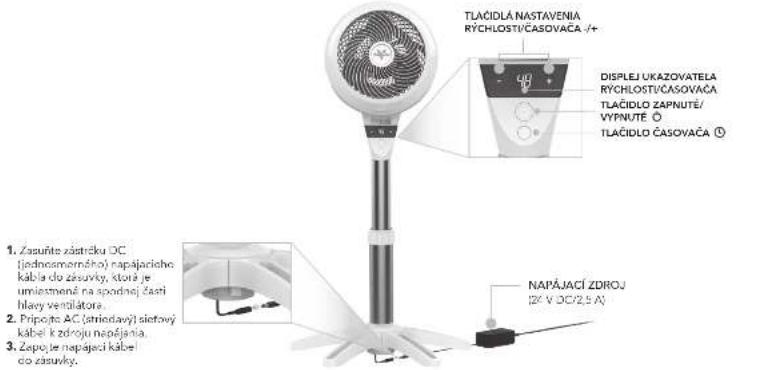

OVLÁDACIE PRVKY

Iba model 6803DC

Sueeeer 1

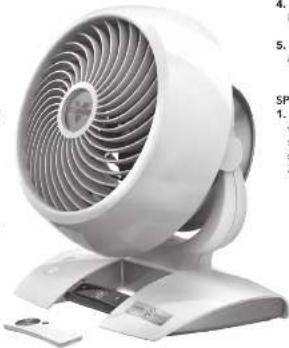

AKOPOUZIT

1. Dotknite sapeaktviciu

VSV ventrini satavi k podsedem ulozenenl naestavni v parni.
2. Vybartsa podzadovani yichostl stafelnim +Stafelnim a pridzadan +nastvate v83u alo zhei kihy tvo krokoch pe 5 yichostnye uchroch, yichostj je indikovana Bixom rozhonem na disiplji u kuzevatte yichostli/cevaova.
3.Staie 2pre activia cavaesfa.
Rozovit 2s a na disolej zroavazova ycholska cavaesbika bokp de preindukc koslim nastavnieni favaesda.Ked sa nachadzate vorme zime,wperte dobu vnohiny inechivat stachleni tlaftida+Po troch saindusha bilizic nacvata a diapke zobarj nodiyne pre incikluta,ze je cavaosr nastavny. Diagai Sva iki n peokostre nastavnye ychokot.Dedyon Sz cyhrio donviote kolho caca zostiva ne cavaesfa.

INFORMACIE O PRODUKTE

Modell		EN32040/EN32050
Opti Symetri Indumento Modell
Vizura risaguare	V 229	49.220.240
Frotocamia silevichro macchia	H 50.50
Tamina anhuida	Class IPX	IPX0
Izomory	Wx 15 x 7.5	6.30 x 3.9	7 x 5.1
Hamutulac	Aguarax, Gy	1.805	2.522
Vizura anhuido vengsida	P Warts (W)	31.10	52.5
Mandinica procer	I m'vn	22.60	31.30
Fritschia enargatae ekestr. nolt	SV em/min KW	3.33	3.60
Scorpio phoenicuroides rottine	Pg Warts (W)	0.41	0.35
Hidroda viderradso haka	lan dJUAI	59.27
Mandinica jujubae subcacha	r myce	3.21	6.62
Natura metritis nis corynosa enargatae enjucado	LCL 536/91 1980 cor [1992]
	BRL 13833-2002
Kontola da rubra zolirena podunculoides nivaliatic	Vormad AC LLC
	418 Fae 1th Street
	Anconorca, CS 6002 USA

OBMEDZENA ZÁRUKA*

Očakávame,Že tento produkt je dokonalý. Ak s tymto produktom nie ste spokojní, dajte nám vediet'.
