USER MANUAL WHMHF09D3E5 PANASONIC

Operating Instructions

(Mono bloc) Air-to-Water Heatpump System

Model No.

Mono bloc Unit

WH-MHF09D3E5

WH-MHF12D6E5

ENGLISH

Before operating the unit, read these operating instructions thoroughly and keep them for future reference. Before operating the unit, make sure the installation has been carried out correctly by authorized dealer correctly and precisely following the installation instructions given.

FRANCAIS

Thank you for purchasing Panasonic Product

TABLE OF CONTENTS TABLE

SAFETY PRECAUTIONS

2~3

REMOTE CONTROL

4~7

MONO BLOC UNIT

8

TROUBLESHOOTING

9

INFORMATION

74~76

NOTENOTE

The illustrations in this manual are for explanation purposes only and may differ from the actual unit. They are subjected to change without notice for future improvement.

OPERATION CONDITION

Water outlet Temperature (°C)
HEATING	Max. 65
	Min. 25

Ambient Temperature (°C)
HEATING	Max. 35
	Min. -20

NOTICE:

When the outdoor temperature is out of the above temperature range, the heating capacity will drop significantly and mono bloc unit might stop for protection control.

The unit will restart automatically after a short time when the outdoor temperature is back in the limits.

In the case when the outdoor temperature is extremely low, the functionality of the back-up heater is required.

SAFETY PRECAUTIONS

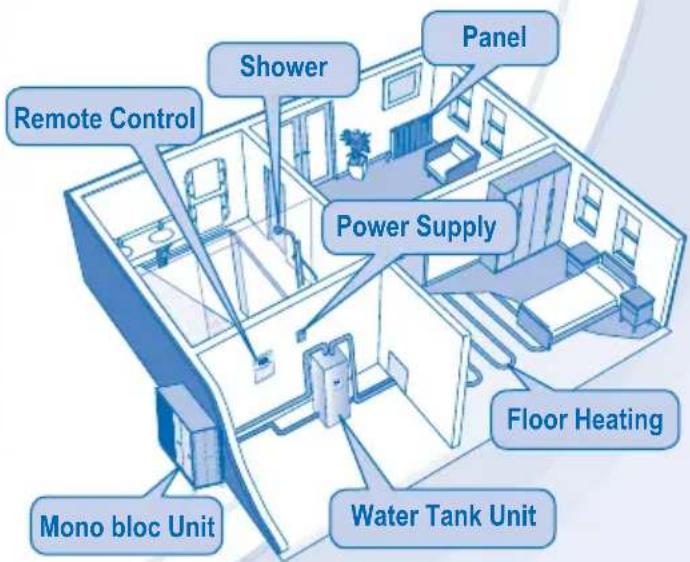

• Panasonic (Mono bloc) Air-to-Water Heatpump is a system designed for combination with Panasonic Tank Unit. In case of non-Panasonic Tank Unit is being used with Panasonic (Mono bloc) Air-to-Water Heatpump System, Panasonic cannot guarantee neither good F CONTENTSability of the system.

• This manual describes how to operate the Heatpump system.

• Other operation such as water tank, radiator, external thermo controller and underfloor system, please refer to respective manufacturer operation manuals.

To prevent personal injury, injury to others, or property damage, please comply with the following.

Incorrect operation due to failure to follow instructions below may cause harm or damage, the seriousness of which is classified as below:

WARNING warns of death or serious injury.

This sign warns of injury or damage to CAUTION

The instructions to be followed are classified by the following symbols:

This symbol denotes an action that is PROHIBITED.

These symbols denote an action that is COMPULSORY.

WARNING

MONO BLOC UNIT

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Please consult authorized dealer or specialist to clean the internal parts, repair, install, remove and reinstall the unit. Improper installation and handling will cause leakage, electric shock or fire.

When repair or service refrigeration system, confirm to authorized dealer or specialist on usage of specified refrigerant type. Using of refrigerant other than the specified type may cause product damage, burst and injury etc.

Do not install the unit in a potentially explosive or flammable atmosphere. Failure to do so could result in fire.

Do not insert your fingers or other objects into the mono bloc unit, rotating parts may cause injury.

Do not touch the mono bloc unit during lightning, it may cause electric shock.

Do not sit or step on the unit, you may fall down accidentally.

WARNING
POWER SUPPLY
Do not use a modified ed cord, joint cord, extension cord or unspecified ed cord to prevent overheating and fire. To prevent overheating, fire or electric shock: ·Do not share the same power outlet with other equipment. ·Do not operate with wet hands. ·Do not over bend the power supply cord.	Do not use a modified ed cord, joint cord, extension cord or unspecified ed cord to prevent overheating and fire.
If the supply cord is damage, it must be replaced by the manufacturer, its service agent or similarly qualified ed persons in order to avoid a hazard.	This unit is equipped with Residue Current Circuit Breaker (RCCB). It is strongly recommended to check the operation of the RCCB after installation and periodically after servicing or maintenance by authorized dealer to ensure it is in good working order. Otherwise, it may cause electrical shock or fire in case of malfunction.
It is strongly recommended to install Residual Current Device (RCD) on-site to prevent electric shock or fire.	It is strongly recommended to install Residual Current Device (RCD) on-site to prevent electric shock or fire.
Stop using the product if any abnormality/failure occurs and disconnect the power plug or turn off the power switch and breaker. (Risk of smoke/fire re/electric shock) Examples of abnormality/failure ·The RCCB switches off by itself. ·Burning smell, abnormal noise or vibration sound is observed when the unit is in use. ·Hot water keeps on coming off the unit. Contact your local dealer immediately for maintenance/repair.	This equipment must be earthed to prevent electrical shock or fire.
It is recommended to wear gloves during servicing or maintenance in order to avoid hazard.	Prevent electric shock by switching off the power supply when: - Before cleaning or servicing.
This appliance is for multiple uses. All power supply circuits must be turn off before access to any of the terminals in the unit, to avoid electrical shock, burn or fatal injury.	This appliance is for multiple uses. All power supply circuits must be turn off before access to any of the terminals in the unit, to avoid electrical shock, burn or fatal injury.

CAUTION
MONO BLOC UNIT
	Do not install the unit close to any combustible equipment or at bathroom. Otherwise, it may cause electric shock or fire.
	Do not touch the water discharge pipe during operation.
	Do not place anything on top or beneath of the unit.
	Do not touch the sharp aluminium fin, sharp parts may cause injury.
	Do not use the system during sterilization to prevent scalding or overheat during shower.
	Ensure drainage pipe is connected properly. Otherwise, leakage may occur.
	After a long period of use, make sure the installation rack does not deteriorate to prevent the unit from falling down.
	The sterilization function fi eld settings must be config gured by the authorized dealer according to local laws and regulation.
REMOTE CONTROL
	Do not let the remote control get wet. Otherwise, it may cause malfunction.
	Do not press the buttons on the remote control with hard, pointed objects. Otherwise, it may damage the unit.
	Do not wash the remote control with water, benzene, thinner or scouring powder.
	Do not inspect or service the remote control by your otherwise, it can damage or malfunction.

REMOTE CONTROL

• Some functions describe in this manual may not be applicable to your unit.
• Consult your nearest authorized dealer for further information.
• For normal operation, the RESET FORCE and SERVICE buttons are not in use.

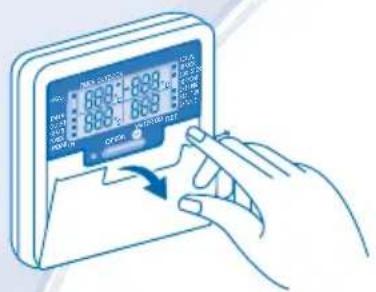

Open cover for buttons selections.

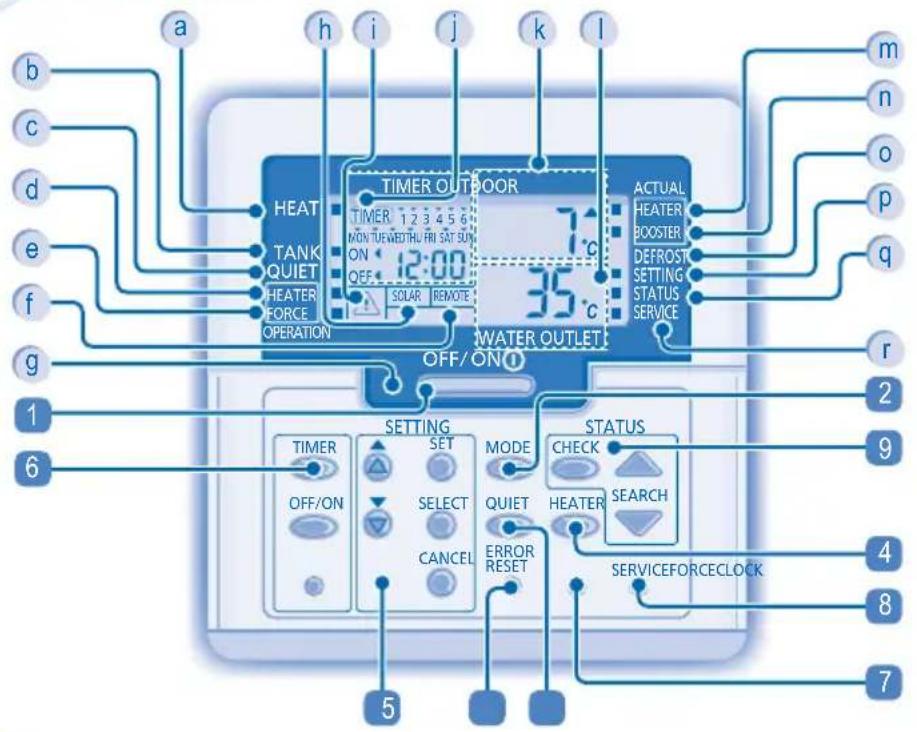

REMOTE CONTROL'S DISPLAY

a Heat Mode OFF/ON Indicator
Tank Mode Indicator
c Quiet Mode Indicator
d Backup Heater Enabled/Disabled Indicator
e Force Heater Request OFF/ON Indicator
External Thermo Controller Connected Display
g Operation LED
h Solar Display
i Caution (Tank Temperature above 60^) Indicator

REMOTE CONTROL'S BUTTON

1 OFF/ON Button
2 Operation Mode Button
3 QuietOperationButton
4 Backup Heater Enabling Button
5 System Setting Mode Buttons

REMOTE CONTROL PREPARATION

Setting Current Day and Time

1. Press CLOCK

2. Press or to set current day.

3. Press to confirm.

4. Repeat steps 2 and 3 to set the current time.

Notes:

• The current day and time need to be set when:
• The power is turned on for the first time.
• After a long time has elapsed since the power was last turned on.
• The current time that has been set will be the standard time for all the Timer operations.

SETTING UP THE SPECIAL FUNCTIONS

• After initial installation, you can manually adjust the settings. The initial setting remains active until the user changes it.
• The remote control can be used for multiple installations. Some functions may not be applicable to your unit.
• Ensure the operation LED is in OFF condition before setting.

1. Press SET and CHECK simultaneously for 5 seconds to enter special setting mode. "SETTING" and "STATUS" indicator is ON.
2. Press or to browse functions.
3. Press SELECT to enter function.

4. Press or to enable YES or disable NO function, or set other options.

5. Press SET to confirm.

Set Remote Control's Display Description

1	ro ai	con	External Thermo Controller (YES / NO) To set external thermo controller connection.
2	HEATER	CAP	Backup Heater Capacity Selection (3kW / 6kW / 9kW) To reduce the heater power whenever unnecessary. Options vary depending on model.
3	Rnt i	FrE	Water System Freeze Prevention Function (YES / NO) To activate or deactivate water system freeze prevention function when unit is OFF.
4	TANK	con	Tank Connection (YES / NO) To set tank connection. Note: If select "Tank connection" is "NO", Set 5 ~ 14 are skipped.
5	SOLAR	Pry	Solar Priority (YES / NO) To choose the solar use for water tank heat up.
6	HEAT	Pry	Heating Priority (YES / NO) To choose the room heating as priority during HEAT + TANK mode. Note: If select "Heating priority" is "YES", Set 7 ~ 8 are skipped.
7	HEAT	int	Heating operation Interval Set To set timer for Heat mode during HEAT + TANK mode (0.5hour ~ 10 hours).
8	TANK	int	Tank Heat-up Interval Set To set timer for Tank during HEAT + TANK mode (5minutes ~ 1hour 35minutes).
9	BOOSTER	htr	Booster Heater Function (YES/NO) To activate or deactivate tank booster heater function. Note: If select "Booster heater function" is "NO", Set 10 is skipped.
10	BOOSTER	dLY	Booster Heater Delay Timer Set To set delay timer for booster heater to ON if water tank temperature is not reached (20minutes ~ 1hour 35minutes).

• Do not use the system during sterilization to prevent scalding or overheat during shower.
  The sterilization function field settings must be configured by the authorized dealer according to local laws and regulation.

11 Strl Fun

Sterilization (YES/NO)

To set sterilization, if required.

Note: If select "Sterilization" is "NO", set 12 ~ 14 are skipped.

12 5cr

Sterilization Day & Time Set

To set timer for sterilization (only once a week, will operate even in standby condition).

13 5str bo

Sterilization Temperature Set

To set temperature for sterilization function (40^ 75^) .

14 5cr oPr

Sterilization Continue Time

To set timer to maintain heating temperature in order to complete the sterilization function (5minutes 1 hour).

TO TURN ON OR OFF THE UNIT

• When unit is ON, operation LED is lit and the actual temperature for water outlet and outdoor ambient are shown on the remote control display.

• To turn ON or OFF the panel/floor heating operation.
• In this mode, the mono bloc unit will provide heating capacity to the system.

- HEAT + TANK MODE

• In this mode, the mono bloc unit will provide heating capacity to the sanitary tank and the system.
• This operation is not used when the sanitary water tank is not installed.

TANK MODE

• To turn ON or OFF the sanitary tank operation.
• In this mode, the mono bloc unit will provide heating capacity to the sanitary tank.

TO ENJOY QUIET ENVIRONMENT

• This operation reduces mono bloc unit noise. In this condition, it may cause decrease in heating capacity.

TO ENABLE THE BACKUP HEATER

• The backup heater provides extra heating capacity during cold outdoor temperature and only can operated at heat mode operation when he was enabled by pushing this button.
• The backup heater will automatically turn ON when the setting conditions is fulf i lled.
• To disabled the Heater operation manually, press the respective button again.

SYSTEM STATUS CHECK MODE

1. Press CHECK for 5 seconds to enter STATUS mode.
2. Press or to check the Water Inlet Temperature, Tank Temperature, Compressor Running Frequency or Error History.

C ANCEI

• Press to exit STATUS mode.
• Once STATUS mode is entered, "STATUS" indicator is ON.
  STATUS mode cannot be activated when the "SETTING" indicator is ON.

ADVANCE OPERATION

It is strongly recommended to contact the nearest authorized dealer to change the water temperature range.
- Using the remote control could set the temperature range for water outlet temperature and outdoor ambient temperature.

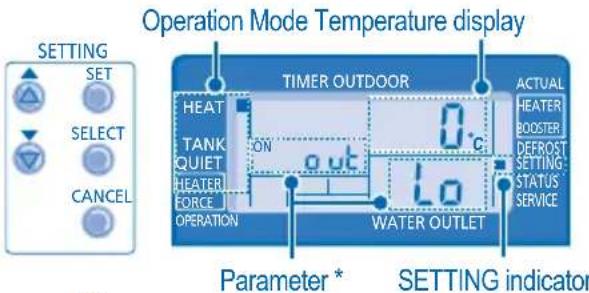

SYSTEM SETTING MODE

1. Press SET for 5 seconds to enter "SETTING" mode. SETTING"indicator is ON.
2. Press or to choose a parameter.
3. After selecting the desired parameter, press to enter the parameter.
4. Press or to set the desired temperature.
5. Press SET again to confirm the setting.
6. Repeat steps 2 to 5 to set other parameters.

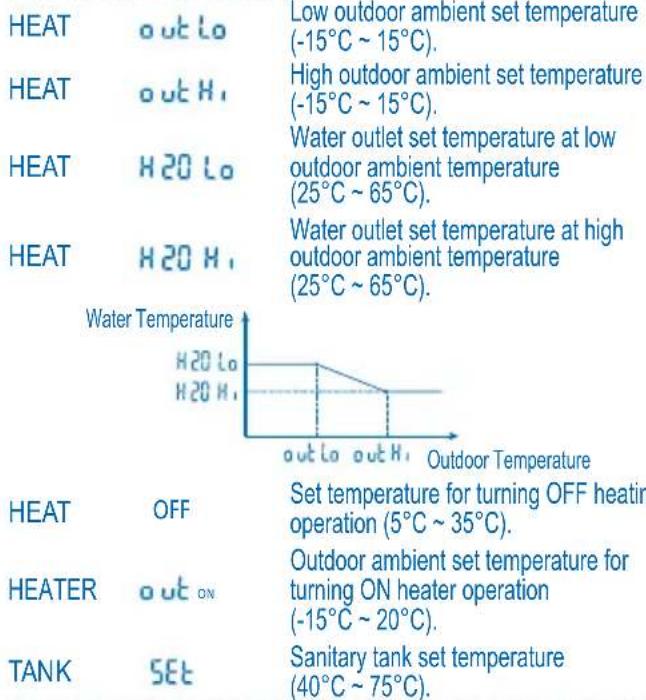

Operation Mode

Parameter \* Description

WATER TEMPERATURE THERMO SHIFT SETTING

1. Press SET within 5 seconds.
2. Repeat steps 3 to 5 to set the desired shift temperature (-5^ 5^) .

Notes:

CANCEL

• Press or wait 30 seconds to exit "SETTING" mode.
  The setting temperature will be stored in the system once confirm.
• "SETTING" mode cannot be activated when the "SERVICE" and "STATUS" indicator is ON.

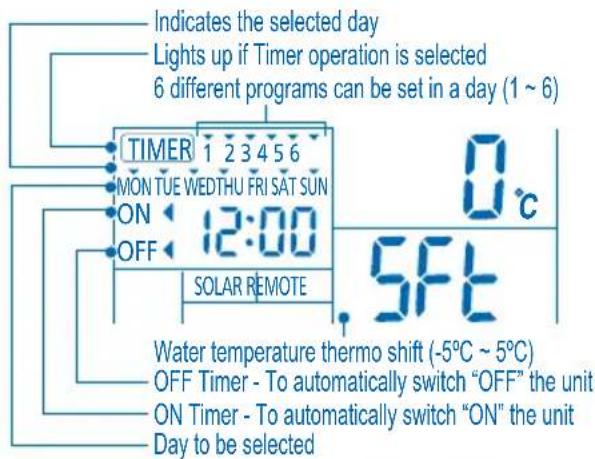

WEEKLY TIMER SETTING

Function Step

Enter timer mode

Press TIMER

Set day & time

1. Press or to select your desired day. SELECT
2. Press to confirm.
3. "1" will be blinking, press to set program 1.
   4 Press OFF/ON
4. Press or to select your desired time. MODE QIET HEATER You can set , and des
5. Press to confirm program 1. The selected day will be highlighted with .

After 2 seconds, the display will move to the next program.

1. Repeat steps 4 to 7 to set programs 2 to 6.
2. During timer setup, if no button is pressed within 30 seconds, or if the button is pressed the setting at that moment is confirmed and timer setup is ended.

Add/Modify timer

Repeat the steps above.

Disable timer

TIMER Press, then press CANCEL

Enable timer

Press TIMER, then press SET

Check timer

1. Press TIMER
2. Press or until your desired day is shown, press
3. Press to check the set programs.

Cancel timer

1. Press TIMER
2. Press or until your desired day is shown, press SELECT
3. Press to enter program setting.
4. Press or until your desired program is shown. CANCEL
5. Press to cancel the program.

SELECT to confirm your selection.

SELECT to confirm your selection.

Notes:

• You can set the Timer for each day of the week (Monday to Sunday) with 6 programs per day.
• When the unit is switched on by the ON TIMER, it will use the previously set temperature to control the water outlet temperature.
• Same timer program cannot be set in the same day.
• You may also select collective days with same timer setting.
• Promotes energy saving by allowing you to set up to 6 programs in any given day.

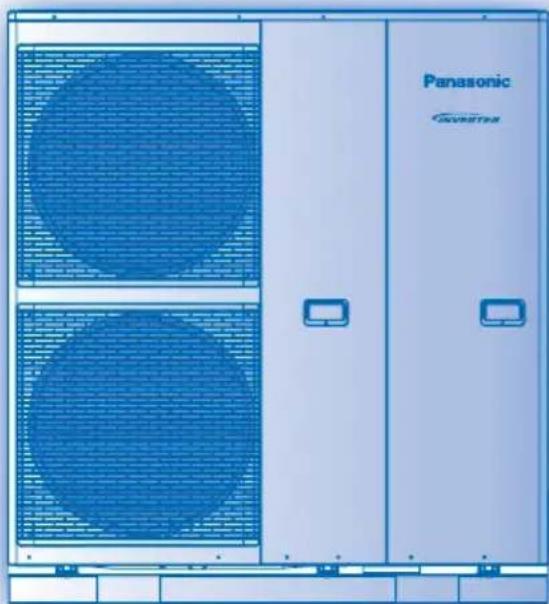

MONO BLOC UNIT

MONO BLOC UNIT

In case of a power supply failure or pump operating failure, drain the system (as suggested in the figure below).

When water is idle inside the system, freezing up is very likely to happen which could damage the system.

• Do not obstruct the air inlet and air outlet vents, it may cause low performance or breakdown. Please remove obstacles to assure the ventilation.
• During winter, please clean and remove the snow near mono bloc unit so that the snow does not cover the air inlet and air outlet vents.

EXTERNAL FILTER

• Please clean the external filter at least once a year. Fail to do so might cause filter clogged, consequent system breakdown. Please consult authorized dealer.

INSPECTION

• In order to ensure optimal performance of the unit, seasonal inspections on the unit, external filter and field wiring have to be carried out at regular intervals. This maintenance should be carried out by authorized dealer.
• Clear any obstruction at the air inlet and air outlet vents of mono bloc unit.

FOR EXTENDED NON-USE

• Do not switch off the power supply. Switching off the power supply will stop the automatic water pump operation and cause the water pump jammed.

NON SERVICEABLE CRITERIAS

TURN OFF POWER SUPPLY then please consult authorized dealer under the following conditions:

Abnormal noise during operation.
Water/foreign particles have entered the remote control.
- Circuit breaker switches off frequently.
Power cord becomes unnaturally warm.

TROUBLESHOOTING

The following symptoms do not indicate malfunction.

SYMPTOM SYMPTOM CAU	CAUSE
Flowing sound during operation.	• Refrigerant flow inside the unit.
Operation is delayed a few minutes after restarting.	• The delay is a protection to the unit's compressor.
Mono bloc unit emits water/steam. • Condensation or evaporation occurs on pipes.
Mono bloc unit emits steam during heating mode.	• This is due to defrost operation happens at the heat exchanger.
Mono bloc unit does not operate. • When the outdoor temperature is out of the operation condition range, the heatpump system enter protection control.
(Mono bloc) Air-to-water Heatpump system operation will turn off.	• The heatpump system enter protection control. Compressor stops by water inlet temperature lower than 18°C; and backup heater power turn on by water inlet temperature lower than 23°C.
System difficult to heat-up.	• When heating is operated together with floor heating or panel heater simultaneously, there may be case where warm water temperature is getting lower and cause floor heating or panel heater heat-up is weaken. • When outdoor air temperature is low, it may be diffi cult to get warm. • Is the snow pile blocking the discharge outlet or intake inlet of mono bloc unit. • When water outlet set temperature is low, it may be diffi cult to get warm.
System cannot get warm instantly.	• Due to the nature of the heatpump system, it may take some time to heat-up the water if the unit is operated from cold-start.
Backup heater turn ON automatically when it is not enabled.	• The turn ON of backup heater is a protection to the indoor unit's heat exchanger.
Operation starts automatically even without ON Timer.	• The sterilization timer has been set.

Check the following before calling for servicing.

SYMPTOM	CHECK
Heating operation is not working efficiently.	• Set the temperature correctly. • Is the panel heater valve closed. • Clear any obstruction at the air inlet and air outlet vents of mono bloc unit.
Noisy during operation.	• Check if the unit has been installed at an incline or the cover is not closed properly.
The unit does not work.	• Check if the circuit breaker is tripped.
Operation LED is no lit or remote control display is blank.	• Is the power supply off or power failure.

The operation LED blinks and error code appear on remote control display.

TIMER TIMER 1 2 3 4 5 6 MONTUEWEDTHU FRI SAT SUN ON H76 OFF H76

·Turn the unit off and reveal the error code to authorized dealer. ·Timer operation cancel when error code occur.

Force Heater Mode Button

FORCE

·In case of a failure of the (Mono bloc) Air-to-Water Heatpump system, the backup heater can be used to heat up the heating water. Press FORCE to switch on the backup heater. ·Press OFF/ON ① to stop the force heater operation. ·During Force Heater mode, all other operations are not allowed.

actions OBLIGATOIRES.

AVERTISSEMENT

UNITE MONO BLOC

m = 311

1. Pulse

para confirmar.

m = 311

271710

m - 1 0 ;

out to out H: AuBen temperatur

HEAT OFF

TIA NA ENEPROMOHSETE (ON) H NA ANENEPRONOHSETE (OFF) TH ΣYΣKEYH

Oraiv n oovada eivai eveyotroinveyn, to LED aeitoupyiaeivai avamévo kai εμpavicietai n tpexouo aθερokpaiaTnC Edoou tou vepou kai n Egwteipkn θερokpaiaTpeiβaalovtocntv obovn Tou nλexeiipintiou.

TIA THN ENIIAOH TOY TPOIOTYAEITOYPIA

TPOIOE AEITOYPIIA OEPMANH

• Tia evpyoioiOn (ON) n aTevpeyoioiOn (OFF) tns λeioupyia c Eepavon Tivaka/baTeou.
  -ε autov tov tpónto λeitoupyiα, n móváδa monoblock θα πapéxī xwρntikótnta θépμavαns στο σιστημα.

TPOI0Z AEITOYPRIAZ OEPMANH + DEAMENH

VOLBA PROVOZNIHO REŽIMU

- REZIM HEAT (TOPENİ)

Zapnuti nebo vypnuti cinnosti panelového/ podlahového topení.
V toto rezimu poskytuje Jednotka monoblok topny vykon do celho systemu.

- REZIM HEAT + TANK (TOPENİ + ZASOBNİK)

CINNOST ZALOZNIHO TOPENI

NASTAVENI TEPLOTNIHO POSUVU VODY

INFORMATION/INFORMATIONS/INFORMATION/INFORMATIONEN/INFORMAZIONI/INFORMATIE/INFORMACAO/ПАHPOФОPIEД/INFORMACE

Information for Users on Collection and Disposal of Old Equipment

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products should not be mixed with general household waste.

For proper treatment, recovery and recycling of old products, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.

By disposing of these products correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

[Information on Disposal in other Countries outside the European Union]

These symbols are only valid in the European Union. If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

Authorized representative in EU

Panasonic Testing Centre

Panasonic Marketing Europe GmbH

Winsberging 15, 22525 Hamburg, Germany
