Product type	CD player/recorder with microphone
Brand	Soundmaster
Model	KCD1600
Battery power	4 UM2/LR14 batteries (1.5V, size C) not included
Mains power	5V/1000mA adapter (not included)
CD playback functions	Play, pause, skip, stop, repeat one or all tracks, random play
Microphone function	Choir singing and ASA (public address) system without disc
Key lock	Yes
Maintenance and cleaning	Clean with a dry cloth only, without detergents or abrasives
Laser safety	Class 1 laser, do not expose eyes to beam
Electrical safety	Do not open the device, refer all intervention to qualified personnel
Environmental protection	Do not dispose of with household waste, recycle at a collection point
Operating conditions	Use only indoors, in a dry place, avoid humidity and direct sunlight
Repairability	Repair only by an approved center, otherwise warranty void

Frequently Asked Questions - KCD1600 Soundmaster

How to install batteries in the KCD1600?

Open the battery compartment by unscrewing the cover screw. Insert 4 UM2/LR14 batteries (1.5V, size C) respecting polarity. Close and screw back.

How to use the mains adapter?

Use a 5V/1000mA adapter (not included). Plug the DC plug into the dedicated socket on the right side of the device, then the adapter into a mains socket.

How to play an audio CD?

Turn on the device with the STANDBY button. Open the CD compartment, place a CD (label facing up), close. Playback starts automatically. Use PLAY/PAUSE to pause/resume.

How to activate track repeat?

Select the desired track, press MODE once for single track repeat (REPEAT indicator lights up). For all tracks, press MODE twice (indicator flashes).

How to use the microphone function?

Insert a CD and start playback, then push the MICROPHONE switch to Active. Speak or sing into the microphone. To use the ASA system without a CD, power on the device and activate the microphone.

What to do if the CD does not play?

Check that the disc is correctly placed (label facing up) and not scratched. If the screen displays 'NO', the compartment is empty. Wait a few seconds after closing for recognition.

How to lock the device keys?

Push the LOCK switch to Active. The LOCK indicator lights up. All keys are then inoperative. To unlock, set the switch to Inactive.

Can I use rechargeable batteries?

The manual recommends non-rechargeable UM2/LR14 (1.5V) batteries. For rechargeable batteries, ensure they are type C and of appropriate voltage, but this is not explicitly mentioned.

How to clean the device?

Use a dry, soft cloth. Never use detergents, abrasive products, or liquids. Avoid moisture entering the interior.

What to do in case of a thunderstorm?

Immediately disconnect the device from the mains power to avoid damage from lightning.

USER MANUAL KCD1600 Soundmaster

Use remommended type and rating of external transformer only.

BATTERIE EINLEGEN

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are reusable according to their markings. By reusing, recycling or other forms of utilization of old devices you make an important contribution to the protection of our environment.

Please contact your local authorities for details about collection points.

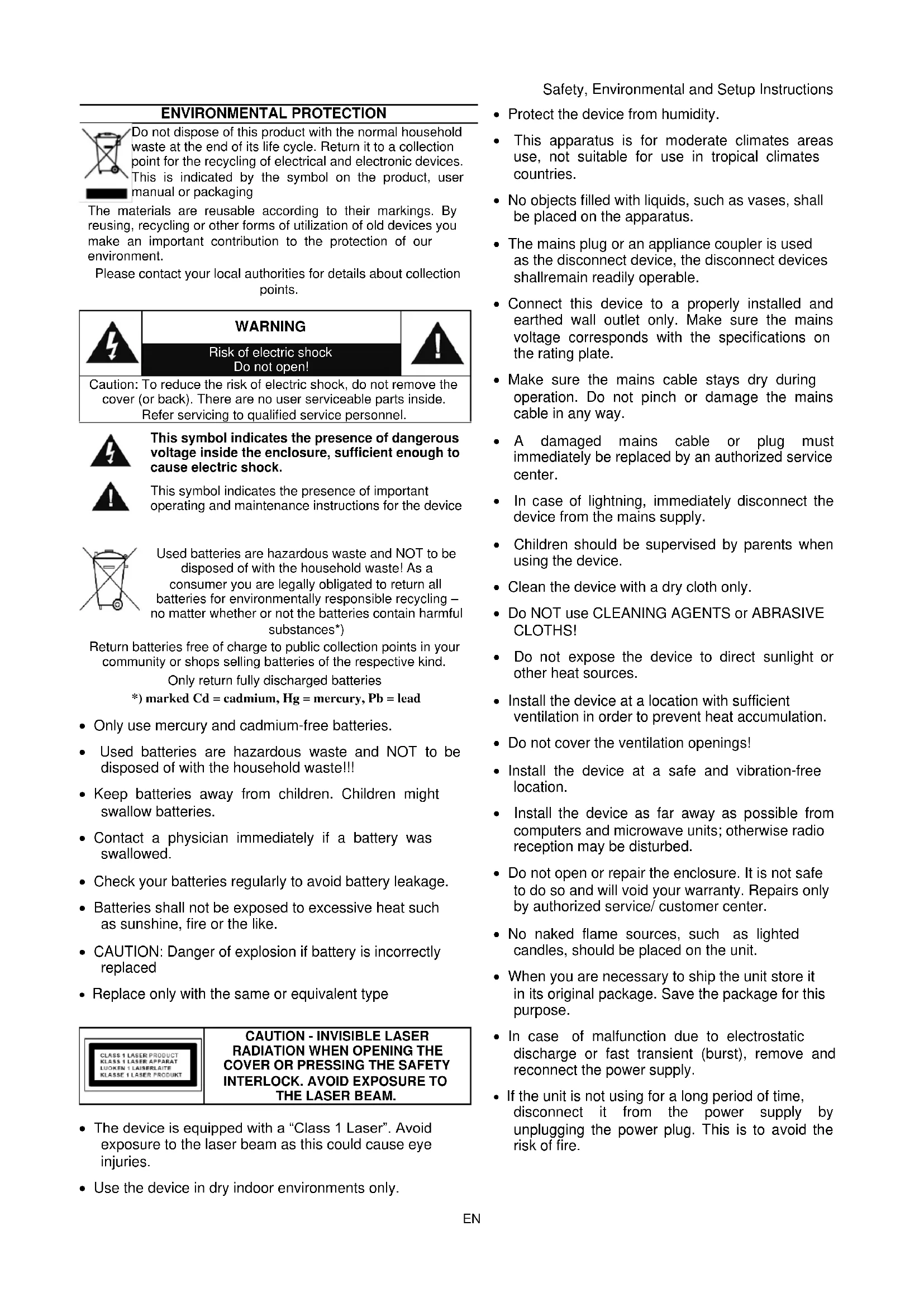

警告	WARNING	!
	Risk of electric shock Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind.

Only return fully discharged batteries

*) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

• The device is equipped with a "Class 1 Laser". Avoid exposure to the laser beam as this could cause eye injuries.
• Use the device in dry indoor environments only.

Safety, Environmental and Setup Instructions

• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

LOCATION OF CONTROLS

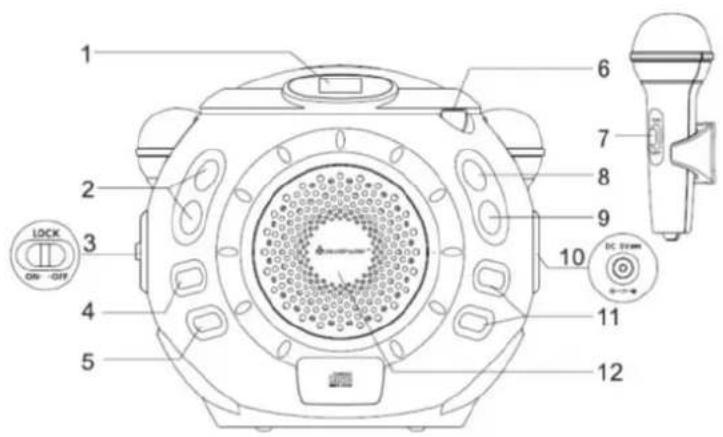

FRONT VIEW

1 LED display
2 VOLUME UP / DOWN
3 Lock function switch
4 STANDBY / ON button
5 MODE button
6 CD door open
7 MICROPHONE ON/OFF
8 PLAY/PAUSE button
9 STOP button
10 DC jack
11SKIP button
12 Speaker

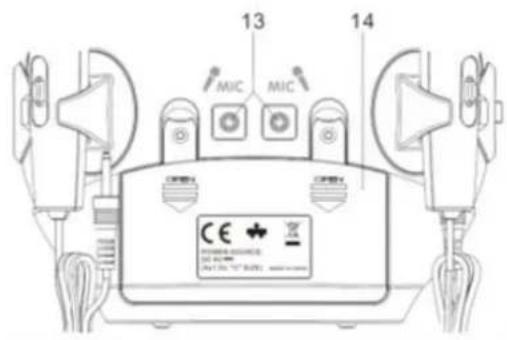

BOTTOM VIEW

13 Mic jack
14 Battery compartment

WARNING: Not suitable for children under 3 years due to small parts, choking hazard and Strangulation Hazard.

Use recommended type and rating of external transformer only.

BATTERY INSTALLATION

1. Open the battery compartment: Loosen the screw on the cover of battery compartment with a screwdriver and remove the cover.
2. Insert 4 x "C" Size (UM2 / LR14 1.5V) type batteries (not included). Make sure that you follow the polarity markings inside the compartment!
3. Close the battery compartment and tighten the screw.

VOLUME CONTROL

Press the "VOLUME UP / DOWN" button to decrease or increase the volume.

CD OPERATION

1. Switch the unit to standby mode by pressing the "STANDBY" button. The standby LED indicator will light on.
2. Press the "PLAY / PAUSE" button to activate the unit and "NO" shows on the display when no disc is inside in the CD compartment.
3. Lift up the CD door and place a disc on the center spindle with the printed label side facing up. Then close the CD door.
4. The display will show "- - " for a few seconds. After reading the CD the display show the total number of tracks on disc and will start playback the disc.
5. Press the "PLAY / PAUSE" button to interrupt the playback. Press the "PLAY / PAUSE" button again the unit will resume the playback.
6. By pressing the "F.SKIP / B.SKIP" buttons you can choose the next track or the previous track.
7. Press the "STOP" button to stop the playback.
8. Press the "STOP" button twice the unit switch to standby mode.

Repeat function

1. To select the "Single-Track Repeat" function choose the track that you want to repeat. Then press the "PLAY / PAUSE" button to play the track.
2. Press the "MODE" button once to activate the single-track repeat and the REPEAT indicator appear.
3. To select the "All Track Repeat" function. Press the "PLAY / PAUSE" button to start the track. Press the "MODE" button twice to activate the "All Track Repeat" function. The REPEAT indicator is blinking.

Random function

During CD playback press the "MODE" button repeatedly until the SHUFF LED indicator lights up. All the tracks played in random order once.

Buttons Lock Function

1. Slide the LOCK switch to ON position.
2. The HOLD LED indicator lights up.

Note: During Lock function is on, all buttons have no function.

1. Slide the LOCK switch to OFF position, all buttons are unlocked.

SING-A-LONG function

1. Place a disc inside the CD compartment.
2. Press the "PLAY / PAUSE" button to start the playback.
3. Slide MICROPHONE ON/OFF switch to ON position while singing.

NOTE:

Do not put the microphone too close to the speaker as this may cause feedback (squealing noise) through the speaker.

To use ASA PA (PUBLIC ADDRESS) system

No disc is needed. Just talk through the unit.

1. Switch the unit to standby mode by pressing the "STANDBY" button.
2. Slide MICROPHONEON/OFF switch to ON position.
3. Speak or sing into the microphone.

Only use a common DC 5V/1000mA power adaptor (not included)

Plug the adapter into a standard wall outlet and the DC plug into the DC jack at the right side of the main unit.

We recommend use an AC/DC adapter when you use this player for longer time!

TECHNICAL SPECIFICATION

Battery operation

: DC 6V 4 x "C" size (UM-2/LR14, 1,5V) (not included)

Power adapter

: AC / DC adapter (not included)

Adapter output

：DC5V-0A

IMPORTER

CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KCLASS 1 LASER APPARAT
PRODUCTO LASER CLASE 1

ATTENTION - RADIATION
LASER INVISIBLE LORSQUE
VOUS OUVREZ LE COUVERCLE OU APPUYEZ SUR L'ENCLENCHEMENT DE SECURITE. EVITEZ TOUTE EXPOSITION AU RAYON LASER

:Adaptataur CA/CC (non fourni)

Sortie d'adaptateur

:5VCC A

IMPORTATEUR

Wörlein GmbH

Tél.: [phone]

Gewerbestasse 12

Fax: [phone]

D 90556 Cadolzburg

Email: [e-mail]

Allemagne

Site web: www.woerlein.com
