SCD1400 - Cd player/recorder Soundmaster - Free user manual and instructions

Product Type	CD Player/Recorder
Brand	Soundmaster
Model	SCD1400
Mains Power Supply	AC 230 V / 50 Hz
Battery Power Supply	6 LR14 batteries (size C)
Main Functions	FM radio, CD playback, programming, repeat, AUX input
Laser Type	Class 1
AUX Input	3.5 mm jack
Number of Programmable Tracks	Up to 20
Automatic Standby	After 15 minutes without signal
Cleaning	With a dry cloth, no abrasive products
Safety Precautions	Do not open, risk of electric shock
Ambient Temperature	Moderate climates only
Included Accessories	Power cable, FM antenna

Frequently Asked Questions - SCD1400 Soundmaster

How to turn on the radio?

Set the function selector to FM and turn the tuning knob to select a station. Adjust the volume with the dial.

How to play a CD?

Set the selector to CD, insert a CD, close the lid. Press Play/Pause to start.

How to repeat a track or the whole CD?

Press Repeat once to repeat a track (indicator flashing), twice to repeat the whole CD (indicator steady). Press again to cancel.

How to program the playback order of tracks?

In stop mode, press Program, select a track using ◀◀ or ▶▶, then press Program again to memorize it. You can program up to 20 tracks. Then press Play/Pause.

How to use the AUX input?

Set the device to CD mode and connect an AUX cable (not included) to the AUX IN jack. The device automatically switches to AUX mode. Adjust the volume on the device or on the external source.

What to do if the device turns off by itself?

This is the automatic standby required by the ERP2 standard. To turn it back on, set the function selector to OFF and then back to the desired position.

How to clean the device?

Use a soft, dry cloth. Never use detergent or abrasive products.

Which batteries to use?

Use 6 LR14 (size C) batteries. Observe the polarities indicated in the compartment. Do not mix new and old batteries.

Is the device safe?

Yes, it is equipped with a safe Class 1 laser. However, never open the casing: risk of electric shock and exposure to invisible laser radiation.

What to do in case of a thunderstorm?

Immediately unplug the device from the mains to avoid damage from lightning.

USER MANUAL SCD1400 Soundmaster

Black portable electronic device with dual speakers and a radio, no visible text or symbols on the device body.

DEUTSCH

ENGLISH

FRANÇAIS

NEDERLANDS

ITALIANO

ČEŠTINA

SLOVENSKÝ

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are recyclable according to their labeling. By reusing materials or other forms of recycling old devices and packaging, you are making an important contribution to protecting our environment. If necessary, remove batteries and personal data before disposal free of charge and ask your local authority about the responsible disposal point.

	WARNING	!
	Risk of electric shockDo not open!

Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling – no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind.

Only return fully discharged batteries

*) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

• The device is equipped with a "Class 1 Laser". Avoid exposure to the laser beam as this could cause eye injuries.
• Use the device in dry indoor environments only.

Safety, Environmental and Setup Instructions

• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.
• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
• Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
  • Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
  • Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

LOCATION OF CONTROLS

Batteries 6 x 1.5V LR14 / "C" TYPE BATTERIES NOT INCLUDED

1 VOLUME KNOB
2 FUNCTION SWITCH
3 HANDLE
4 TUNING KNOB
5 CD DOOR
6 SPEAKER
7 POWER INDICATOR
8 LED DISPLAY / FUNCTION INDICATOR
9 PROGRAM INDICATOR
10 ■ STOP
11 SKIP-
12 PLAY/PAUSE
13 SKIP+
14 REPEAT
15 PROGRAM
16 ANTENNA
17 AUX IN JACK (3.5MM)
18 BATTERY COMPARTMENT
19 AC SOCKET

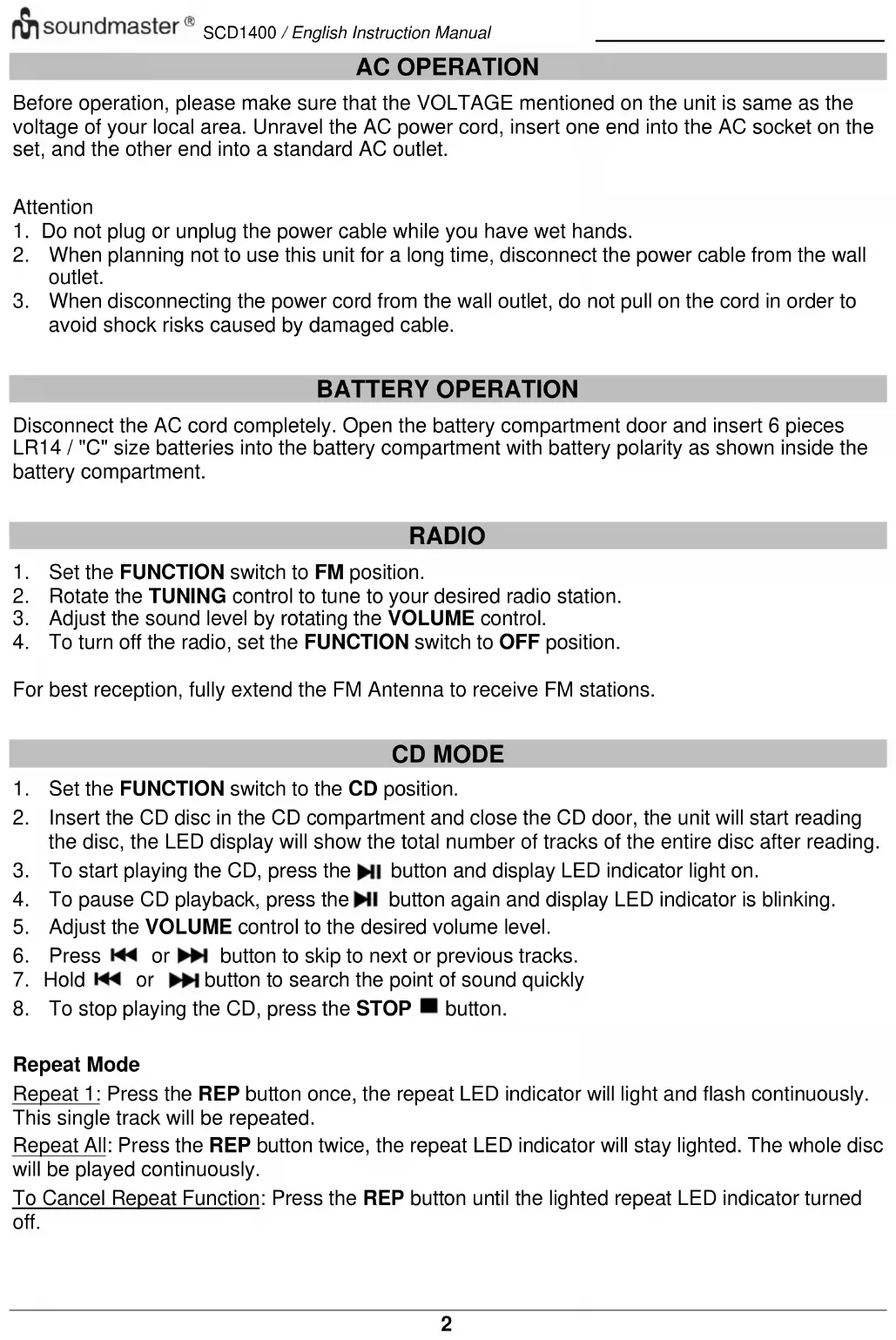

AC OPERATION

Before operation, please make sure that the VOLTAGE mentioned on the unit is same as the voltage of your local area. Unravel the AC power cord, insert one end into the AC socket on the set, and the other end into a standard AC outlet.

Attention

1. Do not plug or unplug the power cable while you have wet hands.
2. When planning not to use this unit for a long time, disconnect the power cable from the wall outlet.
3. When disconnecting the power cord from the wall outlet, do not pull on the cord in order to avoid shock risks caused by damaged cable.

BATTERY OPERATION

Disconnect the AC cord completely. Open the battery compartment door and insert 6 pieces LR14 / "C" size batteries into the battery compartment with battery polarity as shown inside the battery compartment.

RADIO

1. Set the FUNCTION switch to FM position.
2. Rotate the TUNING control to tune to your desired radio station.
3. Adjust the sound level by rotating the VOLUME control.
4. To turn off the radio, set the FUNCTION switch to OFF position.

For best reception, fully extend the FM Antenna to receive FM stations.

CD MODE

1. Set the FUNCTION switch to the CD position.
2. Insert the CD disc in the CD compartment and close the CD door, the unit will start reading the disc, the LED display will show the total number of tracks of the entire disc after reading.
3. To start playing the CD, press the ▶ button and display LED indicator light on.
4. To pause CD playback, press the ▶ button again and display LED indicator is blinking.
5. Adjust the VOLUME control to the desired volume level.
6. Press ◀◀ or ▶▶ button to skip to next or previous tracks.
7. Hold ◀◀ or ▶▶ button to search the point of sound quickly
8. To stop playing the CD, press the STOP ■ button.

Repeat Mode

Repeat 1: Press the REP button once, the repeat LED indicator will light and flash continuously. This single track will be repeated.

Repeat All: Press the REP button twice, the repeat LED indicator will stay lighted. The whole disc will be played continuously.

To Cancel Repeat Function: Press the REP button until the lighted repeat LED indicator turned off.

Programming the CD Player

The programming of the CD player should be done during STOP mode.

1. Press the PROG button, the LED display will show '01' and flash continuously.
2. Press the ◀◀ or ▶▶◀ buttons to select the desired track.
3. Press the PROG button again to store this track in memory, the LED will show '02' and flash continuously.
4. Repeat steps from 2 to 3 to store more tracks in memory. You can store up to 20 tracks in the memory.
5. Press the ▶ button to play the disc in the programmed order.
6. To stop playing, press the STOP ■ button.
7. To cancel the programming list, press the STOP ■ button and open the CD door or set the FUNCTION switch to OFF position.

AUX

1. Switch the unit into CD mode and connect the AUX In cable (not included) to AUX In jack; The unit is switching in AUX mode.
2. Start playback and change the volume level on this item or External Music Device separately

Important Note

Automatic standby switching

To comply with the ERP2 directive, the unit automatically switches to standby after approximately 15 minutes without a signal.

To switch the unit on again, put the FUNCTION switch in OFF and again in ON position

The current instruction manual can be downloaded from www.soundmaster.de

Technical changes and misprints reserved.

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH

PROTECTION DE L'ENVIRONNEMENT

7 INDICATORE DI ACCENSIONE

8 DISPLAY LED / INDICATORE DI FUNZIONE

9 INDICATORE DI PROGRAMMA

10 ■ INTERRUZIONE

11 SALT-A

D 90556 Cadolzburg, Germany

Hereby, Wörlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
