ICD4350 - Cd player/recorder Soundmaster - Free user manual and instructions

Brand	Soundmaster
Model	ICD4350
Product Type	CD player/recorder with DAB+/FM tuner, Internet radio, Bluetooth, USB, HDMI-ARC input
Category	CD player/recorder
Supported audio formats	Audio CD, MP3 (via USB)
Playback modes	CD, USB, DAB+, FM, Internet Radio, Bluetooth, TV (HDMI-ARC), AUX, Optical
Tuner	DAB+ and FM with RDS
Connectivity	Wi-Fi, Bluetooth, LAN (Ethernet)
Ports	USB (front), 3.5mm headphone jack, analog audio input (RCA), digital optical input, digital coaxial output, subwoofer preamp output, HDMI-ARC input
Speaker outputs	Terminals for passive speakers (R/L)
Power supply	Mains 230 V ~ 50 Hz
Supplied accessories	Remote control, DAB/FM antenna, Wi-Fi/BT antenna, power cable, manual
Special functions	Equalizer (Normal, Jazz, Rock, Classic, Pop, My EQ), CD programming, random play, repeat, sleep timer, dual alarm, OKTIV app
Safety	Class 1 laser, surge protection, automatic shutdown after 15 minutes without playback
Maintenance	Clean with a dry cloth, do not use abrasive products
Repairability	Entrust maintenance and repairs to qualified personnel

Frequently Asked Questions - ICD4350 Soundmaster

How to connect the player to the Wi-Fi network?

Use the setup wizard at first startup or go to Menu > Network > Network Wizard. Select your Wi-Fi network, enter the WEP/WPA/WPA2 password, or use the WPS function if your router supports it.

What to do if the CD does not play?

Check that the CD is inserted correctly with the label facing up. If 'No Disc' is displayed, clean the CD with a soft cloth. If the problem persists, try another CD or restart the device.

How to set the alarm?

Go to the Alarm menu, select Alarm 1 or 2. Set the frequency (Daily, Once, Weekend, Weekdays), time, source (Buzzer, Internet Radio, DAB, FM), and volume. Save to activate.

DAB radio finds no stations.

Make sure the DAB/FM antenna is properly connected. Start an automatic scan via the DAB menu. If reception is poor, try moving the device or perform a scan with the 'Strong signals only' option in DAB settings.

How to use the OKTIV app?

Download the OKTIV app from the App Store (iOS) or Google Play (Android). Make sure the device is connected to the same Wi-Fi network. Launch the app, it will detect your ICD4350. You will be able to control sources, equalizer, alarms, etc.

What to do if the sound is cut off?

Check that the volume is not at zero. Press the MUTE button on the remote to unmute. Remove any connected headphones. Make sure the speakers are correctly connected to the corresponding terminals.

How to program CD playback?

In CD stop mode, press the PRESET button on the remote. The screen shows 'T01 P01'. Use the navigation buttons to select the desired track, then press OK. Repeat for subsequent tracks. Press Play to start programming.

Bluetooth does not connect.

Put the device into Bluetooth mode (BT icon flashes). Turn on Bluetooth on your smartphone and search for devices. Select 'ICD4350' to pair. If pairing fails, disable and re-enable Bluetooth on both devices.

How to reset the device to factory settings?

Go to Menu > Settings (or Information) > Reset. Confirm the action. All settings (date, network, presets) will be cleared, but the software version and internet favorites will be kept.

What to do if the device freezes or stops responding?

Unplug the device from the mains for a few minutes, then plug it back in. If the problem persists, perform a factory reset. If the malfunction continues, contact customer service.

USER MANUAL ICD4350 Soundmaster

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Do not dispose of this product with the normal household waste at the end of its life cycle. Return it to a collection point for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, user manual or packaging

The materials are recyclable according to their labeling. By reusing materials or other forms of recycling old devices and packaging, you are making an important contribution to protecting our environment. If necessary, remove batteries and personal data before disposal free of charge and ask your local authority about the responsible disposal point.

警告	WARNING
	Risk of electric shock Do not open!
Caution: To reduce the risk of electric shock, do not remove the cover (or back). There are no user serviceable parts inside. Refer servicing to qualified service personnel.

This symbol indicates the presence of dangerous voltage inside the enclosure, sufficient enough to cause electric shock.

This symbol indicates the presence of important operating and maintenance instructions for the device

Used batteries are hazardous waste and NOT to be disposed of with the household waste! As a consumer you are legally obligated to return all batteries for environmentally responsible recycling - no matter whether or not the batteries contain harmful substances*)

Return batteries free of charge to public collection points in your community or shops selling batteries of the respective kind. Only return fully discharged batteries *) marked Cd = cadmium, Hg = mercury, Pb = lead

• Only use mercury and cadmium-free batteries.
• Used batteries are hazardous waste and NOT to be disposed of with the household waste!!!
• Keep batteries away from children. Children might swallow batteries.
• Contact a physician immediately if a battery was swallowed.
• Check your batteries regularly to avoid battery leakage.
• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.
• CAUTION: Danger of explosion if battery is incorrectly replaced
• Replace only with the same or equivalent type

CAUTION - INVISIBLE LASER RADIATION WHEN OPENING THE COVER OR PRESSING THE SAFETY INTERLOCK. AVOID EXPOSURE TO THE LASER BEAM.

To prevent possible hearing damage, do not listen at high volume levels for long periods

• Use the device in dry indoor environments only.
• Protect the device from humidity.
• This apparatus is for moderate climates areas use, not suitable for use in tropical climates countries.

Safety, Environmental and Setup Instructions

• No objects filled with liquids, such as vases, shall be placed on the apparatus.
• The mains plug or an appliance coupler is used as the disconnect device, the disconnect devices shall remain readily operable.
• Connect this device to a properly installed and earthed wall outlet only. Make sure the mains voltage corresponds with the specifications on the rating plate.
• Make sure the mains cable stays dry during operation. Do not pinch or damage the mains cable in any way.
• A damaged mains cable or plug must immediately be replaced by an authorized service center.
• In case of lightning, immediately disconnect the device from the mains supply.
  Children should be supervised by parents when using the device.
• Clean the device with a dry cloth only.
• Do NOT use CLEANING AGENTS or ABRASIVE CLOTHS!
• Do not expose the device to direct sunlight or other heat sources.
• Install the device at a location with sufficient ventilation in order to prevent heat accumulation.
• Do not cover the ventilation openings!
• Install the device at a safe and vibration-free location.
• Install the device as far away as possible from computers and microwave units; otherwise radio reception may be disturbed.
• Do not open or repair the enclosure. It is not safe to do so and will void your warranty. Repairs only by authorized service/ customer center.
• No naked flame sources, such as lighted candles, should be placed on the unit.
• When you are necessary to ship the unit store it in its original package. Save the package for this purpose.
• In case of malfunction due to electrostatic discharge or fast transient (burst), remove and reconnect the power supply.
• If the unit is not using for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

TABLE OF CONTENT

LOCATIONS OF CONTROLS 2
REMOTE CONTROL 3
OPERATION YOUR REMOTE CONTROL 4
CONTENT OF DELIVERY 4
GETTING STARTED / SET UP 5
GET THE NETWORK ENVIRONMENT READY. 5
MAIN MENU 6
SETUP WIZARD 6
EQUALISER 8
NETWORK 8
TIME/DATE 9
BACKLIGHT 9
LANGUAGE 9
SOFTWARE UPDATE 9
INFO 9
INTERNET RADIO 10
DAB 11
FM 12
CD MODE 13
USB 14
BLUETOOTH 14
TV/HDMI-ARC 14
AUX IN/OPTICAL IN 15
DIGITAL OUT 15
SUBWOOFER PRE AMP OUT 15
SLEEP 15
ALARM. 16
OKTIV 16
HEADPHONE 16
FACTORY RESET 16
TROUBLESHOOTING 17

LOCATIONS OF CONTROLS

FRONT VIEW

1 STANDBY/ON

• Press for power on/Standby
  2 Remote control sensor
  3 Eject

• Open/close the CD door

4 Headphone jack
5 CD door
6 USB jack (Play Music)
7 MODE

• Press repeatedly to select the source.

8

• Press to play and pause in CD, USB, BT and Internet Radio.
• Press for DAB station search / FM auto store

9

• Press to stop playing in CD/USB mode
• Press for Internet; DAB, FM menu

10

• Press to select previous track/station in CD/USB/DAB/FM/BT, Internet radio mode

11

• Press to select next track/station in CD/USB/DAB/FM/BT, Internet radio mode

12 Display

13 NAVIGATE/OK

• Rotate to move up or down on the menu screen
• Press to select or skip selection

14 VOLUME -/+

• Rotate to increase or decrease the volume level

15 AC in jack
16 W-LAN/BT antenna
17 Speaker terminal right channel
18 Speaker terminal left channel
19 Analog audio input
20 Optical digital input

21 Subwoofer Pre output
22 Coaxial Output
23 LAN socket
24 HDMI - ARC input
25 DAB+/FM antenna

REMOTE CONTROL

1

• CD door open/close

2

• Press to play/pause in BT/CD/USB and internet radio

3

• Press and hold for fast backward in CD
• Press to select previous track in CD/USB/USB
• Press to display the channel list in DAB, FM and internet radio
• Press for fine tuning in FM
• Press and hold for FM automatic tuning

4 REPE
Press to select a repeat mode in CD/USB
5 RANDOM
Press to select random mode in CD/USB
6 INFO
Press to show the information in CD/USB/DAB/FM and Internet radio mode
7 BACK
Press to return to previous menu

8 MODE

• Press to change the source.

9 OK

*Press to select or skip selection

10 VOL-

*Press to decrease the volume

11 MENU

• Press to display the Menu

12 0-9 Numeric

13

• Press to mute or resume the sound

14

• Turn the unit ON or in STANDBY mode

15

*Press and hold for fast forward in CD

*Press to select the next track in CD/USB/BT

*Press to display channel list in DAB/FM and internet radio

*Press for fine tuning in FM

*Press and hold for FM auto tuning

16

• Press to stop playing in CD/USB mode

17 TIMER

• Press to set the Timer

18 SLEEP

• Press to set sleep timer

19 EQ

• Press to select sound characteristics: Normal/Jazz/Rock/Classic/Pop/My EQ

20 SCAN

• Starts the DAB/FM scan

21 P+

• Press to select next preset channel in DAB/FM/Internet radio

• Press to select next MP3 Album in CD/USB

22

*Press to move up on the menu screen

23 VOL +

*Press to increase the volume

24 v

• Press to move down on the menu screen

25 P-

• Press to select previous preset channel in DAB/FM/Internet radio

• Press to select previous MP3 Album in CD/USB

26 PRESET

• Press for CD program and preset channel in DAB, FM and internet radio

• Short press for preset recall menu

• Long press for preset save menu

1. Press and slide the back cover to open the battery compartment of the remote control.
2. Insert two AAA size batteries. Make sure the (+) and (-) ends of the batteries match the (+) and (-) ends indicated in the battery compartment.
3. Close the battery compartment cover.

CONTENT OF DELIVERY

Main unit
WiFi/BT antenna
AC power cord

Telescope antenna
Remote control

Warranty card
Manual

GETTING STARTED / SET UP

Connect the Speakers

Use the illustration as a reference to connect your own speakers.

Loosen the screw terminals by turning them; insert the stranded wire of the speaker cable into the socket on the side.

Right speaker box to sockets marked R.
red marked cable to red R jack,
neutral cable to black R jack
Left speaker box to jacks marked L on main unit.
red marked cable to red L jack
neutral cable to black L jack

After inserting the speaker cables, tighten the terminals firmly by turning to the right. Also make sure the exposed wires of the speakers do not stick out of the speaker terminals when connecting. If the exposed wires of the speakers touch the rear panel or the i and s wires touch each other, the protection circuit may be activated and the power may turn off.

Connect DAB/FM antenna

Connect the supplied WiFi/BT and DAB/FM antenna. The DAB/FM antenna delivers good results when a sufficient antenna signal is available.

If you live in an area with poor DAB/FM reception and the reception is disturbed by this dropouts or noise, we recommend using an active or house antenna.

Connect to mains

Connect the unit to a suitable power source using the AC cable provided. After showing a starting screen, it will enter the last used listening mode. When the unit is started for the first time, the setup wizard will be launched automatically.

GET THE NETWORK ENVIRONMENT READY

Connect the unit via the LAN socket on the router or connect unit via the WLAN network as follows. While using LAN the WiFi connection is disabled.

Make sure you have setup the wireless network and you have the WEP, WPA or WPA2 security password to activate the connection.

You may also use the WPS (WiFi Protected Setup) function for easy pairing between the network device and ICD4350. Check if the light indicators on the network device are in appropriate status.

MAIN MENU

Under the main menu, you can select the following modes: Internet Radio, Podcasts, DAB+, FM, Bluetooth®, CD, USB, AUX-In, Optical In, TV, Sleep, Timers System settings.

SETUP WIZARD

At the first time operation, system asks if you want to start the Setup Wizard. The Setup wizard guides you through the basic setup parameters for Time/Date and Network connection. To change any settings later all setting functions are accessible from the Settings Menu.

Note: If the setup wizard is terminated prematurely without a network setup, the device generates its own WiFi access so that the device can be configured using the OKTIV APP.

Network connection indicator:

= Network connection established.
= Network connection not established.

1. Language

Select the desired menu language.

2. Product privacy policy

So that the installation can continue, please confirm the privacy policy with the " OK" button.

Further information are available under www.frontiersmart.com/privacy

3. Setup wizard

Select the "YES" option to continue with the setup. If you select the "NO" option, the next display asks you whether the setup wizard should be started the next time the device is switched on.

4. Time/Date Display format

Select 12 or 24 as the time format.

5. Auto update

The time and date can be updated manually or automatically from DAB, FM or network. Auto update works with data sent over DAB, FM or the Internet. The clock is only updated when it is in a corresponding mode, so it is suggested to select a mode you use regularly. DAB and FM use time signals broadcast with radio transmissions. Network uses a time signal sent from the Internet radio portal when in any network connected mode.

6. Time zone/daylight

Set your time zone. If your country uses daylight saving and it is in effect, turn on the Daylight saving option. (only available when Auto update from Internet is selected)

Manual update

If you set No update, the wizard prompts you to set the time and date manually. The date and time are displayed as dd-mm-yyyy and hh:mm.

The active value appears as flashing. Adjust each value with the front knob. Once the value is set, press the knob to continue setting with next value.

7. Network

Keep Network connected

Select this option when the unit should the network connection in standby keep, when the function is confirmed, the unit wills faster connecting the internet and it is possible to switch on the unit with the "OKTIV" app. The standby power consumption is slightly increased with this function.

Scanning for the network

ICD4350 is compatible with all common network protocols and encryption methods. It searches for the available networks and list them out for you.

There will be hints for the type of network - if your network devices support WPS function, it will be [WPS] before the SSID (the name of the network device). Select the one you want to connect.

For the wireless connection, you will be asked for input the encryption in the next step. To enter the network's key, use the front knob to move the cursor through the characters and press "OK" to confirm. As each character is selected, the key is built up near the top of the display.

There are three options accessible by tuning the navigate reel back before the first characters - Backspace, OK and Cancel.

WPS encrypted network

WPS encrypted networks are identified by WPS at the start of the network name when the ICD4350 searches the available AP. Use one of the following methods of connection: There is the shortcut WPS key on the unit.

Push button

ICD4350 prompts you to press the connect button on the router. It then scans for a ready Push Button Connect network and connects.

Pin

ICD4350 generates an 8-digit code number which you enter into the wireless router, access point, or an external registrar.

Skip WPS

Enter key as for a standard encrypted network.

For more information on setting up a WPS encrypted network, see your WPS router's instructions.

Completion

ICD4350 attempts to connect to the selected network.

It will show connected if the setup is successful. If connecting fails, ICD4350 returns to a previous screen to try again.

Network settings

Please wait.

Connecting...

Press "OK" to quit the setup wizard.

Setup wizard

Setup wizard completed

Press SELECT to exit

EQUALISER

Several preset EQ modes are available: Normal, Jazz, Rock, Classic, Pop and My EQ.

In the "My EQ" settings, you can create your own EQ with custom bass and treble settings.

Equaliser

Normal

Jazz

Rock

Classic

Pop

NETWORK

Network wizard

Enter to search AP SSID, then input the WEP / WPA key or choose Push Button/Pin/Skip WPS to connect to the wireless network.

- PBC Wlan setup

Push Button Configuration, it is to connect the AP that supports WPS (Wi-Fi Protected Setup).

View settings

View the information of current connected network: Active connection, MAC address, WLAN region, DHCP,SSID, IP address, Subnet mask, Gateway address, Primary DNS and Secondary DNS.

- Manual settings

Choose wireless network connection and enable or disable DHCP (Dynamic Host Configuration Protocol).

Network profile

ICD4350 remembers the last four wireless networks it has connected to, and automatically tries to connect to whichever one of them it can find. From here you can see the list of registered networks. You can delete unwanted networks by turning and pressing then choosing YES to confirm delete.

- Keep network connected

If you choose to keep network connected, the WiFi will not disconnect even you are in standby mode. Otherwise, the connection will only available in internet radio and music player modes. This option allows ICD4350 to be controlled by OKTIV-APP in any operating mode.

When Keep network connected is selected the standby power consumption is raised.

Note: When you use OKTIV-APP in internet radio mode onetime, the function will be automatically enabled.

TIME/DATE

Set the time manually or automatically update, time format, time zone and daylight.

BACKLIGHT

You may change the backlight of each environment

On level

Choose the brightness of the display during on mode. You can choose between: "High" / "Medium" / "Low"

Dim level

Choose between: "Medium" / "Low"

LANGUAGE

Change it as your preference.

SOFTWARE UPDATE

From time to time, software upgrades may be created with bug fixes and/or additional features. You can either check manually or set ICD4350 to check periodically automatically (this is the default). If newer available software is detected, you will be asked if you want to go ahead with an update. If you agree, the new software is then downloaded and installed. After a software upgrade, all user settings are maintained.

NOTE: Before starting a software upgrade, ensure that ICD4350 is plugged into a stable main power connection. Disconnecting power during an upgrade may permanently damage the unit.

INFO

View the firmware version and the radio ID.

INTERNET RADIO

ICD4350 can play thousands of radio stations and podcasts from around the world though a broadband Internet connection.

When you select Internet radio, ICD4350 directly contacts the Frontier Silicon Internet radio portal (which is supported by Airable) to get a list of stations.

The portal also enables multiple lists of favorite stations that you can personalize.

If you are already listening to an Internet radio station, you can press "BACK" button to quickly return to the last visited branch of the menu tree, rather than "MENU" to go to the first menu of Internet radio mode.

- Last listened

When Internet radio mode restarts, the last-listened station is selected. To select another recently used station, enter here to select the listed station. Most recent stations appear at the top of the list.

- Station list

Browse Internet broadcasts that organized into different countries, Location, Popular and Discover. You can also find the station with Search by keyword.

- Presets storing and recall

To store an Internet radio station to preset, press and hold the "PRESET" key on remote control until the display shows the "Save preset" screen. Select one preset to save the current station and press "OK" to confirm.

To recall a preset, press briefly the "PRESET" button on Remote Control, then select one of the listed preset stations and press "OK" to confirm or press 0 to 9 on the remote control.

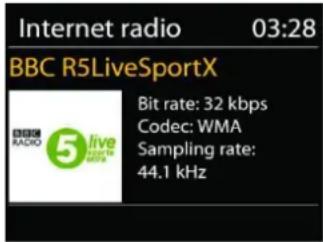

Now playing information

While the stream is playing, the screen shows its name and description. To view further information, press "INFO" button on the radio or Remote Control. Each time you press "INFO" button, another set of information is displayed, cycle through name/description, genre/location, reliability, codec/sampling rate, playback buffer and today's date.

DAB

DAB mode receives DAB or DAB plus digital radio signal and displays information about the station, streaming audio and the program details.

- Scanning for stations

The first time you select DAB radio mode, or if the station list is empty, ICD4350 automatically performs a full scan to see what stations are available. You may also need to start a scan manually to update the list of stations for one of the following reasons:

Available stations change from time to time.
- If reception was not good for the original scan, this may result in an empty or incomplete list of available stations.
- If you have poor reception of some stations (burbling), you may wish to list only stations with good signal strength.

To start a scan manually choose "scan". To scan for a desired station, choose "Manual tune" and enter the frequency of your desired station.

Once the scan is complete, the radio shows a list of available stations.

To remove stations that are listed but not available, choose Prune invalid.

- Presets

Store and recall preset station are equal to "Internet radio" mode. Please look at "Internet radio" in the manual

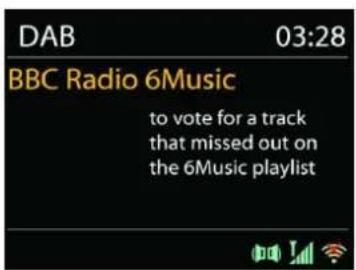

Now playing information

While the stream is playing, the screen shows its name and DLS (Dynamic Label Segment) information broadcast by the station giving real-time information such as program name, track title and contact details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press "INFO" button on the radio.

Each time you press "INFO" button on the radio, another set of information is displayed, cycling through DLS text, program type, ensemble name/frequency, signal strength/errort rate, bite rate/codec/channels and today's date.

- Settings

Dynamic range compression (DRC)

If you are listening to music with a high dynamic range in a noisy environment, you may wish to compress the audio dynamic range. This makes quiet sounds louder, and loud sounds quieter. You can change DRC as off, low or high.

FM

FM radio mode receives analogue radio from the FM band and displays RDS (Radio Data System) information about the station and where broadcast.

For FM auto store press the " button on the main unit or "SCAN" on remote control; the found stations will be stored to the presets.

Automatic and manual channel search

To automatic tune, press and hold "Nor" button. The frequency display starts to run and scans the FM band and stops at the next station.

To manual fine tune press the "or remote key. The unit search in 0.05 MHz steps.

- Presets storing and recall

Storing and recall of DAB stations to preset is same functionality as described in the internet radio section.

Now playing information

While the stream is playing, the screen shows its frequency, or if RDS signal is available, station name and any further RDS information such as program name, title and other details. Stereo broadcasts are indicated with an icon at the bottom of the screen. To view further information, press Info button on the radio.

Each time you press "INFO" button on the radio, another set of information is displayed, cycling through Radio text, program type, frequency and today's date.

- Settings

Scan settings

Choose FM at first, it will go to a specific station playing. Then press "MENU" on the radio to get above table.

By default, FM scans stop at any available station. This may result in a poor signal-to-noise ratio (hiss) from weak stations. To change the scan settings to stop only at stations with good signal strength choose "Strong".

Audio settings

All stereo stations are reproduced in stereo. For weak stations, this may result in a poor signal-to-noise ratio (hiss). To play weak stations in mono, select FM weak reception: Listen in mono only.

CD MODE

Improper operation can result in material damages!

Do not insert any recording media that deviate from the standard CD format (eg: mini-discs) into the CD player. These may not be played and ejected correctly. Insert only one disc at a time into the CD player.

1. Press "MODE" button repeatedly on the unit repeatedly until "CD" displayed, then press "OK". Open the CD tray with the "▲" button.
2. Put a disc (with printing side facing up) inside. The display will say "Loading" and the disc functions will not work while the disc is loading.

The Playback will begin automatically once the table of contents is read. The display will show "No Disc" when the unit is set to CD mode and there is no CD inside.

To pause/resume playback of the CD, press the "▶" button
To switch to the next track, press the " button once
To fast forward through a track, press and hold the "▶" button. Continue with "▶II"
To switch to the previous track, press the " " button
To fast backward through a track, press and hold "▶" button. Continue with "▶II"
To stop CD playback, press the " " button on the remote control.

CD Program

1. Set the unit in Stop mode
2. Press the "PRESET" button on the Remote Control. The display will show "T01 P01" and "T01" flash.
3. Choose with "▶" or "▶" or 0 to 9 on the Remote Control, the track which should be programmed and confirm the track by pressing the "OK" button on the Remote Control. The display changes to "P02".
4. To choose more tracks do step 3 again.
5. If all tracks are programmed press the “▶” button on the unit or Remote Control to start the programmed playback.
6. Delete the programmed list by double press the " " button

Shuffle mode

Press the "X" button on the Remote Control. The display will show the Shuffle indicator.

Repeat one track (CD-MP3 / USB)

During playback press the " button on the Remote Control once to repeat playback of the song you are listening to.

Repeat all tracks

During playback press the “ ” button on the Remote Control twice to repeat all songs from the CD. To cancel the Repeat mode press the “ ” button on the Remote Control until all symbols in the display disappear.

Eject the CD by pressing the "▲button on the unit or the remote control.

Audio book function (resume)

If you change the function or switch off the device and switch back to CD mode, playback starts from the point last heard. First press the " button and then the " button to start playback from title 1.

USB

USB Stick with max 16GB storage and FAT32 format.

In USB mode, files in MP3 format can be played back from a USB storage device.

You can use the "▶" or "▶" buttons to play the previous or next track.

Press the "OK" button or use the "OKTIVAPP" to start playback

Playing modes / Program playback

The USB playback options are equal to the CD playback options.

Please look at the description in "CD-Mode"

BLUETOOTH

This unit only contains a Bluetooth receiver! You cannot connect a Bluetooth headset or similar.

When you select the Bluetooth mode, the device is entering to pairing and the BT icon at the bottom of the screen will flash.

Turn on your smartphone, tablet or other Bluetooth devices to search for the device. The Bluetooth pairing name is "ICD4350".

When pairing is successful, the Bluetooth indicator will light up and stop flashing.

To release BT pairing, turn off or unpair your smartphone, table or other Bluetooth devices.

Press “▶” on the radio or Remote Control to start or pause the playback. You can press “▶” or “▶” on the radio or Remote Control to play the previous or next track.

TV/HDMI-ARC

If your TV set is equipped with an ARC-capable HDMI socket, connect it by using an ARC-capable HDMI cable via the HDMI input socket.

May you have to enable the HDMI - ARC function on your TV.

REMARK: When operating with digital coaxial cable or HDMI, set the digital audio setting of your TV to PCM output. If you do not set the audio to "PCM", you may hear no sound or only noise.

For more information on setting the digital audio output to PCM, please refer to the operating instructions for your TV set. The setting options you can find under Audio/Sound settings are: digital audio output, PCM, SPDIF, linear PCM, uncompressed audio, stereo, RAW....

If your TV does not have HDMI-CEC and ARC or the CEC protocol is inconsistent, it may result in no sound being output or your ICD4350 cannot be controlled by the TV (on/off & volume).

In this case, you must connect an analogue cable and operate the device using the remote control supplied.

If your TV is not HDMI-CEC and ARC or the CEC protocol is inconsistent, resulting in no sound after the connection, you must connect an audio cable to play sound from your TV through the speakers of your ICD4350.

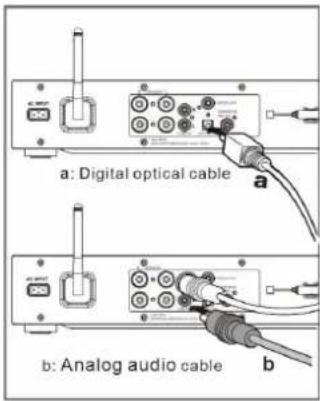

AUX IN/OPTICAL IN

Use an RCA audio cable or optical cable to connect the DVD player / TV outputs with the AUX / OPTICAL input socket from the device.

DIGITAL OUT

Connect the COAXIAL IN jack of an external integrated amplifier with a digital coaxial cable to the DIGITAL OUT COAXIAL jack on this unit.

The digital output signal is converted to analogue in the D/A converter of a connected integrated amplifier.

The digital signals that can be output by this unit are linear PCM signals with a sampling frequency and quantization bit rate of 192 kHz/24 bit (operation may not be possible with all connected devices or environments)

SUBWOOFER PRE AMP OUT

To enhances the bass feeling, you can also connect a subwoofer with a built-in amplifier.

Use a subwoofer cable for connection.

SLEEP

To set the sleep timer, press "SLEEP" on the unit or Remote Control. Choose from Sleep OFF, 15mins, 30mins, 45mins or 60mins.

Once you select a sleep period, the system returns to the "Now playing" screen.

If you go under Main Menu to Sleep press "MENU" on the unit or Remote Control to return to the "Now playing" screen.

ALARM

There are two versatile wake-up alarms with snooze facility.

Each alarm can be set to start in a particular mode.

Select Alarm under Main menu to set or change an alarm.

Select the alarm number (1 or 2) then configure the following parameters:

• Enable: on/off, Frequency: Daily, Once, Weekends or Weekdays,
  Time
  Mode: Buzzer, Internet Radio, CD, DAB+, FM or USB,
• Preset: Last listened, 1 - 30,
  Volume:0-32

To activate the new settings, scroll down and select Save.

The screen shows active alarms with an icon at the bottom left.

When the alarm sounds, press "STANDBY/ON" to stop it or press "OK" repeatedly to use the snooze function for 5, 10, 15 or 30 minutes.

OKTIV

The ICD4350 supports remote control from Apple iPhone, iPad and Android using the OKTIV app. The apps are available in Apple's app store and Google's android play.

The OKTIV app allows you to:

• Adjust volume
• Control all the modes of the ICD4350, including Internet Radio, USB playback, DAB, FM, Bluetooth, CD and AUX-In
• Setting EQ for various audio presets
• Setting Sleep timer
• Editing the displayed name of the radio
• Store and recall of radio stations
• Change the volume

HEADPHONE

To listen to music privately, use headphones with a 3.5 stereo jack plug and connect it to the headphones socket. The speakers will then be muted.

To prevent possible hearing damage, do not listen at high volume levels for long periods.

FACTORY RESET

A factory reset resets all user settings to default values, so that time and date, network configuration and presets are lost. However, the ICD4350 's current software version is maintained, as is registration with the Internet radio portal.

TROUBLESHOOTING

Error	Remedy
The device does not switch on.	Check it the AC cable is connected properly.
Switch automatically off	Due to ErP2 requirements and environmental protection, the unit automatically switches to standby mode when no music is played for more than 15 minutes.
No sound.	1. Turn on the sound as it may be muted 2. Increase the volume. 3. Pull any connected headphone or speaker from the connector jack. 4. Speaker cable correct mounted
No network connection can be established.	1. Check the LAN cable or the WLAN function. 2. Try to set an IP address at the device. 3. Activate the DHCP function on the router and make the connection again at the device. 4. A firewall is activated on the network – set the respective program in such a way that access is possible. 5. Reboot the router
WiFi connection cannot be established.	1. Check the availability of WLAN network on the router. 2. Place the device closer to the router. 3. Make sure the password is correct.
No station is found.	1. Check the network as well as the access point and firewall. 2. The station may not be available currently, try it again later or select another station. 3. The link of the station is changed or the station no longer transmits – ask the provider for information. 4. The link of manual added station is not correct, make sure it is correct and re-enter.
Hiss in FM mode	Check/move the FM antenna or move the radio
No stations available / burbling / intermittent in DAB mode.	1. Move the radio. 2. Rescan local stations only (high-strength). 3. Check the local DAB coverage.
Alarm does not work.	1. Switch on the alarm. 2. Due to the volume setting, refer to the solutions of “No sound”. 3. The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
USB driver or MP3 player is not detected.	1. Check if the USB driver or MP3 player is plugged properly. 2. Some USB hard disks need external power supply, make sure it is connected to the power. 3. Not all MP3 players can be read directly on the device – use an USB drive instead.
NetRemote does not show or connect to ICD4350	1. Reopen the App. 2. If you have several streaming from several devices at the same time, it may cause crash, reboot ICD4350 and/or your device.
All other undetermined cases.	ICD4350 may process large amount of data after a period of operation, no matter in which mode, it will cause the system freeze or malfunction. Reboot ICD4350 if necessary.
	The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.
	The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.
	Under the environment with Conducted Immunity disturbance, the sample may malfunction. It will automatically recover to normal when the Conducted Immunity disturbance stopped.

The current instruction manual can be downloaded from www.soundmaster.de

Technical changes and misprints reserved

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Duplication only with the permission of Woerlein GmbH.

PROTECTION DE L'ENVIRONNEMENT

Scannenaarhetnetwork

Kiesuit: "Medium" / "Low"

TAAL

Veranderaaruwvoorkeur.

SOFTWARE-UPDATE

- Scannenaar stations

USCITA PRE AMP SUBWOOFER

Push WPS button at the other end

Press SELECT to continue

Pin

Enter PIN 98467583 at the other end

Press SELECT to continue

Preskočit WPS

Please wait Connecting..

Setup wizard completed

Press SELECT to exit

EKVALIZER

VSTUP AUX / OPTICKY VSTUP

Cadolzburg, www.soundmaster.de

POMOCNY VSTUP/OPTICKY VSTUP

Antenn for WiFi/Bluetooth

Fjarrkontroll

Bruksanvisining

Natsladd

HÄMTA STARTADE/KONFIGURATION

CPRODUKT Z LASEREM KLASY1

UWAGA - EMITOWANA JEST NIEWIDOCZNA WIAZKA LASEROWA PRZY OTWARTEJ POKRYWIE LUB PRZY NACISNIECIU ZATRZASKOW BEZPIECZENSTWA. UNIKAJ KONTAKTU Z WIAZKA LASERA.

Push WPS button at the other end

Press SELECT to continue

Szpilka

Enter PIN 98467583 at the other end

Press SELECT to continue

Pomín WPS

Please wait Connecting ..

Setup wizard

Setup wizard completed

Press SELECT to exit

KOREKTORA

Copyright by Woerlein GmbH, 90556 Cadolzburg, www.soundmaster.de

Hereby, Wörlein GmbH declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU.

A copy of the declaration of conformity can be obtained from the above address.
