USER MANUAL KA 3003 CB BOMANN

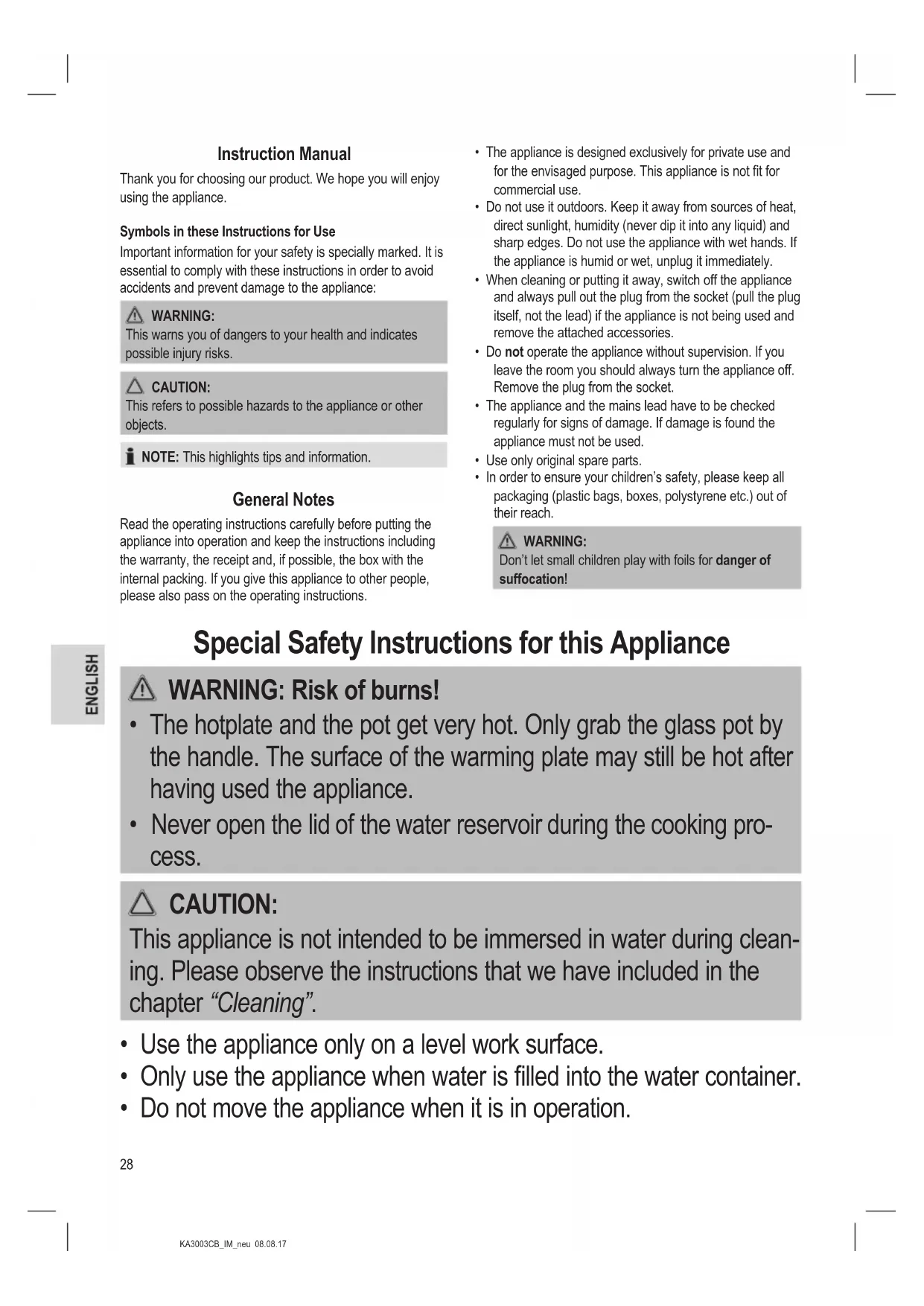

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the appliance or other objects. NOTE: This highlights tips and information. General Notes Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not t for commercial use.

• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.

• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.

• Use only original spare parts.

• In order to ensure your children’s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

Don’t let small children play with foils for danger of suffocation! Special Safety Instructions for this Appliance

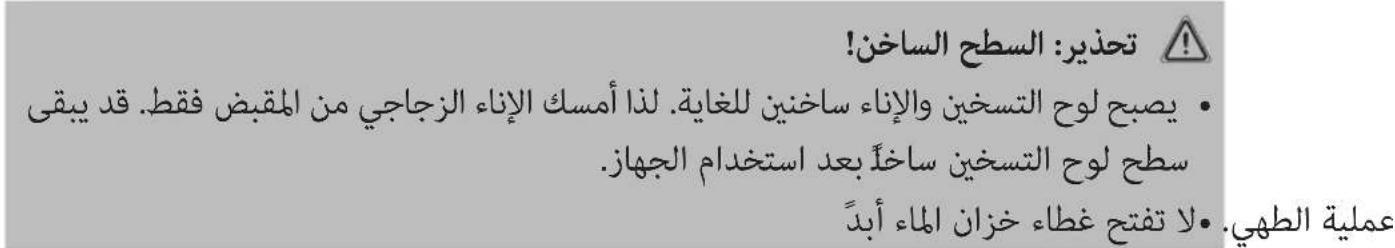

WARNING: Risk of burns!

• The hotplate and the pot get very hot. Only grab the glass pot by the handle. The surface of the warming plate may still be hot after having used the appliance.

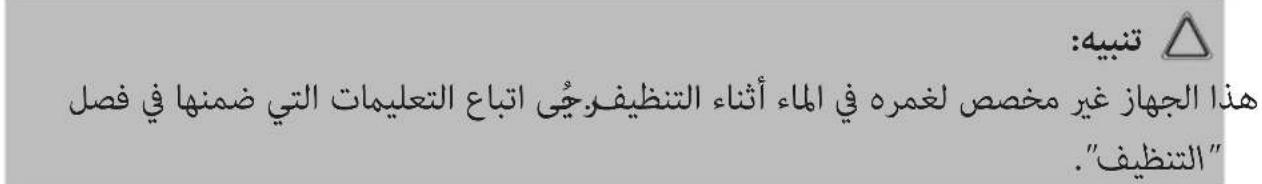

• Never open the lid of the water reservoir during the cooking pro- cess. CAUTION: This appliance is not intended to be immersed in water during clean- ing. Please observe the instructions that we have included in the chapter “Cleaning”.

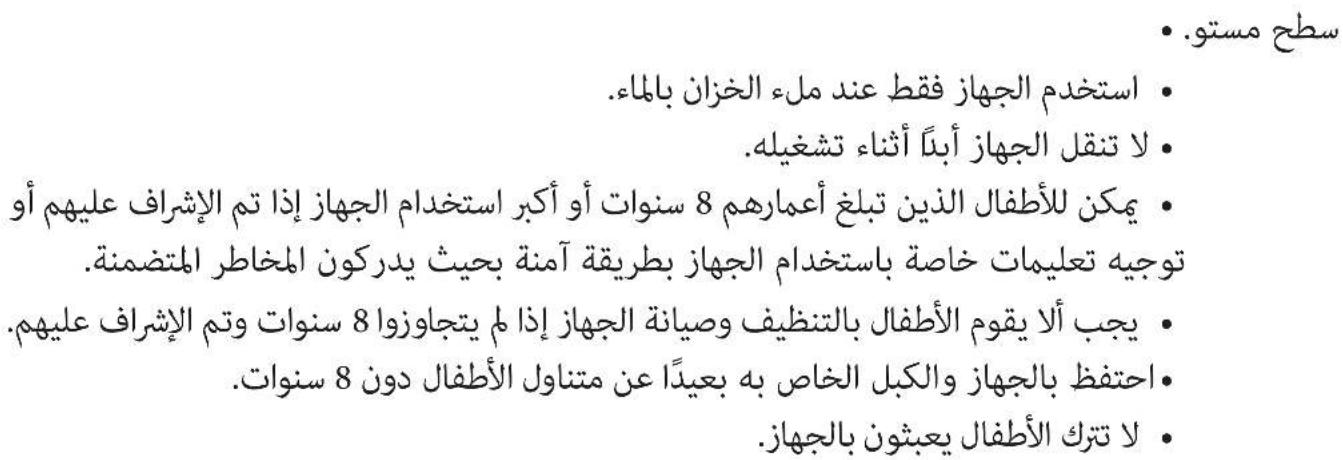

• Use the appliance only on a level work surface.

• Only use the appliance when water is lled into the water container.

• Do not move the appliance when it is in operation.29 KA3003CB_IM_neu 08.08.17

• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.

• Cleaning and maintenance by the user shall not be made by chil- dren unless they are older 8 years and supervised.

• Keep the appliance and its cord out of reach of children less than 8 years.

• Children shall not play with the appliance.

• Appliances can be used by persons with reduced physical, sen- sory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

• Do not repair the appliance by yourself. Please contact authorized personnel. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualied persons in order to avoid a hazard. Designated Use

• This appliance serves for brewing of ground coffee.

• Only use the appliance in a dry, indoor area.

• It is intended for domestic use and similar areas of use such as e. g.: - In staff kitchens in shops, ofces and other commercial areas; - By guests in hotels, motels and other accommodation facilities. It is not intended for use in farm accommodation or Bed & Break- fast establishments.30 KA3003CB_IM_neu 08.08.17 Scope of Delivery 1 Automatic coffee maker 1 Filter holder 1 Glass coffee pot 1 Coffee pot lid Unpacking the Appliance

1. Remove the appliance from its packaging.

2. Remove all packaging material such as plastic lms, ller

material, cable ties and cardboard packaging.

3. Check the content for any missing parts.

4. In the event that the packaging content should be incom-

plete or if damages are noticeable, do not operate the appliance. Return it to the dealer immediately. NOTE: There may be dust and production residue on the appli- ance. We recommend cleaning the appliance as described under “Cleaning”. Notes on Use Placement

• Place the automatic coffee maker on a stable and level surface. Place the appliance in such way that it cannot tip over.

• Do not place the appliance in close proximity to a gas or electric stove or any other heat source. Note About the Brewing Process During the brewing process and depending on the degree of grinding and the used amount, the coffee powder absorbs a certain amount of water. That is why the quantity of coffee might diverge from the quantity of water in the water tank. European Regulations on Energy Saving NOTE: The European Directive 2009 / 125 / EC (Ecodesign Direc- tive) incorporates measurements for energy saving. The following applies to coffee makers: The keep-warm pe- riod is limited to max. 40 minutes after which the appliance turns off automatically. You benet from better safety and lower energy consump- tion. Electric Connection

1. Ensure that your mains power corresponds with the spec-

ications of the appliance. The specications are printed on the type label.

2. Connect the mains cable to a properly installed and

earthed wall outlet. Initial Operation Before making coffee for the rst time operate the appliance twice with clean water only and without paper lter. This removes dust, which may have collected during transport. Follow the instructions given under “Operation”. Turning the Appliance On / Off

• Press the button to switch on the appliance. The indicator lamp of the button lights up.

• Press the button again to turn off the appliance or to can- cel brewing. The indicator lamp of the button turns off. Operation

1. Open the lid of the water tank.

2. Fill cold water according to the desired amount of cups

of coffee into the rear water tank. You can determine the water level with the help of the scale in the water tank. NOTE: You can use the pot to ll the water tank. CAUTION: Do not overll the tank! Do not ll it above the MAX mark.

3. Insert the lter holder. Pay attention to the guides at the

bottom of the lter holder.

4. Turn over the lower fold of the paper lter (size 1 x 4) and

place it in the lter funnel. Then ll it with coffee powder. NOTE: Do not put too much coffee powder into the lter to avoid spillage.

5. Now close the lid of the water tank. It must engage.

6. Place the jug onto the warming plate.

CAUTION: Drip stop Your appliance comes with a drip stop. It closes when removing the coffee pot. This prevents the coffee from dripping onto the warming plate if there is still water in the lter.

• Ensure that the lid is attached to the coffee pot. It opens the drip stop.

• If there is still water in the tank, place the pot under- neath as soon as possible. Otherwise the lter might overow.

7. Switch on the appliance. The indicator lamp of the button

lights up. NOTE: The appliance switches off automatically about 30 minutes after the brewing. The indicator lamp of the button turns off.31 KA3003CB_IM_neu 08.08.17 The Coffee is Ready

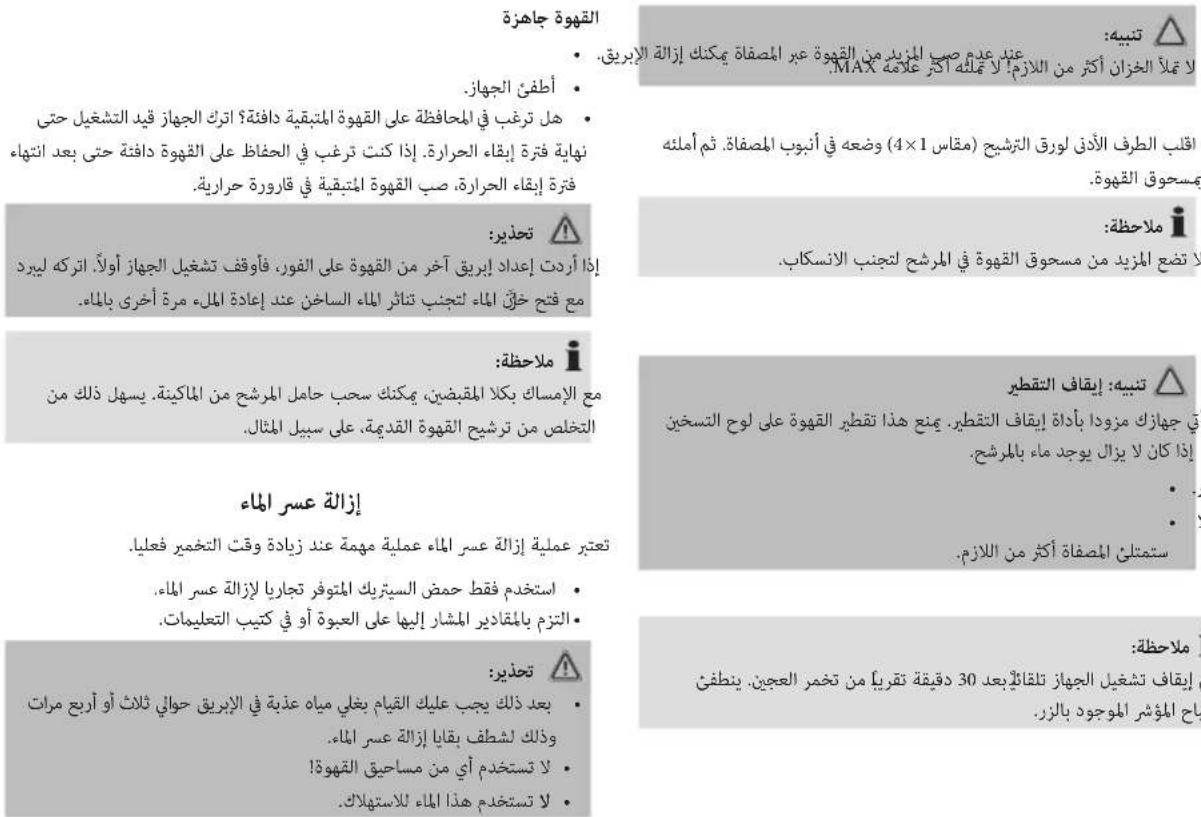

• When no more coffee is owing through the lter you can remove the pot.

• Turn the appliance off.

• Would you like to keep the remaining coffee warm? Leave the appliance turned on until the end of the keep-warm period. If you wish to keep the coffee warm even after the keep-warm period has nished, pour the remaining coffee into a thermal ask.

If you want to make another pot of coffee immediately, switch off the appliance rst. Let it cool down with the water tank open in order to avoid hot water splashing when relling with water. NOTE: While grabbing both handles you can pull the lter holder out of the appliance. This makes it easier to dispose of the old coffee lter, for example. De-scaling De-scaling is necessary when the brewing time increases substantially.

• Use only commercially available citrus acid-based de- scaler.

• Dose as indicated on packaging or instruction leaet.

• Afterwards you should boil fresh water in the pot three or four times in order to rinse out residues of the de-scaling agent.

• Do not use any coffee powder!

• Do not use this water for consumption. Cleaning

• Before cleaning, always remove the mains plug and wait until the appliance has cooled down.

• Do not immerse the appliance in water. Otherwise this might re- sult in an electric shock or re. CAUTION:

• The exterior of the appliance should be cleaned as neces- sary with a slightly damp cloth – without any additives.

• Remove spilled coffee grounds with a paper towel from the inner casing. Afterwards wipe with a damp cloth.

• Grab both handles to remove the lter holder.

• The coffee pot and the lter pad should be cleaned by rinsing in warm water. Use a soft brush if necessary. Storage

• Clean the appliance as described and let it dry completely.

• We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.

• Always store the appliance at a well ventilated and dry place outside the reach of children.32 KA3003CB_IM_neu 08.08.17 Troubleshooting Problem Possible Cause Solution The appliance does not work. The appliance is not connected to mains power. Check the wall outlet with a different appliance. Insert the plug properly in the wall outlet. Check the fuse. The appliance is defective. Contact our service or a repair center. Filter blockage: coffee grounds spill over the edge of the lter. The drip stop is closed: The coffee pot is not on the warming plate or the lid is not on the coffee pot.

1. Switch the appliance off. Disconnect from mains

2. Put the coffee pot with lid on the warming plate so

that the lter is emptied.

3. Dispose of the paper lter.

4. Clean the appliance as described.
