USER MANUAL KA 1575 CB BOMANN

White BOMANN® coffee maker with clear glass and dark liquid, no visible text or symbols on the device itself.

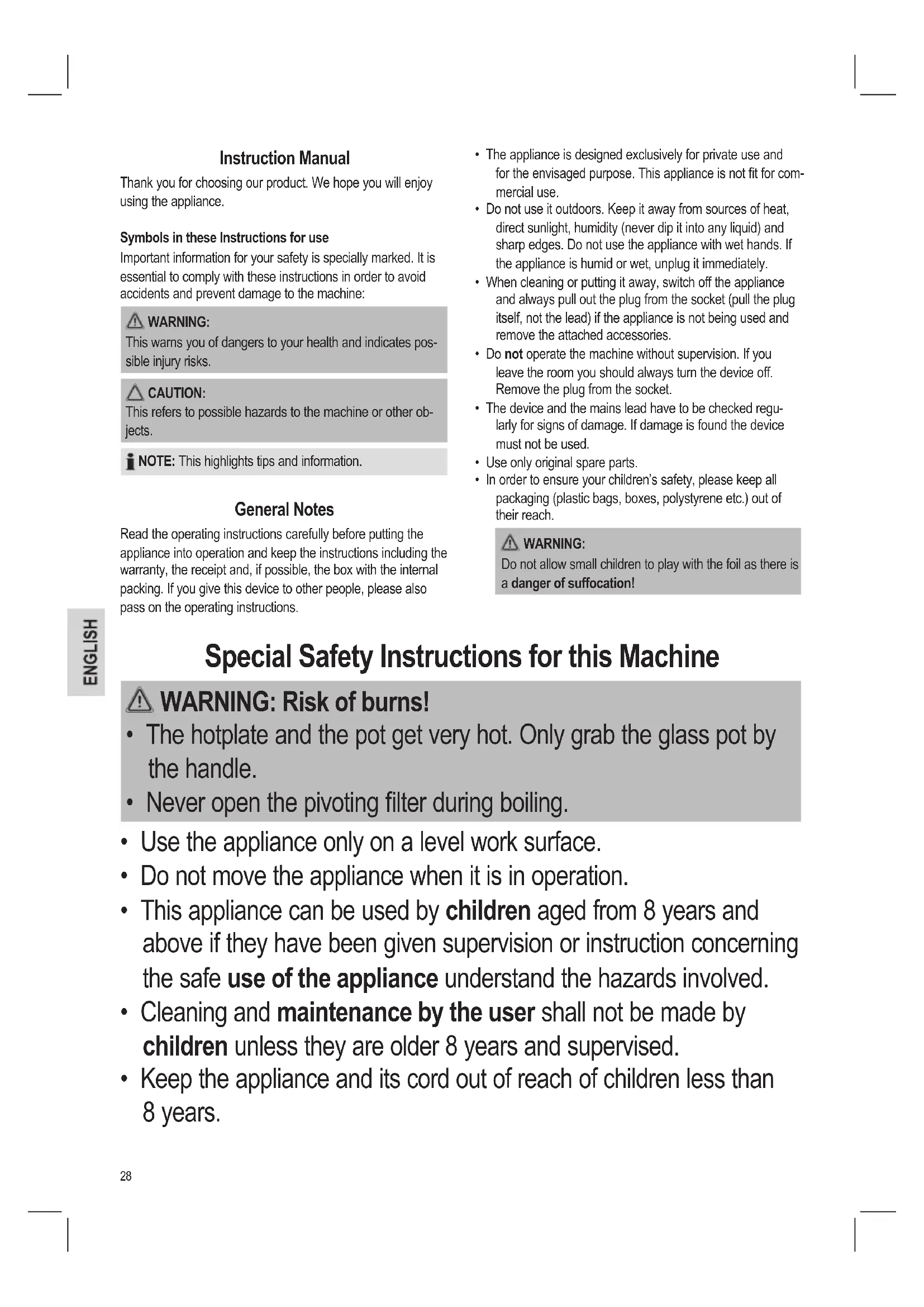

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instructions for use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil as there is a danger of suffocation!

Special Safety Instructions for this Machine

WARNING: Risk of burns!

• The hotplate and the pot get very hot. Only grab the glass pot by the handle.

• Never open the pivoting filter during boiling.

• Use the appliance only on a level work surface.

• Do not move the appliance when it is in operation.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.
• Cleaning and maintenance by the user shall not be made by children unless they are older 8 years and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

• Children shall not play with the appliance.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
- This appliance serves for brewing of ground coffee.
- Only use the appliance in a dry, indoor area. It is intended for domestic use and similar areas of use such as e.g.
- In staff kitchens in shops, offices and other commercial areas;
- By guests in hotels, motels and other accommodation facilities.
It is not intended for use in farm accommodation or Bed & Breakfast establishments.

CAUTION:

The appliance must not be immersed in water for cleaning. Refer to the instructions provided in the chapter “Cleaning”.

Supplied parts

1 x Automatic coffee maker
1 x Filter holder
1 x Glass coffee pot
1 x Coffee pot lid

Unpacking the appliance

1. Remove the appliance from its packaging.
2. Remove all packaging materials such as films, filler material, cable clips and carton.
3. Check the contents for completeness.
4. In the event that the packaging content should be incomplete or if damages are noticeable, do not operate the appliance. Return it to the dealer immediately.

i NOTE:

Production residue or dust may have collected on the appliance. We recommend cleaning the appliance according to chapter "Cleaning".

Instructions

Placement

• Place the automatic coffee maker on a stable and level surface. Place the appliance in such way that it cannot tip over.
• Do not place the appliance in close proximity to a gas or electric stove or any other heat source.

Electric Connection

NOTE:

Make sure the device is switched off. The switch must be at the "O" position.

1. Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the type label.
2. Connect the mains cable to a properly installed and earthed wall outlet.

Operation

Before making coffee for the first time operate the appliance twice with clean water only and without paper filter. This removes dust, which may have collected during transport. Follow the instructions given under “Operation”.

Operation

1. Open the lid of the water tank.
2. Fill cold water according to the desired amount of cups of coffee into the rear water tank. The water level is displayed on the indicator.

NOTE:

You can use the pot to fill the water tank.

CAUTION:

Do not overfill the tank! Do not fill it above the MAX mark.

1. Ensure that the filter holder is properly attached.
2. Swing the filter open to the left.
3. Now close the lid of the water tank.
4. Turn over the lower fold of the paper filter (size 1x4) and place it in the filter funnel. Then fill it with coffee powder.
5. Close the pivoting filter until it locks into place.
6. Place the jug onto the warming plate.

CAUTION: Drip stop

Your appliance comes with a drip stop. It closes when removing the coffee pot. This prevents the coffee from dripping onto the warming plate if there is still water in the filter.

CAUTION: Drip stop

• Ensure that the lid is attached to the coffee pot. It opens the drip stop.

• If there is still water in the tank, place the pot underneath as soon as possible. Otherwise the filter might overflow.

• Switch on the device. The indicator lamp in the switch will light up.

The Coffee Is Ready

NOTE:

The brewing process lasts approximately. 8-10 minutes.

• When no more coffee is flowing through the filter you can remove the pot.
• Turn the device off.
• Would you like to keep the remaining coffee warm? Leave the machine switched on until the pot is empty.

NOTE:

The filter holder can be removed from the machine by its handle. This makes it easier to dispose of the old coffee filter, for example.

WARNING:

If you want to make another pot of coffee immediately, switch off the device first. Let it cool down with the water tank open in order to avoid hot water splashing when refilling with water.

De-scaling

De-scaling is necessary when the brewing time increases substantially.

• Use only commercially available citrus acidbased de-scaler.
• Follow the recommended instructions for use.

WARNING:

• Afterwards you should boil fresh water in the pot three or four times in order to rinse out residues of the descaling agent.
• Do not use any coffee powder!
• Do not use this water for consumption.

Cleaning

WARNING:

- Before cleaning, always remove the mains plug and wait until the device has cooled down.

WARNING:

- Do not immerse the device in water. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• The exterior of the device should be cleaned as necessary with a slightly damp cloth – without any additives.
• Remove spilled coffee grounds with a paper towel from the inner casing. Afterwards wipe with a damp cloth.
• The coffee pot and the filter pad should be cleaned by rinsing in warm water. Use a soft brush if necessary.

Storage

• Clean the appliance as described and let it dry completely.
• For longer periods of non-use we recommend storing the appliance in its original packaging.
  • Always store the appliance in a well-ventilated and dry place out of reach of children.

Troubleshooting

Problem Possible cause Solution
The appliance does not work.	The appliance is not connected to mains power.	Check the wall outlet with a different appli-ance.
		Insert the plug pro-perly in the wall outlet.
		Check the fuse.
	The appliance is defective.	Contact our service or a repair center.
Filter blockage: coffee grounds spill over the edge of the filter.	The drip stop is closed: The coffee pot is not on the warming plate or the lid is not on the coffee pot.	1. Switch the appli-ance off. Discon-nect from mains power supply.2. Put the coffee pot with lid on the warming plate so that the filter is emptied.3. Dispose of the paper filter.4. Clean the appli-ance as described.
	Too much coffee powder in the filter.
Coffee grounds in the coffee.	The paper filter is too small.	Use a paper filter size “1x4”.
	Too much coffee powder in the filter.	Use less coffee powder.

Problem Possible cause Solution
The brewing process takes too long.	Limescale deposits in the appliance.	Decalcify the appli-ance as described.

Technical Data

Model: KA 1575 CB
Power supply: 220 - 240 V\~, 50/60 Hz
Power consumption: 730 - 870 W
Filling quantity: ....approx. 1.25 Liter
Protection class:
Net weight: ....approx. 1.2 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
