Product type	Filter coffee maker
Brand	Bomann
Model	KA 6066 CB
Water tank capacity	1.2 L (approx. 12 cups)
Color	Black / Stainless steel
Net weight	1.85 kg
Dimensions (approx.)	30 x 20 x 35 cm
Power supply	220–240 V ~, 50–60 Hz
Power	800 W
Protection class	I
Coffee type	Ground coffee
Compatible paper filter	Size 1 x 4
Thermal carafe	Yes, stainless steel with lid
Auto shut-off function	Yes, after approx. 5 minutes (Ecodesign compliance)
Anti-drip device	Yes
Keep warm	Limited to 5 minutes (integrated auto shut-off)
Descaling	Recommended with citric acid
Cleaning	Carafe and filter holder washable in warm water; body wiped with a damp cloth
Do not immerse	Yes, do not submerge in water
Child safety	Use by children +8 years under supervision
Hot surface	Warning: risk of burns
Package contents	1 coffee maker, 1 filter holder, 1 thermal carafe, 1 lid
Warranty	Standard manufacturer warranty (see conditions)

Frequently Asked Questions - KA 6066 CB BOMANN

How to use the Bomann KA 6066 CB coffee maker?

Open the water tank lid, pour the desired amount of water (max 1.2 L). Insert a size 1x4 paper filter into the filter holder, add ground coffee. Place the thermal carafe with its lid on the warming plate. Turn on the appliance with the I button. The automatic shut-off occurs approximately 5 minutes after the end of brewing.

Why does my coffee maker turn off by itself?

In accordance with the European Ecodesign directive, the appliance automatically shuts off within 5 minutes after brewing ends. This is not a defect.

How to descale the coffee maker?

Use only a descaling agent based on citric acid. Follow the dosage indicated on the packaging. After descaling, boil 3 to 4 times with clean water to rinse. Do not consume this water.

What to do if the coffee does not flow or flows too slowly?

Check that the filter is not clogged (too much coffee or grains on the edge). Ensure the thermal carafe is properly placed with its lid, otherwise the anti-drip device closes. If the problem persists, descale the appliance.

Can I use another type of filter?

Only paper filters of size 1 x 4 are recommended. Using other sizes may cause overflow or poor flow.

How to clean the coffee maker?

Unplug the appliance and let it cool. Clean the exterior with a damp cloth (no abrasive detergent). The thermal carafe and filter holder can be washed in warm water with dish soap. Never immerse the appliance body.

What is the maximum water capacity?

The water tank can hold approximately 1.2 liters, which corresponds to about 12 cups. Do not exceed the MAX mark to avoid overflowing.

Why are there coffee grounds in my cup?

This may be due to a filter that is too small or too much ground coffee. Use a size 1x4 filter and reduce the amount of coffee if necessary.

Can I brew another carafe immediately after the first?

It is advisable to wait approximately 5 minutes after brewing ends to let the appliance cool. Fill the tank with the lid open to avoid hot water splashes.

Where can I find spare parts?

Contact Bomann customer service or an authorized center. Available parts include the thermal carafe, filter holder, and lid. Use only original accessories.

USER MANUAL KA 6066 CB BOMANN

Exterior view of a modern stainless steel coffee maker with black lid and control panel (no visible text or symbols)

Bedienungsanleitung

CE

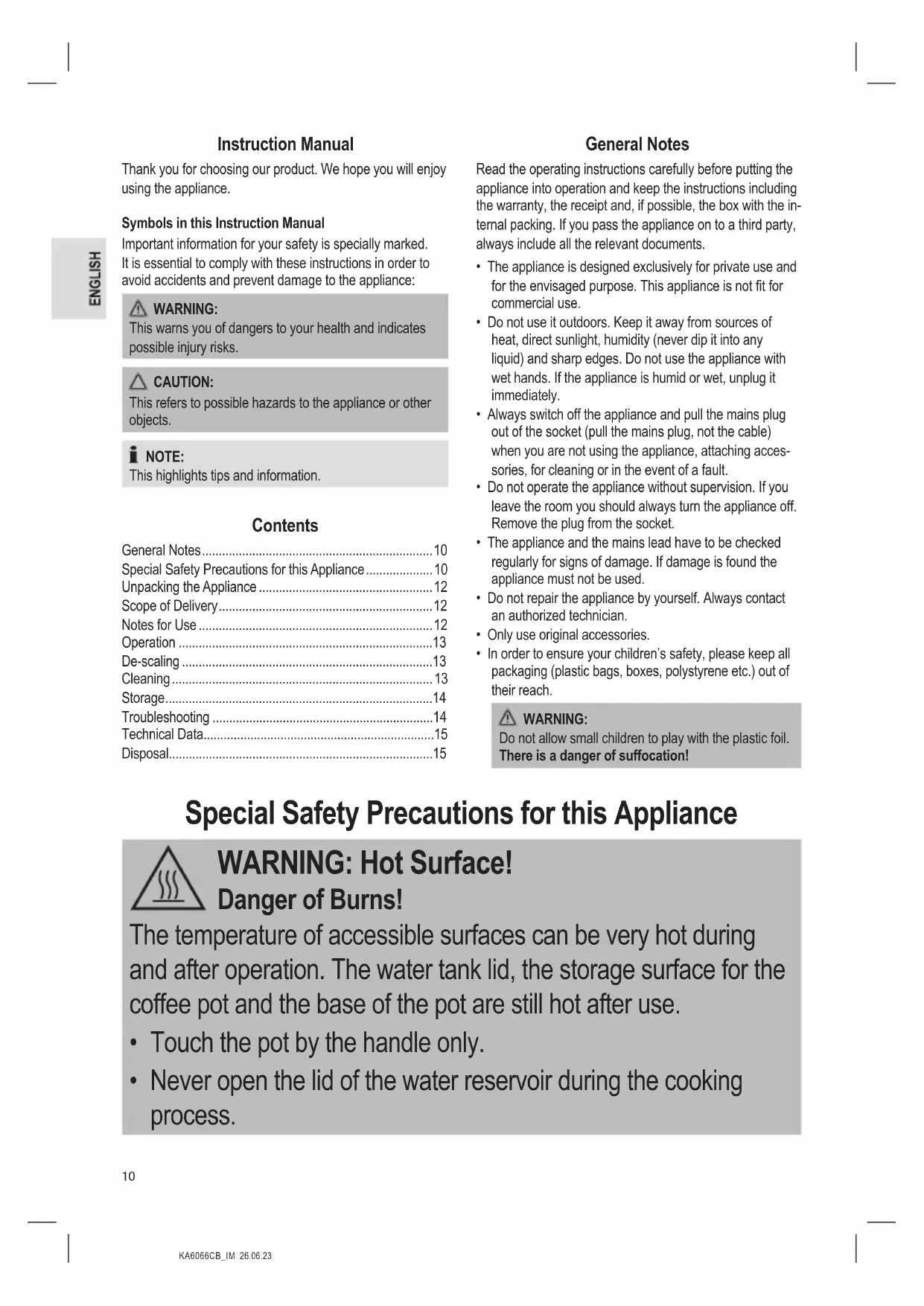

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in this Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE:

This highlights tips and information.

Contents

General Notes......10

Special Safety Precautions for this Appliance....10

Unpacking the Appliance 12

Scope of Delivery....12

Notes for Use 12

Operation 13

De-scaling 13

Cleaning....13

Storage....14

Troubleshooting 14

Technical Data....15

Disposal....15

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you pass the appliance on to a third party, always include all the relevant documents.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• Always switch off the appliance and pull the mains plug out of the socket (pull the mains plug, not the cable) when you are not using the appliance, attaching accessories, for cleaning or in the event of a fault.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Do not repair the appliance by yourself. Always contact an authorized technician.
• Only use original accessories.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the plastic foil.

There is a danger of suffocation!

Special Safety Precautions for this Appliance

WARNING: Hot Surface!

Danger of Burns!

The temperature of accessible surfaces can be very hot during and after operation. The water tank lid, the storage surface for the coffee pot and the base of the pot are still hot after use.

• Touch the pot by the handle only.
• Never open the lid of the water reservoir during the cooking process.

CAUTION:

This appliance is not intended to be immersed in water during cleaning. Please observe the instructions that we have included for you in the chapter "Cleaning".

• Use the appliance only on a level work surface.
• Only use the appliance when water is filled into the water container.
• Do not move the appliance when it is in operation.
• This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning the safe use of the appliance understand the hazards involved.
• Cleaning and user maintenance shall not be made by children without supervision.
• Keep the appliance and its cord out of reach of children less than 8 years.
  • Children shall not play with the appliance.
• Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
• The coffee maker shall not be placed in a cabinet when in use.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• This appliance is intended for brewing coffee from ground beans. Never use to heat up other fluids or foodstuffs. The abuse for any other purposes may result in injury.

• Only use the appliance in a dry, indoor area.

• It is intended for domestic use and similar areas of use such as e.g.:

• in staff kitchen areas in shops, offices and other working environments;

• by clients in hotels, motels and other residential type environments.

It is not intended for use in farm houses or in bed and breakfast type environments.

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material, such as foils, filling material, cable ties and cardboard packaging.
3. Check the scope of delivery for completeness.
4. If the contents of the packaging are incomplete or if damage can be detected, do not operate the appliance. Return it to the dealer immediately.
5. There may still be dust or production residues on the appliance. We recommend that you clean the appliance as described under "Cleaning".

Scope of Delivery

1 × Automatic coffee maker
1 × Filter holder
1 × Stainless steel insulated pot
1 × Coffee pot lid

Notes for Use

Placement

• Place the automatic coffee maker on a stable and level surface. Place the appliance in such way that it cannot tip over.
• Do not place the appliance in close proximity to a gas or electric stove or any other heat source.

Note About the Brewing Process

During the brewing process and depending on the degree of grinding and the used amount, the coffee powder absorbs a certain amount of water. That is why the quantity of coffee might diverge from the quantity of water in the water tank.

European Regulations on Energy Saving

i NOTE:

The European Directive 2009 / 125 / EC (Ecodesign Directive) incorporates measurements for energy saving. The following applies to coffee makers: The keep-warm period is limited to max. 5 minutes after which the appliance turns off automatically.

You benefit from better safety and lower energy consumption.

Electric Connection

1. Ensure that your mains power corresponds with the specifications of the appliance. The specifications are printed on the type label.
2. Connect the mains cable to a properly installed and earthed wall outlet.

Initial Operation

Before making coffee for the first time operate the appliance twice with clean water only and without paper filter. This removes dust, which may have collected during transport. Follow the instructions given under “Operation”.

Turning the Appliance On/Off

• Press the “I” switch in order to turn on the appliance. The button must snap in. The operating control lamp lights up.
• Press the “○switch in order to turn off the appliance or to cancel the brewing process. The operating control lamp turns off.

Operation

1. Open the lid of the water tank.
2. Fill cold water according to the desired amount of cups of coffee into the rear water tank. You can determine the water level with the help of the scale in the water tank.

NOTE:

You can use the pot to fill the water tank. To open the lid of the pot, press the two latching lugs together simultaneously.

CAUTION:

Do not overfill the tank! Do not fill it above the MAX mark.

1. Insert the filter holder. One of the two handles must be on the right hand side and the other on the left. Push the filter holder down until it snaps in.
2. Turn over the lower fold of the paper filter (size 1 x 4) and place it in the filter funnel. Then fill it with coffee powder.

NOTE:

Do not put too much coffee powder into the filter to avoid spillage.

1. Now close the lid of the water tank. It must snap into place.
2. Place the lid on the pot. The button on the lid must face the handle. Note the recesses on the opening of the pot and the latching lugs on the lid. The lid must snap in.
3. Place the pot onto the storage surface.

CAUTION: Drip stop

Your appliance comes with a drip stop. It closes when removing the coffee pot. This prevents the coffee from dripping onto the warming plate if there is still water in the filter.

• Ensure that the lid is attached to the coffee pot. It opens the drip stop.

• If there is still water in the tank, place the pot underneath as soon as possible. Otherwise the filter might overflow.

• Switch on the appliance. The operating control lamp lights up.

NOTE:

The appliance will switch off automatically a few seconds after the brewing process has ended. The operating control lamp turns off.

After the Brewing Process

• When no more coffee is flowing through the filter you can remove the pot.
• Press the button on the lid, if you wish to pour coffee from the pot.

NOTE:

The filter holder can be removed from the coffee machine by using its handles on the right and left side.

This makes it easier to dispose of the old coffee filter, for example.

WARNING:

If you would like to prepare another pot of coffee right away, wait about 5 minutes after the brewing process has been completed. Allow the appliance to cool down, with its water tank open, to prevent hot splashes of water when filling up the water. If the appliance is still too hot, a thermostat prevents it from being switched on again immediately.

De-scaling

De-scaling is necessary when the brewing time increases substantially.

• Use only commercially available citrus acid-based descaler.
• Follow the recommended instructions for use.

WARNING:

• Afterwards you should boil fresh water in the pot three or four times in order to rinse out residues of the de-scaling agent.
• Do not use any coffee powder!
• Do not use this water for consumption.

Cleaning

WARNING:

- Before cleaning, always remove the mains plug and wait until the appliance has cooled down.

WARNING:

- Do not immerse the appliance in water. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• The exterior of the appliance should be cleaned as necessary with a slightly damp cloth – without any additives.

• Remove spilled coffee grounds with a paper towel from the inner casing. Afterwards wipe with a damp cloth.
• Clean the pot and the filter holder in warm rinse water with a bit of washing-up liquid. Use a soft brush if necessary.

Storage

• Clean the appliance as described and let it dry completely.
  • We recommend that you store the appliance in its original packaging when it is not to be used for a longer period.
  • Always store the appliance at a well ventilated and dry place outside the reach of children.

Troubleshooting

Problem Possible cause	Solution
The appliance does not work.	The appliance is not connected to mains power.	Check the wall outlet with a different appliance.
		Insert the plug properly in the wall outlet.
		Check the in-house fuse.
	A thermostat prevents switching on as the appliance is still too hot after the brewing process.	Allow the appliance to cool off sufficiently.
	The appliance is defective. Contact our service or a repair centre.
Filter blockage: coffee grounds spill over the edge of the filter.	The drip stop is closed:The coffee pot is not on the warming plate or the lid is not on the coffee pot.	1. Switch the appliance off. Disconnect from mains power supply.2. Put the coffee pot with lid on the warming plate so that the filter is emptied.3. Dispose of the paper filter.4. Clean the appliance as described.
	Too much coffee powder in the filter.
Coffee grounds in the coffee.	The paper filter is too small. Use a paper filter size “1 × 4”.
	Too much coffee powder in the filter. Use less coffee powder.
The brewing process takes too long.	Limescale deposits in the appliance. Decalcify the appliance as described.
The appliance stops the brewing process although there is still water in the water tank.
The appliance turns off automatically.	This isnota malfunction of the appliance.In order to comply with the Ecodesign Directive (2009/125/EC), the appliance turns off automatically after max. 40 minutes after the brewing process has finished.

Technical Data

Model: KA 6066 CB

Power supply: 220–240 V\~, 50–60 Hz

Power consumption: 800 W

Filling quantity: ....approx. 1.2 Liter

Protection class: I

Net weight: .... approx. 1.85 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all applicable, current CE directives and built according to the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority. Your dealer and contractual partner is also obliged to take back the old appliance free of charge.
