USER MANUAL Ucontrol UCA222 BEHRINGER

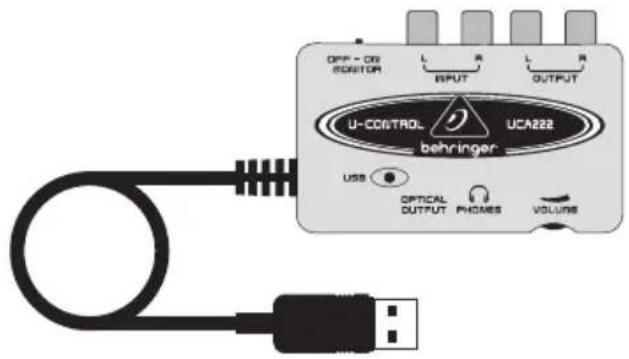

OFF - OR SENSOR L R L R INPUT OUTPUT U-CONTROL UCA222 behringer USB OPTICAL OUTPUT PHONES VOLUME

U-CONTROL UCA222

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

2 U-CONTROL UCA222 User Manual

EN

Table of Contents

Before You Get Started....23

Preparativos....30

Terminals marked with this symbol carry electrical current of sufficient magnitude to constitute risk of electric shock. Use only high-quality professional speaker cables with 14 " TS or twist-locking plugs pre-installed. All other installation or modification should be performed only by qualified personnel.

This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock.

This symbol, wherever it appears, alerts you to important operating and maintenance instructions in the accompanying literature. Please read the manual.

Caution To reduce the risk of electric shock, do not remove the top cover (or the rear section). No user serviceable parts inside. Refer servicing to qualified personnel. Caution To reduce the risk of fire or electric shock, do not expose this appliance to rain and moisture. The apparatus shall not be exposed to dripping or splashing liquids and no objects filled with liquids, such as vases shall be placed on the apparatus.
Caution These service instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operation instructions. Repairs have to be performed by qualified service personnel.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Use only attachments/accessories specified by the manufacturer.

1. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/

4 U-CONTROL UCA222 User Manual

EN

ES

apparatus combination to avoid injury from tip-over.

1. Unplug this app aratus during lightning storms or when unused for long periods of time.
2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
3. The apparatus shall be connected to a MAINS socket outlet with a protective earthing connection.
4. Where the MAINS plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

1. Correct disposal of this product: This symbol indicates that this product must not be disposed of with household waste,

according to the WEEE Directive (2012/19/EU) and your national law. This product should be taken to a collection center

licensed for the recycling of waste electrical and electronic equipment (EEE). The mishandling of this type of waste could have a possible negative impact on the environment and human health due to potentially hazardous substances that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the efficient use of natural resources. For more information about where you can take your waste equipment for recycling, please contact your local city office, or your household waste collection service.

1. Do not install in a confined space, such as a book case or similar unit.
2. Do not place naked flame sources, such as lighted candles, on the apparatus.
3. Please keep the environmental aspects of battery disposal in mind. Batteries must be disposed-of at a battery collection point.
4. This apparatus may be used in tropical and moderate climates up to 45^ C.

LEGAL DISCLAIMER

Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Oberheim, Auratone and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2021 All rights reserved.

LIMITED WARRANTY

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at musictribe.com/warranty.

5 U-CONTROL UCA222 User Manual

ES Instrucciones De Seguridad CAUTION RISK OF ELECTRIC SHOCK! DO NOT OPEN! ATTENTION RISQUE D'ÉLECTROCUTION! NE PAS OUVRIR!

BESCHRÄNKTE GARANTIE

RISQUE D'ÉLECTROCUTION! NE PAS OUVRIR!

Waarschuwing

RISQUE D'ÉLECTROCUTION! NE PAS OUVRIR!

Varning

Uttag markerade med

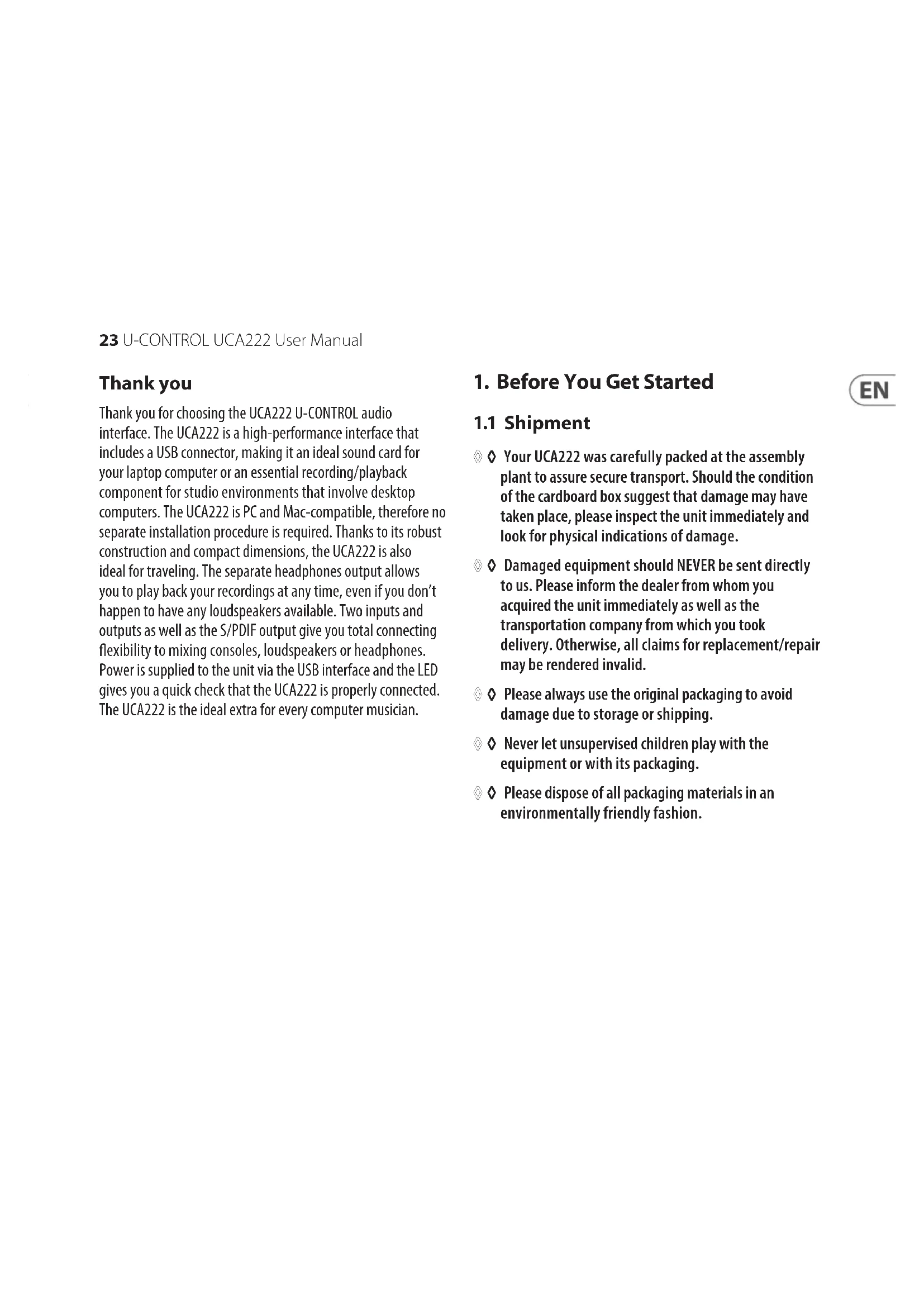

Thank you for choosing the UCA222 U-CONTROL audio interface. The UCA222 is a high-performance interface that includes a USB connector, making it an ideal sound card for your laptop computer or an essential recording/playback component for studio environments that involve desktop computers. The UCA222 is PC and Mac-compatible, therefore no separate installation procedure is required. Thanks to its robust construction and compact dimensions, the UCA222 is also ideal for traveling. The separate headphones output allows you to play back your recordings at any time, even if you don't happen to have any loudspeakers available. Two inputs and outputs as well as the S/PDIF output give you total connecting flexibility to mixing consoles, loudspeakers or headphones. Power is supplied to the unit via the USB interface and the LED gives you a quick check that the UCA222 is properly connected. The UCA222 is the ideal extra for every computer musician.

1. Before You Get Started

1.1 Shipment

• Your UCA222 was carefully packed at the assembly plant to assure secure transport. Should the condition of the cardboard box suggest that damage may have taken place, please inspect the unit immediately and look for physical indications of damage.
  Damaged equipment should NEVER be sent directly to us. Please inform the dealer from whom you acquired the unit immediately as well as the transportation company from which you took delivery. Otherwise, all claims for replacement/repair may be rendered invalid.
  Please always use the original packaging to avoid damage due to storage or shipping.
  Never let unsupervised children play with the equipment or with its packaging.
  Please dispose of all packaging materials in an environmentally friendly fashion.

1.2 Initial operation

Please make sure the unit is provided with sufficient ventilation, and never place the UCA222 on top of an amplifier or in the vicinity of a heater to avoid the risk of overheating.

The current supply is made via the USB connecting cable, so that there is no external power supply unit required. Please adhere to all required safety precautions.

1.3 Online registration

Please register your new Behringer equipment right after your purchase by visiting http://behringer.com and read the terms and conditions of our warranty carefully.

Should your Behringer product malfunction, it is our intention to have it repaired as quickly as possible. To arrange for warranty service, please contact the Behringer retailer from whom the equipment was purchased. Should your Behringer dealer not be located in your vicinity, you may directly contact one of our subsidiaries. Corresponding contact information is included in the original equipment packaging (Global Contact Information/European Contact Information). Should your country not be listed, please contact the distributor nearest you. A list of distributors can be found in the support area of our website (http://behringer.com).

Registering your purchase and equipment with us helps us process your repair claims more quickly and efficiently.

Thank you for your cooperation!

2. System Requirements

The UCA222 is PC and Mac-compatible. Therefore, no installation procedure or drivers are required for the correct functioning of the UCA222.

To work with the UCA222, your computer must fulfill the following minimum requirements:

PC Mac
Intel or AMD CPU, 400 MHz or higher G3, 300 MHz or higher
Minimum 128 MB RAM Minimum 128 MB RAM
USB 1.1 interface USB 1.1 interface
Windows XP, 2000	Mac OS 9.0.4 or higher, 10.X or higher

2.1 Hardware connection

Use the USB connecting cable to connect the unit to your computer. The USB connection also supplies the UCA222 with current. You can connect a variety of devices and equipment to the inputs and outputs.

25 U-CONTROL UCA222 User Manual

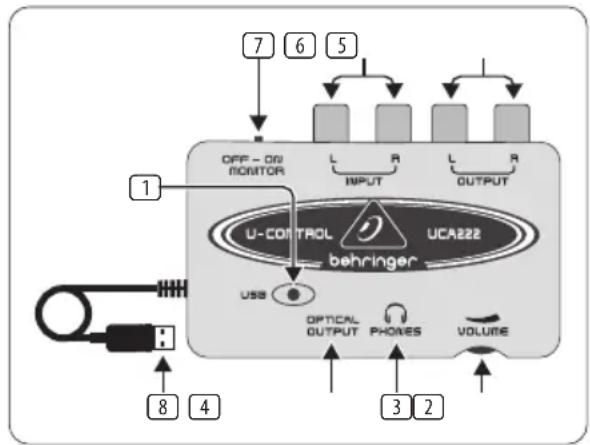

3. Controls and Connectors

1 POWER LED – Indicates the status of the USB power supply.
2 OPTICAL OUTPUT – The Toslink jack carries an S/PDIF signal which can be connected via a fiber optic cable.
3 PHONES – Connect a standard pair of headphones equipped with a 18 " mini plug.
4 VOLUME – Adjusts the volume level of the headphones output. Turn the control fully to the left before you connect the headphones to avoid hearing damage caused by high volume settings. Turn the control to the right to increase the volume.

5 OUTPUT – Connect to a speaker system using stereo RCA cables to monitor the audio output from the computer.
6 INPUT – Connect desired recording signal using audio cables with RCA connectors.
7 OFF/ON MONITOR – With the MONITOR switch OFF, the headphone output receives the signal from the computer over the USB port (same as the RCA output jacks). With the MONITOR switch ON, the headphones receive the signal connected to the RCA INPUT jacks.
8 USB CABLE – Sends information to and from your computer and the UCA222. It also provides power to the device.

4. Software Installation

• This device requires no special setup or drivers, just plug it into a free USB port on a PC or Mac.
• The UCA222 comes with a free version of Audacity editing software. This will help make the transfer process quick and simple. Simply insert the CD into your CD-ROM drive and install the software. The CD also contains VST plug-ins, ASIO drivers and various freeware.
  Note – When the UCA222 is bundled with other Behringer products, the included software may vary. In the instance that the ASIO drivers are not included, you may download these from our website at behringer.com.

26 U-CONTROL UCA222 User Manual

EN

5. Basic Operation

The UCA222 provides an easy interface between your computer, mixer and monitoring system. Follow these steps for basic operation:

1) Connect the UCA222 to the computer by plugging the USB cable into a free USB port. The power LED will light automatically.
2) Connect the audio source that is to be recorded, such as a mixer, preamp, etc. to the INPUT stereo RCA jacks.
3) Plug a pair of headphones into the 18 " PHONES jack and adjust the volume with the adjacent control. You may also monitor the output by plugging a pair of powered speakers into the OUTPUT stereo RCA jacks.
4) You may also send the stereo signal in digital audio format (S/PDIF) to an external recording device via the OPTICAL OUTPUT using a Toslink fiber optic cable.

6. Application Diagrams


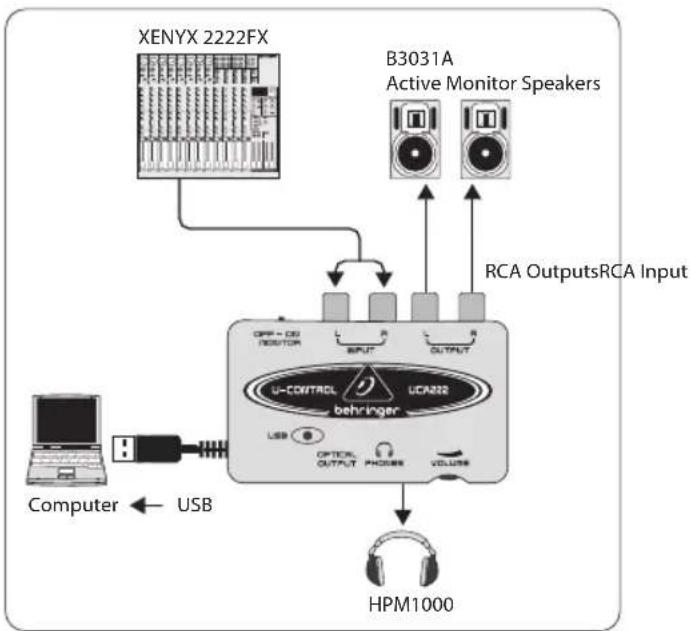

Using a mixer to record in a studio environment:

The most common application for the UCA222 is doing studio recording with a mixer. This will allow you to record several sources at once, listen to the playback, and record more tracks in sync with the original take(s).

27 U-CONTROL UCA222 User Manual

• Connect the mixer's TAPE OUT to the INPUT RCA jacks on the UCA222. This will allow you to capture the overall mix.
• Plug the USB cable into a free USB port on your computer. The POWER LED will light up.
• Connect a pair of powered monitor speakers to the UCA222 OUTPUT RCA jacks. Depending on what type of inputs your speakers accept, you may need an adapter.
• You may also monitor the input signal with a pair of headphones instead of or in addition to the monitor speakers. Turn the OFF/ON MONITOR switch to the 'ON' position. Plug a pair of headphones into the PHONES jack and adjust the volume with the adjacent control. This will be preferable if the mixer and computer are in the same room as the instruments being recorded.
  Take some time to adjust each channel level and EQ to ensure a good balance between the instruments/sources. Once the mix has been recorded you will be unable to make adjustments to just one channel.
  • Set the recording program to record input from the UCA222.
• Press record and let the music rip!


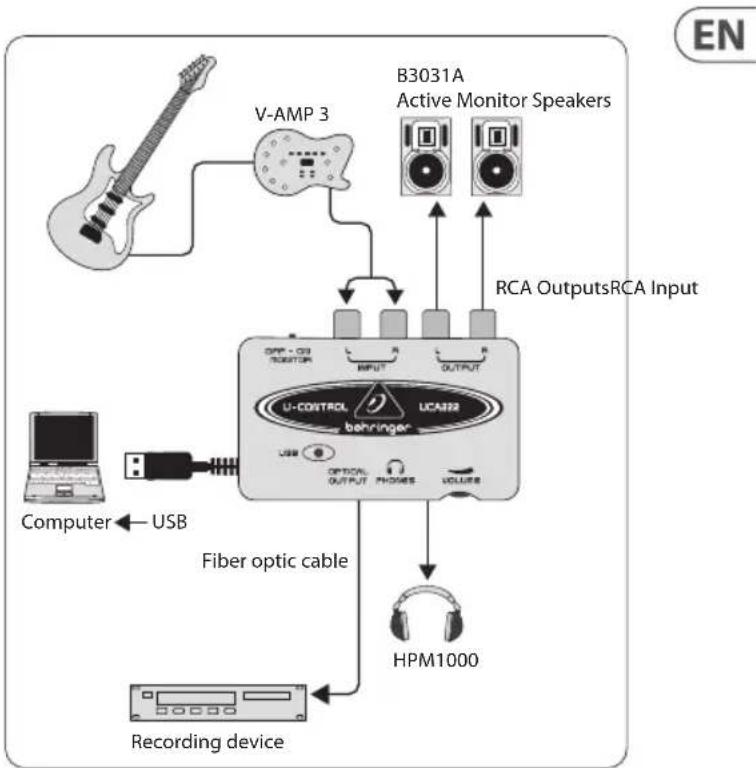

Recording with a preamp such as the V-AMP 3:

Preamps such as the V-AMP 3 provide a great way to record a wide selection of high-quality guitar sounds without the hassle of placing a mic in front of a conventional amp. They also allow you to record late at night without tempting your roommates or neighbors to strangle you with your own guitar cable.

• Plug a guitar into the instrument input of the V-AMP 3 using a standard 14 " instrument cable.
• Connect the stereo 14 " outputs on the V-AMP 3 to the stereo RCA inputs on the UCA222. This will likely require adaptors. You may also use the stereo RCA to 14 " TRS cable that is included in the V-AMP 3/UCA222 package bundle to connect from the V-AMP 3 headphone output to the UCA222 RCA inputs.
• Plug the USB cable into a free USB port on your computer. The POWER LED will light up.
• Adjust the output signal level on the V-AMP 3.
• Set the recording program to record input from the UCA222.
• Press record and wail!

7. Audio Connections

Although there are various ways to integrate the UCA222 into your studio or live set-up, the audio connections to be made will basically be the same in all cases:

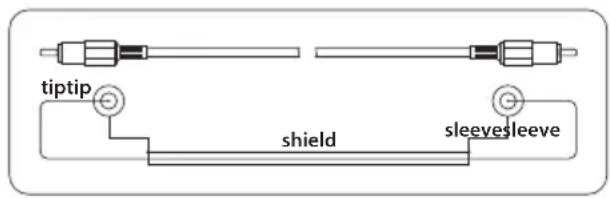

7.1 Wiring

Please use standard RCA cables to connect the UCA222 to other equipment:

tiptip shield sleeves/leeve

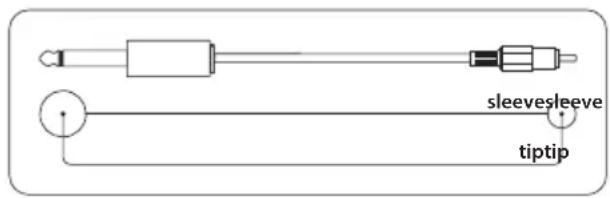

You can also use a 14 " adapter cable:

sleevesleeve tiptip

Manual de uso

OFF - OR SENSOR L R INPUT OUTPUT U-CONTROL UCA222 behringer USB OPTICAL OUTPUT PHONES VOLUME

ES

U-CONTROL UCA222

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

behringer

30 U-CONTROL UCA222 Manual de uso

Gracias

tiptip shield sleeves/leeve

sleevesleeve tiptip

36 U-CONTROL UCA222 Manual de uso

ES

OFF - OR SENSOR L R L R INPUT OUTPUT U-CONTROL UCA222 behringer USB OPTICAL PHONES VOLUME OUTPUT

FR

U-CONTROL UCA222

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

behringer

tiptip shield sleeves/leeve

sleevesleeve tiptip

OFF - OR SENSOR L R L R INPUT OUTPUT U-CONTROL UCA222 behringer USB OPTICAL PHONES VOLUME OUTPUT PHONES

DE

U-CONTROL UCA222

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

behringer

Danke

tiptip shield sleeves/leeve

sleevesleeve tiptip

OFF - OR SENSOR L R INPUT OUTPUT U-CONTROL UCA222 behringer USB OPTICAL OUTPUT PHONES VOLUME

PT

U-CONTROL UCA222

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

tiptip shield sleeves/leeve

sleevesleeve tiptip

OFF - OR SENSOR L R INPUT OUTPUT U-CONTROL UCA222 behringer USB OPTICAL OUTPUT PHONES VOLUME

U-CONTROL UCA222

IT

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

tiptip shield sleeves/leeve

sleevesleeve tiptip

OFF - OR SENSOR L R INPUT OUTPUT U-CONTROL UCA222 behringer USB OPTICAL OUTPUT PHONES VOLUME

U-CONTROL UCA222

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

NL

2.1 Verbinding hardware

The UCA222 provides an easy interface between your computer, mixer and monitoring system. Follow these steps for basic operation:

tiptip shield sleeves/leeve

sleevesleeve tiptip

OFF - OR SENSOR L R INPUT OUTPUT U-CONTROL UCA222 behringer USB OPTICAL OUTPUT PHONES VOLUME

U-CONTROL UCA222

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

SE

78 U-CONTROL UCA222 Bruksanvisning

Tack själv

tiptip shield sleeves/leeve

sleevesleeve tiptip

84 U-CONTROL UCA222 Bruksanvisning

Instrukcja obsługi

OFF - OR SENSOR L R L R INPUT OUTPUT U-CONTROL UCA222 behringer USB OPTICAL PHONES VOLUME OUTPUT PHONES

U-CONTROL UCA222

Ultra-Low Latency 2 In/2 Out USB Audio Interface with Digital Output

PL

Dziękuję

tiptip shield sleevesleeve

You can also use a 14 " adapter cable:

sleevesleeve tiptip

92 U-CONTROL UCA222 User Manual

Specifications

Line In

Connectors RCA, unbalanced

Input impedance approx. 27 kΩ

Max. input level 2 dBV

Line Out

Connectors RCA, unbalanced

Output impedance approx. 400 Ω

Max. output level 2 dBV

Digital Output

Socket Toslink, optical cable

Output format S/PDIF

Phones Out

Socket 18 " TRS stereo jack

Output impedance approx. 50 Ω

Max. output pegel -2 dBu, 2 x 3.7 mW @ 100 Ω

USB 1.1

Connectors type A

Digital Processing

Converter 16-bit converter

Sample rate 32.0 kHz, 44.1 kHz, 48.0 kHz

System Data

Frequency response 10 Hz to 20 kHz, ±1 dB @

44.1 kHz sample rate

10 Hz to 22 kHz, ±1 dB @

48.0 kHz sample rate

THD 0.05% typ. @ -10 dBV, 1kHz

Crosstalk -77 dB @ 0 dBV, 1 kHz

Signal-to-noise ratio A/D 89 dB typ. @ 1 kHz,

A-weighted

D/A 96 dB typ. @ 1 kHz,

A-weighted

93 U-CONTROL UCA222 User Manual

Power Supply

USB connection 5 V, 100 mA max.

Dimensions/Weight

Dimensions (H x W x D) approx. 0.87 x 2.36 x 3.46" approx. 22 x 60 x 88 mm

Weight approx. 0.10 kg

Behringer always takes great care to ensure the highest standard of quality.

Any modifications which may be necessary will be made without prior notification.

Technical data and appearance of the equipment can therefore differ from the details or illustrations shown.

94 U-CONTROL UCA222 User Manual

EN

FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION

Behringer

U-CONTROL UCA222

Responsible Party Name: Music Tribe Commercial NV Inc.

Address: 5270 Procyon Street, Las Vegas NV 89118, United States

Phone Number: [phone]

U-CONTROL UCA222

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help. This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation.

Important information:

Changes or modifications to the equipment not expressly approved by Music Tribe can void the user's authority to use the equipment.

Hereby, Music Tribe declares that this product is in compliance with Directive 2014/30/EU, Directive 2011/65/EU and Amendment 2015/863/EU, Directive 2012/19/EU, Regulation 519/2012 REACH SVHC and Directive 1907/2006/EC.

Full text of EU DoC is available at https://community.musictribe.com/

EU Representative: Music Tribe Brands DK A/S

Address: Ib Spang Olsens Gade 17, DK - 8200 Aarhus N, Denmark

We Hear You

behringer
