USER MANUAL Ultra Chorus UC200 BEHRINGER

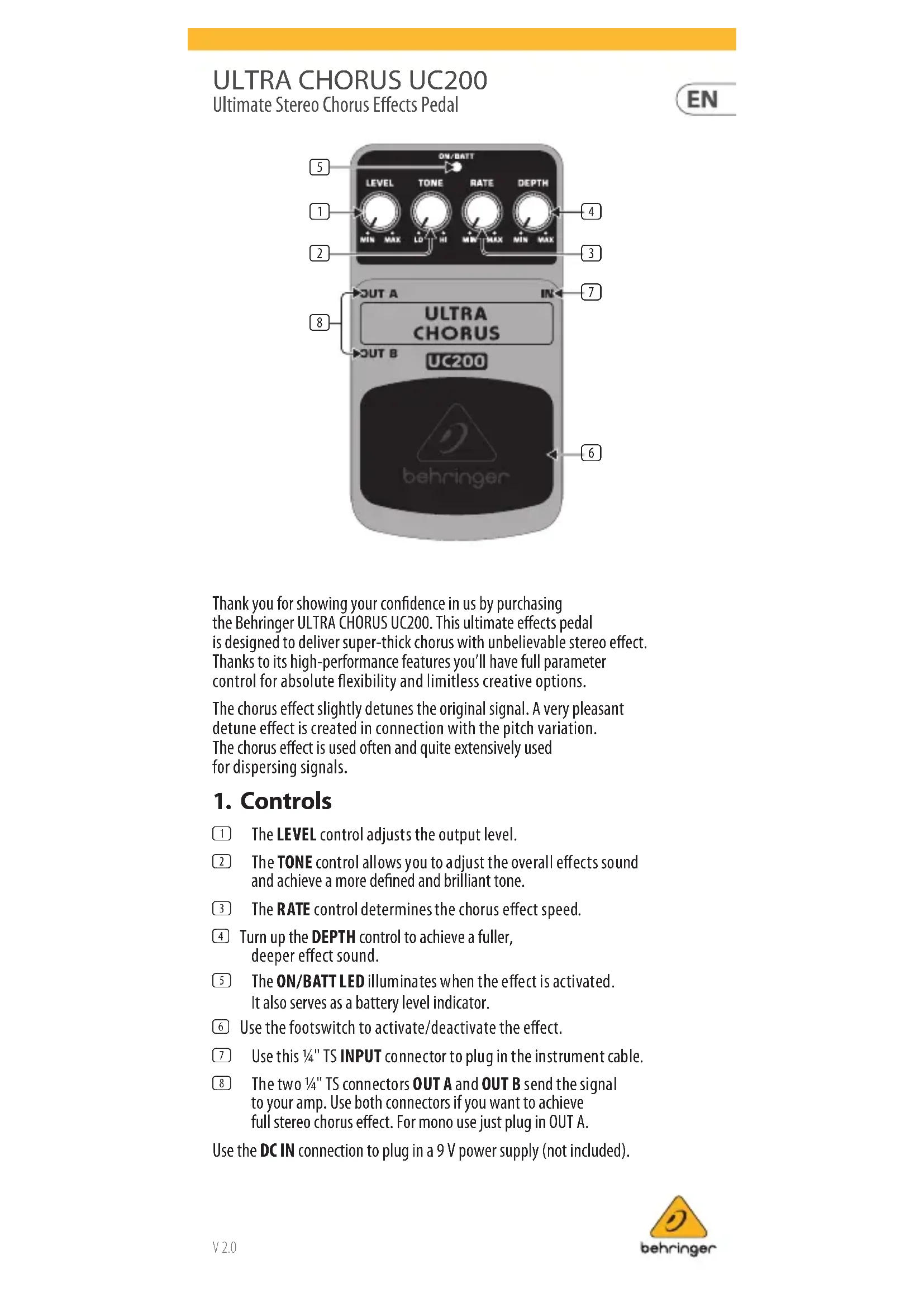

ON/BATT LEVEL TONE RATE DEPTH MIN MAX LO HI MIN MAX MIN MAX OUT A ULTRA CHORUS IN OUT B UC200 behringer

Thank you for showing your confidence in us by purchasing the Behringer ULTRA CHORUS UC200. This ultimate effects pedal is designed to deliver super-thick chorus with unbelievable stereo effect. Thanks to its high-performance features you'll have full parameter control for absolute flexibility and limitless creative options.

The chorus effect slightly detunes the original signal. A very pleasant detune effect is created in connection with the pitch variation. The chorus effect is used often and quite extensively used for dispersing signals.

1. Controls

The LEVEL control adjusts the output level.
The TONE control allows you to adjust the overall effects sound and achieve a more defined and brilliant tone.
3 The RATE control determines the chorus effect speed.
4 Turn up the DEPTH control to achieve a fuller, deeper effect sound.
5 The ON/BATT LED illuminates when the effect is activated. It also serves as a battery level indicator.
6 Use the footswitch to activate/deactivate the effect.
7 Use this 14 " TS INPUT connector to plug in the instrument cable.
8 The two 14 " TS connectors OUT A and OUT B send the signal to your amp. Use both connectors if you want to achieve full stereo chorus effect. For mono use just plug in OUT A.

Use the DC IN connection to plug in a 9 V power supply (not included).

2 ULTRA CHORUS UC200

EN

The BATTERY COMPARTMENT is located underneath the pedal cover. To install or replace the 9 V battery, press the hinges with a ballpen and remove the pedal cover. Be careful not to scratch the unit.

The UC200 has no on/off switch. As soon as you insert the jack into the in connector, the UC200 begins running. When not using the UC200, remove the jack from the IN connector. This extends the life of the battery.

The SERIAL NUMBER is located on the bottom.

2. Safety Instructions

Do not use near water, or install near heat sources. Use only authorized attachments/accessories. Do not service product yourself. Contact our qualified servicing personnel for servicing or repairs, especially when power supply cord or plug is damaged.

3. Limited Warranty

For the applicable warranty terms and conditions and additional information regarding Music Tribe's Limited Warranty, please see complete details online at community.musictribe.com/pages/support#warranty.

4. Specifications

In

Connector 14 " TS

Impedance 500 kΩ

Out A

Connector 1/4" TS

Impedance 1 kΩ

Out B

Connector 14 " TS

Impedance 1 kΩ

Power Supply

9 V ..., 100 mA regulated

Behringer PSU-SB

USA/Canada 120 V\~, 60 Hz

China/Korea 220 V\~, 50 Hz

UK/Australia 240 V\~, 50 Hz

Europe 230 V\~, 50 Hz

Japan 100 V\~, 50 - 60 Hz

Power connector 2 mm DC jack, negative center

Battery 9 V type 6LR61

Power consumption 30 mA

Physical/Weight

Dimensions approx. 218 × 234 × 445

(H x W x D) approx. 54 x 70 x 123 mm

Weight approx. 0.73 lbs / 0.33 kg

Behringer is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. Specifications and appearance may therefore differ from those listed or shown.

EN

4 ULTRA CHORUS UC200

(H x L x P) Approx. 54 x 70 x 123 mm

Poids Approx. 0.73 lbs / 0.33 kg

(A x L x P) ca. 54 x 70 x 123 mm

Peso ca. 0,73 lbs / 0,33 kg
