USER MANUAL MD7000 PIR smanos

The detector works based on detecting human body's infrared spectrum. When human moves within the scope, the detector receives the signal and inputs it into microprocessor after magnification. Microprocessor continues to sample infrared signal and send wireless signal to wireless control panel after calculating, thus to form a security system. The product can be applied in banks, warehouses and homes etc.

Features

Accurate Detection

360^ detection, no dead angle

Automatic temperature compensation and anti-air turbulence technology

False Alarm Prevention

Digital dual-core fuzzy logic infrared control processing technology Effectively identify interference signals from body movement signals through intelligent analysis

Space-saving

Ceiling-mounted, not much space occupation

Integrated to home decoration, suitable for luxury premises

Energy-saving

Featured power-saving mode enables 1 year standby

Product Overview

1. Test Button
   2.Detection Lens
2. LED Indicator
3. Mounting Plate

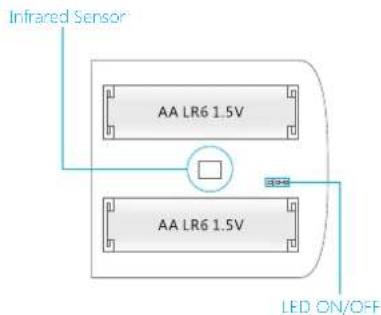

PCB Layout

ENEN

Infrared sensor: Detecting human body's infrared spectrum. Don't touch the surface by hand and keep it clean.

LED Indication

The LED indicator can be turned on or off by setting jumpers. See "PCB Layout" above.

Flash continuously: Under self-testing state

Flash once: Intruder is detected

Flash twice: Test mode is finished, enters into the power saving mode.

Flash once every 3 seconds: Low battery, please change the batteries immediately.

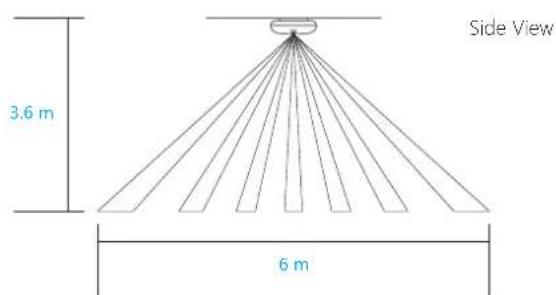

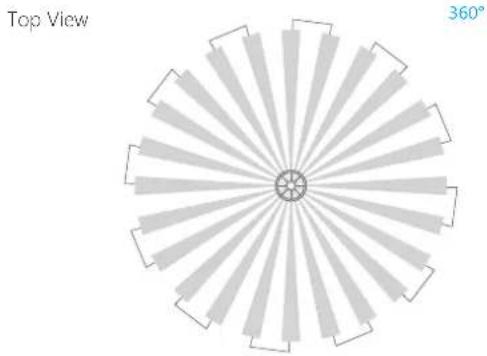

Detection Range

Usage

Remove the battery activation strip to activate batteries. It will enter working state after one-minute's self-testing.

Working Mode

Testing Mode: Press test button, the sensor enters into the testing mode and detects once every 10 seconds. After 3 minutes, the LED flashes twice, and the sensor enters into the power saving mode.

Power-Saving Mode: In working state, if the sensor is triggered twice within 3 minutes, it will enter sleeping mode to save power. After no movement within next 3 minutes, the sensor goes back to the working state.

ENEN

Installation & Notice

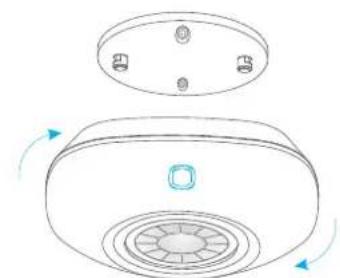

Choose a suitable position and fix the mounting plate on the ceiling with screws. Fasten the detector on the mounting plate in a clockwise direction. It is suggested to mount it at the height of 2.5-5 meters from the ground.

Keep the detector away from air conditioner, electronic fan, refrigerator, oven, heater or any other objects which will cause fast temperature changing.

Avoid mounting it under direct sunlight or any objects blocking the lens, so as not to influence the detection effect.

Testing (Walk Test)

After installation, power on the detector. After self-testing for 1 minute, press the test button, walk in the scope by crossing the infrared spectrum (see below diagram), and watch the LED indicator to make sure it is working. The LED indicator will flash once when body movement is detected.

High detection sensitivity
Low detection sensitivity

Connect with the Control Panel

When the control panel is in connecting state, press the test button twice to send wireless signal. One beep is heard after panel receives signal, which means of successful connection.

Arm the system, and trigger the detector again. The panel will alarm immediately. This indicates the detector has been successfully connected with the panel.

Specifications

Power Supply: DC 3 V (AA LR6 1.5 V Battery x 2 pcs)

Static Current: < 50 A

Alarm Current: < 9.5 mA

Installation Height: 2.5-6 m

Detection Scope: Dia. 6 m (when installation height is 3.6m )

Transmitting Distance: < 80m (in open area)

Radio Frequency: 368 MHz

Housing Material: PC+ABS Plastic

Operating Condition:

Temperature: 0^ +55^

Relative Humidity: < 80% (non-condensing)

Detector Dimensions (L x W x H): 90 x 90 x 36.8 mm

Mounting Plate Dimensions (L x W x H): 56 x 56 x 8 mm
