SBCHC8800 - Hi-Fi System PHILIPS - Free user manual and instructions

Product Type	FM wireless audio system for headphones
Brand	Philips
Model	SBCHC8800 (transmitter HC8802, headphone HC8805)
Transmitter power supply	AC/DC adapter 12V/200mA (Philips SBC CS030/00)
Headphone power supply	2 NiMH rechargeable batteries LR03/AAA (16h charge)
Transmission	FM wireless, frequency 863-865 MHz, range up to 100 m (360°)
Modulation	Frequency modulation (FM)
Frequency response	10 – 23,000 Hz
Signal-to-noise ratio	> 60 dB
Distortion	< 0.5% THD
Number of channels	3 selectable channels on transmitter
Main functions	Automatic tuning, mute, auto on/off, integrated charging system, multi-headphone compatibility
Audio input	3.5 mm stereo jack (6.3 mm adapter included)
Included accessories	HC8802 transmitter, audio cable (2 m, 3.5 mm to RCA), charging cable (55 cm), 3.5 to 6.3 mm adapter, headphone support pin
Care and cleaning	Clean with a soft, slightly damp cloth; do not use alcohol, thinner, ammonia, or abrasives
Safety	Do not expose to moisture, rain, excessive heat, or direct sunlight; unplug if not used for extended periods
Hearing protection	Prolonged use at high volume can damage hearing
General information	Manual 133 pages, certified R&TTE 1999/5/EC

Frequently Asked Questions - SBCHC8800 PHILIPS

What to do if I hear no sound?

First check that the power adapter is plugged in and the headphone is powered on. Make sure the batteries are charged (recharge for 16 h if necessary). Increase the volume of the audio source and the headphone. Finally, tune the headphone by pressing the tuning button for 1 second.

The sound is distorted, what should I do?

Reduce the volume of the source and headphone. Recharge the batteries if the indicator flashes. Move closer to the transmitter. Change the channel of the transmitter (selector at the back) then re-tune the headphone. Keep the transmitter away from sources of interference (neon lights, other radio devices).

How to recharge the headphone?

Use the provided charging cable to connect the headphone charging input to that of the transmitter. The green LED on the transmitter lights up. Full charge takes approximately 16 hours. The headphone turns off automatically during charging.

What types of batteries to use?

Use only NiMH LR03/AAA rechargeable batteries (standard type, preferably Philips). Never use NiCd or alkaline batteries, as this could damage the system.

How to replace the headphone batteries?

Remove the ear cushions, then the used batteries. Insert two new NiMH LR03/AAA batteries respecting the indicated polarities. Replace the cushions.

The headphone does not pair with the transmitter

Press and hold the tuning button on the headphone for about 1 second. If that doesn't work, change the transmitter channel (position 1, 2 or 3) and repeat the tuning.

What is the maximum range?

The range can reach 100 meters in open field, with omnidirectional coverage (360°). Obstacles (walls, doors) reduce the range.

Can I use multiple headphones with the same transmitter?

Yes, provided that additional headphones operate in the 864 MHz band and detect a pilot tone of 19 kHz. Check compatibility in the device specifications.

How to clean the headphone or transmitter?

Clean with a slightly damp chamois leather. Never use alcohol, thinner, ammonia, or abrasive products, as they could damage the casing.

What to do if the device does not turn on?

Check that the power adapter is correctly plugged in (12V/200mA). Make sure the headphone power switch is in the On position. If the batteries are low, recharge them for 16 hours.

USER MANUAL SBCHC8800 PHILIPS

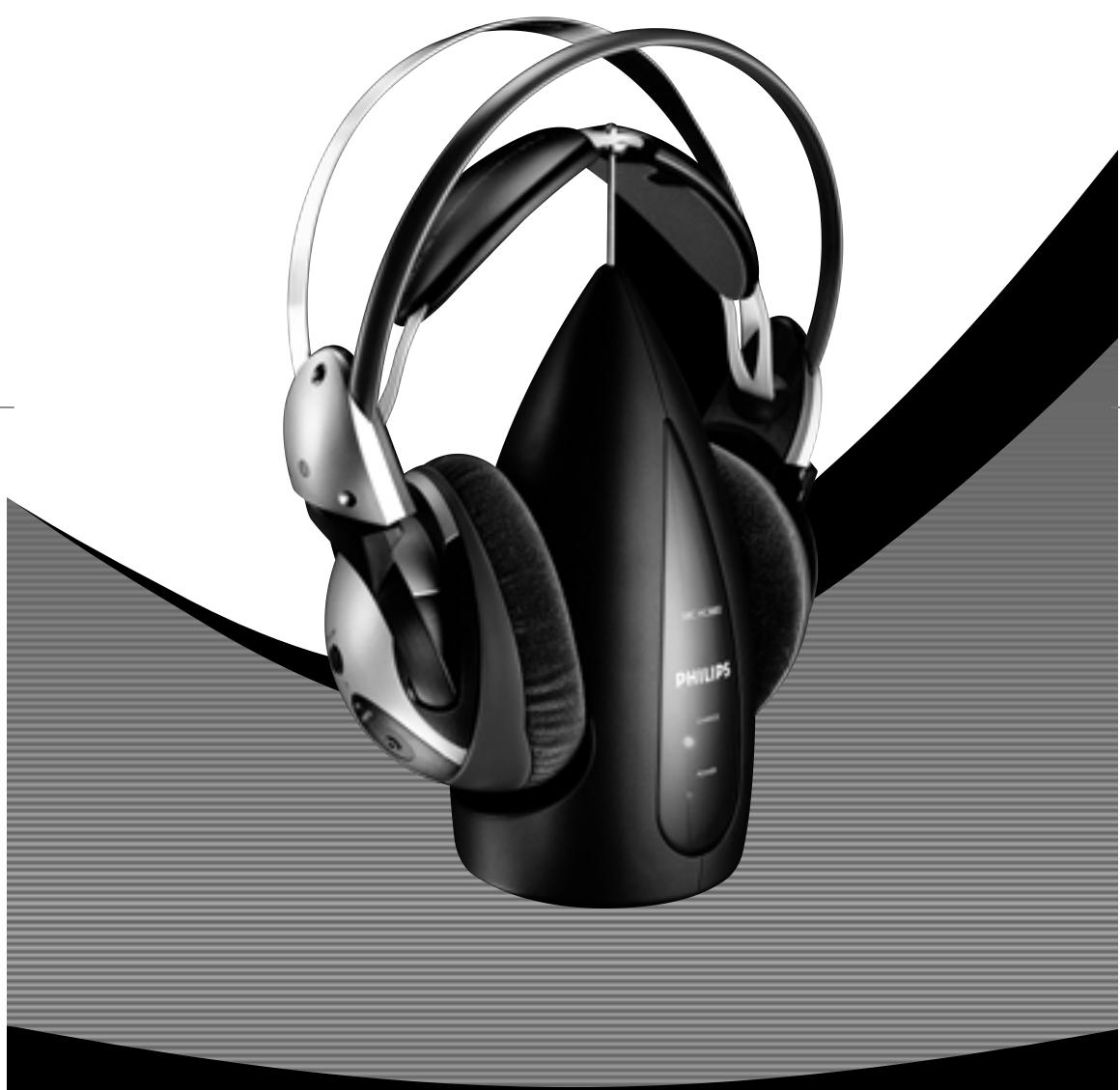

Wireless FM Stereo Headphone

Black and white photo of a Philips 3D headband headset with metallic ears, shown against a glossy black-and-white background (no text or symbols on the device itself)

Let's make things better.

PHILIPS

Index

English

English 4

Svenska 68

Svenska

Français

Français—12

Norge 76

Norge

Español

Español 20

Suomi 84

Suomi

Deutsch

Deutsch—28

Русский—92

Русский

Nederlands

Nederlands 36

Polski 100

Polski

Italiano

Italiano 44

Magyar 108

Magyar

Português

Português 52

Türkçe 116

Türkçe

Dansk

Dansk 60

Ελληνικά —— 124

Ελληνικά

Figure 1

PHILIPS Candescent Fillet ③ ② ① ① ⑤ ⑦ ④ ⑥ ⑧

Figure 2

13 14 9 10 11 12

Figure 3 TRANSMITTER

Figure 4

Diagram showing a hand holding a device with labeled components and an arrow indicating rotation or adjustment.

Figure 5 TRANSMITTER VOLUME HEADPHONE STEREO AUDIO CABLE (INCLUDED) STEREO ADAPTER PLUG (INCLUDED)

Diagram illustrating a battery charging operation with labeled components and directional arrows indicating charging direction.

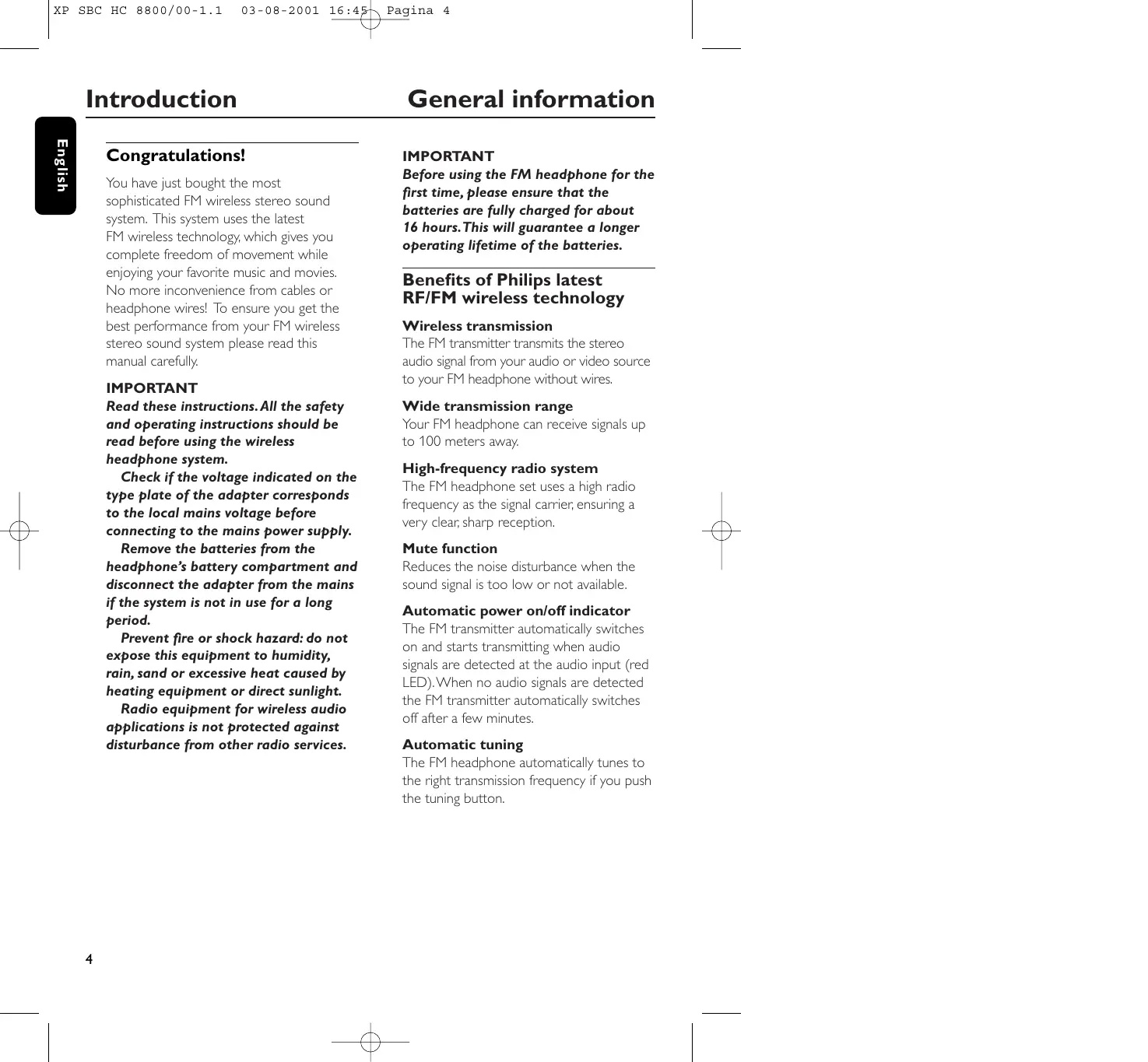

Introduction

General information

Congratulations!

You have just bought the most sophisticated FM wireless stereo sound system. This system uses the latest FM wireless technology, which gives you complete freedom of movement while enjoying your favorite music and movies. No more inconvenience from cables or headphone wires! To ensure you get the best performance from your FM wireless stereo sound system please read this manual carefully.

IMPORTANT

Read these instructions. All the safety and operating instructions should be read before using the wireless headphone system.

Check if the voltage indicated on the type plate of the adapter corresponds to the local mains voltage before connecting to the mains power supply.

Remove the batteries from the headphone's battery compartment and disconnect the adapter from the mains if the system is not in use for a long period.

Prevent fire or shock hazard: do not expose this equipment to humidity, rain, sand or excessive heat caused by heating equipment or direct sunlight.

Radio equipment for wireless audio applications is not protected against disturbance from other radio services.

IMPORTANT

Before using the FM headphone for the first time, please ensure that the batteries are fully charged for about 16 hours. This will guarantee a longer operating lifetime of the batteries.

Benefits of Philips latest RF/FM wireless technology

Wireless transmission

The FM transmitter transmits the stereo audio signal from your audio or video source to your FM headphone without wires.

Wide transmission range

Your FM headphone can receive signals up to 100 meters away.

High-frequency radio system

The FM headphone set uses a high radio frequency as the signal carrier, ensuring a very clear, sharp reception.

Mute function

Reduces the noise disturbance when the sound signal is too low or not available.

Automatic power on/off indicator

The FM transmitter automatically switches on and starts transmitting when audio signals are detected at the audio input (red LED). When no audio signals are detected the FM transmitter automatically switches off after a few minutes.

Automatic tuning

The FM headphone automatically tunes to the right transmission frequency if you push the tuning button.

Rechargeable system

The FM transmitter recharges the headphone's built-in rechargeable LR03/ AAA NiMH batteries. Just position the headphone and connect the charging cable between the headphone and the transmitter: The green LED lights up during charging.

Easy transmission

The FM headphone is able to receive signals from the transmitter, even through barriers such as doors, walls and windows.

Multiple headphones with one transmitter

An additional number of headphones and/or wireless speakers can be used with a single transmitter if they:

- operate in the 864 MHz band - can detect a 19 kHz pilot tone

Please consult the appliance's electrical specification sheets for confirmation on compatibility.

Kit contents

This FM headphone system consists of the following accessories:

1 × SBC HC8802 FM transmitter
1 × SBC HC8805 FM headphone
1 × SBC CS030/00 12Volt / 200mA AC/DC adapter (for UK: SBC CS030/05 12 Volt/200 mA AC/DC adapter)

2 × rechargeable batteries LR03/AAA (NiMH), 550 mAh

1 x 3.5 mm stereo plug to 2x RCA audio cable (2 m)

1 x recharge cable (55 cm)

1 x 3.5 mm plug to 6.3 mm stereo adapter plug

1 x headphone support pin

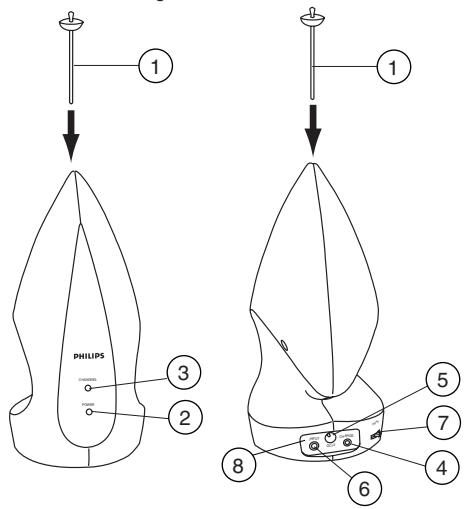

Transmitter (figure 1)

1 Headphone support pin

2 Power indicator – lights up when audio signals are detected at the audio input.
3 Recharging indicator – lights up when the recharge cable is connected between the headphone and the FM transmitter. Completely flat batteries will be fully charged after about 16 hours.
4 Recharging input – connect the recharge cable to the input.
5 DC power – connect to the 12 Volt/200 mA AC/DC adapter
6 3.5 mm stereo headphone audio input – connects your FM transmitter to an audio source
7 Channel switch – select one of 3 channels for best reception. We advise you to select channel 1 as a first option.
8 Controls plate

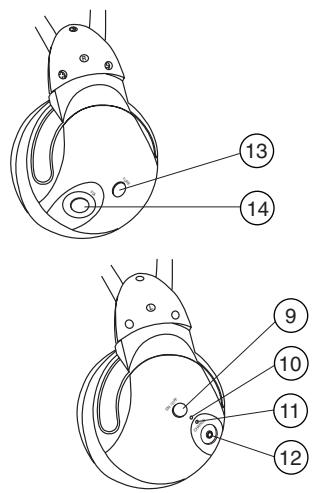

Headphone (figure 2)

9 Power On/Off – push the button to switch the headphone on/off.
10 Power indication – lights up when in use. When batteries are low, the power indicator flashes, and you should recharge the headphone for about 16 hours before the next use.
11 Recharging indicator – lights up when the recharge cable is connected between the headphone and the FM transmitter. Completely flat batteries will be fully charged after about 16 hours.
12 Recharging input – connect the recharge cable to the input, green recharging LED on the transmitter's front must switch on, indicating that the headphone is being recharged.
13 Tuning – press and hold the button for about 1 second. The headphone automatically tunes to the right transmission frequency. If not, repeat this step.
14 Volume – adjust volume to your desired listening level.

Transmitter power supply IMPORTANT

Use only Philips SBC CS030/00 12 Volt/200 mA AC/DC adapter. (For UK, use only Philips SBC CS030/05)

1 Make sure the adapter's rated voltage corresponds to the mains socket voltage.
2 Connect the DC connector of the AC/DC adapter to the 12 Volt DC power input connector located at the rear of the transmitter.
3 Connect the 12 Volt/200 mA AC/DC adapter to the mains socket. - Always disconnect the AC/DC adapter if the transmitter is not to be used for a long period of time.

Environmental Information

All redundant packing material has been omitted. We have done our best to make the packaging easily separable into two materials: cardboard and polyethylene

Your unit consists of materials which can be recycled if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packing materials, exhausted batteries and old equipment.

Headphone power supply

IMPORTANT

Use only rechargeable LR03/AAA NiMH batteries (preferably Philips).

Do not use NiCd batteries or alkaline batteries as these may damage your FM wireless system!

1 Check if the power button of the FM headphone is in the on position.
2 When the red power indicator on the FM headphone starts flashing, it indicates that the batteries are running low.

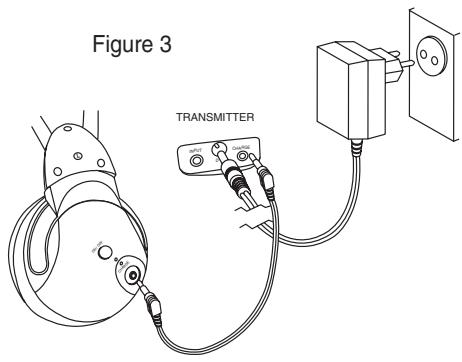

3 To recharge the headphone's built-in rechargeable LR03/AAA NiMH batteries, connect the charge cable between the headphone and the transmitter (figure 3).

Notes:

Completely flat batteries need approximately 16 hours to recharge.

The FM headphone will switch off automatically during recharging.

Always remove the batteries if the headphone is not to be used for a long period of time.

Batteries contain chemical substances, so they should be disposed of properly.

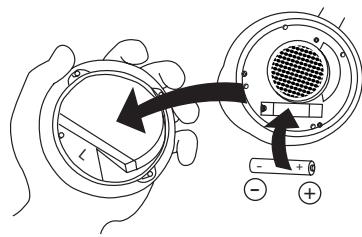

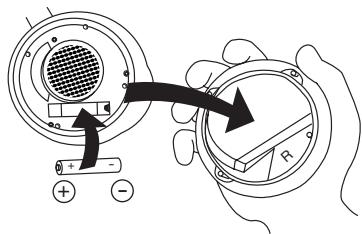

Headphone battery replacement (figure 4)

IMPORTANT

Use only rechargeable LR03/AAA NiMH batteries (preferably Philips). Do not use NiCd batteries or alkaline batteries as these may damage your FM wireless system!

1 Remove the earcushions.
2 Take out the batteries and dispose of them properly.
3 Insert new batteries. Only use LR03/AAA NiMH batteries (preferably Philips).
4 Make sure the batteries are correctly inserted as indicated by the engraved symbols in the battery compartment.
5 Put the earcushions back on the earshells.

IMPORTANT

Before using the FM headphone for the first time, please ensure that the batteries are fully charged for about 16 hours. This will guarantee a longer operating lifetime of the batteries.

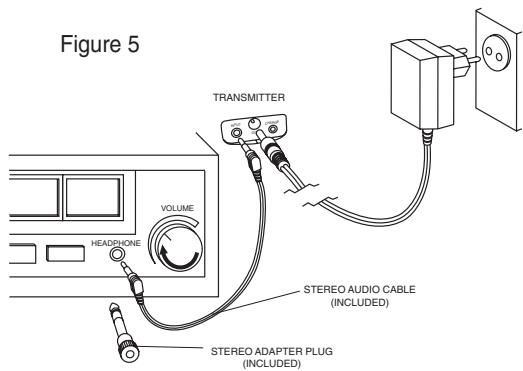

Connecting the FM transmitter to a headphone output of an audio source (figure 5)

1 Connect the 3.5mm stereo plug of the stereo audio cable to the headphone output of an audio source, such as TV, HiFi or PC.
- In case your audio source has a 6.3mm headphone output, use the supplied 3.5mm to 6.3 mm stereo adapter plug.
2 Switch on your audio source and carefully increase the volume of the audio source. The red power indication LED of the transmitter lights up if receiving an audio signal.
3 Switch on the headphone. You may hear a hissing sound through the headphone if the headphone is not yet properly tuned to the transmitter.
4 To tune, press and hold the tuning control button for about 1 second. Repeat if necessary.
5 Adjust the volume to the desired level with the headphone volume control.

Basic operation

When the FM transmitter is connected to a headphone output of an audio source.

1 Switch on your audio source and carefully increase the volume of the audio source. The red power indication LED of the transmitter lights up if receiving an audio signal.
2 Switch on the headphone. You may hear a hissing sound through the headphone if the headphone is not yet properly tuned to the transmitter.
3 To tune, press and hold the tuning control button for about 1 second. Repeat if necessary.
4 Adjust the volume to the desired level with the headphone volume control.

If a fault occurs, first check the points listed below before taking the set for repair.

If you are unable to remedy a problem by following these hints, consult your dealer or service centre.

WARNING: Under no circumstances should you try to repair the set yourself, as this would invalidate the warranty.

Problem	Remedy
No sound	- Check if the AC/DC adapter is fully inserted into the AC outlet and that its DC connector is properly inserted into the 12 Volt DC input connector located at the rear of the transmitter.- Check if the headphone's on/off switch is in the on position.- Headphone batteries running low. Connect the charge cable between headphone and transmitter.(See Headphone power supply)- Check if the audio source is switched on and tuned to a channel with audio.- Volume not adjusted. Adjust the volume on the audio source/ headphone to a higher level.- Adjust the headphone's tuning frequency. Press and hold the tuning control button for about 1 second.- Make use of the HC8802 transmitter. Some transmitters already built into other equipment may not be compatible with the HC8805 headphone because of the advanced technologies used in the HC8805 headphone.
Distorted sound	- Adjust the headphone's tuning frequency. Press and hold the tuning control button for about 1 second. Repeat if necessary.- Adjust the transmitter's frequency. Select any of the 3 channels of the transmitter. Next adjust the headphone's frequency by pressing and holding the tuning button for about 1 second.- Headphone batteries running low. Connect the charge cable between headphone and transmitter. (See Headphone power supply)

Troubleshooting

English

Distorted sound

- Check if the volume on audio source/ headphone is not set at too high a level. Reduce the volume.- Distance from the transmitter is too large. Move closer to the transmitter.- Interference from fluorescent lamps/ other radio sources. Move transmitter or headphone elsewhere/ change the transmitter's channel.- Make use of the HC8802 transmitter. Some transmitters already built into other equipment may not be compatible with the HC8805 headphone because of the advanced technologies used in the HC8805 headphone.

Maintenance

- If the headphone will not be used for a long time, please remove the batteries to prevent leakage and corrosion.- Only replace the batteries with LR03/AAA NiMH batteries (preferably Philips).- Do not leave the headphone near heat sources. Do not expose to direct sunlight, excessive dust, moisture, rain or any kind of mechanical shock.- Do not use alcohol, thinner or petroleum-based substances to clean the headphone or transmitter. Use a slightly dampened chamois cloth to clean the housing.- Do not use cleaning agents containing alcohol, spirits, ammonia or abrasives as these may harm the housing.

Hearing Safety! Continuous use at a high volume may permanently damage your hearing.

Specifications
Regulations

System:	Radio Frequency (RF)
Carrier Frequency:(Transmitter HC8802)	Channel 1: 863.5MHzChannel 2: 864.0MHzChannel 3: 864.5MHz
Carrier Frequency:(Headphone HC8805)	863.2 to 864.7 MHz (Auto tuning)
Modulation:	Frequency Modulation (FM)
Radiated Output Power:	<10m Watt
Effective Transmission Range:	up to100 meters, omni directional (360°)
Input level:	500 mVrms (1 kHz sine wave)
Power supply – transmitter:	12Volt / 200 mA DC, centre positive
Power supply – headphone:	2 x LR03 (AAA) batteries (NiMH)
Frequency range(Headphone):	10 – 23,000 Hz
Signal/Noise ratio:	>60 dB (1 kHz sine wave ,A-weighted)
Distortion:	< 0.5% THD
Channel separation:	>30 dB

European Regulations

This product has been designed, tested and manufactured according the European R&TTE Directive 1999/5/EC.

Following this Directive, this product can be brought into service in the following states:

R&TTE Directive 1999/5/EC

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

This product complies with class 3 requirements as set down in ETS 300 445.

Introduction

1 x casque FM SBC HC8805

1 x adaptateur CA/CC 12 Volt/200 mA SBC CS030/00

2 x piles rechargeables LR03/AAA (NiMH), 550 mAh

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

Transmissor (figura 1)

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

Transmitter (figur 1)

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

Dette produkt overholder klasse 3 kravene, der er fastsat i ETS 300 445.

Inledning

Allmän information

Grattis!

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

Dette produktet er i overensstemmelse med kravene i klasse 3 i henhold til ETS 300 445.

Onnittelumme!

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

R&TTE Directive 1999/5/EC

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

R&TTE Directive 1999/5/EC

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

R&TTE Directive 1999/5/EC

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	✓	DK	✓	E	X	GR	X	F	✓
IRL	✓	I	X	L	✓	NL	✓	A	✓
P	✓	SU	✓	S	✓	UK	✓	N	✓
D	✓	CH	✓

B	√	DK	√	E	X	GR	X	F	√
IRL	√	I	X	L	√	NL	√	A	√
P	√	SU	√	S	√	UK	√	N	√
D	√	CH	√

Meet Philips at the Internet

http://www.philips.com

SBC HC 8800

Printed in China /CMM RM 0117
