Product Type	Multi-purpose electric trimmer (beard, hair, edges)
Brand	Braun
Model	BT5050
Runtime	50 minutes
Charging time	8 hours (first charge or after prolonged inactivity)
Power supply	Rechargeable battery, power cord with integrated low-voltage adapter
Cutting width	32 mm cutting block, 16 mm precision trimmer
Cutting heights	Precision comb: 1-10 mm in 2 mm steps; Hair comb: 10-20 mm in 2 mm steps
Main functions	Precision comb for beard, hair comb, precision trimmer for edges, wide cutting block
Cleaning	Washable under running water; brush cleaning recommended
Maintenance	Oil blades after each use with the provided oil
Safety	Unplug before cleaning; do not use if damaged; use by children 8+ under supervision
Included accessories	Precision comb, cutting block, precision trimmer, power cord, cleaning brush, oil
Warranty	2 years
Approximate weight	200 g
Approximate dimensions	15 x 4 x 4 cm
Charging temperature	5 °C to 35 °C
Operating temperature	15 °C to 35 °C
Battery type	Rechargeable nickel-metal hydride (NiMH) battery
Charge indicator	LED indicator: flashes green during charging, turns off when fully charged (BT5050)

Frequently Asked Questions - BT5050 BRAUN

How to charge the Braun BT5050?

Plug the power cord (8) directly into the device or place it on the charging stand (8a) if provided. The first charge or after prolonged inactivity must last 8 hours. The ambient temperature should be between 5 °C and 35 °C.

How to adjust the cutting height of the precision comb?

Make sure the locking button (6a) is in the up position. Turn the adjustment wheel (6b) to select the desired height (1 to 10 mm in 2 mm steps). Lower the locking button to lock the height.

Can the BT5050 be used in the shower?

Yes, the device can be cleaned under running water, but it is not designed for use in the shower. Unplug it before any water cleaning.

How to clean the trimmer?

Turn off the device. Remove the cutting block (2) by pushing with your thumb. Use the provided brush to clean the blades and inside. You can also rinse the cutting block and trimmers under warm running water. Let them dry with the block open.

What to do if the runtime decreases?

Perform a full discharge approximately every 6 months by using the device until it stops automatically, then fully recharge it. This helps maintain maximum battery capacity.

How to use the hair comb (1b)?

Place the hair comb on the device when it is off. Press the height wheel (6c) and slide it to adjust the cut from 10 to 20 mm. Start with the longest setting to avoid cutting too short.

How to maintain the blades?

After each use, apply a drop of the provided oil to the cutting block (2) and the precision trimmer (3) to ensure optimal performance.

Are the charging stand and hair comb included with the BT5050?

The manual indicates that these accessories (marked with an *) are not provided with all models. For the BT5050, the charging stand and hair comb may not be included. Check the contents of your packaging.

How to use the precision trimmer (3)?

Press the button (4) and slide the precision trimmer upward. It allows you to precisely define edges, sideburns, and mustache.

What does the 2-year warranty cover?

The warranty covers manufacturing or material defects. It does not cover damage due to improper use, normal wear, or repairs performed by unauthorized persons. Keep the warranty certificate.

USER MANUAL BT5050 BRAUN

Black-and-white photo of a Braun-branded hairbrush with a bead trimmer (no text or symbols visible on the device itself)

BT 5090

BT 5070

BT 5050

BT 5030

BT 5010

Type 5417, 5418

www.braun.com

English

Français 11

Polski 16

Český 22

Slovenský 27

Magyar 32

Hrvatski 37

Slovenski 43

Türkçe 49

Română (RO/MD) 56

Български 62

Русский 67

Українська 74

Braun GmbH

(Sharecall charged at

local rates)

www.service.braun.com

BT5090/5070/5050

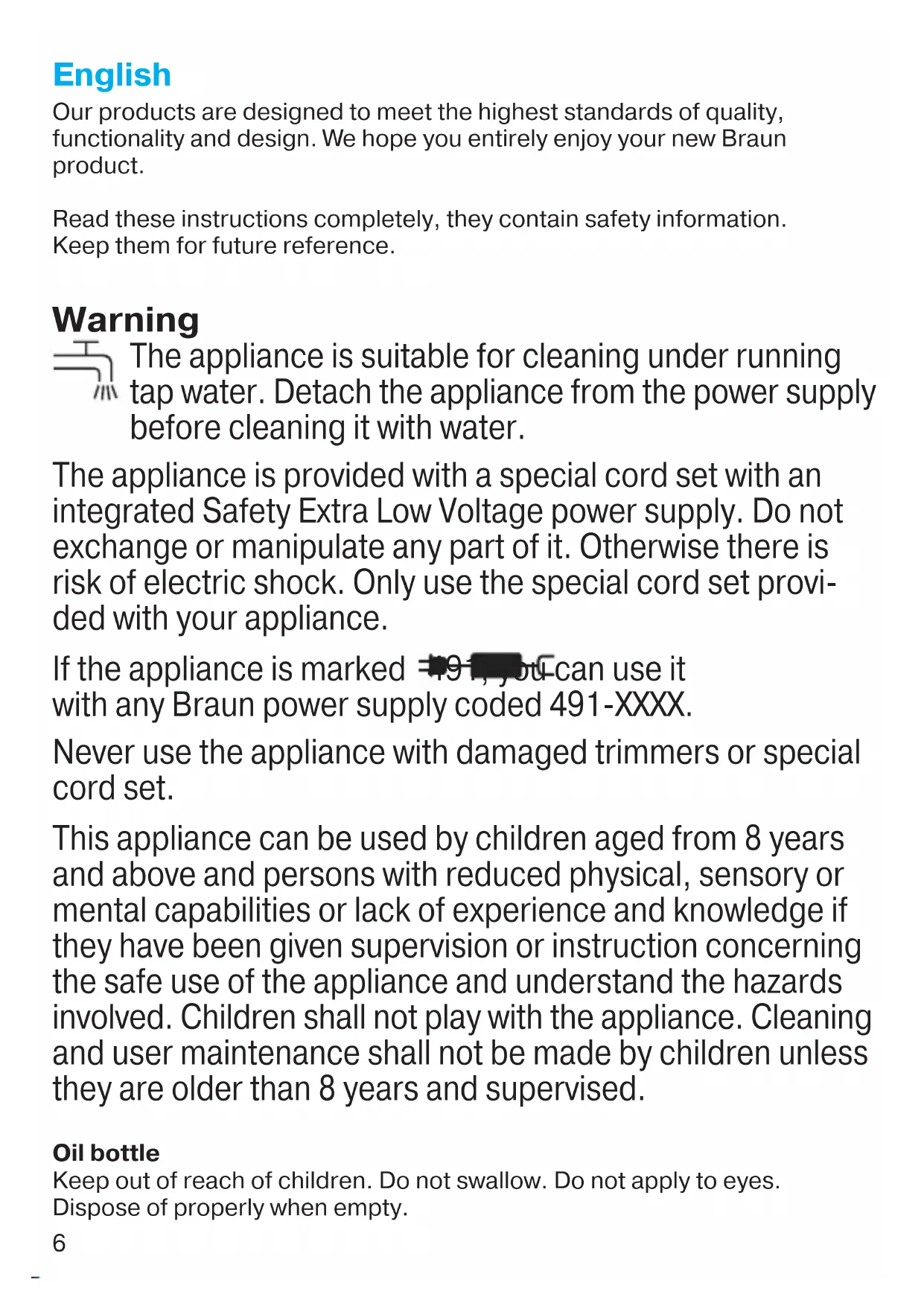

English

Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun product.

Read these instructions completely, they contain safety information. Keep them for future reference.

Warning

The appliance is suitable for cleaning under running tap water. Detach the appliance from the power supply before cleaning it with water.

The appliance is provided with a special cord set with an integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it. Otherwise there is risk of electric shock. Only use the special cord set provided with your appliance.

If the appliance is marked 491, you can use it with any Braun power supply coded 491-XXXX.

Never use the appliance with damaged trimmers or special cord set.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the safe use of the appliance and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and supervised.

Oil bottle

Keep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty.

Description

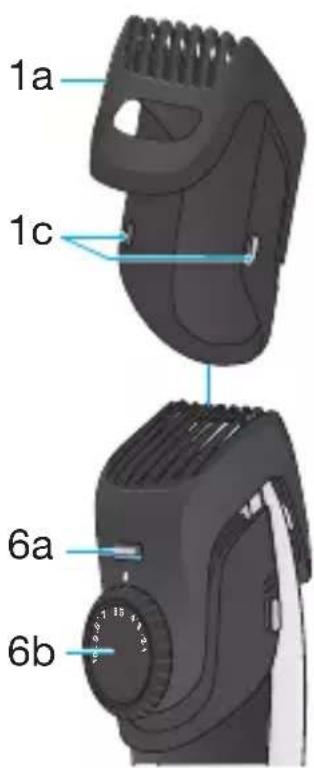

1a Precision comb for trimming beard and short hair
1b Hair comb for cutting hair *
1c Release buttons for comb

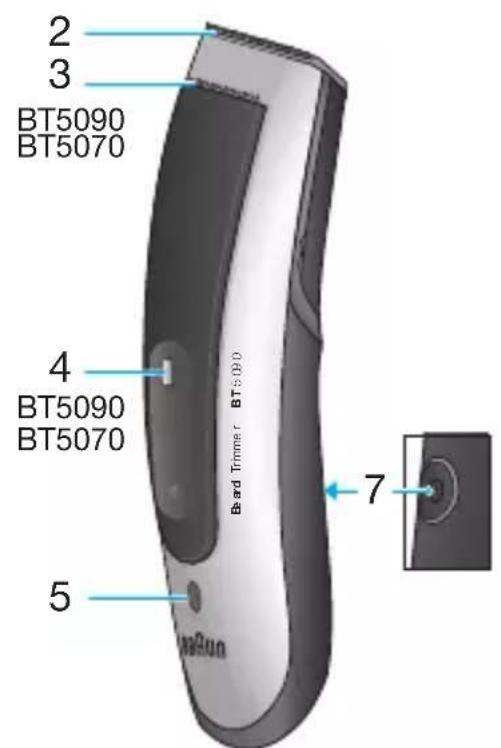

2 Wide trimmer (32 mm)
3 Precision trimmer (16 mm) *
4 Release button precision trimmer *
5 Charge Indicator
6a Lock switch for precision comb
6b Length selector for precision comb
6c Length selector for hair comb
7 On/off switch

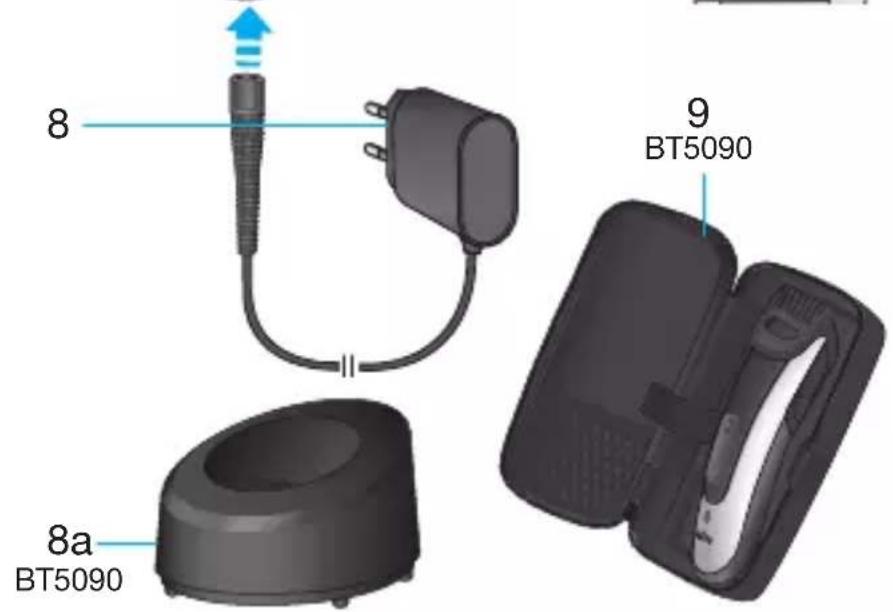

8 Special cord set (design can differ)
8a Charging stand *
9 Pouch *
* not with all models

Charging

Recommended ambient temperature for charging is 5 °C to 35 °C.

The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 50 °C for extended periods of time.

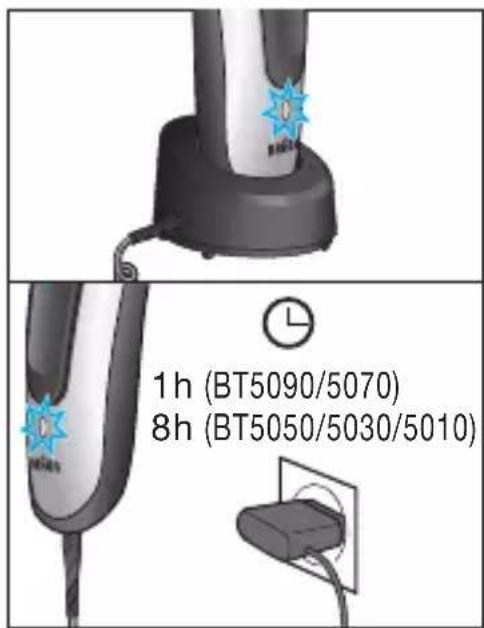

• Place the appliance (switched off) in the charging stand or connect it directly to an electrical outlet via the special cord set (8).
• When charging for the first time or when the appliance is not used for a few months, leave the appliance to charge continuously for 4 hours (BT 5050/5030/5010: 8 hours).
• Once the appliance is completely charged, discharge it through normal use. Then recharge to full capacity.
• A full charge provides up to 50 minutes of cordless operating time. This may vary according to your beard growth.
• Maximum battery capacity will only be reached after several charging/discharging cycles.

Charge Indicator (5)

BT 5090/5070

• The charge indicator shows the battery status.
• The charge indicator blinks green when the appliance is being charged.

When the battery is fully charged, the charge indicator shines permanently green provided the appliance is connected to an electrical outlet.

• During cordless use the charge indicator blinks green.
• The charge indicator flashes red when the battery is running low.

You should be able to finish your current trimming sequence.

BT 5050/5030/5010

- The charge indicator (5) shows that the appliance is being charged. When the battery is fully charged, the charge indicator turns off.

Comb attachments (1a, 1b)

- The combs can be taken off by pressing the release buttons (1c) with your thumb and forefinger.

Beard trimming

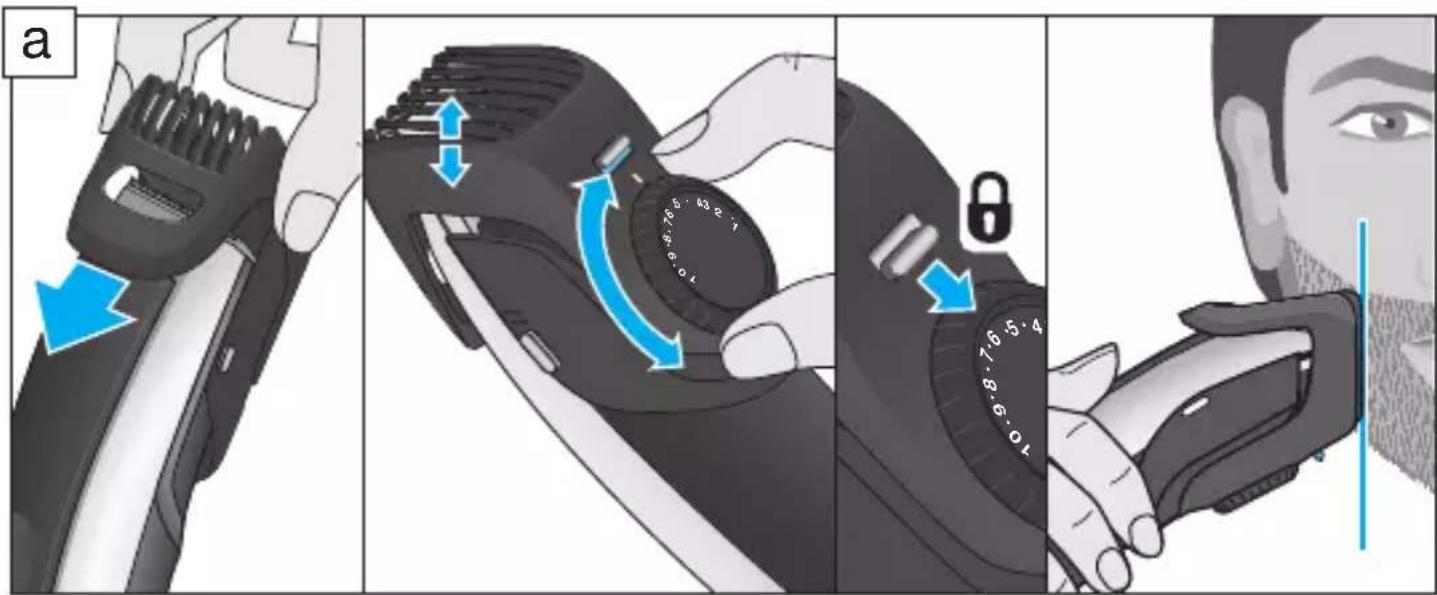

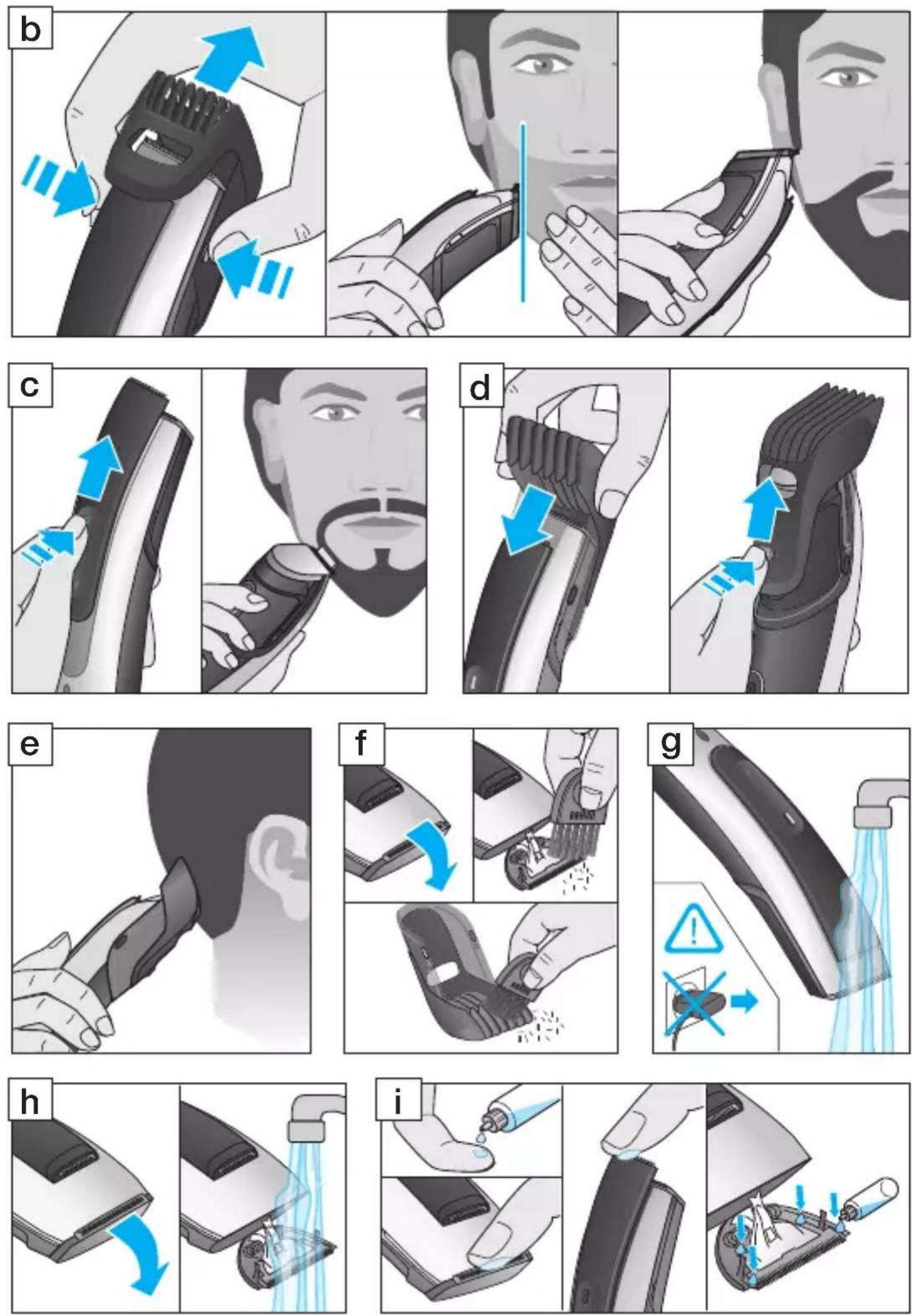

• Place the precision comb (1a) on the appliance with the appliance turned off (a).
• Make sure the lock switch (6a) is in the upper position and turn the length selector (6b) to your desired length. The beard comb slides automatically up or down (possible lenght settings 1 - 10 mm in 0,5 mm steps).
• To lock the comb at your desired length slide the lock switch (6a) down. The length selector is fixed.
• It is advisable to begin with the highest setting and then reduce the setting until you reach the desired beard length.
• Press the on/off switch (7). Hold the beard comb with the angled edge against your beard and guide the trimmer against the direction of the hair growth (a).
• To avoid clogging the beard comb with hair, clean it from time to time with the brush.

Contour Trimming / Styling

• The wide trimmer (2) evenly cuts and trims large areas. It is ideal for shaping sideburns, moustaches and partial short beards. Take off the comb. While stretching the skin, guide the wide trimmer against the direction of hair growth (b).
• The precision trimmer (3) precisely defines lines and edges and is ideal for precise contouring. To use the precision trimmer, press the release button (4) and slide it up (c).

Hair cutting

The hair should be clean, well combed, tangle-free and dry.

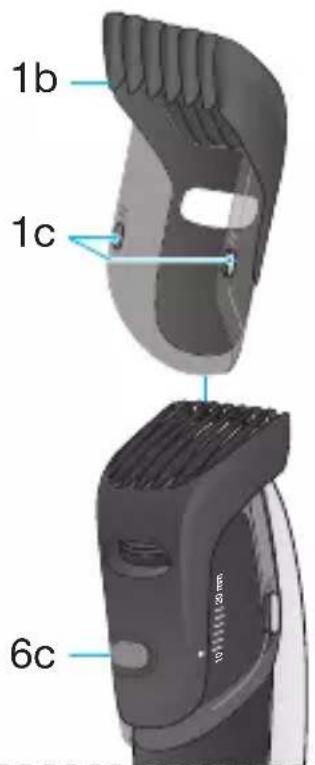

• Place the hair comb (1b) on the appliance with the appliance turned off (d).
• Press the length selector (6c) and slide the comb to your desired length (possible length settings 10 - 20 mm in 2 mm steps).
• If you are not used to clipping hair, begin with a highest setting and then reduce the setting to avoid cutting more hair than desired. If you want to cut your hair shorter than 10 mm, we advise to first cut it with the hair comb (1b) down to 10 mm and then use the beard comb for the desired length.
• Use a slow and controlled movement. Do not force the appliance through the hair faster than it can be cut.
• In between, shake or blow off the hair. If too much hair is caught in the comb, remove and clean it.

Cleaning

Regular cleaning ensures better trimming performance.

Cleaning with the brush

• Switch off the appliance. Open the wide trimmer by pressing with the thumb against the trimmer from the front side. It opens by ca. 45° and can also be taken off (h).
• Using the brush clean the trimmers and the space behind the wide trimmer (inside the housing).

Cleaning with water

• Switch off the appliance and rinse the head and trimmers under warm running water. You can also rinse the opened wide trimmer.
• Leave the appliance with opened wide trimmer to dry.

Keeping your appliance in top shape

To keep the cutting system working properly, oil it with light machine oil after each use (i).

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the appliance has to be fully discharged (by trimming/cutting) every 6 months approximately. Then recharge the appliance to full capacity.

Environmental notice

Product contains batteries and/or recyclable electric waste.

For environment protection do not dispose of in household waste, but for recycling take to electric waste collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

Guarantee

We grant a 2 year guarantee on the product commencing on the date of purchase. Within the guarantee period we will eliminate any defects in the appliance resulting from faults in materials or workmanship, free of charge either by repairing or replacing the complete appliance at our discretion.

This guarantee extends to every country where this appliance is supplied by Braun or its appointed distributor.

This guarantee does not cover: damage due to improper use, normal wear or use as well as defects that have a negligible effect on the value or operation of the appliance.

The guarantee becomes void if repairs are undertaken by unauthorised persons and if original Braun parts are not used.

To obtain service within the guarantee period, hand in or send the complete appliance with your sales receipt to an authorised Braun Customer Service Centre (address information available online at www.service.braun.com).

For UK only:

This guarantee in no way affects your rights under statutory law.

Français

Country of origin: China

Year of manufacture

To determine the year of manufacture, refer to the 3-digit production code located near the type plate. The first digit of the production code refers to the last digit of the year of manufacture. The next two digits refer to the calendar week in the year of manufacture.

Example: "050" - The product was manufactured in week 50 of 2010.
