USER MANUAL BT5240 BRAUN

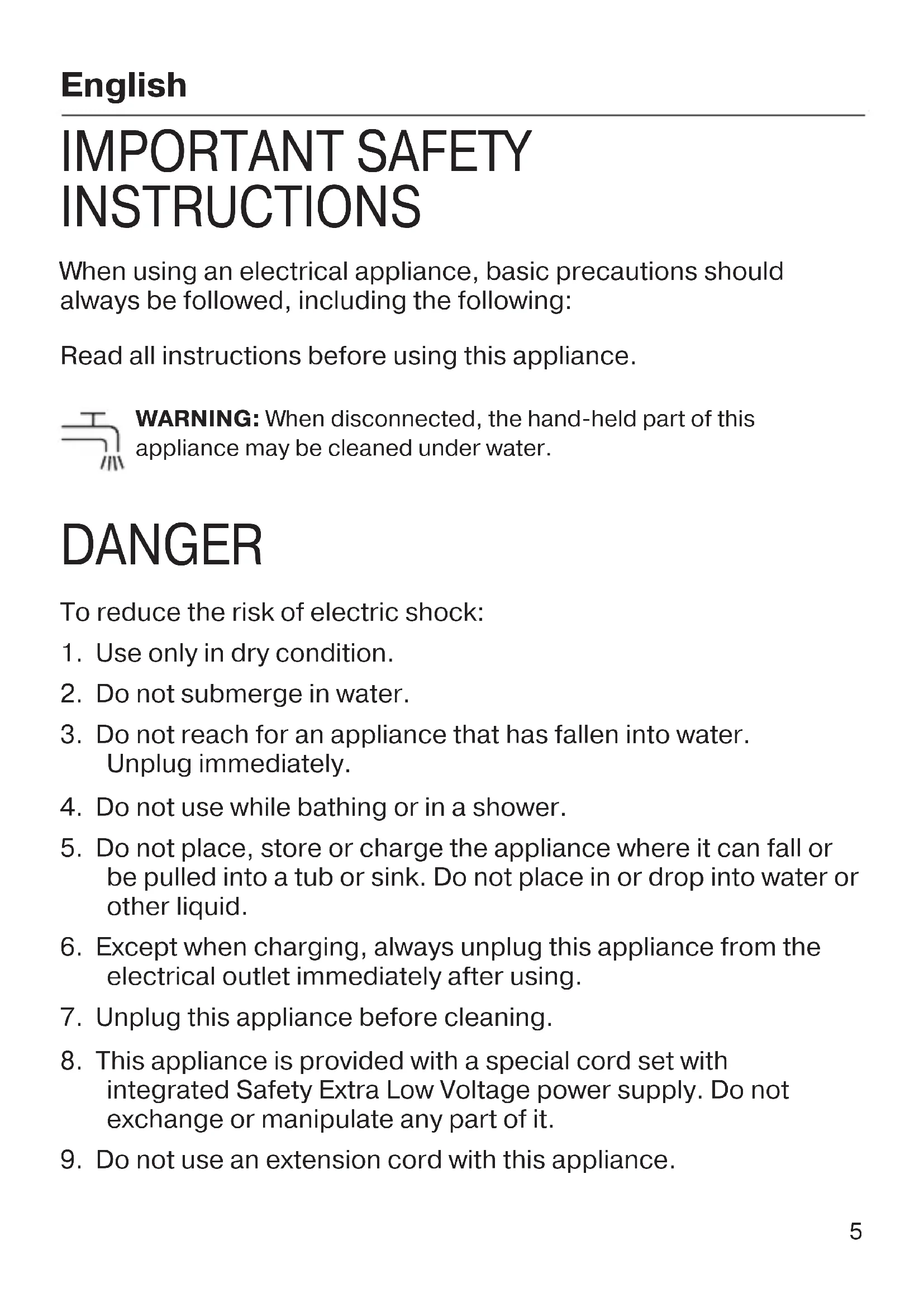

WARNING: When disconnected, the hand-held part of this

appliance may be cleaned under water. DANGER To reduce the risk of electric shock:

1. Use only in dry condition.

2. Do not submerge in water.

3. Do not reach for an appliance that has fallen into water.

4. Do not use while bathing or in a shower.

5. Do not place, store or charge the appliance where it can fall or

be pulled into a tub or sink. Do not place in or drop into water or other liquid.

6. Except when charging, always unplug this appliance from the

electrical outlet immediately after using.

7. Unplug this appliance before cleaning.

8. This appliance is provided with a special cord set with

integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.

9. Do not use an extension cord with this appliance.

91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 591882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 5 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 5 of 326 WARNING To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by,

on, or near children or persons with disabilities.

2. Use this appliance only for its intended use as described in this

manual. Do not use attachments not recommended by the manufacturer.

3. Never operate this appliance if it has a damaged cord or plug, if

it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.

5. Never drop or insert any object into any opening of this

6. Do not use outdoors or operate where aerosol (spray) products

are being used or where oxygen is being administered.

7. Do not use this appliance with a damaged or broken cutter or

comb, as serious skin injuries may occur.

8. Always attach plug to appliance first, then to outlet. To

disconnect, turn all controls off, then remove plug from outlet.

9. When plugging to an electrical outlet outside North America,

use a plug adapter to match the outlet’s pin configuration.

10. Caution: The battery used in this device may present a fire or

chemical burn hazard if mistreated. Do not disassemble, heat above 100 °C (212 °F) or incinerate.

11. To recharge the battery, only use the detachable power supply

provided with this appliance. If the appliance is marked

SAVE THESE INSTRUCTIONS

91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 691882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 6 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 6 of 327 Important Do not open the appliance! Only at the end of the product’s useful life, disassemble the rechargeable battery for disposal reasons as shown in the battery removal section. This appliance is designed for household use only. Description 1a Sliding beard comb (3 – 11 mm in 2 mm steps) 1b Sliding hair comb (13 – 21 mm in 2 mm steps) 1c Release button sliding combs 1d Fix comb 1 (1 mm) 1e Fix comb 2 (2 mm) 2a Trimmer head 2b Detailed trimmer head* 2c Mini foil shaver head* 3 Length selector 4 On/off button 5 Charging indicator 6 Power socket 7 Special cord set (design can differ) 8 Charging stand*

• not with all models For electric specifications, see printing on the special cord set. Charging Recommended ambient temperature for charging is 41 °F to 95 ° F / 5 °C to 35 °C. The battery may not charge properly or at all under extreme low or high temperatures. Recommended ambient temperature for trimming is 60 °F to 95 °F / 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 122 °F / 50 °C for extended periods of time.

• Connect the appliance via the special cord set (7) or the charging stand (8) to an electrical outlet.

• A full charge takes approx. 1 hour and provides up to 100 minutes of cordless operation time.

• Once the appliance is completely charged, discharge it through normal use. Then recharge again to full capacity. 91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 791882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 7 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 7 of 328 Charging indicator (5)

• The charging indicator blinks green when the appliance is being charged.

• It lights up permanently green for a few seconds when the battery is fully charged. During usage it shines permanently green.

• The charging indicator shines permanently red when the battery is running low. Once it flashes red, connect the appliance to the mains. Usage Exchange the attachments only when the appliance is switched off. To turn the appliance on, push the on/off button. Travel lock Press the on/off button (4) for 3 seconds to lock the appliance. A beep confirms that the travel lock is activated. To unlock, press the on/off button 3 seconds. 3 beeps will sound when your unlock attempt failed. Try again or simply connect the appliance to the mains. Beard Trimming / Hair Clipping

• Place one of the precision combs (1a, 1b) over the trimmer head (2).

• Turn the length selector (3) to your desired cutting length. The comb slides automatically up or down.

• Push the on/off button (4) to turn the appliance on.

• Trim against hair growth by guiding the flat comb part over the skin.

• Avoid clogging the comb with hair. Remove and clean it from time to time. Precision and Contour Trimming Use the trimmer head (2a) without comb attachment, the detailed trimmer head (2b) or the mini foil shaver head (2c) for shaping sideburns, moustaches and partial short beards. Cleaning and maintenance

• Switch off the appliance.

• Take off any head and attachment.

• Use the brush to clean the heads, combs and the appliance.

• The handle, the heads and combs can be cleaned under running water. Rinse until all residues have been removed. Let all parts dry completely before reassembling them. 91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 891882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 8 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 8 of 329

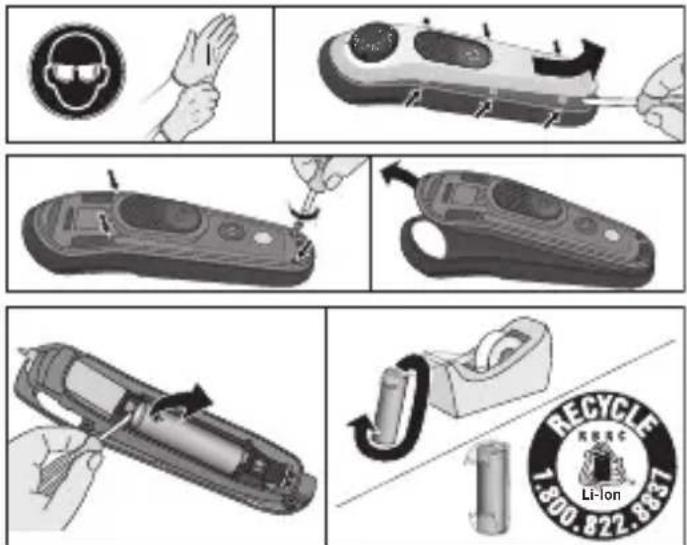

• To keep the trimmers working properly, oil them with light machine oil (not included) regularly. Battery removal This appliance contains rechargeable batteries. Before disposing of the appliance, disassemble the housing as shown, remove the rechargeable batteries and recycle or dispose of properly, according to local guidelines. Caution: Disassembling the appliance will destroy it and invalidate the warranty. Li-Ion

Subject to change without notice. 91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 991882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 9 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 9 of 3210 How to obtain service in the USA Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts and accessories: Contact a Braun Authorized Service Center. Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To speak to a Braun Consumer Service Representative: Please call 1-800-BRAUN 11 (272-8611). 91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 1091882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 10 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 10 of 3211 How to obtain service in Canada Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To obtain service: A. Carry the product in to the Authorized Braun Service Center of your choice or, B. Ship the product to the Authorized Braun Service Center of your choice. Pack the product well. Ship the product prepaid and insured (recommended). Include a copy of your proof of purchase to verify warranty coverage, if applicable. To obtain original Braun replacement parts & accessories: Contact a Braun Authorized Service Center. Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you or visit www.service.braun.com. To speak to a Braun Service Representative: Please call 1-800-387-6657. 91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 1191882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 11 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 11 of 3212 60 day money back satisfaction guarantee for men’s grooming products Braun Shavers Braun Trimmers Once you have tried your new Braun product, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 for instructions on how to return the product. Return the unit and all parts within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment. Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use. Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase. Please include the following information when you return your product: Name Street City State / Zip code Telephone number Please allow 6-8 weeks for handling. 91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 1291882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 12 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 12 of 3213

2 year limited warranty Braun warrants this Braun product to be free of defects in material and workmanship for a period of two years from the date of original purchase. If the product exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge. Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you or visit www.service.braun.com. This warranty does not cover damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging. ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE

RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING

FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state. 91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 1391882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 13 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 13 of 3214

2 year limited warranty In the event a Braun product fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer. This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, as well as the normal wear of the shearing parts. Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product. 91882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 1491882792_ BT7040_7940_7020_5065_5060_5042_5040_NA.indd 14 29.05.18 13:0829.05.18 13:08 Business Use - P&G AUTHORIZED POA-00048415 Rev 001 Effective Date 2018-06-05 Printed 2019-02-27 Page 14 of 3215 Français
