USER MANUAL cruZer6 beard&head BRAUN

Illustration of a Bruzer brand hairbrush with blue and gray casing (no text or symbols on the device itself)

Thank you for purchasing a Braun product.

We hope you are completely satisfied with your new Braun appliance.

If you have any questions, please call:

US residents 1-800-BRAUN-11

1-800-272-8611

Canadian residents 1-800-387-6657

a click! clic!

b

Illustration showing a person using a handheld device to press or install a device, with blue arrows indicating the process (no text or symbols present)

d click! click!

Illustration of a hand using a hairpin to cut the head area, no text or symbols present

f

g

Diagram showing a device being processed with a blue arrow indicating flow direction (no text or symbols)

i oil huile oil huile

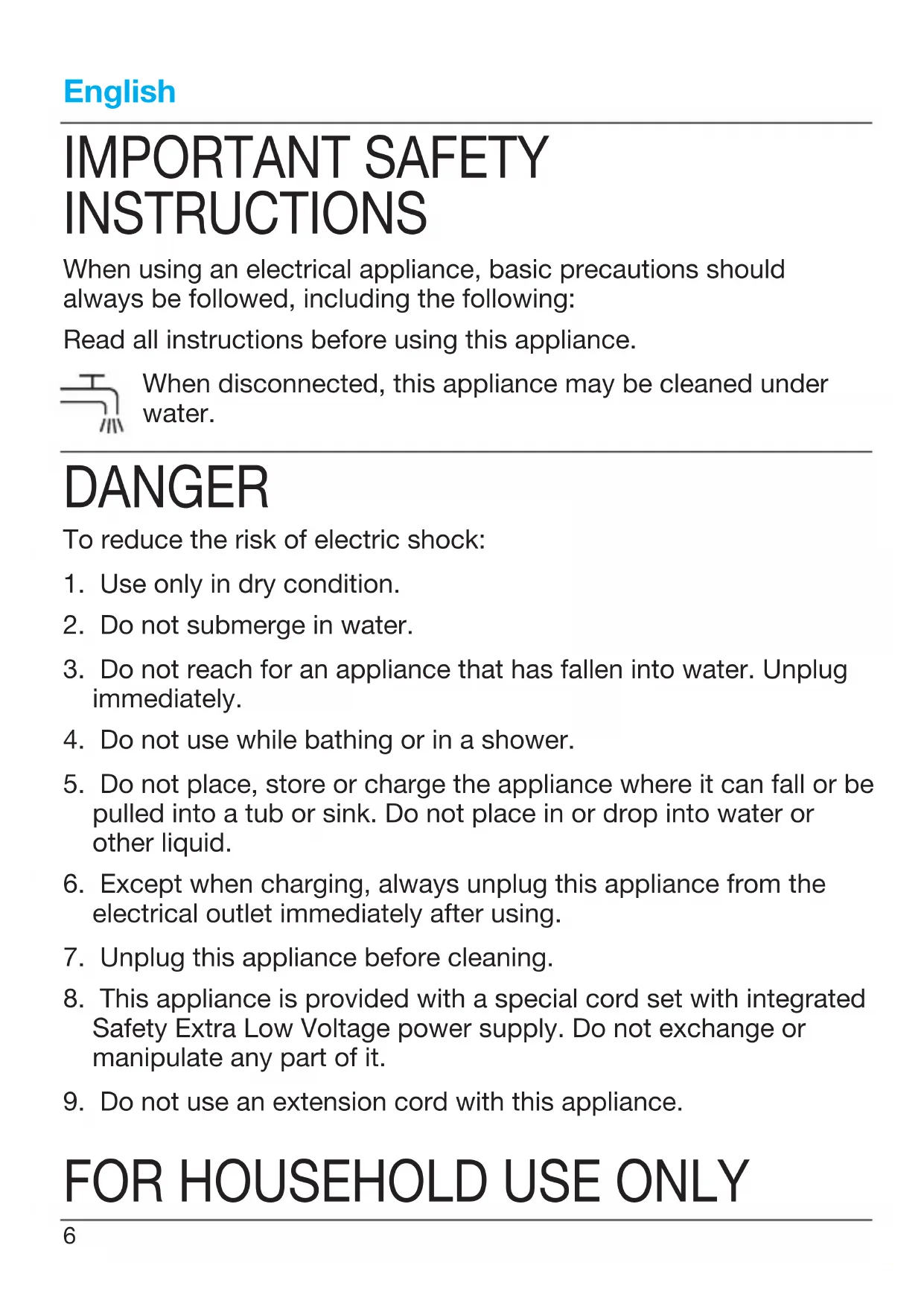

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

Read all instructions before using this appliance.

When disconnected, this appliance may be cleaned under water.

DANGER

To reduce the risk of electric shock:

1. Use only in dry condition.
2. Do not submerge in water.
3. Do not reach for an appliance that has fallen into water. Unplug immediately.
4. Do not use while bathing or in a shower.
5. Do not place, store or charge the appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
6. Except when charging, always unplug this appliance from the electrical outlet immediately after using.
7. Unplug this appliance before cleaning.
8. This appliance is provided with a special cord set with integrated Safety Extra Low Voltage power supply. Do not exchange or manipulate any part of it.
9. Do not use an extension cord with this appliance.

To reduce the risk of burns, fire, electric shock, or injury to persons:

1. Close supervision is necessary when this appliance is used by, on, or near children or invalids.

2. Use this appliance only for its intended use as described in this manual. Do not use attachments not recommended by the manufacturer.

3. Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or if the power supply has been dropped into water. Return the appliance to a service center for examination and repair.

4. Keep the cord away from heated surfaces.

5. Never drop or insert any object into any opening of this appliance.

6. Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is being administered.

7. Do not use this appliance with a damaged or broken foil, as serious skin injuries may occur.

8. Always attach plug to appliance first, then to outlet. To disconnect, turn all controls to «off», then remove plug from outlet.

9. When plugging to an electrical outlet outside the USA, use a plug adapter to match the outlet's pin configuration.

10. Oil bottle

Keep out of reach of children. Do not swallow. Do not apply to eyes. Dispose of properly when empty.

SAVE THESE INSTRUCTIONS

Our products are designed to meet the highest standards of quality, functionality and design. We hope you entirely enjoy your new Braun product.

Caution

- For usage in other body areas, please make sure that the skin is stretched.

Description

1a Beard comb for trimming beard and short hair
1b Hair comb for cutting hair
1c Release buttons for comb
2 Wide trimmer (32 mm)
3 Precision trimmer (16 mm) (model cruZer6 beard&head only)
4 Release button precision trimmer
5 Pilot light
6 Length selector
7 On/off switch
8 Special cord set
9 Pouch (model cruZer6 beard&head only)

Charging

The best environmental temperature for charging is between 60 °F to 95 °F / 15 °C to 35 °C. Do not expose the appliance to temperatures higher than 122 °F / 50 °C for extended periods of time.

• Using the special cord set (8), connect the appliance to an electrical outlet with the motor switched off.
• When charging for the first time or when the appliance is not used for a few months, leave the appliance to charge continuously for 4 hours.
• Once the appliance is completely charged, discharge it through normal use. Then recharge to full capacity. Subsequent charges will take about 1 hour (model cruZer5 beard: about 8 hours).
• A full charge provides up to 40 minutes of cordless operating time. This may vary according to your beard growth.
• Maximum battery capacity will only be reached after several charging/discharging cycles.

Pilot light (5)

The pilot light shows the status of the batteries

Model cruZer6 beard&head:

• The pilot light blinks green when the appliance is being charged. When the battery is fully charged, the pilot light shines permanently green provided the appliance is connected to an electrical outlet.
• During cordless use the pilot light blinks green.
• The pilot light flashes red when the battery is running low. You should be able to finish your current trimming sequence.

Model cruZer5 beard&head:

- The pilot light shines permanently green provided the appliance is connected to an electrical outlet.

Comb attachments (1a, 1b)

• The combs can be taken off by pressing the release buttons (1c) with your thumb and forefinger.
• Note, the combs can only be taken off, when the precision trimmer (3) is not extended.

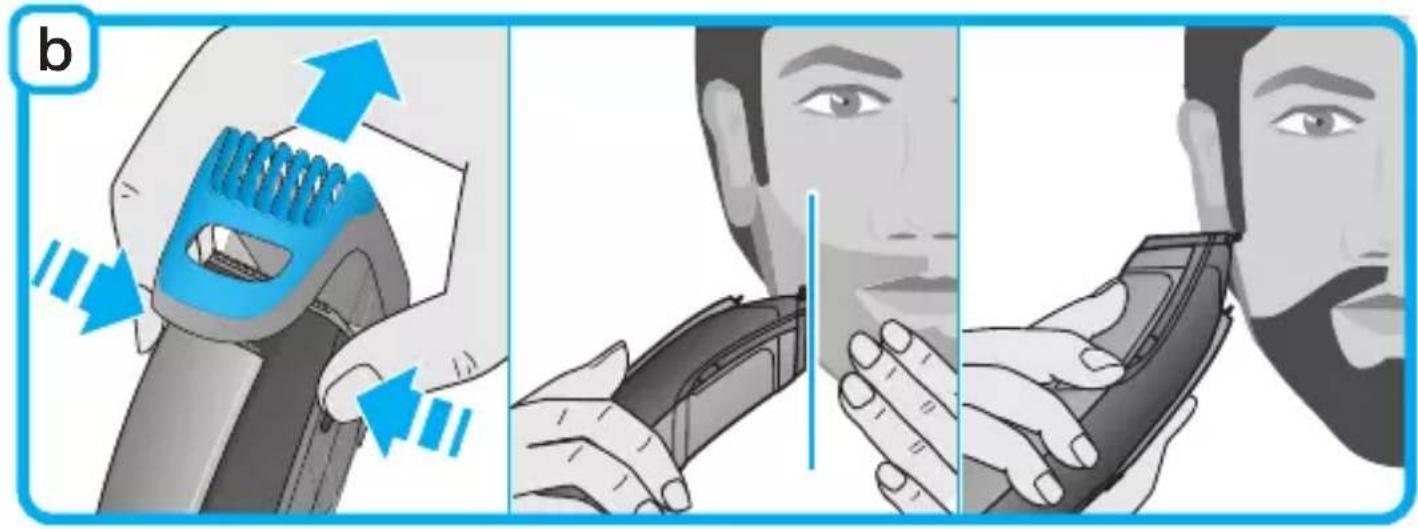

Beard trimming

• Place the beard comb (1a) on the appliance with the appliance turned off (a).
• Press length selector (6) and slide the beard comb up to your desired beard length (possible length settings: 1, 3, 5, 7, 9, 11mm).
• It is advisable to begin with the highest setting and then reduce the setting until you reach the desired beard length.
• Press the on/off switch. Hold the beard comb with the angled edge against your beard and guide the trimmer against the direction of the hair growth (a).
• To avoid clogging the beard comb with hair, clean it from time to time with the brush.

Contour Trimming / Styling

• The wide trimmer (2) evenly cuts and trims large areas. It is ideal for shaping sideburns, moustaches and partial short beards. Take off the comb. While stretching the skin, guide the wide trimmer against the direction of hair growth (b).

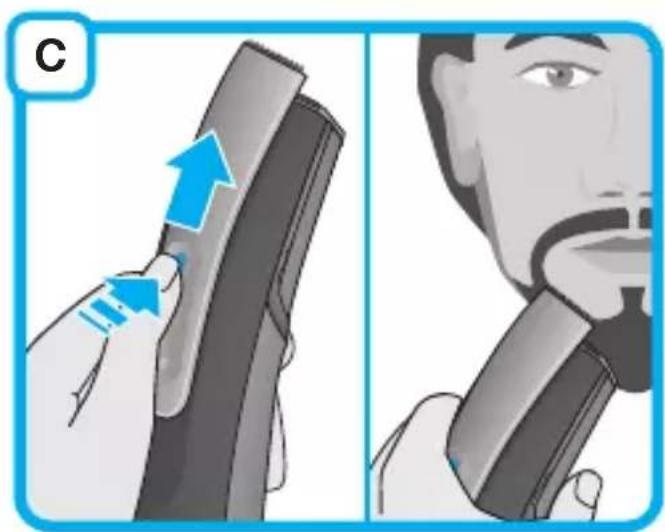

• The precision trimmer (3) (model cruZer6 beard&head only) precisely defines lines and edges, being ideal for precise contouring. To use the precision trimmer, press the release button (4) and slide it up (c).

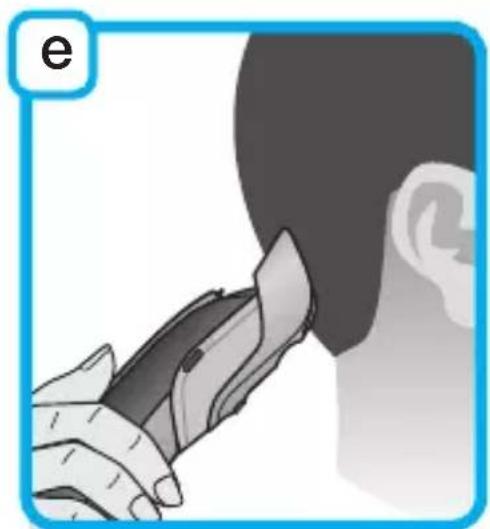

Hair cutting

The hair should be clean, well combed, tangle-free and dry.

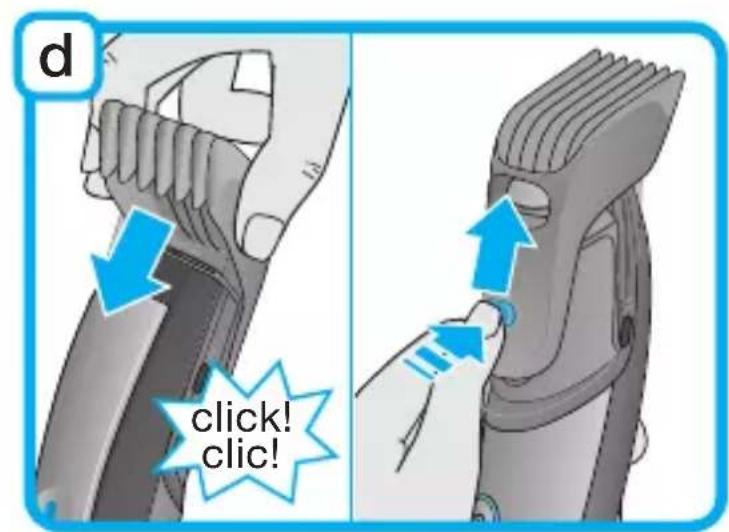

• Place the hair comb (1b) on the appliance with the appliance turned off (d).
• Press the length selector (6) and slide the distance comb up to your desired hair length (possible length settings: 10, 12, 14, 16, 18, 20 mm). If you are not used to clipping hair, begin with a higher setting and then reduce the setting to avoid cutting more hair than desired. If you want to cut your hair shorter than 10mm, we advise to first cut it with the hair comb (1b) down to 10mm and then use the beard comb for the desired length.
• Use a slow and controlled movement. Do not force the appliance through the hair faster than it can be cut.
• In between, shake or blow off the hair. If too much hair is caught in the comb, remove and clean it.

Cleaning

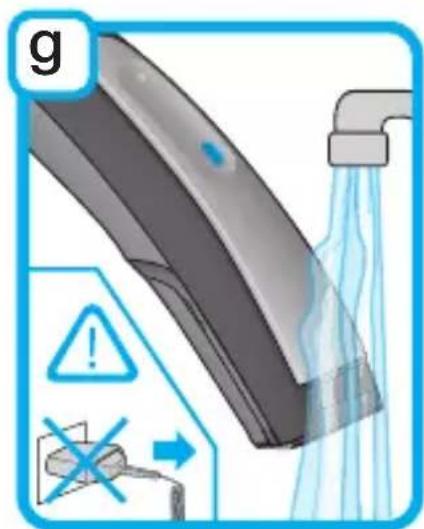

The appliance is suitable for cleaning under running tap water. Warning: Detach the appliance from the power supply before cleaning it with water.

Regular cleaning ensures better trimming performance.

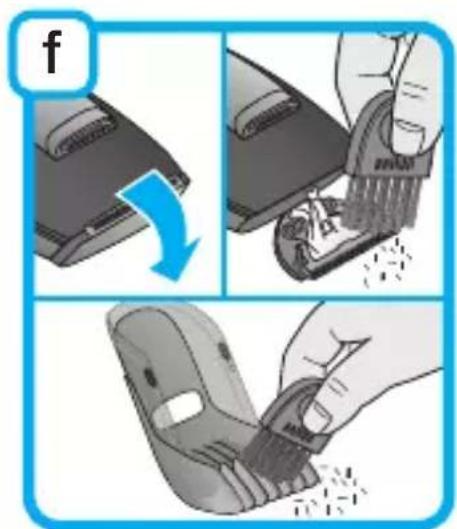

Cleaning with the brush

• Switch off the appliance. Open the wide trimmer by pressing with the thumb against the trimmer from the front side. It opens by ca. 45° and can also be taken off (h).
• Using the brush clean the trimmers and the space behind the wide trimmer (inside the housing).

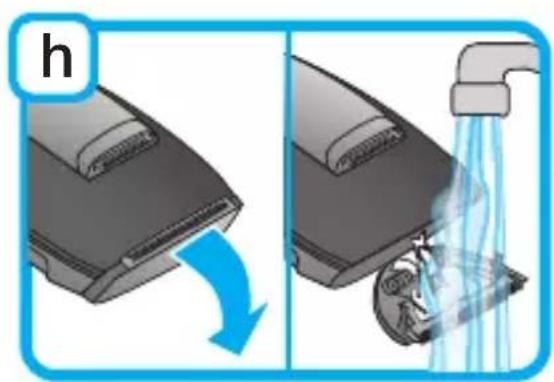

Cleaning with water

• Switch off the appliance and rinse the head and trimmers under warm running water. You can also rinse the opened wide trimmer. You may use liquid soap without abrasive substances. Rinse off all foam.
• Leave the appliance with opened wide trimmer to dry.

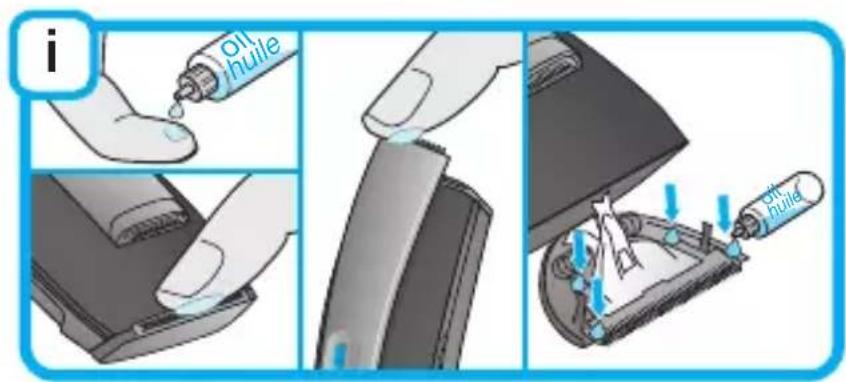

• If you regularly clean the trimmers under water, apply a few drops of light machine oil onto the trimmers as indicated in the drawing (i).

Keeping your appliance in top shape

Preserving the batteries

In order to maintain the optimum capacity of the rechargeable batteries, the appliance has to be fully discharged (by trimming/cutting) every 6 months approximately. Then recharge the appliance to full capacity.

Environmental notice

This product contains rechargeable batteries. In the interest of protecting the environment, please do not dispose of the product in the household waste at the end of its useful life. Disposal can take place at a Braun Service Center or at appropriate collection points provided in your country.

Subject to change without notice.

For electric specifications, see printing on the special cord set.

How to obtain service in the USA 60 day money back satisfaction guarantee

Should your Braun product require service, please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,
B. Ship the product to the Authorized Braun Service Center of your choice.

Pack the product well.

Ship the product prepaid and insured (recommended).

Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts and accessories:

Contact a Braun Authorized Service Center. Please call 1-800-BRAUN 11 (272-8611) to be referred to the Authorized Braun Service Center closest to you.

To speak to a Braun Consumer Service Representative:

Please call 1-800-BRAUN 11 (272-8611).

How to obtain service in Canada 60 day money back satisfaction guarantee

Should your Braun product require service, please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you.

To obtain service:

A. Carry the product in to the Authorized Braun Service Center of your choice or,

B. Ship the product to the Authorized Braun Service Center of your choice.

Pack the product well.

Ship the product prepaid and insured (recommended).

Include a copy of your proof of purchase to verify warranty coverage, if applicable.

To obtain original Braun replacement parts & accessories:

Contact a Braun Authorized Service Center.

Please call 1-800-387-6657 to be referred to the Authorized Braun Service Center closest to you.

To speak to a Braun Service Representative:

Please call 1-800-387-6657.

60 day money back satisfaction guarantee for men's grooming products

Braun Shavers

Braun Beard Trimmers

Once you have tried your new Braun shaver or beard trimmer, we are confident you will appreciate its performance. We suggest using the product regularly for 2 to 3 weeks. If you are not satisfied with the product, please call 1-800-211-6661 within 60 days of purchase. Retain original cash receipt, product and all product parts, including the box. Do not return to the retailer for guarantee fulfillment.

Please note: No refunds will be made for any product damaged by accident, neglect or unreasonable use.

Your product must be shipped in its original packaging, with your original sales slip indicating the date of purchase.

Please include the following information when you return your product:

Name

Street

City

State Zip code

Telephone number

Please allow 6-8 weeks for handling.

FOR USA ONLY

2 year limited warranty (foil and cutter block excluded)

Braun warrants this Braun shaver (except foil and cutter block) to be free of defects in material and workmanship for a period of two years from the date of original purchase.

If the shaver exhibits such a defect, Braun will, at its option, either repair or replace it for the consumer without charge.

Please call 1-800-Braun 11 (800-272-8611) to be referred to the authorized Braun Service Center closest to you.

This warranty does not cover foil and cutter cassette or damage resulting from accident, misuse, abuse, dirt, water, tampering, unreasonable use, normal wear, servicing performed or attempted by unauthorized service agencies or failure to provide reasonable and necessary maintenance, including recharging.

ALL IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO 2 YEARS FROM DATE OF ORIGINAL PURCHASE. IN NO EVENT WILL BRAUN BE RESPONSIBLE FOR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF THIS PRODUCT. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

This warranty gives you specific legal rights, and you may also have other legal rights which vary from state to state.

FOR CANADA ONLY

2 year limited warranty

(foil and cutter block excluded)

In the event a Braun Shaver fails to function within 2 years from date of purchase, because of defects in material or workmanship, and the consumer returns the unit to an authorized service center, Braun Canada, will, at its option, either repair or replace the unit without additional charge to the consumer.

This guarantee does not cover any product, which has been damaged by dropping, tampering, wrong current, servicing performed or attempted by unauthorized service agencies, misuse or abuse, kinks in the shaver foil as well as the normal wear of the shearing parts.

Exclusion of Warranties: The foregoing warranty is the sole warranty offered by Braun Canada. Braun Canada hereby disclaims any implied warranty or merchantability or fitness for any particular purpose. In no event will Braun Canada be responsible for consequential damages resulting from the use of this product.
