USER MANUAL Easy Timer BIALETTI

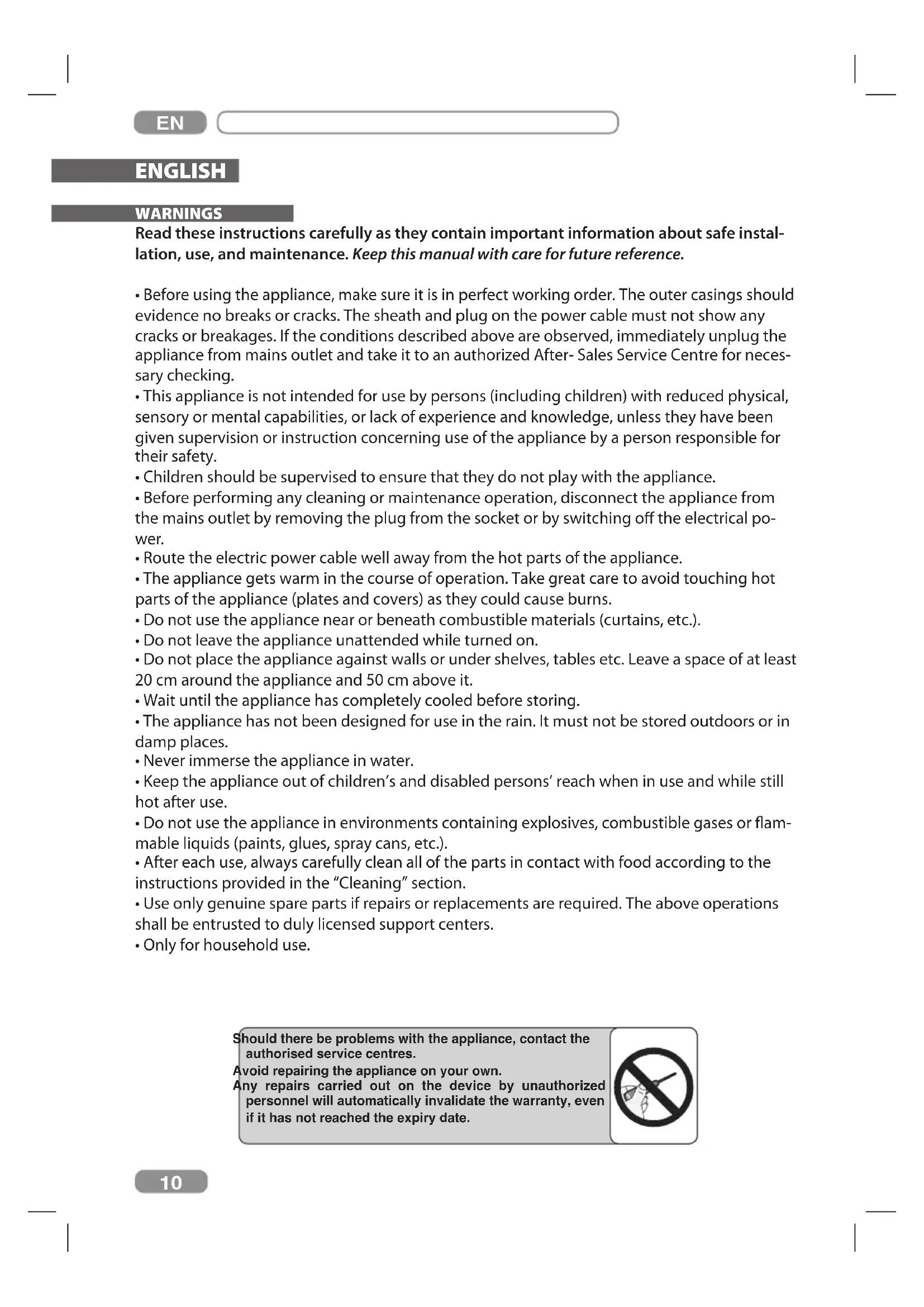

9ENGLISH WARNINGS Read these instructions carefully as they contain important information about safe instal- lation, use, and maintenance. Keep this manual with care for future reference.

• Before using the appliance, make sure it is in perfect working order. The outer casings should evidence no breaks or cracks. The sheath and plug on the power cable must not show any cracks or breakages. If the conditions described above are observed, immediately unplug the appliance from mains outlet and take it to an authorized After- Sales Service Centre for neces- sary checking.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Before performing any cleaning or maintenance operation, disconnect the appliance from the mains outlet by removing the plug from the socket or by switching o the electrical po- wer.

• Route the electric power cable well away from the hot parts of the appliance.

• The appliance gets warm in the course of operation. Take great care to avoid touching hot parts of the appliance (plates and covers) as they could cause burns.

• Do not use the appliance near or beneath combustible materials (curtains, etc.).

• Do not leave the appliance unattended while turned on.

• Do not place the appliance against walls or under shelves, tables etc. Leave a space of at least 20 cm around the appliance and 50 cm above it.

• Wait until the appliance has completely cooled before storing.

• The appliance has not been designed for use in the rain. It must not be stored outdoors or in damp places.

• Never immerse the appliance in water.

• Keep the appliance out of children’s and disabled persons’ reach when in use and while still hot after use.

• Do not use the appliance in environments containing explosives, combustible gases or am- mable liquids (paints, glues, spray cans, etc.).

• After each use, always carefully clean all of the parts in contact with food according to the instructions provided in the “Cleaning” section.

• Use only genuine spare parts if repairs or replacements are required. The above operations shall be entrusted to duly licensed support centers.

• Only for household use. Should there be problems with the appliance, contact the authorised service centres. Avoid repairing the appliance on your own. Any repairs carried out on the device by unauthorized personnel will automatically invalidate the warranty, even if it has not reached the expiry date.

ENGLISH WARNINGS Read these instructions carefully as they contain important information about safe instal- lation, use, and maintenance. Keep this manual with care for future reference.

• Before using the appliance, make sure it is in perfect working order. The outer casings should evidence no breaks or cracks. The sheath and plug on the power cable must not show any cracks or breakages. If the conditions described above are observed, immediately unplug the appliance from mains outlet and take it to an authorized After- Sales Service Centre for neces- sary checking.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Before performing any cleaning or maintenance operation, disconnect the appliance from the mains outlet by removing the plug from the socket or by switching o the electrical po- wer.

• Route the electric power cable well away from the hot parts of the appliance.

• The appliance gets warm in the course of operation. Take great care to avoid touching hot parts of the appliance (plates and covers) as they could cause burns.

• Do not use the appliance near or beneath combustible materials (curtains, etc.).

• Do not leave the appliance unattended while turned on.

• Do not place the appliance against walls or under shelves, tables etc. Leave a space of at least 20 cm around the appliance and 50 cm above it.

• Wait until the appliance has completely cooled before storing.

• The appliance has not been designed for use in the rain. It must not be stored outdoors or in damp places.

• Never immerse the appliance in water.

• Keep the appliance out of children’s and disabled persons’ reach when in use and while still hot after use.

• Do not use the appliance in environments containing explosives, combustible gases or am- mable liquids (paints, glues, spray cans, etc.).

• After each use, always carefully clean all of the parts in contact with food according to the instructions provided in the “Cleaning” section.

• Use only genuine spare parts if repairs or replacements are required. The above operations shall be entrusted to duly licensed support centers.

• Only for household use. Should there be problems with the appliance, contact the authorised service centres. Avoid repairing the appliance on your own. Any repairs carried out on the device by unauthorized personnel will automatically invalidate the warranty, even if it has not reached the expiry date.

• Before cleaning, always disconnect the plug from the electrical socket and wait for the appliance to cool completely.

• To clean the covers, use a damp cloth. Avoid using abrasive detergents.

• Never immerse the appliance in water.

• To wash the collection unit rinse it under running water and then dry it.

• To wash the heater unit rinse the inside and clean the outside with a damp sponge/cloth.

• We recommend you pay attention when washing the coee maker to avoid the lower parts, which hold the electrical components, from coming into contact with water.

• In the presence of hard water the formation of lime-scale on the bottom of the heater unit may IRREPARABLY DAMAGE the coee maker. In order to avoid this inconvenience it is neces- sary to DESCALE the device periodically as follows:

• Fill the heater unit with water to the level of the valve.

• Add two teaspoons of citric acid.

• Close the coee maker without adding coee powder and simulate the preparation of the coee.

• When it has nished, throw away the solution and carefully rinse the internal parts under running water.

• Before using the coee maker again, perform a complete cycle and discard the content.

• Periodically check the internal components and replace any pieces in the case of wear or damage.

• To wash the base only use a cloth dampened in water. DISPOSAL This produce complies with the Directive 2002/96/CE. The symbol representing the crossed out trash can on the appliance indicates t h a t the product, at the end of its useful life, must be treated separately from domestic waste. It must be taken to a recycling centre for electrical and electronic appliances or turned in to the point of sale when purchasing a new, equivalent, appliance. The user is responsible for taking the appliance to the recycling centre at the end of its life, under penalty of the sanctions foreseen by the current legislation on waste handling. Correct consignment of the no-longer used appliance to a recycling centre for treatment and envi- ronmentally compatible elimination contributes to avoiding a negative impact on the envi- ronment and public health, and permits recycling of the materials from which the product is made. For more detailed information regarding the available collection systems, contract the local refuse centre or the store where the product was purchased. For more detailed in- formation regarding the available collection systems, contract the local refuse centre or the store where the product was purchased. The manufacturer and the importers comply with their responsibility for recycling, treating, and environmentally compatible disposal of waste both di- rectly and in a collective system.

• Before cleaning, always disconnect the plug from the electrical socket and wait for the appliance to cool completely.

• To clean the covers, use a damp cloth. Avoid using abrasive detergents.

• Never immerse the appliance in water.

• To wash the collection unit rinse it under running water and then dry it.

• To wash the heater unit rinse the inside and clean the outside with a damp sponge/cloth.

• We recommend you pay attention when washing the coee maker to avoid the lower parts, which hold the electrical components, from coming into contact with water.

• In the presence of hard water the formation of lime-scale on the bottom of the heater unit may IRREPARABLY DAMAGE the coee maker. In order to avoid this inconvenience it is neces- sary to DESCALE the device periodically as follows:

• Fill the heater unit with water to the level of the valve.

• Add two teaspoons of citric acid.

• Close the coee maker without adding coee powder and simulate the preparation of the coee.

• When it has nished, throw away the solution and carefully rinse the internal parts under running water.

• Before using the coee maker again, perform a complete cycle and discard the content.

• Periodically check the internal components and replace any pieces in the case of wear or damage.

• To wash the base only use a cloth dampened in water. DISPOSAL This produce complies with the Directive 2002/96/CE. The symbol representing the crossed out trash can on the appliance indicates t h a t the product, at the end of its useful life, must be treated separately from domestic waste. It must be taken to a recycling centre for electrical and electronic appliances or turned in to the point of sale when purchasing a new, equivalent, appliance. The user is responsible for taking the appliance to the recycling centre at the end of its life, under penalty of the sanctions foreseen by the current legislation on waste handling. Correct consignment of the no-longer used appliance to a recycling centre for treatment and envi- ronmentally compatible elimination contributes to avoiding a negative impact on the envi- ronment and public health, and permits recycling of the materials from which the product is made. For more detailed information regarding the available collection systems, contract the local refuse centre or the store where the product was purchased. For more detailed in- formation regarding the available collection systems, contract the local refuse centre or the store where the product was purchased. The manufacturer and the importers comply with their responsibility for recycling, treating, and environmentally compatible disposal of waste both di- rectly and in a collective system.

• Read these instructions carefully as they contain important information about safe installa- tion, use, and maintenance. Keep this manual with care for future reference.

• After removing the packaging, and before using the appliance, make sure the appliance and all the accessories are working well. If you have any doubt, do not use the appliance until you consult a professionally qualied electrician.

• The packing materials (plastic bags, expanded polystyrene, nails, etc) should be kept away from children since they are potential sources of danger.

• Before connecting the appliance, make sure the line voltage is correct. The tag is located on the bottom of the body of the motor unit.

• If the plug does not t into the wall outlet, have the wall outlet replaced with another type by a qualied electrician. He must also check that the cord is suitable for the power absorbed by the appliance. In general, it is not advisable to use an adaptor, multiple sockets, or an ex- tension cord. If they are necessary, use only simple or multiple adaptors and extension cords that conform to safety regulations, being careful not to exceed the load limits indicated on the adaptor and the extension cord, and the maximum power indicated on the multiple adaptor. This appliance should only be used for the purpose for which it was made: making coee. Any other use is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage deriving from improper, incorrect, or unreasonable uses.

• The use of any electrical appliance implies observance of certain fundamental rules. In par- ticular: - do not touch the appliance with wet or damp hands; - do not use the appliance with bare feet; - do not pull on the electrical cord or the appliance to pull the plug out of the mains outlet; - do not leave the appliance exposed to atmospheric conditions (rain, sun, etc.); - do not allow the appliance to be used by children or disabled persons without surveillance.

• Before performing any cleaning or maintenance operation, disconnect the appliance from the mains outlet

• If the appliance breaks down or functions improperly, shut it o and do not tamper with it. Repairs must only be carried out by an after-sales centre authorized by the manufacturer. Al- ways insist of genuine spare parts. Non-compliance with what has been stated above could compromise the safety of the ap- pliance.

• If you decide not to use the appliance of this type anymore, it is recommended that you make it inoperable by cutting o the mains cord after removing the plug from the mains outlet. You should also render harmless those parts of the appliance that could be dangerous, especially for children who might use an abandoned appliance as a toy. Installation must be performed according to the manufacturer’s instructions. Incorrect in- stallation could cause damage to person, animals and things, for which the manufacturer cannot be held responsible.

• To avoid dangerous overheating, it is recommended that you unwind the electrical cord to its entire length and that you use the appliance as recommended in “Introduction”.

• Do not leave the appliance connected when not in use. Remove the plug from the mains

It is recommended that you carefully observe the precautions marked with the symbol

• Read these instructions carefully as they contain important information about safe installa- tion, use, and maintenance. Keep this manual with care for future reference.

• After removing the packaging, and before using the appliance, make sure the appliance and all the accessories are working well. If you have any doubt, do not use the appliance until you consult a professionally qualied electrician.

• The packing materials (plastic bags, expanded polystyrene, nails, etc) should be kept away from children since they are potential sources of danger.

• Before connecting the appliance, make sure the line voltage is correct. The tag is located on the bottom of the body of the motor unit.

• If the plug does not t into the wall outlet, have the wall outlet replaced with another type by a qualied electrician. He must also check that the cord is suitable for the power absorbed by the appliance. In general, it is not advisable to use an adaptor, multiple sockets, or an ex- tension cord. If they are necessary, use only simple or multiple adaptors and extension cords that conform to safety regulations, being careful not to exceed the load limits indicated on the adaptor and the extension cord, and the maximum power indicated on the multiple adaptor. This appliance should only be used for the purpose for which it was made: making coee. Any other use is considered improper and therefore dangerous. The manufacturer cannot be held responsible for any damage deriving from improper, incorrect, or unreasonable uses.

• The use of any electrical appliance implies observance of certain fundamental rules. In par- ticular: - do not touch the appliance with wet or damp hands; - do not use the appliance with bare feet; - do not pull on the electrical cord or the appliance to pull the plug out of the mains outlet; - do not leave the appliance exposed to atmospheric conditions (rain, sun, etc.); - do not allow the appliance to be used by children or disabled persons without surveillance.

• Before performing any cleaning or maintenance operation, disconnect the appliance from the mains outlet

• If the appliance breaks down or functions improperly, shut it o and do not tamper with it. Repairs must only be carried out by an after-sales centre authorized by the manufacturer. Al- ways insist of genuine spare parts. Non-compliance with what has been stated above could compromise the safety of the ap- pliance.

• If you decide not to use the appliance of this type anymore, it is recommended that you make it inoperable by cutting o the mains cord after removing the plug from the mains outlet. You should also render harmless those parts of the appliance that could be dangerous, especially for children who might use an abandoned appliance as a toy. Installation must be performed according to the manufacturer’s instructions. Incorrect in- stallation could cause damage to person, animals and things, for which the manufacturer cannot be held responsible.

• To avoid dangerous overheating, it is recommended that you unwind the electrical cord to its entire length and that you use the appliance as recommended in “Introduction”.

• Do not leave the appliance connected when not in use. Remove the plug from the mains

It is recommended that you carefully observe the precautions marked with the symbol

12outlet when the appliance is not used.

• Do not block openings, air intakes or heat outlets.

• If the electrical cord of this appliance is damaged, it must be replaced by an Authorized Cu- stomer Service Centre since specialized tools are necessary.

Warnings and precautions

• Do not wash in a dishwasher.

• Do not submerge the lower part of the coee maker or the base into water or other liquids.

• Do not use detergents and/or abrasive materials when washing.

• Do not place the coee maker on heated surfaces (gas hobs, electrical plates, ceramic hea- ting plates etc.) and make sure the base does not overheat (do not place it near heat sources). In order not to block the coee lter, only use traditional ground powdered coee for coee makers.

WHEN USING THE FIRST TIME

After removing the products from the box, make sure they are complete and all components are present. Carefully wash the coee maker before using it for the rst time. Use the coee maker a few times to make some coee and discard it. Guarantee

• The product is guaranteed for a period of 24 months from the date of purchase, with the functional conditions as foreseen in this instruction manual.

• The guarantee is no longer valid if non-original spare parts are used on the appliance.

• Faults caused by repairs made by unauthorized people are not covered by the guarantee.

• During the rst 24 months the guarantee covers the replacement of all spare parts which are faulty.

The device complies with the following directives:

• 2006/95/CE The manufacturer reserves the right to make changes for regulatory, industrial, commercial or aesthetic reasons.

outlet when the appliance is not used.

• Do not block openings, air intakes or heat outlets.

• If the electrical cord of this appliance is damaged, it must be replaced by an Authorized Cu- stomer Service Centre since specialized tools are necessary.

Warnings and precautions

• Do not wash in a dishwasher.

• Do not submerge the lower part of the coee maker or the base into water or other liquids.

• Do not use detergents and/or abrasive materials when washing.

• Do not place the coee maker on heated surfaces (gas hobs, electrical plates, ceramic hea- ting plates etc.) and make sure the base does not overheat (do not place it near heat sources). In order not to block the coee lter, only use traditional ground powdered coee for coee makers.

WHEN USING THE FIRST TIME

After removing the products from the box, make sure they are complete and all components are present. Carefully wash the coee maker before using it for the rst time. Use the coee maker a few times to make some coee and discard it. Guarantee

• The product is guaranteed for a period of 24 months from the date of purchase, with the functional conditions as foreseen in this instruction manual.

• The guarantee is no longer valid if non-original spare parts are used on the appliance.

• Faults caused by repairs made by unauthorized people are not covered by the guarantee.

• During the rst 24 months the guarantee covers the replacement of all spare parts which are faulty.

The device complies with the following directives:

• 2006/95/CE The manufacturer reserves the right to make changes for regulatory, industrial, commercial or aesthetic reasons.

• Extract the funnel from the neater unit.

• Pour the water into the heater unit paying attention not to exceed the safety valve outlet.

• Insert the funnel into the heater unit.

• Add the coee as usual.

• Screw back the collection unit and place the coee maker on its power base. Base Timer: Turn on the base manually or by using the timer. Base No Timer: Press the ON button to switch on the base.

INSTRUCTIONS FOR USE

• When the coee is ready an acoustic warning signal is activated.

• The coee remains hot for 20 minutes from when the signal is activated.

• To serve the coee, lift the coee maker o the base and pour its content into the coee cups. Timer Base IMPORTANT Before start using the coee maker, reset the timer: plug in the electrical base to an electri- cal socket and press at the same time “s”, “+” and “-“ button. When plugging in the electrical base, if the red led is lighting, reset the base, pressing at the same time “s”, “+”, “-“. In order to protect the electrical base, the base has to be charged for at least 8 hours, before start using it.

• The power base must be plugged into the main power supply.

• When the plug is removed, the electronic system is powered for a week self-recharging inter- nal batteries, which have the sole function of maintaining all the set programmes in memory.

• If the gures do not appear correctly on the display reset the system: reset the clock/timer by simultaneously pressing the three base Keys: “S”, “+”, “-“ (with the device’s plug in).

INSTRUCTIONS FOR USE

Clock Functions The rst time the appliance is used, when it is plugged in, the clock functions are activated and “0:00” appears on the display. To set the correct time:

• Repeatedly press the “S” button, until the word TIME ashes on the bottom left of the di- splay.

• Press the “+” or “-” buttons, until the correct time is set. It is possible to advance or retract quickly by keeping the “+” or “-” buttons pressed for a couple of seconds. Setting the Alarm To set the time to prepare the beverage:

• Repeatedly press the “S” button, until the word ALARM appears on the display.

• Press the “+” or “-” buttons until the alarm time is set. It is possible to advance or retract quickly by keeping the “+” or “-” buttons pressed for a couple of seconds.

• Extract the funnel from the neater unit.

• Pour the water into the heater unit paying attention not to exceed the safety valve outlet.

• Insert the funnel into the heater unit.

• Add the coee as usual.

• Screw back the collection unit and place the coee maker on its power base. Base Timer: Turn on the base manually or by using the timer. Base No Timer: Press the ON button to switch on the base.

INSTRUCTIONS FOR USE

• When the coee is ready an acoustic warning signal is activated.

• The coee remains hot for 20 minutes from when the signal is activated.

• To serve the coee, lift the coee maker o the base and pour its content into the coee cups. Timer Base IMPORTANT Before start using the coee maker, reset the timer: plug in the electrical base to an electri- cal socket and press at the same time “s”, “+” and “-“ button. When plugging in the electrical base, if the red led is lighting, reset the base, pressing at the same time “s”, “+”, “-“. In order to protect the electrical base, the base has to be charged for at least 8 hours, before start using it.

• The power base must be plugged into the main power supply.

• When the plug is removed, the electronic system is powered for a week self-recharging inter- nal batteries, which have the sole function of maintaining all the set programmes in memory.

• If the gures do not appear correctly on the display reset the system: reset the clock/timer by simultaneously pressing the three base Keys: “S”, “+”, “-“ (with the device’s plug in).

INSTRUCTIONS FOR USE

Clock Functions The rst time the appliance is used, when it is plugged in, the clock functions are activated and “0:00” appears on the display. To set the correct time:

• Repeatedly press the “S” button, until the word TIME ashes on the bottom left of the di- splay.

• Press the “+” or “-” buttons, until the correct time is set. It is possible to advance or retract quickly by keeping the “+” or “-” buttons pressed for a couple of seconds. Setting the Alarm To set the time to prepare the beverage:

• Repeatedly press the “S” button, until the word ALARM appears on the display.

• Press the “+” or “-” buttons until the alarm time is set. It is possible to advance or retract quickly by keeping the “+” or “-” buttons pressed for a couple of seconds.

14Preparing beverages in automatic mode (alarm)

• Activate the timer by pressing the “S” button and then the “+” button: a bell without a bar will appear on the display.

• Prepare the coee maker and place it on the base: it will start to work at the exact time that the alarm is set. An acoustic signal will advise the user when the coee is ready. To deactivate the timer function: press the “S” button and then the”-” 6utton:a bell with a bar across will appear on the display.

PREPARING BEVERAGES IN MANUAL MODE

It is possible to use the base without it being programmed.

• Prepare the coee maker and place it on the base.

• Press the “+” (ON) button for at least 4 seconds: the indicator light will come on which signals that the preparation has commenced. Also in this case, an acoustic signal will advise the user when the coee is ready. ACOUSTIC SIGNALS The acoustic signals remain active for about 1 minute. They may be interrupted by pressing any button: “S” or “+” or “-”. The warning signals are as follows:

• Acoustic signal for “BEVERAGE READY” (continuous sequence of short signals).

• Acoustic signal for “ERROR” (continuous sequence of short signals) which warns if the power supply has failed or any errors made by the user have occurred, due to forgetfulness: -The coee maker has not been placed on its base.

• A “DISCONNECTION” signal (continuous sequence of long signals). In all cases, after 12 mi- nutes that the machine has been switched on, it automatically disconnects from the power supply and the safety disconnection acoustic signal is activated. The user may switch o the coee maker at any time by pressing the “-” OFF button. No Timer Base IMPORTANT The power base must be connected to an electrical socket.

INSTRUCTIONS FOR USE

• Insert the base plug into the socket.

• Prepare the coee maker and place it on the base.

• Press the ON switch for a minimum of 4 seconds - a green light indicates that your drink is being prepared. An acoustic signal tells the user when the coee is ready. ACOUSTIC SIGNALS The acoustic signals are produced for approximately 1 minute. They can be interrupted by pressing the ON switch. The acoustic signals are:

• “DRINK READY” signal (continuous sequence of short signals).

• “ERROR” signal (continuous sequence of short signals) - to indicate the electricity supply has been cut o as well as user errors and oversights: - Failure to place the coee maker on the base.

• ”SHUTDOWN” signal (continuous sequence of long signals)-after 12 minutes the base cuts o the power supply for safety reasons and emits a warning signal. The user can interrupt the preparation of the drink at any time by removing the coee maker from the base, unplugging the plug or pressing the “+” button.

Preparing beverages in automatic mode (alarm)

• Activate the timer by pressing the “S” button and then the “+” button: a bell without a bar will appear on the display.

• Prepare the coee maker and place it on the base: it will start to work at the exact time that the alarm is set. An acoustic signal will advise the user when the coee is ready. To deactivate the timer function: press the “S” button and then the”-” 6utton:a bell with a bar across will appear on the display.

PREPARING BEVERAGES IN MANUAL MODE

It is possible to use the base without it being programmed.

• Prepare the coee maker and place it on the base.

• Press the “+” (ON) button for at least 4 seconds: the indicator light will come on which signals that the preparation has commenced. Also in this case, an acoustic signal will advise the user when the coee is ready. ACOUSTIC SIGNALS The acoustic signals remain active for about 1 minute. They may be interrupted by pressing any button: “S” or “+” or “-”. The warning signals are as follows:

• Acoustic signal for “BEVERAGE READY” (continuous sequence of short signals).

• Acoustic signal for “ERROR” (continuous sequence of short signals) which warns if the power supply has failed or any errors made by the user have occurred, due to forgetfulness: -The coee maker has not been placed on its base.

• A “DISCONNECTION” signal (continuous sequence of long signals). In all cases, after 12 mi- nutes that the machine has been switched on, it automatically disconnects from the power supply and the safety disconnection acoustic signal is activated. The user may switch o the coee maker at any time by pressing the “-” OFF button. No Timer Base IMPORTANT The power base must be connected to an electrical socket.

INSTRUCTIONS FOR USE

• Insert the base plug into the socket.

• Prepare the coee maker and place it on the base.

• Press the ON switch for a minimum of 4 seconds - a green light indicates that your drink is being prepared. An acoustic signal tells the user when the coee is ready. ACOUSTIC SIGNALS The acoustic signals are produced for approximately 1 minute. They can be interrupted by pressing the ON switch. The acoustic signals are:

• “DRINK READY” signal (continuous sequence of short signals).

• “ERROR” signal (continuous sequence of short signals) - to indicate the electricity supply has been cut o as well as user errors and oversights: - Failure to place the coee maker on the base.

• ”SHUTDOWN” signal (continuous sequence of long signals)-after 12 minutes the base cuts o the power supply for safety reasons and emits a warning signal. The user can interrupt the preparation of the drink at any time by removing the coee maker from the base, unplugging the plug or pressing the “+” button.
