USER MANUAL Opera CF45 BIALETTI

Instructions for use

SE LA CAPSULA É DEFORMATA, SISTEMARE I BORDI.

Nota/Remarks/Note/Notizen

1. Getting Started

Dear Customer,

Congratulations on choosing to purchase a Bialetti Espresso coffee machine!

Thank you for choosing one of our products; we are sure it will fully meet your expectations.

The Bialetti Espresso System is the result of years of passion and careful research on coffee and the various methods of preparation.

Since 1933, with the invention and launch of the Moka Express, the little man with moustache has been and continues to be a genuine icon of the authentic Italian espresso.

This machine can only be used with the original Bialetti capsules: in aluminium, containing the correct does, and designed to offer an espresso, like that made at the bar, in the comfort of your own home.

Please read this manual with care before using the appliance and visit our website www.bialetti.it for any information and to access the advantages reserved to our customers.

Bialetti Industrie wishes you a pleasant tasting!

Declaration of conformity

CE The manufacturer declares under his own responsibility that the appliance that this "Instruction manual" refers to complies with the EC Directive on appliances for domestic use, as LVD, EMC, EMF, ErP, RoHS, REACH, "Food contact". In order to improve the product and/or for manufacturing purposes, the manufacturer reserves the right make technological, aesthetic or dimensional variations without notice.

Regulatory information

The appliance object of this manual complies with the Directive 2014/35, UE; 2014/30/UE; Reg. (EC) n.1935/2004 and Reg. (EC) n.2023/2006.

2.Warnings

Description of symbols

ATTENTION

Always strictly comply with the information marked with ATTEN- TION or WARNING pictograms.
The WARNING sign warns against a serious injury hazard, while
ATTENTION warns against minor injury hazard.

READING THE OPERATING MANUAL

It states to read this manual before using for a correct functioning and to prevent any electric shock and/or burn hazard.

ATTENTION - HOT SURFACE!

The surface temperature of the area where it is located may reach dangerous values and for this reason the direct contact with the skin and heat-sensitive fabrics/materials must be avoided.

RECOMMENDATIONS

This symbol warns to follow the recommendations of the manufacturer concerning safeguard and proper use of the product being used.

GENERAL WARNINGS

Please read this booklet carefully, as it provides important information on the safe installation, use and maintenance of the appliance. Keep this booklet in a safe place for future reference.

THIS APPLIANCE IS INTENDED FOR HOUSELHOLD USE OR SIMILAR, AS:

• KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKPLACE ENVIRONMENTS;
• FARM HOTELS;
• BED AND BREAKFASTS AND SIMILAR STRUCTURES;
• HOTELS, MOTELS AND OTHER RESIDENTIAL ACCOMODATIONS (FOR GUEST'S USE ONLY).

THIS APPLIANCE CAN BE USED BY CHILDREN AGED FROM 8 YEARS AND ABOVE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND IF THEY UNDERSTAND THE HAZARDS INVOLVED. CLEANING AND USER MAINTENANCE SHALL NOT BE MADE BY CHILDREN UNLESS THEY ARE OLDER THAN 8 AND SUPERVISED. KEEP THE APPLIANCE AND THE POWER CORD OUT OF REACH OF CHILDREN UNDER 8 YEARS OF AGE. (FOR EUROPEAN MARKET)

2.Warnings

THIS APPLIANCE CAN BE USED BY PERSONS WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES OR LACK OF EXPERIENCE AND KNOWLEDGE IF THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE IN A SAFE WAY AND UNDERSTAND THE HAZARDS INVOLVED. (FOR EUROPEAN MARKET)

THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

CHILDREN SHALL NOT PLAY WITH THE APPLIANCE. (FOR EUROPEAN MARKET)

2.Warnings

CHILDREN SHOULD BE SUPERVISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

DO NOT PUT THE APPLIANCE INTO A CABINET WHEN IN USE.

NEVER IMMERSE THE APPLIANCE IN WATER OR OTHER LIQUIDS.

IF THE ELECTRICAL CORD OF THIS APPLIANCE IS DAMAGED, IT MUST BE REPLACED BY AN AUTHORIZED CUSTOMER SERVICE CENTRE SINCE SPECIALIZED TOOLS ARE NECESSARY.

DURING DELIVERY OF THE BEVERAGE, PAY ATTENTION TO ANY POS- SIBLE SPLASHES OF HOT LIQUID. DO NOT TOUCH THE APPLIANCE HOT PARTS IMMEDIATELY AFTER USE TO PREVENT THE RISK OF BURNS. IM- PROPER USE MAY CAUSE INJURY.

THIS APPLIANCE WAS DESIGNED TO MAKE HOT DRINKS IN BIALETTI CAPSULES AND MUST BE USED FOR THIS PURPOSE ONLY. ANY OTHER USE IS CONSIDERED IMPROPER AND THEREFORE DANGEROUS. THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE ARISING FROM IMPROPER, INCORRECT, OR UNREASONABLE USES.

• The appliance was designed only for indoor use and non-extreme temperature conditions; do not leave it exposed to the elements (rain, sun, etc.).
• The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, malfunctioning, non-professional repair or failure to comply with the instructions.
• After removing the packaging, and before use, make sure the appliance and all the attachments are working well. The electrical plug and sheath should not be cracked or broken. If the conditions described above are observed or in case of fault and/or malfunctioning, immediately unplug the appliance from mains outlet and take it to an authorized After-Sales Service Centre for necessary checking. Non-compliance with what has been stated above could compromise the safety of the appliance.
• The packing materials (plastic bags, expanded polystyrene, nails, etc.) should be kept away from children since they are potential sources of danger.
• Place the appliance on a flat, smooth, and stable surface. Do not put it close to/on hot surfaces, as heaters, cooking hobs, ovens, gas ranges, open flames, etc.
• Before connecting the appliance, make sure the line voltage is correct. The label is located on the bottom of the appliance body.

2.Warnings

• In general, it is not advisable to use an adaptor, multiple socket or an extension cord. If they are necessary, use only simple or multiple adaptors and extension cords that conform to safety regulations, being careful not to exceed the load limits indicated on the adaptor and the extension cord, and the maximum power indicated on the multiple adaptor.
• Do not leave the appliance connected when not in use. Remove the plug from the mains outlet when the appliance is not used.
• If the appliance is not intended to be used for a quite long period, empty the water tank.

FOR YOUR PERSONAL SAFETY, IT IS ADVISIBLE TO POWER THE APPLIANCE BY MEANS OF A DIFFERENTIAL SWITCH (RCD), WHOSE OPERATING CURRENT DOES NOT EXCEED 30mA.
CONNECT THE APPLIANCE TO THE POWER MAINS ONLY WITH AN EARTHED PLUG.

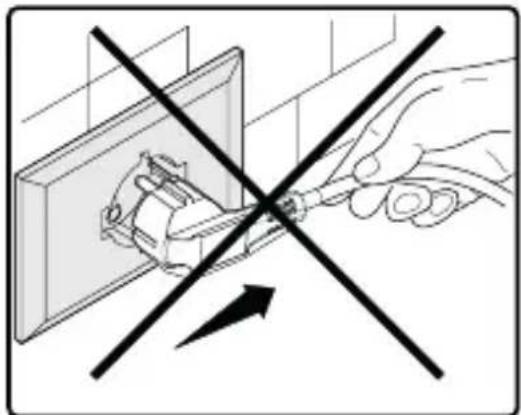

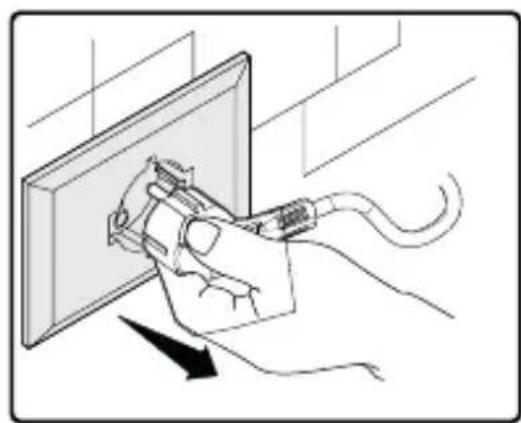

AVOID UNPLUGGING THE APPLIANCE BY PULLING THE POWER CORD.

WHILE IN USE, THE POWER SOCKET MUST BE EASILY REACHABLE IN CASE IT IS NECESSARY TO UNPLUG THE APPLIANCE.

2.Warnings

PRECAUTIONS

• Do not touch the appliance with wet or damp hands.
• Do not use the appliance with bare feet.
• Do not put the wire close to sharpened edges, do not fix it and do not leave it hang.
• To avoid dangerous overheating, it is recommended that you unwind the electrical cord to its entire length and that you use the appliance as recommended in "Warnings" related to a correct use of the appliance.
• If the appliance of this type is not be used anymore, it is recommended to make it inoperable by cutting off the power cord after removing the plug from the mains outlet. You should also render harmless those parts of the appliance that could be dangerous, especially for children who might use an abandoned appliance as a toy.

THE PRODUCTS MUST BE USED ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS. IMPROPER USE COULD CAUSE DAMAGE TO PERSON, ANIMALS AND THINGS, FOR WHICH THE MANUFACTURER CANNOT BE HELD RESPONSIBLE.

• Do not leave the appliance unattended while turned on.

DO NOT USE THE APPLIANCE WHEN THE WATER TANK IS EMPTY.

• Do not move the appliance whilst operating.

WHEN USING THE APPLIANCE FOR THE FIRST TIME, IT MAY EMIT SMELL OF BURNING OWING TO INSULATION MATERIALS AND HEATING ELEMENTS; ALL THIS IS NORMAL.

3. Package contents

1 Espresso coffee machine.
1 Instructions manual.
1 Consumer leaflet "I Caffè d'Italia".
1 Tester kit of blends "I Caffè d'Italia" (only if indicated on the package).

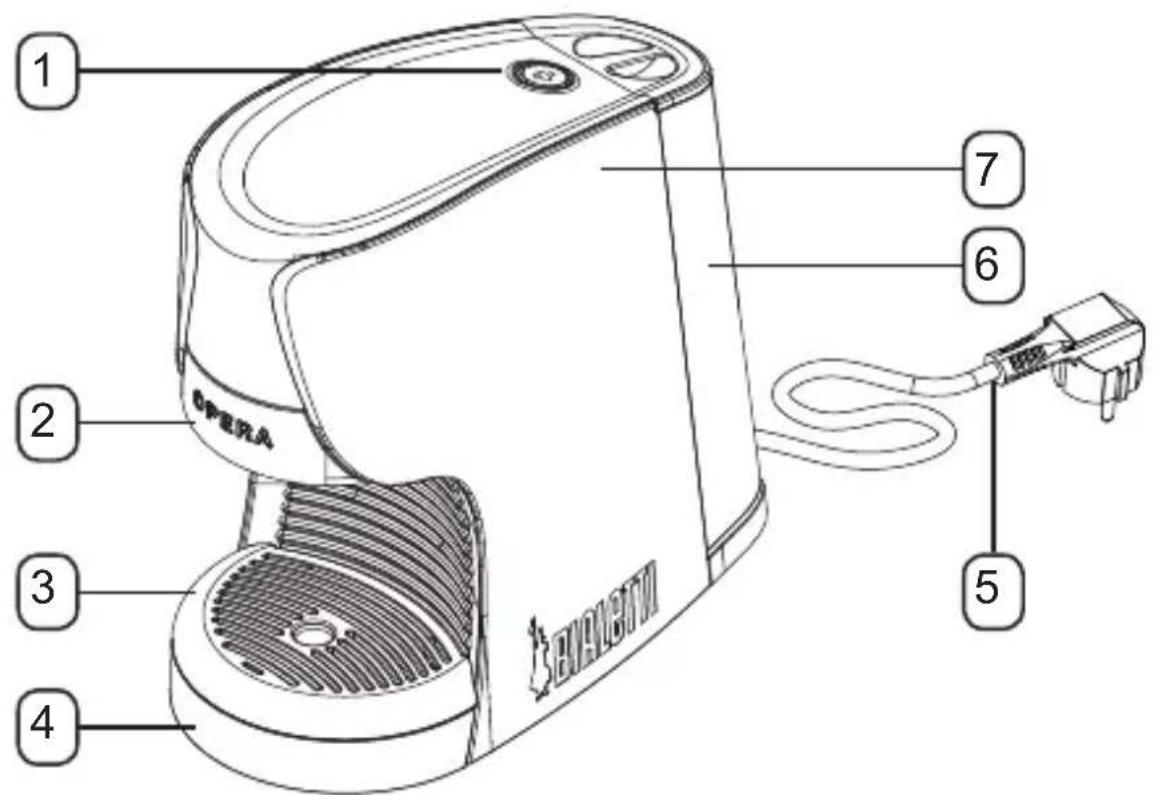

4. Description of the appliance

EN

Key
1	ON/OFF/DISPENSING light button
2	Capsule holder drawer
3	Cup rack
4	Drip tray
5	Power cord
6	Removable water tank with lid
7	Appliance body

Technical Data
Dimensions (mm)	135x270x245
LxPxH
Voltage (V)	See plate on the appliance
Power (W)
Max. water tank capacity	0.4 l

5. First use of the appliance

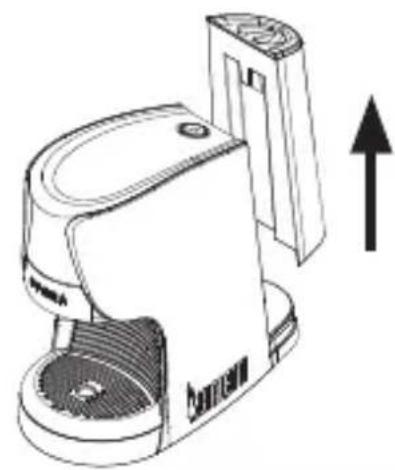

Take the tank (6) out and fill with drinking water up to the MAX level.

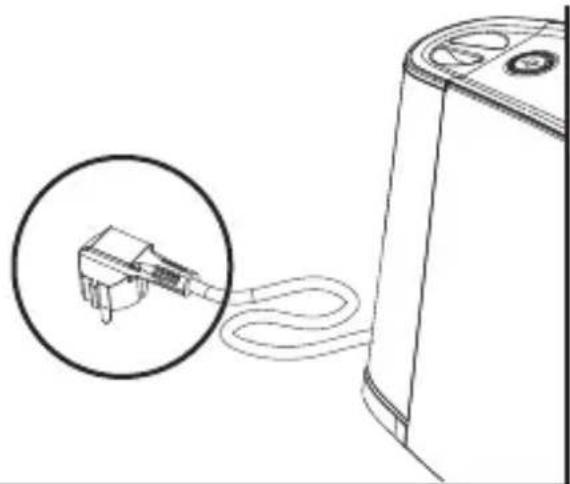

it Insert the plug (5) of the appliance in the socket as per instructions of "Warnings" section.

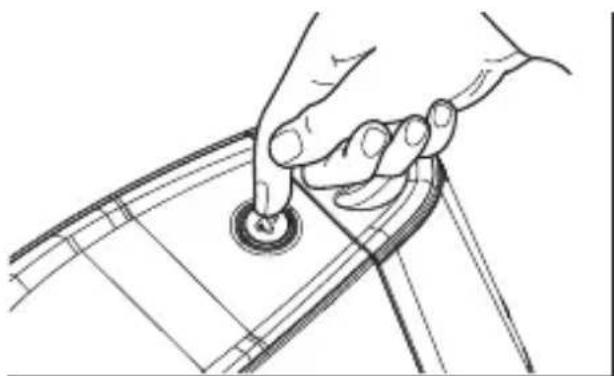

Switch on the machine using the light button (1) on the top.

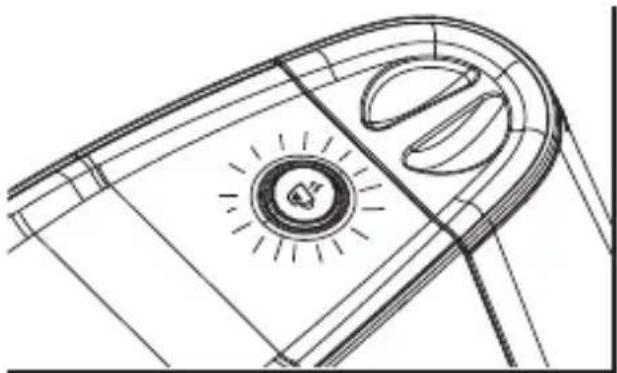

While the boiler is heating, the light on the button (1) blinks in RED. Once the light will turn steady GREEN, the machine will be ready to deliver coffee.

NEVER USE THE APPLIANCE IF THE TANK IS EMPTY.

Position a cup on the apposite cup rack (3) and press the button (1) to start dispensing water. Stop dispensing by pressing the button again when the cup is almost full. Repeat the cycle at least 3 times.

Before dispensing, check water level in the tank (6), make sure the button (1) is green and pull out the capsule holder drawer (2).

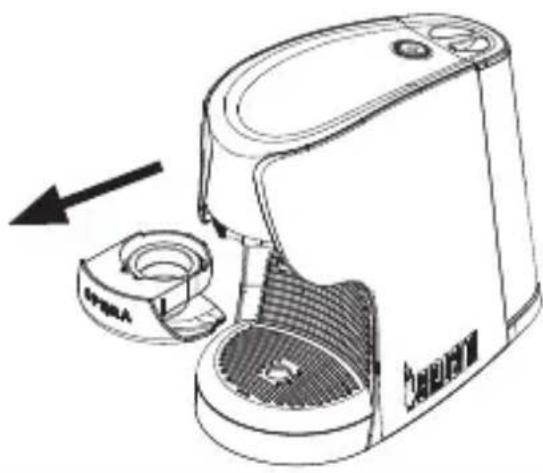

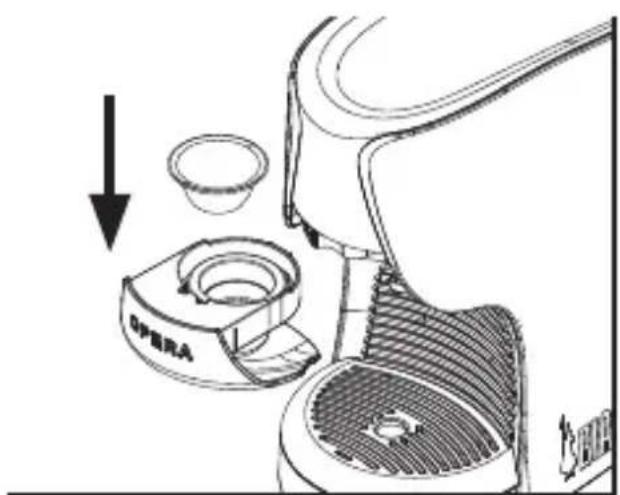

Position the capsule into the housing of the capsule holder drawer (3) and insert into the machine body (7).

IF THE CAPSULE IS MISSHAPEN, BEND THE EDGES BACK INTO SHAPE.

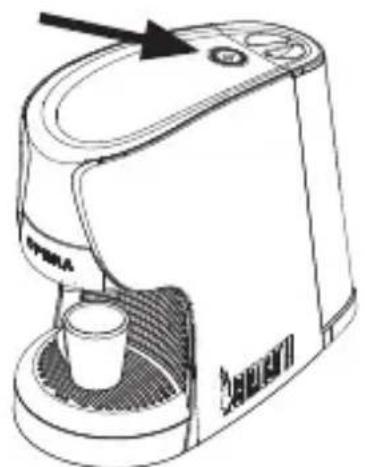

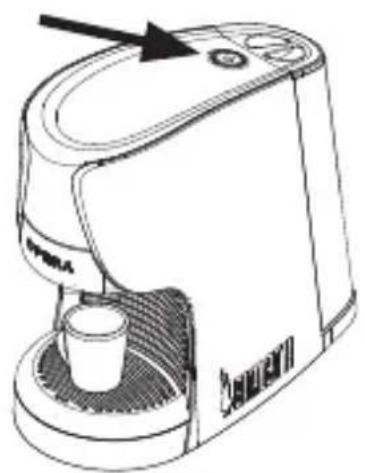

Place a cup onto the rack (3). Start dispensing coffee by pressing the apposite button (1). When coffee reaches the required level in the cup, stop dispensing by pressing the button (1) again. For each following coffee, take out the capsule holder drawer (3), remove the used capsule and insert a new one.

DURING DISPENSING, THE BUTTON (1) BLINKS IN GREEN. WAIT UNTIL THE GREEN LIGHT IS STEADY AGAIN, BEFORE REMOVING THE CAPSULE HOLDER DRAWER (2).

PRESS THE BUTTON (1) FOR MORE THAN 3 SECONDS TO SWITCH THE MACHINE OFF.

7. Maintenance

APPLIANCE CLEANING

ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING IT.

NEVER IMMERSE THE APPLIANCE BODY (7) IN WATER OR OTHER LIQUIDS AND DO NOT PUT IT IN THE DISHWASHER.

• To clean the appliance body (7), use a wet cloth but avoid abrasive detergents or solvents.
• It is recommended to rinse the tank (6) on a daily base. Never leave water in the tank (6) for more than 5 days or, if it occurs, change water and dispense 50ml of water without capsule before making the coffee.

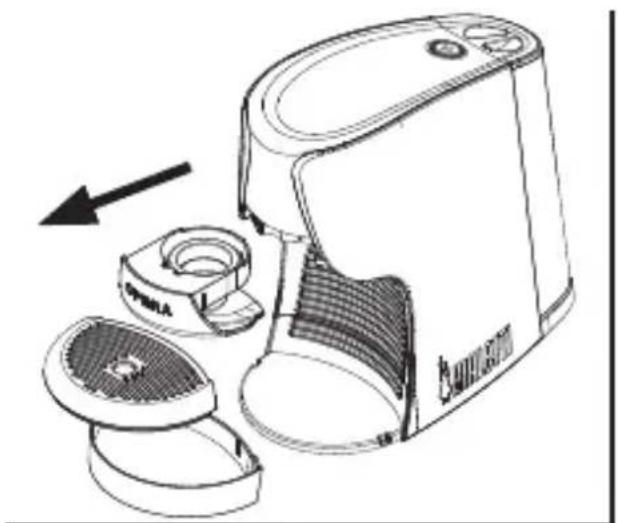

Clean the capsule holder filter (3) under a stream of tap water to remove any coffee residue. Regularly empty the drip tray (4) to prevent water leaks from this component and any failure and/or damage of the machine. Regularly clean the drip tray (4) and the rack (3) using normal dish soap. Do not use sharp or abrasive objects that might damage the appliance.

DESCALING PROCEDURE

The normal use of the machine with natural mineral water, both in bottle and from the tap, entails the formation of limescale. It is recommended to carry out the descending cycle every 300 cups of coffee (otherwise every 3-4 months) and/or when a constant decrease of the dispensed coffee flow is noticed.

THE FREQUENCY OF THIS OPERATION DEPENDS ON THE HARDNESS OF WATER USED.

A) Pour a dose of Bialetti descending solution or equivalent (provided it is not toxic and is suitable for coffee machines) into the water tank (6).

DO NOT USE VINEGAR OR VINEGAR-BASED SOLUTIONS AS DESCALING AGENT.

B) Fill the tank (6) with cold water up to the MAX level.
C) Press the button (1) to switch the machine on. Wait until the machine is in ready mode.
D) Make sure the machines does not contain any capsule.
E) Dispense 2 cups of water (about 100ml each). Repeat dispensing several times, if necessary, to reach the required amount.
F) Switch the machine off.
G) Let the descending agent act for aprox.ly 15-20 minutes with the machine off.
H) Switch the machine on and carry out again the operations described in point E).
I) Switch the machine off against for approx.ly 5 minutes.
J) Repeat the operation described in point E) until the tank is completely empty.
K) Remove the tank (6) and rinse it thoroughly with clean cold water.
L) Fill the tank (6) with clean water up to the "MAX" level and insert it in its seat.
M) Dispense water until the tank (6) is completely empty.
N) Repeat two times the steps described in points L) and M).

8. Energy saving mode

This appliance was designed in compliance with the European Directives EC1275/2008 and 2009/125/EC, stating the need to adopt the energy saving mode.

This appliance is equipped with a stand-by function that activates after 10 minutes of downtime; the appliance goes off and the power consumption in this status is below 0.5 W.

To re-start the machine press again the ON/OFF button (1). The machine starts the pre-heating phase of the heater (blinking red LED) and, once having reached the operating temperature, the ready status is shown (steady green LED).

TIME OF PRE-HEATING IS BASED ON THE DOWNTIME OF THE MACHINE, AND CAN LAST UP TO 50 SECONDS IF THE PRODUCT HAS NOT BEEN USED FOR A FEW HOURS.

THE MACHINE WILL ENTER STAND-BY MODE AUTOMATICALLY AFTER 10 MINUTES EVEN IF NO COFFEE IS BREWED.

9. Troubleshooting

Problem Cause Solution
The machine will not heat up.	The machine is not connected to the mains power.	Connect the machine to the mains power.
	The machine is not switched on.	Use the ON/OFF button to switch on the machine.
The machine will not pour coffee.	The capsule is stuck or badly positioned.	Unplug the machine from the power mains and wait for it to cool down; take out the capsule holder drawer (3), remove the capsule manually and insert a new one correctly.
	Empty tank (6). Fill the tank	k (6) with water.
	The pipes are clogged with scale.	Carry out a scale removal cycle.
The coffee is cold. The cups	are cold. Preheat the cup	with a little boiling water, poured by pressing the button (1).
	The machine is partly clogged by scale.	Carry out a scale removal cycle.
The machine is making too much noise.	Empty tank (6). Fill the tank	k (6) with water.
	The machine is not stable on the support surface.	Make sure it is positioned on a flat and rigid surface.
	The appliance had been working for a short period of time without water in the tank (6).	Make a dispensing cycle twice or 3 times, or until the machine noise will be normal again to allow the pump to be filled with water.

9. Troubleshooting

Problem Cause Solution
The machine pre-heating is very slow.	There is a lot of limes-cale in the machine.	Carry out a scale removal cycle.
The coffee is watery, without cream.	The capsule has already been used.	Repeat dispensing with a new capsule.
The button (1) blinks in red and green.	The tank (6) is not inserted properly or is not inserted into its seat.	Position the tank (6) into its seat properly.
The button (1) blinks in red quickly.	Machine malfunctioning. Press the button (1) for more than 3 seconds to switch the machine off. Wait 20 seconds and switch the machine on again. If the problem still occurs, contact an authorised service centre.

10. Tips for a good coffee

• Before making coffee for the first time, dispense some water only in order to ensure the perfect dispensing; water does not disperse heat inside the appliance and fluids encounter less resistance.
• For a coffee at the optimal temperature, in case a cup-warmer is not available, warm the cup up by dispensing only water.
• In order to obtain a thicker and more persistent cream, use cups with an inner ovoid-shape base.

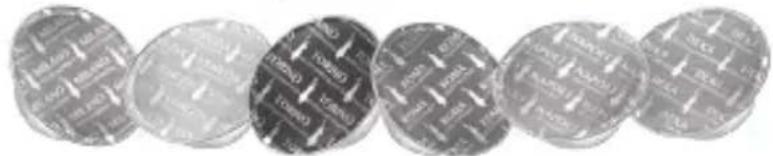

11. Bialetti capsules

The new patented capsules from Bialetti are unique on the market because they guarantee everything necessary for a perfect Bialetti Espresso in a single product:

• THE PERFECT AMOUNT: they contain 7 grams of coffee, as expressly envisaged by Espresso Italiano Certificato (Certified Italian Espresso).
• ALUMINIUM: the only material that, unlike the common plastic capsules, can preserve all of the organic substances of coffee, ensuring a product that is always fresh with the flavour of freshly ground coffee.

The capsules of "I caffe d'Italia Bialetti" can be bought:

1. In the Bialetti stores, in more than 500 Bialett
   ti partner points of sale, as well as in the best supermarkets.
   The complete, updated list is on the web site
   www.bialettishop.it
2. Calls (for Italy only) from the comfort of our own homes:

1. Access to the online shop on the web site:

www.bialetti.it

12. Warranty

The appliance is guaranteed for two years from the date of delivery, as shown by the date on the receipt/invoice, unless the purchaser can prove that delivery took place on a later date. In case of defects on the product existing prior to delivery, Bialetti guarantees the repair or replacement of same, at no charge to the purchaser, unless one of the two remedies is disproportionate to the other. The purchaser is responsible for reporting any conformity defects no later than two months from discovery of same.

The warranty does not cover those parts found to be faulty as a result of negligence or careless use, for example:

• Damages caused by impacts, falls or scratches owing to the use of improper objects.
• Damages caused by limestone or failure to decalcify it on a regular basis.
• Failure to abide by the operating instructions for the appliance.
  Incorrect installation or maintenance carried out by unauthorized persons
  Normal wear and tear.
• Damages caused by modifications made to the inside of the appliance.
• Damages caused through use of a voltage other than that stated in the use and maintenance manual.
• Damages from transport or circumstances that cannot be attributed to defects in the material or workmanship of the appliance.
• Damages arising from repairing carried out by unauthorized service centres.

The warranty also excludes all cases of improper use of the appliance or any instances of professional use. Bialetti refuses to accept any liability for damage that may directly or indirectly be caused to people, property or pets as a result of failure to abide by all of the guidelines and instructions in this booklet concerning the installation, use and maintenance of the appliance.

This warranty is without prejudice to contractual guarantees made to the retailer.

THE MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES FOR REGULATORY, INDUSTRIAL, COMMERCIAL OR AESTHETIC REASONS.

13. Disposal of the appliance

This product complies with the Directive 2012/19/EC.
- The symbol representing the crossed out trash can on the appliance indicates that the product, at the end of its useful life, must be treated separately from domestic waste. It must be taken to a recycling centre for electrical and electronic appliances or turned in to the point of sale when purchasing a new, equivalent, appliance.

• The user is responsible for taking the appliance to the recycling centre at the end of its life, under penalty of the sanctions foreseen by the current legislation on waste handling.
• Correct consignment of the no-longer used appliance to a recycling centre for treatment and environmentally compatible elimination contributes to avoiding a negative impact on the environment and public health, and permits recycling of the materials from which the product is made.
• For more detailed information regarding the available collection systems, contract the local refuse centre or the store where the product was purchased.
• The manufacturer and the importers comply with their responsibility for recycling, treating, and environmentally compatible disposal of waste both directly and in a collective system.
