USER MANUAL Smart CF65 BIALETTI

Line drawing of a Bialat TV brand blender with control panel and fan (no text or symbols on device)

EN Translation of original instructions .....25

Image showing a child pointing at a prohibition symbol next to a circle, likely indicating no religious or social restrictions.

I BAMBINI DEVONO ESSERE SOR-VEGLIATI PERCHÉ NON GIOCHINO CON L'APPARECCHIO.

NON IMMERGERE MAI L'APPARECCHIO O PARTI DI ESSO IN ACQUA.

SE IL CAVO DI ALIMENTAZIONE DI QUE- STO APPARECCHIO È DANNEGGIATO, DEVE ESSERE SOSTITUITO ESCLUSI- VAMENTE DA UN CENTRO ASSISTENZA TECNICA AUTORIZZATO DAL COSTRUT- TORE, POICHÉ SONO NECESSARI UTEN- SILI SPECIALI.

DURANTE L'EROGAZIONE DELLA BEVAN-DA PRESTARE ATTENZIONE AD EVEN-TUALI SCHIZZI DI LIQUIDO CALDO.

2. Avvertenze

L'USO SCORRETTO PUÒ CAUSARE LESIONI.

Illustration of a hand inserting a plug into an electrical socket (no text or symbols)

Diagram showing a hand holding a screwdriver crossed out of a wall-mounted electrical socket, with no text or symbols present.

URANTE IL FUNZIONAMENTO, LA PRESA DI CORRENTE DEVE ESSERE FACILMENTE ACCESSIBILE NEL CASO IN CUI FOSSE NECESSARIO SCOLLEGARE L'APPARECCHIO.

PRECAUZIONI PER LA VOSTRA SICUREZZA

Line drawing of a portable electric mixer with a paper lid and power cord, showing airflow direction (no text or symbols)

Line drawing of a device with cable and plug, connected to a wall-mounted power outlet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a smart air purifier device with control knob and buttons (no text or symbols)

Line drawing of a device with an open lid and directional arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to press down a device from a base (no text or symbols present)

Line drawing of a device with a pointed tool and labeled parts (no readable text or symbols)

Line drawing of a smart air purifier with control panel and fan (no text or symbols)

8

Diagram showing three views of a building: front view with X-bracing, top-down view with circular opening, and side view of a curved structure (no text or symbols)

9

Six circular metallic coins with engraved patterns, arranged horizontally (no visible text or symbols)

Simple line drawing of a trash bin with crossed x-axes and no text or symbols

Nota/Note/Note/Notes

1. Getting Started

Dear Customer,

Congratulations on choosing to purchase a Bialetti Espesso coffee machine!

Thank you for choosing one of our products; we are sure that you will be completely satisfied with your choice.

The Bialetti Espresso System is the result of years of passion and careful research on coffee and the various methods of preparation. Since 1933, with the invention and launch of the Moka Express, the little man with moustache has been and continues to be a genuine icon of the authentic Italian espresso.

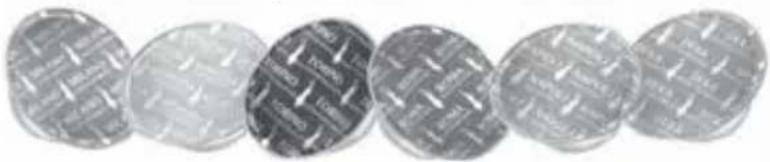

This machine can only be used with the original Bialetti capsules:

these aluminium capsules contain the perfect amount of coffee have been developed to guarantee you an espresso that tastes like it has been made by a professional in the comfort of your own home.

Please read this manual with care before using the appliance and visit our website www.bialetticaffè.it for any information to access the advantages reserved to our customers.

Bialetti Industrie wishes you a pleasant tasting.

Declaration of conformity

The manufacturer declares under his own responsibility that the appliance that this “Instruction manual” refers to complies with the EC Directive on appliances for domestic use. Furthermore, the manufacturer declares that it complies with the prescriptions for the limitation of radio-electric disturbance.

In order to improve the product for manufacturing purposes, the manufacturer reserves the right make technological, aesthetic or dimensional variations without notice.

Regulatory information

The appliance object of this manual complies with the Directives 2004/108/EC; 2006/95/EC; Regulation (EC) no. 1935/2004 and Regulation (EC) no. 2023/2006.

C€

2. Warnings

Symbol description

WARNING

Always strictly comply with the information marked with ATTENTION or WARNING pictograms.

The WARNING sign warns against a serious injury hazard, while ATTENTION warns against minor injury hazard.

READ THE OPERATING MANUAL

It states to read this manual before using for a correct functioning and to prevent any electric shock and/or burn hazard.

ATTENTION - HOT SURFACE!

The surface temperature of the area where it is located may reach dangerous values and for this reason the direct contact with the skin and heat-sensitive fabrics/materials must be avoided.

RECOMMENDATIONS

This symbol warns to follow the recommendations of the manufacturer concerning safeguard and proper use of the product being used.

GENERAL WARNINGS

Read these recommendations carefully as they contain important about safe installation, use, and maintenance. Keep this manual with care for future reference.

THIS APPLIANCE IS FOR DOMESTIC USE OR SIMILAR, FOR EXAMPLE:

• KITCHEN AREAS IN SHOPS, OFFICES AND OTHER WORKPLACE ENVIRONMENTS
• FARM HOTELS
• BED AND BREAKFASTS AND SIMILAR
• HOTELS, MOTELS AND OTHER RESIDENTIAL ACCOMODATION (FOR GUEST'S USE ONLY).

2. Warnings

THIS APPLIANCE IS NOT INTENDED FOR USE BY PERSONS (INCLUDING CHILDREN AGED 8 AND ABOVE) WITH REDUCED PHYSICAL, SENSORY OR MENTAL CAPABILITIES, OR LACK OF EXPERIENCE AND KNOWLEDGE, UNLESS THEY HAVE BEEN GIVEN SUPERVISION OR INSTRUCTION CONCERNING USE OF THE APPLIANCE BY A PERSON RESPONSIBLE FOR THEIR SAFETY.

Image showing a cartoon child pointing at a prohibition symbol next to a circle, likely indicating no prohibition or exclusion.

CHILDREN SHOULD BE SUPER- VISED TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

NEVER PLACE THE APPLIANCE OR ITS PARTS IN WATER.

IF THE ELECTRICAL CORD OF THIS AP-PLIANCE IS DAMAGED, IT MUST BE RE-PLACED BY AN AUTHORIZED CUSTOMER SERVICE CENTRE SINCE SPECIALIZED TOOLS ARE NECESSARY.

DURING DELIVERY OF THE BEVERAGE, PAY ATTENTION TO ANY POSSIBLE SPLASHES OF HOT LIQUID.

2. Warnings

IMPROPER USE MAY CAUSE INJURY.

DO NOT LEAVE THE APPLIANCE UNATTENDED WHILE OPERATING.

DO NOT USE THE APPLIANCE NEAR OR UNDERNEATH INFLAMMABLE MATERIALS (CURTAINS, ETC.).

2. Warnings

THIS APPLIANCE WAS DESIGNED TO MAKE BIALETTI ESPRESSO COFFEE, USING BIALETTI CAPSULES, AND MUST BE USED FOR THIS PURPOSE ONLY. ANY OTHER USE WOULD BE IMPROPER AND THEREFORE DANGEROUS. THE MANUFACTURER CANNOT BE HELD RESPONSIBLE FOR ANY DAMAGE DERIVING FROM IMPROPER, INCORRECT OR UNREASONABLE USES.

• The appliance was designed only for indoor use and non-extreme temperature conditions; do not leave it exposed to the elements (rain, sun, etc.).
• The manufacturer accepts no responsibility and the warranty will not apply for any commercial use, inappropriate handling or use of the appliance, any damage resulting from use for other purposes, faulty operations, non-professional repair or failure to comply with the instructions.
• After removing the packaging, and before use, make sure the appliance and all the attachments are working well. The electrical plug and sheath should not be cracked or broken. If the conditions described above occur, immediately unplug the appliance from mains outlet and take it to an authorized After-Sales Service Centre for necessary checking.
• The packing materials (plastic bags, expanded polystyrene, nails, etc.) should be kept away from children since they are potential sources of danger.
• Put the appliance on a flat, smooth and stable surface. Do not put it close to/on hot surfaces as heaters, cooking hobs, flames and similar; furthermore, avoid the contact with easily flammable objects, as curtains, cloths, paper, etc.).
• Before connecting the appliance, make sure the line voltage is correct. The tag is located on the bottom of the appliance body.
• If the plug does not fit into the wall outlet, have the wall outlet replaced with another type by a qualified electrician, who must also check that the cord is suitable for the power absorbed by the appliance. In general, it is not advisable to use an adaptor, multiple sockets, or an extension cord. If they are necessary, use

2. Warnings

only simple or multiple adaptors and extension cords that conform to safety regulations, being careful not to exceed the load limits indicated on the adaptor and the extension cord, and the maximum power indicated on the multiple adaptor.

• Do not leave the appliance connected when not in use. Remove the plug from the mains outlet when the appliance is not used.
• If the appliance is not intended to be used for a quite long period, empty the water tank.

IT IS RECOMMENDED TO POWER THE APPLIANCE THROUGH A RESIDUAL CURRENT DEVICE (RCD) WITH A MAX. OPERATING CURRENT OF 30 mA.

CONNECT THE APPLIANCE TO THE POWER MAINS THROUGH AN EARTHED SOCKET.

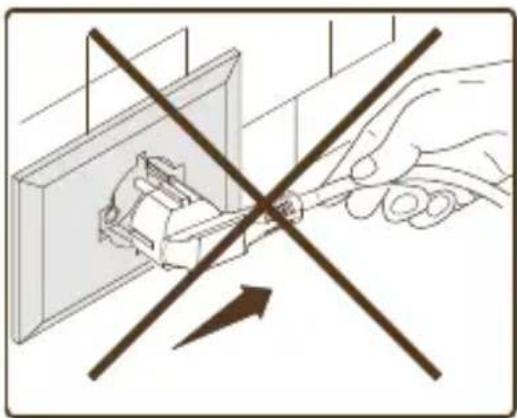

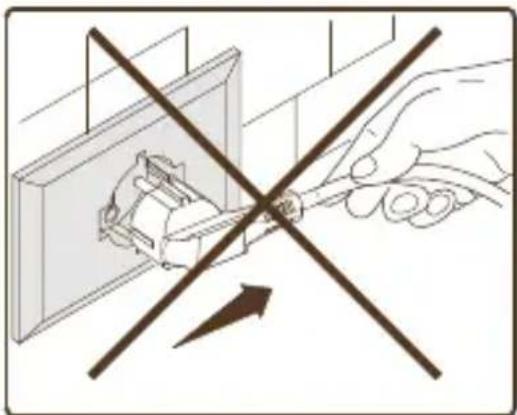

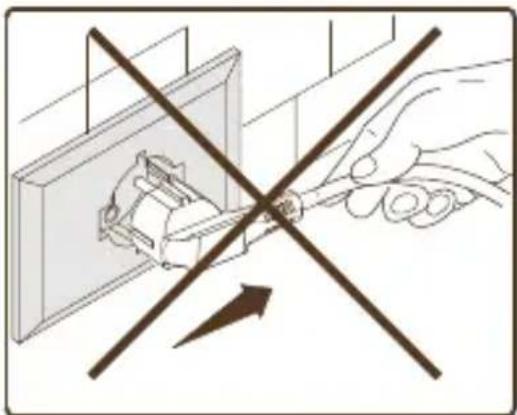

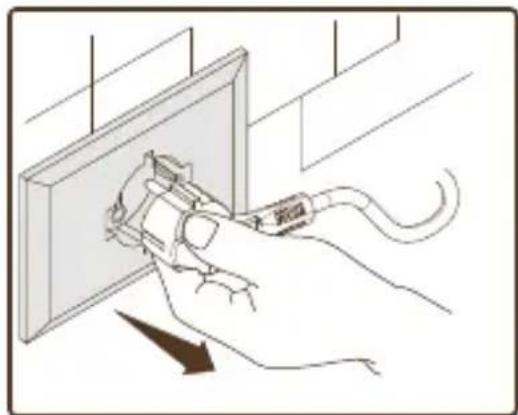

VOID UNPLUGGING THE APPLIANCE BY PULLING THE POWER CORD.

Illustration of a hand inserting a plug into a wall socket, with no visible text or symbols

Diagram showing a hand using a tool to cut electrical components with a diagonal line crossing (no text or symbols present)

HILE OPERATING, THE ELECTRICAL SOCKET MUST BE EASILY ACCESSIBLE SHOULD IT BE NECESSARY TO UN-PLUG THE APPLIANCE.

PRECAUTIONS FOR YOUR SAFETY

• Do not touch the appliance with wet or damp hands.
• Do not use the appliance with bare feet.
• Do not pull the cord over sharp edges, clamp it or allow it to hang down.
• To avoid dangerous overheating, it is recommended that you unwind the electrical cord to its entire length and that you use the appliance as recommended in “Warnings” related to a correct use of the appliance.
• Before performing any cleaning or maintenance operation, disconnect the appliance from the mains outlet by unplugging it or by deactivating the electrical switch.
• Repairs must only be carried out by an after-sales centre authorized by the manufacturer. Always insist of genuine spare parts. Non-compliance with what has been stated above could compromise the safety of the appliance.
• If you decide not to use the appliance of this type anymore, it is recommended that you make it inoperable by cutting off the mains cord after removing the plug from the mains outlet. You should also render harmless those parts of the appliance that could be dangerous, especially for children who might use an abandoned appliance as a toy.

INSTALLATION MUST BE PERFORMED ACCORDING TO THE MANUFACTURER'S INSTRUCTIONS. INCORRECT INSTALLATION COULD CAUSE DAMAGE TO PERSON, ANIMALS AND THINGS, FOR WHICH THE MANUFACTURER CANNOT BE HELD RESPONSIBLE.

- Do not leave the appliance unattended while turned on.

DO NOT USE THE APPLIANCE WHEN THE WATER TANK IS EMPTY.

WHEN USING THE APPLIANCE FOR THE FIRST TIME, IT MAY EMIT SMELL OF BURNING OWING TO INSULATION MATERIALS AND HEATING ELEMENTS; ALL THIS IS NORMAL.

2. Warnings

• Make sure the appliance is unplugged before cleaning.
- Do not use any strong cleaning agent or solvent cleaner.
- Do not use abrasive objects.
- Do not put in the dishwasher any appliance component.
- Clean the appliance body with a soft cloth and wipe it.

3. Package contents

1 Espresso coffee machine
1 Tester kit of blends "I Caffè d'Italia"
1 Instructions manual
1 Consumer leafl et "I Caffè d'Italia"

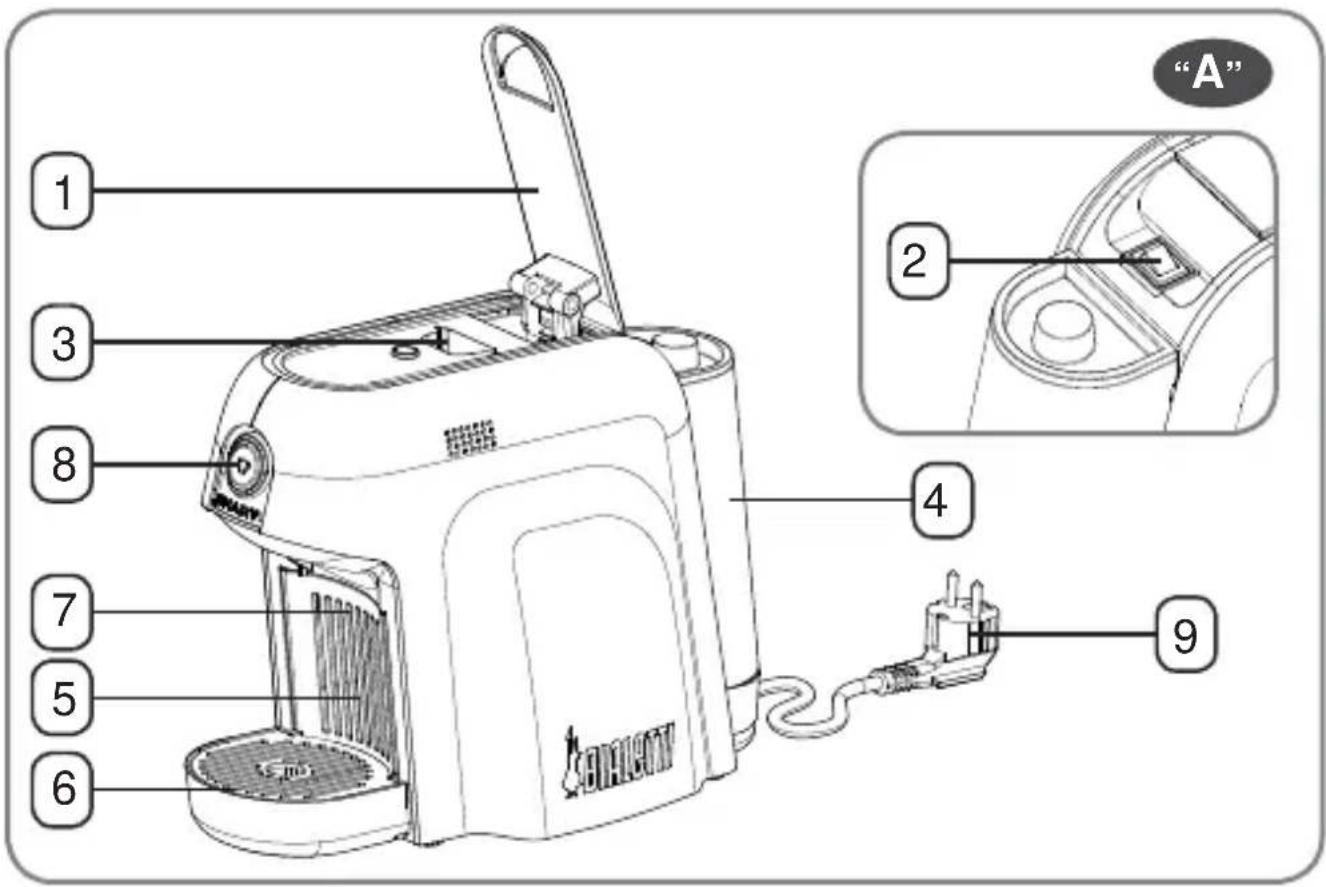

4. Product description

1 3 8 7 5 6 BIALATT 4 2 9 "A"

Key
1	Lever to open the machine
2 On/off button
3 Capsule compartment
4 Removable water tank
5	Used capsule compartment
6 Cup rack
7	Holes for checking the capsule compartment fi ll
8	Brew start/stop – Ready Boiler status led
9 Power cord

Technical specifications
Dimensions (mm) LxPxH	354x163x266
Voltage (V) Power (W)	See rating plate situated on the appliance bottom.
Max. capacity of water tank	0.6 litres

5. Use

Line drawing of a portable electric water heater with a paper feed and power cord, showing airflow direction (no text or symbols)

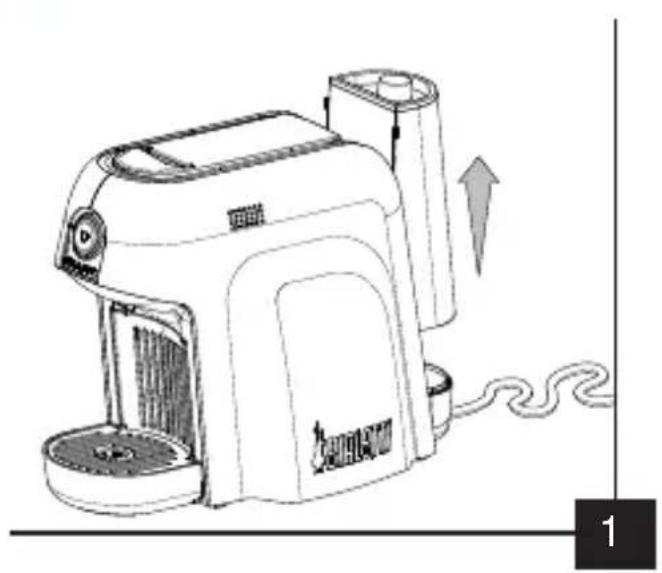

With the machine unplugged, take the tank out and fi ll it with drinking water referring to MAX level.

Line drawing of a portable air conditioner connected to a wall-mounted power outlet (no text or symbols)

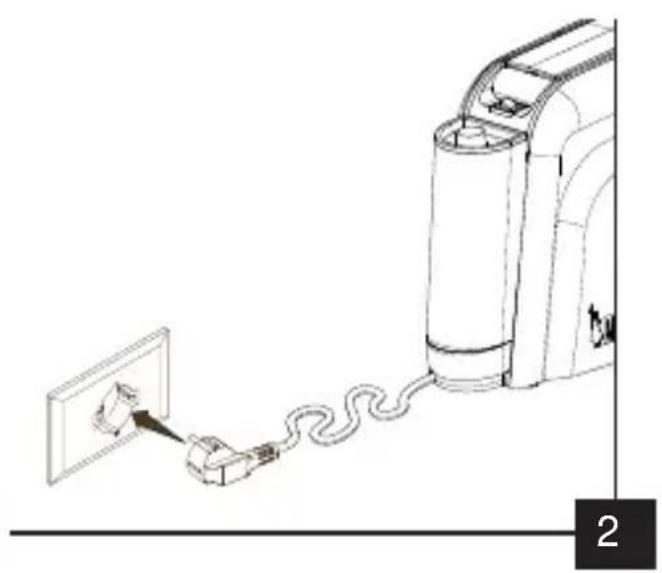

Insert the plug (9) of the appli- ance in the socket as per instruc- tions of "Warnings" section.

Technical line drawing of a mechanical component with no visible text or symbols

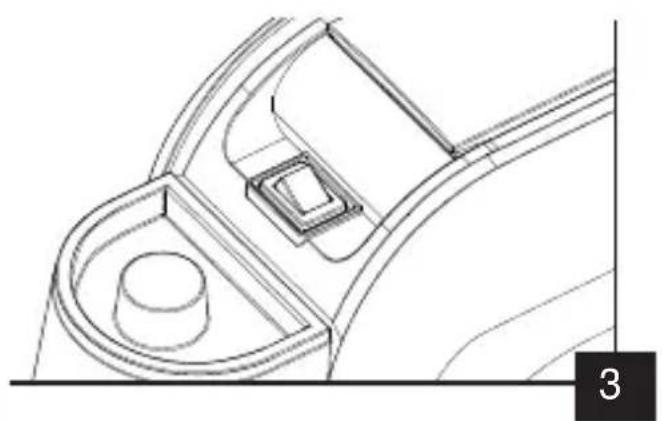

Switch on the machine using the switch (2) on the top back.

Line drawing of a hand pump with labeled buttons and ports (no text or symbols beyond basic labels)

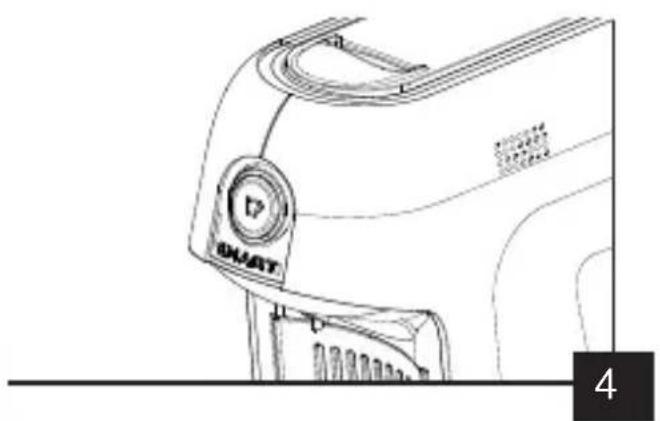

While the boiler is heating the light on the button (8) will be RED. Once the light will turn GREEN the machine will be ready to deliver coffee.

EVER USE THE APPLIANCE IF THE TANK IS EMPTY.

By keeping the lever (1) lowered, place a coffee cup on the cup rack (6) and press the button (8) to start dispensing water. Stop dispensing by pressing the button again when the cup is almost full. Repeat the cycle at least 3 times.

6. Coffee making

Line drawing of a device with an open lid and directional arrow indicating rotation (no text or symbols)

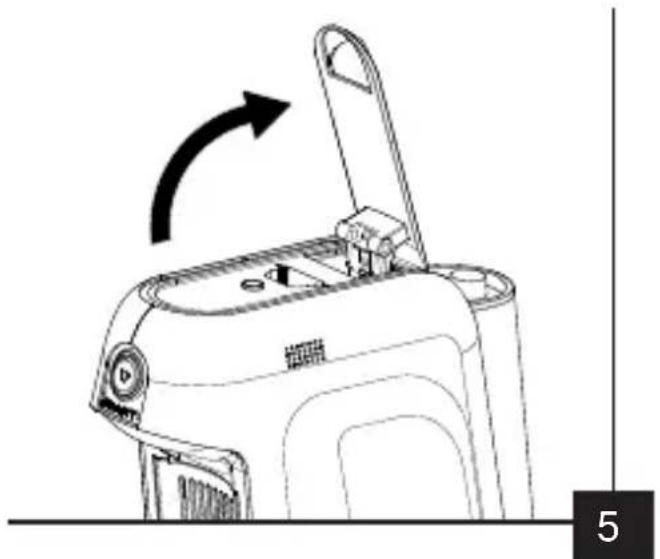

Before dispensing, check water level in the tank (4) and make sure the button (8) is on (green), then lift the lever (1).

Line drawing of a hand using a tool to switch a device into a machine (no text or symbols present)

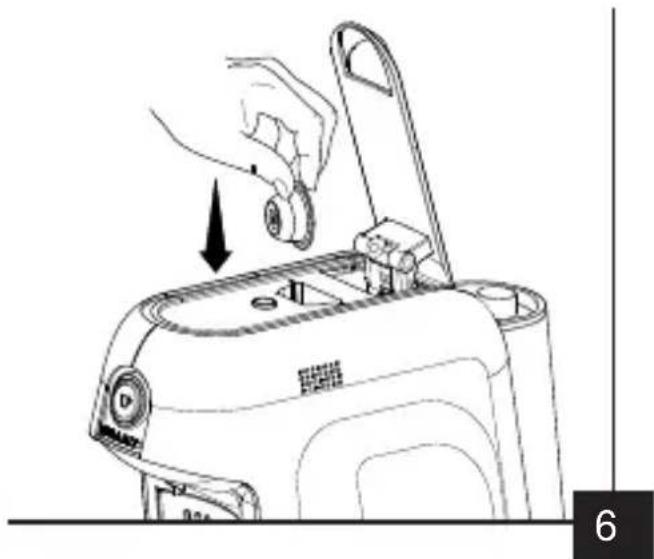

Insert the capsule in the special compartment (3), and then close the lever (1), taking care not to crush your hands.

IF THE CAPSULE IS MISSHAPEN, BEND THE EDGES BACK INTO SHAPE.

NEVER PLACE FINGERS BETWEEN THE MECHANISMS OR INSIDE THE CAP-SULE COMPARTMENT.

Line drawing of a sewing machine with a needle inserted, showing no text or symbols

Place a cup onto the rack (6). Start dispensing coffee by pressing the pour button (8). When coffee reaches the required level in the cup, stop dispensing by pressing the button again. For every following coffee, raise the lever (1) to insert a new capsule. The system automatically ejects the capsule previously used.

7. Maintenance

APPLIANCE CLEANING

ALWAYS UNPLUG THE APPLIANCE BEFORE CLEANING IT. NEVER IMMERSE THE APPLIANCE BODY (1) IN WATER OR OTHER LIQUIDS AND DO NOT PUT IT IN THE DISHWASHER.

• To clean the appliance body, use a wet cloth but avoid abrasive detergents.
• It is recommended to rinse the tank on a daily base. Never leave water in the tank for more than 5 days or, if it occurs, change water and dispense 50ml of water without capsule before making the coffee.

Line drawing of a mechanical device with a fan and control panel (no text or symbols)

8

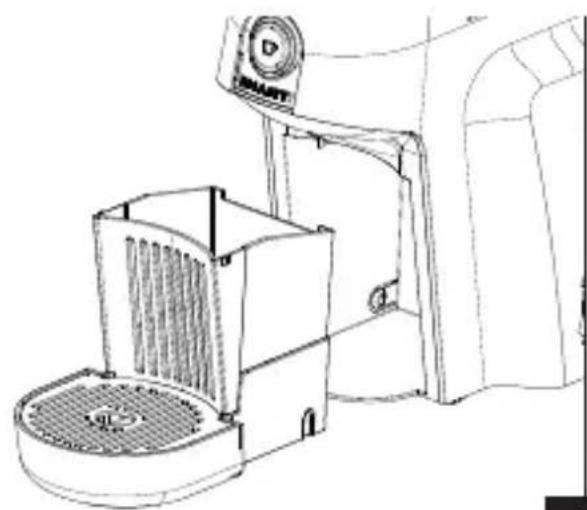

The used capsule compartment (5) is removable; take it out regularly and empty it when full.

The compartment can hold up to 12-15 used capsules before it needs emptying. We recommend checking the level of the capsules inside the compartment through the relevant sight glass (7).

Do not work the machine with full cup rack to avoid damage it.

Diagram showing three architectural or mechanical components with a crosshair symbol pointing to one (no text or labels present)

9

Be careful when emptying the used capsule compartment as it could contain water and/or coffee remains.

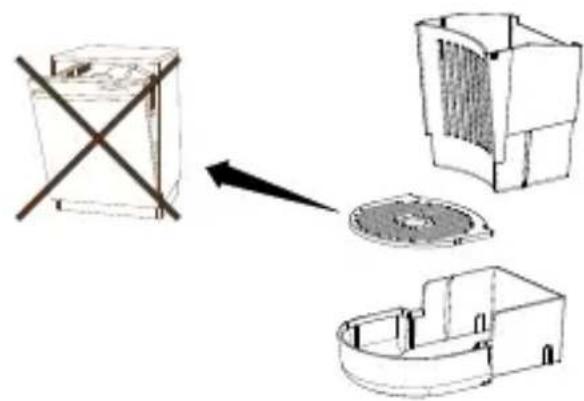

Wash the cup rack(6) and the cup plate with water and dishwasher detergent.

Do not put these items in the dischwasher.

DESCALING PROCEDURE

The normal use of the machine with natural mineral water, both in bottle and from the tap, entails the formation of limescale.

It is recommended to carry out the descaling cycle every 300 cups of coffee (otherwise every 3-4 months) and/or when a constant decrease of the dispensed coffee flow is noticed.

THE FREQUENCY OF THIS OPERATION DEPENDS ON THE HARDNESS OF WATER USED.

A) Pour a dose of Bialetti descaling solution or equivalent (provided it is not toxic and is suitable for coffee machines) into the water tank (4).

NOT USE VINEGAR OR VINE- GAR-BASED SOLUTIONS AS DESCAL- ING AGENT.

B) Fill the tank with cold water up to the MAX level.

C) Press the button (2) to switch the machine on. Wait until it remains steady on.

D) Be sure to use the machine without capsule inside: if needed, open and close the lever (1)

E) Dispense 2 cups of water (aprox.ly 150 ml each).

F) Switch the machine off.

G) Let the descaling agent act for aprox.ly 15-20 minutes with the machine off.

H) Switch the machine on and carry out again the operations described in point e).

I) Switch the machine off against for approx.ly 5 minutes.

J) Repeat the operation described in points i) until the tank is completely empty.

K) Remove the tank and rinse it thoroughly with clean cold water.

L) Fill the tank with clean water up to the "MAX" level and insert it in its seat.

M) Dispense water until the tank is completely empty. If necessary, start dispensing several times (the machine features a safety system, which interrupts the dispensing automatically after 100 operating seconds).

N) Repeat the steps described in points l) and m).

8. Energy saving mode

This appliance was designed in compliance with the European Directives EC1275/2008 and 2009/125/EC, stating the need to adopt the energy saving mode.

This appliance integrates an energy saving circuit, which activates after 15 minutes of inactivity. The machine turns off and the energy saving is below 0.5 W.

To restart the machine it is necessary to press the power switch located on the top back of the product: the machine will start the pre-heating of the boiler (red LED) and once it reaches operating temperature, it will indicate the ready state (green LED).

TIME OF PRE-HEATING IS BASED ON THE INACTIVITY TIME OF THE MACHINE, AND CAN LAST UP TO 50 SECONDS IF THE PRODUCT HAS NOT BEEN USED FOR A FEW HOURS.

THE MACHINE WILL ENTER STAND-BY MODE AUTOMATICALLY AFTER 15 MINUTES EVEN IF NOT BREWED ANY COFFEE.

9. Troubleshooting

Problem Causes	Solution
The machine will not heat up.	A) The plug is not connected to the mains power.	A) Connect the machine to the mains power.
	B) The machine is not switched on.	B) Use the ON button to switch on the machine.
The machine will not pour coffee.	C) The capsule is stuck or badly positioned.	C) Unplug the machine from the power mains and wait for it to cool down; lift the lever and remove the capsule manually. Use a utensil to help in this; never use fingers.
	D) A capsule may have fallen into the machine.	D) Take out the capsule compartment and check.
	E) There is no water in the tank.	E) Fill the tank with water.
	F) The pipes are blocked with scale.	F) Carry out a scale removal cycle.
The coffee is cold. G) The machine has not completely heated the water before pouring the coffee.		G) Before pouring coffee, always wait for the cup symbol in the top part of the central switch to turn green.
		H) The cup is cold. H) Preheat the cup with a little boiling water, poured by pressing the pour switch.
		I) The machine is partly clogged by scale.	F) Carry out a scale removal cycle.

9. Troubleshooting

Problem Causes	Solution
It is not possible to lower the lever.	L) The capsule is stuck or badly positioned.	L) Unplug the machine from the power mains and wait for it to cool down; lift the lever and remove the capsule manually.Use a utensil to help in this; never use fingers.
	M) The used capsule container is full.	M) Empty the container.
The machine is making too much noise.	N) There is no water in the tank.	E) Fill the tank with water.
The capsule falls from its compartment	O) The lever is not completely raised	O) Completely lower the lever and open it until it gets to its end point.

10. Tips for a good coffee

• Before making coffee for the first time, dispense some water only in order to ensure the perfect dispensing; water does not waste heat inside the appliance and fluids encounter less resistance.
• For a coffee at the optimal temperature, in case a cup-warmer is not available, warm the cup up with water only.
• In order to obtain a thicker and more persistent cream, use cups with an inner ovoid-shape base.

11. Bialetti capsules

BIALETTI

I Caffè d'Italia

Six circular metallic coins with textured surfaces, arranged horizontally (no visible text or symbols)

The new patented capsules from Bialetti are unique on the market because they guarantee everything necessary for a perfect Bialetti Espresso in a single product:

• THE PERFECT AMOUNT: they contain 7 grams of coffee, as expressly envisaged by Espresso Italiano Certificato (Certified Italian Espresso).
• ALUMINIUM: the only material that, unlike the common plastic capsules, can preserve the organic substances of coffee, ensuring a product that is always fresh with the flavour of freshly ground coffee.

The capsules of "I caffè d'Italia Bialetti" can be purchased:

1. in the Bialetti stores, in more than 500 Bialetti partner points of sale, as well as in the best supermarkets. The complete, updated list is on the web site www.bialettishop.it

2. calls (for Italy only) from the comfort of our own homes:

Numero Verde 800-011045

1. access to the online shop on the web site:

www.bialettishop.it

12. Warranty

The appliance is guaranteed for two years from the date of delivery, as shown by the date on the receipt/invoice, unless the purchaser can prove that delivery took place on a later date. In case of defects on the product existing prior to delivery, Bialetti guarantees the repair or replacement of same, at no charge to the purchaser, unless one of the two remedies is disproportionate to the other. The purchaser is responsible for reporting any conformity defects no later than two months from discovery of same.

The warranty does not cover those parts found to be faulty as a result of negligence or careless use, for example:

• Damages caused by impacts, falls or scratches owing to the use of improper objects.
• Damages caused by limestone or failure to decalcify it on a regular basis.
• Failure to abide by the operating instructions for the appliance.
• Incorrect installation or maintenance carried out by unauthorised persons.
• Normal wear and tear.
  • Damage caused by modifications made to the inside of the appliance.
• Damage caused through use of a voltage other than that stated in the use and maintenance manual.
• Damage from transport or circumstances that cannot be attributed to defects in the material or workmanship of the appliance.
• Damages arising from repairing carried out by unauthorized service centres.

The warranty also excludes all cases of improper use of the appliance or any instances of professional use.

Bialetti refuses to accept any liability for damage that may directly or indirectly be caused to people, property or pets as a result of failure to abide by all of the guidelines and instructions in this booklet concerning the installation, use and maintenance of the appliance.

This warranty is without prejudice to contractual guarantees made to the retailer.

THE MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES FOR REGULATORY, INDUSTRIAL, COMMERCIAL OR AESTHETIC REASONS.

13. Appliance disposal

• This product complies with the Directive 2012/19/EC.
- The symbol representing the crossed out trash can on the appliance indicates that the product, at the end of its useful life, must be treated separately from domestic waste. It must be taken to a recycling centre for electrical and electronic appliances or turned in to the point of sale when purchasing a new, equivalent, appliance.

Simple line drawing of a trash bin with crossed x-axes and no text or symbols

• The user is responsible for taking the appliance to the recycling centre at the end of its life, under penalty of the sanctions foreseen by the current legislation on waste handling.
• Correct consignment of the no-longer used appliance to a recycling centre for treatment and environmentally compatible elimination contributes to avoiding a negative impact on the environment and public health, and permits recycling of the materials from which the product is made.
• For more detailed information regarding the available collection systems, contract the local refuse centre or the store where the product was purchased.
• The manufacturer and the importers comply with their responsibility for recycling, treating, and environmentally compatible disposal of waste both directly and in a collective system.

THE MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES FOR REGULATORY, INDUSTRIAL, COMMERCIAL OR AES-THETIC REASONS.

Nota/Note/Note/Notes

1. Introduction

Cher client,

Image showing a child pointing at a prohibition symbol, likely indicating no religious or social restrictions.

LES ENFANTS DOIVENT ÊTRE SUR- VEILLÉS AFIN QU'ILS NE JOUENT PAS AVEC L'APPAREIL.

NE JAMAIS PLONGER L'APPAREIL OU LES PARTIES QUI LE COMPOSENT SOUS L'EAU.

SI LE FIL D'ALIMENTATION DE CET APPAREIL EST ENDOMMAGÉ, IL DOIT ÊTRE REMPLACÉ EXCLUSIVEMENT PAR UN CENTRE TECHNIQUE AGRÉÉ PAR LE CONSTRUCTEUR AINSI QUE LES PIÈCES SPÉCIALES ET NÉCESSAIRES AU BON FONCTIONNEMENT DE L'APPAREIL.

PENDANT LA DISTRIBUTION DE LA BOISSON, PRETER LA PLUS GRANDE ATTENTION AUX EVENTUELLES ECLABOUS-SURES DE LIQUIDE CHAUD.

2. Avertissements

USAGE INCORRECT PEUT ENTRAINER DES LESIONS.

NE LAISSEZ PAS L'APPAREIL SANS SURVEILLANCE PENDANT SON FONCTIONNEMENT.

'UTILISEZ PAS L'APPAREIL PRÈS OU SOUS DES MATÉRI AUX INFLAMMABLES (RIDEAUX, ETC.).

CET APPAREIL A ETE CONCU POUR LA PRODUCTION DE CAFE EXPRESSO BIALETTI, A TRAVERS L'EMPLOI DE CAPSULES BIALETTI ET IL NE DOIT ETRE DESTINE QU'A CET USAGE. TOUT AUTRE UTILISATION EST CONSIDÉRÉE COMME IMPROPRE ET DONC PÉRILLEUSE. LE FABRICANT NE PEUT ÊTRE TENU RESPONSABLE DE TOUT DOMMAGE DÉRIVANT D'EMPLOIS NON APPROPRIÉS, ERRONÉS OU IRRAISONNABLES.

Diagram showing a hand inserting a plug into an electrical socket, with Chinese text labels indicating the component.

Illustration of a hand using a tool to cut electrical socket into a wall, with no text or symbols present.

NDANT LE FONCTIONNEMENT, LA PRISE DE COURANT DOIT ÊTRE FACILEMENT ACCESSIBLE DANS LE CAS OÙ IL SERAIT NÉCESSAIRE DE DÉBRANCHER L'APPAREIL.

PRÉCAUTIONS DE SÉCURI TÉ

Line drawing of a portable electric mixer with a scroll, showing airflow direction (no text or symbols)

Diagram showing a cable being inserted into a wall socket connected to a cylindrical device (no text or symbols present)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a handbag with a circular button labeled 'D' and brand mark 'BHART', no readable text or symbols beyond the label.

Line drawing of a device with an open lid and arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to switch a device into a machine (no text or symbols present)

Line drawing of a handheld device with a pointed tip and control panel (no text or symbols)

Line drawing of a smart air purifier with control panel and fan (no text or symbols)

8

Diagram showing three architectural or mechanical components with cross-bracing indicators, no text or symbols present.

9

Six circular metallic coins with textured surfaces, arranged horizontally (no visible text or symbols)

Simple line drawing of a trash bin with crossed x-axes and no text or symbols

Nota/Note/Note/Notes

1. Introducción

Estimado cliente,

LEA EL MANUAL DE USO

Image showing a cartoon child pointing at a prohibition symbol, likely indicating no religious or social restrictions.

Illustration of a hand inserting a plug into a wall socket, with no text or symbols present.

Diagram showing a hand holding a tool intersecting a wall-mounted electrical socket, with no text or symbols present.

DURANTE EL FUNCIONAMIENTO, LA TOMA DE CORRIENTE TIENE QUE SER FÁCILMENTE ACCESIBLE EN EL CASO EN QUE FUERA NECESARIO DESCONECTAR EL APARATO.

PRECAUCIONES PARA SU SEGURIDAD

Line drawing of a portable electric water heater with a paper feed and power cord, showing airflow direction (no text or symbols)

Line drawing of a hair dryer connected to a wall-mounted power outlet (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a hand pump with labeled buttons and ports (no text or symbols beyond basic labels)

Line drawing of a device with an open lid and directional arrow indicating rotation (no text or symbols)

Line drawing of a hand using a tool to press down a device from a base, showing no text or symbols.

Line drawing of a mechanical device with a pointed tool and labeled part (no readable text or symbols)

Line drawing of a smart water heater with control panel and fan (no text or symbols)

8

Diagram showing three architectural or mechanical components with no visible text or symbols

9

Six circular metallic coins with textured surfaces, arranged horizontally (no visible text or symbols)

Simple line drawing of a trash bin with crossed x-axes and no text or symbols

Nota/Note/Note/Notes

Nota/Note/Note/Notes

Nota/Note/Note/Notes

BIALETTI

Via Fogliano 1

25030 Coccaglio (BS)

Italy

www.bialettigroup.it
