SCF860 - Blender PHILIPS - Free user manual and instructions

USER MANUAL SCF860 PHILIPS

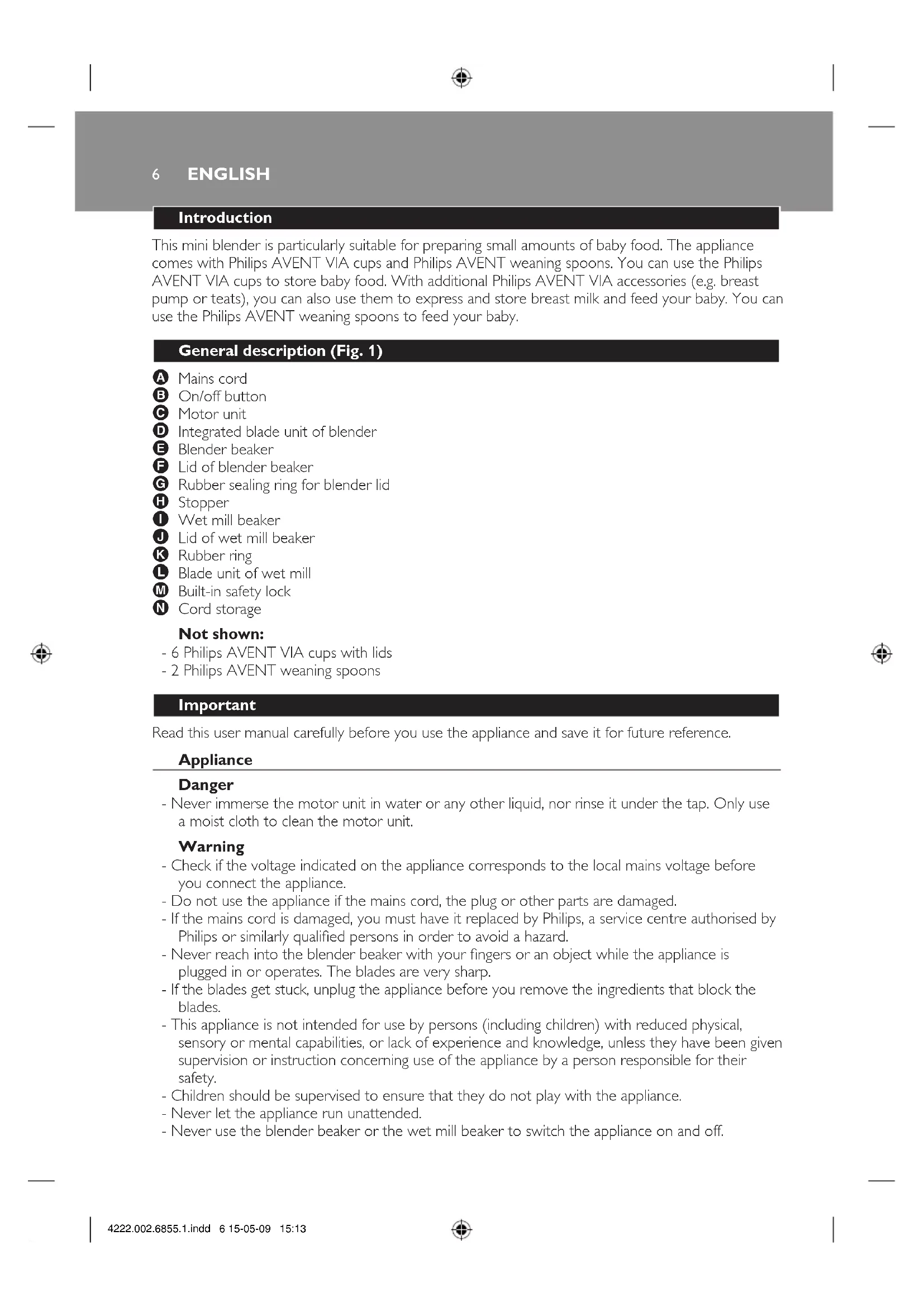

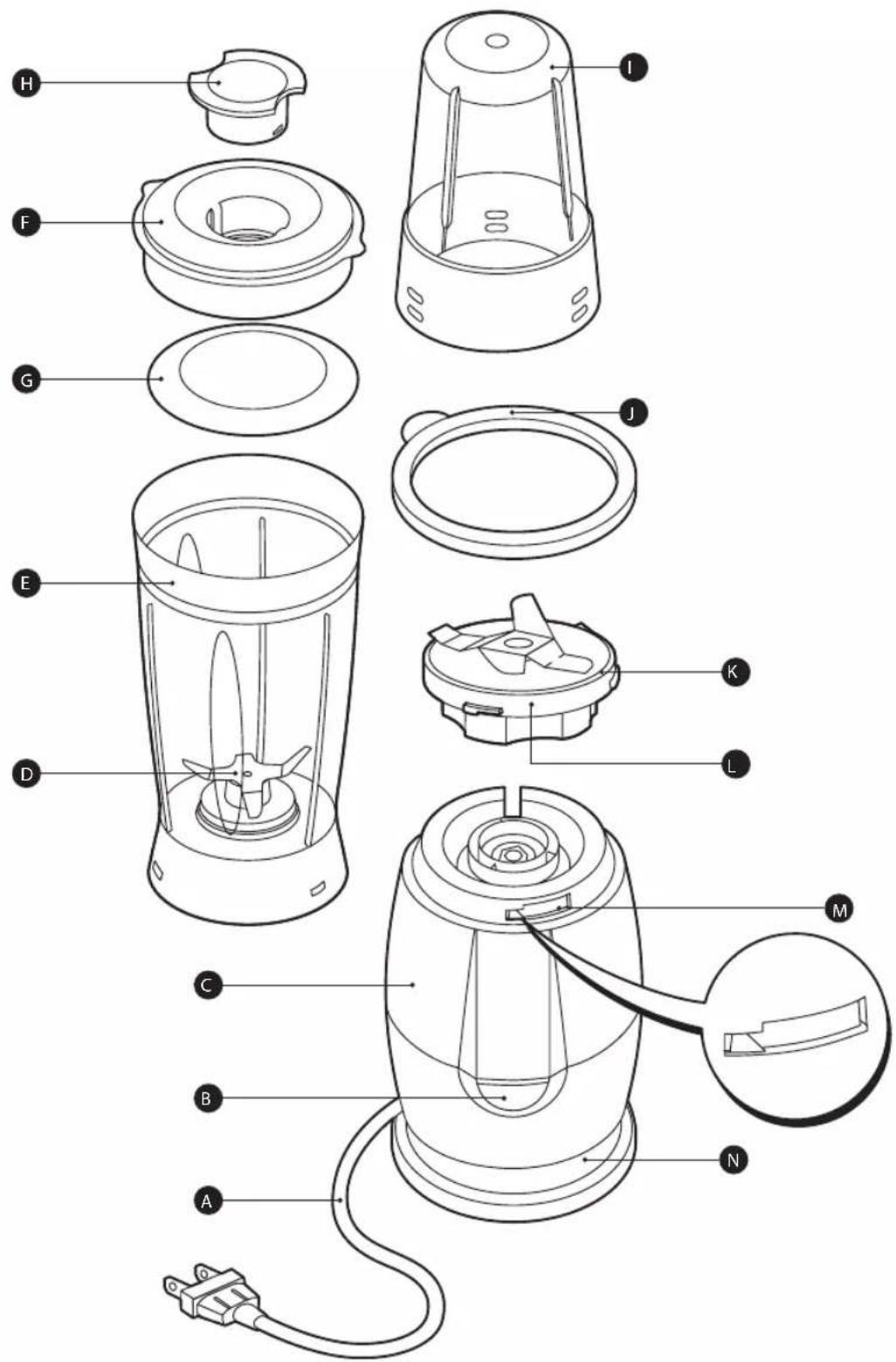

4222.002.6855.1.indd 5 15-05-09 15:136 Introduction This mini blender is particularly suitable for preparing small amounts of baby food. The appliance comes with Philips AVENT VIA cups and Philips AVENT weaning spoons. You can use the Philips AVENT VIA cups to store baby food. With additional Philips AVENT VIA accessories (e.g. breast pump or teats), you can also use them to express and store breast milk and feed your baby. You can use the Philips AVENT weaning spoons to feed your baby. General description (Fig. 1) A Mains cord B On/off button C Motor unit D Integrated blade unit of blender E Blender beaker F Lid of blender beaker G Rubber sealing ring for blender lid H Stopper I Wet mill beaker J Lid of wet mill beaker K Rubber ring L Blade unit of wet mill M Built-in safety lock N Cord storage Not shown: - 6 Philips AVENT VIA cups with lids - 2 Philips AVENT weaning spoons Important Read this user manual carefully before you use the appliance and save it for future reference.

Danger - Never immerse the motor unit in water or any other liquid, nor rinse it under the tap. Only use a moist cloth to clean the motor unit. Warning - Check if the voltage indicated on the appliance corresponds to the local mains voltage before you connect the appliance. - Do not use the appliance if the mains cord, the plug or other parts are damaged. - If the mains cord is damaged, you must have it replaced by Philips, a service centre authorised by Philips or similarly qualied persons in order to avoid a hazard. - Never reach into the blender beaker with your ngers or an object while the appliance is plugged in or operates. The blades are very sharp. - If the blades get stuck, unplug the appliance before you remove the ingredients that block the blades. - This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Children should be supervised to ensure that they do not play with the appliance. - Never let the appliance run unattended. - Never use the blender beaker or the wet mill beaker to switch the appliance on and off. ENGLISH 4222.002.6855.1.indd 6 15-05-09 15:13- Do not use the wet mill to mix liquids or to crush ice cubes. Use the blender to process these ingredients. - Do not touch the cutting edges of the mill blade unit when you handle or clean it. The cutting edges are very sharp and you could easily cut your ngers on them. Caution - Always unplug the appliance before you assemble, disassemble or make adjustments to the blender or the wet mill and before you start to clean the appliance. - Never use any accessories or parts from other manufacturers or that Philips does not specically recommend. If you use such accessories or parts, your guarantee becomes invalid. - Do not exceed the maximum level indicated on the accessories. - Do not exceed the maximum quantities and processing times indicated in the table. - Let hot ingredients cool down before you chop them in the wet mill or pour them into the blender beaker (max. temperature 80°C). - Never use the wet mill for more than 30 seconds without interruption. - Do not process dry ingredients such as coffee beans and dried beans in the wet mill. - Noise level: Lc = 86 dB(A).

Warning - In the Philips AVENT VIA cups, food heats faster than in standard feeding bottles or containers. - Always check the food temperature before you start to feed. - Do not heat up baby food in a microwave oven, as this could cause uneven heating of the food and could scald your baby. - Do not let children use the cups, lids and weaning spoons without adult supervision. Caution - Always clean and sterilise the cups, lids and weaning spoons before you use them. - The Philips AVENT VIA cups are not suitable for transporting uids. - Food colourings may cause discolouring of the cups, lids and weaning spoons. - Do not place heavy items on the cup when the lid is on it. - The Philips AVENT weaning spoons are suitable for children aged 6 months and older. - Inspect the cups, lids and weaning spoons before each use. - Throw away the cups, lids and weaning spoons at the rst sign of damage or weakness. - Do not leave the cups, lids and weaning spoons in sunlight when not in use and do not boil or sterilise them for longer than recommended, as this may weaken them. Safety features Built-in safety lock This feature ensures that you can only switch on the appliance if the beakers have been placed on the motor unit in the correct position. When the beakers have been assembled correctly, the built-in safety lock is unlocked.

The appliance is equipped with a thermal cut-out that automatically cuts off the power supply to the appliance if it overheats. If the appliance suddenly stops running: 1 Pull the plug out of the wall socket. 2 Let the appliance cool down for 30 minutes. 3 Put the plug in the wall socket. 4 Switch on the appliance again. ENGLISH 7 4222.002.6855.1.indd 7 15-05-09 15:13Contact your Philips dealer or an authorised Philips service centre if the thermal cut-out is activated too often. To avoid a hazardous situation due to inadvertent resetting of the thermal cut-out, never connect this appliance to a timer switch.

This Philips appliance complies with all standards regarding electromagnetic elds (EMF). If handled properly and according to the instructions in this user manual, the appliance is safe to use based on scientic evidence available today.

Always clean and sterilise the cups, lids and weaning spoons before you use them. Using the appliance Blender The blender is intended for: - Pureeing cooked ingredients, e.g. for making baby food. - Blending uids, e.g. dairy products, sauces, fruit juices, soups, mixed drinks, shakes. - Mixing soft ingredients, e.g. baby drink. 1 Put the ingredients in the blender beaker (Fig. 3). Do not ll the blender beaker beyond the MAX indication. Never ll the blender beaker with ingredients that are hotter than 80°C. See the table below for the recommended quantities. Ingredients blender Quantities fruit 20g vegetables 100g fruit juice 100g vegetables + water (optional) milkshake 100g fruit + 150ml milk soy beans 50g soy beans (soaked for 4 hours) + 250ml water almond tea 75g almonds + 200ml water black sesame tea 75g black sesame seeds + 200ml water 2 Press the lid into place. 3 Place the blender beaker on the motor unit (1). Turn the blender beaker clockwise to fasten it (2) (‘click’) (Fig. 4). Do not exert too much pressure on the blender beaker. ENGLISH8 4222.002.6855.1.indd 8 15-05-09 15:134 Put the plug in the wall socket and press the on/off button. Hold the motor unit rmly with both hands when the appliance operates. Do not operate the blender for more than 1 minute at a time. If you have not nished blending after 1 minute, switch off the appliance and wait 1 minute before you continue. If the appliance becomes hot, let it cool down before you continue. Never reach into the blender beaker with your ngers or an object (e.g. a spatula) while the blender operates. Do not touch the sharp blades. If the blades get stuck, unplug the appliance and remove the ingredients that block the blades with a spatula. tips - To avoid spillage, never ll the blender beaker above the maximum level indication (0.4 litres). - You can pour liquid ingredients (e.g. oil) into the blender beaker through the opening in the lid while the appliance operates (Fig. 5). - Cut solid ingredients into smaller pieces (1-2cm) before you put them in the blender beaker. Do not process a large quantity of solid ingredients at the same time. Process these ingredients in a series of small batches instead. Wet mill The wet mill is intended for: - Processing small amounts of food, e.g. 1 or 2 portions of baby food. - Chopping moist ingredients, such as meat, onions etc (Fig. 6). The wet mill is not suitable for chopping dry ingredients such as coffee beans and dried beans. Do not use the wet mill to mix liquids or to crush ice cubes. Use the blender to process these ingredients. Do not touch the sharp blades. If the blades get stuck, switch off the appliance and disassemble the wet mill beaker. Use a spatula to remove the ingredients that block the blades. 1 Cut the ingredients into smaller pieces (approx. 1-2cm) and put them in the wet mill beaker. (Fig. 7) Do not ll the wet mill beaker beyond the MAX indication. See the table below for the recommended quantities. Ingredients wet mill Quantities pre-soaked seeds and grains (e.g. lotus seeds, rice) 20-50g onions 20-50g 2 Turn the assembled wet mill upside down and place it on the motor unit (1). Turn the wet mill clockwise to fasten it (2) (‘click’) (Fig. 8). 3 Put the plug in the wall socket and press the on/off button. (Fig. 9) Hold the motor unit rmly with both hands when the appliance operates. Do not operate the wet mill for more than 30 seconds at a time. tips - If the ingredients stick to the wall of the wet mill beaker, switch off the appliance and disassemble the wet mill beaker. Use a spatula to loosen the ingredients from the wall (Fig. 10). ENGLISH 9 4222.002.6855.1.indd 9 15-05-09 15:13- If the appliance shakes because the food is not evenly distributed, switch off the appliance and disassemble the wet mill. Distribute the ingredients evenly in the wet mill beaker, reassemble the wet mill and screw it onto the motor unit. Then switch on the appliance again. - To use the wet mill beaker as a container, turn it upside down and put the plastic lid on the wet mill beaker (Fig. 11).

You can use the Philips AVENT VIA cups to store baby food in the fridge or freezer. With additional Philips AVENT VIA accessories, you can also use them to express breast milk or to feed your baby. You can use the Philips AVENT weaning spoons to feed your baby. Note: You can use the Philips AVENT VIA cups and Philips AVENT weaning spoons several times. Throw them away when they show signs of wear and tear. 1 Sterilise the cups, lids and weaning spoons before rst use and before each subsequent use. Note: You can use a Philips AVENT steam steriliser to sterilise the cups, lids and weaning spoons. You can also sterilise the cups, lids and weaning spoons by boiling them for 5 minutes. Note: Wash your hands thoroughly before you touch sterilised items and make sure the surfaces on which you place sterilised items are clean. 2 Put the prepared food in the Philips AVENT VIA cup. 3 Write down the content and date of storage on the Philips AVENT VIA cup. (Fig. 12) Note: Food prepared at home can be stored in the fridge for up to 48 hours or in the freezer for up to 3 months. For ready-made foods, follow the instructions on the package. 4 Place the lid on the cup and turn it clockwise to x it (Fig. 13). - Philips AVENT VIA cups have twist-on lids for easy and leakproof storage and transport (Fig. 14) 5 Use the Philips AVENT weaning spoons to feed your baby. 6 Clean the cups, lids and weaning spoons after use (see chapter ‘Cleaning’, section ‘Cleaning Philips AVENT VIA cups and Philips AVENT weaning spoons’). Cleaning Cleaning the appliance Cleaning the appliance is easiest immediately after use. Never immerse the motor unit in water. Do not touch the cutting edges of the blade units when you handle or clean them. They are very sharp and you could easily cut your ngers on them. Never clean the motor unit, the accessories and the parts in the dishwasher. Never use scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance. Note: Parts of the appliance may become discoloured when the appliance is used to process ingredients that contain a lot of pigment such as cloves, anise, cinnamon and tomato paste. This is normal. 1 Unplug the appliance and remove the blender or the wet mill from the motor unit. 2 Clean the blender or the wet mill in warm water with some washing-up liquid and rinse them under the tap. 3 If necessary, remove the rubber sealing ring from the blender lid and rinse it with water. ENGLISH10 4222.002.6855.1.indd 10 15-05-09 15:134 Clean the motor unit with a moist cloth.

1 Clean the cups, lids and weaning spoons with water and some washing-up liquid or in the dishwasher. Do not use abrasive or antibacterial cleaning agents. Excessive concentrations of cleaning agents may eventually cause the plastic to crack. Throw away the cups, lids and weaning spoons if cracking occurs. 2 Sterilise the cups, lids and weaning spoons right before you use them again. The cups, lids and weaning spoons are suitable for all methods of sterilisation. Environment - Do not throw away the appliance with the normal household waste at the end of its life, but hand it in at an ofcial collection point for recycling. By doing this, you help to preserve the environment (Fig. 15). Guarantee and service If you need service or information or if you have a problem, please visit the Philips AVENT website at www.philips.com/AVENT or contact the Philips Consumer Care Centre in your country (you nd its phone number in the worldwide guarantee leaet). If there is no Consumer Care Centre in your country, go to your local Philips dealer.
