USER MANUAL BTKIDSCAT BIGBEN

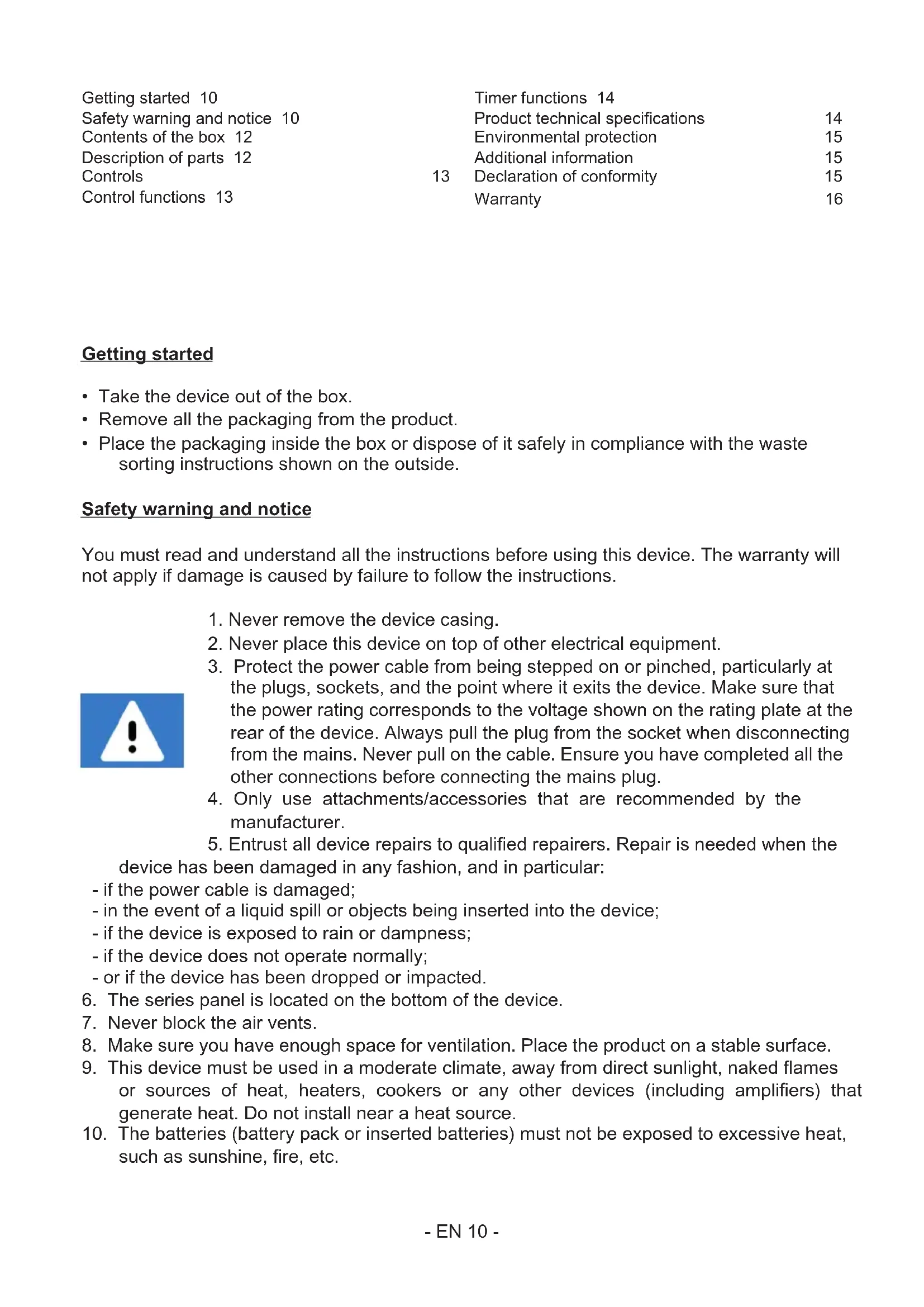

• Take the device out of the box.

• Remove all the packaging from the product.

• Place the packaging inside the box or dispose of it safely in compliance with the waste sorting in󰘵ructions shown on the outside. Safety warning and notice You mu󰘵 read and under󰘵and all the in󰘵ructions before using this device. The warranty will not apply if damage is caused by failure to follow the in󰘵ructions.

1. Never remove the device casing.

2. Never place this device on top of other electrical equipment.

3. Protect the power cable from being stepped on or pinched, particularly at

the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cable. Ensure you have completed all the other connections before connecting the mains plug.

4. Only use attachments/accessories that are recommended by the

5. Entrust all device repairs to qualified repairers. Repair is needed when the

device has been damaged in any fashion, and in particular: - if the power cable is damaged; - in the event of a liquid spill or objects being inserted into the device; - if the device is exposed to rain or dampness; - if the device does not operate normally; - or if the device has been dropped or impacted.

6. The series panel is located on the bottom of the device.

7. Never block the air vents.

8. Make sure you have enough space for ventilation. Place the product on a stable surface.

9. This device must be used in a moderate climate, away from direct sunlight, naked flames

or sources of heat, heaters, cookers or any other devices (including ampli󰘰ers) that generate heat. Do not in󰘵all near a heat source.

10. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat,

such as sunshine, 󰘰re, etc. Getting started 10 Safety warning and notice 10 Contents of the box 12 Description of parts 12 Controls 13 Control functions 13 Timer functions 14 Product technical specications 14 Environmental protection 15 Additional information 15 Declaration of conformity 15 Warranty 16- EN 11 -

11. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean

it using a soft cloth. Do not use abrasive products or harsh cleaners.

12. Ensure that you always have easy access to the power cable, plug or adapter to

disconnect this device from the mains if necessary.

13. Do not use this device near water. It must not be dripped on or splashed. Do not use this

device in a damp or wet environment.

14. Disconnect this device in the event of a storm, or if you intend not to use it for a long

15. This device can be used by children aged 8 and over, and by persons with a physical or

sensory disability, learning di󰘲culties or a lack of experience and knowledge, provided they are supervised or have received in󰘵ructions on the safe use of the device, and they under󰘵and the risks involved. Children mu󰘵 not play with the device or the power cable (risk of 󰘵rangulation). Children mu󰘵 not clean or maintain the device without supervision.

16. This device must only be supplied with very low safety voltage as indicated on the device.

17. The battery should be removed from the device before disposal. The device must be

disconnected from the power supply when removing the battery.

18. The product must be at a minimal distance of 20 cm from the human body when working.

19. Risk of suffocation: Small parts are not intended for children under 3 years old or for

people with a tendency to put inedible objects in their mouths.

20. This toy should only be connected to equipment bearing one of the following symbols:

21. This device is for household use only; do not use outdoors.

22. This is not a toy.

WARNING! Not suitable for children under 36 months. Risk of choking due to small components that could be swallowed. The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) in󰘵ructions in the literature accompanying the device.- EN 12 - Direct current Class II material Alternating current For indoor use only Contents of the box Check and identify the contents of your box:

• USB-C charging cable

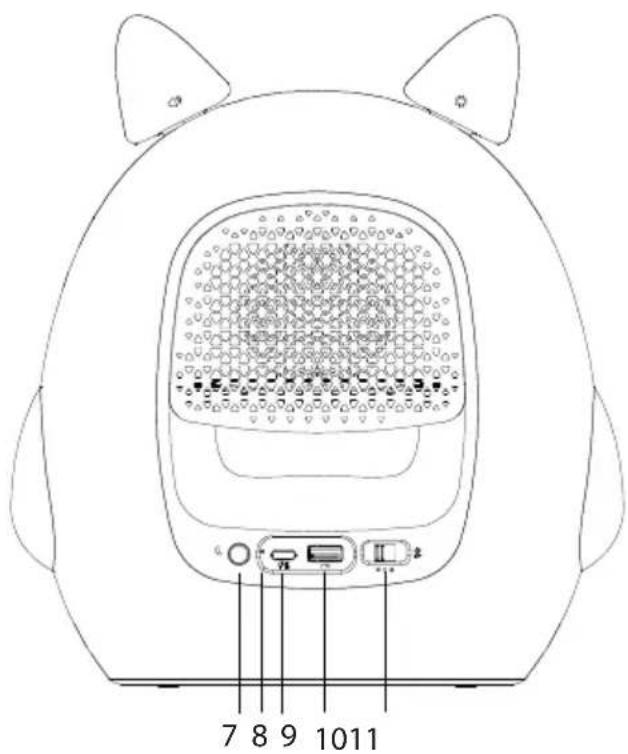

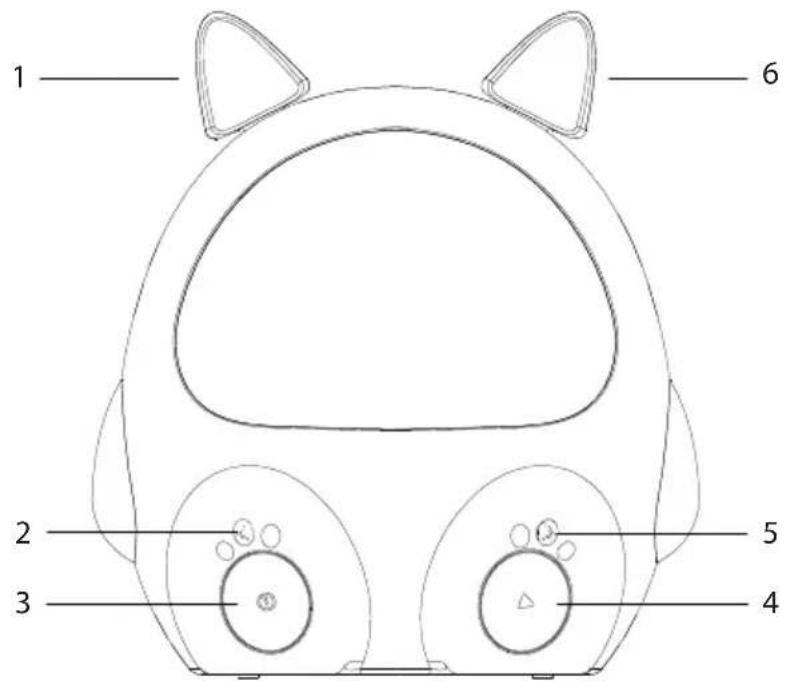

• User Guide Description of parts

Operation Before getting 󰘵arted, charge the device using the USB-C charging cable. You can connect it to any compatible USB charging source. The LED charging light (8) will turn red when the device is charging. The LED indicator light will go o󰘯 once the charge is complete. Control functions

1. Brie󰘱y press the ON/OFF switch (button 3) to switch on the Bluetooth speaker. A brief

sound signal will indicate that speaker is switched on.

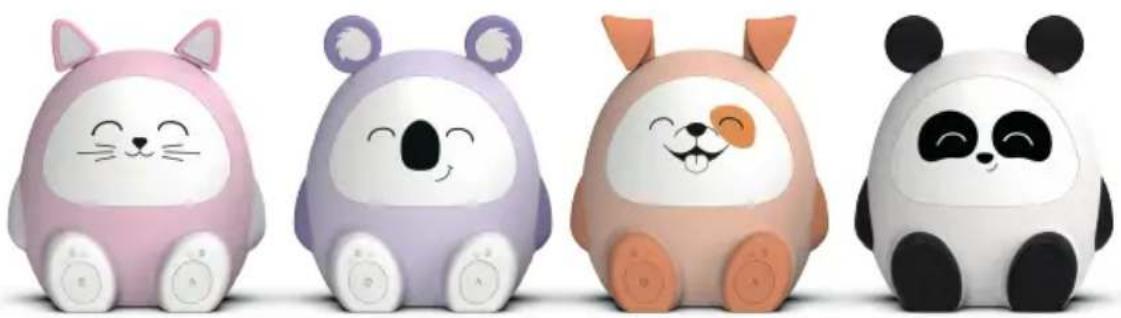

2. The speaker will enter Bluetooth pairing mode. Find BTKIDS CAT/ DOG/ KOALA/

PANDA on the device you want to pair, and click on it to connect the two devices. The LED indicator light (8) will 󰘱ash blue during Bluetooth pairing, and it will come on in solid blue once the pairing has been completed. A brief sound signal will indicate that the connection has been e󰘵ablished.

3. Brie󰘱y press the button 4 to play or pause the music.

4. Brie󰘱y press the button 2 to go back to the previous track. Brie󰘱y press the button 5 to

skip to the next track.

5. Slide the ear control 6 downwards to increase the volume.

6. Slide the ear control 1 downwards to increase the brightness of the night light.

7. Insert the USB connector into the port (10) to 󰘵art playing music from your USB device

(maximum memory capacity supported: 32 GB).

8. Switch for resetting the device and Bluetooth Security mode (11). The switch has 3

positions: - Push it to the left to deactivate Bluetooth mode. - Place it in the centre to activate Bluetooth mode and to show green on the left of the switch. - Place it to the right if the device freezes or to force the Bluetooth connection. The switch will automatically return to its initial position.

9. Brie󰘱y press the ON/OFF button (3) to switch o󰘯 the Bluetooth speaker. A brief sound

signal will indicate that speaker has switched o󰘯. Timer functions Brie󰘱y press the Timer button (7) at the rear of the device to activate the Timer function. Once the timer has been 󰘵arted, the night light will set to a default of 20% brightness, and the music will switch o󰘯 once the set time has passed. NB: The timer only works if the speaker's power supply is switched on. The button 7 has an LED indicator light, which indicates the timer 󰘵atus.

• 1 press - Green illuminated LED indicator - 15-minute timer

• 2 presses - White illuminated LED indicator - 30-minute timer

• 3 presses - Red illuminated LED indicator - 60-minute timer Please note that the user mu󰘵 manually reposition the light switch back in its initial position (vertical) to reset the light's settings. Product technical specifications Type Technical speci󰄈cations Type Technical speci󰄈cations Bluetooth version

5.3 Charging time 4 hours

3 to 4 hours at 100% volume. 6 to 7 hours at 50% volume Speaker power 3 W Light supply 2 W Power supply USB 5 V / 1 A Battery type Lithium-ion battery Battery power

Battery capacity 1,200 mAh EIRP (Equivalent, Isotropically Radiated Power)

4.94 dBm Dimensions 265 x 235 x 199 mm- EN 15 -

NB: The maximum connection di󰄋ance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection. The device may turn o󰓐 in an environment with electro󰄋atic discharge. The user mu󰄋 then recharge the battery and reset the device. If the buttons do not respond, press the ON/OFF button for 5 seconds to turn o󰘯 the device. If the device does not turn o󰘯, ju󰘵 wait for it to turn o󰘯 automatically. This device does not work with hubs, adapters, etc. The USB 󰘵ick should be inserted directly into the USB reader. Environmental protection Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused. Attention should be drawn to the environmental aspects of battery disposal. When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please 󰘰nd out about the local sorting and collection sy󰘵em for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household wa󰘵e. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health. Additional information

• When the device does not transmit audio output for a certain amount of time, it will automatically go into 󰘵andby mode to save energy. It can be switched ON by using the POWER selector again.

, the mark and logo are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.

• This product is manufactured and sold under the responsibility of Bigben Interactive.

• All other products, services, corporate names, trademarks, trade names, product names and logos referenced herein are the property of their respective owners. Declaration of conformity

• Bigben Interactive hereby declares that the BTKIDS radio equipment conforms with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/- EN 16 - Warranty This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which o󰘯er a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use. Support www.bigben-interactive.co.uk/support support@bigben.fr Made in China Manufactured by BIGBEN INTERACTIVE SA 396, Rue de la Voyette CRT2 – FRETIN CS 90414 59814 LESQUIN Cedex - France www.bigben.eu
