Technical Specifications	Details
Product Type	LED Projector
Color Temperature	3200K
Luminous Flux	2000 lumens
Beam Angle	25B0
Control	DMX, standalone mode
Connectivity	3-pin DMX input/output
Dimensions	320 x 210 x 170 mm
Weight	3.5 kg
Recommended Use	Events, theaters, concerts
Maintenance	Regular lens cleaning, connection checks
Safety	Do not expose to water, use on stable surfaces
General Information	Compatible with DMX systems, ideal for stage productions

Frequently Asked Questions - Ovation FD205WW Chauvet

How can I turn on the Chauvet Ovation FD205WW?

Make sure the projector is properly connected to a power source and use the control panel to turn on the device.

What should I do if the projector does not turn on?

First check if the power cable is properly connected, then check if the outlet breaker is activated. If the problem persists, contact technical support.

How do I adjust the color temperature on the Chauvet Ovation FD205WW?

Use the control panel menu to navigate to the color temperature settings and adjust them as needed.

The projector is making a strange noise, what should I do?

Check if the fan is working properly and if the device is not obstructed by debris. If the noise persists, it is recommended to contact a professional.

How do I update the firmware of the Chauvet Ovation FD205WW?

Download the latest firmware version from the Chauvet website, then follow the provided instructions to perform the update via the USB port.

What is the maximum power of the Chauvet Ovation FD205WW?

The Chauvet Ovation FD205WW has a maximum power of 200 W.

How do I clean the projector lenses?

Use a soft, lint-free cloth, slightly dampened with a lens cleaner, to gently wipe the lenses.

The projector does not respond to the remote control, what should I do?

Check that the remote control batteries are charged and that you are within range of the device. If the problem persists, try resetting the projector.

Is it possible to mount the Chauvet Ovation FD205WW on a stand?

Yes, the Chauvet Ovation FD205WW can be mounted on a stand, make sure to use a compatible stand and follow the mounting instructions.

Where can I find the user manual for the Chauvet Ovation FD205WW?

The user manual is available for download on the official Chauvet website in the support section.

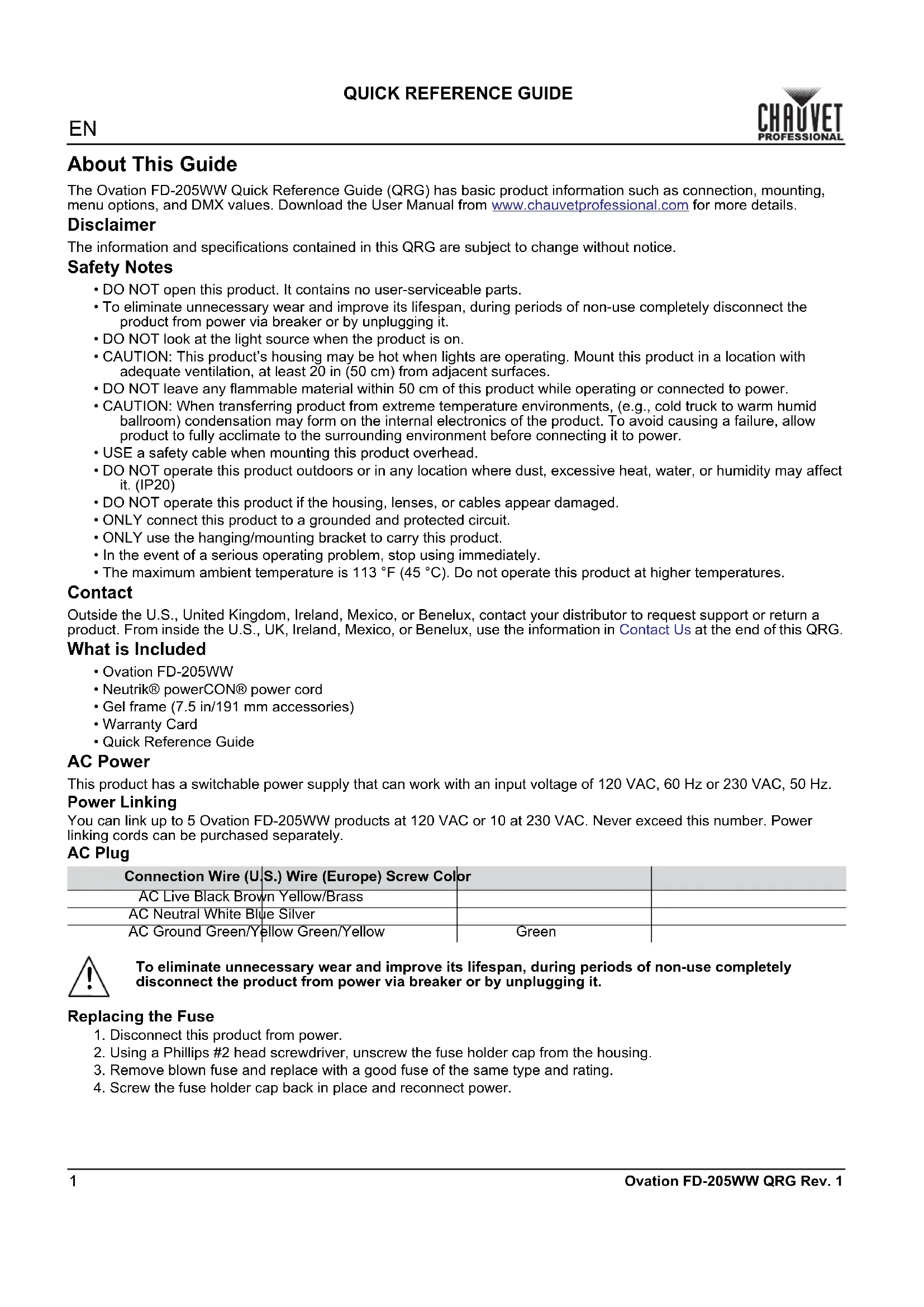

USER MANUAL Ovation FD205WW Chauvet

The Ovation FD-205WW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
  DO NOT look at the light source when the product is on.
• CAUTION: This product's housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• DO NOT leave any flammable material within 50~cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
  DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
• The maximum ambient temperature is 113^ (45^) . Do not operate this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. From inside the U.S., UK, Ireland, Mexico, or Benelux, use the information in Contact Us at the end of this QRG.

What is Included

Ovation FD-205WW
- Neutrik® powerCON® power cord
Gel frame (7.5 in/191 mm accessories)
Warranty Card
- Quick Reference Guide

AC Power

This product has a switchable power supply that can work with an input voltage of 120 VAC, 60 Hz or 230 VAC, 50 Hz.

Power Linking

You can link up to 5 Ovation FD-205WW products at 120 VAC or 10 at 230 VAC. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection Wire (U.S.) Wire (Europe) Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow	Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation FD-205WW will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation FD-205WW uses a 3- or 5-pin DMX data connection for its DMX personalities: UNO, DOS and STD.P. See the User Manual for information about connecting and configuring the product for DMX operation.

Master Control

The Ovation FD-205WW allows control of other Ovation FD-205WW products using a regular DMX data connection. See the User Manual to configure for Master Control operation.

Master/Slave Connection

The Ovation FD-205WW uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation FD-205WW supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Dimmer/Zoom Control

The Ovation FD-205WW may be plugged into and controlled using a regular dimmer. In this mode, the product reacts exactly like an incandescent product; however, the motorized zoom control on the control panel needs enough power from the dimmer to run the motor. See the User Manual to configure Dimmer/Zoom Control operation.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

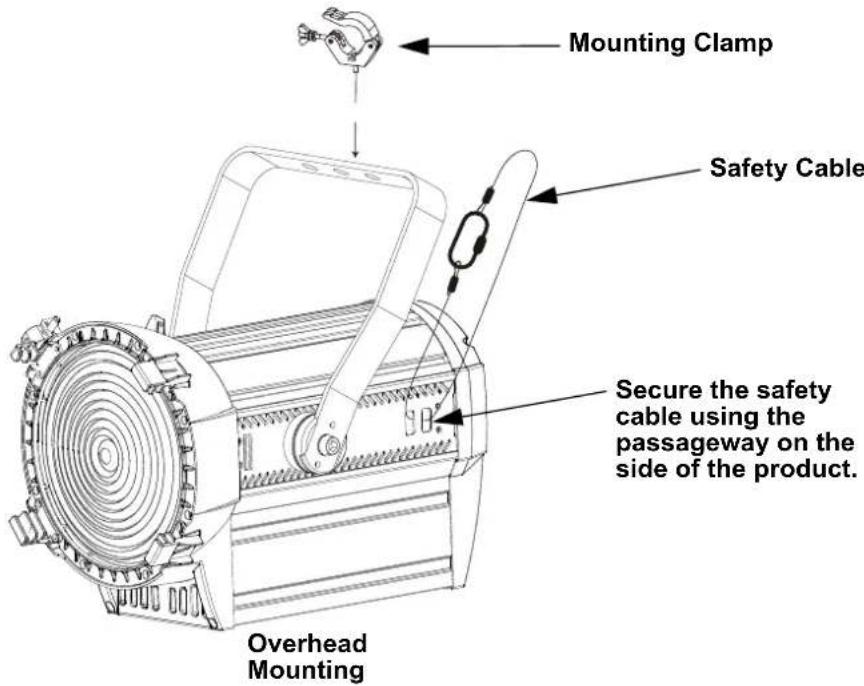

Product Mounting Diagram

Control Panel Description

Button Function
<MENU> Exits from the current menu or function
<ENTER>	Enables the currently displayed menu or sets the currently selected value into the selected function
<UP>	Navigates upwards through the menu list or increases the numeric value when in a function
<DOWN>	Navigates downwards through the menu list or decreases the numeric value when in a function
<DIM>	Press 2 times rapidly to access the dimmer function. Use knob to adjust dimmer intensity.

Press 2 times rapidly to access the zoom function. Use knob to adjust the zoom.

Passcode

After being prompted, enter the following passcode by pressing:

,,,,

This passcode cannot be changed and must be used whenever prompted.

Menu Map

Main Level Programming Levels Description
STATIC	DIMMER	0-100 of zoom lens	Local control of output
	ZOOM Local control
RUN MODE	DMX Sets the mode to DMX control
	SLAVE Sets the mode to master/ slave
	DMMR		Sets the mode to dimmer control, which turns off data input
	SENS		Automatically chooses between DMMR and DMX
POWER MODE	575W		Matches output to 575W incandescent fixture
	750W		Matches output to 750W incandescent fixture
ADDRESS 001	-512 Sets the starting address
MOTOR	YES		Resetset the Zoom Motor
	NO
SETTING	KEY	ON	Sets the key lock (Passcode mode)
		OFF
	DIMMER	OFF No dimmer
		DIM1	Slow (DIM4) to fast (DIM1) dimmer speeds
		DIM2
		DIM3
		DIM4
	CURVE	OFF No dimmer
		CURVE1	Large (CURVE3) to small (CURVE1) dimmer curves
		CURVE2
		CURVE3
	PERSONALITY	UNO	Selects DMX personalityDOS
		STD.P
	SLOCK	ON	SETTING menu level access lock
		OFF
	DMX ERROR	SAVE	Continues with last command upon loss of DMX control
		BLACK Blacks	out fixture upon loss of DMX

Main Level	Programming Levels				Description
SETTING	RESET		****(Enter Passcode)		Reset fixture to factory defaults
	ZOOM		BASE		Sets default zoom position(full movement)
			POSE1 Sets position 1 setting for zoom limit
			POSE2 Sets position 2 setting for zoom limit
	PERFORM		LIVE		Balances LED cooling using fans and output power level
			STUDIO		Maintains LED cooling by limiting output power level
	MODE SETTING		SELF		No DMX data is sent in standalone operation
			MAST		Sends DMX data to other Ovation FD-205WW during standalone operation
	PWM		600HZ		PWM Selection
			1200HZ
			2000HZ
			2400HZ
			6000HZ
			18000HZ
			25000HZ
CALIBRATION	*****(Enter Passcode)	CALZ	POSE1	0-255 Sets min/max position of zoom
			POSE2
INFO	VERSION V** Software Version Number
	RDM	UID Unique Identification Code
		LABEL Product Model

DMX Values

STD.P

Channel Function Value Percent/Setting
1 Dimmer 000 ≈ 255 0-100%
2 Fine Dimmer 000 ≈ 255	Fine control (16-bit)
3 Shutter		000 ≈ 009	No function
		010 ≈ 099	Slow to fast
		100 ≈ 109	No function
		110 ≈ 179	Lightning effect from slow to fast
		180 ≈ 189	No function
		190 ≈ 255	Random effect from slow to fast
4	Zoom 000 ≈ 255 Narrow-wide
5	Zoom Motor Reset	000 ≈ 200	No function
		201 ≈ 220	Zoom motor reset
		221 ≈ 255	No function

DOS

Channel Function Value	Percent/Setting
1 Dimmer 000 ≈ 255 0-100%
2 Fine Dimmer 000 ≈ 255 Fine control (16-bit)

UNO

Channel Function Value	Percent/Setting
1 Dimmer 000 ≈ 255 0-100%
