About This Guide

The Ovation P-56UV Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• ULTRAVIOLET LIGHT! DO NOT look at the light source when the product is on. Wear proper eye and skin protection.
• Do not view the beam directly with optical instruments such as magnifiers, telescopes, binoculars or similar optical instruments that may concentrate the light output.
• Ensure no one is accidentally exposed to the light beam from short distances.
• CAUTION: This product's housing may be hot when lights are operating.
• Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Visit Contact Us at the end of this QRG for contact information.

What is Included

• Ovation P-56UV
  • Gel frame holder (7.5 in/191 mm accessories)

• Neutrik® powerCON® power cord

• Wide lenses

• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

You can link up to 13 Ovation P-56UV products at 120 V, 21 products at 208 V, or 23 products at 230 V. Never exceed this number. Power-linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow		Green

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing The Fuse

1. Disconnect this product from power.
2. Using a flat-head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power

DMX Linking

The Ovation P-56UV will work with a DMX controller using a 3- or 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation P-56UV uses a 3- or 5-pin DMX data connection for its DMX personalities: 1 Ch, 2 Ch, 3 Ch, and 6 Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

Master/Slave Connection

The Ovation P-56UV uses the DMX data connection for its master/slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The Ovation P-56UV supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

Product Mounting Diagram

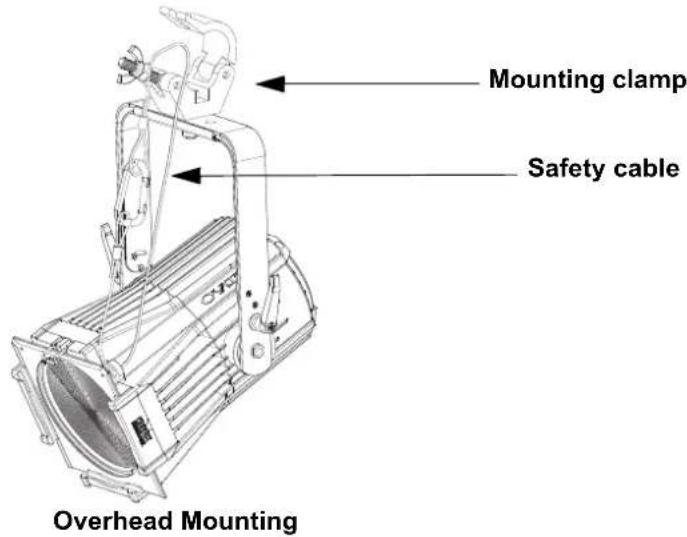

Mounting clamp Safety cable Overhead Mounting

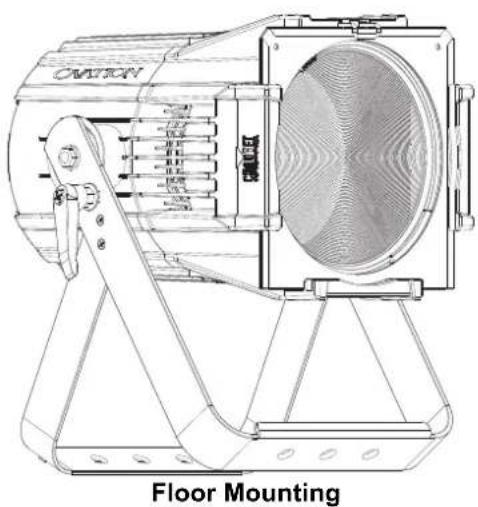

OMYON Floor Mounting

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Menu Map

Main Level Programming Levels Description
DMX Address	001-512*		Selects DMX address (*highest channel restricted to personality chosen)
DMX Channel	1 Ch 1-channel: dimmer
	2 Ch 2-channel: 16-bit dimmer
	3 Ch 3-channel: 16-bit dimmer, strobe
	6 Ch		6-channel: 16-bit dimmer, strobe, auto programs, auto speed, control
Static	Dimmer	000-255	Controls intensity
	Strobe Controls strobe rate
Auto Show	Auto 1	001-100	Selects automatic programs and auto program speed
	Auto 2
	Auto 3
Master/Slave	Master DMX mode (Master)
	Slave Slave mode
Dimmer Curve	S-Curve		Sets the dimmer curve
	Linear
	Square
	Inverse Square
Dimmer Mode	Off Linear dimmer
	Dimmer 1-3		Dimming curves Dimmer 1 (fast) to Dimmer 3 (slow)
LED Frequency	600Hz		Sets the PWM frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25KHz
Fan Mode	Auto Sets the fan to auto mode
	On Sets the fan to always on
	Off Sets the fan to always off
	Silent Sets the fan to silent
Back Light	10S		Turns off display backlight after 10 seconds of inactivity
	30S		Turns off display backlight after 30 seconds of inactivity
	2min		Turns off display backlight after 2 minutes of inactivity
	Always On		Display backlight always on
Information	Fixture Hours	____H	Shows total hours the product has been powered on
	LED Hours	____H	Shows total LED hours
	Version	V__	Shows current firmware version
	UID	____	Shows product UID
Factory Reset	No		Resets the product to factory default settings
	Yes

DMX Values

6 Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Dimmer fine	000 ⇔ 255	0–100%
3	S t r o	000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast
4 Auto programs		000 ⇔ 010 No function011 ⇔ 085 Auto program 1086 ⇔ 170 Auto program 2171 ⇔ 255 Auto program 3
5 Auto speed 000 ⇔ 255 0–100%
6	Control(hold for 3 seconds,then release)	000 ⇔ 007 No function008 ⇔ 015 Dimmer reset016 ⇔ 023 Dimmer: S-Curve024 ⇔ 031 Dimmer: linear032 ⇔ 039 Dimmer: square040 ⇔ 047 Dimmer: inverted square048 ⇔ 055 Dimmer speed mode off056 ⇔ 063 Dimmer speed mode 1064 ⇔ 071 Dimmer speed mode 2072 ⇔ 079 Dimmer speed mode 3080 ⇔ 087 Fan auto088 ⇔ 095 Fan on096 ⇔ 103 Fan off104 ⇔ 111 Fan silent112 ⇔ 255 No function (reserved)

3 Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Dimmer fine	000 ⇔ 255	0–100%
3	S t r o	000 ⇔ 010 No function011 ⇔ 255 Strobe, slow to fast

2 Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%
2	Dimmer Fine	000 ⇔ 255	0–100%

1 Ch

Channel Function Value Percent/Setting
1 Dimmer 000 ⇔ 255 0–100%

Acerca de Esta Guía

RDM (Remote Device Management)

Technical line drawing of a circular industrial lamp or reflector device with no visible text or symbols

Bodenmontage

Technical line drawing of a cylindrical industrial fan or impact absorber with mounting bracket (no text or symbols)

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Outside the U.S., U.K., Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record. Follow the instructions to request support or to return a product. Visit our website for contact details.
