USER MANUAL Ovation F-95WW Chauvet

Technical line drawing of a mechanical device with no visible text or symbols

About this Guide

The Ovation™ F-95WW Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

Safety Notes

• DO NOT open this product. It contains no user-serviceable parts.
• DO NOT look at the light source when the product is on.
- To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
- CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
- CAUTION: This product's housing may be hot when lights are operating.
- Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
- DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it.
- DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
- The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

Contact

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact your distributor to request support or return a product. Visit http://www.chauvetprofessional.com/ for contact information.

What Is Included

• Ovation™ F-95WW

- Neutrik® powerCON® power cord

- Quick Reference Guide

• Gel frame (6.25 in/159 mm accessories)

- Warranty card

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

You can link up to 15 Ovation™ F-95WW products at 120 VAC or 28 at 230 VAC. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live	Black	Brown	Yellow/Brass
AC Neutral	White	Blue	Silver
AC Ground	Green/Yellow	Green/Yellow	Green

Replacing the Fuse

1. Disconnect this product from power.

2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.

3. Remove blown fuse and replace with a good fuse of the same type and rating.

4. Screw the fuse holder cap back in place and reconnect power.

DMX Linking

The Ovation™ F-95WW will work with a DMX controller using a regular DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The Ovation ^™ F-95WW uses a regular DMX data connection for its DMX personalities: UNO, DOS, and STD.P. See the User Manual to connect and configure for DMX operation.

For optimum control of the 16-bit dimming channels in the TR16 personality, be sure that both dimming curves in SET > DIMX and SET > CURV are set to OFF.

Master Control

The Ovation ^TM F-95WW allows control of other Ovation ^TM F-95WW products using a regular DMX data connection. See the User Manual to configure for Master Control operation.

Master/Slave Connection

The Ovation ^™ F-95WW uses the DMX data connection for its Master/Slave mode. See the User Manual to connect and configure for Master/Slave operation.

Mounting

Before mounting this product, read the Safety Notes. Make sure the mounting clamp is capable of supporting the weight of the product. For ou Chauvet line of mounting clamps, go to trusst.com/productcategory/base-plates-accessories-clamps/.

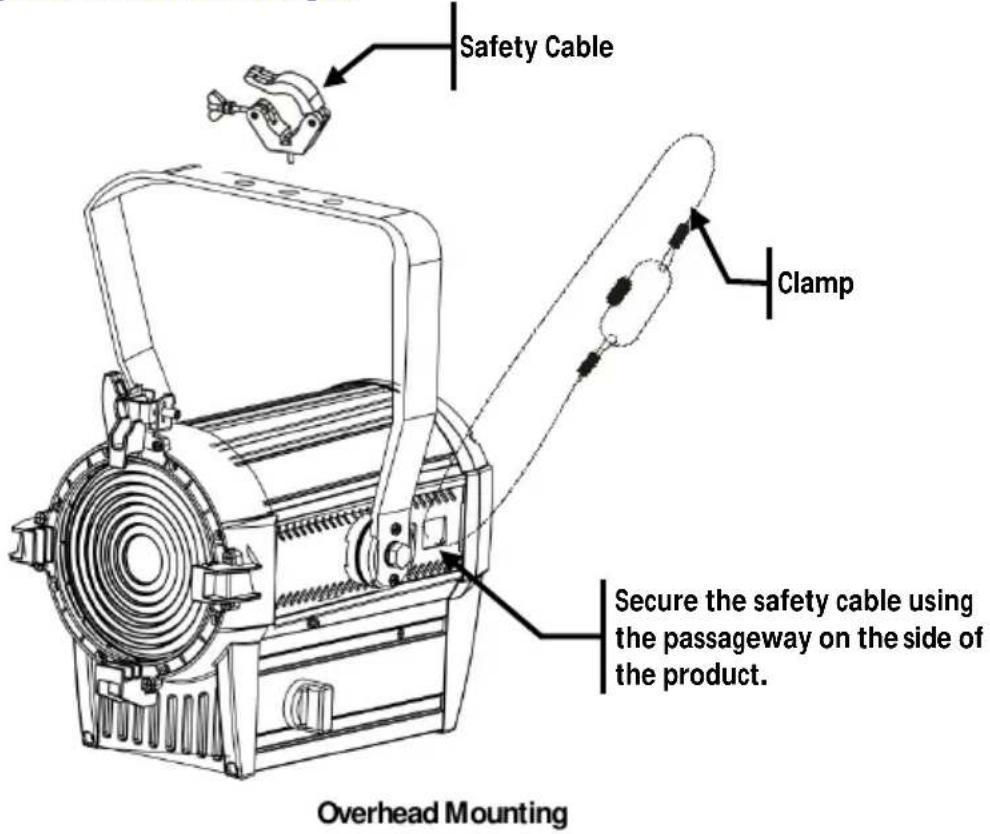

Product Mounting Diagram

Safety Cable Clamp Secure the safety cable using the passageway on the side of the product. Overhead Mounting

Control Panel Description

Button/Knob	Function
	Exits from the current menu or function.
	Enables the currently displayed menu or sets the currently selected value into the selected function.
	Navigates upwards through the menu list and increases the numeric value when in a function.
	Navigates downwards through the menu list and decreases the numeric value when in a function.
	Press 2 times rapidly to access the dimmer function. Use knob to adjust dimmer intensity.
	Located on each side of the product. Use these knobs to adjust the zoom.

Passcode

After being prompted, enter the following passcode by pressing:

, , , ,

This passcode cannot be changed and must be used whenever prompted.

Menu Options

Main Level	Programming Levels				Description
STAT	DIM		000-100		Local control of output
RUN	DMX				Sets the mode to Master/Slave
	SLAV
ADDR	D.001-D.512				Sets the starting address
SET	KEY		OFF		Sets the key lock (passcode mode)
			ON
	DIMX		OFF		Slow (DIM4) to fast (DIM1) dimmer speeds
			DIM1
			DIM2
			DIM3
			DIM4
	CURV		CV1		Large (CV3) to small (CV1) dimmer curves
			CV2
			CV3
			OFF
	REST	****(Enter Passcode)	REST	OK	Resets fixture to factory defaults
	PERS		UNO		Selects DMX personality
			DOS
			STD.P
	SLCK		OFF		SET menu level access lock
			ON
	DERR		BLAK		Blacks out fixture upon loss of DMX
			SAVE		Continues with last command upon loss of DMX control
	PERF		LIVE		Balances LED cooling using fans and output power level
			STDO		Maintains LED cooling by limiting output power level
			POWR		Maintains LED cooling using fans allowing full power output
	MCON		SELF		No DMX data is sent in standalone operation
			MAST		Sends DMX data to other OvationTM F-95WW during standalone operation

DMX Values

UNO	Channel	Function	Value	Percent/Setting
	1	Dimmer	000 Ü 255	0-.100%

DOS	Channel	Function	Value	Percent/Setting
	1	Dimmer	000 255	0–100%
	2	Dimmer Fine	000 255	0–100%

STD.P	Channel	Function	Value	Percent/Setting
	1	Dimmer	000 Ü 255	0–100%
	2	Dimmer Fine	000 Ü 255	0–100%
	3 Strobe		000 Ü 009	No function
			010 Ü 099	Strobe (slow to fast)
			100 Ü 109	No function
			110 Ü 179	Lighting effect
			180 Ü 189	No function
			190 Ü 255	Random strobe

Acerca de Esta Guía

Address:5200 NW 108th Avenue

Sunrise, FL 33351

Voice: [phone]

Fax: [phone]

Toll free:[phone]

Technical Support

Voice: [phone] (Press 4)

Fax: [phone]

Email: [e-mail]

World Wide Web

www.chauvetlighting.com

UNITED KINGDOM AND IRELAND - Chauvet Europe Ltd.

General Information

Address:Unit 1C

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK

NG16 6NT

Voice: [phone]

Fax: [phone]

Technical Support

Email: [e-mail]

World Wide Web

www.chauvetlighting.co.uk

MEXICO - Chauvet Mexico

General Information

Address:Av. Santa Ana 30

Parque Industrial Lerma

Lerma, Mexico C.P. 52000

Voice: [phone]

Technical Support

Email: [e-mail]

World Wide Web www.chauvet.com.mx

CHAUVET EUROPE - Chauvet Europe BVBA

General Information

Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux, contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details.

RoHS UL 1573 CSA C22.2 No. 166 E113093
