USER MANUAL Ovation SP-300CW Chauvet

Technical line drawing of a cylindrical mechanical device with attached clamps and mounting brackets (no text or symbols)

About This Guide

The Ovation SP-300CW Quick Reference Guide (QRG) has basic product information such as connection and mounting. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration.

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in, and subject to the exclusions and limitations set forth in the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• DO NOT look at the light source when the product is on.
• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• CAUTION: When transferring product from extreme temperature environments, (e.g. cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• CAUTION: This product's housing may be hot when lights are operating.
  • Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• USE a safety cable when mounting this product overhead.
• DO NOT operate this product outdoors or in any location where dust, excessive heat, water, or humidity may affect it. (IP20)
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket or the handles to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F ( 45 °C ). Do not operate this product at higher temperatures.

FCC Compliance

This device complies with Part 15 Part B of the FCC Rules. Operations is subject to the following two conditions:

1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Contact

Outside the US, UK, Ireland, Benelux, France, Germany, or Mexico, contact your distributor to request support or return a product. Refer to Contact Us at the end of this QRG for contact information.

What is Included

• Ovation SP-300CW
• Seetronic Powerkon power cord

• Tripod stand

• Starter pack of gels

• Quick Reference Guide

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow Green/Yellow		Green

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.

Replacing the Fuse

1. Disconnect this product from power.
2. Using a Phillips #2 head screwdriver, unscrew the fuse holder cap from the housing.
3. Remove blown fuse and replace with a good fuse of the same type and rating.
4. Screw the fuse holder cap back in place and reconnect power.

Mounting

The Ovation SP-300CW comes with an adjustable tripod stand. Before mounting this product, read the Safety Notes.

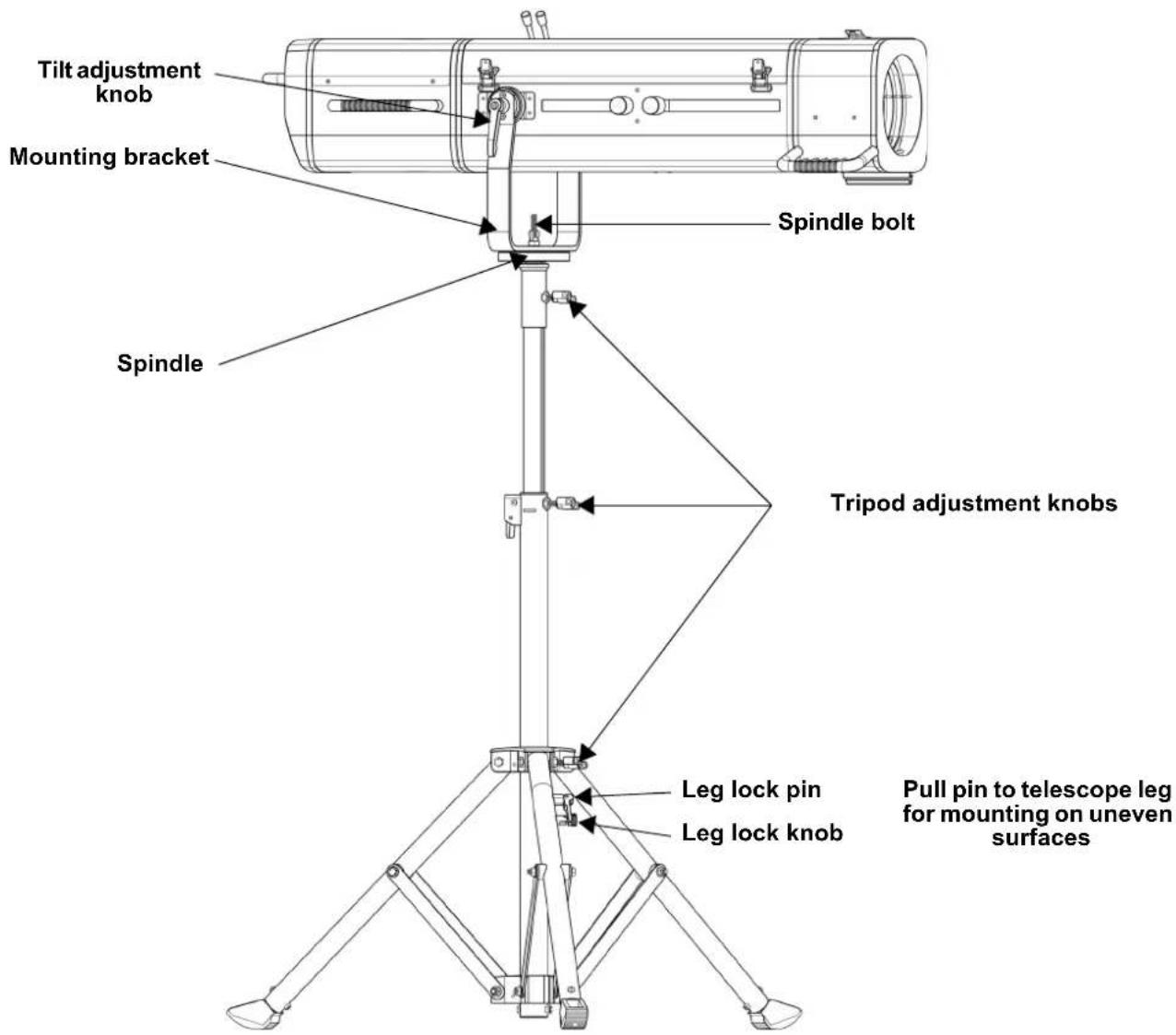

Mounting Diagram

Tilt adjustment knob Mounting bracket Spindle Spindle bolt Tripod adjustment knobs Leg lock pin Leg lock knob Pull pin to telescope leg for mounting on uneven surfaces

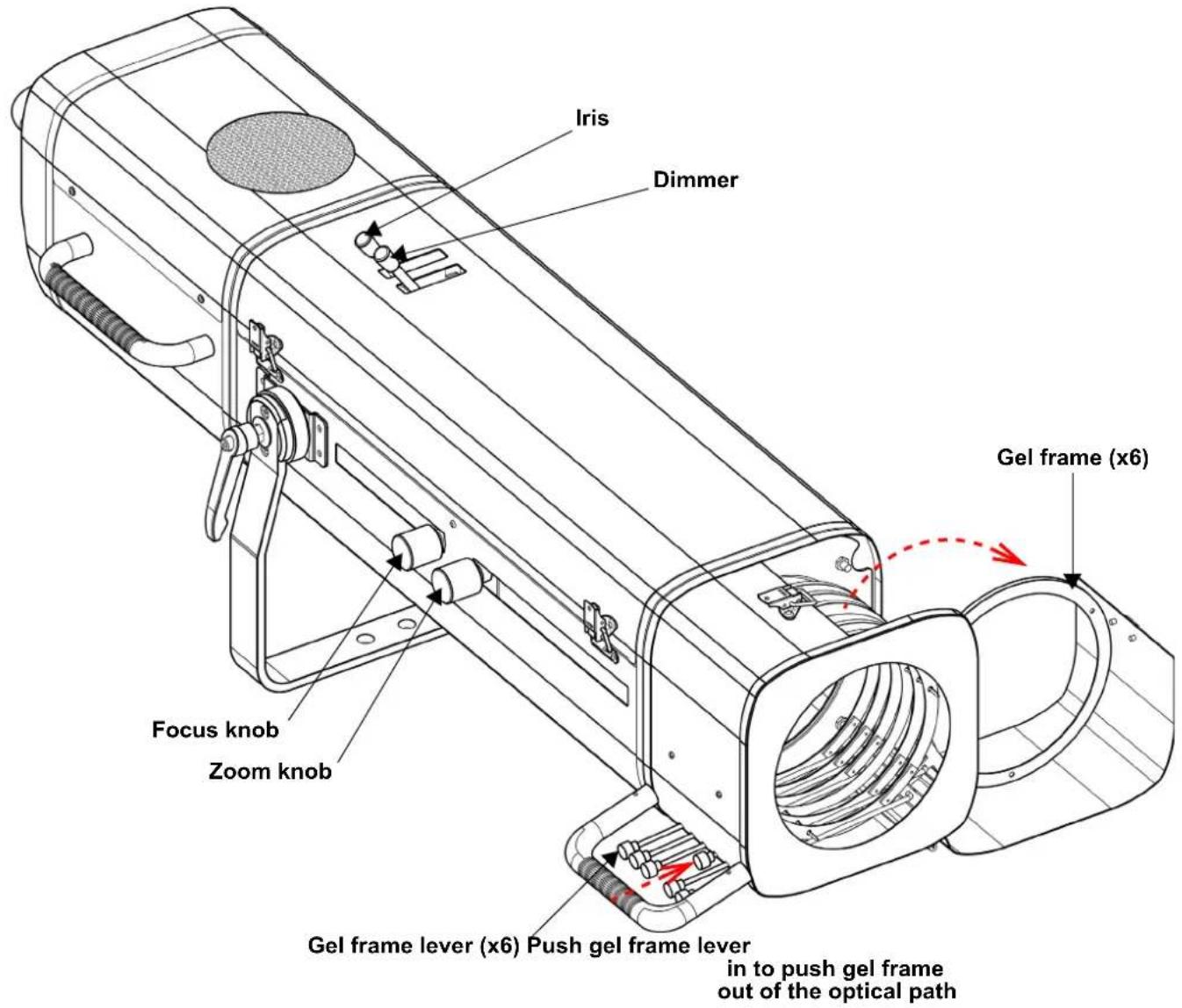

Operation

The Ovation SP-300CW has a 24-leaf full blackout iris, a manual linear dimmer, focus and zoom knobs, and 6 gel frames (gels not included).

Iris Dimmer Gel frame (x6) Focus knob Zoom knob Gel frame lever (x6) Push gel frame lever in to push gel frame out of the optical path

Product Maintenance

To maintain optimum performance and minimize wear, clean this product frequently. Usage and environment are contributing factors in determining the cleaning frequency.

As a rule, clean this product at least twice a month. Dust build-up reduces light output performance and can cause overheating. This can lead to reduced light source life and increased mechanical wear.

Cleaning the Ovation SP-300CW:

1. Unplug the product.
2. Wait until the product is at room temperature.
3. Use a vacuum (or dry compressed air) and a soft brush to remove dust collected on the external vents and accessible internal components.
4. Clean all external surfaces with a mild solution of non-ammonia glass cleaner or isopropyl alcohol.
5. Open barrel latches to gain access to focus and zoom lenses.
6. Apply a solution directly to a soft, lint-free cotton cloth or a lens cleaning tissue.

Wipe any dirt or grime to the outside edge of the surface. Gently polish the surfaces with the lint-free cotton cloth or lens cleaning tissue until they are free of haze and lint. Always dry the external surfaces carefully after cleaning them.

Expected LED Lifespan

Over time, use and heat will gradually reduce LED brightness. Clustered LEDs produce more heat than single LEDs, contributing to shorter lifespans if always used at full intensity. The average LED lifespan is 40,000 to 50,000 hours. To extend LED lifespan, maintain proper ventilation around the product, and limit the overall intensity.

Return Policy and Procedure

You must send the merchandise prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags.

Refer to the Contact Us section in this guide for addresses and phone numbers.

To submit a service request online, go to www.chauvetprofessional.com/service-request.

Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. When calling, be prepared to provide the model number, serial number, and a brief description of the reason for the return.

Once you have received the RMA number, include the following information on a piece of paper inside the box:

• Your name
• Your address
• Your phone number
• RMA number
  • A brief description of the problem

Clearly label the package with the RMA number that was provided to you.

Chauvet will refuse any product returned without an RMA number. Write the RMA number on a properly affixed label. DO NOT write the RMA number directly on the box.

Submitting a Claim

If the container or material inside the container (product and included accessories) appears damaged from shipping or shows signs of mishandling, notify the carrier immediately upon receipt - not Chauvet. Failure to notify the carrier in a timely manner may invalidate your claim. In addition, keep the container and all the packing material for inspection.

For other issues such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with Chauvet within seven days of receiving the merchandise.

Be sure the product is packed securely. Any shipping damage resulting from inadequate packaging will be the customer's responsibility. As a suggestion, proper FedEx packing or double-boxing is the preferred method Chauvet recommends.

Chauvet reserves the right to use its own discretion to repair or replace returned product(s).

Technical Specifications

Dimensions and Weight

Length Width Height Weight

44.7 in (1,137 mm) 13.9 in (354 mm) 15.8 in (403 mm) 52.8 lb (24 kg)

Note: Dimensions in inches are rounded.

Power

Power Supply Type Range Voltage Selection
Switching (internal) 100 to 240 VAC, 50/60 Hz Auto-ranging
Parameter	120 V, 60 Hz	208 V, 60 Hz	230 V, 50 Hz
Consumption 207 W	211 W	211 W
Operation current	1.69 A	1.02 A	0.92 A
Power I/O	U.S./Worldwide		UK/Europe
Power input connector	Seetronic Powerkon		Seetronic Powerkon
Power cord plug	Edison (U.S.)		Local plug

Light Source

Type	Color	Quantity	Power	Current	Lifespan
LED	White	1	260 W	3.6 A	50,000 hours
Photometrics
Color Temperature	Beam Angle	Field Angle	Zoom Range	Illuminance (9°)	Illuminance (17°)
5,640 K (at full)	9° to 13°	9° to 17°	9° to 17°	15,400 lux @ 5 m	7,070 lux @ 5 m

Thermal

Maximum External Temp.	Cooling
113 °F (45 °C)	Fan-assisted convection
Ordering
Product Name	Item Name	Item Code	UPC Number
Ovation SP-300CW	OVATIONSP300CW	01041452	781462218003

Photometrics Charts

	Narrow (9°)		Ovation SP-300CW (Imperial)		Wide (13°)
Distance	Beam Diameter	Field Diameter	Footcandle	Footcandle	Beam Diameter	Field Diameter
15 ft 2.3	6 ft 2.36 ft	1,711 786	3.42 ft 4.48 ft
20 ft 3.1	5 ft 3.15 ft	963 442 4.56 ft	5.98 ft
30 ft 4.7	2 ft 4.72 ft	428 196 6.84 ft	8.97 ft
40 ft 6.3	0 ft 6.30 ft	241 110 9.11 ft	11.96 ft
50 ft	7.87 ft	7.87 ft	154	71	11.39 ft	14.95 ft
75 ft	11.81 ft	11.81 ft	68	31	17.09 ft	22.42 ft
100 ft	15.74 ft	15.74 ft	39	18	22.79 ft	29.89 ft
125 ft	19.68 ft	19.68 ft	25	11	28.48 ft	37.36 ft
150 ft	23.61 ft	23.61 ft	17	8	34.18 ft	44.84 ft

	Narrow (9°)		Ovation SP-300CW (Metric)		Wide (13°)
Distance	Beam Diameter	Field Diameter	Lux	Lux	Beam Diameter	Field Diameter
1 m	0.16 m	0.16 m	385,000	176,750	0.23 m	0.30 m
2 m	0.31 m	0.31 m	96,250	44,188	0.46 m	0.60 m
5 m	0.79 m	0.79 m	15,400	7,070	1.14 m	1.49 m
8 m	1.26 m	1.26 m	6,016	2,762	1.82 m	2.39 m
10 m	1.57 m	1.57 m	3,850	1,768	2.28 m	2.99 m
15 m	2.36 m	2.36 m	1,711	786	3.42 m	4.48 m
20 m	3.15 m	3.15 m	963	442	4.56 m	5.98 m
25 m	3.94 m	3.94 m	616	283	5.70 m	7.47 m
30 m	4.72 m	4.72 m	428	196	6.84 m	8.97 m

Acerca de esta Guía

Champ Faisceau Champ

Champ Faisceau Champ

	Étroit (9°)		Ovation SP-300CW (Métrique)		Large (13°)
Distance	Diamètre du faisceau	Diamètre du champ	Lux	Lux	Diamètre du faisceau	Diamètre du champ
1 m	0,16 m	0,16 m	385,000	176,750	0,23 m	0,30 m
2 m	0,31 m	0,31 m	96,250	44,188	0,46 m	0,60 m
5 m	0,79 m	0,79 m	15,400	7,070	1,14 m	1,49 m
8 m	1,26 m	1,26 m	6,016	2,762	1,82 m	2,39 m
10 m	1,57 m	1,57 m	3,850	1,768	2,28 m	2,99 m
15 m	2,36 m	2,36 m	1,711	786	3,42 m	4,48 m
20 m	3,15 m	3,15 m	963	442	4,56 m	5,98 m
25 m	3,94 m	3,94 m	616	283	5,70 m	7,47 m
30 m	4,72 m	4,72 m	428	196	6,84 m	8,97 m

Champ Faisceau Champ

General Information Technical Support

Chauvet World Headquarters

Address: 5200 NW 108th Ave. Voice: [phone]

Sunrise, FL 33351 Fax: [phone]

Voice: [phone] Email: [e-mail]

Fax: [phone]

Toll Free: [phone] Website: www.chauvetprofessional.com

Chauvet Europe Ltd.

Address: Unit 1C Email: [e-mail]

Brookhill Road Industrial Estate

Pinxton, Nottingham, UK Website: www.chauvetprofessional.eu

NG16 6NT

Voice: [phone]

Fax: [phone]

Chauvet Europe BVBA

Address: Stokstraat 18 Email: [e-mail]

9770 Kruishoutem

Belgium Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet France

Address: 3, Rue Ampère

91380 Chilly-Mazarin

Email: [e-mail]

France Website: www.chauvetprofessional.eu

Voice: [phone]

Chauvet Germany

(Entrance by Calle 2)

Zona Industrial Lerma Website: www.chauvetprofessional.mx

Visit the applicable website above to verify our contact information and instructions to request support. Outside the US, UK, Ireland, Benelux, France, Germany, or Mexico, contact the dealer of record.

UL 1573

CSA C22.2 No. 166

E113093

FC CE

RoHS
