About This Guide

The COLORdash Par-H7 IP Quick Reference Guide (QRG) has basic product information such as connection, mounting, menu options, and DMX values. Download the User Manual from www.chauvetprofessional.com for more details.

Disclaimer

The information and specifications contained in this QRG are subject to change without notice.

LIMITED WARRANTY

FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE. For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes

These Safety Notes include important information about installation, use, and maintenance.

• The luminaire should be positioned so that prolonged staring into the luminaire at a distance closer than 2.9 m is not expected.
• If the external flexible cable or cord of this luminaire is damaged, it shall be replaced by a special cord or cord exclusively available from the manufacturer or his service agent.
• The light source contained in this luminaire shall only be replaced by the manufacturer or his service agent or a similar qualified person.
• The luminaire is intended for professional use only.
• DO NOT open this product. It contains no user-serviceable parts.
  • To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• DO NOT look at the light source when the product is on.
• CAUTION: This product's housing may be hot when lights are operating. Mount this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
  • DO NOT leave any flammable material within 50 cm of this product while operating or connected to power.
• CAUTION: When transferring product from extreme temperature environments, (e.g., cold truck to warm humid ballroom) condensation may form on the internal electronics of the product. To avoid causing a failure, allow product to fully acclimate to the surrounding environment before connecting it to power.
• The product is not intended for permanent installation.

• Not for permanent outdoor installation in locations with extreme environmental conditions. This includes, but is not limited to:

• Exposure to a marine/saline environment (within 3 miles of a saltwater body of water).

• Where the normal high or low temperatures of the location exceed the temperature ranges in this manual.
• Locations that are prone to flooding or being buried in snow.
  • Other areas where the product will be subject to extreme radiation or caustic substances.

- USE a safety cable when mounting this product overhead.

• DO NOT submerge this product (IP65). Temporary outdoor operation is fine.
• DO NOT operate this product if the housing, lenses, or cables appear damaged.
• DO NOT connect this product to a dimmer or rheostat.
• ONLY connect this product to a grounded and protected circuit.
• ONLY use the hanging/mounting bracket to carry this product.
• In the event of a serious operating problem, stop using immediately.
  • The maximum ambient temperature is 113 °F (45 °C). Do not operate this product at higher temperatures.

Contact

Outside the U.S., U.K., Ireland, Mexico, France, Germany, or Benelux, contact your distributor to request support or return a product. From inside the U.S., UK, Ireland, France, Germany, Mexico, or Benelux, use the information in Contact Us at the end of this QRG.

What is Included

• COLORdash Par-H7 IP • Quick Reference Guide
- Seetronic Powerkon IP65 power cord

AC Power

This product has an auto-ranging power supply that can work with an input voltage range of 100–240 VAC, 50/60 Hz.

Power Linking

You can link up to 19 COLORdash Par-H7 IP products at 100 VAC, 23 at 120 VAC, 39 at 208 VAC, 42 at 230 VAC or 44 at 240 VAC. Never exceed this number. Power linking cords can be purchased separately.

AC Plug

Connection	Wire (U.S.)	Wire (Europe)	Screw Color
AC Live Black Brown Yellow/Brass
AC Neutral White Blue Silver
AC Ground Green/Yellow	Green/Yellow	Green

• To eliminate unnecessary wear and improve its lifespan, during periods of non-use completely disconnect the product from power via breaker or by unplugging it.
• When using this product in an outdoor IP65 type environment, be sure to use IP65 (or higher) rated power cables and secure unused ports with attached IP65 covers.

DMX Linking

The COLORdash Par-H7 IP will work with a DMX controller using a 5-pin DMX serial connection. A DMX Primer is available from www.chauvetprofessional.com.

DMX Connection

The COLORdash Par-H7 IP uses a 5-pin DMX data connection for its DMX personalities: 6Ch, 8Ch, and 13Ch. See the User Manual for information about connecting and configuring the product for DMX operation.

When using this product in an outdoor IP65 type environment, be sure to use IP65 (or higher) rated data cables and secure unused ports with attached IP65 covers.

Master/Slave Connection

The COLORdash Par-H7 IP uses the DMX data connection for its Master/Slave mode. See the User Manual for information about how to connect and configure the product for master/slave operation.

RDM (Remote Device Management)

Remote Device Management, or RDM, is a standard for allowing DMX-enabled devices to communicate bi-directionally along existing DMX cabling. Check the DMX controller's User Manual or with the manufacturer as not all DMX controllers have this capability. The COLORdash Par-H7 IP supports RDM protocol that allows feedback to make changes to menu map options. Download the User Manual from www.chauvetprofessional.com for more details.

Mounting

Before mounting this product, read the Safety Notes. Use at least one mounting point per product. Make sure the mounting clamps are capable of supporting the weight of the product. For our Chauvet line of mounting clamps, go to http://trusst.com/productcategory/truss-clamps/

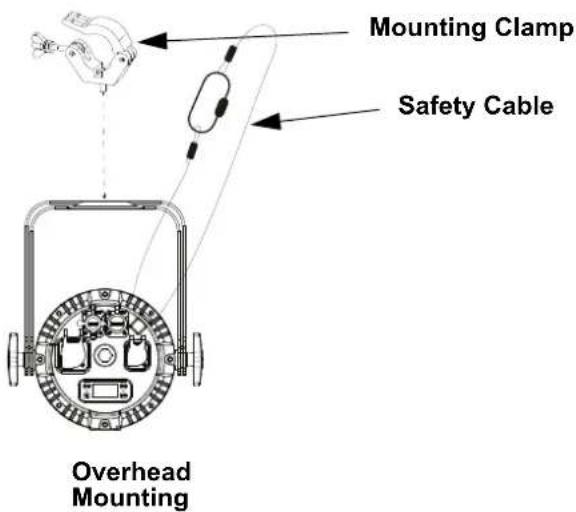

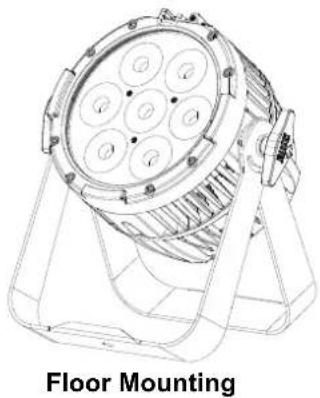

Product Mounting Diagram

Mounting Clamp Safety Cable Overhead Mounting

Line drawing of a floor-mounted industrial lamp or fixture with multiple circular components mounted on a stand (no text or symbols)

Control Panel Description

Button Function
	Exits from the current menu or function
	Enables the currently displayed menu or sets the currently selected value into the selected function
	Navigates upwards through the menu list or increases the numeric value when in a function
	Navigates downwards through the menu list or decreases the numeric value when in a function

Passcode

After being prompted, enter the following passcode by pressing:

, , , ,

This passcode cannot be changed and must be used whenever prompted.

Menu Map

Main Level Programming Levels Description
DMX Address 001-512		Selects DMX address (highest channel restricted to personality chosen)
DMX Channel	6 CH 6-channel: RGBAWP control
	8 CH	8-channel: RGBAWP control, dimmer, and strobe
	13CH	13-channel: RGBWAP control, dimmer, strobe, color macro/white balance, white temperature, auto programs, auto speed, dimmer speed
Main Level	Programming Levels		Description
Static Fixed Color	Color	R Red
		G Green
		B Blue
		A Amber
		W White
		P Ultraviolet (UV)
		RG Red/Green
		RB Red/Blue
		RA Red/Amber
		RW Red/White
		RP Red/UV
		GB Green/Blue
		GA Green/Amber
		GW Green/White
		GP Green/UV
		BA Blue/Amber
		BW Blue/White
		BP Blue/UV
		AW Amber/White
		AP Amber/UV
		WP White/UV
		RGB Red/Green/Blue
		RGA Red/Green/Amber
		RGW Red/Green/White
		RGP Red/Green/UV
		RBA Red/Blue/Amber
		RBW Red/Blue/White
		RBP	Red/Blue/UV
		RAW Red/Amber/White
		RAP	Red/Amber/UV
		RWP Red/White/UV
		GBA Green/Blue/Amber
		GBW Green/Blue/White
		GBP Green/Blue/UV
		GAW	Green/Amber/White
		GAP Green/Amber/UV
		GWP Green/White/UV
		BAW Blue/Amber/White
		BAP	Blue/Amber/UV
		BWP	Blue/White/UV
		AWP	Amber/White/UV

Main Level	Programming Levels			Description
Static	Fixed Color		RGBA Red/Green/Blue/Amber
			RGBW Red/Green/Blue/White
			RGBP Red/Green/Blue/UV
			RGAW Red/Green/Amber/White
			RGAP Red/Green/Amber/UV
			RGWP Red/Green/White/UV
			RBAW Red/Blue/Amber/White
			RBAP Red/Blue/Amber/UV
			RBWP Red/Blue/White/UV
			RAWP Red/Amber/White/UV
			GBAW Green/Blue/Amber/White
			GBAP Green/Blue/Amber/UV
			GBWP Green/Blue/White/UV
			GAWP Green/Amber/White/UV
			BAWP Blue/Amber/White/UV
			RGBAW Red/Green/Blue/Amber/White
			RGBAP Red/Green/Blue/Amber/UV
			RGBWP Red/Green/Blue/White/UV
			RGAWP Red/Green/Amber/White/UV
			RBAWP Red/Blue/Amber/White/UV
			GBAWP Green/Blue/Amber/White/UV
			RGBAWP Red/Green/Blue/Amber/White/UV
	Color Temperature		Warm White 1	Preset white color temperatures
			Warm White 2
			Warm White 3
			Neutral White 1
			Neutral White 2
			Neutral White 3
			Daylight 1
			Daylight 2
			Daylight3
			Moving Head White
	Manual Color Mixer	Red	0-255	Combine red, green, blue, amber, white, and ultraviolet to make a custom color (0-100%)
		Green
		Blue
		Amber
		White
		UV
Auto Show Auto 1-5 1-100 Automatic programs
Master/Slave Mode	Master			DMX mode (Master)
	Slave			Slave mode
Dimmer Mode	Off			No dimmer
	Dimmer 1-3			Dimming curves Dimmer 1 (fast) to Dimmer 3 (slow)
White Balance	Off			Uses factory default white setting
	Manual	Red	125-255	Sets red LED maximum value
		Green		Sets green LED maximum value
		Blue		Sets blue LED maximum value
		Amber		Sets amber LED maximum value
		White		Sets white LED maximum value
		UV		Sets UV LED maximum value

Main Level	Programming Levels	Description
LED Frequency	600Hz	Selects the PWM output frequency
	1200Hz
	2000Hz
	4000Hz
	6000Hz
	25kHz
Back Light	On Display backlight always on
	10S	Turns off display backlight after 10 sec of inactivity
	20S	Turns off display backlight after 20 sec of inactivity
	30S	Turns off display backlight after 30 sec of inactivity
Key Lock	On	Turns the passcode on or off
	Off
Information	Fixture Hours Shows total product hours
	Version Shows installed software version
	UID Shows product UID
	Battery Shows battery level
Reset Factory	No	Reset all settings to factory defaults
	Yes

DMX Values

13Ch	Channel Function Value Percent/Setting
	1 Dimmer 000		255 0-1	100%
	2	R	e 255 0-1	100%	000
	3	Green	000 255 0-1	100%
	4	Blue	000 255 0-1	100%
	5	Amber	000 255 0-1	100%
	6	White	000 255 0-1	100%
	7	Purple (UV)	000 255 0-1	100%
	8	Strobe	000 010011 255	No functionSlow to fast
	9	Color Macro + White Balance	000 010011 030031 050051 070071 090091 110111 130131 150151 170171 200201 205206 210211 215216 220221 225226 230231 235236 240241 245246 250251 255	No functionR:100% G: 0-100% B: 0R:100%-0 G: 100% B: 0R:0 G: 100%-0 B: 100%R:0-100% G: 0 B: 100%R:100% G: 0 B: 100%-0 R:100% G: 0-100% B: 0-100%R:100%-0 G: 100%-0 B: 100%RGB: 100%White 1White 2White 3White 4White 5White 6White 7White 8White 9White 10White 11

13Ch	Channel	Function	Value	Percent/Setting
	10	Color Temperature	000 ⇔ 005006 ⇔ 025026 ⇔ 050051 ⇔ 075076 ⇔ 100101 ⇔ 125126 ⇔ 150151 ⇔ 175176 ⇔ 200201 ⇔ 225226 ⇔ 250251 ⇔ 255	No functionWarm White 1Warm White 2Warm White 3Neutral White 1Neutral White 2Neutral White 3Daylight 1Daylight 2Daylight 3Moving Head WhiteNo function
	11 Auto	Programs	000 ⇔ 010011 ⇔ 060061 ⇔ 110111 ⇔ 160161 ⇔ 210211 ⇔ 255	No functionAuto program 1Auto program 2Auto program 3Auto program 4Auto program 5
	12 Auto	Speed 000	⇔ 255 0-100%
	13 Dimmer	Speed	000 ⇔ 051052 ⇔ 101102 ⇔ 152153 ⇔ 203204 ⇔ 255	Preset dimmer speed from display menuLinear dimmerNonlinear dimming curve 1 (fastest)Nonlinear dimming curve 2Nonlinear dimming curve 3 (slowest)
8Ch	Channel Function Value Percent/Setting
	1 Dimmer	000	⇔ 255 0-100%
	2	R	e ⇔ 255 0-100%	000
	3	Green	000 ⇔ 255 0-100%
	4	Blue	000 ⇔ 255 0-100%
	5	Amber	000 ⇔ 255 0-100%
	6	White	000 ⇔ 255 0-100%
	7	Purple (UV)	000 ⇔ 255 0-100%
	8	Strobe	000 ⇔ 010011 ⇔ 255	No functionSlow to fast
6Ch	Channel Function Value Percent/Setting
	1	R	e ⇔ 255 0-100%	000
	2	Green	000 ⇔ 255 0-100%
	3	Blue	000 ⇔ 255 0-100%
	4	Amber	000 ⇔ 255 0-100%
	5	White	000 ⇔ 255 0-100%
	6	Purple (UV)	000 ⇔ 255 0-100%
