Bubble King B550 - Bubble machine Chauvet - Free user manual and instructions

Product Type	Bubble Machine
Brand / Model	Chauvet Bubble King B550
Power Supply	120 VAC, 60 Hz or 230 VAC, 50 Hz
Tank Capacity	1.7 L (56 oz)
Maximum Ambient Temperature	40 °C (104 °F)
Main Functions	3 double levers, manual activation button, wide output
Maximum Tilt	5°
Mounting	Floor or hanging with supplied yoke
Safety	Indoor use only, grounded circuit, do not block vents
Maintenance	Empty tank if not used for extended period, do not repair yourself
Package Contents	1 machine, 1 power cord, 1 hanging yoke with mounting hardware, 1 reference manual
Fuse Replacement	Yes, fuse holder accessible with screwdriver
Recommended Liquid Type	CHAUVET BJU or BJG bubble liquid

Frequently Asked Questions - Bubble King B550 Chauvet

How to fill the bubble liquid tank?

Place the unit on a flat surface. Loosen the 4 knurled screws on each side, then lift the lid. Fill the tank with bubble liquid, not exceeding the maximum level (1.7 L). Close the lid and retighten the screws.

What type of bubble liquid to use?

We recommend CHAUVET BJU or BJG bubble liquid, specially formulated for CHAUVET devices. Do not add perfume, alcohol, or flammable products.

How to mount the unit at height?

Use the supplied hanging yokes. Mount the unit on a solid structure and attach a safety cable to prevent falling. The tilt must not exceed 5°.

What are the important safety precautions?

Use indoors only (IP20). Plug into a grounded circuit. Do not leave unattended and do not block ventilation slots. Do not ingest the liquid.

How to replace the fuse?

Unplug the unit. Insert a flat-head screwdriver into the slot of the fuse holder and pry out the cover. Remove the old fuse and replace with an equivalent fuse. Reinsert the fuse holder.

What is the tank capacity?

The standard tank capacity is 1.7 L (56 oz). Never fill beyond the maximum level.

Can the unit be used outdoors?

No, the unit is indoor use only (protection rating IP20). Do not expose to rain or moisture.

What to do in case of prolonged non-use?

Empty the tank completely to prevent the liquid from thickening. Unplug the unit from power to extend its life.

How to clean the unit?

No specific cleaning procedure is described. Ensure ventilation slots are not blocked. For the interior, contact an authorized technician.

Where to find warranty information?

Visit www.chauvetlighting.com/warranty-registration (USA/Mexico) or www.chauvetlighting.eu/warranty-registration/ (Europe). The warranty is limited and requires proof of purchase.

USER MANUAL Bubble King B550 Chauvet

Technical line drawing of a mechanical device with internal components and mounting brackets (no text or symbols)

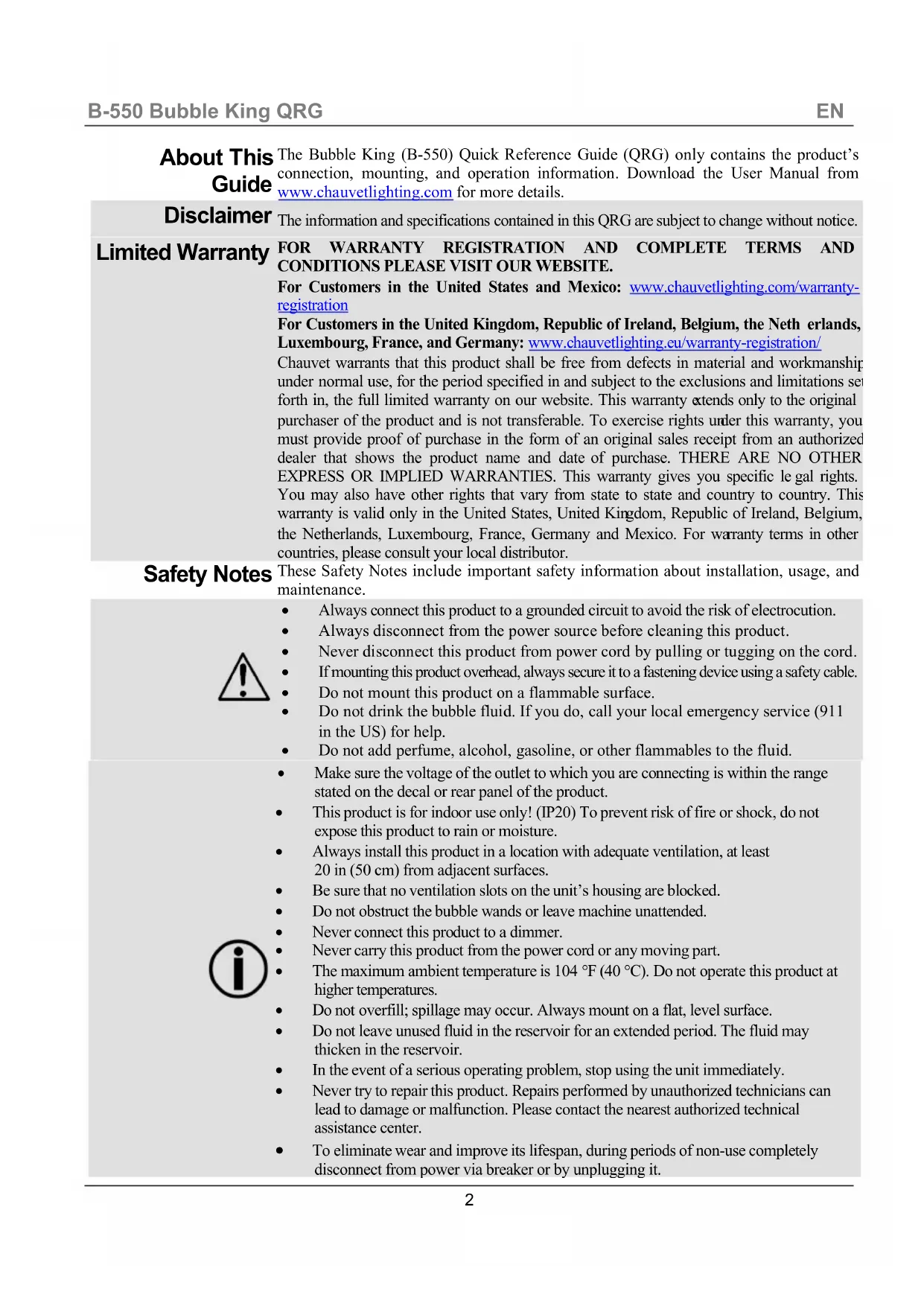

About This Guide The Bubble King (B-550) Quick Reference Guide (QRG) only contains the product's connection, mounting, and operation information. Download the User Manual from www.chauvetlighting.com for more details.

Disclaimer The information and specifications contained in this QRG are subject to change without notice.

Limited Warranty FOR WARRANTY REGISTRATION AND COMPLETE TERMS AND CONDITIONS PLEASE VISIT OUR WEBSITE.

For Customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration

For Customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration/

Chauvet warrants that this product shall be free from defects in material and workmanship under normal use, for the period specified in and subject to the exclusions and limitations set forth in, the full limited warranty on our website. This warranty extends only to the original purchaser of the product and is not transferable. To exercise rights under this warranty, you must provide proof of purchase in the form of an original sales receipt from an authorized dealer that shows the product name and date of purchase. THERE ARE NO OTHER EXPRESS OR IMPLIED WARRANTIES. This warranty gives you specific legal rights. You may also have other rights that vary from state to state and country to country. This warranty is valid only in the United States, United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, Germany and Mexico. For warranty terms in other countries, please consult your local distributor.

Safety Notes These Safety Notes include important safety information about installation, usage, and maintenance.

• Always connect this product to a grounded circuit to avoid the risk of electrocution.
• Always disconnect from the power source before cleaning this product.
- Never disconnect this product from power cord by pulling or tugging on the cord.
• If mounting this product overhead, always secure it to a fastening device using a safety cable.
• Do not mount this product on a flammable surface.
- Do not drink the bubble fluid. If you do, call your local emergency service (911 in the US) for help.
• Do not add perfume, alcohol, gasoline, or other flammables to the fluid.

• Make sure the voltage of the outlet to which you are connecting is within the range stated on the decal or rear panel of the product.
• This product is for indoor use only! (IP20) To prevent risk of fire or shock, do not expose this product to rain or moisture.
• Always install this product in a location with adequate ventilation, at least 20 in (50 cm) from adjacent surfaces.
• Be sure that no ventilation slots on the unit's housing are blocked.
  • Do not obstruct the bubble wands or leave machine unattended.
  • Never connect this product to a dimmer.
  • Never carry this product from the power cord or any moving part.
• The maximum ambient temperature is 104 °F (40 °C). Do not operate this product at higher temperatures.
• Do not overfill; spillage may occur. Always mount on a flat, level surface.
• Do not leave unused fluid in the reservoir for an extended period. The fluid may thicken in the reservoir.
  • In the event of a serious operating problem, stop using the unit immediately.
• Never try to repair this product. Repairs performed by unauthorized technicians can lead to damage or malfunction. Please contact the nearest authorized technical assistance center.
• To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Contact Outside the US, United Kingdom, Ireland, France, Germany, Mexico, or Benelux, contact your distributor to request support or return a product. Visit www.chauvetlighting.com for contact information.

What Is • B-550 Bubble King

- Power Cord

Included • Hanging Bracket with

- Quick Reference Guide

Mounting Hardware

Product The Bubble King features 3 double wands, a manual bubble button, and an Description extremely high output for when you need bubbles for a large area.

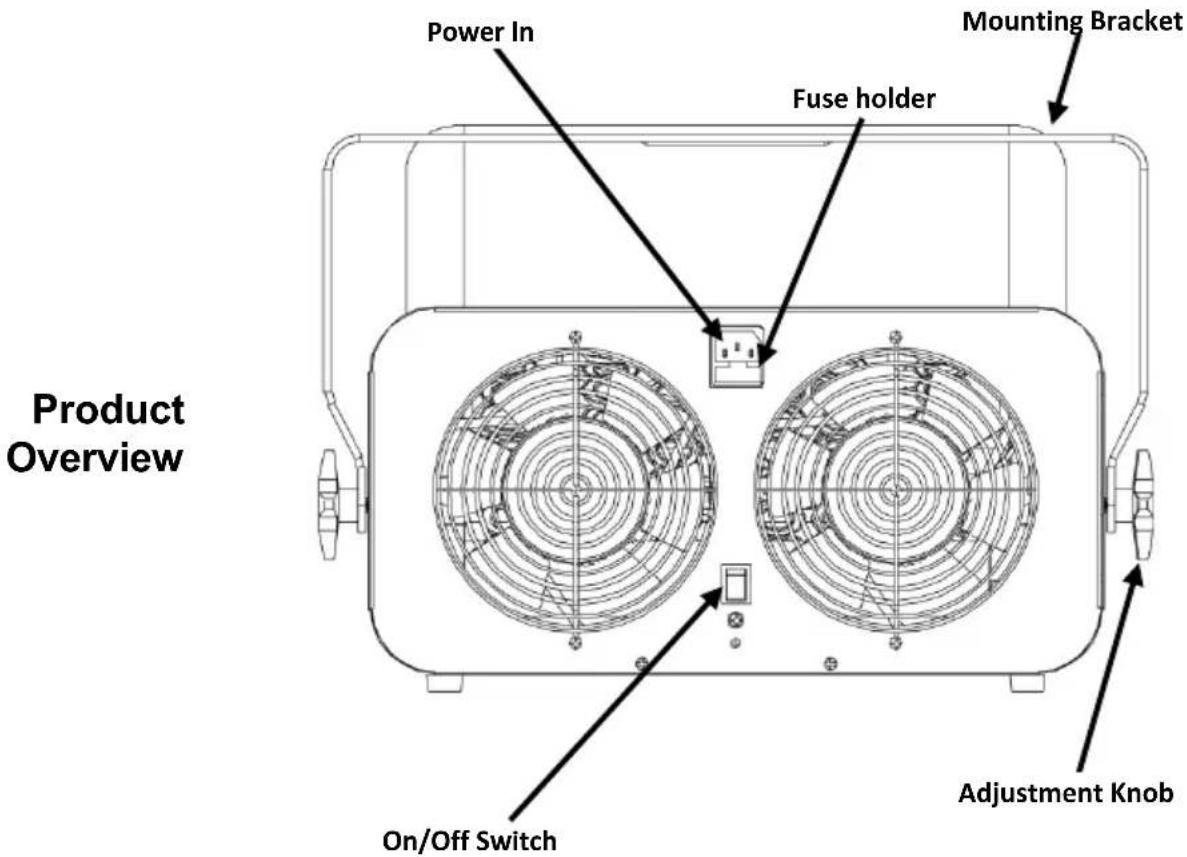

Power In Mounting Bracket Fuse holder Product Overview On/Off Switch Adjustment Knob

Mounting Before mounting this product, read the Safety Notes. Place bubbler on a flat level surface or use the mounting brackets provided. Ensure that the bubbles are not shooting directly in anyone's face or above heavy traffic areas, as bubble fluid leaves a slippery surface. The bubble machine must not have more than a 5° angle of inclination.

AC Power This product has a voltage-specific power supply that can work with an input voltage of 120 VAC, 60 Hz or 230 VAC, 50 Hz.

To eliminate wear and improve its lifespan, during periods of non-use completely disconnect from power via breaker or by unplugging it.

Fuse 1. Disconnect the product from power. Replacement 2. Wedge the tip of a flat-head screwdriver into the slot of the fuse holder.
3. Pry the fuse holder out of the housing.
4. Remove the blown fuse from the holder.
5. Replace with a fuse of the exact same type and rating.
6. Insert the fuse holder back in place and reconnect power.

Setup Install the sleeve to the front of the bubbler, using the 4 provided screws.

Fill/Replace 1. Place the Bubble King on a level surface and loosen the 4 thumb screws on either side of the unit for fluid tank access. Bubble Fluid
2. Once removed, lift the cover.
3. Fill the tank with bubble fluid. DO NOT FILL PAST TOP OF FLUID RESERVOIR.
Note: We recommend using CHAUVET bubble fluid (BJU or BJG) which has been specially formulated for use with CHAUVET Bubble King products. The tank capacity is 56 oz (1.7 l).
4. Lower the cover and tighten thumb screws.

Operation 1. Plug into a suitable wall outlet.

1. Turn on the Bubble King.

Note: Do not leave unused fluid in the reservoir for an extended period. The fluid may thicken in the reservoir. Remove all fluid before packing or shipping.

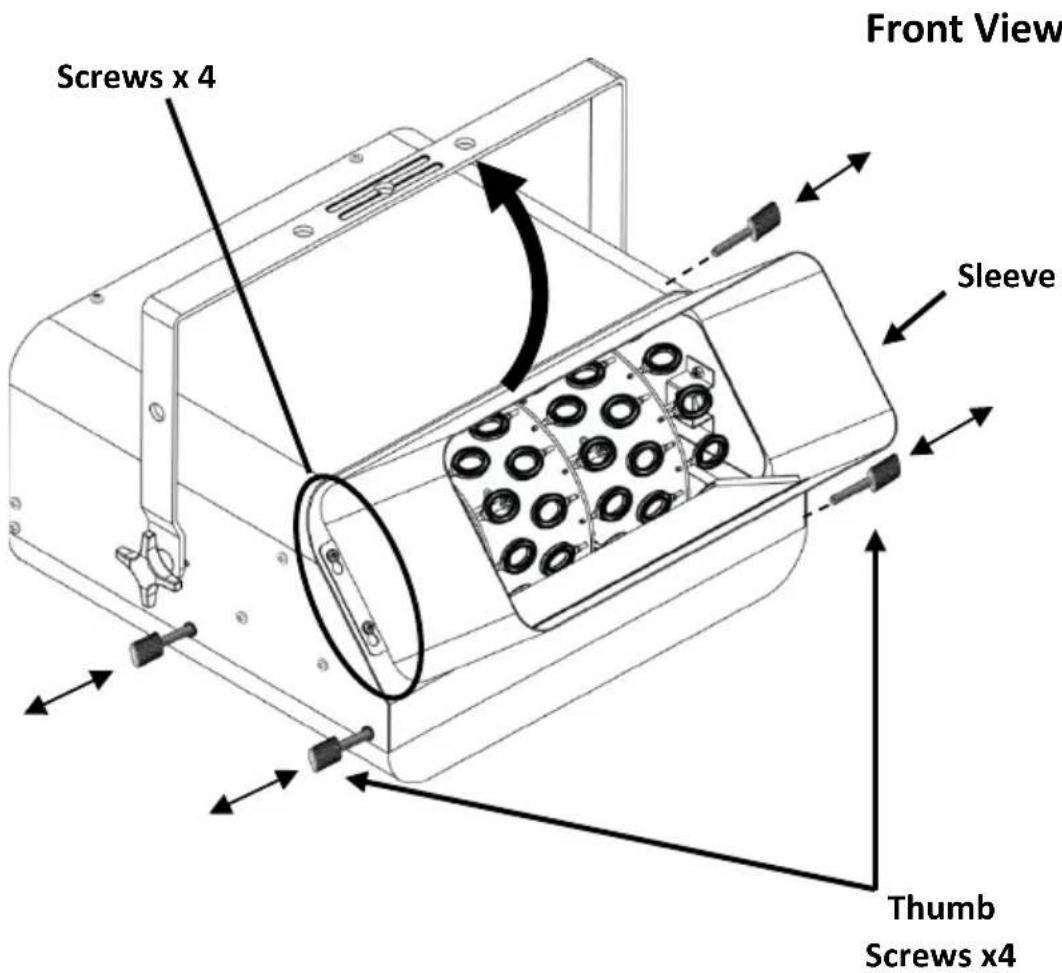

Front View Screws x 4 Sleeve Thumb Screws x4
