PIR800 - Motion detector Chuango - Free user manual and instructions

Product type	Wireless infrared motion detector
Brand	Chuango
Model	PIR800
Power supply	3 V DC (2 AAA/LR03 1.5 V batteries)
Standby battery life	1 year (energy saving mode)
Detection range	5 m
Detection angle	15° (curtain beam)
Transmission range	< 80 m (in open area)
Radio frequency	433 MHz
Standby current	< 21 μA
Alarm current	< 22 mA
Housing material	ABS plastic
Detector dimensions (L x W x H)	48 x 33 x 88 mm
Mounting plate dimensions	52 x 30 x 11.6 mm
Operating conditions (temperature)	0 °C ~ 55 °C
Relative humidity	< 80% (non-condensing)
Mounting	Wall or ceiling
Main functions	Infrared detection, fuzzy logic, anti-tamper, test mode and energy saving
LED indicator	Yes (flashes for self-diagnosis, intrusion, test mode, low battery)
Maintenance and cleaning	Clean the lens with a soft dry cloth; do not touch the sensor surface
Security	Anti-tamper contact when housing is opened
Batteries	User replaceable (AAA batteries)
ERP (dBm)	-14.81

Frequently Asked Questions - PIR800 Chuango

How to install the Chuango PIR800 detector?

Attach the bracket to the wall (2 m from the floor recommended) or to the ceiling above a door/window. Point the lens inward and snap the detector onto the bracket. Make sure the detection area is not obstructed.

How to test the detector after installation?

Press the test button. The detector enters test mode and flashes on each detection for 3 minutes. Move within the coverage area (5 m) crossing the infrared beams. The LED flashes for each detected movement.

How to connect the detector to the control panel?

Put the control panel into pairing mode, then press the test button twice on the detector. A beep confirms the pairing. Arm the system and trigger the detector to verify the alarm.

What is the battery life?

In energy saving mode, AAA batteries provide about 1 year of standby life. When voltage is low, the LED flashes once every 3 seconds: replace the batteries immediately.

What is the transmission range?

The wireless transmission distance can reach 80 meters in open area. Obstacles (walls, furniture) reduce the range.

What to do if the LED flashes continuously?

Continuous flashing indicates self-diagnosis in progress (lasts one minute after power on). If flashing persists, check the sensor functionality and ensure the lens is not obstructed.

Can the detector be used outdoors?

The detector is designed for indoor use (balcony, hallway, window, door). Avoid direct sunlight, drafts and rapid temperature changes (air conditioner, heater).

How to avoid false alarms?

Install the detector away from heat sources (radiators, ovens) and air currents (fans, air conditioners). Do not obstruct the lens. Fuzzy logic technology distinguishes human movements from disturbances.

How to clean the detector?

Use a soft dry cloth to clean the housing and lens. Do not touch the infrared sensor surface and do not use chemical or abrasive products.

What does the LED flashing mean?

Continuous flashing: self-diagnosis. One flash: intrusion detected. Two flashes: end of test mode, switching to energy saving. One flash every 3 seconds: low battery.

USER MANUAL PIR800 Chuango

The detector works based on detecting human body's infrared spectrum. When human moves within the scope (within 5 meters), the detector receives the signal and inputs it into microprocessor after magnification. Microprocessor continues to sample infrared signal and send wireless signal to wireless control panel after calculating, thus to form a security system. The product can be applied in balconies, windows, doors and corridors etc.

Features

Accurate Detection

Digital dual-core fuzzy logic infrared control processing technology Effectively identify interference signals from body movement signals through intelligent analysis

Compact Design

Small in size, not much space occupation

Flexible Installation

Ceiling mounted or wall mounted for option

Energy-saving

Featured power-saving mode enables 1 year standby

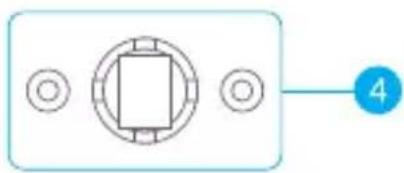

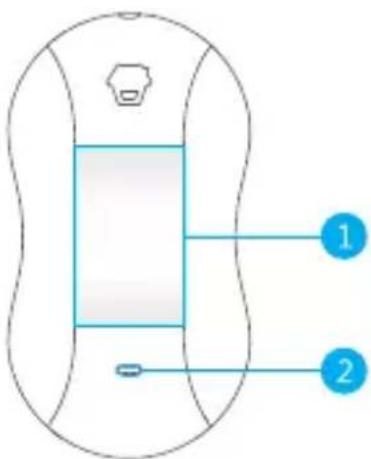

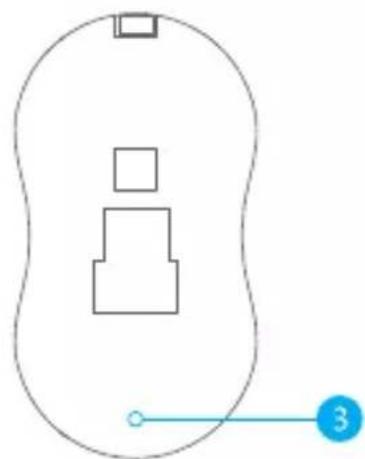

Product Overview

1. Detection Lens
2. LED Indicator
3. Test Button
4. Bracket

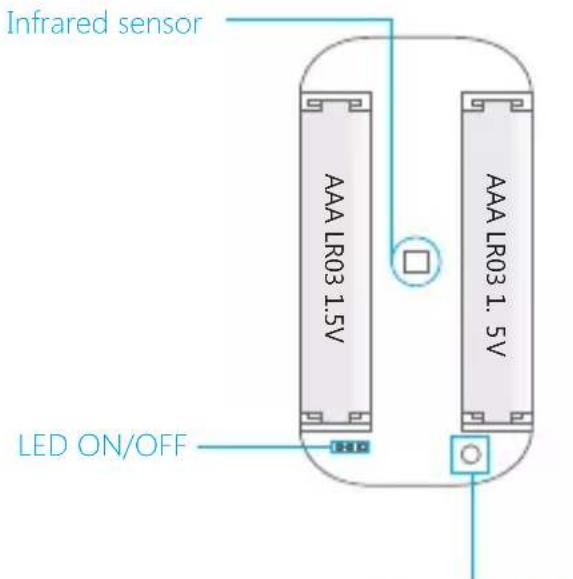

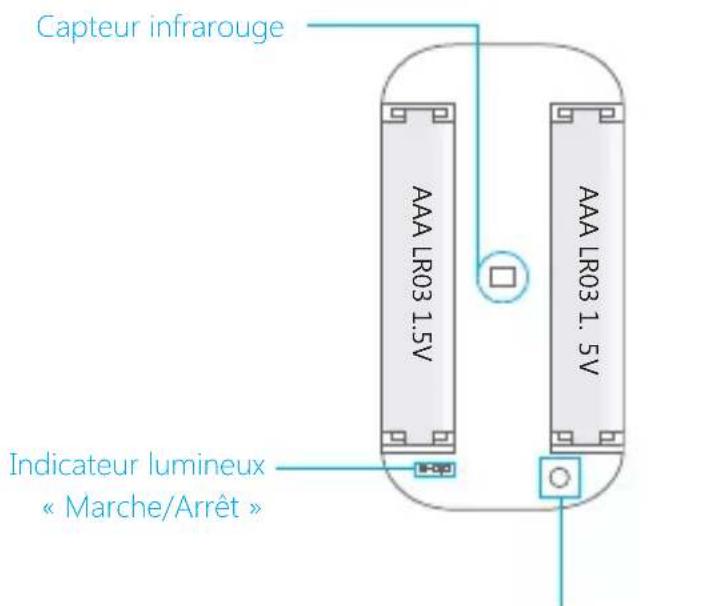

PCB Layout

Tamper switch

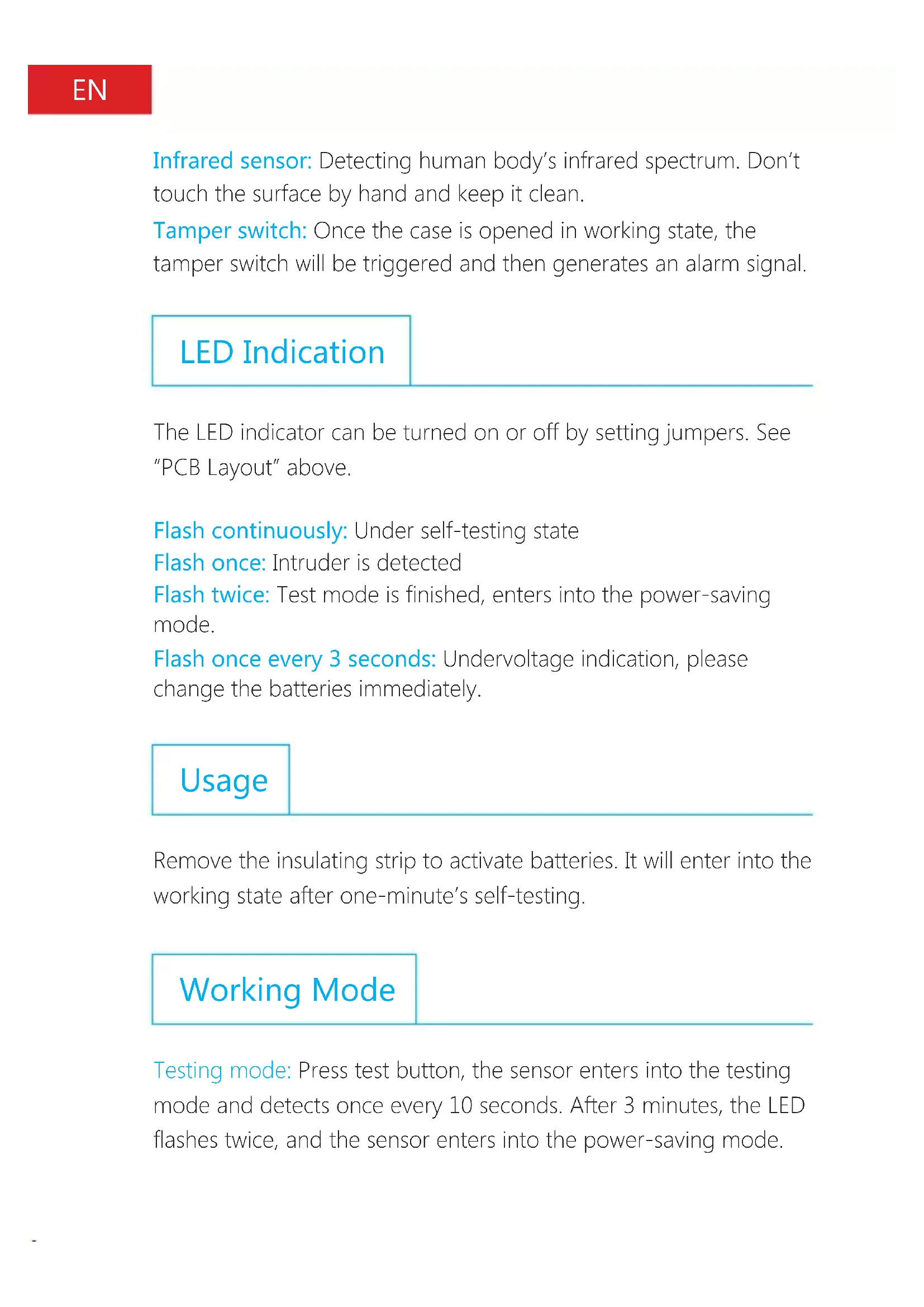

Infrared sensor: Detecting human body's infrared spectrum. Don't touch the surface by hand and keep it clean.

Tamper switch: Once the case is opened in working state, the tamper switch will be triggered and then generates an alarm signal.

LED Indication

The LED indicator can be turned on or off by setting jumpers. See "PCB Layout" above.

Flash continuously: Under self-testing state

Flash once: Intruder is detected

Flash twice: Test mode is finished, enters into the power-saving mode.

Flash once every 3 seconds: Undervoltage indication, please change the batteries immediately.

Usage

Remove the insulating strip to activate batteries. It will enter into the working state after one-minute's self-testing.

Working Mode

Testing mode: Press test button, the sensor enters into the testing mode and detects once every 10 seconds. After 3 minutes, the LED flashes twice, and the sensor enters into the power-saving mode.

Power-Saving Mode: In working state, if the sensor is triggered twice within 3 minutes, it will enter sleeping mode to save power. After no movement within next 3 minutes, the sensor goes back to the working state.

Installation & Notice

Wall-mounting:

Fix the bracket longitudinally on the wall, and put the detector on the bracket. Choose to mount it at the entry and exit where the intruder possibly breaks into. It is suggested to mount it at the height of 2m from the ground.

Ceiling-mounting:

Fix the bracket laterally on the ceiling upper the door or window, and put the detector on the bracket.

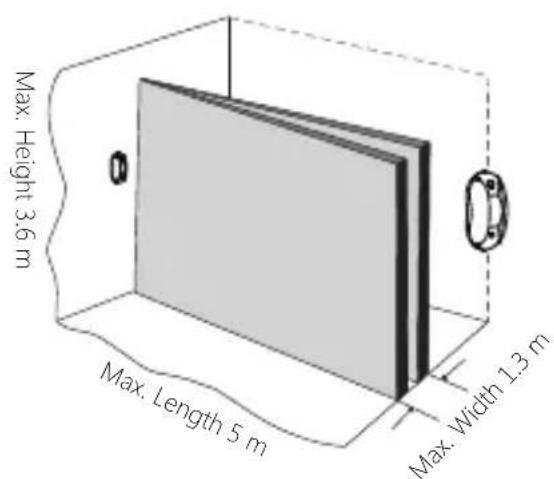

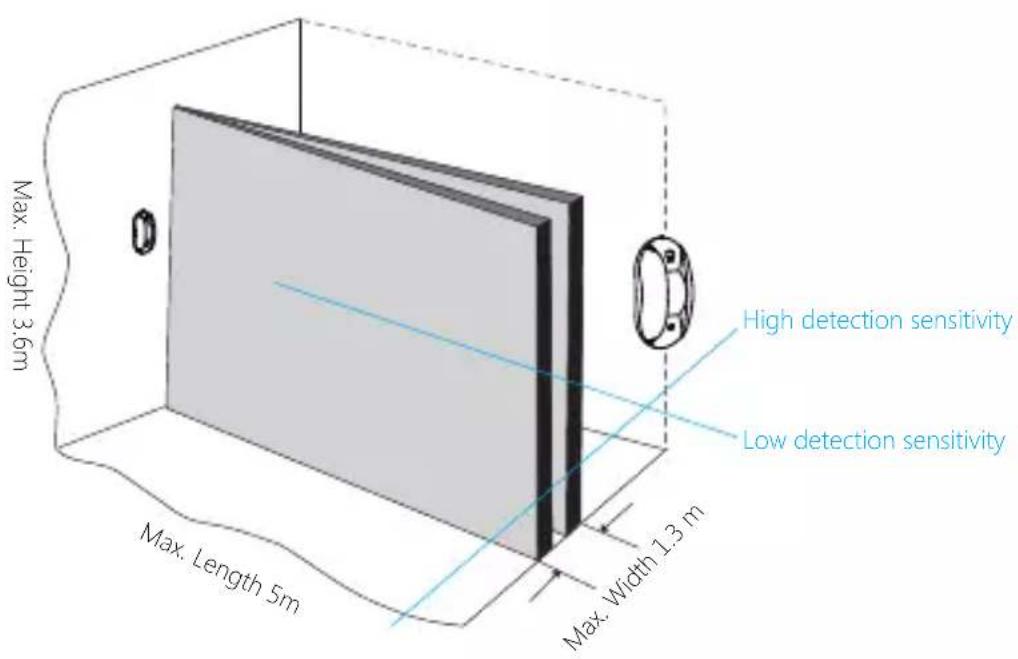

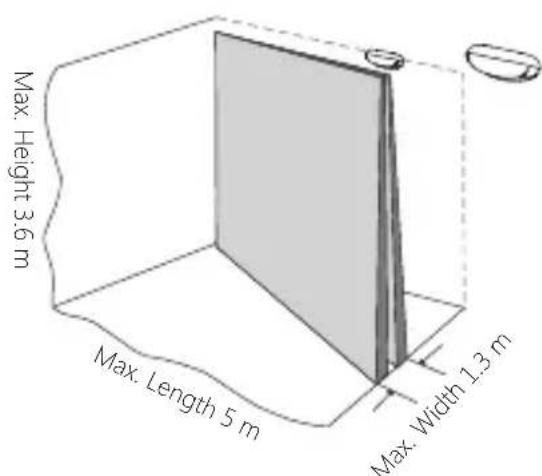

Detecting distance:

Mount on wall Mount at ceiling

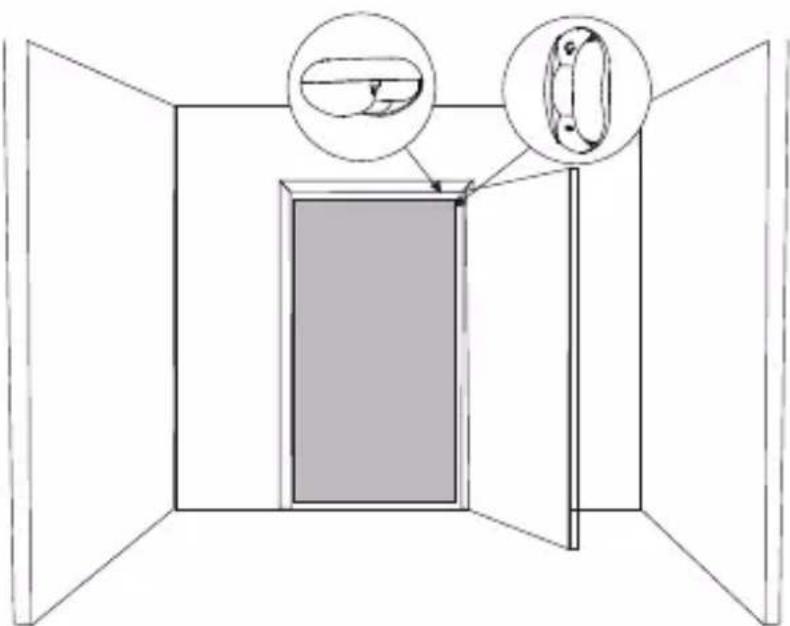

Mount at door

Note: make sure the detection direction faces towards the interior, no matter it is installed on wall or at ceiling. Adjust the bracket angle to optimize the detecting effect.

Avoid mounting the detector close to air conditioner, electronic fan, refrigerator, oven, heater and objects which will cause fast temperature changing, and avoid mounting it under direct sunlight.

Avoid any objects blocking the lens, so as not to influence the detection effect.

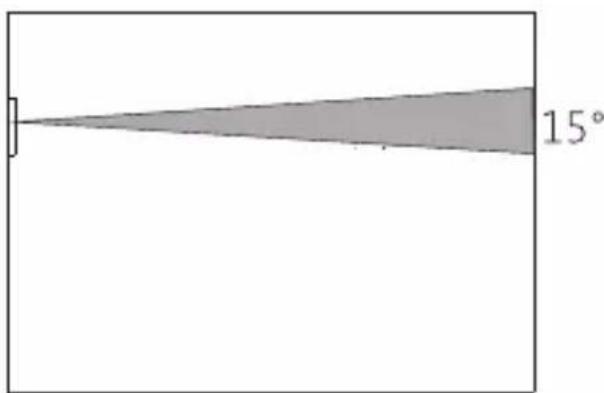

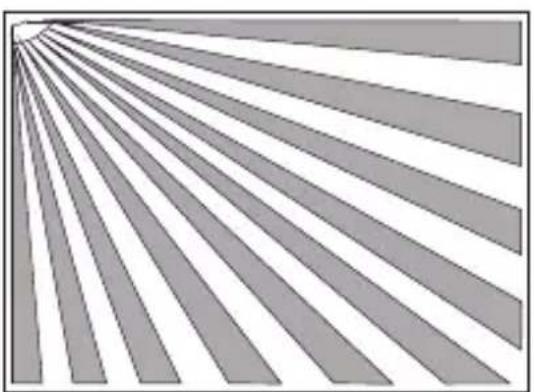

Detection Scope

0m
5m

0m
5m

Testing (Walk Test)

After installation, press the test button, walk in the scope by crossing the infrared spectrum (see below diagram), and watch the LED indicator to make sure it is working. The LED indicator will flash once when body movement is detected.

Connect with the Control Panel

When the control panel is in connecting state, press the test button on the detector twice to send wireless signal. One beep is heard after panel receives signal, which means of successful connection.

Arm the system, trigger the detector again. The panel will alarm immediately. This indicates the detector has been successfully connected with the panel.

Note: Make sure other detectors are not triggered while connecting.

Specifications

Power Supply: DC 3 V (AAA LR03 1.5 V Battery x 2 pcs)

Static Current: < 21uA

Alarm Current: < 22 ~mA

Detection Distance: 5 m

Curtain Detection Angle: 15^

Transmitting Distance: < 80 m (in open area)

Radio Frequency: 433 MHz

Housing Material: ABS Plastic

ERP(dBm): -14.81

Operation Condition:

Temperature: 0^ C +55^ C

Relative Humidity: < 80% (non-condensing)

Detector Dimensions (L x W x H): 48 x 33 x 88 mm

Bracket Dimensions (L x W x H): 52 x 31 x 29 mm
