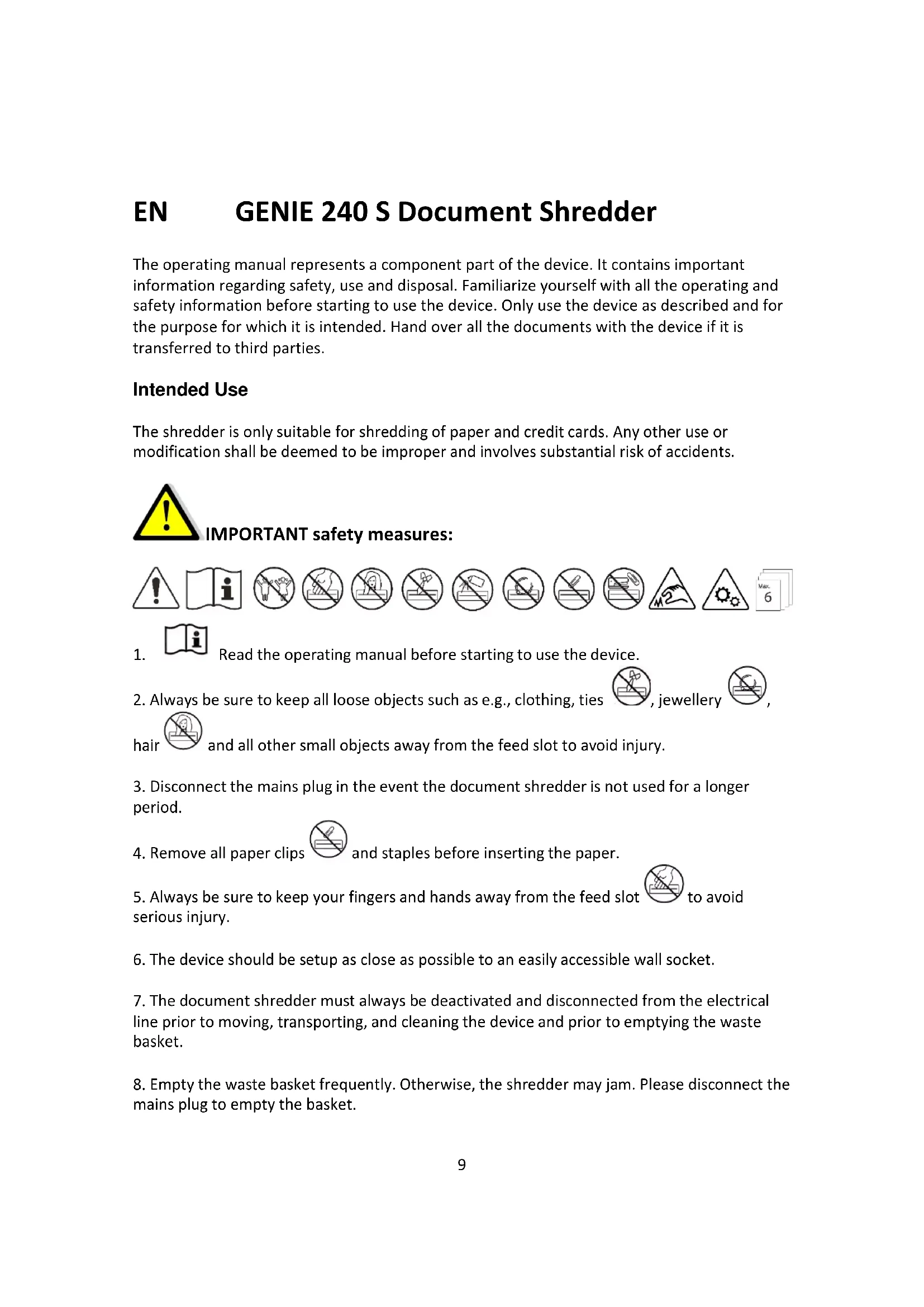

USER MANUAL 240 S Genie

1. Read the operating manual before starting to use the device.

2. Always be sure to keep all loose objects such as e.g., clothing, ties , jewellery ,

hair and all other small objects away from the feed slot to avoid injury.

3. Disconnect the mains plug in the event the document shredder is not used for a longer

4. Remove all paper clips and staples before inserting the paper.

5. Always be sure to keep your fingers and hands away from the feed slot to avoid

6. The device should be setup as close as possible to an easily accessible wall socket.

7. The document shredder must always be deactivated and disconnected from the electrical

line prior to moving, transporting, and cleaning the device and prior to emptying the waste basket.

8. Empty the waste basket frequently. Otherwise, the shredder may jam. Please disconnect the

mains plug to empty the basket.10

9. Attention: The document shredder is not suitable for CDs/DVDs , shredding cassettes

10. Please do not leave the document shredder unattended e.g. in the event children or

11. The document shredder is only suitable for shredding paper, please do not insert any other

materials, the paper must be dry and clean.

12. Never open the casing. In the event of problems with the device, please contact our

13. The device may not be operated with a damaged power cord.

14. For indoor use only.

15. Please do not spray any flammable gas or oil onto this shredder, it may cause fire.

16. Unplug this equipment when not in use for an extended period.

Remark: For optimum results and to protect the machine, we suggest the user to operate it for 2 minutes and then rest 60 minutes.

WARNING: Hazardous moving part is in this equipment, keep body parts away

• Please disconnect the mains plug before not using the unit for a prolonged period!

• In the event of damage to the mains cord, the mains plug or the device itself, please ceas

perating the device (risk of injury)!

• Please do not attempt to repair the unit yourself!

• Please do not overload the capacity of the socket!

• The mains connection of the device must be freely accessible!

• Do not modify the mains cord as it complies with the prescribed grid voltage!11 Delivery 240 S Shredder paper basket Manual Setting up the document shredder

1. Place the shredder attachment on the basket. When fitting it, pay attention that the attachment

fits securely and that your fingers do not get jammed between the top edge of the waste bin and shredder. Risk of injury!

2. Connect the main plug to a standard 220–240-volt AC socket.

Starting the document shredder Important note: This device is designed solely for private use in enclosed quarters and for brief operation not exceeding 2 minutes. Do not use the document shredder for commercial applications nor outdoors. Improper use poses risk of accidents. The main switch has 3 positions. To start the device set the button into position “AUTO”.

1. AUTO (ready to operate, Standby): The device is ready to operate after setting the sliding switch to

“AUTO”. The shredding process begins automatically when the paper to be shredded is fed into the insertion slot. The paper must be fed STRAIGHT into the insertion slot to prevent paper jamming. After the paper has been shredded by the cutting mechanism, the shredder switches off automatically and enters Standby mode. If the device does not switch off automatically, check whether the waste bin is full or there is still residual paper in the cutting mechanism. Only insert paper into the designated feed slots!

2. REV (reverse operation) : “REV” make the cutting unit turn backward. With these function paper

jams can be removed (please refer to chapter “Protection against paper jams and overloading”).

3. OFF position is recommended when emptying the wastebasket or when the shredder is not in use

for a prolonged period.12 Capacity of the document shredder The GENIE 240 S shreds up to 6 sheets of paper (DIN A4, 80 g). The paper width may comprise up to 22 cm. When shredding small paper sizes such as letters or credit card receipts, please insert them into the middle of the shredding slot. Please ensure that never more than the above-mentioned maximum quantity is inserted in the shredder. Otherwise, the device may sustain damage. Protection against paper jams and overloading The GENIE 240 S is equipped with a motor overload guard. To protect the machine well, we suggest the user to operate it in this way: work 2 minutes then rest 60 minutes. Under the following conditions, the current feed to the unit’s motor is interrupted:

• Continual operation of the document shredder with maximum capacity for a prolonged period, e.g., longer than 2 minutes without interruption.

• O verrunning the shredding capacity e.g., adding more than 6 sheets of paper (80 g) in one operation or in the event the paper is not inserted lengthwise into the feed slot. Under the above-mentioned conditions, the automatic overload guard of the motor is triggered, whereupon the current feed to the device is interrupted. In such a case, please take the following steps:

1. Switch the main switch to OFF. Disconnect the main plug from the AC socket to avoid the risk of

serious injuries and wait at least 60 minutes until the overload guard has reset. Now tear off excess paper from the top of the shredder or remove it.

2. Reconnect the main plug to the AC socket and switch to REV. Pull the remaining paper away

from the shredding blades. If necessary, repeat this step. Technical data Shredding type: Strip-cut Size of cut: 6 mm (paper) Shredding capacity: 6 pages DIN A4 (80g) or 1 credit card Feed width: 220 mm Input voltage: 220-240 volt alternating current, 50 Hz, 0.9 A Dimensions: 292 x 326 x 142 mm, 1.38 kg Waste basket: ca. 10 l capacity Operating cycle: 2 min. ON, 40 min. OFF13 We declare that this device, regarding its task of the destruction of documents, fulfils the conditions defined for Security Level P-2 in accordance with DIN 66399. P-2: Recommended for data media containing in-house data which should be rendered illegible. Material particle area ≤ 800 mm² or strip width ≤ 6 mm, strip length unlimited. Cleaning Warning! The blades of the device are very sharp! Danger of injury!

1. Switch off the unit.

2. Disconnect the power plug from the power socket.

3. Empty the drip trays regularly.

4. Clean the surface of the housing with a soft, dry, lint-free cloth. Do not use any solvents or

5. Remove any residue in the cutting holes with a suitable object.

Declaration of Conformity

The CE Mark on the device confirms conformity. The Declaration of Conformity can be read online at www.go-europe.com.

GS tested safety mark

The «Geprüfte Sicherheit» mark (GS tested safety mark) certifies that the product satisfies the requirements defined by the German Product Safety Act (ProdSG). The GS tested safety mark indicates that when implemented for its intended use and in the event of foreseeable misuse the identified product will not endanger the safety and health of the user. It concerns a voluntary safety mark which was issued by an authorized testing institute.14 Symbols The following symbols are provided on the packaging or on the device itself. This section explains the significance of the individual symbols. The symbol indicates that the design of the product complies with Protection Class II (double insulation). A safety connection to the electrical earthing (ground) is not necessary. Only use the product indoors. Disposal Find out about the possibilities of taking back used appliances free of charge from your dealer. The packaging is made of environmentally friendly materials that you can dispose of at local recycling points. Advice on the options with which to dispose of your old device can be obtained from your municipal or local administration offices. The adjacent symbol indicates laws dictate that electrical and electronic apparatus no longer required must be disposed of separate from domestic waste. Dispose of your device at a collection point provided by your local public waste authority. Packaging materials must be disposed of according to local regulations. Observe the identification on the packaging materials during the waste sorting process; they are identified by abbreviations (b) and numbers (a) which have the following significance: 1–7: plastic/20–22: paper and cardboard/80–98: composite materials. Packaging materials must be disposed of according to local regulations.15

The device and the packaging material can be recycled, so sort them prior to disposal for better waste management. Contact your local authorities for information on the various options available to ensure correct disposal. Observe the following identifications of the packaging materials: (a) numbers, (b) abbreviations and (c) materials which have the following significance: 1–7: plastics / 20–22: paper and cardboard / 80–98: composite materials and (d) type of packaging. The logo is only applicable to Italy.
