Product type	Professional coffee grinder (coffee bean grinder)
Brand	Ceado
Model	E8
Category	Coffee machine (dosing grinder)
Power supply	230 V / 50 Hz (check device label)
Usage type	Professional (qualified personnel)
Main functions	Grinding coffee beans, dosing the powder, distribution into the filter holder
Grind adjustment	Continuous fine adjustment lever (finer: counterclockwise, coarser: clockwise)
Dose adjustment	Adjustment knob from 5.5 g to 9 g (about 0.5 g per turn)
Hopper capacity	Approximately 300 g of coffee beans
Doser capacity	Approximately 300 g of powder (max level)
Control type	Manual (ON-OFF switch) or automatic depending on version (start button)
E8 model features	No safety grid (present on E15), stop paddle in doser
Safety	Motor thermal protection, amperometric circuit breaker (some models), automatic stop when doser full (auto model), do not use without hopper or lid
Maintenance and cleaning	Clean base and tray with damp cloth; wash hopper with warm water and mild soap; doser: brush dry
Installation	On a stable horizontal surface, away from water and heat, grounded outlet with residual-current device
Materials	Metal, plastic (not detailed)
Warranty	3 years against defects in materials or workmanship (use according to manual)
Compliance	CE (directive 1935/2004), declaration available at www.ceado.com
Included accessories	Hopper, doser, tray, tamper (depending on version), support fork, lever
Spare parts and repairability	Use original parts; intervention by qualified technician; replaceable burrs
Declaration of conformity	Available online on Ceado website

Frequently Asked Questions - E8 Ceado

How to adjust the fineness of the grind on the Ceado E8?

Use the adjustment lever (6, Fig.2) at the base of the hopper. Turn counterclockwise for a finer grind, and clockwise for coarser. Always do this with the motor running and empty (no coffee between the burrs).

How to adjust the dose of ground coffee?

Turn the dose adjustment knob (10, Fig.2): clockwise to decrease the dose, counterclockwise to increase it. Each complete turn changes the dose by about 0.5 g, from 5.5 g to 9 g.

What to do if the appliance does not turn on?

Check the outlet, the main circuit breaker, and the ON-OFF switch. If the motor is in thermal protection, wait 20 minutes in a cool place. If the amperometric circuit breaker has tripped (on some models), press the button (15, Fig.3). On the automatic model, check that the doser is not full.

How to clean the Ceado E8?

Always unplug the appliance. Clean the base and tray with a damp cloth (water, alcohol, or spray detergent). The hopper can be washed with warm water and mild soap. The doser should be cleaned with a brush, without water.

The ground coffee does not come out of the doser properly, what to do?

Unplug the appliance and check for foreign objects in the doser. Make sure the coffee outlet is clear.

How to replace the burrs on the Ceado E8?

Burr replacement must be done by a qualified technician. Contact an authorized Technical Service.

Why does the motor block?

This may be due to a grind setting that is too fine or a foreign object between the burrs. Try increasing the grind size by turning the adjustment lever clockwise. If this does not help, stop the appliance and contact a technician.

Can I use pre-ground coffee in the hopper?

No, only pour coffee beans into the hopper. Do not use ground coffee or other substances.

What is the lifespan of the burrs?

The lifespan depends on usage. In case of irregular grind size, contact the technical service to check or replace the burrs.

Is the appliance under warranty?

Yes, the Ceado E8 is guaranteed for 3 years against any defects in materials or workmanship, provided it is used according to the manual. The warranty does not cover normal wear (e.g., burrs) or unauthorized repairs.

USER MANUAL E8 Ceado

MANUATED'USOEMANUTENZIONE

COFFEEGRINDER

USEANDMAINTENANCEMANUAL

MOULINDOSEUR

MANUELD'UTILISATION

KAFFEEDOSIERMÜHLE

Likeall appliances, it should be used with particular care to avoid injury topersonnel and damage to the appliance.

Itisessentialtoreadtheseinstructionscarefullybeforeusingtheapplianceandtofollowthesafety recommendations.

ItispossibletoobtaintheCEdeclarationofconformitybycontactingthemanufactureratthe addressshownontheproductdataplate.

Donotusetheapplianceifyouhavenotreadandunderstoodtheseinstructions!

GB

Page16

MOULINDOSEURE7-E8-E9-E15

E 7 - E 8 - E 9 - E 15 cesontdesappareilsprofessionnelspourlamoutureducaféengrainsetla distributiondecedernieràtraversundoseurcontrolémanuelle. Pourlaversionssansdoseur, voirpage31.

Commetouslesappareilselectromagen,ildoitetreutiliseavecuneprudenceparticulierepour eviterlesblessuresauxpersonnesettesdommagesal'appareil.

Lireattentivementlespresentesinstructionsd'utilisationavantlamiseenfonctiondel'appareilet observertouteslesinstructionscconcernantlasecurite.

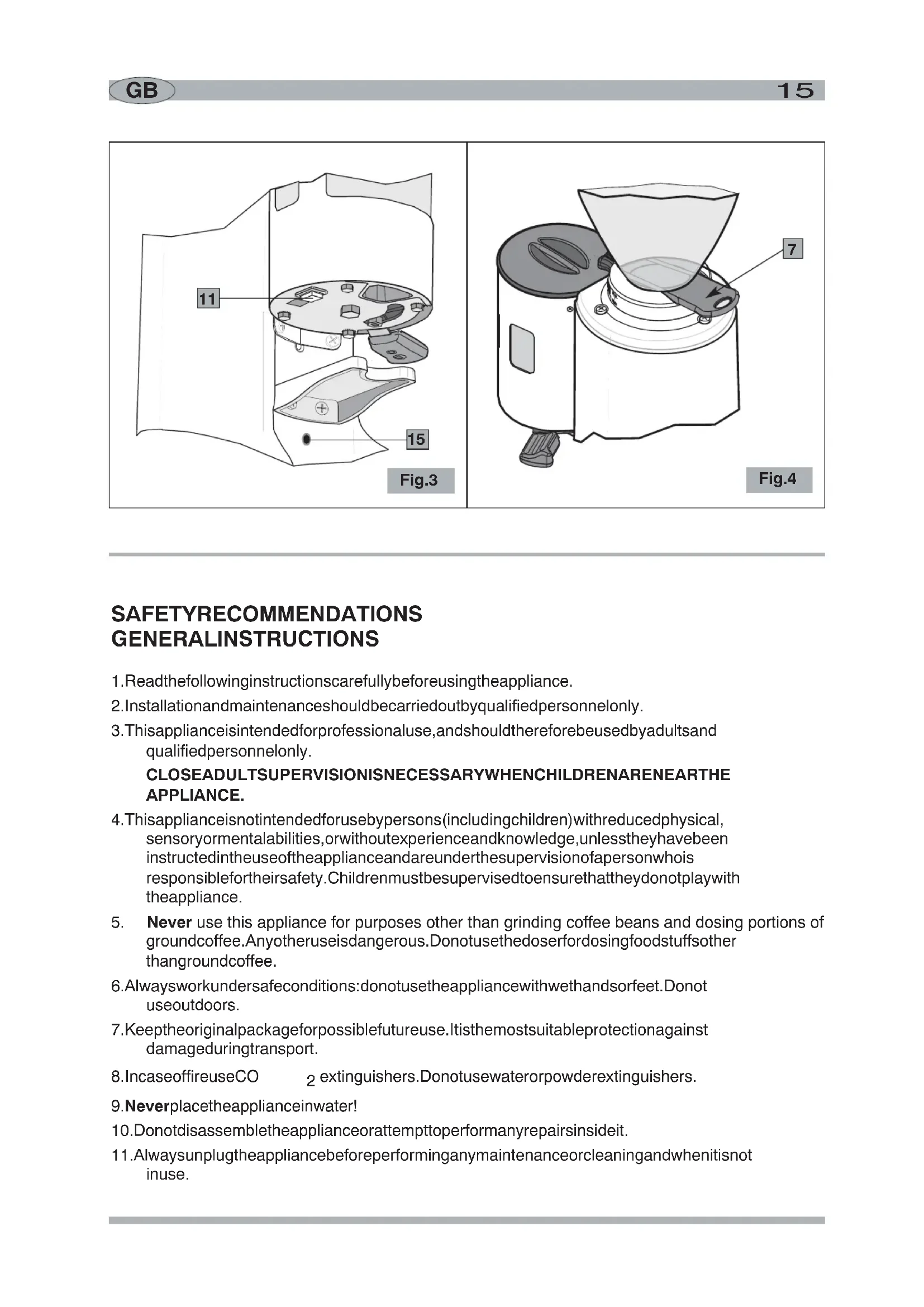

SAFETYRECOMMENDATIONS GENERALINSTRUCTIONS

1. Read the following instructions carefully before using the appliance.
   2.Installationandmaintenancesshouldbecarriedoutbyqualifiedpersonnelonly.
2. This appliance is intended for professional use, and should therefore be used by adults and qualified personnel only.

CLOSEADULTSUPervisionISNECESSARYWHENCHILDRENARENEARTHE APPLIANCE.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental abilities, or without experience and knowledge, unless they have been instructed in the use of the appliance and are under the supervision of a person who is responsible for their safety. Children must be supervised to ensure that they don't play with the appliance.
2. Never use this appliance for purposes other than grinding coffee beans and dosing portions of groundcoffee.Anyotheruseisdangerous.Donotusethedoserfordosingfoodstuffsother thangroundcoffee.
3. Always work under safe conditions: donot use the appliance with wet hands or feet. Don't use outdoors.
4. Keep the original package for possible future use. It is a thiemostsuitableprotection against damageduringtransport.
   8.IncaseoffireuseCO 2 extinguishers.Donotusewaterorpowderextinguishers.

9.Neverplacetheapplianceinwater!

10.Donotdisassembletheapplianceorattempttoperformmanyrepairsinsideit.
11. Alwaysunplugtheappliancebeforeperforminganymaintenanceorcleaningandwhenitisnot inuse.

1. Never pull the appliance by the cord to move it. Never unplug it by pulling the cord or touching it withwethands.

If the powercable is damaged it must be replaced by the manufacturer or by the technical assistance service, or any rate by aperson with similar qualifications, so as to prevent all risks.

1. WARNING: Never place any utensils, metal or other hard materials, in the doser and in the beanhopper. This is dangerous and could caused damage.
2. Do not use the appliance if it is damaged or has loose parts. Immediately contact an authorized ServiceCenter.

TheappliancecomplieswithEuropeanregulationCE1935/2004andsubsequentupdates.

Note:Duetostatisticaltestsontheproductinthefactory,somecoffeegroundsmaybefoundintheappliance.

SAVETHESEINSTRUCTIONS!

C

The EC declaration of conformity for this appliance is available in the Products section of our websitewww.ceado.com.

INSTALLATION

Complywiththesafetyrecommendationsindicatedaboveandhereafterwheninstallingthe appliance.

Fortheinstallationoftheappliance,qualifiedpersonnelmustbepresentwhoareabletocheckthe finenesssofthegrind.

1. Makesurethatthemainsvoltageisasindicatedontheratinglabeloftheapplianceandthat theelectricalsystemisgroundedandequippedwithaswitch.

2. Install the appliance in a DRY, PROTECTED place, far from water sprays or splashes, heat sources, open flames and inflammablesubstances.

Placetheapplianceonaflat,horizontal,stablesurfacewhereitcannottipover.

3.Putthetrayunderthedosertokeeptheworkareaaascleanaspossible.

Before connecting the plug to the power socket, make sure that the ON-OFF switch (8Fig.2) is in position "0" (OFF).

1. Plugthepowercableintoasocketprotectedbyasuitablyratedcircuitbreaker(MCB)orfuses. Donotuseanadaptorplug.
2. Stretch the power cable out to full length. Do not let it pass over sharp edges or hot surfaces. Do not let oil spill on it. Do not let the power cable hang loose from the counter on which the appliancestands.
3. Makesurethatthebeanhopperiscorrectlypositionedandthatitsshutterisopen(7Fig.4).
4. Tofitthecoffeepress,ifprovided,seetheenclosedillustratedleaflet.

PREPARATIONANDUSE

SWITCHINGON

1 Fillthehopperwithcoffeebeansandclosethelid.
! Besuretokeephelidofthedoserunitclosedduringoperationoftheappliance.
2 TurntheON-OFFswitchtoposition"1".

Manualmodel

TheappliancewillstartworkingandmustbestoppedbytheoperatorbymeansofftheON-OFF switchcathedesiredamountofcoffeehasbeenobtained.

Automaticmodel

3 Pressthestartbutton(11Fig.3).Theappliancewillstartworking,grindingasufficientamount ofbeanstofillthedoseruptoitsmaximumlevelwhichconsidersacapacityofabout300gof groundcoffee;oncthishasbeenreached,aswitchdevicestopsthemotor.Furthercoffe grindingwillresumeautomaticallyafersixdosesofgroundcoffeehavebeenextracted.

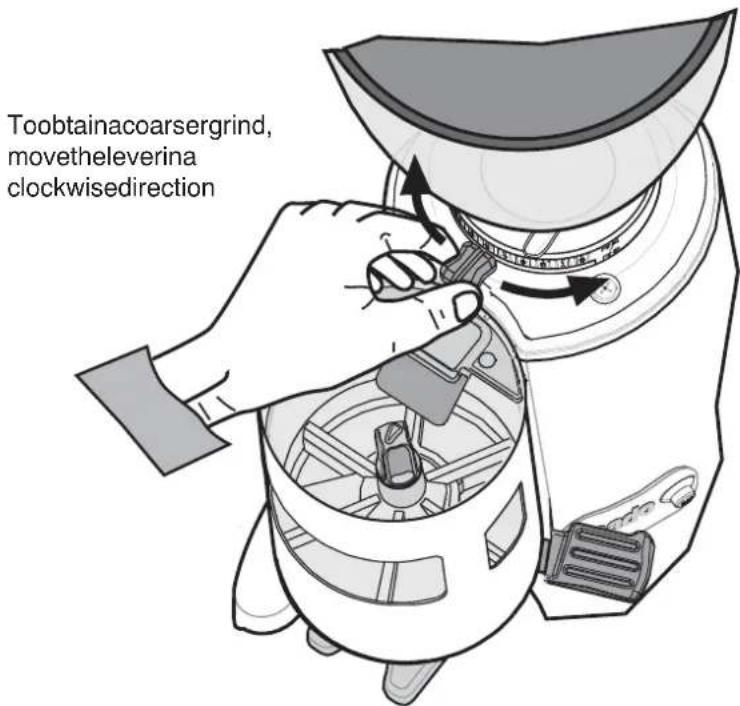

REGULATINGGRINDING

When it leaves the factory, the machine has a standard setting, but it may be necessary to adjust grinding further. The duetovary external factorss such as mixture used, the humidity, temperature, or the particular distribution requirements of the pressroom machine.

The degree of grinding may be further corrected by shifting the special lever (6Fig.2) at the base of the hopper (see Fig.5).

Alwaystakecaretomovetheleverwiththemotorturningandempty(withoutcoffeebetween theburrs).

Todhisyoucanoperatetheshutteratthebaseofthehoppertostoporresumethedroppingof thecoffeebansintothegrindingmechanism.

• Toobtainafinergrind,movetheverinacounter-clockwisedirection.
  Toobtainacoarsergrind,movetheverinaclockwisedirection.

Rememberthatthegrindisrelatedtothecoffeeextractiontimewhichmustbe25-30seconds foracupof25-30ml.Iftheextractiontimeistoolong, thegrindmustbecoarser;ifitistooshort, thegrindmustbefiner.

NOTE!Itisrecommendedtogrindsmallamountsofcoffee,lettingtheburrsemptywitheverregulatingattempt,byopeningandclosingtheshutterereachtime.

Fig.5

Toobtainafinergrind, movetheverina counter-clockwise direction

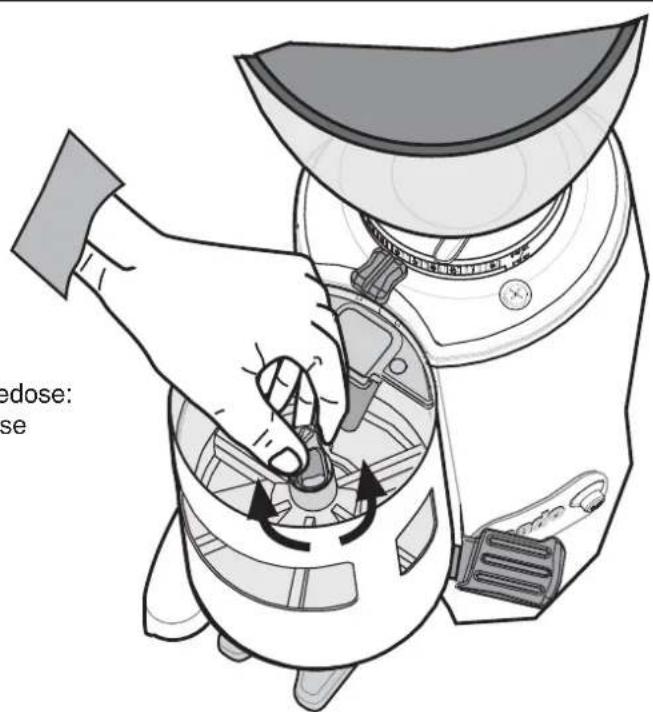

REGULATINGDOSING

Whenitleavesthefactorythemachineisregulatedatabout7grams,butitispossibletoturnthe doseregulatingknob (10Fig.2)toadjustthisamountbetweenabout5.5gramsand9grams (see Fig.6).

Eachcompleteturnoftheknobcorrespondstoabout0.5gramsofgroundcoffee:turnitclockwise todecreasethedose,turnitcounter-clockwisetoincreasethedose.

Todecreasedose: turninaClockwise direction

Fig.6

Toincreasethedose:turn inacounter-clockwise direction

TAKINGOUTTHECOFFEE

Restthefilter-holderofthecoffeemachineonthesupportforkandpullthedoserveralltheway onceortwicetoextractoneortwodosesofgroundcoffee.

Theleverhasastrongreturnspringsothereisnoneedtorepositionitaftereverydose.

Todistributethegroundcoffeeevenlyinthefilterusethespecialpress,ifsupplied,holdingitparallel tothefilterandpressingdownthecoffeeraspreferred.

WARNINGANDSUGGESTIONS

Insidethedoserthereisastoppingblade(9Fig.2) connectedtoaswitchwhich,whenraisedbythenewly groundcoffee,cutsoutthemotor.

Never operatethebladebyhandasthiswould riskfillingthedosertoexcessordamagingit.

Neveroperatewithouthopperandlidinplace.

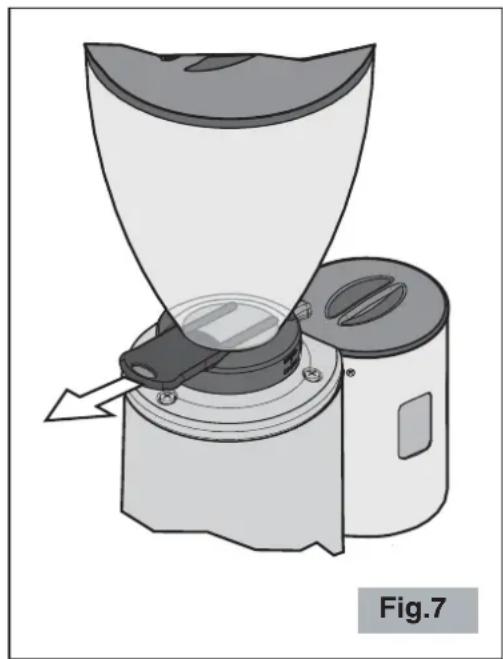

Makesurethatshutteriscompletelyopen(to thelastclick)(seeFig.7).

Donotletthegrinder-doserrunlongwithoutcoffeebeans inthehopper;ifthisweretohappenitwouldcausetripping ofthemotorthermaloverloadprotection. Inthatcaseitis necessarytowaituntiltheoverloadprotectionisreset beforestartingtogrindcoffeagain.

Forthisreason, never leave the pack of coffeebeans sitting in the hopper as this prevents you see ing how many coffebeans are left.

Whenthegrinder-doserisnottobeusedduringthetimewhenthebusinessisclosed, itshould alwaysbeswitchedoffwiththemainswitch.

Putonlycoffeebeansinthopper,notready-groundcoffeeorthersubstances.

SAFETYGRIDE15

ElectronicespressocoffeegrindermodelE15isequippedwitharemovablesafetygrid(16Fig.1). Beforeoperatingsgrinder,placthesafetygridinsidethebeanhopper,slottingitintotheonly positionsothathemagneticsensor(17Fig.1)isincontactwiththeendofthesafetyarm(18Fig.1).

Note: Coffeegrinderwillnotstartifsafetygridisnotproperlyinplace.

Anyattemptto-passthesafetydeviceandusethecoffeegrinderwithoutitssafety gridinplacemaycausepersonaljuryand/ordamagetotheppliance.

CLEANING

Itisimportanttokeeptheappliancecleanandingood workingordertoensureoptimumqualityoftheproducts andlonglifeoftheappliance.

Always disconnect the plug of the appliance from the power socket before cleaning it.

Cleanthemotorhousingandthetraywitha clothdampenedwithwateroralcoholorwitha sprayneutralsolution.

Wipewithadrycloth.

Neverputtheapplianceunderrunningwater andneverimmerseinwater.

Oncethehopperhasbeenremoveditcanbe washedwithlukewarmwaterandneutralsoap, thenrinseitanddrywell.

Cleaningthedoseresunitrequiresgreatcare

becauseinsidethereisanelectromechanicaldevicewhichcouldgetdamaged.

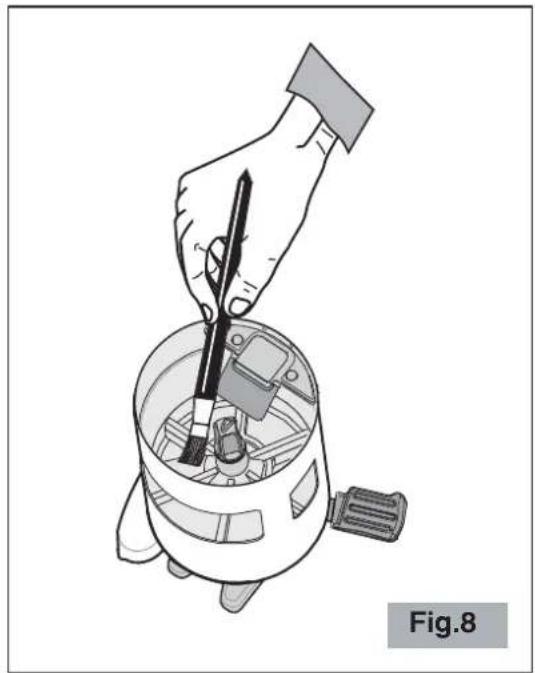

-Useabrushorapaintbrush(Fig.8)tocleanthemosthddenaresinsidetheunitandadry clothfortheothersurfaces.

MAINTENANCE

Maintenancemustbecarriedoutexclusivelybyqualifiedtechnicalpersonnel.

Careforthemechanicalandelectricalpartsoftheapplianceisindispensableinordertoguarantee theirsafetyandefficiency.Ifanypartsneedreplaced,authenticsparepartsmustalwaysbeused.

ASSEMBLYOFPRESS

Beforeperforminganyassemblyoperations,unplugtheappliance.

Toinstallthepresssupplied,proceedasfollows:

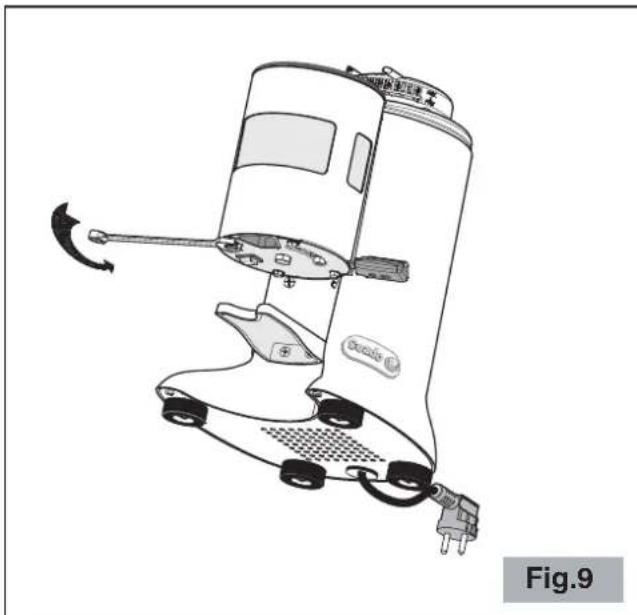

LoosenthescrewatthebottomofthedoserasshowninFig.9withano.10wrench.

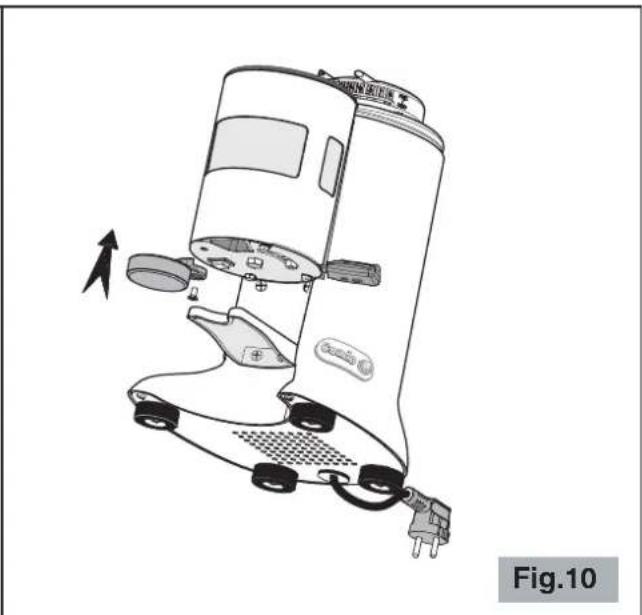

Positionthepressandfastenitwithitscrew(Fig.10).

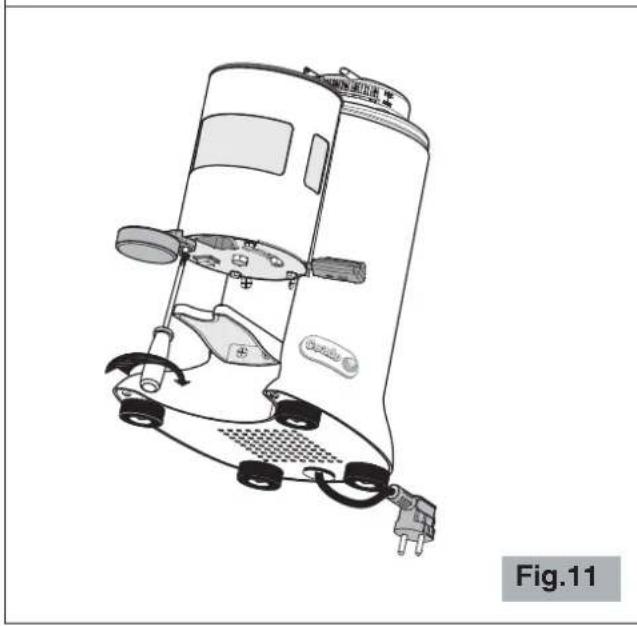

Tightenthefasteningscrew(Fig.11).

Alwaysassemblethepressonthesideoppositethedosinginglever.

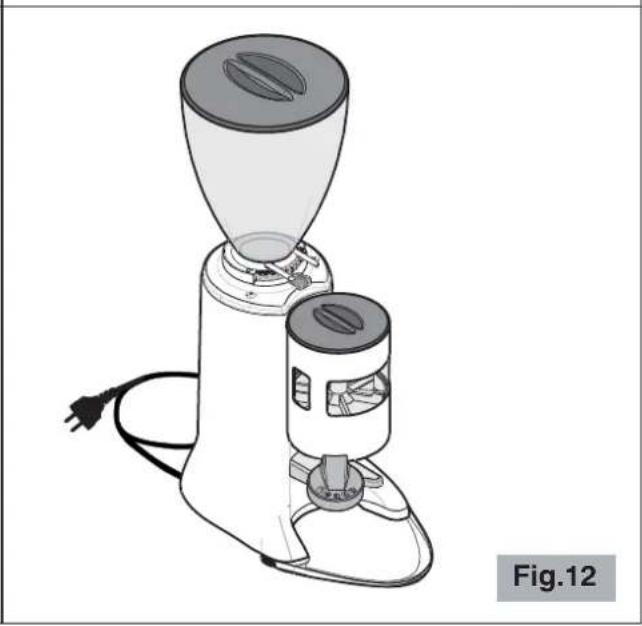

Returntheapplianctotheworkingposition(Fig.12).

TROUBLESHOOTING

(SeeTableonthenextpage)

Incaseofanymalfunction,defectoftheapplianceorifyoususpectanybreakageafterfall,unplug theapplianceimmediately.

If you are unable to solve the problem, refer to the contactor AuthorizedService Centre.

Onlyqualifiedexpertssshouldrepairtheappliance.

Wearenotifiableforanydamagecausedbyrepairsnotmadecorrectlyand/orbyunauthorized personnel.Inthesecasessthewarantiydoesnapply.

Problem	Solution
Theappliancedoesnotturn on.	• Makesureitispluggedin. • Makesurethesafetycircuitbreakerisclosed. • CheckthathomainswitchoftheapplianceisON. • Iftheproblemoccursitselfafteralongperiodofintensive use,themotorcouldbeinthermalprotectionlock!Waitat least20minutesandtryagain. Thewaitingtimecan be reducedbyputtingtheapplianceinacoolplace. • Iftheproblemoccursafteranoverload, the circuit breaker onthemotormayhavebeenstripped!Pushthecircuit breakerbutton(15 Fig.3)underthesupportforkothe appliance(notstandarequipmentonallmodels). • Automaticmodel :Checkthathedoserisnotatmaximum capacity.Ifitis,movethedoserlevertoextractatleastsix dosesandcheckthatitstartsoperatingafterhaving removedacertainamountofgroundcoffee. • Automaticmodel :Checkthathestoppingbladeisfreeto move.
Thecoarsenessofthegrind isnotuniform.	• Trygrindingverycoarselyforafewseconds,thenreturnto thecorrectsetting. • CalltheTechnicalAssistanceServicetocheckandchange theburrs.
Thecoffeisnotcomingout ofthedosercorrectly.	• Disconnecttheplugandcheckforthepresenceofforeign bodiesithedoser. • Checkthattheholewherethercoffeecomesoutofthedoser isfree.
Themotorgetsblocked.	• Ifthemotorgetsblockedduetoincorrectregulationof grindingortothepresenceofforeign bodyinthedesrbs, tryincreasingtothecoarsestgrainsizebyturningthe regulatingleverclockwise(6Fig.2). Ifthisisnotenough,switchtheappliance,disconnect theplugfromthesocketandconsulttechnicallyqualified personnel.
Automaticmodel Thecoffeoverflowsfrom the dosingunit.	• Checkthathestoppingblade(9Fig.2)isfreetomove. • Iftheproblempersists,calltheTechnicalAssistance Service.

DISPOSAL

Correctdisposalofthisproduct(wasteelectricalandelectronicequipment)

(Applicable inthe European Union and other countries with separate collectionsystemsinconformitywithEuropeanDirective2002/96/EC)

Thisproducthasbeenmadefromhigh-qualitypartsandmaterials,which canbere-usedandrecycled.

Therefore, donotthrowtheproductawaywithnormalhouseholdwaste attheendofitsworkinglife. Takeittoacollectionpointforrecycling electricalandetechnicdevices. Thisisindicatedbythissymbolontheproductandintheoperatingsmanual.

Pleasecontactyourlocalgovernmentofficeforinformationabouttheexactlocationoftheclosercollectionpoint.

WARRANTY

Thisproducthasbeenmanufacturedtoahighqualitystandard.

This product is guaranteed against faulty materials and workmanship for period of three years from the date of purchase when it is used according to the instructions in this instruction and maintenance manual.

Pleaseretainanyreceiptsproofofpurchase

Duringthewarrantypeiredisproductcaneitherberepairedorreplaced,atthemanufacturer's discretion,atnoadditionalcost.

If the products need smaintenance or repairs during the warranty period, contact your retailer for shipping instructions. The product should be shipped in its original package or others suitable packing.

Thewarrantydoesnotapplyincaseofneglect,misuse,abuseorunauthorizedrepairs.This warrantydoesnotapplytopartsssubjecttodeteriorationthroughnormalusesuchastheburrs.This warrantydoesnotapplytodamagecausedbyforeignobjects,substancesoraccident

Thewarrantyislimitedtothecostofrepairorreplacementoftheproductorsdefectiveparts,or anamountequivalenttothepricepaidforitspurchase.Noadditionalrequestsofdamageswill be availtothepurchaser.

Thisguaranteeisinadditiontoanddoesnotaflectourstatutoryrights.

Themanufacturererwillnotacceptanyliabilityandthewarantywillbeinvalidatedifthereisa failuretofollowtheseinstructionsandthetechnicaland/orsafetystandardsinthecountry where theapplianceistobeused.

Inanycasetheseinstructionscannotcovereverypossibleeventandtheuserisrecommended to usetheapplianceresponsibly.

THEMANUFACTURERRESERVESTHERIGHTTOMAKEANYALTERATIONSTO THEAPPLIANCEWITHOUTNOTICE
