E37ZHero - Coffee machine Ceado - Free user manual and instructions

Product type	Single-dose professional coffee grinder
Brand	Ceado
Model	E37Z Hero
Category	Coffee machine
Usage	Indoor professional use
Power supply	220-240 V ~ 50/60 Hz (check label)
Electrical protection	Grounding and residual current device required
Ambient temperature	10 °C to 32 °C
Noise level	Less than 70 dB
Main function	Grinding coffee beans for single doses
Grinding adjustment	Toothed ring + fine adjustment knob
Motor speed adjustment	Rotary knob (variable)
Cooling fan	Yes, separate switch
Chute emptying system	Yes, integrated
Bellows and collector	Removable for cleaning
Support fork	Removable, held by magnet
Cleaning	External surface daily, brush for interior
Maintenance	By qualified personnel only
Spare parts	Original required (burrs, electrical components, etc.)
Safety	ON-OFF switch, motor thermal protection
Warranty	Against material and manufacturing defects (duration according to country)
Compliance	CE, Directive 2012/19/EU (WEEE)

Frequently Asked Questions - E37ZHero Ceado

How to adjust the grind on the Ceado E37Z Hero?

Use the toothed ring (4, Fig. 1) and the adjustment knob (6, Fig. 1). For a finer grind, turn counterclockwise; for a coarser grind, turn clockwise. You can speed up the adjustment by unlocking the ring with the release button (5, Fig. 1). Make sure the teeth of the ring engage properly after adjustment.

What is the recommended cleaning procedure?

Always unplug the appliance before cleaning. Clean the external surfaces and parts in contact with coffee (bellows, outlet chute) at the end of each day. Use a brush for hard-to-reach areas. Never wash with water jets and never immerse the appliance in water. For the wooden base, use specific wood products.

What to do if the motor does not start?

Check that the connection cable (10, Fig. 2) is properly inserted into the connector (18, Fig. 3). Ensure the power plug is plugged in and the ON-OFF switch (16, Fig. 3) is set to '1'. Check the circuit breaker. If the problem occurs after intensive use, the motor may be in thermal protection: wait at least 20 minutes in a cool place before trying again.

Can I use this appliance for anything other than coffee?

No. This appliance is designed only for grinding coffee beans. Any other use may be dangerous and voids the warranty.

How to change the burrs?

Replacement of burrs must be carried out only by qualified technical personnel. Always use original spare parts. Contact an Authorized Service Center.

What supply voltage is required?

The voltage must match that indicated on the appliance label. Generally, it is 220-240 V ~ 50/60 Hz. The electrical installation must include grounding and a residual current device.

Is the appliance under warranty?

Yes, this product is guaranteed against any material or manufacturing defects. The warranty duration varies by country. Contact your dealer for details. The warranty does not cover wear (burrs, electrical components) or unauthorized repairs.

How to dispose of the appliance at the end of its life?

Do not dispose of the appliance with household waste. It must be taken to a collection center for recycling of electrical and electronic appliances (in accordance with Directive 2012/19/EU). Check with your local municipality for collection points.

Why is coffee not coming out properly from the outlet chute?

Check that the outlet chute is not blocked. If the problem persists, try increasing the grind size by turning the adjustment ring clockwise. If the motor locks, stop the appliance immediately and contact a qualified technician.

Can I use an adapter or multiple socket?

No. Avoid using adapters and multiple sockets. Plug the power cable directly into a socket protected by a magnetothermal circuit breaker or fuses.

USER MANUAL E37ZHero Ceado

I MACINACAFFÈ MANUALE D'USO E MANUTENZIONE
GB COFFEE GRINDER USE AND MAINTENANCE MANUAL
MOULIN À CAFÉ MANUEL D'UTILISATION
D KAFFEEMÜHLE BEDIENUNGS- UND WARTUNGSANLEITUNG
E MOLINILLO DE CAFÉ MANUAL DE USO Y MANTENIMIENTO

E37Z-Hero

Technical illustration of a mechanical device with a cylindrical component and a rectangular control box (no text or symbols)

MACINACAFFÈ E37Z-Hero

The coffee grinder E37Z-Hero is a professional machine for grinding coffee for single-dose and distributing it through a discharge opening.

Like all appliances, it should be used with particular care to avoid injury to personnel and damage to the appliance.

It is essential to read these instructions carefully before using the appliance and to follow the recommendations.

It is possible to obtain the CE declaration of conformity by contacting the manufacturer at the address shown on the product data plate.

Do not use the appliance if you have not read and understood these instructions!

GB

Page 14

MOULIN À CAFÉ E37Z-Hero

Technical diagram of a mechanical device with numbered parts labeled 1 through 8

Fig. 1

Ceado 4 5 6 9 7 Ceado

Technical diagram of a mechanical device with a circular component and labeled part '10' (no text or symbols beyond label)

Fig. 2

11 12 13 14 15

16 17 18 Fig. 3

Fig. 3

NORME DI SICUREZZA AVVERTENZE GENERALI

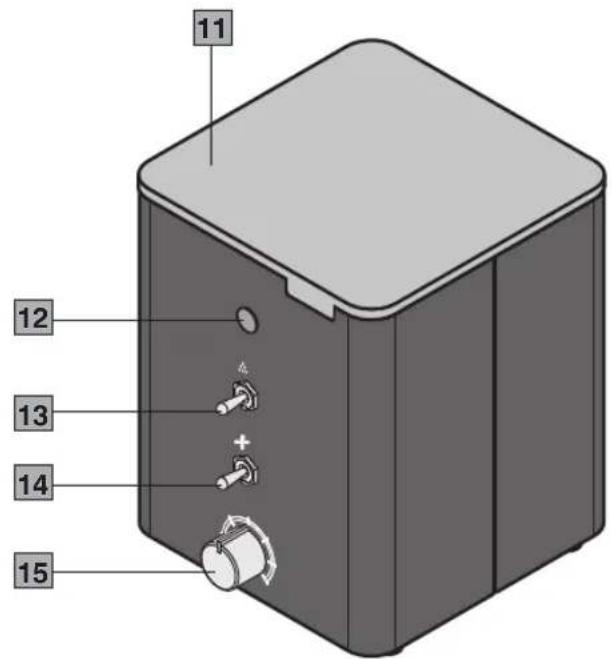

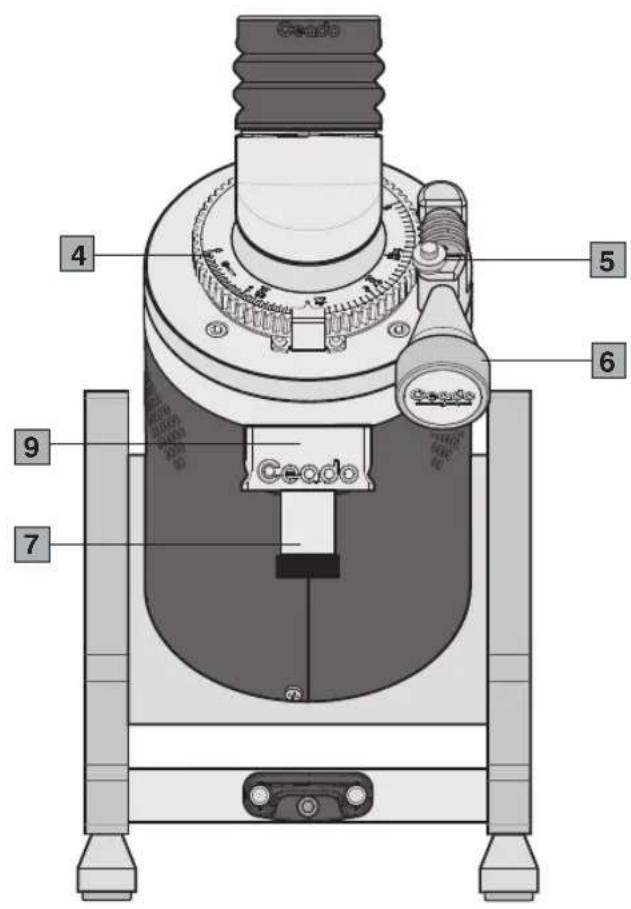

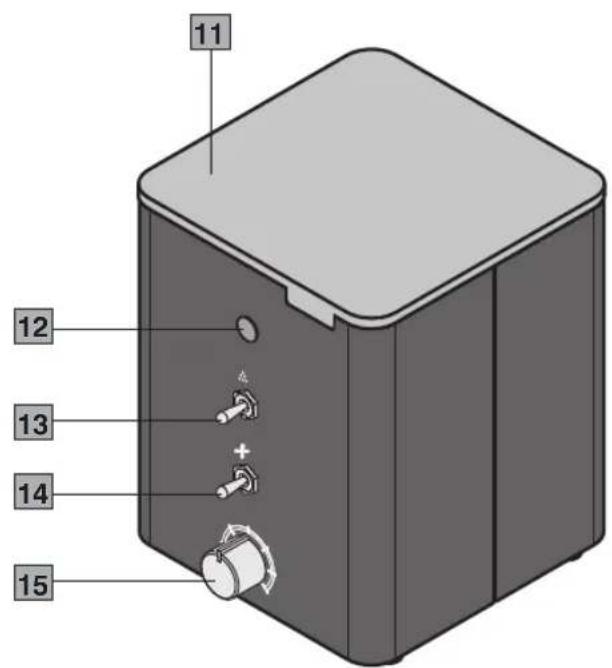

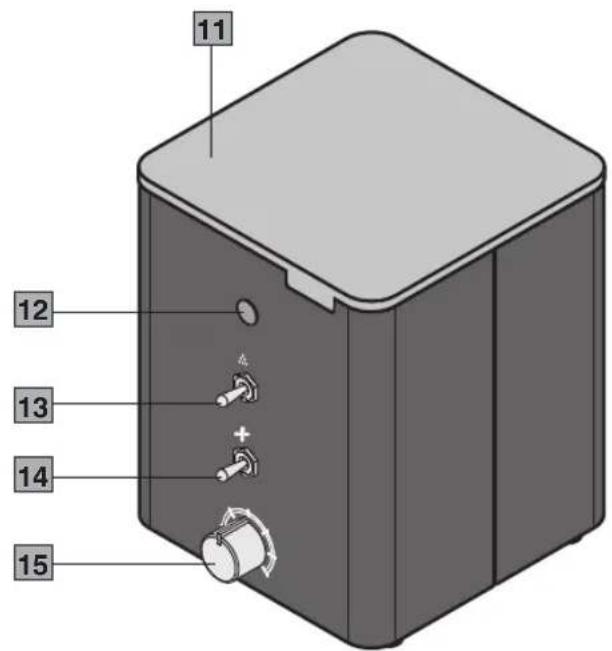

1	Base	11	Control box
2	Bellows	12	Motor power on indicator
3	Collector	13	Motor start/stop switch
4	Grinding adjustment toothed disc	14	Cooling fan start/stop switch
5	Disc unlocking button for quick adjustment	15	Motor rotation speed adjustment knob
6	Grinding adjustment knob	16	ON-OFF (I-O) switch

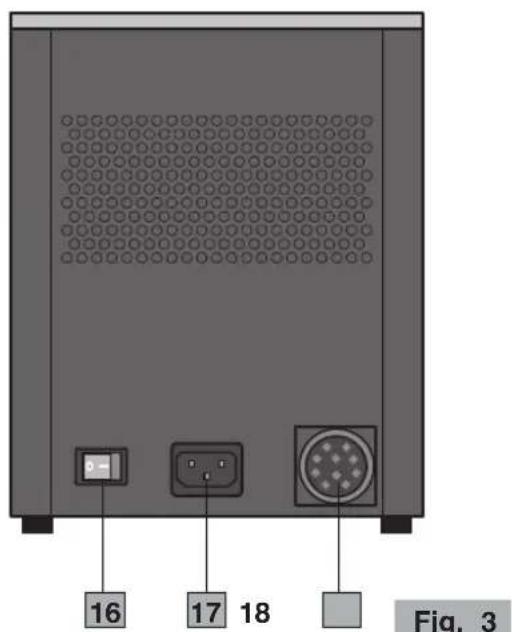

7	Discharge spout	17	Socket for the power cable
8	Support fork (removable)	18	Connector for connection with the appliance cable
9	Spout emptying system

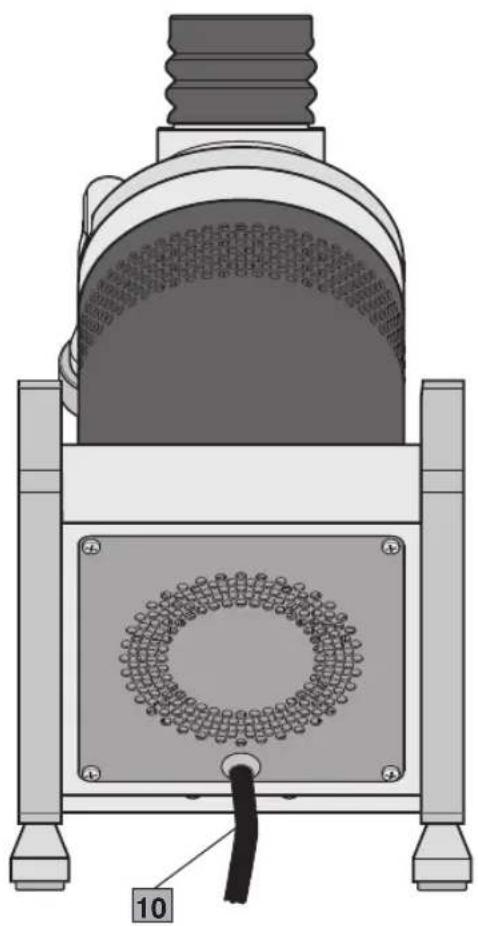

10	Cable for connection with the control box

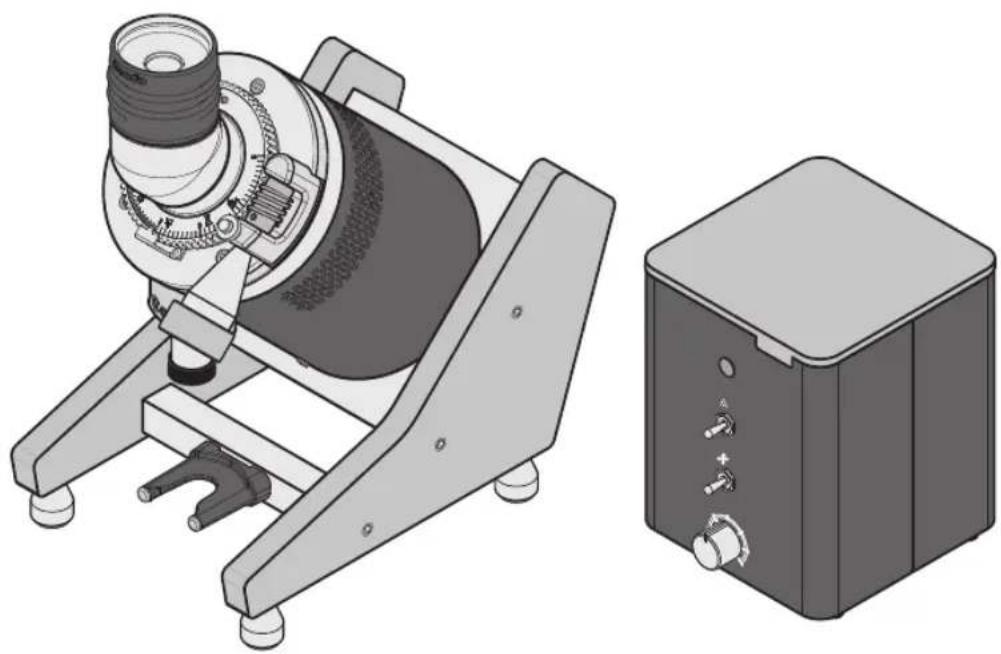

Labeled diagram of a mechanical device with numbered parts for identification

Fig. 1

Ceado 4 5 6 9 7

Technical diagram of a mechanical device with a circular component and labeled part '10' (no text or symbols beyond label)

Fig. 2

11 12 13 14 15

16 17 18 Fig. 3

Fig. 3

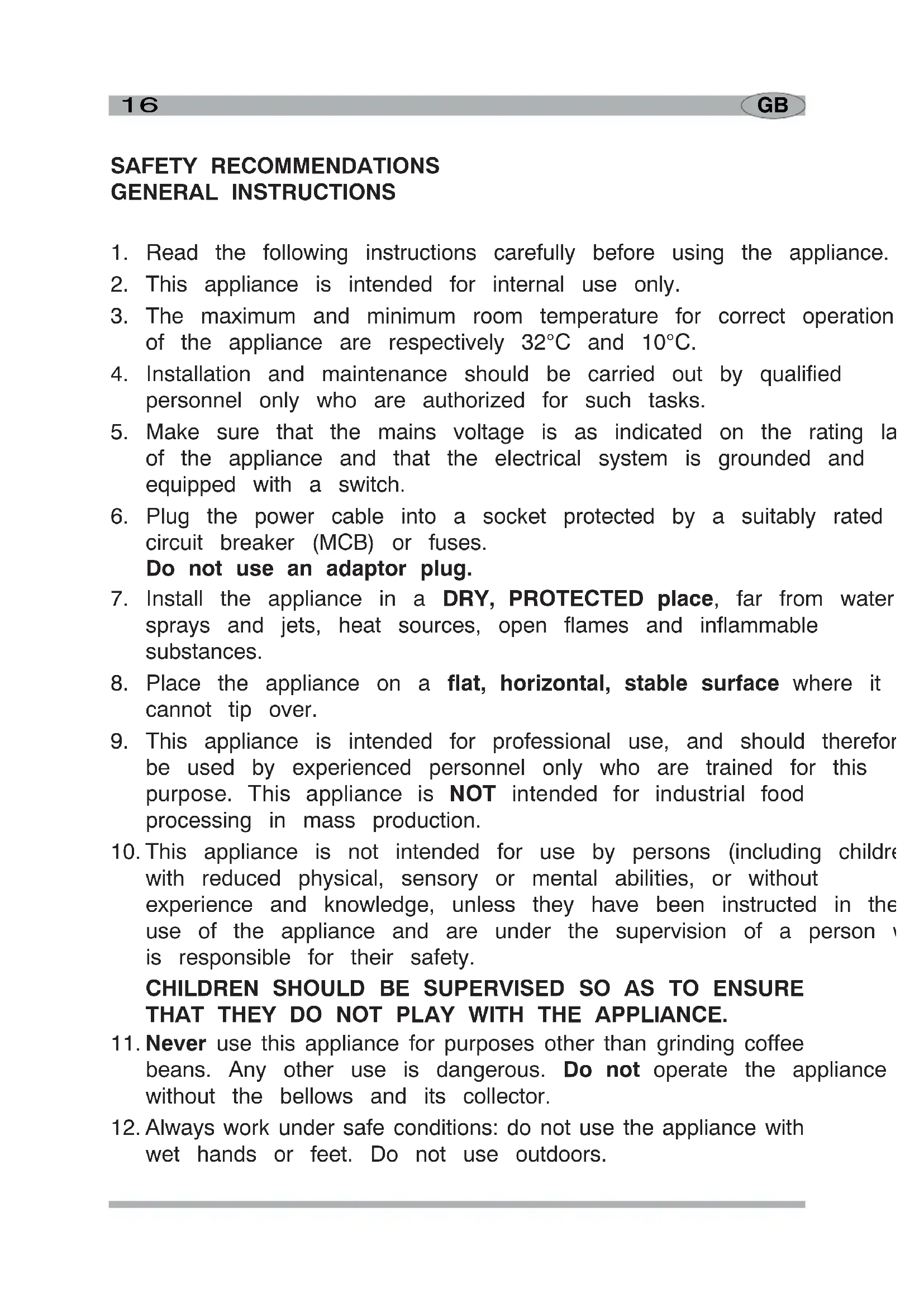

SAFETY RECOMMENDATIONS GENERAL INSTRUCTIONS

1. Read the following instructions carefully before using the appliance.
2. This appliance is intended for internal use only.
3. The maximum and minimum room temperature for correct operation of the appliance are respectively 32^ C and 10^ C.
4. Installation and maintenance should be carried out by qualified personnel only who are authorized for such tasks.
5. Make sure that the mains voltage is as indicated on the rating la of the appliance and that the electrical system is grounded and equipped with a switch.
6. Plug the power cable into a socket protected by a suitably rated circuit breaker (MCB) or fuses.

Do not use an adaptor plug.

1. Install the appliance in a DRY, PROTECTED place, far from water sprays and jets, heat sources, open flames and inflammable substances.

2. Place the appliance on a flat, horizontal, stable surface where it cannot tip over.

3. This appliance is intended for professional use, and should therefore be used by experienced personnel only who are trained for this purpose. This appliance is NOT intended for industrial food processing in mass production.

4. This appliance is not intended for use by persons (including children with reduced physical, sensory or mental abilities, or without experience and knowledge, unless they have been instructed in the use of the appliance and are under the supervision of a person) is responsible for their safety.

CHILDREN SHOULD BE SUPERVISED SO AS TO ENSURE THAT THEY DO NOT PLAY WITH THE APPLIANCE.

1. Never use this appliance for purposes other than grinding coffee beans. Any other use is dangerous. Do not operate the appliance without the bellows and its collector.

2. Always work under safe conditions: do not use the appliance with wet hands or feet. Do not use outdoors.

3. Keep the original package for possible future use. It is the most suitable protection against damage during transport.

4. In case of fire use extinguishers. Do not use water or powder extinguishers.
5. Never place the appliance in water!
6. Do not disassemble the appliance or attempt to perform any rep inside it.
7. Always unplug the appliance before performing any maintenance or cleaning and when it is not in use.
8. Never pull the appliance by the cord to move it. Never unplug it by pulling the cord or touching it with wet hands.

If the power cable is damaged it must be replaced by the manufacturer or by the technical assistance service, or at any rate by a person with similar qualifications, so as to prevent all risks.

1. Do not use the appliance if it is damaged or has loose parts. Immediately contact an authorized Service Center.

2. Noise: the appliance does not exceed 70 dB.

The appliance complies with European regulation CE 1935/2004 and subsequent updates.

Note: Due to statistical tests on the product in the factory, some coffee grounds may be found in the appliance.

SAVE THESE INSTRUCTIONS

To consult these instructions on-line, visit the site www.ceado.com

CE

The EC declaration of conformity for this appliance is available in the Products section of our website www.ceado.com.

INSTALLATION

Comply with the safety recommendations indicated above and hereafter when installing the appliance.

For the installation of the appliance, qualified personnel must be present who are able to check fineness of the grind.

1. Make sure that the mains voltage is as indicated on the rating label of the appliance and the electrical system is grounded and equipped with a switch.
2. Install the appliance in a DRY, PROTECTED place, far from water sprays and jets, heat sources, open flames and inflammable substances.
   Place the appliance on a flat, horizontal, stable surface where it cannot tip over.
3. Position the support fork, the collector and the bellows in their housing.
4. Connect the cable for connection with the control box 10, Fig. 2 with the connector 18, Fig.
5. Connect the power cable to the socket 17, Fig. 3.

Before connecting the plug to the power socket, make sure that the ON-OFF switch (16 I is in position "0" (OFF).

1. Plug the power cable into a socket protected by a suitably rated circuit breaker (MCB) or fu Do not use an adaptor plug.

2. Stretch the power cable and the cable for connection with the control box out to full length. Do not let them pass over sharp edges or hot surfaces. Do not let oil spill on them. Do not let the power cable and the cable for connection with the control box hang loose from the counter which the appliance stands.

PREPARATION AND USE

Before first use: rinse all of the parts that will have contact with food in running water i.e.: bellows, collector, discharge spout.

SWITCHING ON

1 Turn the ON-OFF switch to position "I" (16 Fig. 3).
2 Start the motor with the ON-OFF switch (13 Fig. 3).

Always start the motor of the coffee grinder before putting coffee beans into the bellows (running empty).

3 Adjust the motor rotation speed with the adjustment knob (15 Fig. 3).
4 Position the filter-holder on the fork (8 Fig. 1). If you want to pour the coffee into another container, remove the fork, pulling it forward with both hands (the fork is kept in position magnet) and put the container in position.
5 To reduce static electricity (present especially in some types of coffee) apply 2-3 splashes water using the spray bottle supplied on the beans ready for grinding.
6 Pour the desired quantity of coffee beans into the bellows opening (2 Fig. 1).
7 After all the coffee beans have been ground completely, tap the bellows (2 Fig. 1) with y-hand, making sure your palm fully covers the opening. To completely drop all the ground pull down and release 2 or 3 times the spout emptying system (9 Fig. 2).
8 Stop the motor with the start/stop switch (13 Fig. 3).

REGULATING GRINDING

When it leaves the factory the machine has a standard setting, but it may be necessary to a grinding further due to various external factors such as the type of mixture used, the humidity, temperature, or the different distribution requirements.

The degree of grinding may be further corrected by turning the grinding adjustment knob (6 Fig. 4).

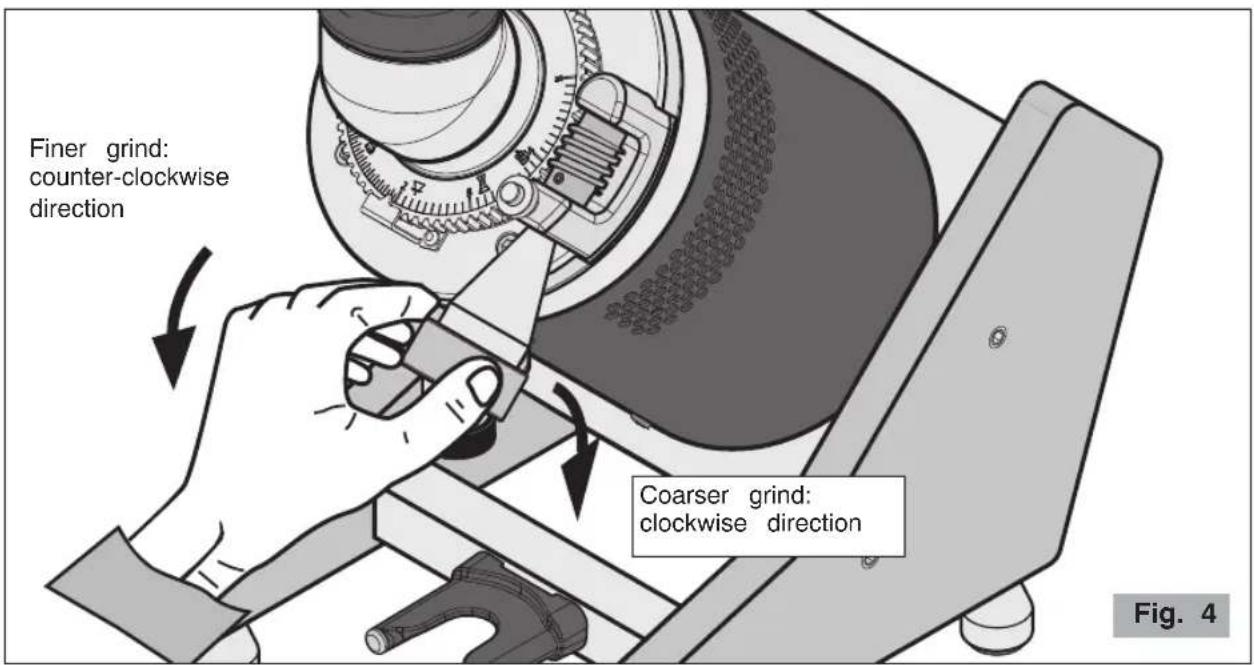

• To obtain a finer grind, move the knob in a counter-clockwise direction.

• To obtain a coarser grind, move the knob in a clockwise direction.

It is possible to speed up the adjustment operations by directly turning the grinding adjustm toothed disc (4 Fig. 1) (see Fig. 5 - 1, 2, 3), after having first unlocked by unscrewing a pressing the unlocking button (5 Fig. 1) and moved away the adjustment block.

At the end of adjustment, remember to reposition the adjustment block and to fully tighten the unlocking button (for repositioning it is not necessary to hold the button down).

Make sure that the teeth of the grinding adjustment disc mate correctly with the gear of adjustment block.

Finer grind: counter-clockwise direction Coarser grind: clockwise direction Fig. 4

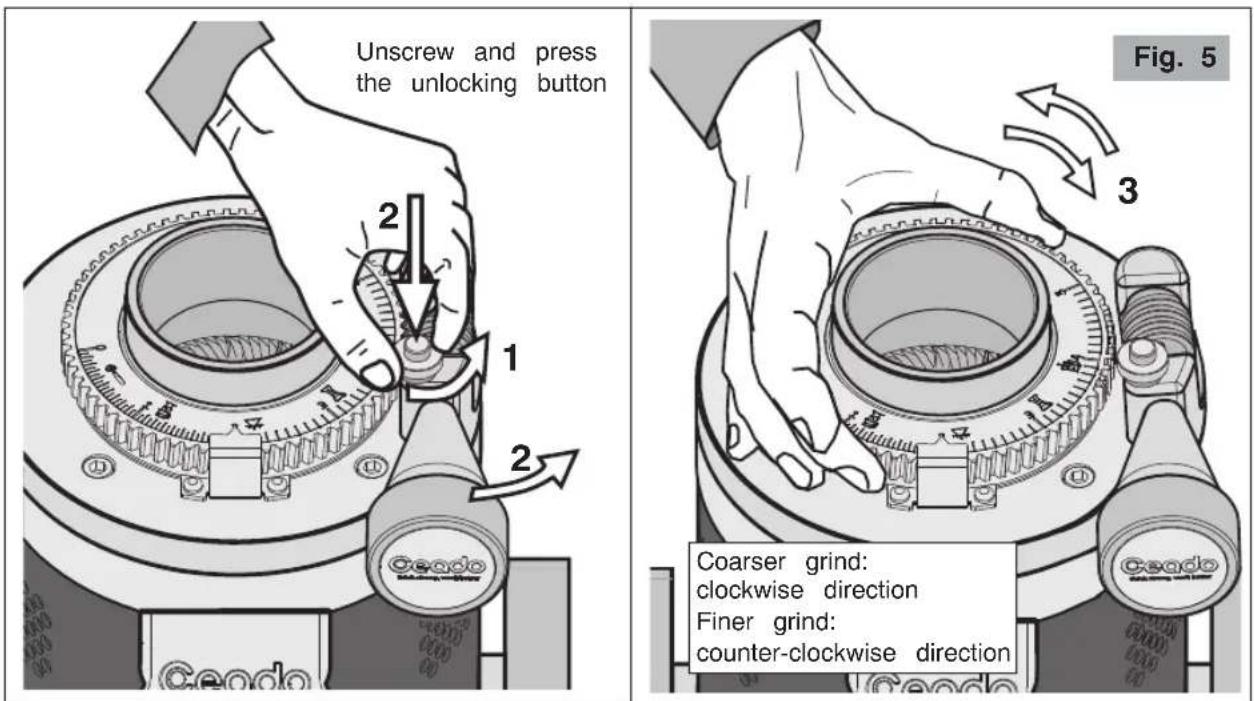

Unscrew and press the unlocking button 1 2 3 Fig. 5 Coarser grind: clockwise direction Finer grind: counter-clockwise direction

Adjusting the motor rotation speed

The motor rotation speed can be adjusted according to the quality and type of coffee to be ground.

To adjust the grinding speed of the coffee beans, use the knob to adjust the motor rotation sp (15 Fig. 3) increasing it (clockwise) or decreasing it (counter-clockwise).

Motor cooling fan

To operate the fan of the coffee grinder motor continuously, use the start/stop switch (14 Fig. 3)

CLEANING

It is important to keep the appliance clean and in good working order to ensure optimum qual the products and long life of the appliance.

Cleaning of the appliance must be carried out by persons with knowledge and practical experience of the appliance.

At the end of each working day, clean the outer surfaces dirty with coffee (bellows, discharge spout etc.).

Always disconnect the plug of the control box from the power socket before cleaning it.

When cleaning the wood base, use specific products for the treatment and cleaning of wood

Never put the appliance under running water and never immerse in water.

- Use a paintbrush to clean the most hidden areas inside.

MAINTENANCE

Maintenance must be carried out exclusively by qualified technical personnel.

Care for the mechanical and electrical parts of the appliance is indispensable in order to guarantee their safety and efficiency. If any parts need replaced, authentic spare parts must always be used

TROUBLESHOOTING

(See Table on the next page)

In case of any malfunction, defect of the appliance or if you suspect any breakage after a fall the appliance immediately.

If you are unable to solve the problem referring to the table below, contact an Authorized Ser Centre.

Only qualified experts should repair the appliance.

We are not liable for any damage caused by repairs not made correctly and/or by unauthorized personnel. In these cases the warranty does not apply.

Problem	Solution
The appliance does not turn on.	Check that the cable for connection with the control box 10, Fig. 2 is inserted in the connector 18, Fig. 3.Check that the plug of the power cable is inserted in the socket 17, Fig. 3.Make sure the safety circuit breaker is closed.Check that the main switch of the appliance is ON.If the problem occurs itself after a long period of intensive use or overfilling, the motor could be in thermal protection lock! Wait at least 20 minutes and try again. The waiting time can be reduced by putting the appliance in a cool place.
The coffee is not coming out of the discharge opening correctly.	Check that the coffee discharge opening is free.
The motor gets blocked.	If the motor gets blocked due to incorrect regulation of grinding or to the presence of a foreign body in the burrs, try increasing to the coarsest grain size by turning the grinding adjustment disc clockwise (4 Fig. 1).If this is not enough, switch off the appliance, disconnect the plug from the socket and consult technically qualified personnel.

DISPOSAL

Correct disposal of this product (waste electrical and electronic equipment)

(Applicable in the European Union and other countries with separate collection systems in conformity with European Directive 2012/19/EU and subsequent updates)

This product has been made from high-quality parts and materials, which can be re-used and recycled.

Therefore, do not throw the product away with normal household waste at the end of its working life. Take it to a collection point for recycling electrical and electronic devices. This is indicated by this symbol on the product and in the operating manual.

Please contact your local government office for information about the exact location of the closer collection point.

c arate EU als, d waste recycling ol on the t the

WARRANTY

This product is guaranteed against faulty materials and workmanship.

The warranty period may vary according to local laws or commercial uses of the country where product is marketed. Therefore, please contact the retailer from whom the product was purchased

During the warranty period, this product can either be repaired or replaced, at the manufacturer discretion, at no additional cost only if it has been used according to the instructions in this maintenance manual.

If the products needs maintenance or repairs during the warranty period, contact your retailer for shipping instructions. The product should be shipped in its original package or other suitable packing.

The warranty does not apply in case of neglect, misuse, abuse or unauthorized repairs. This warranty does not apply to parts subject to deterioration through normal use such as wear to burrs and to the electrical parts.

The warranty is limited to the costs of repair or replacement of the product or its defective pay an amount equivalent to the price paid for its purchase. No additional requests of damages will available to the purchaser.

The manufacturer will not accept any liability and the warranty will be invalidated if there is failure to follow these instructions and the technical and/or safety standards in the country when the appliance is to be used.

In any case these instructions cannot cover every possible event and the user is recommended use the appliance responsibly.

THE MANUFACTURER RESERVES THE RIGHT TO MAKE ANY ALTERATIONS TO THE APPLIANCE WITHOUT NOTICE

MOULIN À CAFÉ E37Z-Hero

Composants principaux (Fig. 1, Fig. 2, Fig. 3)

Technical diagram of a mechanical device with numbered parts labeled 1 through 8

Fig. 1

Ceado 4 5 6 9 7 Ceado

Technical diagram of a mechanical device with a circular component and labeled part '10' (no text or symbols beyond label)

Fig. 2

11 12 13 14 15

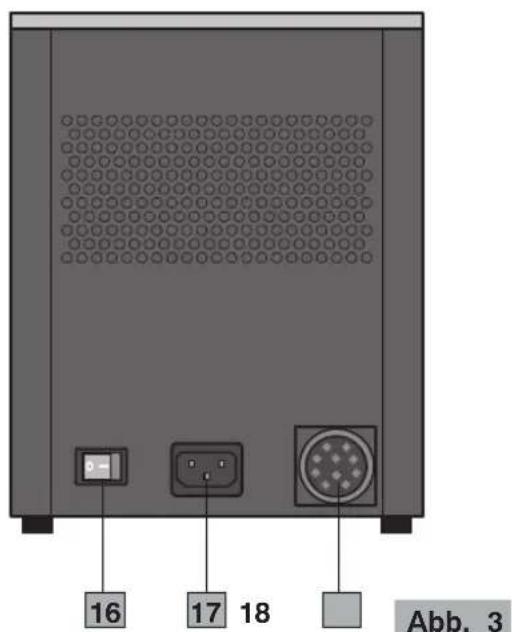

16 17 18 Fig. 3
