Feature	Details
Product type	Wi-Fi 6 Router
Wi-Fi standard	Wi-Fi 6 (802.11ax)
Maximum speed	Up to 5700 Mbps
Frequency bands	2.4 GHz and 5 GHz
Ethernet ports	4 Gigabit LAN ports, 1 WAN port
MU-MIMO technology	Yes
OFDMA technology	Yes
Security features	WPA3, built-in firewall
Remote management	ASUS Router app
Dimensions	240 x 240 x 60 mm
Weight	1.2 kg
Warranty	2 years

Frequently Asked Questions - RTAX86U Pro ASUS

How do I reset my ASUS RTAX86U Pro to factory settings?

To reset your router, press and hold the reset button on the back of the router for about 10 seconds until the LED light blinks.

How do I change the Wi-Fi password on my ASUS RTAX86U Pro?

Log in to the router\'s web interface by entering the IP address in a browser. Go to 'Wireless Settings' and change the password in the corresponding field.

What should I do if I can\'t connect to the Internet?

First, check that all cables are properly connected. Then restart the router. If the problem persists, contact your Internet service provider.

How do I update the firmware on my ASUS RTAX86U Pro?

Access the router\'s web interface, go to 'Administration', then 'Firmware Update'. Follow the instructions to download and install the latest version.

Why is my ASUS RTAX86U Pro overheating?

Make sure the router is placed in a well-ventilated area and away from heat sources. If overheating continues, consider contacting ASUS support.

How do I set up parental controls on my ASUS RTAX86U Pro?

Log in to the router\'s web interface, go to 'Parental Controls' and configure the necessary restrictions for the devices of your choice.

My Wi-Fi network is slow, what can I do?

Try moving your devices closer to the router, changing the Wi-Fi channel in the settings, or restarting the router to improve performance.

How do I enable VPN on my ASUS RTAX86U Pro?

Log in to the web interface, go to 'VPN', then enable the VPN feature and follow the instructions to configure your VPN service.

How do I check the devices connected to my ASUS RTAX86U Pro?

Log in to the router\'s web interface, go to 'Status' or 'Client List' to see all devices currently connected to your network.

How can I increase the range of my Wi-Fi signal?

You can try repositioning the router for better coverage or consider using a Wi-Fi repeater to extend the signal range.

My router won\'t turn on, what should I do?

Check that the router is properly plugged in and that the outlet is working. Try another power cable if necessary.

USER MANUAL RTAX86U Pro ASUS

U16249/First Edition/March 2020

Table of contents

Package contents 3

A quick look at RT-AX86U 3

Position your wireless router. 4

Preparing your modem. 5

Setting up your RT-AX86U 6

A. Wired connection 6
B. Wireless connection.. 6

FAQ 8

Networks Global Hotline Information 173

This QSG contains these languages:

English

BbIrapckn

Cestina

Hrvatski

Dansk

Nederlandsls

Eesti

Suomi

Français

Deutsch

EAAnviKa

Magyar

Italiano

Latviski

Lietuviu

Norsk

Polski

Português

Româna

Pycckn

Srpski

Slovenský

Slovenscina

Espanol

Svenska

YkpaHcbkn

Türkce

Package contents

RT-AX86U Wireless Router AC adapter
Network cable (RJ-45) Quick Start Guide

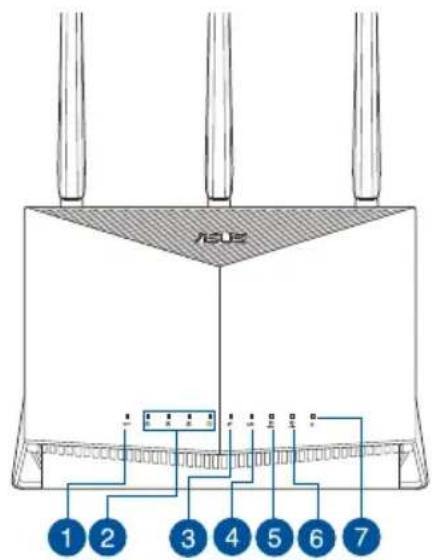

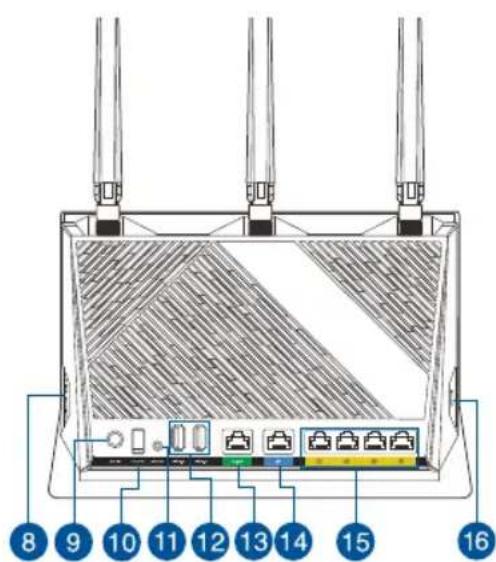

A quick look at RT-AX86U

1 WPS LED Power (DC-IN) port	9
2 LAN 1~4 LEDs Power button	10
3 WAN (Internet) LED Reset button	11
4 2.5G LED USB 3.2 Gen 1 ports	12
5 2.4GHz LED 2.5G port	13
6 5GHz LED WAN (Internet) port	14
7 Power LAN 1 ~ 4 ports	15
8 LED on/off button WPS button	16

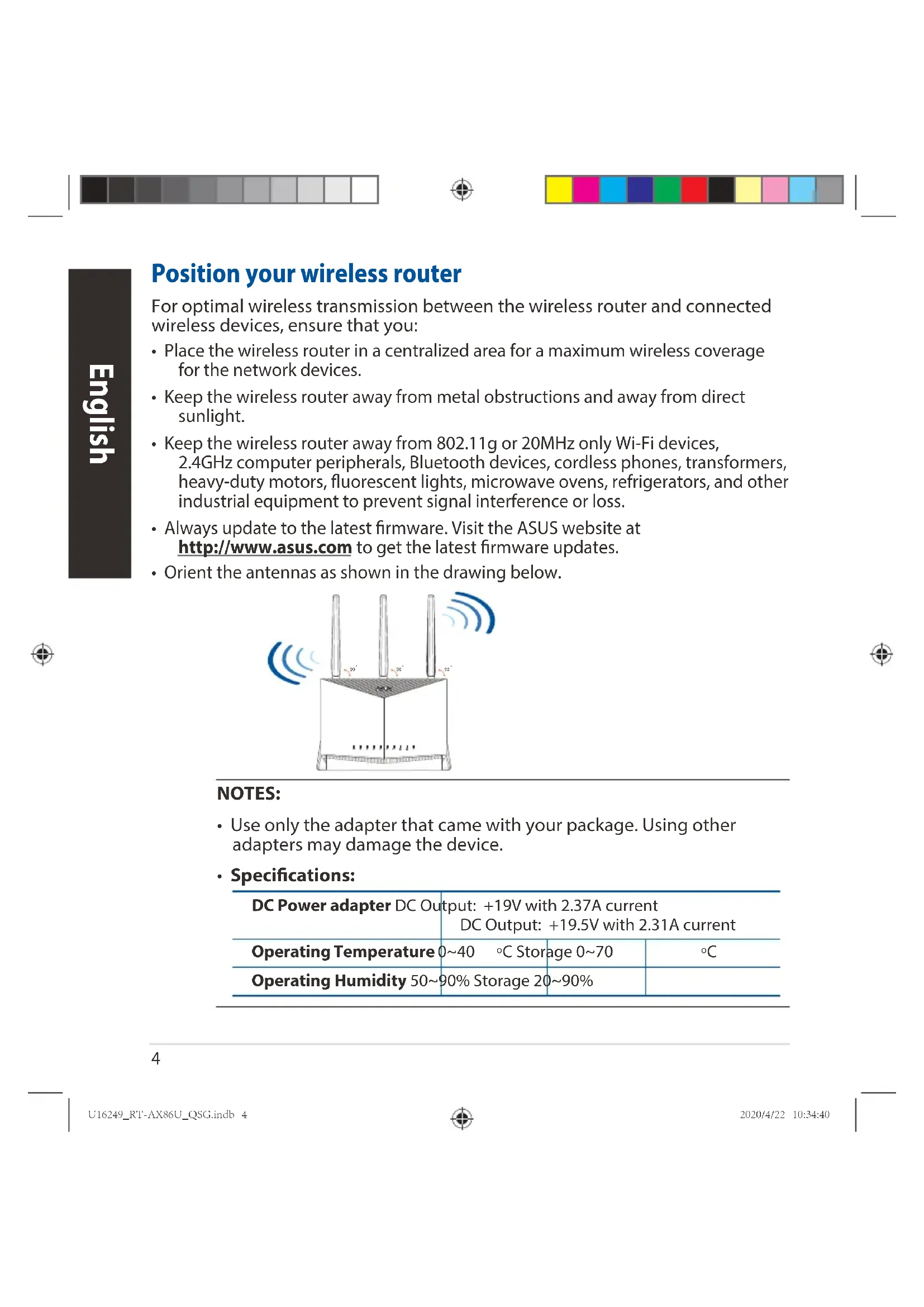

Position your wireless router

For optimal wireless transmission between the wireless router and connected wireless devices, ensure that you:

• Place the wireless router in a centralized area for a maximum wireless coverage for the network devices.
• Keep the wireless router away from metal obstructions and away from direct sunlight.
• Keep the wireless router away from 802.11g or 20MHz only Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices, cordless phones, transformers, heavy-duty motors, fluorescent lights, microwave ovens, refrigerators, and other industrial equipment to prevent signal interference or loss.
• Always update to the latest firmware. Visit the ASUS website at http://www.asus.com to get the latest firmware updates.

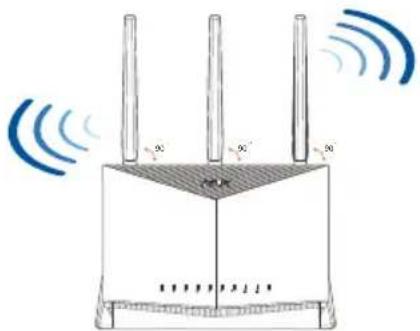

• Orient the antennas as shown in the drawing below.

NOTES:

• Use only the adapter that came with your package. Using other adapters may damage the device.
• Specifications:

DC Power adapter DC Output	Output: +19V with 2.37A current DC Output: +19.5V with 2.31A current
Operating Temperature	0~40 °C Storage	0~70	°C
Operating Humidity 50~	90% Storage	20~90%

Preparing your modem

1. Unplug the power cable/DSL modem. If it has a battery backup, remove the battery.

NOTE: If you are using DSL for Internet, you will need your username/password from your Internet Service Provider (ISP) to properly configure the router.

1. Connect your modem to the router with the bundled network cable.

1. Power on your cable/DSL modem.
2. Check your cable/DSL modem LED lights to ensure the connection is active.

Setting up your RT-AX86U

You can set up your router via wired or wireless connection.

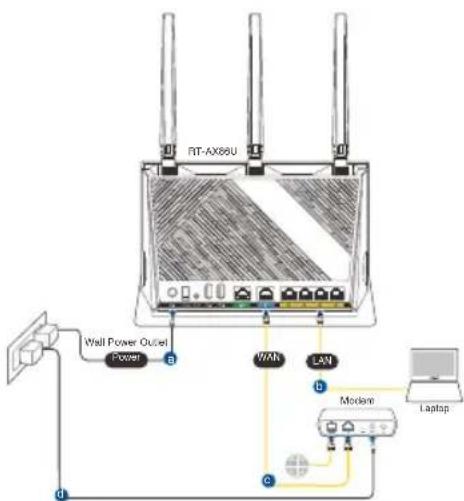

A. Wired connection

1. Plug your router into a power outlet and power it on. Connect the network cable from your computer to a LAN port on your router.

1. The web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.
2. Set up a password for your router to prevent unauthorized access.

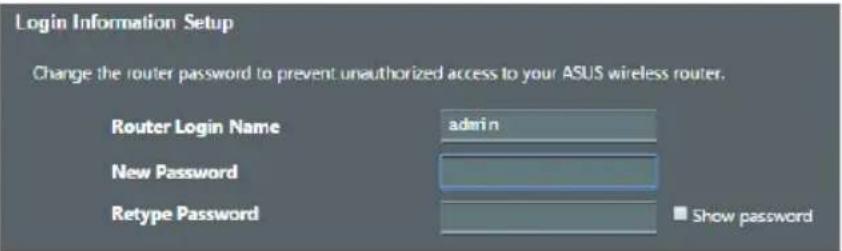

Login Information Setup

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

Show password

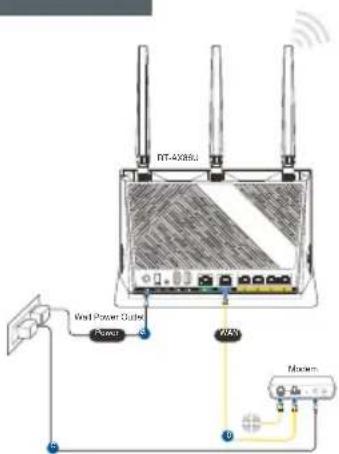

B. Wireless connection

1. Plug your router into a power outlet and power it on.

1. Connect to the network with SSID shown on the product label on the back side of the router. For better network security, change to a unique SSID and assign a password.

Wi-Fi Name (SSID): ASUS XX

• XX refers to the last two digits of 2.4GHz MAC address. You can find it on the label on the back of your router.

• You can choose either the web GUI or ASUS Router app to set up your router. a. Web GUI Setup

• Once connected, the web GUI launches automatically when you open a web browser. If it does not auto-launch, enter http://router.asus.com.

• Set up a password for your router to prevent unauthorized access.

b. App Setup

Download ASUS Router App to set up your router via your mobile devices.

• Turn on Wi-Fi on your mobile devices and connect to your router's network.
• Follow ASUS Router App setup instructions to complete the setup.

ASUS Router

ASUS Router

Remembering your wireless router settings

• Remember your wireless settings as you complete the router setup.

Router Name: Password:
2.4 GHz network SSID: Password:
5GHz network SSID: Password:

FAQ

1. Where can I find more information about the wireless router?

2. Online FAQ site: https://www.asus.com/support/faq

3. Technical support site: https://www.asus.com/support
4. Customer hotline: refer to the Support Hotline section in this Quick Start Guide
5. You can get the user manual online at https://www.asus.com/support

Бьрз перлед

RT-AX86U AanTep 3a npomHnTOK
MpeKOB ka6eJ (RJ-45) PbKOBOcO 3a 6bp3 cTapT

Download on the App Store

ASUS Router

Download on the AppStore

ASUS Router

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

Show password

Download on the App Store

ASUS Router

Sādan husker du dine tradløse routerindstillinger

• Husk dine tradløse indstillinger, nár du konfigurerer routeren.

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

Show password

B. Traadita ühendus

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

b. Rakenduse seadistamine

Laadige alla ASUS-e ruuteri rakendus, et häalestada ruuter labi mobilse seadme.

Download on the App Store

ASUS Router

Traadita ruuteri sātete meeles pidamine

Downloaded on the App Store

• Evépyoànónté to Wi-Fi 0πις kivntéç ouokéuèç oac kal ouvδεθεite oto δiktuo tnc RT-AX86U.

AkoounoTe Tc obnyie c EykataoTaonc Tnc εapouync ASUS Router npokieevou va oloknpwoeTe Tnv EykataoTaon.

Pioc va OmuoTe TIC puOmuoic Tou aoupuatou dpopoIoynt

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

admin

Show password

ASUS Router

ASUS Router

79n7

TASUS Router n

Wi-Fi-n nx yson

RT-AX86U's nnnnnn

ASUS n"yNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnNnN

innae nnnnne

.

	:2.4GHz nvn du:
	:5GHz nvn du:

nixi nixu

?oynnnn nn y noyn nnnn nn nnnn .1

https://www.asus.com/support/faq:niinni nnnn nn

https://www.asus.com/support:

n nn nnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnnn

wnnnn

https://www.asus.com/support:nnnnnnn nn nnnn

Xinwunninn

xin yin yin dian ninnn nn 7y

.

.

wnnn nnnn nn nnnn nnnn nnnn nnnn nnnn nnnn

nntnxwn'psi pinn nnnn nn nnnn T97n

nnnnnn nnnn nn nnnn nnnnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nnnn nann

.

y

Download on the App Store

ASUS Router

Download on the AppStore

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

admin

Show password

b. Lietotnes iestatishana

Lejupieladejiet ASUS Router lietotni, lai iestatitu marsrutetaju ar mobilajam icicem.

ASUS Router

• lesledziet Wi-Fi mobilajā iceré un savienojiet ar RT-AX86U tiklu.

Lai veiku iestatisanu, izpildiet ASUS Router lietotnes iestatisanas noradijumus.

ASUS Router

Bezvadu marsrutetaja iestatijumu atceresanas

Pabeidzot marsrutetaja iestatisanu, iegaumejiet bezvadu iestatijumus.

Download on the App Store

ASUS Router

Huske innstillinger for den tradlse ruteren

Husk de tradlose innstillingene du har utforer ruteroppsettet.

Ruternavn: Passord:
2,4 GHz-nettverks-SSID: Passord:
5GHz-nettverks-SSID: Passord:

Spørsmål og svar

1. Hvor kan jeg finne mer informasjon om den tradlse ruteren?
2. Online side med spørsmål og svar: https://www.asus.com/support/faq
3. Side for tekniisk stotte: https://www.asus.com/support
   Kundejhelp: Henvis til stottetelefonnummeret i tillegsguiden
   Du finner bruksanvisingen på nettet på https://www.asus.com/support

Downloaded on the App Store

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

admin

Show password

Download on the App Store

ASUS Router

Download on the App Store

ASUS Router

CleyuTe uHcTpkyuMaHa 3KpaHe IJy3aBepWeHn npoceca HacTpoiKn.

3anomnhaHne hactpoek 6ecnpoBODHoro pouTepa

3anomnhte napameTpbl 6ecnpoBODHO cETN nocne 3aBepueHnaCTpOKN poyTepa.

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

admin

Show password

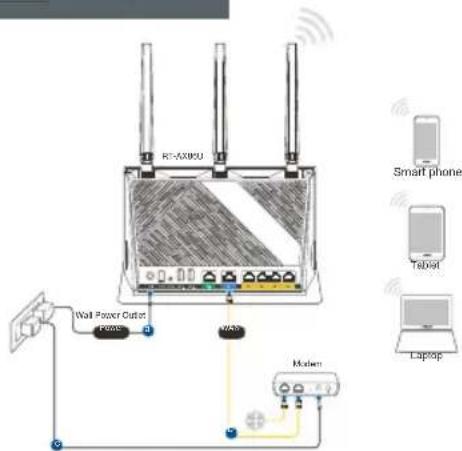

b. Configurare prin aplicatie

Downloaded on the App Store

ASUS Router

Downloaded on the App Store

ASUS Router

Download on the AppStore

ASUS Router

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

admin

Show password

Download on the App Store

ASUS Router

Change the router password to prevent unauthorized access to your ASUS wireless router.

Router Login Name

New Password

Retype Password

Show password

B. Be3dpoToBe nIDKIIoueHHa

1. YbimKHiTb MapwpyTu3aTop do po3eTKu KnBHeHH i NodaTe KnBHeHH.

UK support e-mail: [e-mail]
- For more information, visit the ASUS support site at: https://www.asus.com/support/

ASUS Recycling/Takeback Services

ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as the packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed recycling information in different regions.

REACH

Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm

Federal Communications Commission Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Prohibition of Co-location

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

IMPORTANT NOTE:

Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC exposure compliance requirement, please follow operation instruction as documented in this manual. This device is restricted for indoor use.

WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 26cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.

Compliance Statement of Innovation, Science and Economic Development Canada (ISED)

This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.

CANICES-3(B)/NMB-3(B)

Radio Frequency (RF) Exposure Information

The radiated output power of the ASUS Wireless Device is below the Innovation, Science and Economic Development Canada radio frequency exposure limits. The ASUS Wireless Device should be used in such a manner such that the potential for human contact during normal operation is minimized.

This equipment should be installed and operated with a minimum distance of 31cm between the radiator any part of your body.

This device has been certified for use in Canada. Status of the listing in the Innovation, Science and Economic Development Canada's REL (Radio Equipment List) can be found at the following web address:

http://www.ic.gc.ca/eic/site/ceb-bbst.nsf/eng/h_tt00020.html

Additional Canadian information on RF exposure also can be found at the following web:

https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf08792.html

This radio transmitter [3568A-RTAXI600] has been approved by Innovation, Science and Economic Development Canada to operate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit.

The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.r.p. limits specified for point-to-point and non-point-to-point operation as appropriate.

For indoor use only.

Precautions for the use of the device

a. Pay particular attention to the personal safety when use this device in airports, hospitals, gas stations and professional garages.
b. Medical device interference: Maintain a minimum distance of at least 15cm (6 inches) between implanted medical devices and ASUS products in order to reduce the risk of interference.
c. Kindly use ASUS products in good reception conditions in order to minimize the radiation's level.
d. Keep the device away from pregnant women and the lower abdomen of the teenager.

This product complies with the "India E-Waste (Management) Rules, 2016" and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls(PBBs) and polybrominated diphenyl ethers (PBDEs) in concentrations exceeding 0.1% by weight in homogenous materials and 0.01% by weight in homogenous materials for cadmium, except for the exemptions listed in Schedule II of the Rule.

YcIOBna 3KcNpyaTaun:

• TemnepaTypa 3Kcnpnyatauyn yctpoiCTBa: 0-40 ^ C . He nCnoIb3yIte yctpoiCTBO By CIOBnIX 3KCTpeMaJIbHO BbICOKIN HN3KNX TemnepaTyp.
• He pa3meaTe yCTPOIcTBO B6n3n nCToUHKnOB TeNla, HApPIMep, PAnOM C MKNPOBOJHOBOI neybIO, DuxOBbIM uKaΦOM NII paNaTOpOM.
• IcnoIb3OBAHne HeCOBMeCTUMORO INn HecepTuΦuNpOBaHHOro aanTepa NITaHnMoKET npNBecTn K BO3rOpAHnU, B3pyBy n npOuHM ONaCHbIM NocJeDCTBnM.
• Pn noKIOeHn K cTeN 3JeKTPoNTaHn yCTpoIcTBO cNeyET paCNoIarTaB 6nI3KO K PO3eTKe, K HeN DoJXeH OCyUeCTBnIbCa 6ecnpenrTCTBeHHbI DOCTyn.
• YtUnn3aun yCTPOINCTBa OCyUeCTBnRETCB COOTBECTBUN C MeCTHbIMN 3aKOHAMN IN NOLOXKeHNrM.N. YcTPOINCTBO N0 OKOHuaHN cPoka cnJx6bl DOJIHXbI 6bITb NepeDaHb I CepTNfUncpOBaHHb INyHK Tc6Opa dJIa BTOPNuHOI nepepa6OTKn INI IN paBnHOBYtUnn3aun.
  -Данhoe yctpoiCTBO He npeHa3HaueHo nla DeTeN. DeTn MOryT NOlb3ObaTbcA YcTPOICTBOM TOJbKO B INPCyTCTBnB 3pOcJIbIX.
• He BbIbpaBaiTe yCTpoiCTBO n erO KOMPiKeTyoUe BMeCTe C 06bIuHbIMN 6bITOBbIMN OTXoJaMn.

IpepiK pexmib po6oTn IyKpaHn:

2,4Γι: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ax(HE20), 802.11ax (HE40)

5Γι: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80),

802.11ac (VHT160), 802.11ax (HE20), 802.11ax (HE40), 802.11ax (HE80), 802.11ax (HE160)

Yactota, pexim i MaKcImMaIbHa BnIpomHIOBaHa NotyXHicTb Iya YkpaIHn:

2412-2472 MФι: 19,98 ΦΜ;

5180-5240 MГч: 19,98 DM,

5260-5320 MΓι: 19,98 ΜΜ;

5500-5670 Mf: 19,98 dBm

Pnncpi npn3naeHOn dny BnKOpncTaHHa TInbKn y npmiueHHi niJ vac po6OTn B YacToTHomy diaana3oHi 5150-5350 MfU.

182

CE statement

Simplified EU Declaration of Conformity

ASUSTek Computer Inc. hereby declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. Full text of EU declaration of conformity is available at https://www.asus.com/Networking/RT-AX86U/HelpDesk/.

Declaration of Conformity for Ecodesign directive 2009/125/EC

Testing for eco-design requirements according to (EC) No 1275/2008 and (EU) No 801/2013 has been conducted. When the device is in Networked Standby Mode, its I/O and network interface are in sleep mode and may not work properly. To wake up the device, press the Wi-Fi on/off, LED on/off, reset, or WPS button. This equipment complies with EU radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

All operational modes:

2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ax (HE20), 802.11ax (HE40)

5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80),

802.11ac (VHT160), 802.11ax (HE20), 802.11ax (HE40), 802.11ax (HE80), 802.11ax (HE160)

The frequency, channel and the maximum transmitted power in EU are listed below:

2400-2483.5MHz(1-13):OFDM:19.97dBm(99.3mW);CCK:19.73dBm(93.9mW)

5150-5250MHz (36-48): 22.98dBm(198mW)

5250-5350MHz (52-64): 22.99dBm(199mW)

5470-5725MHz (100-140): 29.98dBm(995mW)

The device is restricted to indoor use only when operating in the 5150 to 5350 MHz frequency range.

The adapter shall be installed near the equipment and shall be easily accessible.

AT BE BG CZ DK EE FR
DE IS IE IT EL			ES CY
LV	LI	LT	LU	HU	MT	NL
NO	PL	PT	RO	SI	SK	TR
FI	SE CH UK		HR UA

Safety Notices

• Use this product in environments with ambient temperatures between 0^(32^) and 40^(104^) .
  Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating.
  DO NOT place on uneven or unstable work surfaces. Seek servicing if the casing has been damaged.
  DO NOT place or drop objects on top and do not shove any foreign objects into the product.
  DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
  DO NOT cover the vents on the product to prevent the system from getting overheated.
• DO NOT use damaged power cords, accessories, or other peripherals.
  If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
• To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system.
  DO NOT mount this equipment higher than 2 meters.

Bulgarian

CE statement

OnpocTeHa deknapaun 3a cbOTBeTCTBne Ha EC

C hactoToTO ASUSTeK Computer Inc. DeKnappa, Ye ToBa yctpoiCTBO e B cbOTBeTcTBne cbc sbueCTBeHnTe n3NCKBaHnHa n Dpyrnte npuioxumn NocTaHOBHeHnHa IpuekTnBa 2014/53/EC. TbJHnA r TeKT Ha deKnapaunra 3a cbOTBeTcTBne Ha EC e Doctbne Hn aadpec https://www.asus.com/Networking/ RT-AX86U/HelpDesk/.

Deknapaun 3a cbotBeTCTBne 3a DnpeKTHBa 3a ekOuHa 2009/125/EO

IpoBedeHn ca TectObe 3a CbBmecTmOc c N3NCKBaHnra Ta 3a ekOJn3aH CbflacHo (EO) No. 1275/2008 n (EC) No. 801/2013. Korato yctpOcTBOTo e B Networked Standby Mode (PexnHa roTOBHOCT Ha mpeka), I/O nmpexOBnT nHTepfEic ca B cnqU pexnM n MoKe da He pa6oT kAcTo Tpr6Ba. 3a da cb6yDnte yctpOcTBOTO, HATncHe Wi-Fi on/off (Wi-Fi BkN./n3Kn.), LED on/off (LED BkN./n3Kn.), reset (hynipaHe) nn 6byToHa WPS.

ToBa yCtpoiCTBO E B CbOTBeTCTBnE C rpaHnUte 3a paIIOueCTOHO 6OBuBaHe, yCTaHOBeHN OT EC 3a HeKoHTpOIpaHa CpeDa. ToBa o6OpyDbaHe Tp8Ba Da ce IHCTaIInpa N I3NON3Ba npn pa3ctOHNe HaimaIKO 20 cm 20 cm Mekdy nI3NbYBaUTO TAn O YOBeWKOTO TAnIO.

BcnuK npexmHa pa6oTa:

2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ax (HE20), 802.11ax (HE40)

5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80), 802.11ac (VHT160), 802.11ax (HE20), 802.11ax (HE40), 802.11ax (HE80), 802.11ax (HE160)

Ito-dony ca nocouehn yectota, kahai makcmaHOT npedaabaHO 3axpaHbaHe B EC. 2400-2483.5MHz(1-13): OFDM: 19.97dBm(99.3mW); CCK: 19.73dBm(93.9mW)

5150-5250MHz (36-48): 22.98dBm(198mW)

5250-5350MHz (52-64): 22.99dBm(199mW)

5470-5725MHz (100-140): 29.98dBm(995mW)

YcTPOINCTBOTO eOgpaHnueHO 3a n3nON3BaHe B NOMEeHnEeHNCTBeHo, KOraTO ONEpnpa B YeCTOTEN dnaana3OH ot 5150 do 5350 MHz.

AanTepeT Tpa6Ba da ce HAMnpa B 6n3oCT do o6OpyDbaHeTo n da 6bJe necho DoctbneH.

Белеки за 6e3onachoct

• 3nnon3BaIte To3 npOdyKT npI TempepaTpaHa OOKoHata cpea ot 0^ (32^) do 40^ (104^) .
  BuxkTe etnkeTa Ha dOnHaTa cTpaHa Ha Baunr npOyKT n ce yBepTe, Ye Baunr aanTp e OTroBapra Ha 3NCKBaHnTa.
  HE noctabraIte BbpxH nepaBn nn HeCTa6uHn pa6oTHn NOBbpxHOCTN. O6bpHeTe ce KbM cepBn3, aKO KopnycbT ce nobpei.
• HE noctabrayTe, He nyskaTe OTrope n He nbxaTe HnkaKbN yUxKn npedMeTn B npoJyKaTa.
  HE n3naraTe Ha n He n3nOJI3BaIe B 6JIn3OCT Do TeUHOCTn, IbXd nnBna. HE n3nON3BaIe MoDema no BpeMe Ha rpbMOTeBvHn 6ypn.
  HE nokpnbai Te BENTnlaOnHnTe OTBOpn Ha npOdyKa, 3a da npedeTbpaTne nperepaBaHe Na cnCTeMaTa.
  HE n3non3BaTe NOBpeHn 3axpaHbAsu Ka6eHn, aKceCoapn nn npyri nepnepn yctpoiCTBa.
  Ako aanTepbTe nOBpeH, He ce onntBaIte da ro peMOHTnpaTe camN. CbbpKeTe ce c KBaIIuNpuHaTexnK nnC Baunr doCTabYnK.
  3a da n36eHHepe pCK OT TOKOB yap, n3KIOUeTe 3axpaHbuaaia Ka6en OT eNEKtpueeckaTa Mpeka npedn da npemeCTIte CNTeMaTa.
  ToBa 6OpUdbaHe da HE ce MOHTnpa Ha BncoUnHa Na2 MeTpa.

Croatian

CE statement

Pojednostavljena EU Izjava o sukladnosti

ASUSTek Computer Inc. ovime izjavluje da je uredaj sukladan s osnovnim zahtjevima i ostalim važnim odredbama direktive 2014/53/EU. Cijeli tekst EU izjave o sukladnosti dostupan je na https://www.asus.com/Networking/RT-AX86U/HelpDesk/.

Izjava o sukladnosti za direktivu o ekodizajnu 2009/125/EZ

Provedeno je testiranje zahtjeva na ekodizajn u skladu s (EC) No 1275/2008 i (EU) No 801/2013. Kada je uredaj u umrezenom načinu mirovanja, njegovi ulazi/izlazi i mrežno sučelje su takoder u načinu mirovanja i možda nece ispravno raditi. ZaPokretanje uredaja pritisnite tipku za ukljucivanje/iskljucivanje Wi-Fi uredaja, ukljucivanje/iskljucivanje LED-a, ponovno postavljanje ili gumb za WPS.

Ova oprema sukladna je EU ograničenjima o izloženosti zračenju u nekontroliranom okruženju. Ovaj urejad se mora postaviti i koristiti na minimnoj udaljenosti od 20 cm izmedu radijatora i vašeg tjela.

Svi načini rada:

2.4GHz: 802.11b, 802.11g, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ax (HE20), 802.11ax (HE40)

5GHz: 802.11a, 802.11n (HT20), 802.11n (HT40), 802.11ac (VHT20), 802.11ac (VHT40), 802.11ac (VHT80), 802.11ac (VHT160), 802.11ax (HE20), 802.11ax (HE40), 802.11ax (HE80), 802.11ax (HE160)

U nastavku su navedeni frekvencija, kanai i maksimalna emitirana snaga u EUs: 2400-2483.5MHz(1-13): OFDM: 19.97dBm(99.3mW); CCK: 19.73dBm(93.9mW)

5150-5250MHz (36-48): 22.98dBm(198mW)

5250-5350MHz (52-64): 22.99dBm(199mW)

5470-5725MHz (100-140): 29.98dBm(995mW)

Urečaj je ogranicen na uporabu u zavorenim prostorima samo pri radu u frekvencijskom rasponu od 5150 do 5350 MHz.

Adapter se mora instalirati blizu uredaja i mora biti lako dostupan.

Sigurnosne napomene

• Ovaj proizvod koristite u okruzenjima s temperaturom okruzenja izmedu 0^ (32°F) i 40°C (104°F).
• Pogledajte nazivnu oznaku na donjem dijelu proizvoda kako biste provjerili je li adapter sukladan.
• NE postavljaje uredaj na neravne i nestabilne radne povrsine. U slučaju ostećenja kucišta, zatražite pomoc servisera.
• NEMOJTE postavljati ili spustati predmete na gornji dio uredaja i nemojte umetati strane predmete u proizvod.
• NE izlažite i ne upotrebljavajte uredaj u blizini tekuciina, kise ili vlage. NEMOJTE koristiti modem tijekom elektricne oluje.
• NEMOJTE prekrivati otvore na proizvodu kako ne biste uzrokovali pregrijavanje sustava.
• Nemojte koristiti oštecene kabele za napajanje, dodatnu opremu i ostale vanjske ureðaje.
• Ako je adapter oštećen, nemojte ga popravljati sami. Oblatite se kvalificiranom servisnom tehnicaru ili dobavljacu.
• Kako biste sprijecili opasnost od elektricnog udara, iskopcjte kabel iz elektricne uticnice prije premjestanja sustava.
• NEMOJTE montirati ovu opremu na visini vecoj od 2 metra.

Czech

CE statement
