STSK A4 B2 - Headphones SILVERCREST - Free user manual and instructions

Product type	True wireless earphones with active noise cancellation (ANC)
Brand	SilverCrest
Model	STSK A4 B2
Earpiece dimensions	Approx. 33 × 22 × 24 mm
Charging case dimensions	Approx. 61 × 46.7 × 24.4 mm
Total weight (earpieces + case)	Approx. 60.6 g (8.6 g earpieces, 52 g case)
Earpiece power supply	Li-Ion battery 3.7 V, 30 mAh, 0.111 Wh (non-replaceable)
Case power supply	Li-Polymer battery 3.7 V, 350 mAh, 1.29 Wh (non-replaceable)
Battery life (with ANC)	Approx. 3 hours (music/phone)
Battery life (without ANC)	Approx. 4.5 hours (music/phone)
Earpiece charging time	Approx. 1.5 hours (full cycle)
Case charging time	Approx. 3 hours (full cycle, via USB-C), Qi compatible
Case capacity	Up to 4 full charging cycles for the earpieces
Bluetooth version	5.2
Supported Bluetooth profiles	A2DP, AVRCP, HSP, HFP
Bluetooth range	Approx. 10 m
Bluetooth frequency	2402 - 2480 MHz
Max. transmission power	< 10 mW
Operating temperature	+10 to +35 °C
Operating humidity	10 to 70 % RH (non-condensing)
Storage temperature	0 to +40 °C
Package contents	2 earpieces (left/right), 1 case, 1 USB-A to USB-C cable, 3 sizes of ear tips (S/M/L), guides
Care and cleaning	Clean with a soft dry cloth. Do not use abrasive products. Remove ear tips for cleaning.
Safety	Do not use while driving, respect volume guidelines, do not open, avoid moisture
Repairability	Built-in batteries are non-replaceable. No spare parts available.

Frequently Asked Questions - STSK A4 B2 SILVERCREST

How to pair the earphones with my smartphone?

Take the earphones out of the case; they turn on automatically. Activate Bluetooth on your smartphone, search for 'STSK A4 B2' and select it. If a code is requested, enter 0000.

What is the battery life with and without ANC?

With active noise cancellation (ANC), the battery life is approximately 3 hours. Without ANC, it reaches approximately 4.5 hours (at medium volume).

How to charge the charging case?

Use the supplied USB cable (type A to type C) with a USB 5 V, 500 mA minimum source. The case takes approximately 3 hours for a full charge. LEDs indicate the charge level.

Can I use Qi wireless charging?

Yes, the case is Qi compatible. Place it on a wireless charger of at least 2.5 W (distance ≤ 5 mm). Maximum consumption is 3 W.

How to clean the earphones and ear tips?

Clean the earphones with a soft dry cloth. The ear tips can be removed and cleaned separately. Do not use abrasive products or liquids.

What if the earphones do not connect?

Make sure the earphones are charged and in the case. Reset the connection by forgetting the device on your phone, then redo the pairing. Check that the Bluetooth range (≤ 10 m) is respected.

Are the earphones waterproof?

No, they are not waterproof. Avoid any contact with water and humidity. Do not use in the rain and do not immerse them.

How to turn the earphones on and off?

The earphones turn on automatically when taken out of the case. To turn them off, put them back in the case. You can also manually turn them off by holding down the touch button (if available).

Can I use a single earpiece?

Yes, each earpiece works independently. Take out one earpiece from the case; it pairs in mono mode. The other can stay in the case for charging.

Where can I find the full user manual?

Scan the QR code on the packaging or go to www.lidl-service.com and enter the item number IAN 375501_2101 to download the complete manual.

USER MANUAL STSK A4 B2 SILVERCREST

TRUE WIRELESS KOPFHÖRER MIT GERAUSCHUNTER-DRÜCKUNG / TRUE WIRELESS NOISE CANCELLING HEADPHONES / ÉCOUTEURS TRUE WIRELESS AVEC SUPPRESSION ACTIVE DU BRUIT STSK A4 B2

DE AT CH

TRUE WIRELESS KOPFHÖRER MIT GERAUSCH-UNTERDRÜCKUNG

Kurzanleitung

GB IE

GB/IE Short manual Page 21

Warning remarks and symbols used 22

Short manual. 23

Intended use 24

Scope of delivery. 25

You will need. 25

Technical data 26

Safety 28

Getting started. 32

Charging 35

Other functions. 36

Pairing the headphones with a Bluetooth

device 36

Disposal. 37

Simplified EU declaration of conformity 38

Service 38

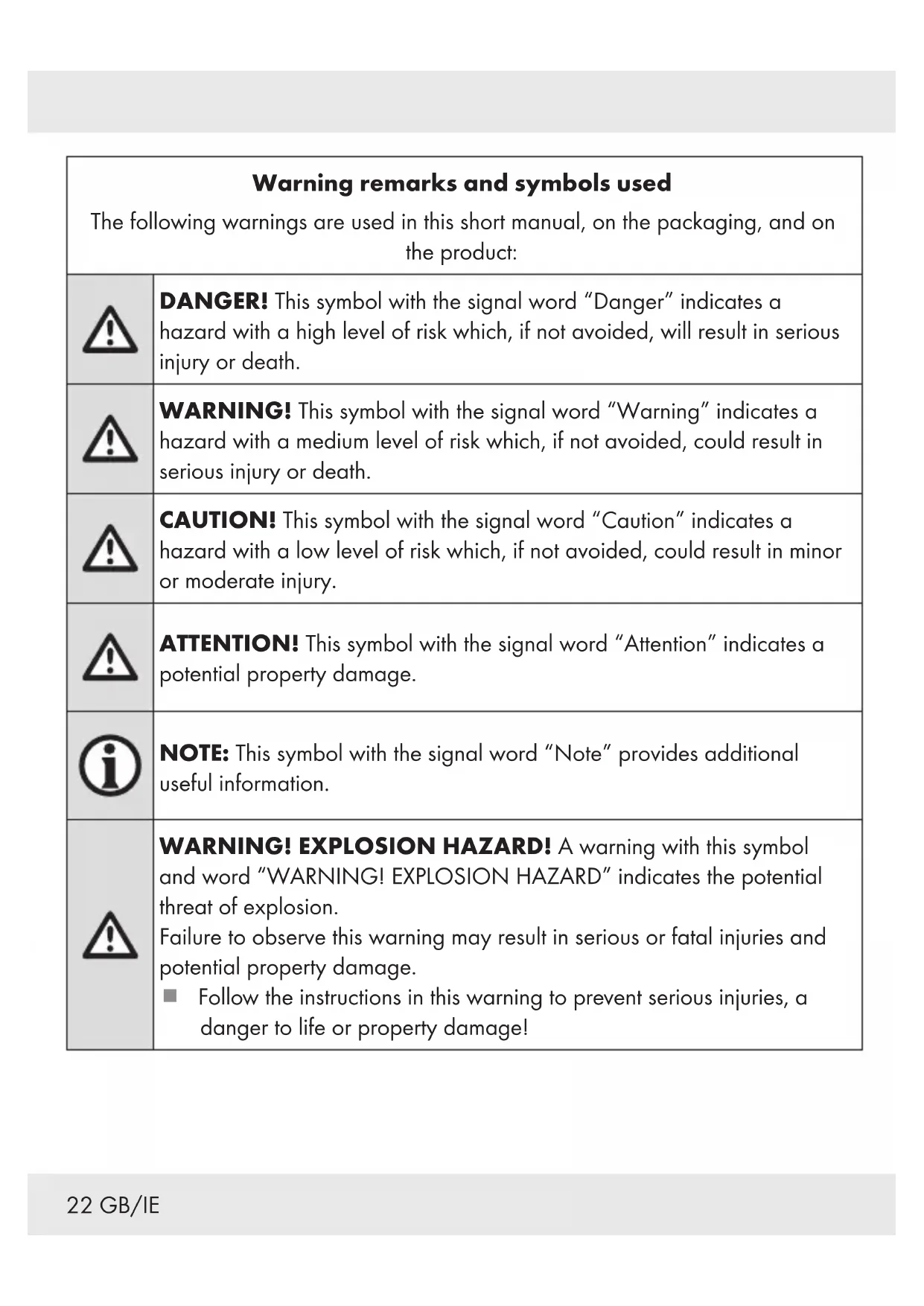

Warning remarks and symbols used The following warnings are used in this short manual, on the packaging, and on the product:
!	DANGER! This symbol with the signal word "Danger" indicates a hazard with a high level of risk which, if not avoided, will result in serious injury or death.
!	WARNING! This symbol with the signal word "Warning" indicates a hazard with a medium level of risk which, if not avoided, could result in serious injury or death.
!	CAUTION! This symbol with the signal word "Caution" indicates a hazard with a low level of risk which, if not avoided, could result in minor or moderate injury.
!	ATTENTION! This symbol with the signal word "Attention" indicates a potential property damage.
!	NOTE: This symbol with the signal word "Note" provides additional useful information.
!	WARNING! EXPLOSION HAZARD! A warning with this symbol and word "WARNING! EXPLOSION HAZARD" indicates the potential threat of explosion. Failure to observe this warning may result in serious or fatal injuries and potential property damage. ■ Follow the instructions in this warning to prevent serious injuries, a danger to life or property damage!
This symbol reminds the user to wear suitable protective hand wear!Follow this warning to prevent hand injury by objects or contact with hot or chemical materials!
A warning with this symbol notifies the user of possible hearing damage.Avoid listening at excessive volumes for prolonged periods.
Direct current / voltage
"Qi" and the Qi logo mark are trademarks of the Wireless Power Consortium (WPC).The charging box built with Qi wireless charging technology.You can charge up the charging box via Qi wireless technology.
This symbol means that the operating instructions must read before using the product.
CE	CE mark indicates conformity with relevant EU directives applicable for this product.

This document is a shorter printed version of the complete instruction manual. By scanning the QR code, you will be taken straight to the Lidl service website (www.lidl-service.com) where you can view and download the complete instruction manual by entering the article number (IAN) 375501_2101.

WARNING! Observe the complete instruction manual and safety notes to prevent personal injury and property damage. The short guide forms an integral part of this product. Prior to using the product, familiarize yourself with all operation and safety notes. Keep the short manual well preserved and if you hand the product on to third parties, all documentation should be passed on as well.

Intended use

These headphones are a consumer electronics device. The headphones are intended for playback of audio material via a Bluetooth® connection. If the headphones are connected to a smartphone, the headphones can also be used as a headset.

The charging and storage box is intended solely for charging and storing the headphones.

The product is intended for private use only.

Any other use beyond what is specified is not intended. Do not use the product for industrial or commercial purposes.

Any claims for damages resulting from unintended use, improper repairs, unauthorized modifications or the use of unapproved replacement parts are excluded. The user carries the sole risk for this.

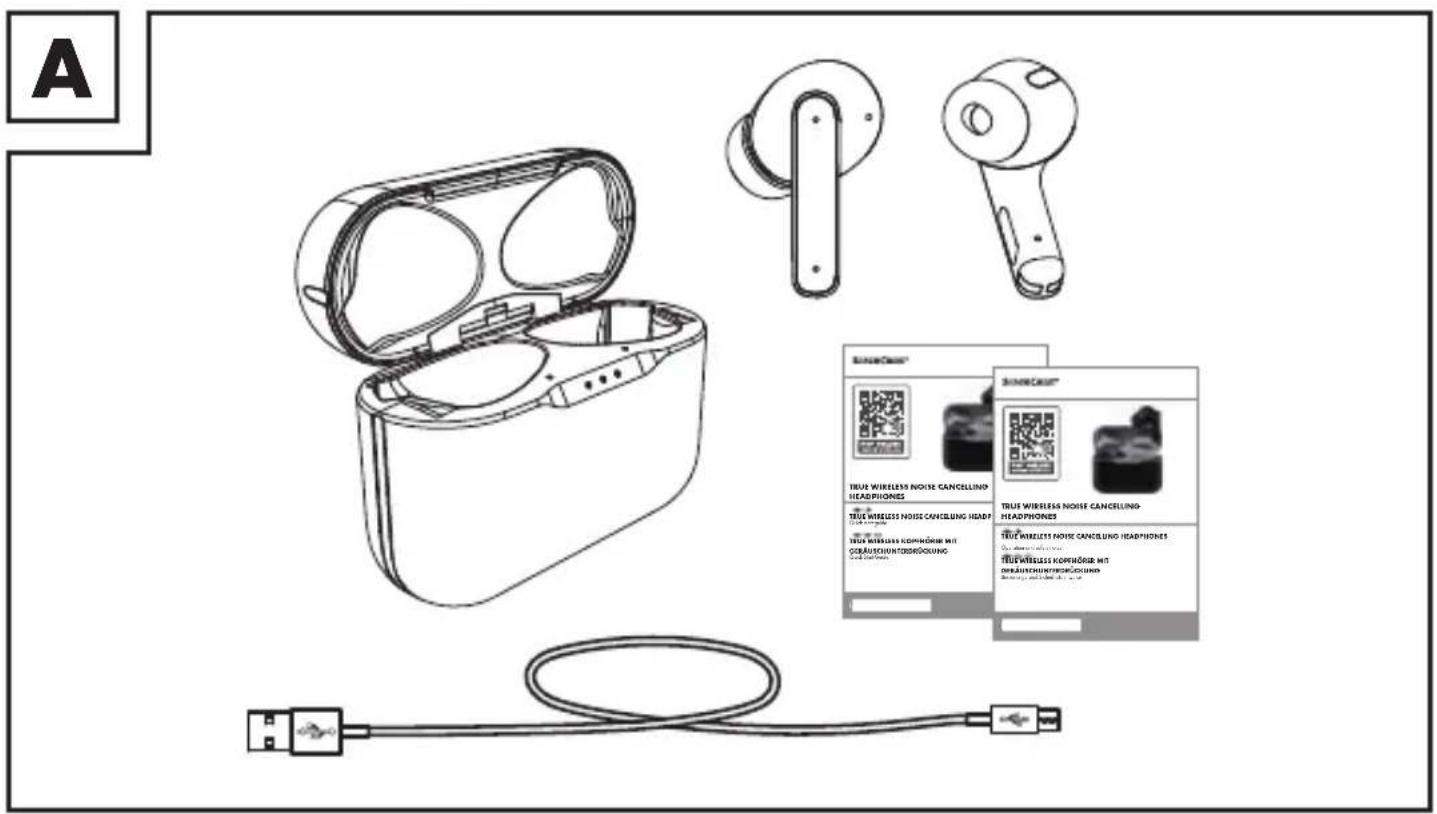

Scope of delivery

After unpacking the product, check if the delivery is complete and if all parts are in good condition. Remove all packaging materials before use.

If you notice any damage or missing parts, please contact the dealer from whom you have purchased this product.

2 x Headphones (1 x left and 1 x right)
1xCharging/storage box
1 x USB cable (type A to type C)
2 × Ear cushions - large
2 × Ear cushions - medium (pre-installed)
2 × Ear cushions - small
1 x Quick start guide
1 x Instruction manual

You will need

USB voltage source (output voltage 5V min. 500mA output current) or a Qi enabled charger with an output power of at least 2.5 W
Bluetoothplaybackdevice

Technical data

Charging/storage box

USB-C input voltage USB 5 V	---
USB-C input current 500 mA
Qi wireless input voltage 5 V
Maximum wireless power consumption 3 W
Wireless charging distance to the Qi charger ≤ 5 mm
Frequency band 107.8–146.8 kHz
Transmitted maximum radio frequency power (H-field) - 11.62 dBμA/m at 10 m distance
Rechargeable battery Li-ion, 3.7 V, 350 mAh, 1.29 Wh
Charging capacity up to 4 complete charge cycles for fully discharged headphones
Charging time of the charging/storage boxes' built-in battery	approx. 3 hours (complete charging cycle)

Headphones

Wireless standard Bluetooth

圆 5.2

Supported profile A2DP, AVRCP, HSP, HFP

Frequency band 2402 to 2480 MHz

Max. transmitted power < 10mW

Range approx. 10m

Rechargeable battery Li-ion, 3.7 V, 30 mAh, 0.111 Wh

Charging time approx. 1.5 hours (complete charging cycle)

Operating time (music & phone

approx. 3 hours (with ANC)

approx. 4.5 hours (without ANC) (at medium volume)

Operating temperature +10 to +35^

Humidity (no condensation) 10 to 70% relative humidity

Storage temperature 0 to +40^

Dimensions approx. 33 × 22 × 24 ~mm (headphones)

approx. 61 × 46.7 × 24.4 ~mm (charging box)

Weight

approx. 8.6 g (both headphones)

approx. 52g (charging box)

① Notes on Qi technology:

This product with wireless Qi charging technology is designed to comply with the Qi (Wireless Power Consortium) standard, but no guarantees are given for its compatibility with all products that comply with the standard.

The specification and design may be changed without notification.

Safety

Before using the product, familiarise yourself with all of the safety information and instructions for use! When passing this product on to others, also include all the documents!

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

Children and persons with disabilities

WARNING! DANGER TO LIFE AND RISK OF ACCIDENT FOR INFANTS AND CHILDREN!

DANGER! Risk of suffocation! Never leave children unsupervised with the product, its accessories and the packaging materials.
The packaging materials pose a suffocation hazard. Children frequently underestimate the dangers. The packaging materials are not toys.
WARNING! Choking hazard due to small parts! This product contains small parts that can cause choking if swallowed.
This product may be used by children age 8 years and up, as well as by persons with reduced physical, sensory or mental capacities or lacking experience and/or knowledge, so long as they are supervised or instructed in the safe use of the product and understand the associated risks.
Do not allow children to play with the product.
- Cleaning and user maintenance shall not be performed by children without supervision.
The product is not a toy.

DANGER DUE TO DIMINISHED PERCEPTION!

• Do not use the headphones while driving a vehicle or riding a bicycle, operating machinery, or in other situations, where diminished perception caused by ambient noise could endanger you or others. Also observe the laws and regulations of the country in which you use the headphones.

Caution, high sound pressure

Be careful when using the headphones. Using headphones for a long period of time and at high volume can lead to hearing damage to the user. Always set the volume to a low level first and adjust it to a comfortable level. Always use headphones so that the perception of the surrounding noise is guaranteed.

ATTENTION! RISK OF PROPERTY DAMAGE!

This product does not contain any parts which can be serviced by the user. The rechargeable battery cannot be replaced.
The product (headphones and charging box) shall not be opened.
- Keep the charging box away from moisture, dripping and splash water!
- Do not place burning candles or other open fire on or next to the product.
Check the product before every use! Discontinue use if any damage to the product or the charging cable is detected!
If you notice smoke or unusual noise or odour, switch the product off immediately and remove the USB cable.
- Sudden temperature changes may cause condensation inside the product. In this case, allow the product to acclimate for some time before using it to prevent short circuits!
- Do not operate the product near heat sources, e.g. radiators or other devices emitting heat!

WARNING! There must be no metal objects between the charging box and the charger used. Metal objects can heat up and cause burns. Remove foreign objects from the charger before charging the product.

CAUTION!

Do not allow the Qi charging surface to get wet from water, beverages, etc.

ATTENTION!

• Do not place magnetic recording media inside the charging area during charging. The magnetism generated may erase the data on credit cards. It may also cause wristwatches and other precision instruments to malfunction.

① NOTE:

During charging and immediately after charging, the Qi charging surface and the product will be warm. This is normal and not a malfunction. If there is an unusual heating, check the Qi charging surface and the product.

WARNING - Radio interference

• Switch the product off on airplanes, in hospitals, service rooms (e.g. boiler room, electric supply room), or near medical electronic systems.
  The wireless signals transmitted could impact the functionality of sensitive electronics.
• Keep the product at least 20cm from pacemakers or implantable cardioverter defibrillators, as the electromagnetic radiation may impair the functionality of pacemakers.
  The radio waves transmitted could cause interference in hearing aids.
• Do not place the product near flammable gases or potentially explosives areas (e.g. paint shops) with the wireless components on, as the radio waves emitted can cause explosions and fire.
  The range of the radio waves varies by environmental conditions.
  In the event of wireless data transmission, unauthorised third parties receiving the data cannot be excluded.
  The OWIM GmbH & Co KG is not responsible for interference with radios or televisions due to unauthorised modification of the product.
  The OWIM GmbH & Co KG further assumes no liability for using or replacing cables and products not distributed by OWIM.
  The user of the product is fully responsible for correcting interference caused by unauthorised modification of the product (refer to previous 2 paragraphs).

Safety instructions for built-in rechargeable batteries

WARNING! RISK OF EXPLOSION! Do not throw the product (charging/storage box and headphones) into fire.

• Avoid extreme environmental conditions and temperatures, which could affect rechargeable batteries, e.g. radiators / direct sunlight.

If rechargeable batteries have leaked, avoid contact with skin, eyes and mucous membranes with the chemicals! Flush immediately the affected areas with fresh water and seek medical attention!

• Do not cover the product during operation or charging. Otherwise the product can overheat.
  This product contains a rechargeable battery, which can lead to fire, explosion or leakage of hazardous substances in case of incorrect application. For this reason, wear suitable protective gloves.

Getting started

E

F

After unpacking the product, check if the delivery is complete and if all parts are in good condition.

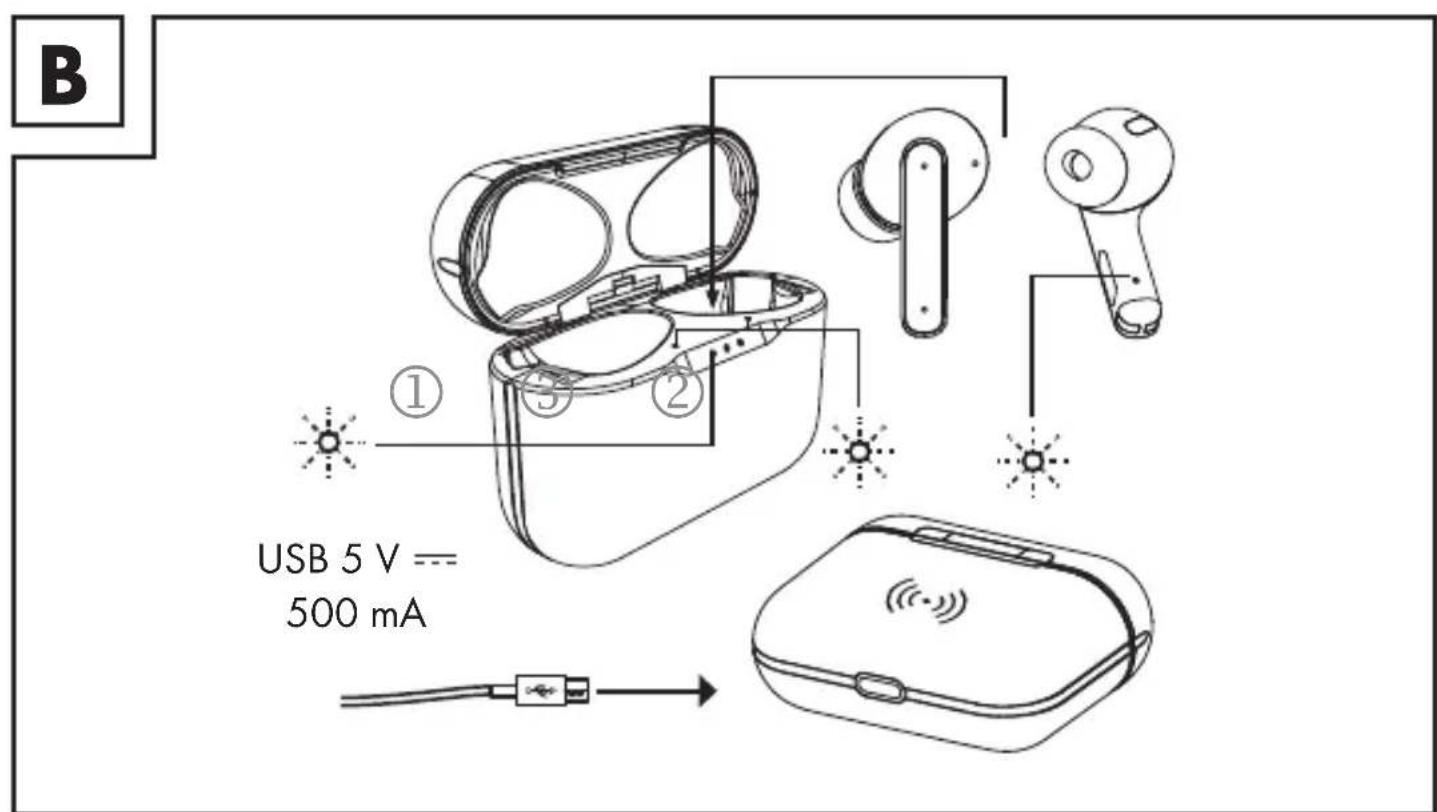

- Charging

① LED	Battery charge status
○○	<30%
○○○	<60%
○○○○	<100%
○○○○○	100%
②③ LED	Status
White Charging

Off Fully charged

Other functions

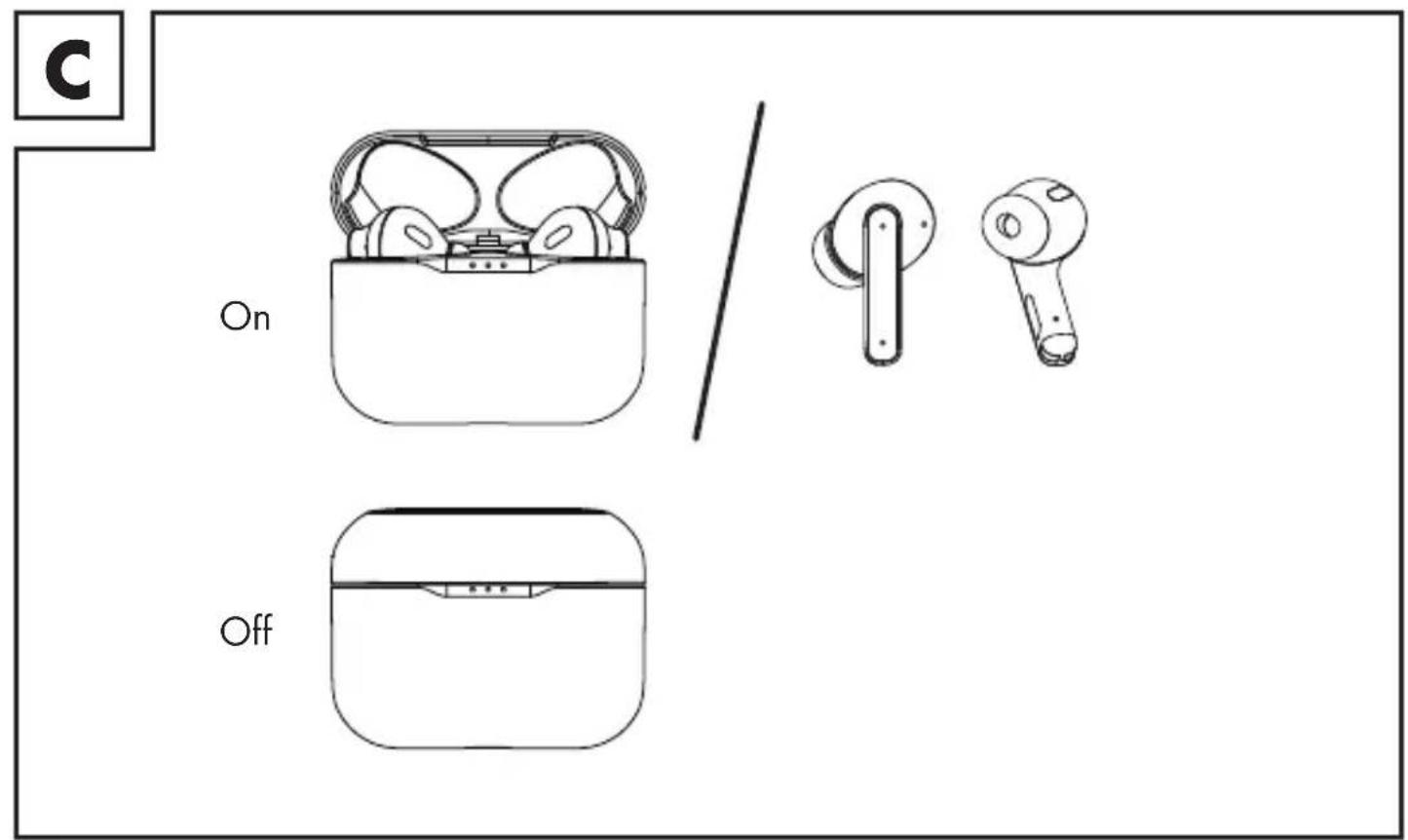

On, Off

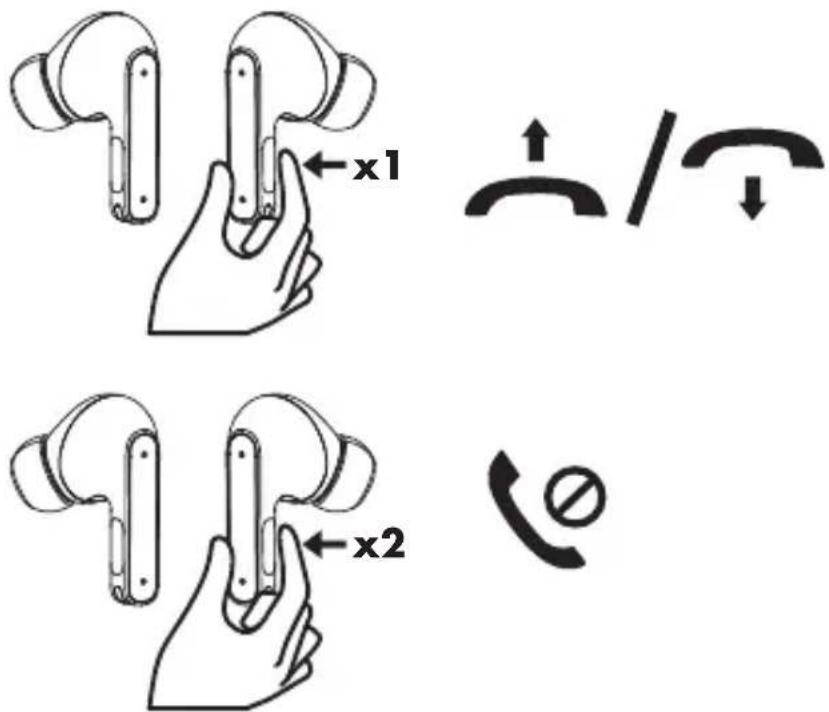

Calling functions

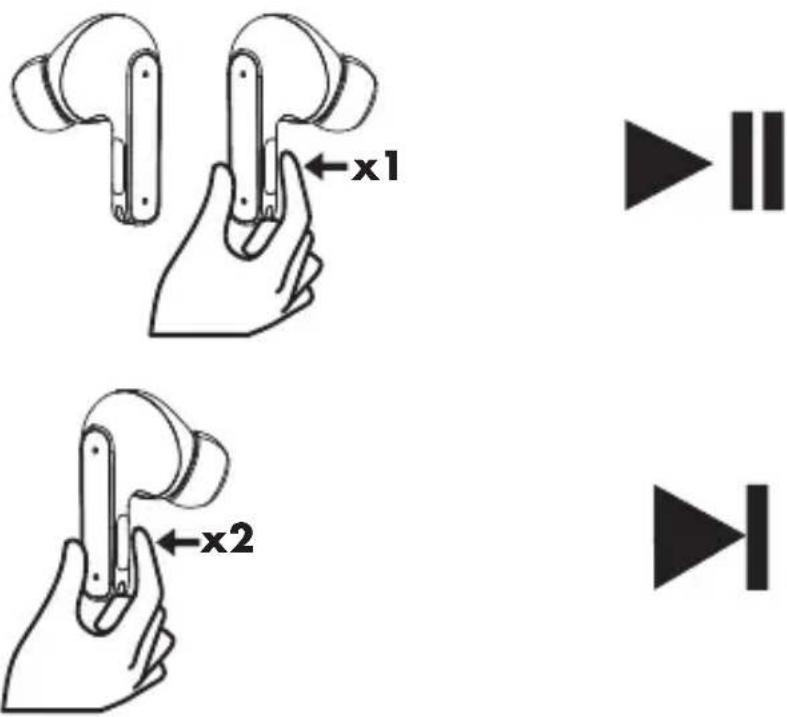

Playback functions

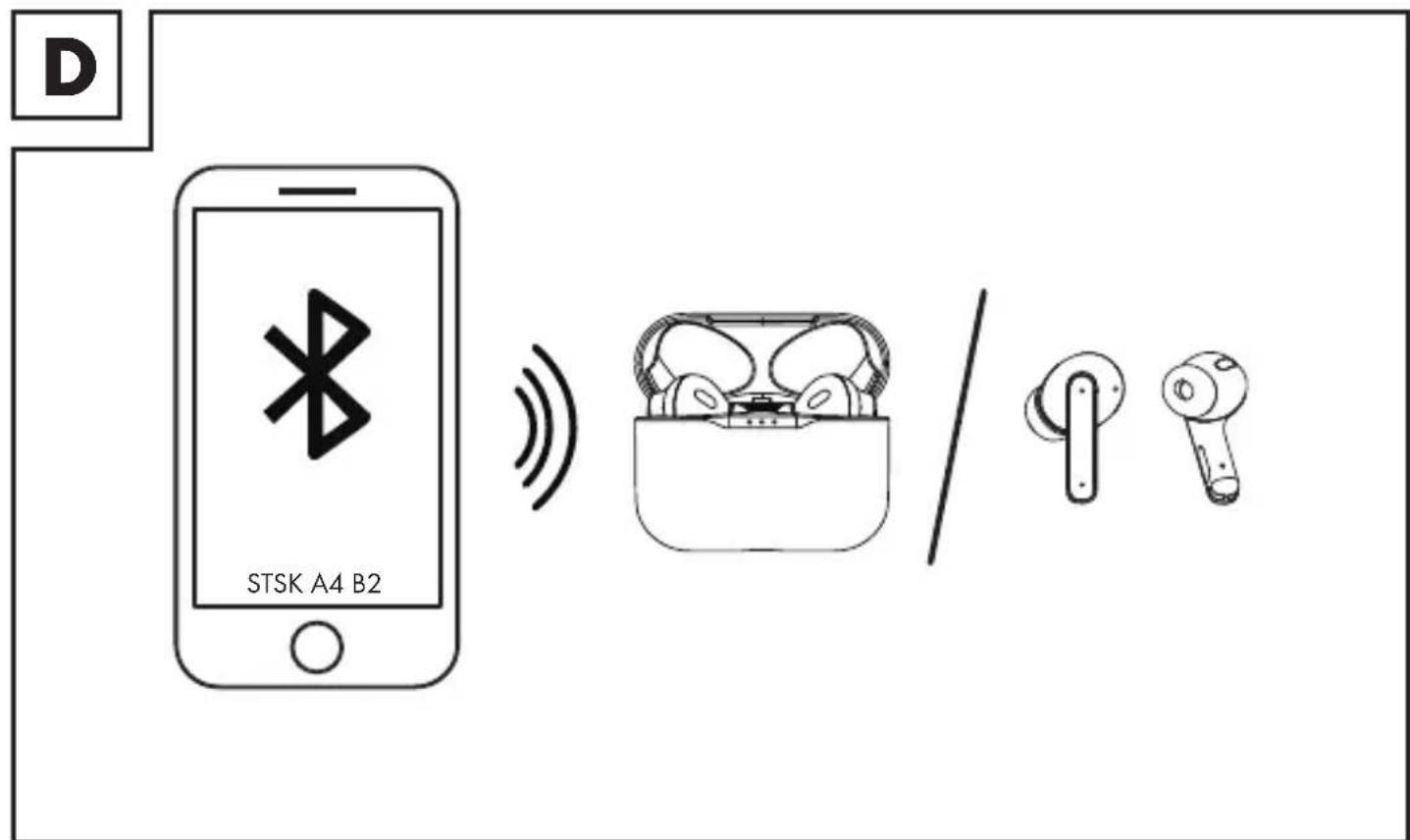

- Pairing the headphones with a Bluetooth device

• On your Bluetooth device, search for the device named STSK A4 B2 and pair with the device.

• If your Bluetooth device prompts you to enter a password, enter 0000.

Disposal

Packaging:

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1-7: plastics / 20-22: paper and fibreboard / 80-98: composite materials.

Product:

Contact your municipality for information on how to dispose of your worn-out product.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

The adjacent symbol of a crossed out dustbin on wheels indicates this product is subject to directive 2012/19/EU. This directive states at the end of the life this product must not be disposed of through regular household refuse but must be returned to special collection sites, recycling depots or waste management companies.

This disposal is free of charge to you.

Protect the environment and dispose of properly.

The product is recyclable, subject to extended manufacturer responsibility, and collected separately.

The built-in rechargeable battery cannot be removed for disposal. Return the product completely to a collection site for used electronics.

- Simplified EU declaration of conformity

Hereby, OWIM GmbH & Co. KG, Stiftsbergstraße 1, 74167 Neckarsulm, GERMANY declares that the product TRUE WIRELESS NOISE CANCELLING HEADPHONES, HG07246, is in compliance with Directive 2014/53/EU and 2011/65/EU.

The full text of the EU declaration of conformity is available at the following internet address: www.owim.com

Service

GB Service Great Britain

Tel.:[phone]

E-Mail: [e-mail]

IE Service Ireland

Tel.:[phone]

E-Mail: [e-mail]

CE
