USER MANUAL 237557 Arktic

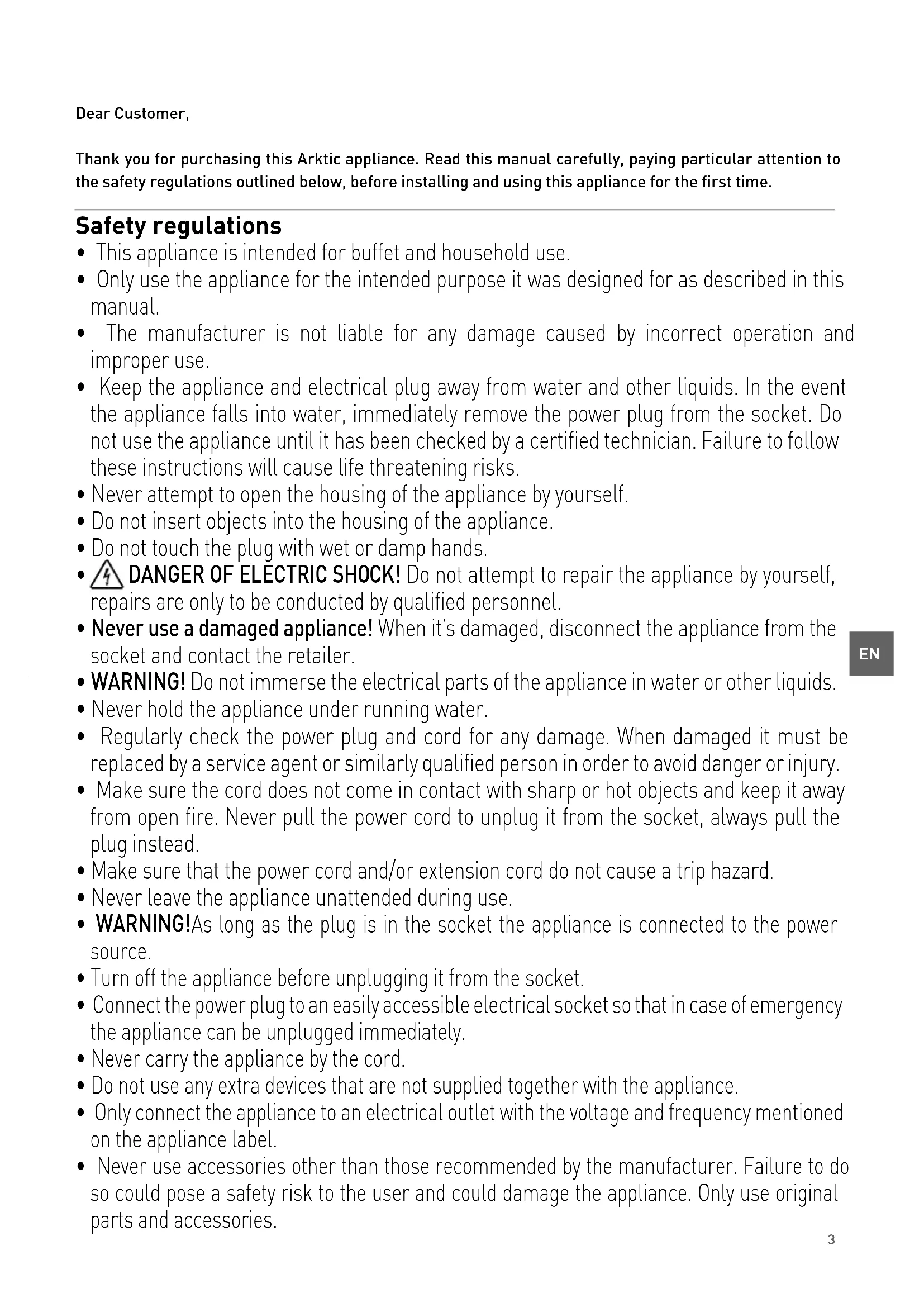

Dear Customer, Thank you for purchasing this Arktic appliance. Read this manual carefully, paying particular attention to the safety regulations outlined below, before installing and using this appliance for the first time. Safety regulations

• This appliance is intended for buffet and household use.

• Only use the appliance for the intended purpose it was designed for as described in this manual.

• The manufacturer is not liable for any damage caused by incorrect operation and improper use.

• Keep the appliance and electrical plug away from water and other liquids. In the event the appliance falls into water, immediately remove the power plug from the socket. Do not use the appliance until it has been checked by a certified technician. Failure to follow these instructions will cause life threatening risks.

• Never attempt to open the housing of the appliance by yourself.

• Do not insert objects into the housing of the appliance.

• Do not touch the plug with wet or damp hands.

DANGER OF ELECTRIC SHOCK! Do not attempt to repair the appliance by yourself, repairs are only to be conducted by qualified personnel.

• Never use a damaged appliance! When it’s damaged, disconnect the appliance from the socket and contact the retailer.

• WARNING! Do not immerse the electrical parts of the appliance in water or other liquids.

• Never hold the appliance under running water.

• Regularly check the power plug and cord for any damage. When damaged it must be replaced by a service agent or similarly qualified person in order to avoid danger or injury.

• Make sure the cord does not come in contact with sharp or hot objects and keep it away from open fire. Never pull the power cord to unplug it from the socket, always pull the plug instead.

• Make sure that the power cord and/or extension cord do not cause a trip hazard.

• Never leave the appliance unattended during use.

• WARNING! As long as the plug is in the socket the appliance is connected to the power source.

• Turn off the appliance before unplugging it from the socket.

• Connect the power plug to an easily accessible electrical socket so that in case of emergency the appliance can be unplugged immediately.

• Never carry the appliance by the cord.

• Do not use any extra devices that are not supplied together with the appliance.

• Only connect the appliance to an electrical outlet with the voltage and frequency mentioned on the appliance label.

• Never use accessories other than those recommended by the manufacturer. Failure to do so could pose a safety risk to the user and could damage the appliance. Only use original parts and accessories.4

• This appliance should not be operated by persons with reduced physical, sensory or mental capabilities, or persons that have a lack of experience and knowledge.

• This appliance should, under any circumstances, not be used by children.

• Keep the appliance and its power cord out of reach of children.

• WARNING: ALWAYS switch off the appliance and unplug from power socket before cleaning, maintenance or storage. Special Safety Regulations

• Use the appliance only as described in this manual.

CAUTION! Risk of fire! The refrigerant used is R600a. It is a flammable natural gas which is environmentally friendly. It does not damage the ozone layer and does not increase the greenhouse effect. The use of this coolant has, however, led to a slight increase in the noise level of the appliance. In addition to the noise of the compressor, you might be able to hear the coolant flowing around the system. This is unavoidable and does not have any adverse effect on the performance of the appliance. Care must be taken during transportation and setting up of the appliance that no parts of the cooling system are damaged. Leakage coolant can damage the eyes.

• The foam blowing agent used is Cyclopentane in this appliance. It is highly flammable.

• This appliance is suitable for an ambient temperature from 16°C ~ 38°C.

• Do not place the appliance on a heating object (gasoline, electric, charcoal cooker, etc.) Keep the appliance away from any hot surfaces and open flames. Always operate and place the appliance on a horizontal, stable, clean, heat-resistant and dry surface.

• Do not use the appliance near explosive or flammable materials, credit cards, magnetic discs or radios.

• This appliance is not intended to be operated by means of an external timer or separate remote-control system.

• WARNING: Keep all ventilation openings in the appliance enclosure clear of obstruction.

• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

• WARNING: Do not damage the refrigerant circuit.

• Allow at least 10 cm spacing around the appliance for ventilation purpose during use.

• Do not use a water jet, flush directly with water or steam cleaner as the parts will get wet and electric shock might be resulted.

• CAUTION! Securely route the power cord if necessary in order to prevent unintentional pulling or contact with the heating surface.

• Do not clean or store the appliance unless it is completely cooled down.

• The appliance should not be tipped over an angle of 5°. After installing the appliance, wait for 2 hours before connecting it to the electrical power supply to switch on. The same applies if the appliance is moved at a later date.5

• This appliance is intended for buffet and house- hold use.

• The appliance is designed only for wine storage and cooling. (e.g. Champagne, white wine, red wine, etc.). Any other use may lead to damage to the appliance or personal injury.

• Operating the appliance for any other purpose may deemed as a misuse of the device. The user shall be solely liable for the improper use of the device. Grounding installation This appliance is classified as protection class I and must be connected to a protective ground. Grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is fitted with a power cord that has a grounding wire and grounded plug. The plug must be plugged into an outlet that is properly installed and grounded. Main components of the machine

1. Housing enclosure

2. Touch control panel (See ===> Operation)

3. Upper hinge cover

6. Lower hinge cover

• Remove the appliance from the carton box, then remove the external and internal packaging and wrapping.

• Check to make sure the appliance is undamaged. In case of incomplete delivery and damages, DO NOT use the appliance. Please contact supplier (See == > Warranty).

• Keep the packaging if you intend to store your ap- pliance in the future.

• Let the appliance stand upright for about 2 hours. This is to reduce the malfunction of the cooling system from improper handling during transpor- tation.

• Clean interior surface with warm water and soft cloth. (See == > Cleaning and Maintenance).

• Place the appliance on a horizontal, stable and heat resist surface that is safe against water splashes.

• Optimum working ambient temperature is be- tween 16°C and 38°C. Otherwise, the functional- ity will be limited.

• Ensure that there is sufficient ventilation. Keep a minimum distance of 10cm around the appliance. Do not block the ventilation holes.

• For energy savings, always make sure the door is closed.6

Operation The appliance is divided into 2 separate zones. The “Upper chamber“ and “Lower chamber“ of the appliance are cotrolled independently with the use of the control panel. Lower chamber A B C D

E F G H Upper chamber

Display indicator: B: Display of the actual temperature of the lower chamber. C: Indicator light of compressor working. While the compressor operating, the red light is on. While it stops operating, the red light is off. D: Display of the actual temperature of the upper chamber. I: When the °C light is on, it indicates Celsius tem- perature; When the °F light is on, it indicates Fahrenheit temperature. Touch control: E: Temperature setting button of the upper cham- ber; Once you press the button, the temperature increase 1°C or 1°F. Setting range is between 5°C~12°C or 41°F~54°F. A: Temperature setting button of the lower cham- ber; Once you press the button, the temperature increase 1°C or 1°F. Setting range is between 12°C~22°C or 54°F~72°F. F: Cabinet light control button Note: Once the light is turned on, it will automat- ically off after 10 minutes all out of protecting the wines inside. G: Celsius and Fahrenheit conversion button H: Power on and off button; Press the button for 3 seconds, it starts; press it for 3 seconds again, it stops.7

• CAUTION! Do protection (not supplied) for the glass door to avoid damage.

• The door is only changing by trained personnel.

• The user shall be solely liable for the damage of changing open direction of the door.

• Follow the working procedure below: 180°

• Clean the appliance before and after each use.

• Never immerse the appliance in water or other liquids.

• Do not clean the appliance with a water jet.

• Clean the surface with a slightly damp cloth or sponge with some mild soap solution

• All washed parts should be rinsed with clean wa- ter to remove the cleaning residues.

• Never use abrasive sponges or detergents, steel wool or metallic utensils to clean the interior or exterior parts of the appliance.

• Dry the interior and exterior surface with a soft cloth. Storage

• Before storage, always make sure the appliance has already been disconnected from the electri- cal outlet and cooled down completely.

• Store the appliance in a cool, clean and dry place. Transportation

• Unplug the appliance from the electrical outlet.

• Remove all the wine bottles inside the appliance.

• Securely tape all loose items inside or outside the appliance.

• At least 2 people for assisting transportation.9

Troubleshooting If the appliance does not function properly, please check the below table for the solution. If you are still unable to solve the problem, please contact the supplier/service provider. Problems Possible causes Possible solutions The appliance is connected to the power supply but does not function.

1. Power plug is not connected

properly to the electrical power.

1. Check again to make sure it is

Temperature inside the ap- pliance is too warm.

1. Temperature is set too warm. 1. Turn to a cooler setting.

2. Door is kept open too long. 2. Open door less.

3. The door gasket does not seal

3. Check to make sure the door gas-

ket seal properly. Moisture forms on the in- side appliance walls.

1. Door is kept on for too long. 1. Open the door less.

Too much Vibration. 1. The appliance is not placed lev- el.

1. Check the level and adjust the feet

until the wine cooler is level. (Mi- nor vibration is normal) The door will not close prop- erly.

1. The Wine Cooler is not placed

1. Check the level and adjust the feet

until the wine cooler is level.

2. The door was reversed and not

3. The shelves are out of position. 3. Check and put the shelves on

Error codes display Error code shown on the display (B and D) Indication Possible causes Possible solutions “E1” or E2” is displayed Upper zone temperature sensor failure

1. The connection of upper

zone temperature sensor is loose. Reconnect the sensor

2. Upper zone temperature

sensor is defective. Contact the supplier “E3” or E4” is displayed Defrost sensor failure 1. The connection of defrost sensor is loose. Reconnect the sensor

2. Defrost sensor is defective. Contact the supplier

“E7” or E8” is displayed Lower zone temperature sensor failure

1. The connection of lower

zone temperature sensor is loose. Reconnect the sensor

2. Lower zone temperature

sensor is broken. Contact the supplier “HH” is displayed with beep sound High temperature alarm (the temperature in the wine cabinet over 78.8°F/26°C)

1. Gas leakage. Contact the supplier

2. The capillary copper tube

on the strainer beside the compressor is blocked.

fective. “LL” is flashing with beep sound and the compres- sor is stopped operation. Low temperature alarm (temperature in the wine cabinet below 32°F/0°C)

1. The fan of heater is

1. Disconnect the power

and connect it again after 5 mins.

2. Contact the supplier

2. The control panel is abnor

3. The heater is defective.11

Warranty Any defect affecting the functionality of the ap- pliance which becomes apparent within one year after purchase will be repaired by free repair or re- placement provided the appliance has been used and maintained in accordance with the instructions and has not been abused or misused in any way. Your statutory rights are not affected. If the appli- ance is claimed under warranty, state where and when it was purchased and include proof of pur- chase (e.g. receipt). In line with our policy of continuous product devel- opment we reserve the right to change the product, packaging and documentation specifications with- out notice. Discarding & Environment When decommissioning the appliance, the prod- uct must not be disposed of with other household waste. Instead, it is your responsibility to dispose to your waste equipment by handing it over to a des- ignated collection point. Failure to follow this rule may be penalized in accordance with applicable regulations on waste disposal. The separate col- lection and recycling of your waste equipment at the time of disposal will help conserve natural re- sources and ensure that it is recycled in a manner that protects human health and the environment. For more information about where you can drop off your waste for recycling, please contact your local waste collection company. The manufacturers and importers do not take responsibility for recycling, treatment and ecological disposal, either directly or through a public system.14
