USER MANUAL PWD 20 A1 PARKSIDE

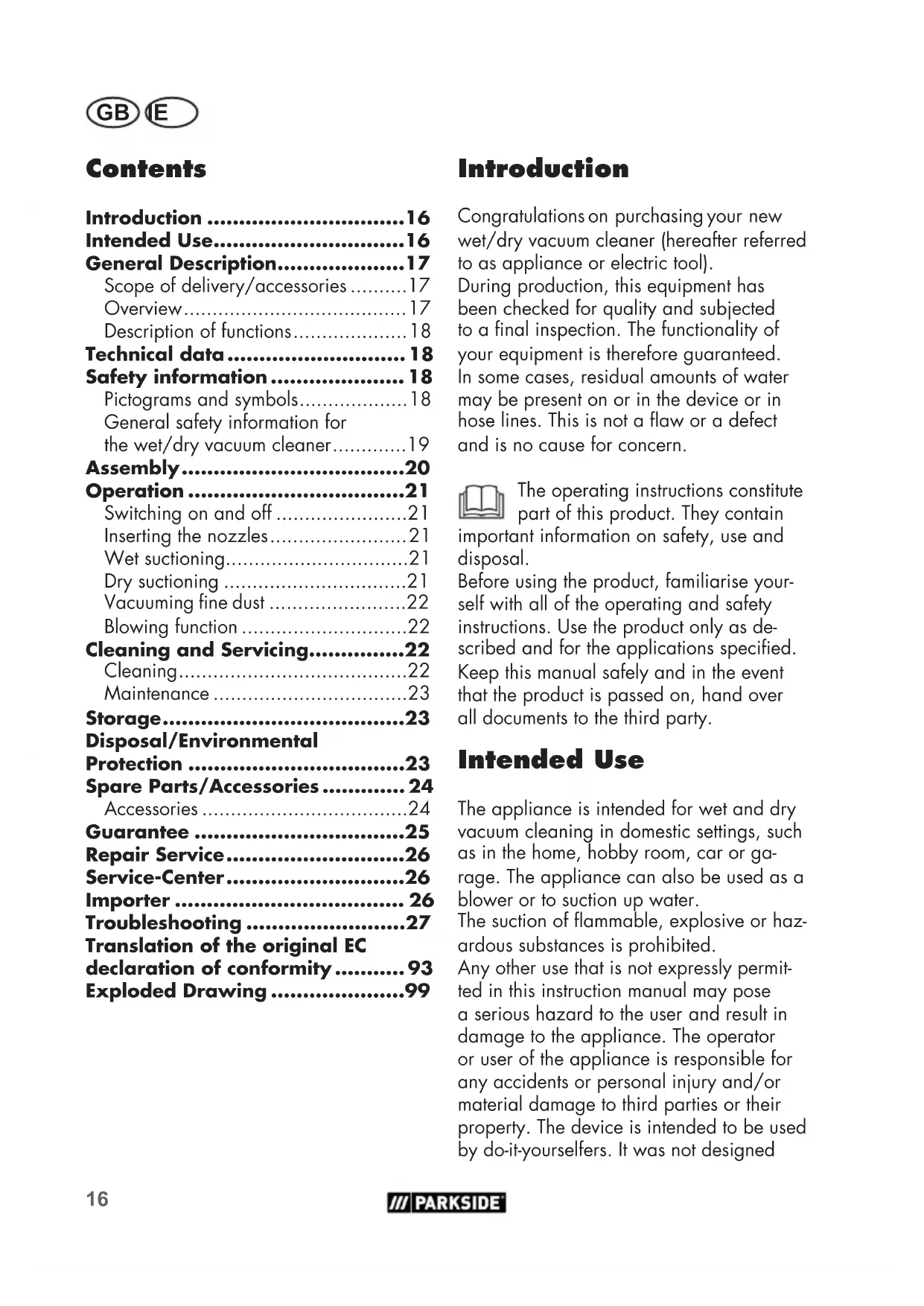

• Contents Introduction p. 16
• Intended Use p. 16
• General Description p. 17
• Scope of delivery/accessories p. 17
• Overview p. 17
• Description of functions p. 18
• Technical data p. 18
• Safety information p. 18
• Pictograms and symbols p. 18
• General safety information for the wet/dry vacuum cleaner p. 19
• Assembly p. 20
• Operation p. 21
• Switching on and off p. 21
• Inserting the nozzles p. 21
• Wet suctioning p. 21
• Dry suctioning p. 21
• Vacuuming ne dust p. 22
• Blowing function p. 22
• Cleaning and Servicing p. 22
• Cleaning p. 22
• Maintenance p. 23
• Storage p. 23
• Disposal/Environmental Protection p. 23
• Spare Parts/Accessories p. 24
• Accessories p. 24
• Guarantee p. 25
• Repair Service p. 26
• Service-Center p. 26
• Importer p. 26
• Troubleshooting p. 27
• Translation of the original EC declaration of conformity p. 93
• Exploded Drawing Introduction Congratulations on purchasing your new wet/dry vacuum cleaner (hereafter referred to as appliance or electric tool). During production, this equipment has been checked for quality and subjected to a nal inspection. The functionality of your equipment is therefore guaranteed. In some cases, residual amounts of water may be present on or in the device or in hose lines. This is not a aw or a defect and is no cause for concern. The operating instructions constitute part of this product. They contain important information on safety, use and disposal. Before using the product, familiarise your- self with all of the operating and safety instructions. Use the product only as de- scribed and for the applications specied. Keep this manual safely and in the event that the product is passed on, hand over all documents to the third party. Intended Use The appliance is intended for wet and dry vacuum cleaning in domestic settings, such asin the home, hobby room, car or ga- rage. The appliance can also be used as a blower or to suction up water. The suction of ammable, explosive or haz- ardous substances is prohibited. Any other use that is not expressly permit- ted in this instruction manual may pose a serious hazard to the user and result in damage to the appliance. The operator or user of the appliance is responsible for any accidents or personal injury and/or material damage to third parties or their property. The device is intended to be used by do-it-yourselfers. It was not designedGB IE p. 99

for heavy commercial use. The warranty is void in the case of commercial use. The manufacturer is not liable for damage caused by improper use or incorrect opera- tion. General Description The illustration of the principal functioning parts can be found on the front and back foldout pages. Scope of delivery/ accessories Unpack the appliance and check that eve- rything is present. Dispose of the packaging material prop- erly. The appliance is delivered with a motor head (1) attached. To remove the motor head and take out the accessories, open the fastening clips (8). Motor head - Stainless steel dirt container - 5 rollers with accessory holders - Three-piece suction pipe - Suction hose with handgrip section - Foam lter - Textile lter bag (already tted) - Paper lter bag - Floor nozzle with rotatable insert attachment: Brush and rubber lip (al- ready tted) - Crevice nozzle - Instruction manual Overview Housing 1 Motor head 2 Carrying handle 3 On/off switch 4 2 accessory holders on motor head 5 Suction connector 6 Dirt container 7 5 feet with rollers and accessory holder 8 2 fastening clips 9 Mains connection cable 10 Cable holder 11 Blowing connector Accessories 12 Three-piece suction pipe 13 Suction hose 14 Handgrip Filters 15 Foam lter for wet suction 16 Textile lter for dry suction (al- ready tted) 17 Paper lter bag to vacuum coarse dirt Nozzles 18 Floor nozzle 19 Rotatable insert attachment for oor nozzle with brush and rub- ber lip for vacuuming carpets and smooth surfaces (already tted) 20 Crevice nozzle 21 Filter basket 22 Suction ttings 23 Sealing ring 24 Connector on the suction tting 25 Holder for mains cableGB IE

Description of functions The appliance is tted with a stainless steel dirt container. The rollers provide good ma- noeuvrability of the appliance. In case of wet suction, the suction airow is switched off by a oat when the dirt container is full. The appliance also features a blow func- tion. Please refer to the descriptions below for information on how the operating elements work. Technical data Wet & Dry Vacuum Cleaner ........................ PWD 20 A1 Rated voltage (U) ................. 220-240 V~ Frequency .............................. 50/60 Hz Rated output (P) .........................1300 W Length mains connection cable ...........4 m Protection class .................................

Protection type .................................IPX4 Suction power ......................200 Airwatt Dirt container volume (gross) .......... 19,8 l Usable container volume (water) ........ 12 l Weight (incl. all accessory parts) ..4,68 kg Safety information This section deals with the basic safety in- structions for using the appliance. This appliance can be used by chil- dren aged 8 years and up as well as individuals with reduced physi- cal, sensory or mental abilities or a lack of experience and knowledge if they are supervised or have been instructed in the safe use of the ap- pliance and understand the result- ing hazards. Children must never play with the device. Cleaning and user maintenance must not be car- ried out by children if they are not supervised. Meaning of the safety infor- mation DANGER!If you do not ob- serve this safety instruction, an accident will occur. The result of which is severe bodily injury or death. WARNING!If you do not observe this safety instruction, an accident may occur. The result of which is likely severe bodily injury or death. CAUTION!If you do not ob- serve this safety instruction, an accident will occur. The result of which is likely minor or moderate bodily injury. NOTE!If you do not observe this safety instruction, an accident will occur. The result of which is possi- ble damage to property. Pictograms and symbols Pictograms on the device Electrical devices must not be disposed of with domestic waste.

For cold ash only*! There is a risk of re if the suction ma- terial exceeds a temperature of 40°C (104°F)!

• “Cold ash” is ash that has cooled down for a suf-GB IE

cient amount of time and no longer contains any embers. This can be determined by combing the ashes with a metal tool before using the device. There will no longer be noticeable heat radiating from the cold ash. Protection class II (double insulation) Pictograms regarding the use of nozzles and lters Nozzle to vacuum carpets. Nozzle to vacuum smooth surfaces and hard oor sur- faces. Nozzle to vacuum dust and dirt from joints and cracks. Filter to vacuum liquids. Filter not suitable to vacuum liquids. Filter to vacuum dry dirt from the house, garage and work- shop. Filter to vacuum ne dust e.g. stone dust or wood dust. General safety information for the wet/dry vacuum cleaner WARNING!Electric shock - observe the following basic safety measures: This is how to avoid acci- dents and injuries:

• Never leave the device unat- tended at the workplace when it is ready for use.

• Do not allow the vacuum to come into contact with people or animals.

• While in operation, never aim the suction hose and nozzles at yourself or other people; par- ticularly not eyes or ears. There is a risk of injury.

• Do not vacuum hot, glowing, ammable, explosive or hazard- ous substances. These include hot ashes, petrol, solvents, acids or alkalis amongst others. Risk of re and injury.

• The nozzles and suction hose must not be at the same height as your head while working. There is a risk of injury. This is how to avoid acci- dents and injuries from an electric shock:

• Check the power line and exten- sion cable for damage and age- ing prior to each use. Do not use the appliance if the cable is damaged or worn.

• Make sure that the rated voltage matches the details on the type plate.

• Connect the appliance to a socket with a fuse of at least 16A.

• Connect the appliance to a socket with a residual current device (RCD) with a tripping current of not more than 30 mA.

• Ensure that the power line does not become damage by beingGB IE

pulled over sharp edges, be- coming trapped or by pulling on the line.

• Never use the power line to pull the plug out of the socket or to pull the appliance. Protect the power line from heat, oil and sharp edges.

• Switch the appliance off and unplug the power chord: - when you are not using the device or when you are transporting or leaving it un- attended; - when you inspect the ma- chine, clean it or remove blockages; - when you perform cleaning or maintenance work, or swap accessories; - if the connection cable is damaged or entangled, - after contact with foreign bodies or if abnormal vibra- tion occurs.

• If the mains connection cable of this appliance is damaged, it must be replaced by the manufacturer or their customer service or by a similarly quali- ed person in order to avoid hazards. This is how to avoid damage to the appliance and possi- ble personal injuries result- ing from this:

• Make sure before use that the appliance is properly assem- bled and that the lters are in the correct position.

• Do not perform vacuuming without lters. The device could become damaged.

• Only use original spare parts and accessories (see “Spare Parts/Accessories”), which are supplied and recommended by our service centre. Using exter- nally produced parts results in the immediate loss of the war- ranty claim.

• Only have repairs performed by customer service centres author- ised by us.

• Comply with the appliance’s cleaning and maintenance in- structions.

• Store the device in a dry place and out of reach of children. Assembly NOTE!The appliance is delivered with a motor head (1) attached. To remove the motor head, open the fastening clips (8).

1. Remove the mains plug.

2. Place the feet (7) into the receptors on

the dirt container (6).

3. Insert the desired lter if it is not pre-

mounted: - Foam lter for wet suction ( 15), - Textile lter bag (

suction, - Paper lter bag ( 17). Never perform vacuuming with- out a lter!

4. After changing lter: Place the motor

head (1) onto the dirt container (6) and lock it into place using the fastening clips (8).

5. Attach the suction hose (13) and acces-

Operation Switching on and off Preparation

1. Fully unwind the suction hose (13) be-

fore commencing work.

2. Prepare the appliance for the desired

into a wall socket. Switching on

1. Move the on/off switch (3) into posi-

tion “I”. Switching off

1. Move the on/off switch (3) into posi-

the wall socket if you are leaving the appliance unattended or if you have nished working. Inserting the nozzles Floor nozzle (18) with insert attach- ment (19): For wet and dry vacuuming of smooth sur- faces and carpeted oors. NOTE!Risk of damage! Be aware that sen- sitive surfaces may be scratched if working without the insert attachment. Floor nozzle (18) without insert at- tachment (19): For wet and dry vacuuming of carpeted oors, for removing stubborn dirt. Removing the insert attachment Push the tabs on the right and left of the oor nozzle (18) and remove the insert at- tachment (19). Crevice nozzle (20): For vacuuming joints, corners and radia- tors. Wet suctioning

1. Place the foam lter (15) onto the lter

basket (21) on the motor head (1). To prevent the foam lter from tearing: - Only insert a dry lter; - Before inserting, twist the edge of the lter slightly and then roll it back.

WARNING!Electric shock! Never reach into the water to be suctioned up. NOTE!Risk of damage! Turn off the appliance immediately if foam or liquid leaks out. Suctioning up (draining): place the suction hose (13) on the handgrip section (14) into the water tank and suction up the water. NOTE!If the dirt container is full, a oat closes the suction opening and the suctioning process is stopped. Switch the appliance off and empty the dirt container.

3. Empty the dirt container immediately

after vacuuming as it is not designed to store liquids (see “Cleaning/Mainte- nance”). Dry suctioning NOTE!The appliance comes tted with the textile lter bag (16). A folded lter, which can be used instead of the textile lter in- cluded in delivery, is optionally available (see “Spare parts/accessories”).GB IE

Suctioning using the textile lter bag

1. Pull the textile lter bag (16) over the

lter basket (21). NOTE!We recommend also using the pa- per lter bag to ensure the textile lter bag does not become clogged too quickly. Suctioning using the paper lter bag

1. Ensure that the textile lter bag is in-

2. Pull the paper lter bag (17) upwards

and over the internal suction tting (22) inside the direct container ( 6). The sealing ring (23) on the lter bag open- ing must fully surround the connector (24) on the suction tting. Vacuuming ne dust Certain suction processes (e.g. sanding paints and varnishes, milling or drilling walls, grinding or drilling hard wood) can pose a risk due to hazardous dust. We recommend using the following option- al lter combination for ne dust. For lters not included in delivery, see “Spare parts/ Accessories”:

• Folded lter instead of the textile lter bag (

16) included in the scope of

• Fine dust lter bag made of eece instead of the paper lter bag ( 17) included in the scope of delivery. Blowing function Preparing the blowing function

1. Remove all lters.

2. Push the suction hose (13) into the

blower connection (11) until it locks in place. Restoring the suction function

1. Press the catch (13a) and pull the suc-

2. Push the suction hose (13) into the suc-

5) until it locks in

Cleaning and Servicing WARNING!Electric shock! Protect yourself when performing maintenance or cleaning work. Turn off the appliance. Pull out the mains plug. You should have any repair and mainte- nance work that is not described in these instructions carried out by our Service Cen- tre. Only use original replacement parts. Cleaning NOTE!Risk of damage! Improper cleaning can damage the appliance. Never spray down the appliance with water. Do not use any abrasive cleaning agents or solvents.

every use. To fully empty the dirt con- tainer, open the fastening clips (8) and pour the residual liquid out.

3. Wash the foam lter (15) with warm

water and soap and let it dry.

4. Tap out the contents of the textile lter

bag ( 16). If needed, wash it with warm water and soap and let it dry.

5. Tap the optionally available folded

lter and clean it with a brush or hand- brush.

6. When full, replace the paper lter bag

17) (for reordering, see “Spare

parts/accessories”). Maintenance The device is maintenance free. Storage

1. Wind the mains connection cable (9)

around the retaining brackets (25) on the back of the appliance. Fix the power cable using the cable clip

(12) into the accessory holders on the feet (7).

3. The accessory holders on the feet (7)

are used to store the accessory parts.

4. Store the device in a dry place and out

of reach of children. Disposal/Environmental Protection Be environmentally friendly. Return the tool, accessories and packaging to a recy- cling centre when you have nished with them. Machines must not be disposed of with household refuse. Take the machine to a recycling point. The waste plastic and metal parts can be sepa- rated, accurately graded and passed on for recycling. Contact our Service Centre for more details. Defective units returned to us will be disposed of for free.GB IE

Spare Parts/Accessories Spare parts and accessories can be obtained at www.grizzly-service.eu If you have issues ordering, please use the contact form. If you have any other questions, contact the service centre (see page 26). Position Position Description Use Order no. instruction exploded manual drawing 1/2 18 Motor head 72079411 6 5 Dirt container 91096902 8 4 fastening clip 91096901 12 13 Three-piece suction pipe 91099439 13/14 12 Suction hose with Handgrip 91105578 15 16 Foam lter, pack of 3 30250099 16 15 Textile lte (Dry lter), blue 30250135 17 17 Paper lter bag, pack of 5 30250132 18/19 14 Floor nozzle with rotatable insert attachment 72800217 20 11 Crevice nozzle 91099005 Anti-static chain 91105503 Accessories Description Design Use Order no. Fine dust lter bag 20 l, pack of 5 2-layer microlter eece, white

Guarantee Dear Customer, This equipment is provided with a 3-year guarantee from the date of purchase. In case of defects, you have statutory rights against the seller of the product. These statutory rights are not restricted by our guarantee presented below. Terms of Guarantee The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase. If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace – at our choice – the product for you free of charge. This guarantee requires the defective equipment and proof of pur- chase to be presented within the three-year period with a brief written description of what constitutes the defect and when it oc- curred. If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee pe- riod begins on repair or replacement of the product. Guarantee Period and Statutory Claims for Defects The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately af- ter unpacking. Repairs arising after expiry of the guarantee period are chargeable. Guarantee Cover The equipment has been carefully pro- duced in accordance with strict quality guidelines and conscientiously checked prior to delivery. The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g.lters or attachments) or to cover damage to breakable parts (e.g. switches). This guarantee shall be invalid if the prod- uct has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specied in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or inter- ventions not undertaken by our authorised service branch. Processing in Case of Guarantee To ensure efcient handling of your query, please follow the directions below:

• Please have the receipt and identica- tion number (IAN 346106_2004) ready as proof of purchase for all en- quiries.

• Please nd the item number on the rat- ing plate.

• Should functional errors or other de- fects occur, please initially contact the service department specied below by telephone or by e-mail. You will then receive further information on the pro- cessing of your complaint.

• After consultation with our customer service, a product recorded as defec- tive can be sent postage paid to the service address communicated to you,GB IE

with the proof of purchase (receipt) and specication of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport pack- aging. Repair Service For a charge, repairs not covered by the guarantee can be carried out by our ser- vice branch, which will be happy to issue a cost estimate for you. We can handle only equipment that has been sent with adequate packaging and postage. Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect. Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted. We will dispose of your defective devices free of charge when you send them to us. Service-Center

Troubleshooting Problem Possible cause Fault correction Appliance does not start No mains power supply Check the socket, mains con- nection cable, line, plug and fuse and have them repaired by a qualied electrician if necessary On/off switch (

broken Repair by Customer Care Worn out carbon brushes Defective motor Weak or no suction power/throughput Suction hose (

nozzle ( 18/20) clogged Removing obstructions and blockages Suction tube (

Empty the dirt container Filter ( 15/16/17) full or clogged Empty, clean or replace the lter Float in lter basket ( 21) in incorrect position (e.g. due to jerky movements) Turn off the appliance, the ball will sink, then switch the appliance back on Float in lter basket ( 21) defective Repair by Customer Care Float does not switch the appliance off Float in lter basket ( 21) not moving Release oat Float in lter basket ( 21) defective Repair by Customer Care Dust or dirt is blow out of the device Filter ( 15/16/17) is not or not correctly assembled

• Check the correct position of the lter

Translation of the original EC declaration of conformity We hereby conrm that the Wet & Dry Vacuum Cleaner model PWD 20 A1 Serial number 000001 - 285463 conforms with the following applicable relevant version of the EU guidelines: 2014/30/EU • 2014/35/EU • 2011/65/EU* In order to guarantee consistency, the following harmonised standards as well as na- tional standards and stipulations have been applied: EN 60335-1:2012/A2:2019 • EN 60335-2-2:2010/A1:2013 EN 55014-1:2017 • EN 55014-2:2015 • EN 62321-1:2013 EN 61000-3-2:2014 • EN 61000-3-3:2013 • EN 62233:2008 This declaration of conformity (20)** is issued under the sole responsibility of the manu- facturer: Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 D-63762 Großostheim Germany

• TheobjectofthedeclarationdescribedabovesatisestheprovisionsofDirective 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances. ** ThelasttwodigitsoftheyearinwhichtheCEmarkingwasafxed. Christian Frank Documentation Representative94
