Technical Specifications	Power: 2000 W
Heating Type	Convection heating
Dimensions	Compact dimensions for easy storage
Usage	Ideal for heating spaces up to 20 m²
Temperature Control	Adjustable thermostat for optimal comfort
Maintenance	Regular cleaning recommended for optimal operation
Safety	Overheat protection system
General Information	Portable stove, lightweight and easy to move

Frequently Asked Questions - PKH 2000 A1 PARKSIDE

How do I turn on the PARKSIDE PKH 2000 A1 stove?

To turn on the stove, plug it into an electrical outlet, select the desired temperature using the thermostat, then press the power button.

What is the maximum power level of the PARKSIDE PKH 2000 A1?

The stove has a maximum power of 2000 watts.

How do I clean the PARKSIDE PKH 2000 A1 stove?

Unplug the stove and let it cool down. Use a damp cloth to wipe the exterior and a vacuum cleaner to remove dust from the ventilation grilles.

Does the PARKSIDE PKH 2000 A1 stove make noise when operating?

A slight noise may be heard due to the internal fan, but it should not be excessive. If you hear unusual noises, check that nothing is blocking the fan.

Does the PARKSIDE PKH 2000 A1 have a safety feature?

Yes, the stove is equipped with a safety system that automatically turns it off in case of overheating or tipping over.

What is the recommended heating area for the PARKSIDE PKH 2000 A1?

This stove is recommended for heating spaces up to 25 m².

Can I use the PARKSIDE PKH 2000 A1 in a bathroom?

No, it is not recommended to use this stove in damp areas such as bathrooms.

Is there a ventilation mode without heating on the PARKSIDE PKH 2000 A1?

Yes, the stove has a ventilation mode that allows air circulation without producing heat.

Where can I find spare parts for the PARKSIDE PKH 2000 A1?

Spare parts can be ordered from PARKSIDE customer service or at hardware stores that sell PARKSIDE products.

What warranty is offered with the PARKSIDE PKH 2000 A1?

The stove generally comes with a 3-year warranty, but check the specific conditions at the time of purchase.

USER MANUAL PKH 2000 A1 PARKSIDE

Black industrial electrical heater with mesh grille and side-mounted cooling unit (no visible text or symbols)

PDF ONLINE www.lidl-service.com

KERAMIK-HEIZGEBLÄSE PKH 2000 A1 CERAMIC FAN HEATER PKH 2000 A1 CHAUFFAGE SOUFFLANT EN CÉRAMIQUE PKH 2000 A1

ATDECH

KERAMIK-HEIZGEBLÄSE

Operation and Safety Instructions

This product is only suitable for well insulated spaces or occasional use.

NL BE

KERAMISCHE VERWARMINGSVENTILATOR

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

Key to the pictograms ...... Page 16

Introduction Page 16

Intended Use Page 16

Equipment Page 16

Scope of Delivery Page 16

Technical Data Page 17

Safety Instructions ...... Page 18

General Safety Instructions Page 18

Before the Start of Operation ...... Page 20

Setting up the Fan Heater Page 20

Commissioning Page 20

Switching Heat Settings and Fan on/off Page 20

Setting the Temperature Page 20

Switching off the Fan Heater Page 21

Overheating Protection Page 21

Troubleshooting Page 21

Maintenance, Cleaning and Storage ...... Page 21

ROWI Germany GmbH warranty ...... Page 22

Service Page 23

Disposal Page 23

Key to the pictograms:
	Read the operating instructions!		Warning - Danger from hot surfaces!
	Pay attention to warning and safety information!		Dispose of packaging and device environmentally friendly!
	Warning!Risk of electric shock!		The packaging is made of environmentally friendly materials!
	Warning! Fire hazard!		Observe the marking of the packaging materials for waste separation!
	Warning! To prevent the fan heater from overheating, the fan heater should never be covered!		Indoor use only!

CERAMIC FAN HEATER PKH 2000 A1

Introduction

Congratulations on the purchase of your new fan heater. You have opted for a high quality product. The operating instructions are part of this product. They contain important information on safety, usage and disposal. Familiarise yourself with all operating and safety instructions before you use the product. Use the product only as described and only for the specified areas of use. When passing on the product, please do not forget to hand over all the necessary documents to the new user.

Intended Use

This fan heater is intended for heating of enclosed spaces only. The fan heater is not suitable for use in rooms where special conditions exist, such as a corrosive or potentially explosive atmosphere (dust, vapour or gas). Do not use the appliance outdoors. Any other use or modification of the device shall be

deemed to be improper and entails a considerable risk of accidents. We assume no liability for damage resulting from improper use. The fan heater is intended for private use only.

Equipment

1 Stand with carrying handle
Heating level switch
Control light
4 temperature control
Air outlet
6 Rotary knobs
Mains cable

- Scope of Delivery

1 Ceramic fan heater PKH 2000 A1

1 Operating manual

- Technical Data

Input voltage: 220-240 V \~, 50 Hz

Nominal power consumption: 2000 W

Safety class: I

Heat control setting 1: 1000 W

Heat control setting 2: 2000 W

Fan operation: 25 W

Thermostat: 0 to +65 °C

Dimensions: 210 x 160 x 217 mm

Weight: approx. 1.6 kg

Information requirements for electric local space heaters

Model identifier(s): PKH 2000 A1

Item Symbol Value Unit

Heat output

Nominal heat output	P_nom	2.0	kW
Minimum heat output (indicative)	P_min	1.0	kW
Maximum continuous heat output	P_max,c	2.0	kW

Auxiliary electricity consumption

At nominal heat output	el_max	na	kW
At minimum heat output	el_min	na	kW
In standby mode	el_SB	na	kW

Item Unit

Type of heat input, for electric storage local space heaters only (select one)

manual heat charge control, with [no]

integrated thermostat

manual heat charge control with room [no]

and/or outdoor temperature feedback

electronic heat charge control with room [no] and/or outdoor temperature feedback

fan assisted heat output [no]

Type of heat output/room temperature control (select one)

single stage heat output and no room [no]

temperature control

Two or more manual stages, [no]

no room temperature control

with mechanic thermostat room [yes]

temperature control

with electronic room temperature control [no]

electronic room temperature [no]

control plus day timer

electronic room temperature [no]

control plus week timer

Other control options (multiple selections possible)

room temperature control, [no]

with presence detection

room temperature control, [no]

with open window detection

with distance control option [no]

with adaptive start control [no]

with working time limitation [no]

with black bulb sensor [no]

ROWI Germany GmbH

- Safety Instructions

Read all safety information and instructions.

Failure to observe the safety information and instructions may result in serious injury or damage to property.

FOR FUTURE REFERENCE, KEEP ALL SAFETY INSTRUCTIONS AND PRECAUTIONS IN A SAFE PLACE!

WARNING! Danger of life-threatening electric shock! Mortal danger

through contact with ducts or components under voltage!

• Do not use the fan heater if the power cord or plug is damaged. Have an authorised electrician install a new power cord before any further use of the fan heater.
• Never open the fan heater housing. There is a danger of electric shock if the live connections are touched and/or the electrical and mechanical installation is changed!
  ■ Before connecting the fan heater, compare the connection data on the rating plate (voltage and frequency) with the data of your electricity supply.

Make sure the data matches, so that no damage to the fan heater occurs.

■ Make sure the mains cable is undamaged and is not laid over hot surfaces and/or sharp edges.
■ Ensure the power cable does not kink or become trapped.
- Repairs to electrical appliances should only be performed by professionals who have been trained by the manufacturer. Unauthorised repairs may result in considerable dangers for the user.

WARNING! FIRE

HAZARD! For that reason,

never use the fan heater in the vicinity of or below curtains and other combustible material.

- Avoid contact between the fan heater and combustible material (e.g. textiles).

■ To prevent the fan heater overheating, the heater must not be covered.

- General Safety Instructions

- Check the fan heater for external visible damage before use. Do not operate a damaged or dropped fan heater.

If the power cable of this fan heater is damaged, to avoid hazards, it must be replaced by the manufacturer or its af-

ter-sales service, or a similarly qualified person.

This fan heater can be used by children over the age of 8 and by persons with reduced physical, sensory or mental capabilities, or people who are lacking in experience and knowledge, if they are supervised or have been instructed in the safe use of the unit and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance must not be undertaken by children without supervision.
■ Children under 3 must be kept away from the fan, unless they are monitored constantly.
Children between the ages of 3 and 8 may only switch the fan heater on and off when they are supervised or have been instructed in the safe use of the fan heater and understand the resulting risks, provided that the fan heater is placed or installed in its normal operating position. Children between the ages of 3 and 8 may not plug the fan into the wall socket, regulate the fan heater, clean the fan heater and/or perform user maintenance.

WARNING OF HOT SURFACES!

Some parts of this product can become very hot and cause burns. Special care is required when children and vulnerable persons are present.

• Only have the fan heater repaired by authorised specialist companies or by customer service. Unauthorised repairs may result in considerable danger to the user. In addition, the warranty claim expires.
  ■ Defective components must be replaced only by original spare parts. Only these parts will ensure that the safety requirements are met.
  ■ Protect the fan heater against moisture and the ingress of liquids.
• Disconnect from the power supply connection only by removing the plug from the socket.
• Do not operate the fan heater in the vicinity of open flame.
• Do not place the fan heater directly below or above a wall socket.
  ■ Pull the plug out of the socket in the event of malfunctions and during thunderstorms.
  ■ Never use the fan heater in the immediate vicinity of a bath, shower or swimming pool.

● Before the Start of Operation

- Setting up the Fan Heater

■ Remove all packaging material and all transport securing devices from the fan heater.

For safe and error-free operation of the fan heater, the installation site must meet the following requirements:

• The ground must be firm, flat and level.
• A minimum distance of 30 cm must be kept to the side, 30 cm to the top, 30 to the rear and 100 cm to the front.
• Do not place the fan heater in a hot, wet or very humid environment or near flammable material.
• The socket must be easily accessible so that the mains cable 7 can be easily removed in case of emergency.

Please note: When used for the first time, it may briefly cause a slight odour.

Commissioning

- Switching Heat Settings and Fan on/off

■ Make sure the heating level switch 2 is set to 0. Then connect the heater to a earthed and fused plug socket protected by a GFCI. Free rotation of the fan must be ensured.
Now switch on the fan heater by turning the heating level switch 2 to the desired position. For this:

0	Off Position	If the heating level switch2is in this position, the fan heater is switched off.
	Fan position	If the heating level switch2is in this position, only the fan operates. Move the switch to this position when you want to use the heater as a fan.
	Heat control setting 1	If the heating level switch2is in this position, the fan heater produces a heat output of 1000 W.
	Heat control setting 2	If the heating level switch2is in this position, the fan heater produces a heat output of 2000 W.

	MIN position of the temperature control
	MAX position of the temperature control

- Setting the Temperature

• Start the heater by using the heating level switch
• 2 to set the desired heat level.
  Turn the temperature control 4 clockwise until it stops. The control light 3 begins to illuminate.
  When the desired temperature is reached, turn the temperature control 4 counter-clockwise until you hear an audible click, the control light 3 will then go out. An integrated thermostat will now automatically switch the heating function on and off.

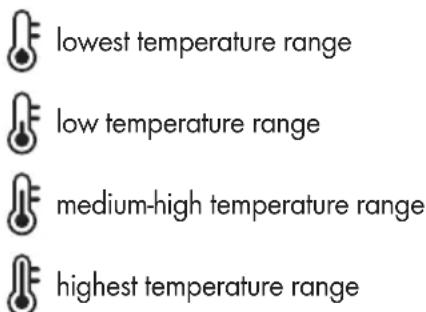

Regardless of the actual room temperature, the symbols shown only represent a guide value for the temperature range you require.

lowest temperature range low temperature range medium-high temperature range highest temperature range

Please note: The fan heater temporarily remains very hot during the heating intervals. Please take care when operating the fan heater.

⚠ The fan heater has angle adjustment. Turn the rotary knobs 6 at the side to adjust the tilt.

- Switching off the Fan Heater

• To avoid heat build-up in the fan heater, allow the fan to run for approximately 30 seconds afterwards.
  ■ Turn the heating level switch 2 to position 0.
• Pull out the mains plug to disconnect the heater from the mains supply, thus switching it off completely.

● Overheating Protection

This fan heater is equipped with overheating protection. If the fan heater overheats, it will switch off automatically. The fan continues to run so that rapid cooling is achieved. The fan heater will switch on again automatically once it has cooled down properly.

⚠️ PLEASE NOTE: There is usually a reason for overheating! It can indicate a fire hazard!

• Check whether the fan heater is giving off sufficient heat: Is the fan heater covered or is it too close to a wall or other obstruction? Is the grid blocked in the front or at the back? Is the fan blocked?
  Rectify the problem if possible, or contact the service hotline (see the section "Service").
  Even if you were unable to identify the cause, if the overheating protection is triggered a second time, you must switch off the fan heater and contact the service hotline (see "Service" Section).

● Troubleshooting

Fault Possible cause Solution
The fan heater will not switch on.	The mains plug is not plugged in.	Insert the mains plug in the socket.
	Socket delivering no voltage.	Check the house fuses.
The fan heater does not heat up.	Heating level switch 2 is not switched on.	Set the heating level switch 2 to the desired operating mode.
	Temperature control 4 is in the MIN position.	Set temperature control 4 to the MAX position.
	Faulty heating element.	Notify customer services.

● Maintenance, Cleaning and Storage

■ Always disconnect the mains plug when the fan heater is not in use, before cleaning or in the event of operating faults!
- Clean the fan heater only when switched off and cold.
■ Make sure when cleaning that no moisture penetrates into the fan heater, to avoid irreparable damage to the fan heater.
- Clean the housing with a slightly damp cloth and a mild detergent.
- Use a vacuum cleaner to remove dust from the safety guard.
■ Store the heater in a dry environment.

● ROWI Germany GmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The validity period of the warranty starts from the date of purchase. Please keep your original receipt in a safe place. This document will be required as proof of purchase.

If any material or production fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you at our discretion. This warranty service is dependent on you presenting the defective appliance and the proof of purchase (receipt) and a short written description of the fault and its time of occurrence.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or fragile parts such as switches, batteries, baking moulds or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications/repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

Please have the till receipt and the item number (IAN 336765_2001) available as proof of purchase.
- You will find the item number on the type plate, an engraving on the front page of the instructions (bottom left), or as a sticker on the rear or bottom of the appliance.
If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.
- You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

PDF ONLINE www.lidl-service.com

NOTICE: At www.lidl-service.com you can download this manual as well as many other manuals, product videos and software. This QR code will take you directly to the Lidl service page (www.lidl-service.com) and allow you to open your operating instructions simply by entering the article number (IAN 336765_2001).

Service

If any problems arise while using your ROWI Germany product, please proceed as follows:

Contact

You can contact the ROWI Germany Service Team at:

ROWI Germany GmbH

(free of charge from a German landline)

IAN 336765\_2001

Most problems can be fixed with competent technical advice from our service team.

- Disposal

The packaging is made of environmentally friendly materials that can be disposed of at local recycling facilities.

Do not dispose of the product with the normal household waste, but via municipal recycling points! Please contact your municipal or city administration to find out options for the disposal of the used product.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations and numbers with following meaning: 1-7: plastics/20-22: paper and fibreboard/80-98: composite materials.

Protection anti-surchauffe Page 31

● Protection anti-surchauffe

Tryb wentylatora: 25 W

Termosta: 0 do +65 °C
